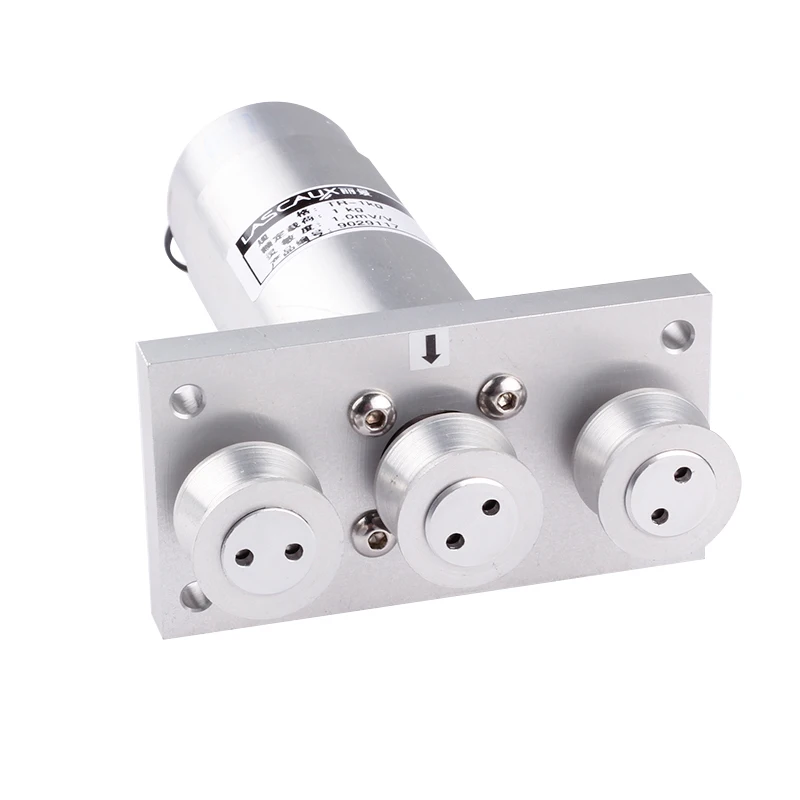

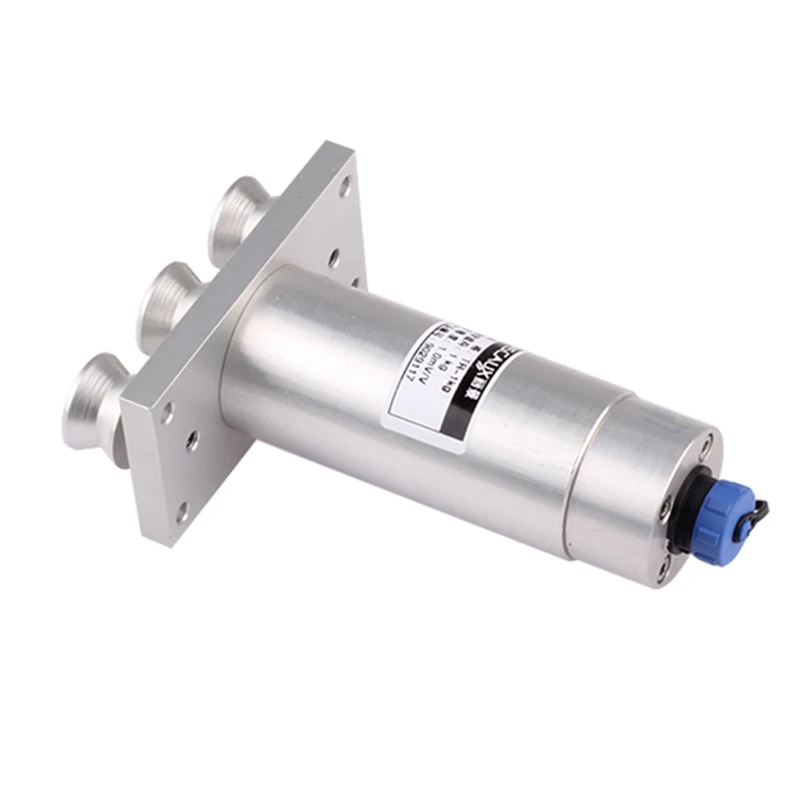

0.1kg to 50kg on line Tension Load Cell TR Tension Sensor for Rope Fiber Wires
- Category: >>>
- Supplier: Lascaux Microelectronic Device (tianjin) Co. Ltd.
Share on (1600689374342):
Product Overview
Description
Product Description
TR Tension Sensor
Description:
2. Resistance strain measurement methods
3. Compact structure, durable in use，easy to install
4. High comprehensive precision, high stability
5. Roller is made of Aluminum、chromium plating Alloy Steel、Plastic、Ceram
6. Be matched with amplifiers, 0-10v or 4-20mA are available
7. On-line tension measurement accurately
Applications:
Model: TR
Features:
1. Capacities (kg):0.1 to 50 kg
2. Resistance strain measurement methods
3. Compact structure, durable in use，easy to install
4. High comprehensive precision, high stability
5. Roller is made of Aluminum、chromium plating Alloy Steel、Plastic、Ceram
6. Be matched with amplifiers, 0-10v or 4-20mA are available
7. On-line tension measurement accurately
Applications:
Be suitable for on-line tension measurement, such as rope, fiber, electric wires, metal wire and other similar products.
Specifications: | ||||
Rated Load | kg | 0.1,0.5,1,2,5,10,20,50 | ||
Rated Output | mV/V | 1.5 | ||
Zero Balance | %R.O. | ±1 | ||
Comprehensive Error | %R.O. | ±0.3 | ||
Compensated Temp. Range | ℃ | -10~+40 | ||
Operating Temp. Range | ℃ | -20~+70 | ||
Temp. effect/10℃ on output | %R.O./10 ℃ | ±0.03 | ||
Temp. effect/10℃ on zero | %R.O./10 ℃ | ±0.03 | ||
Recommended Excitation Voltage | VDC | 5-12 | ||
Maximum Excitation Voltage | VDC | 15 | ||
Input impedance | Ω | 380±10 | ||
Output impedance | Ω | 350±5 | ||
Insulation resistance | MΩ | ≥5000（50VDC） | ||
Safe Overload | %R.C. | 150 | ||
Ultimate Overload | %R.C. | 300 | ||
Material | Aluminum | |||
Degree of protection | IP65 | |||
The length of the cable | m | 3m | ||

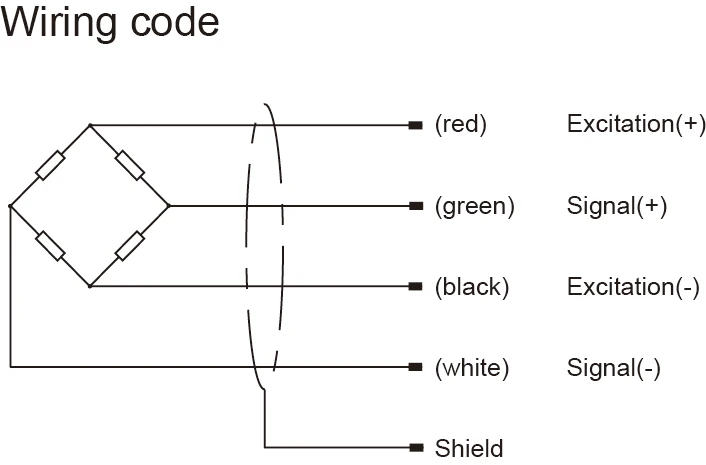

Wiring code | Ex: | Red：＋ Black：– | ||
Sig: | Green：＋ White：– | |||
