Solar Energy System 3KW 5KW 10KW 20KW 30KW On Grid Off Grid Hybrid Solar Panel System for Home (1600689455511)

Share on:


Price:$0.48 - $0.57
Price in USD:Details

Quantity:


Product Overview

Description



Products Description




Warranty

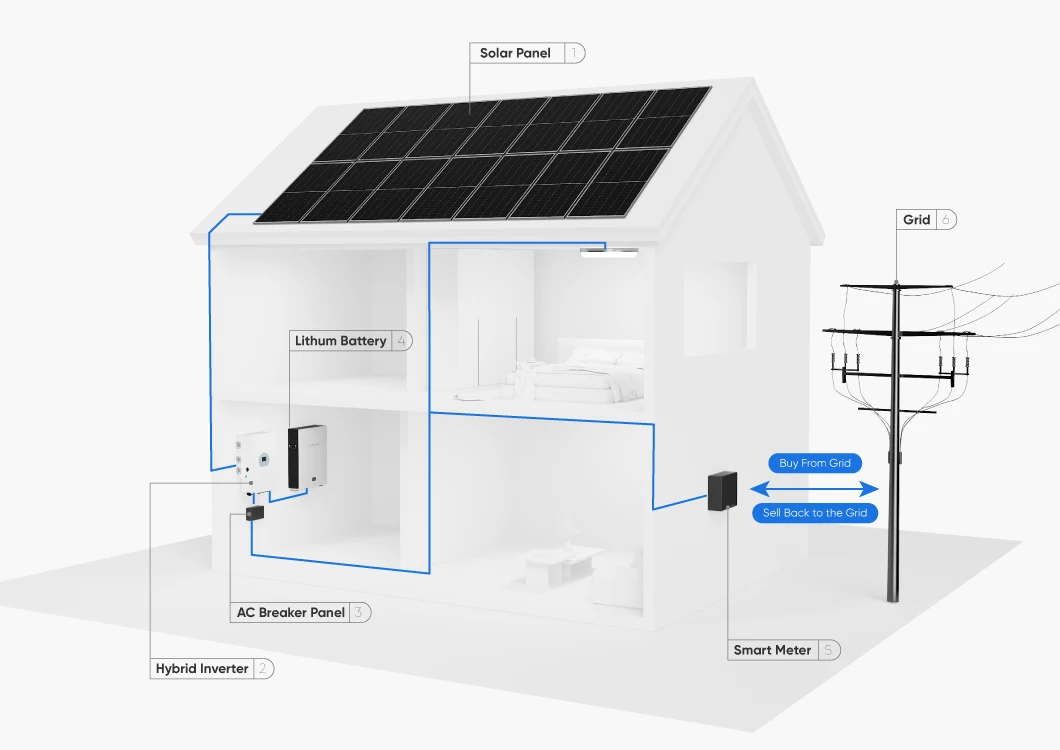

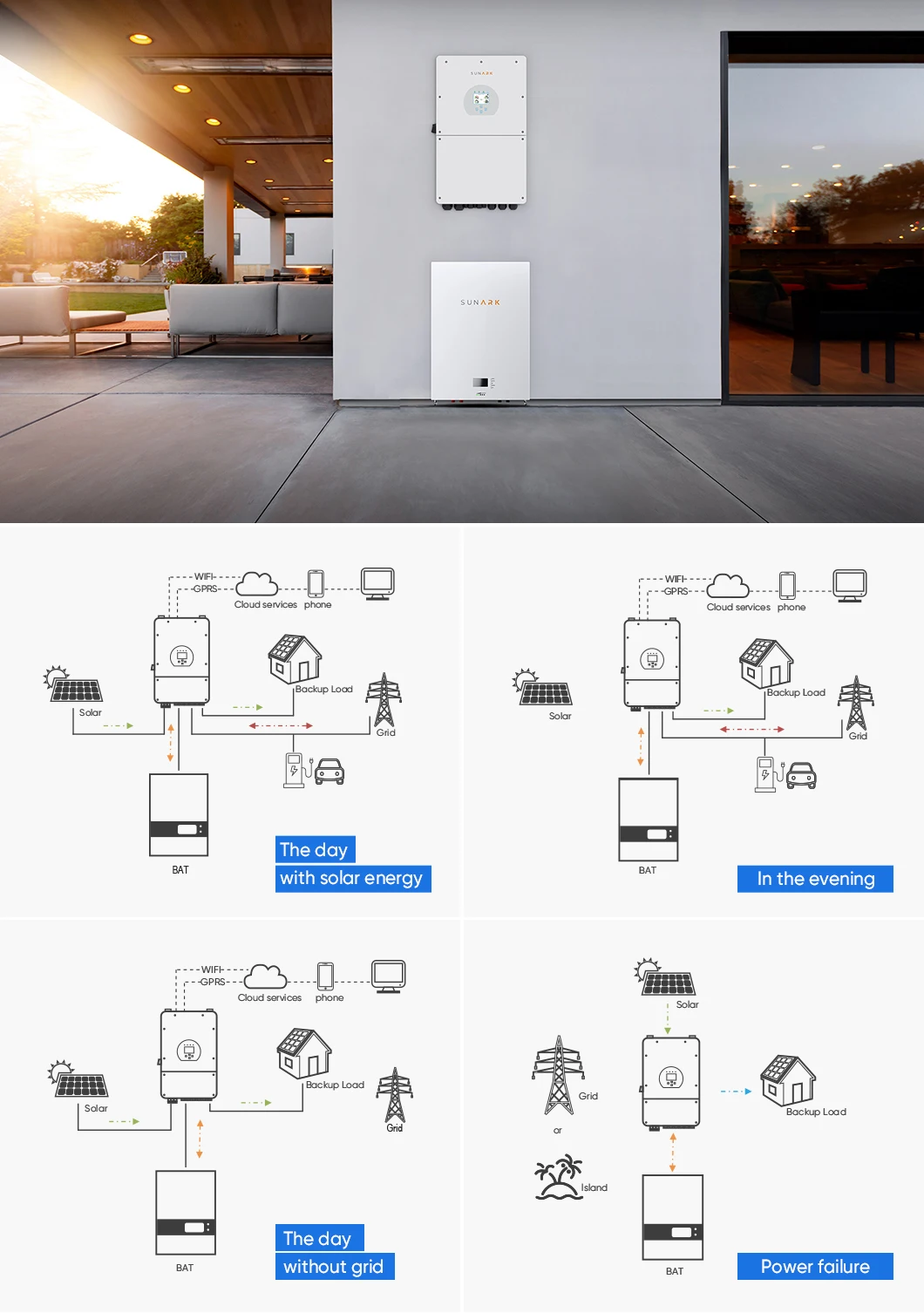

How it works

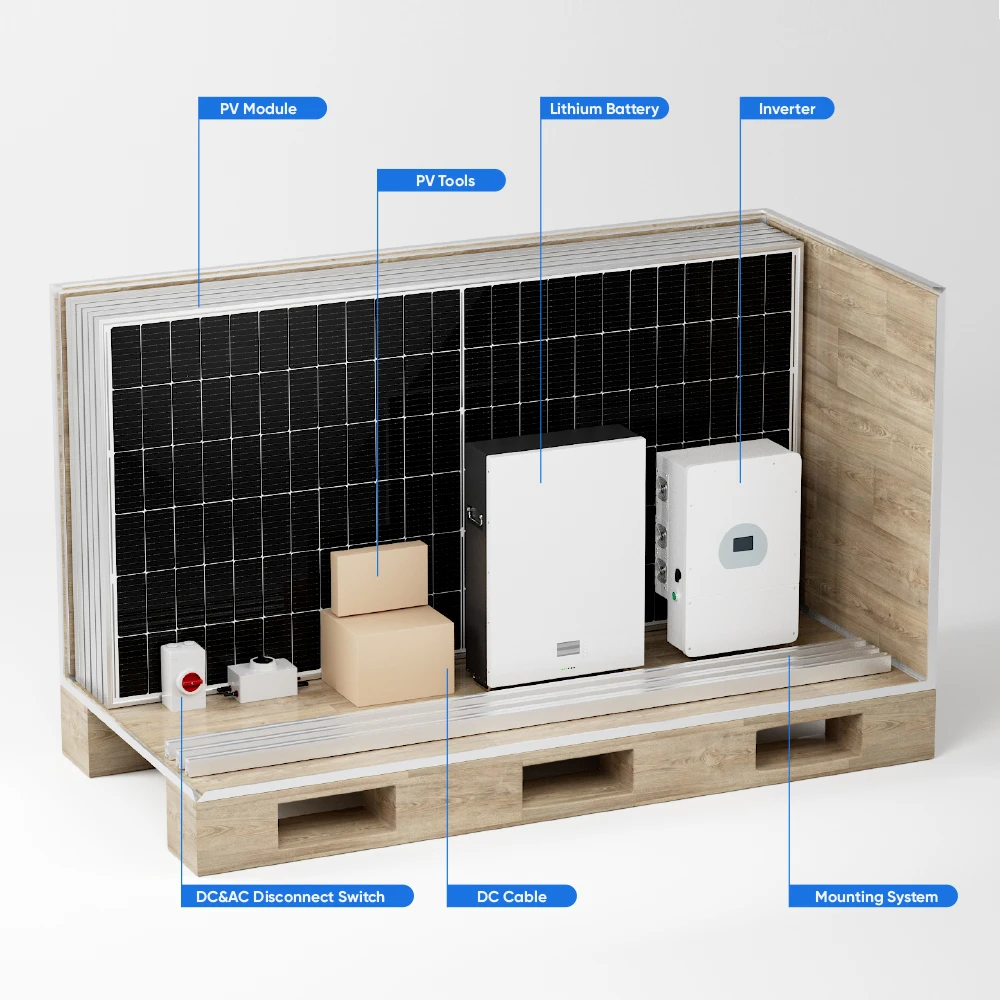

What's Included


Model
SE-3KW-HY
SE-5KW-HY
SE-10KW-HY
Half Cut Mono 550W Solar Panel
6 Pieces
10 Pieces
21 Pieces
DC Disconnect Switch
1 Piece
2 Pieces
3 Pieces
Hybrid Inverter
SUN-3K-SG04LP1-EU
SUN-5K-SG03LP1-EU
SUN-10K-SG04LP3-EU
Wall Mounted LiFePo4 Battery
5Kwh
5Kwh
10Kwh
DC Cable 4mm2
100 meter
200 meter
400 meter
AC Disconnect Switch
1 Piece
1 Piece
1 Piece
MC4 Connector
10 Pairs
10 Pairs
10 Pairs
Mounting System
Customized Product Based On Installation Roof/Ground


PV Installation Tools
1 Set


Model
SE-15KW-HY
SE-20KW-HY
SE-30KW-HY
Half Cut Mono 550W Solar Panel
30 Pieces
42 Pieces
63 Pieces
DC Disconnect Switch
4 Pieces
6 Pieces
9 Pieces
Hybrid Inverter
SUN-5K-SG03LP1-EU  3 Pieces
SUN-10K-SG04LP3-EU  2 Pieces
SUN-10K-SG04LP3-EU  3 Pieces
Wall Mounted LiFePo4 Battery
15Kwh
20Kwh
30Kwh
DC Cable 4mm2
600 meter
800 meter
1000 meter
Mounting System
Customized Product Based On Installation Roof/Ground


PV Installation Tools
1 Set





Half Cut Mono 550W Solar Panel
Peak Power Watts: 550W
Maximum Power Voltage: 42.06V
Maximum Power Current: 12.84A
Open Circuit Voltage: 49.75V
Short Circuit Current: 13.63A
Dimensions:2279x1134x35mm
Weight:26.9 kg

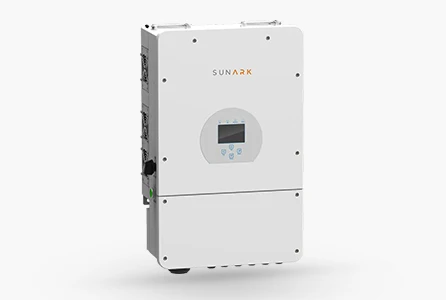

Hybrid Solar Inverter
48V low voltage battery, transformer isolation design.
6 time periods for battery charging and discharging.
Max. charging/discharging current of 240A
Max.10pcs parallel
DC couple and AC couple to retrofit existing solar system

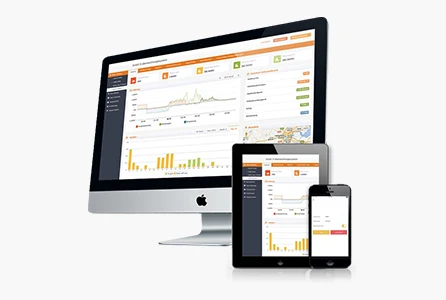

Monitoring System
Open station supports one-click installation and registration
Problem support one-click dispatch and navigation
Safe operation, traceable logs, etc
Support full lifecycle data storage to ensure data security and reliability

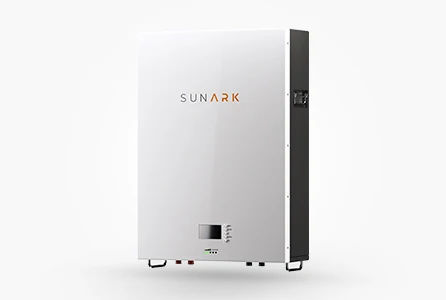

Wall Mounted LiFePo4 Battery
15-20 years design life. Up to 6000 + cycle Ilfe
Wall mount or ground stack brick, simply connecting to inverter
Battery module is scalable for any larger storage system.
Battery modular built in high quality BMS. Protect battery cells all the way.
Lithium iron phosphate battery cell, stay safe with battery storage at home.

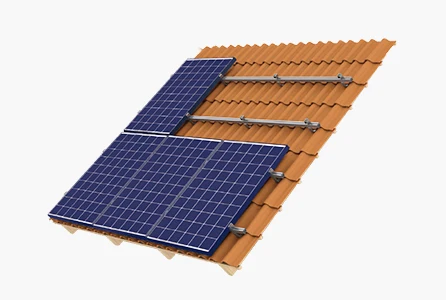

PV Mounting System
Mounting Rail & Rail Splice Kit: AI6005 & SUS304 Bolt.
Mid & End Clamps: 35,40,45,50mm
L Foot Asphalt Shingle Moount & Hanger Bolt Optional
Cable Clip & Tie Optional
Ground Clip & Lugs Optional

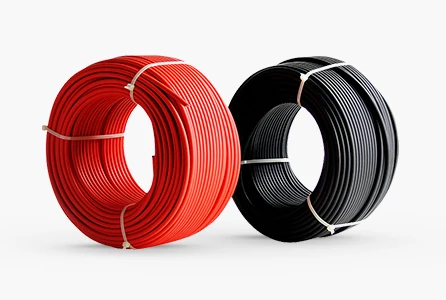

DC Cable & MC4 Connector
Cross Section: 4mm2, 6mm2 Optional
Rated Voltage:600VDC(UL)/1000VDC(TUV)
Rated Current: 55A,70A
Colors: Black For STD, Red Optional.
Lifetime:≤25 Years

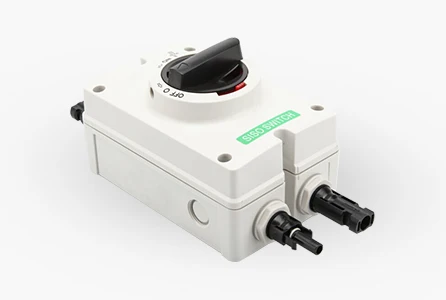

DC & AC Disconnect Switch
IP Rating: IP66
Rated Voltage: 1000VDC
Connection Type: M20,M25,MC4
Rated Current: 16A,20A



PV Tools
Wire Cable Cutter & Stripper,
MC3 MC4 Crimper
MC4 Connectors Assembly
Disassembly Tool

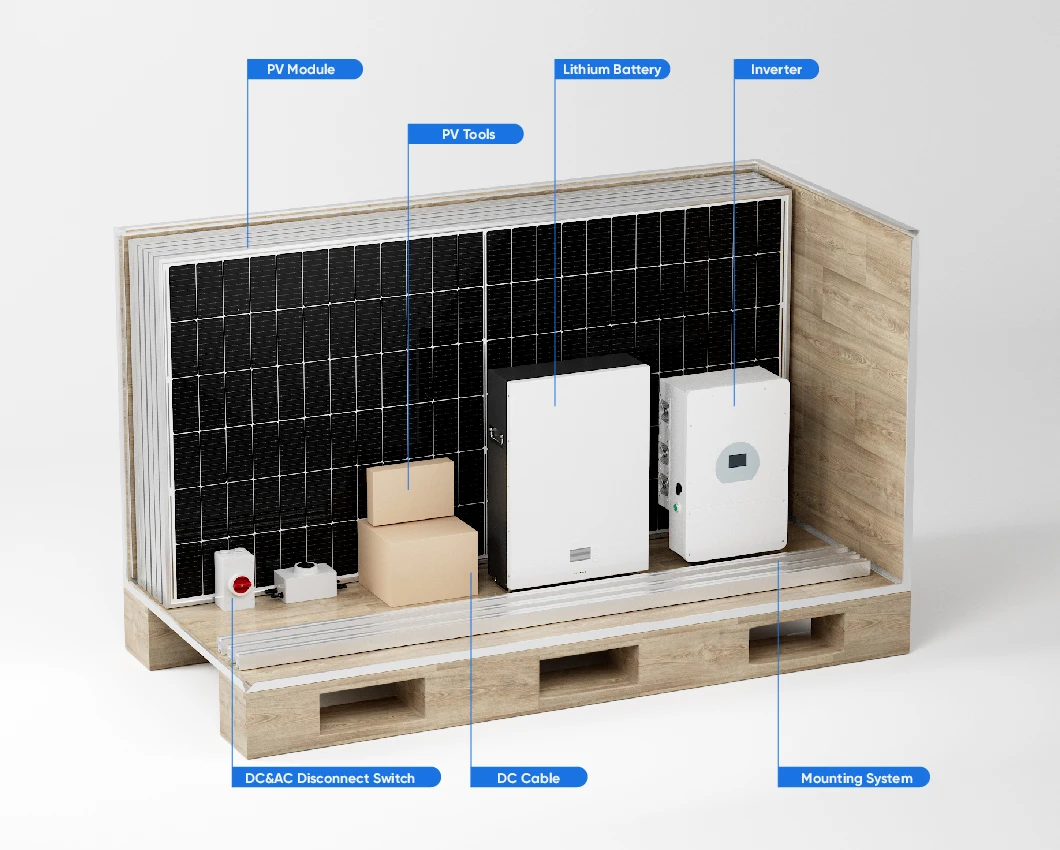

Product Packaging






Applications








Our Factory

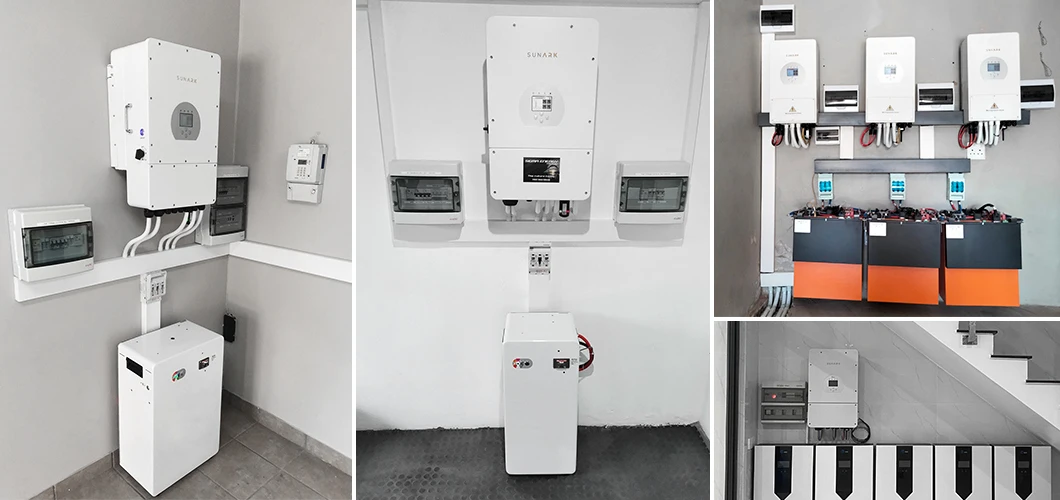

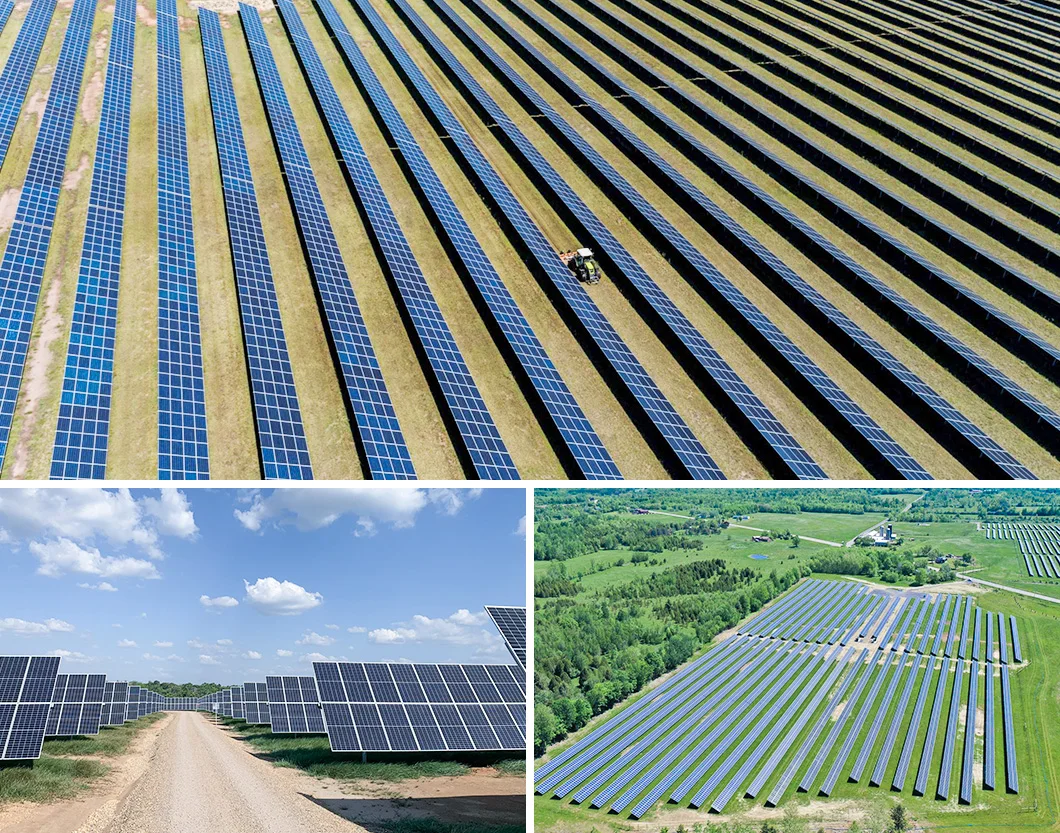

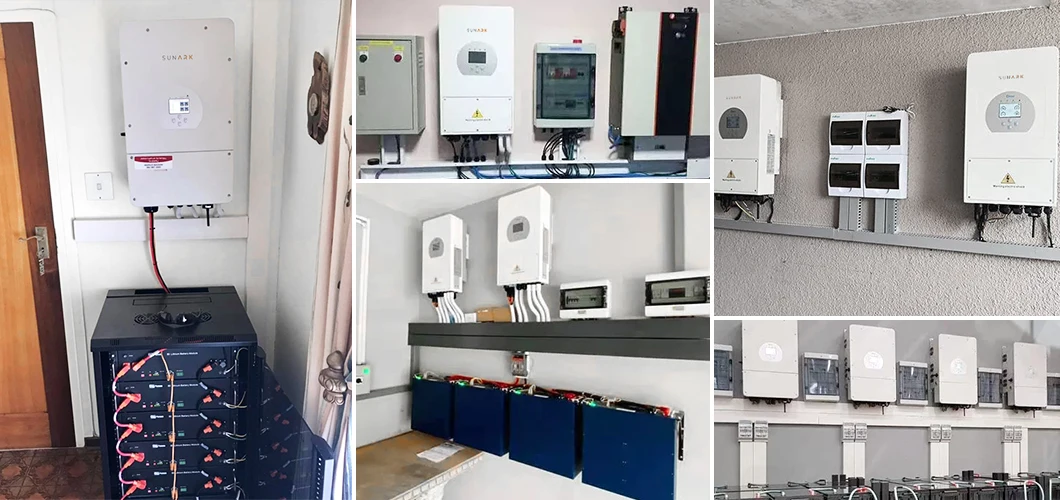

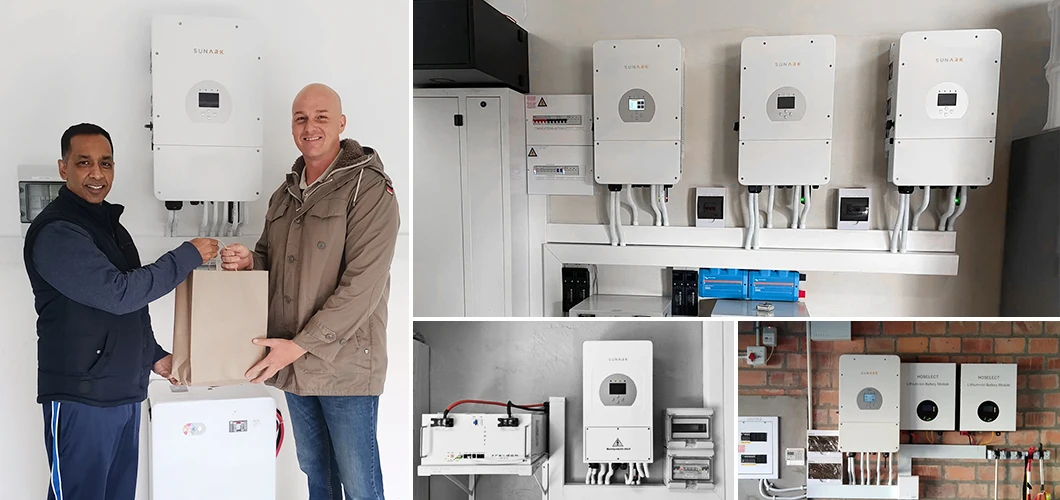

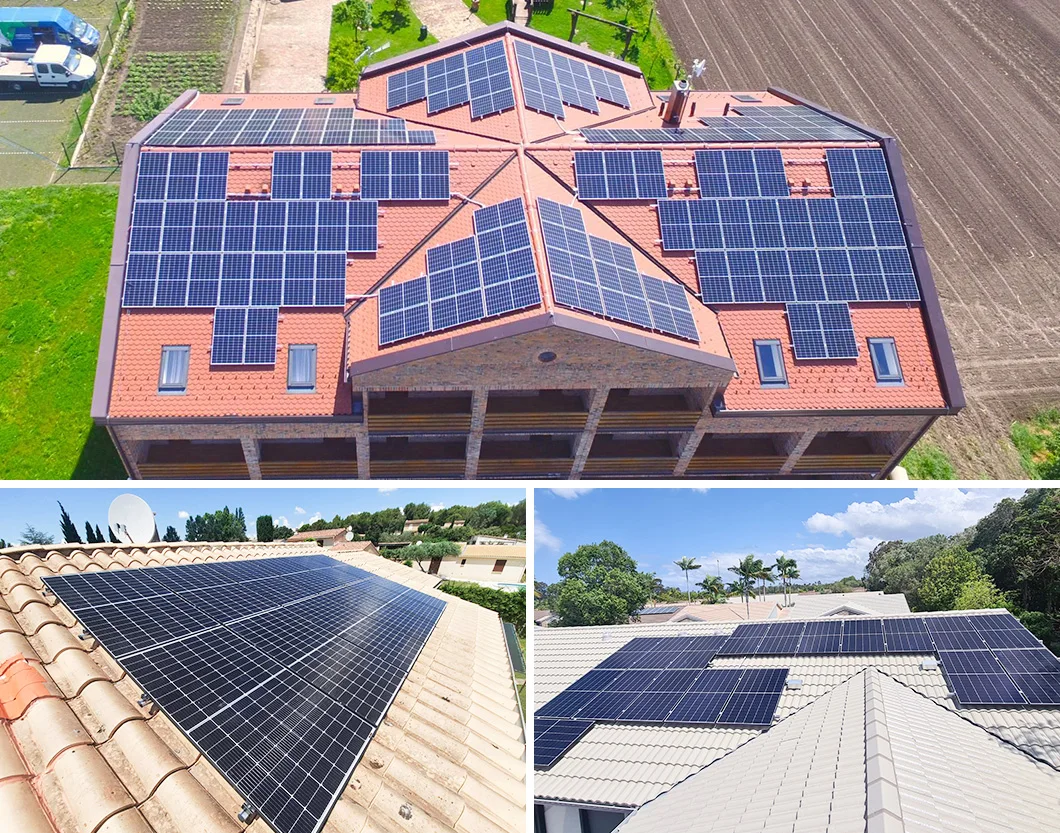

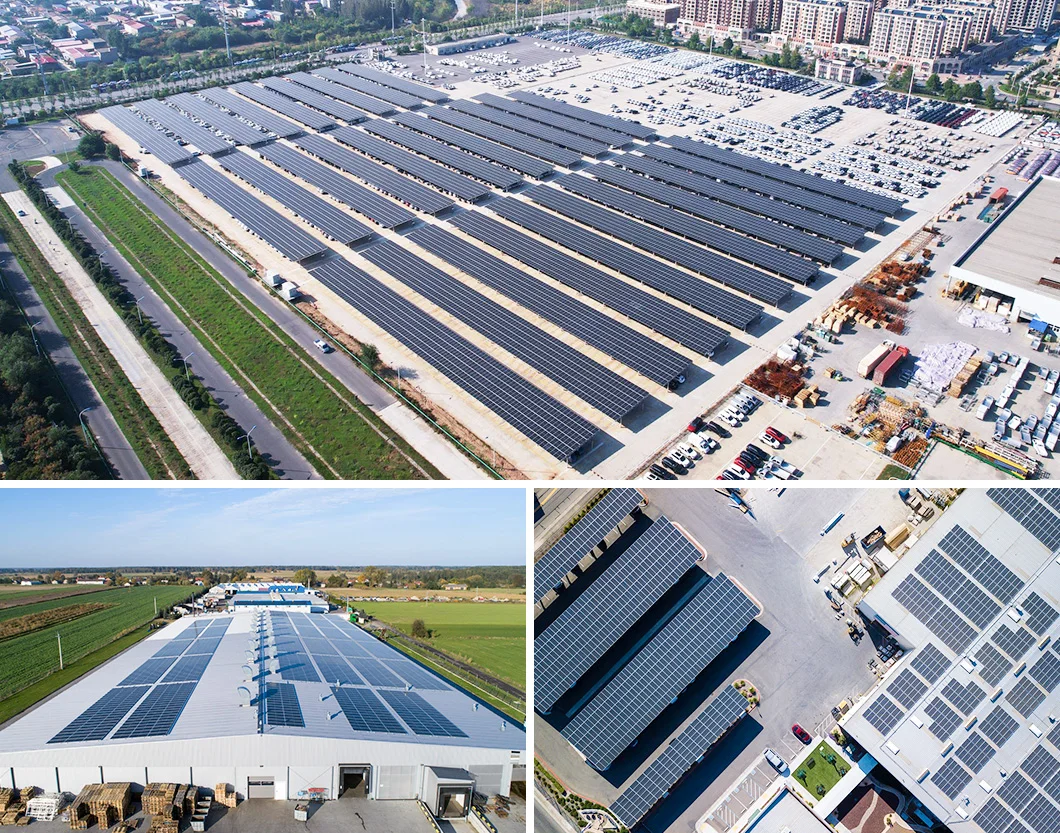

Project Case
