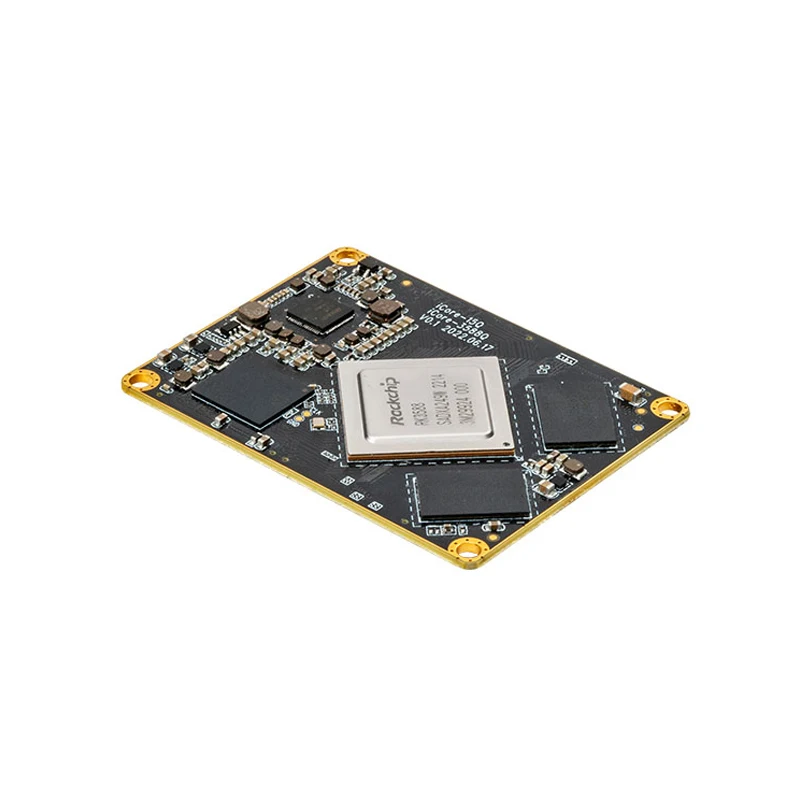

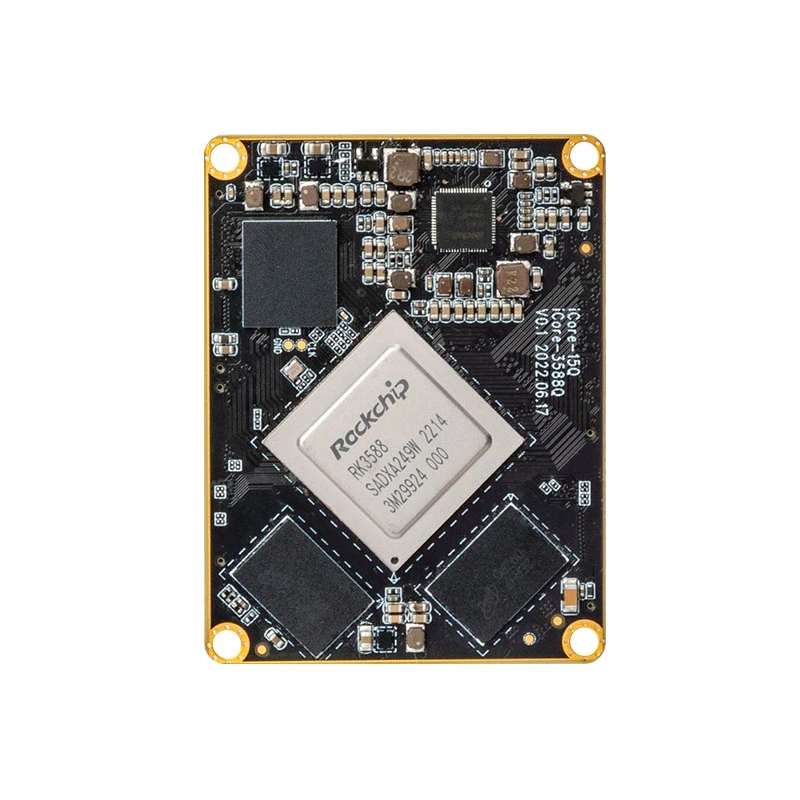

iCore 3588Q 8K AI Core Board core board 8nm A76 6Tops computing power BTB RK3588 Rockchip
- Category: >>>
- Supplier: Huizhou Oleading Technology Co. Limited
Share on (1600689470792):
Product Overview
Description
Product Description
Product Paramenters
Basic Specifications | ||
SOC | RockChip RK3588 | |
CPU | Octa-core 64-bit (4×Cortex-A76+4×Cortex-A55), 8nm lithography process, frequency up to 2.4GHz | |
GPU | ARM Mali-G610 MP4 quad-core GPU Support OpenGL ES3.2 / OpenCL 2.2 / Vulkan1.1, 450 GFLOPS | |
NPU | NPU computing power up to 6 TOPS Support INT4/INT8/INT16 mixed operation, Support framework switching of TensorFlow / MXNet / PyTorch / Caffe | |
ISP | Integrated 48MP ISP with HDR&3DNR | |
VPU | Video decoding: 8K@60fps H.265/VP9/AVS2 8K@30fps H.264 AVC/MVC 4K@60fps AV1 1080P@60fps MPEG-2/-1/VC-1/VP8 Video encoding: 8K@30fps encoding, support H.265 / H.264 *Achieve up to 32-channel 1080P@30fps decoding and 16-channel 1080P@30fps encoding | |
RAM | 4GB/8GB/16GB 64bit LPDDR4/LPDDR4x/LPDDR5 (Up to 32GB optional) | |
Storage | 16GB/32GB/64GB/128GB eMMC | |
Hardware Specifications | ||
Network | Integrated PCIe3.0/GMAC/SDIO3.0/USB3.0, can be extended to multi-channel Gigabit Ethernet, WiFi6/Bluetooth and 5G/4G LTE | |
Display | Video output: 2×HDMI2.1 (8K@60fps or 4K@120fps, multiplexed with eDP) 2×MIPI-DSI (4K@60fps) 2×DP1.4 (8K@30fps, multiplexed with USB3.0) 1×BT.1120 (1080P@60fps) Video input: 1×HDMI-IN (4K@60fps), support HDCP 2.3 2×MIPI CSI (4 Lane) or 4×MIPI CSI (2 Lane) or 1×MIPI CSI (4 Lane) + 2×MIPI CSI (2 Lane) 2×MIPI DC (4-lane DPHY v2.0 or 3-lane CPHY V1.1) 1×DVP camera interface (up to 150MHz data input) * Support multi-channel 8K video output and 4K video input Up to four-screen output with different displays can be achieved. | |
Audio | 2×8 Lane I2S 2×2 Lane I2S 2×SPDIF 2×8 Lane PDM (support multi-Mic array) 1×dual-channel digital audio codec (16-bit DAC) 1×VAD | |
PCIE | PCIe3.0 (2×2lanes,1×4lanes,4×1lanes) 、3×PCIE2.0(1 lanes) | |
SATA | 3 × SATA3.0 | |
USB | 3×USB3.0、2×USB2.0 Host、2×USB2.0 OTG | |
Watchdog | Support independent watchdog | |
Power | 4V (voltage tolerance±5%) | |
Other Interfaces | 9×I2C、10×UART、5×SPI、4×ADC 、16×PWM 、1×SDMMC、GPIO | |
OS/Software | ||
OS | Android 12.0, Ubuntu Desktop and Server, Debian11 and Buildroot RTLinux (delivering excellent real-time performance) Kylin and UOS | |
General | ||
Dimension | 66 mm × 50 mm | |
Weight | ≈20g | |

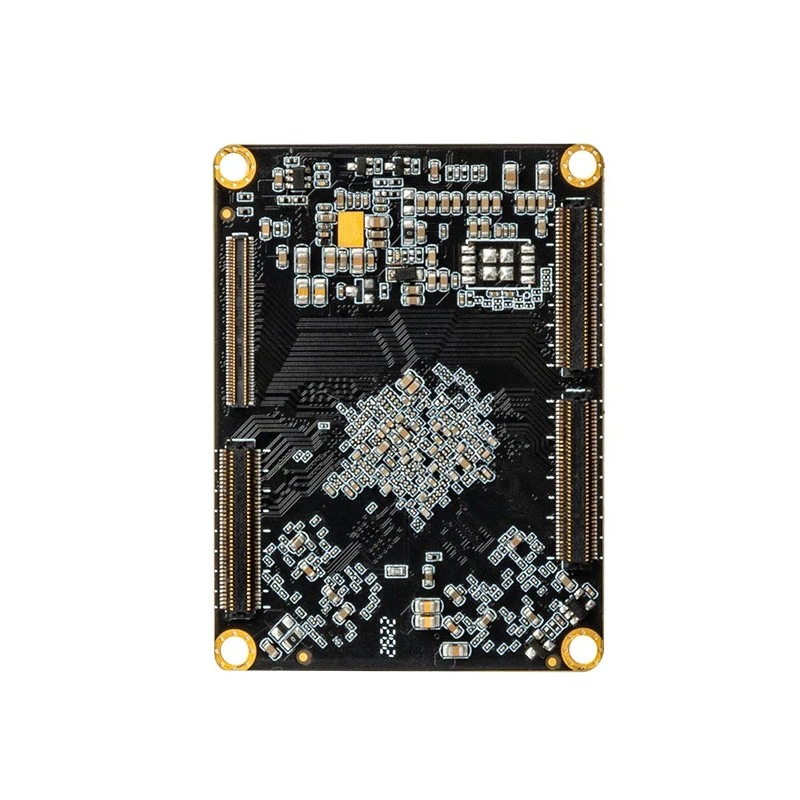

Interface Type | BTB connector (1×60Pin + 3×80Pin) | |
Power Consumption | Idle: 0.04W (4.0V/10mA) Typical: 1W (4.0V/250mA) Max: 12W (4.0V/3000mA) | |
Environment | Operating Temperature: 20℃- 60℃ Storage Temperature: -20℃- 70℃ Storage Humidity: 10%～80 % | |
