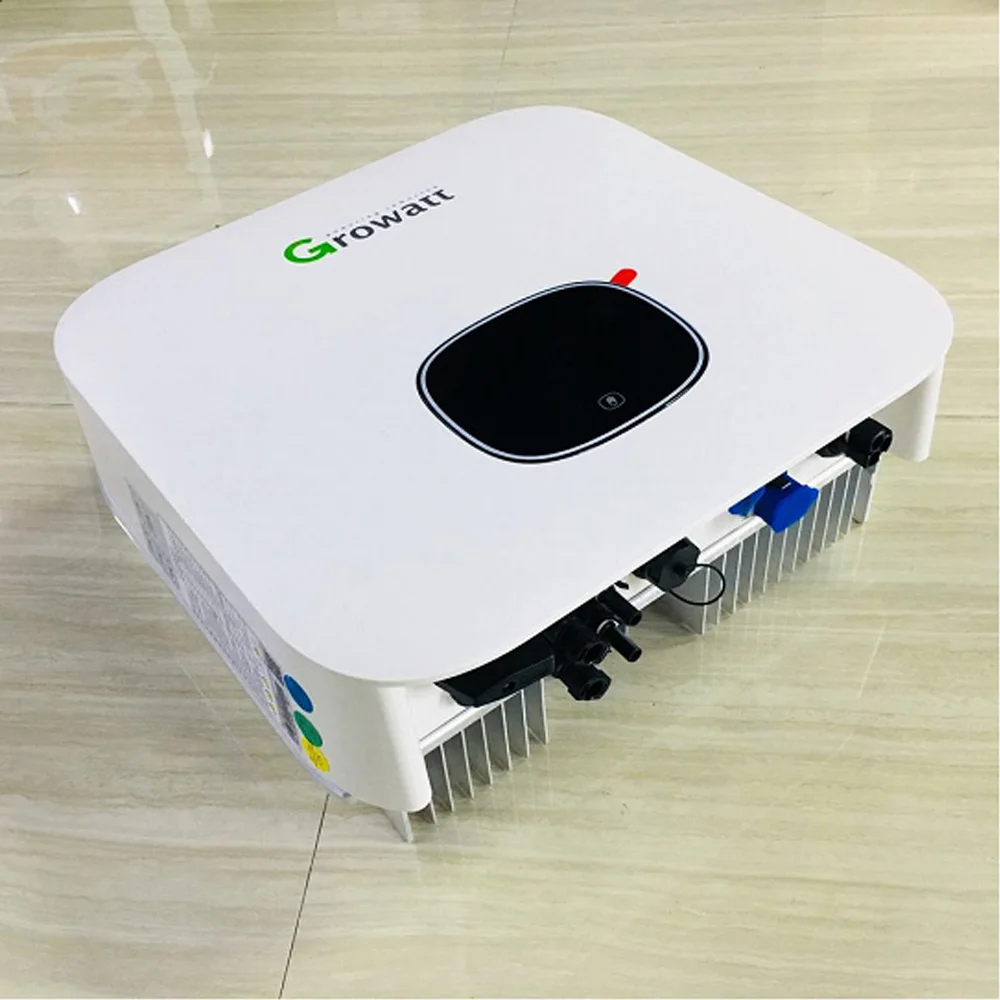

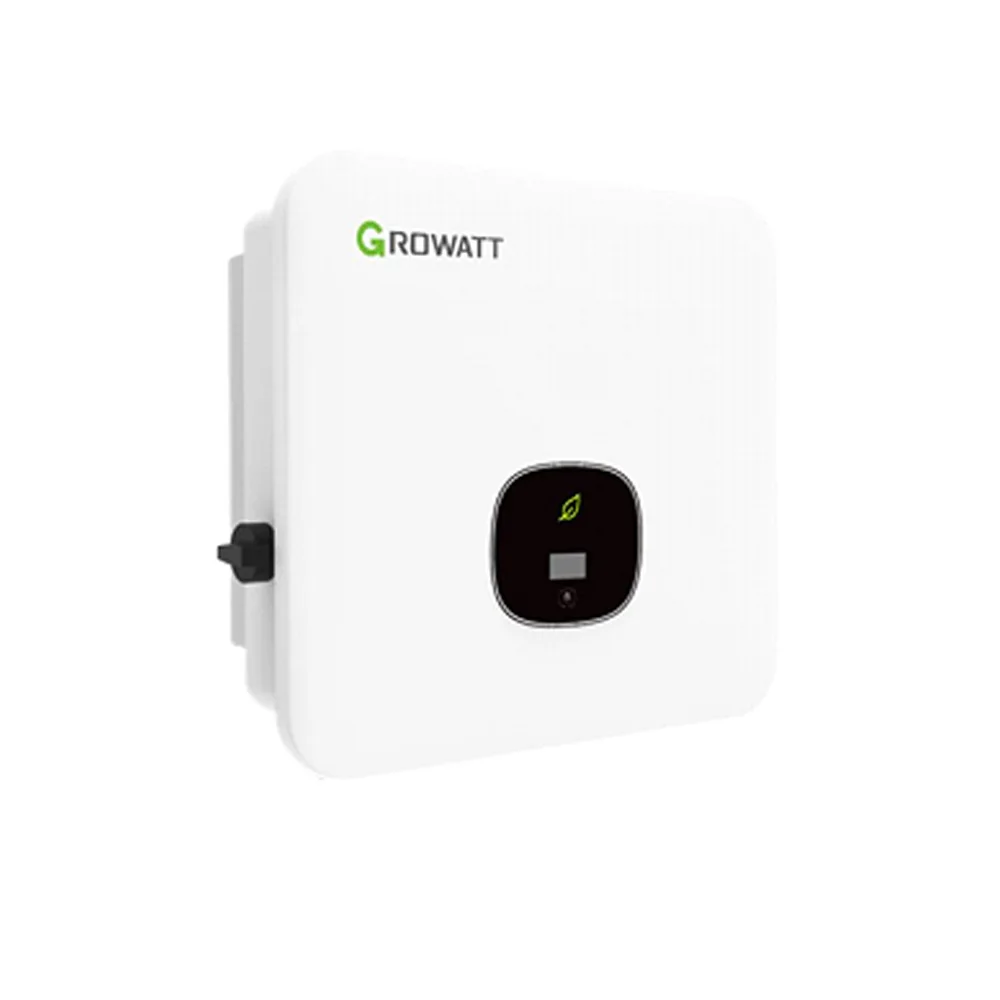

Growatt 10kw hybrid inverter on/off grid MOD 10KTL X 11KTL X 12KTL X 13KTL X 15KTL X three phase solar inverter
- Category: >>>
- Supplier: Wuxi Sunket New Energy Technology Co. Ltd.
Share on (1600689476263):
Product Overview
Description
Products Description
Technical Specifications
Datasheet | MOD 10KTL3-X | MOD 11KTL3-X | MOD 12KTL3-X | MOD 13KTL3-X | MOD 15KTL3-X | |||||
Input data (DC) | ||||||||||
Max. recommended PV power (for module STC) | 15000W | 16500W | 18000W | 19500W | 22500W | |||||
Max. DC voltage | 1100V | |||||||||
Start voltage | 160V | |||||||||
Nominal voltage | 580V | |||||||||
MPPT voltage range | 140V-1000V | |||||||||
No. of MPP trackers | 2 | |||||||||
No. of PV strings per MPP tracker | 1 | 1 | 1/2 | 1/2 | 1/2 | |||||
Max. input current per MPP tracker | 13A | 13A | 13/26A | 13/26A | 13/26A | |||||
Max. short-circuit current per MPP tracker | 16A | 16A | 16/32A | 16/32A | 16/32A | |||||
Output data (AC) | ||||||||||
AC nominal power | 10000W | 11000W | 12000W | 13000W | 15000W | |||||
Max. AC apparent power | 11000VA* | 12100VA | 13200VA | 14300VA | 16500VA | |||||
Nominal AC voltage（range*） | 220V/380V, 230V/400V (340-440V) | |||||||||
AC grid frequency（range*） | 50/60 Hz (45-55Hz/55-65 Hz) | |||||||||
Max. output current | 16.7A | 18.3A | 20A | 21.7A | 25A | |||||
Adjustable power factor | 0.8leading…0.8lagging | |||||||||
THDi | <3% | |||||||||
AC grid connection type | 3W+N+PE | |||||||||
Efficiency | ||||||||||
MAX. efficiency | 98.6% | |||||||||
European efficiency | 98.1% | 98.1% | 98.2% | 98.2% | 98.2% | |||||
MPPT efficiency | 99.9% | |||||||||
Protection devices | ||||||||||
DC reverse polarity protection | Yes | |||||||||
DC Switch | Yes | |||||||||
AC/DC surge protection | Type II / Type II | |||||||||
Insulation resistance monitoring | Yes | |||||||||
AC short-circuit protection | Yes | |||||||||
Ground fault monitoring | Yes | |||||||||
Grid monitoring | Yes | |||||||||
Anti-islanding protection | Yes | |||||||||
Residual-current monitoring unit | Yes | |||||||||
String fault monitoring | Yes | |||||||||
AFCI protection | Optional | |||||||||
General data | ||||||||||
Dimensions (W / H / D) | 425/387/178mm | |||||||||
Weight | 14kg | 14kg | 16kg | 16kg | 16kg | |||||
Operating temperature range | –25°C ... +60°C | |||||||||
Nighttime power consumption | < 1W | |||||||||
Topology | Transformerless | |||||||||
Cooling | Natural convection | |||||||||
Protection degree | IP66 | |||||||||
Relative humidity | 0~100% | |||||||||
Altitude | 4000m | |||||||||
DC connection | H4/MC4(Optional) | |||||||||
AC connection | Connector | |||||||||

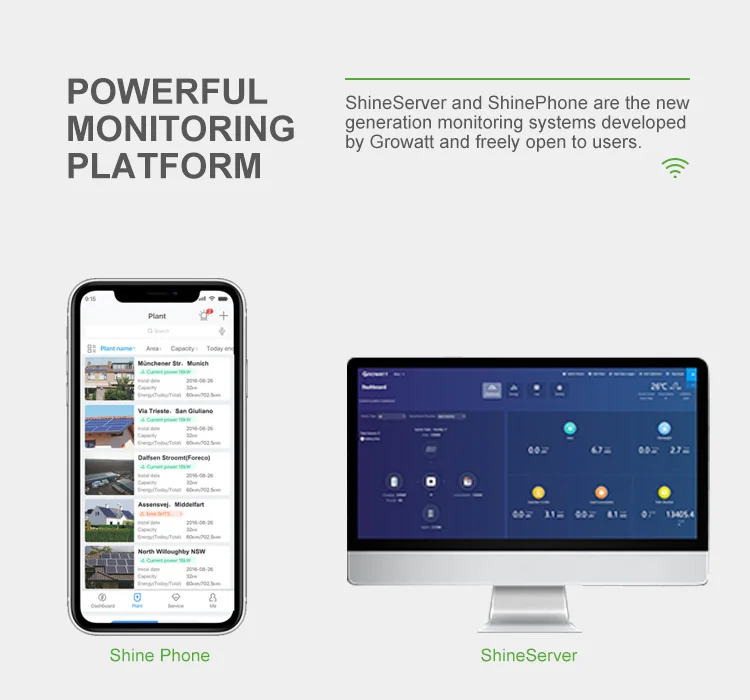

Display | OLED+LED/WIFI+APP | |||||||||
Warranty: 5 / 10 years | Yes/Optional | |||||||||

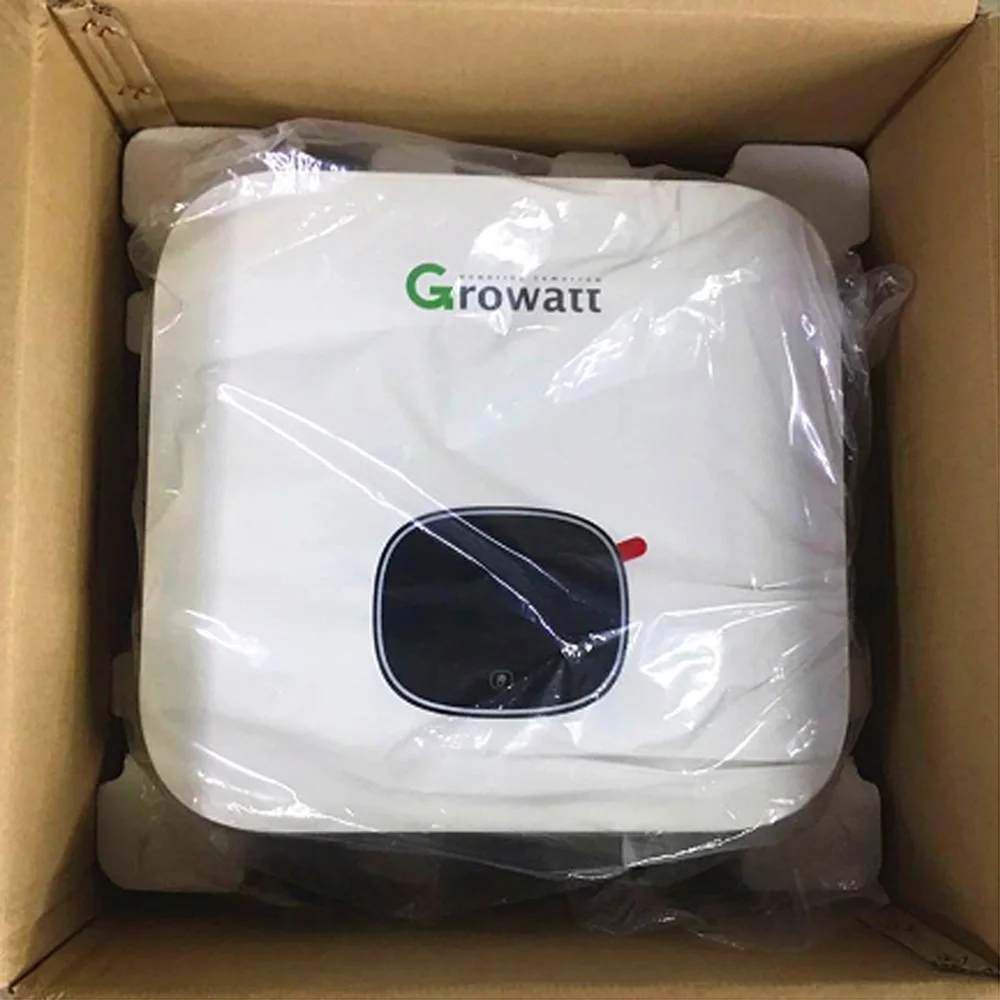

Professional Packing

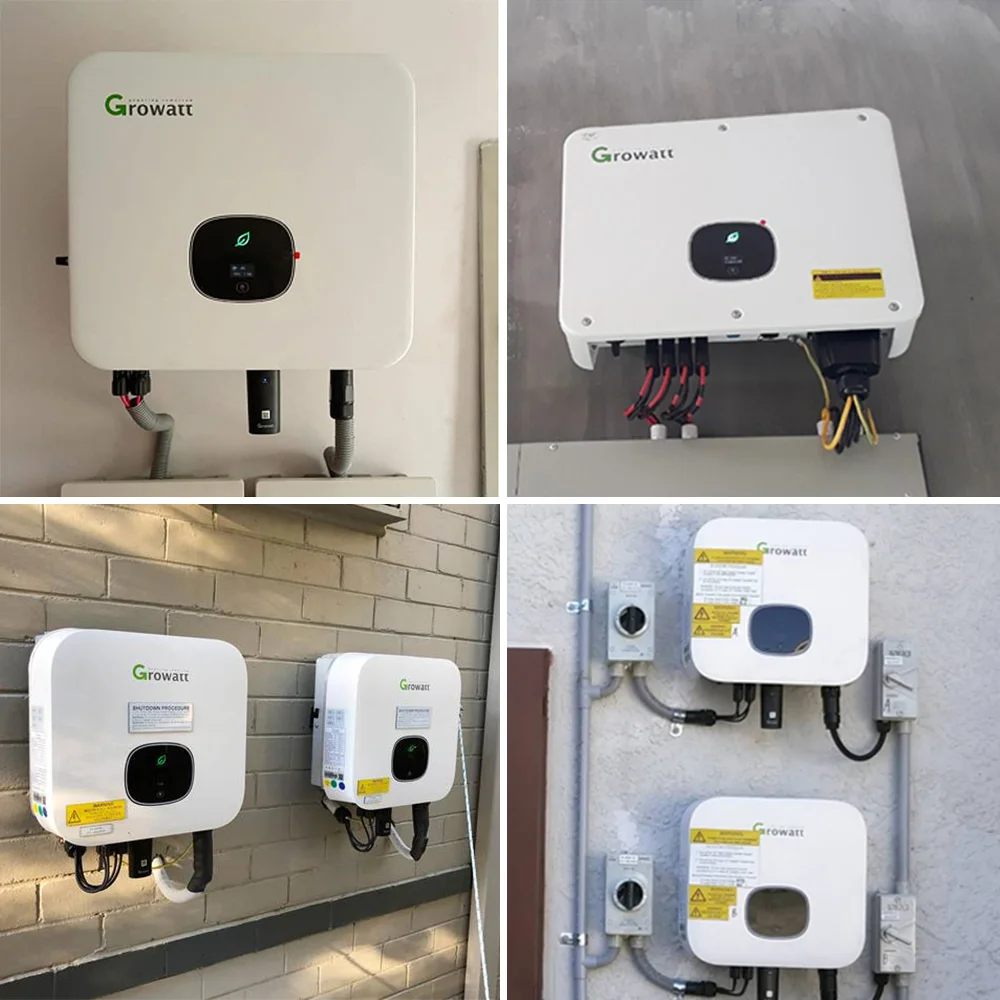

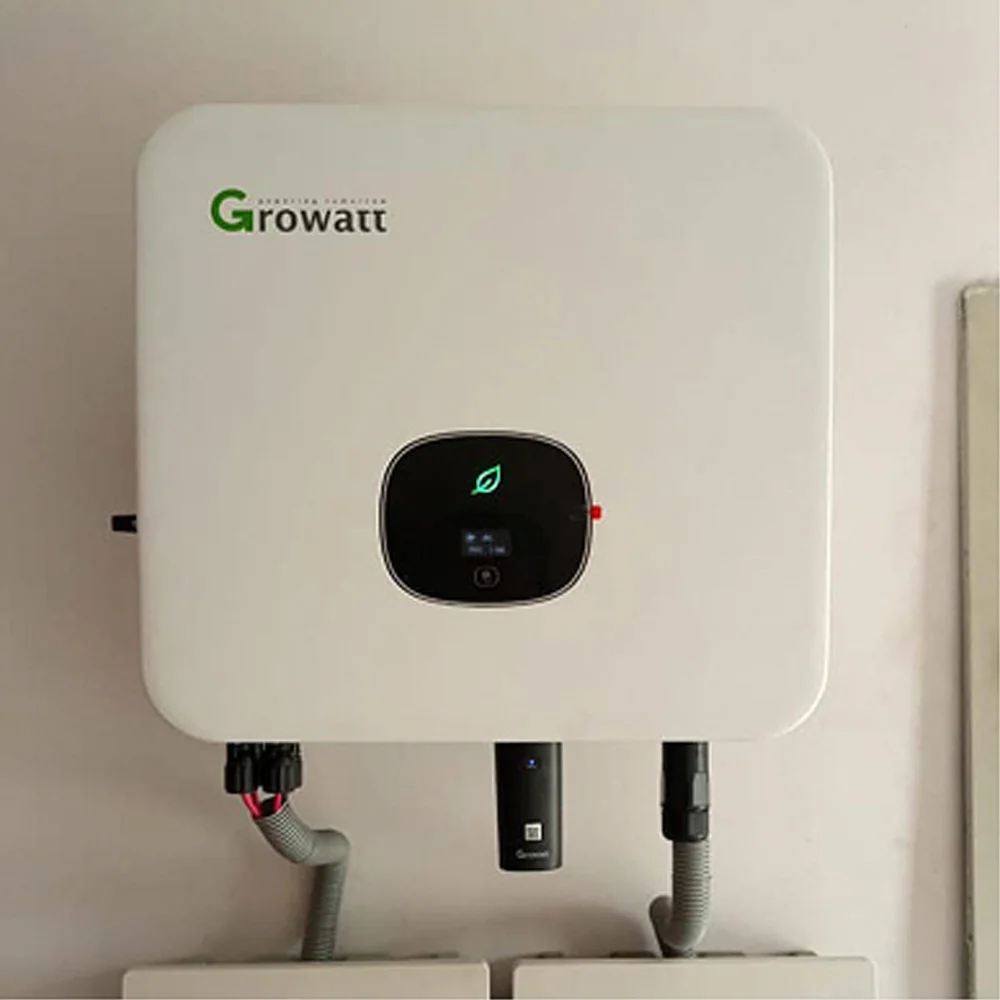

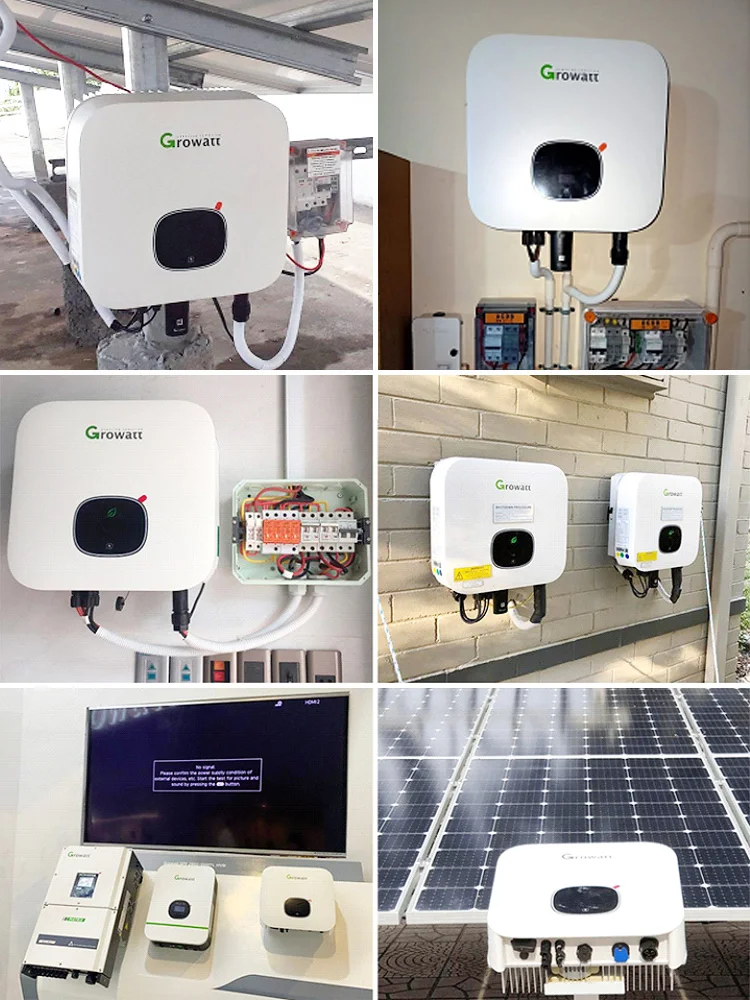

Projects Cases
You May Like
FAQ
Q: Who are we?
We are a professional manufacturer of solar panels with many years of experience. Our factory and business office are located in Wuxi, China, which is ONE hour driving from our factory to the airport, we can provide pick-up service once you confirmed your flight information with us.
Q: What can Sunket provide?
We can provide solar panels, solar inverters, lithium batteries, and solar energy systems.
Q: Why choose Sunket?
Sunket is a professional factory leader in the PV industry, we offer solar photovoltaic system one-stop services with competitive prices and fast delivery time and we insure our quality is second to none.
* Higher power generation
* Competitive price
* High quality standard
* Customized service
Q: Can I make my own design and logo for the product?
Yes, we do OEM. Welcome partner from globally, we can make your product in China/Vietnam.
Q: How to get free samples?
Send us your address, your telephone number, postcode, and express account number to our mailbox, and also told us which model of samples you need. Our sales team will contact you within 24 hours.
Q: What's the payment term?
Accepted Delivery Terms: FOB, CIF, EXW, FAS, CIP, FCA, DDP, DDU.
Accepted Payment Currency: USD, EUR, CNY.
Accepted Payment Type: T/T, L/C, PayPal, Western Union, Cash.
Q: How about the delivery time?
The common products we always have the stock, it can be sent out within 15 days. While the big order takes 45 days to finish production.
We are a professional manufacturer of solar panels with many years of experience. Our factory and business office are located in Wuxi, China, which is ONE hour driving from our factory to the airport, we can provide pick-up service once you confirmed your flight information with us.
Q: What can Sunket provide?
We can provide solar panels, solar inverters, lithium batteries, and solar energy systems.
Q: Why choose Sunket?
Sunket is a professional factory leader in the PV industry, we offer solar photovoltaic system one-stop services with competitive prices and fast delivery time and we insure our quality is second to none.
* Higher power generation
* Competitive price
* High quality standard
* Customized service
Q: Can I make my own design and logo for the product?
Yes, we do OEM. Welcome partner from globally, we can make your product in China/Vietnam.
Q: How to get free samples?
Send us your address, your telephone number, postcode, and express account number to our mailbox, and also told us which model of samples you need. Our sales team will contact you within 24 hours.
Q: What's the payment term?
Accepted Delivery Terms: FOB, CIF, EXW, FAS, CIP, FCA, DDP, DDU.
Accepted Payment Currency: USD, EUR, CNY.
Accepted Payment Type: T/T, L/C, PayPal, Western Union, Cash.
Q: How about the delivery time?
The common products we always have the stock, it can be sent out within 15 days. While the big order takes 45 days to finish production.
