Coffee xxnx vibrating screen Tumbler Screen Rotary Swing Vibrating Allgaier Style
- Category: >>>
- Supplier: Xinxiang Weiliang Sieving Machinery Co. Ltd.
Share on (1600689508097):
Product Overview
Description
Product Description

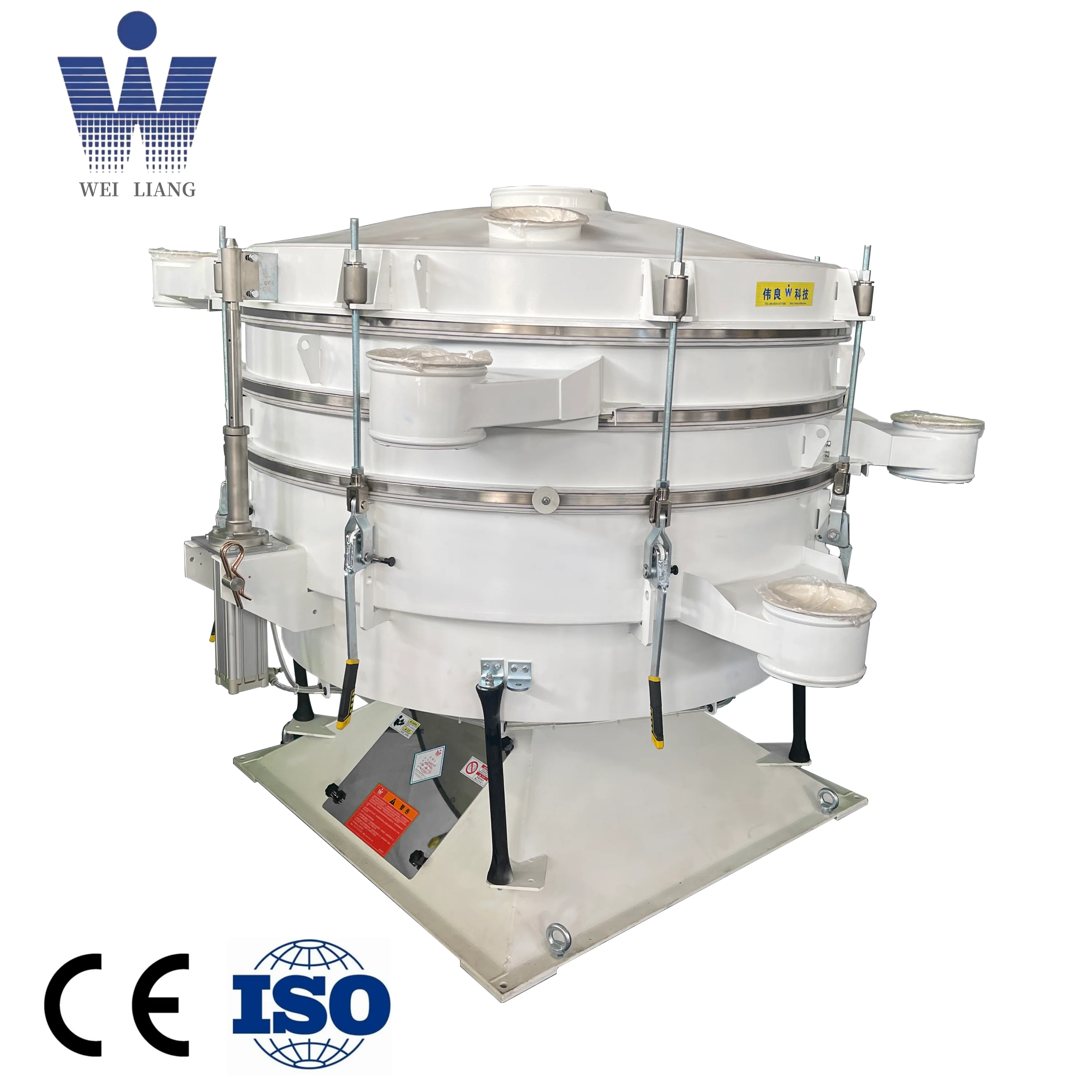

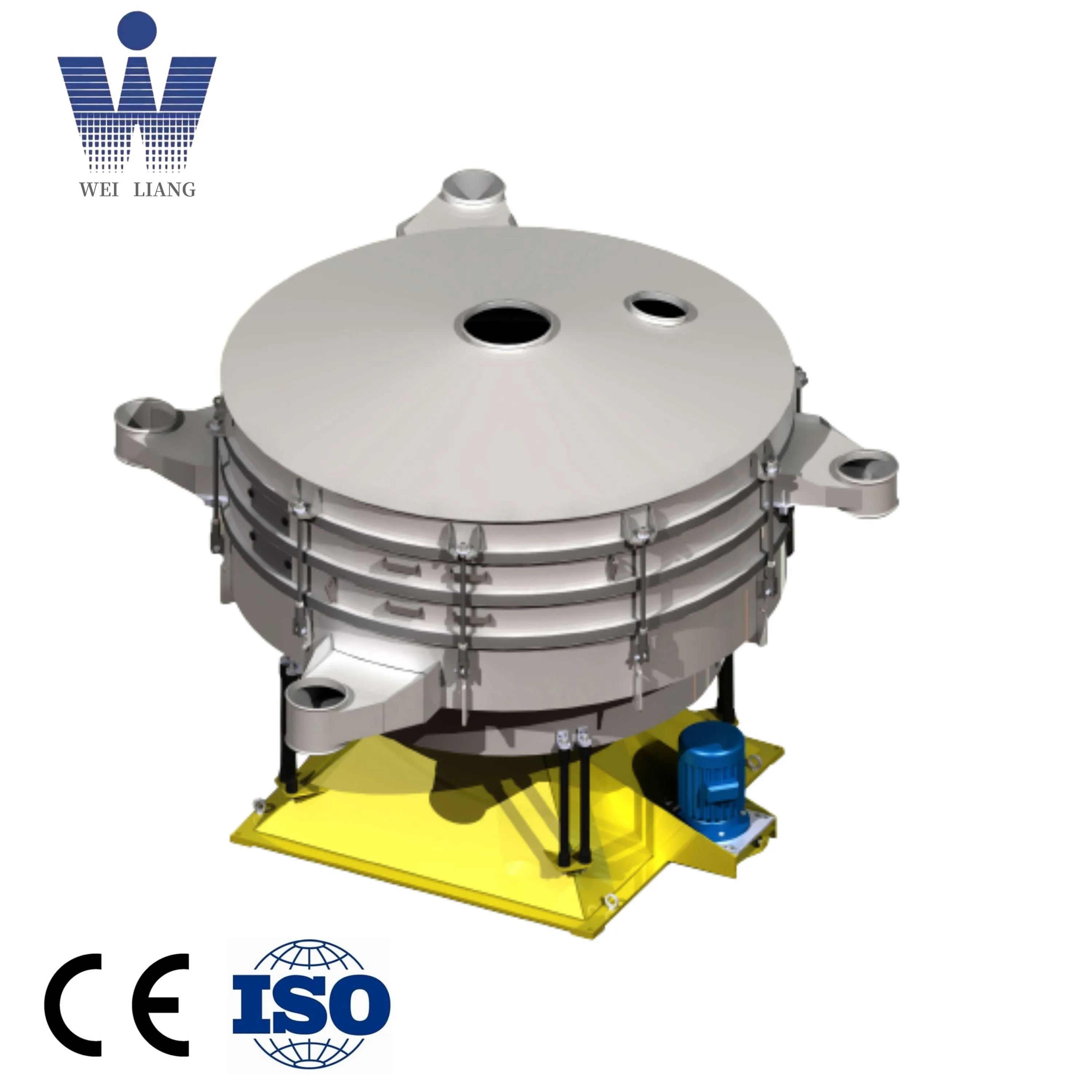

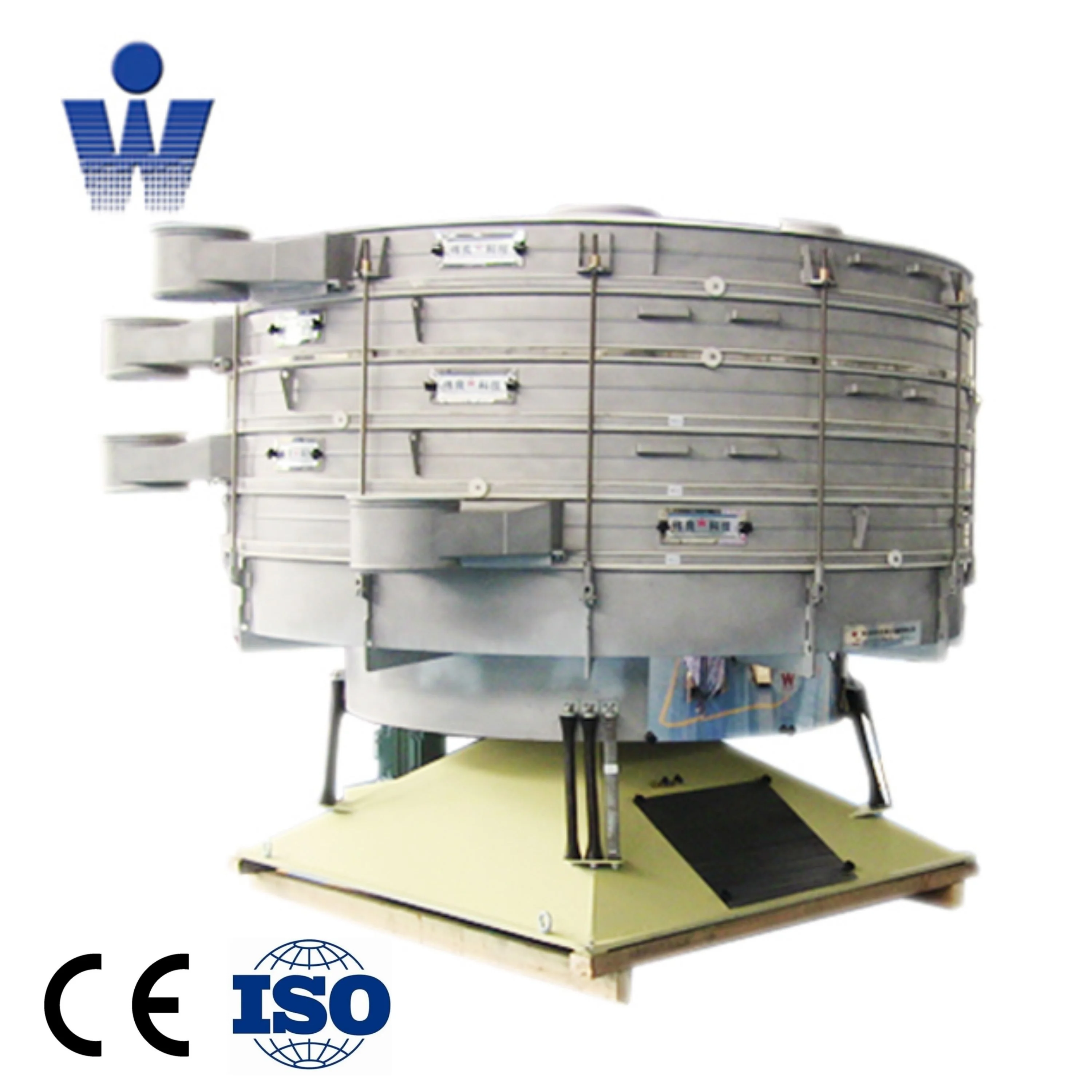

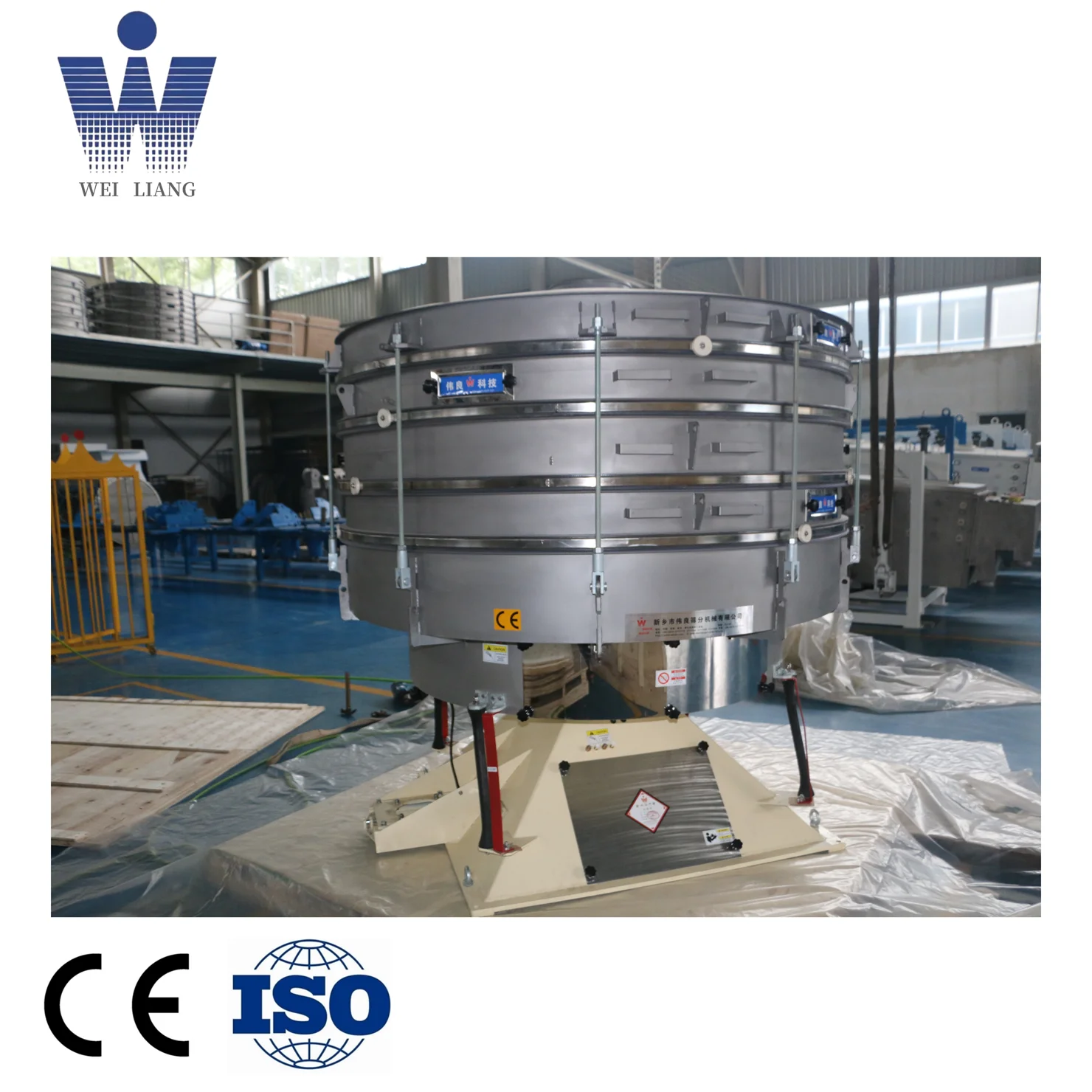

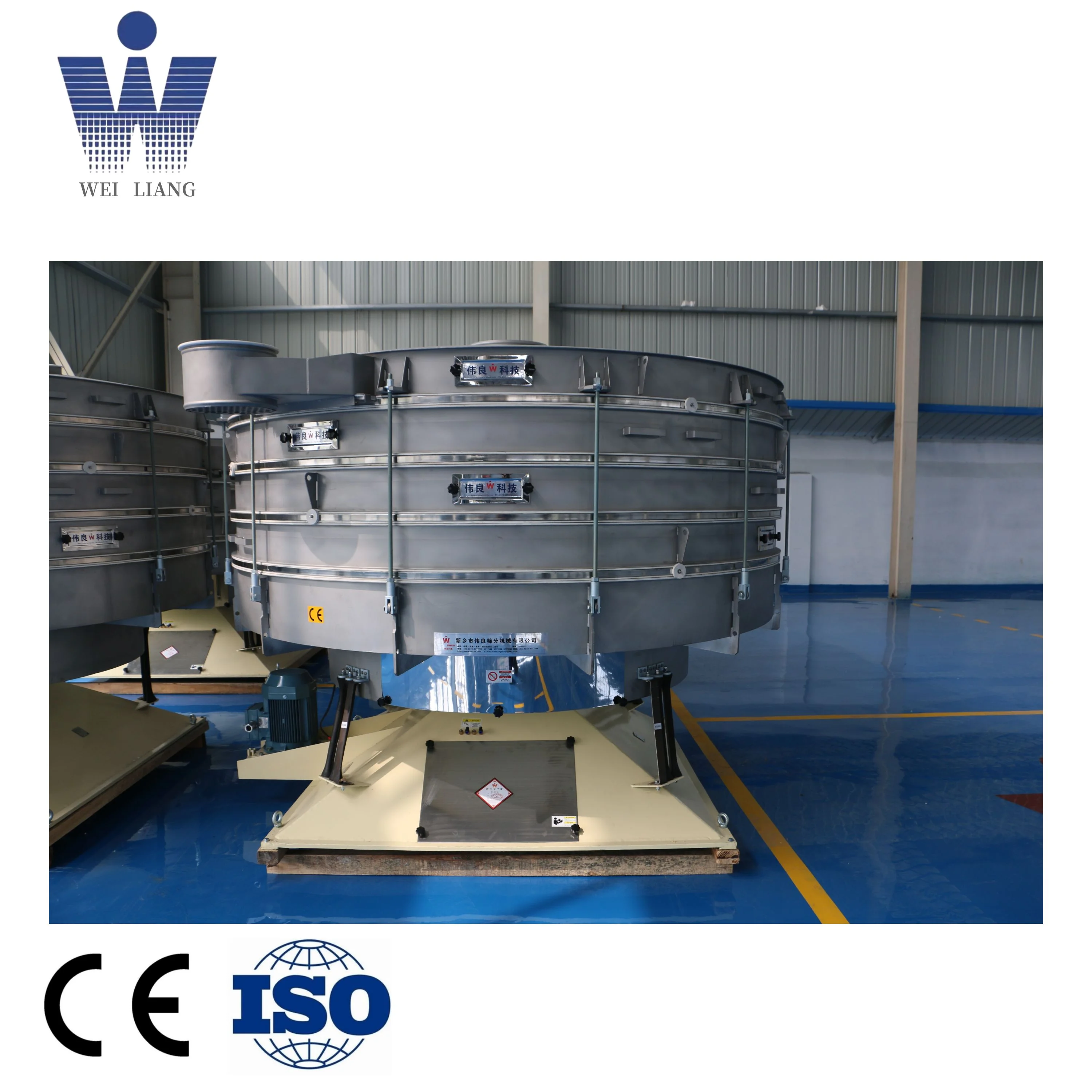

WEILIANG YBS Tumbler Screen
Welliang YBS tumbler screening machine generates three- dimensional elliptical movement that enables screening of fine & ultra-fine particles with high efficiency. Because of its unique design, high life time utility, and the flexible angular velocity that the tumbler screener can achieve, especially well-suited to the fine and extremely fine screening of dry bulk materials and precise grading with up to 6 size ranges. It is widely applied in various industries, such as food, ceramics, plastics, mining, pharmacy, wood, plywood, metallurgy, rubber, feed, fertilizer, recycling industry etc.
THE FIRST MANUFACTURER OF TUMBLER SCREENER IN CHINA
3580 units of YBS models have been sold since 2006 year

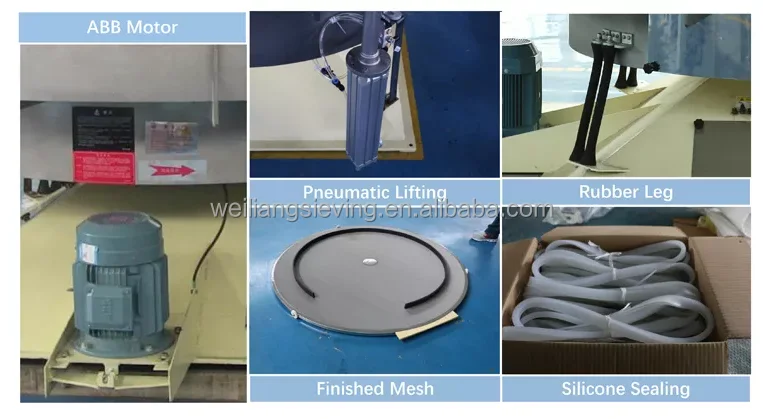

Details and Advantages
Principle of YBS
The product is continuously fed into the centre of the top screen, from where it spreads out evenly to the outside across the entire screening surface. The finer products fall through the screen near the center and the coarser products successively move to the periphery. The material moves ina spiral pattern with increasing acceleration of the particles the further they are from the centre, with the result that even those particles which are almost the same size as the screen mesh are screened. All the separated fractions are discharged through the lateral outlets. The screening process is repeated again and again on each layer.
Cleaning Methods
Rotary brush cleaning
Bouncing ball cleaning
Ultrasonic cleaning
Advantages
1. Three-dimensional movement increases material/screen mesh contact time thus screening efficiency is highly improved.
2. Up to five layers,and largest model to diameter 2900mm large capacity could be reached.
3. Low acceleration, long service life of all parts,low noise.
4. No mesh-blinding problem with screen-cleaning devices.
5. Ability to effectively screen irregularly shaped particles.
6. Easy operation, screen replacement would be much more easier with pneumatic lifting device,for maximum time saving when changing screens.
2. Up to five layers,and largest model to diameter 2900mm large capacity could be reached.
3. Low acceleration, long service life of all parts,low noise.
4. No mesh-blinding problem with screen-cleaning devices.
5. Ability to effectively screen irregularly shaped particles.
6. Easy operation, screen replacement would be much more easier with pneumatic lifting device,for maximum time saving when changing screens.

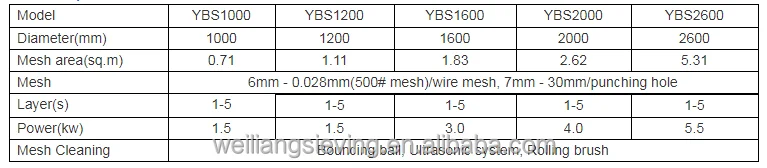

Technical Parameters
Applications

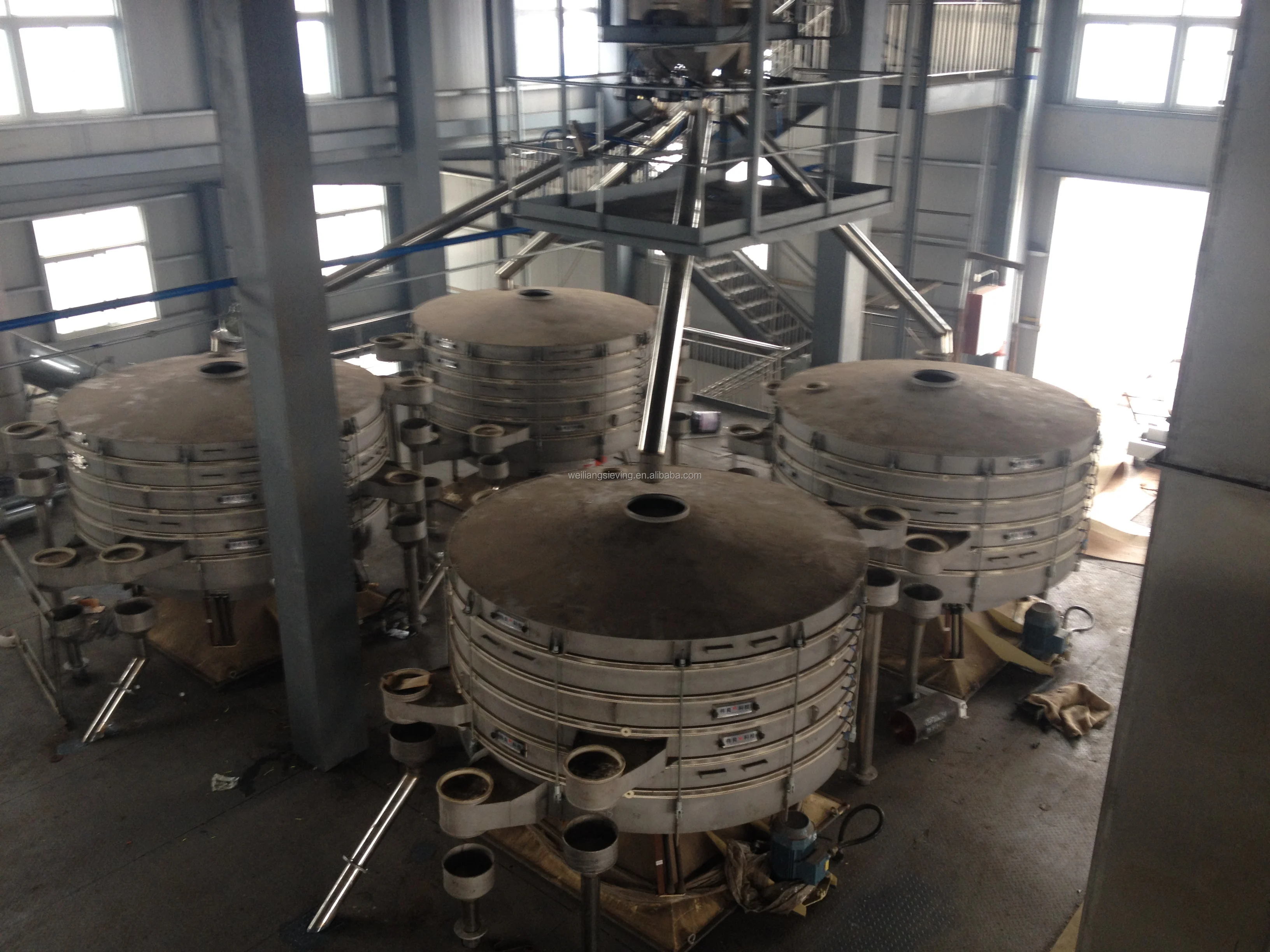

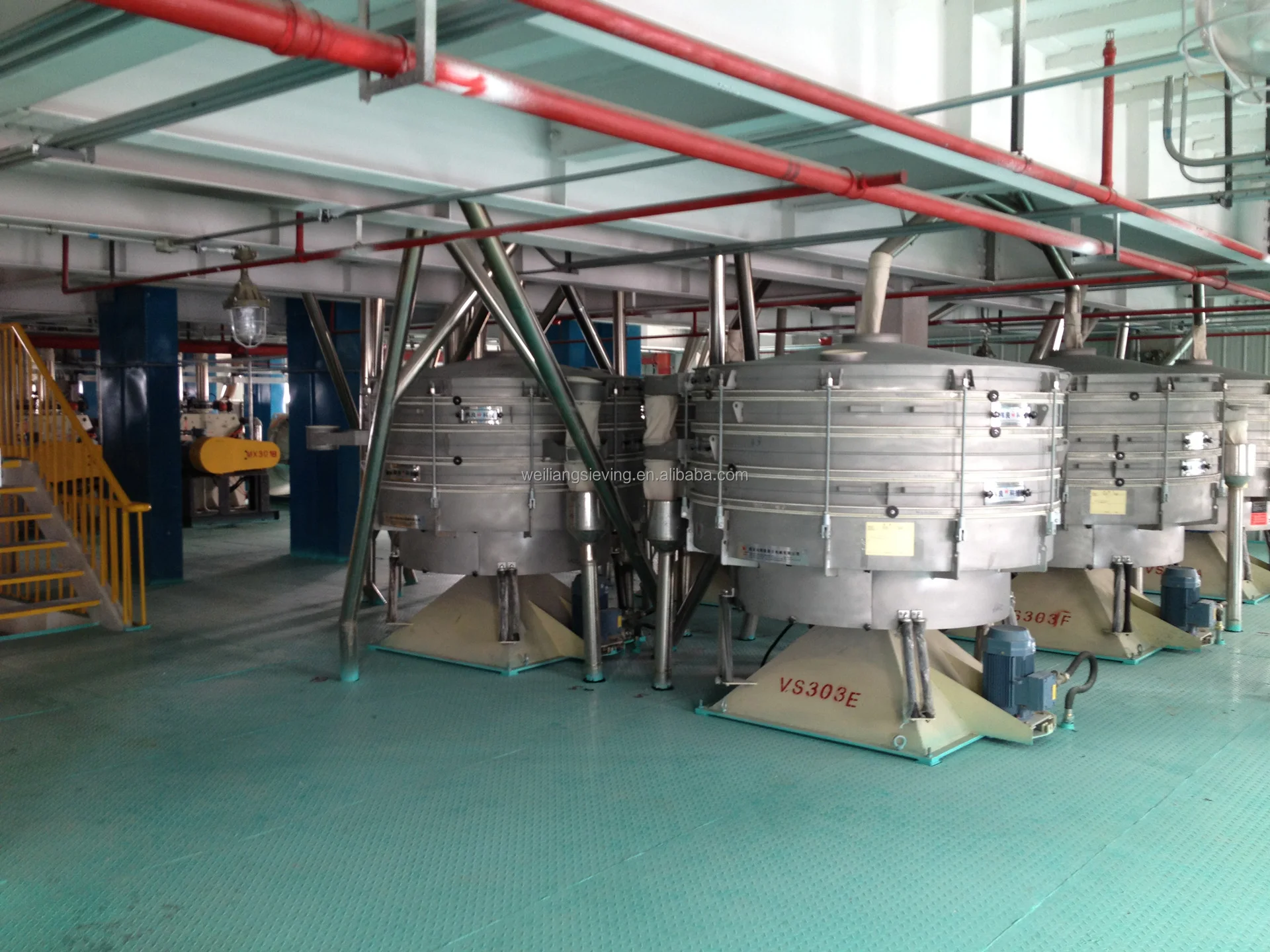

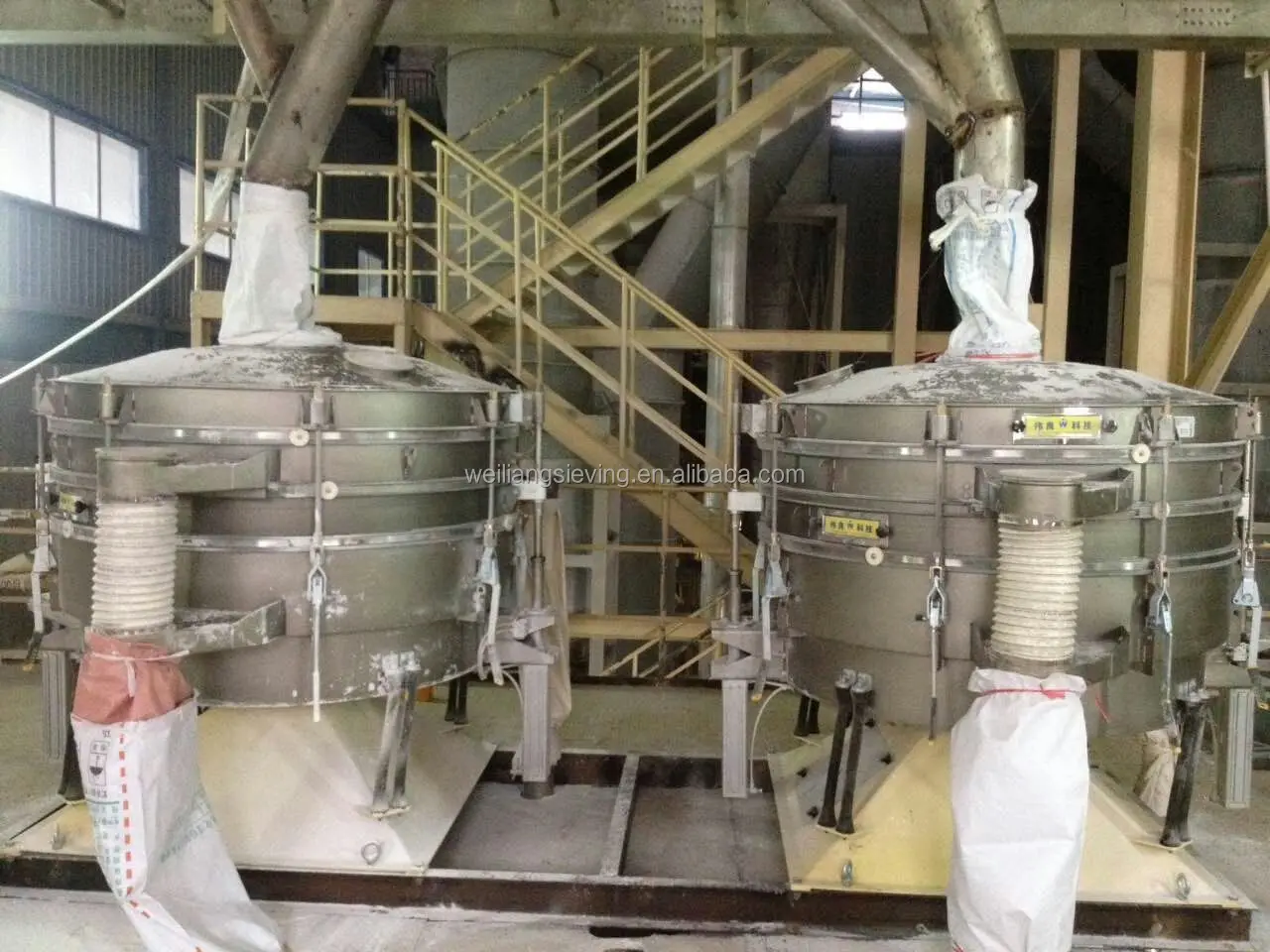

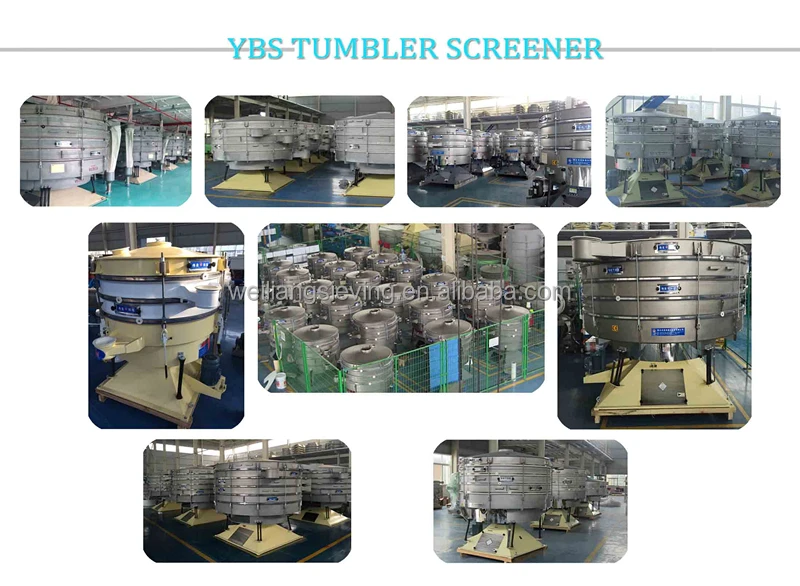

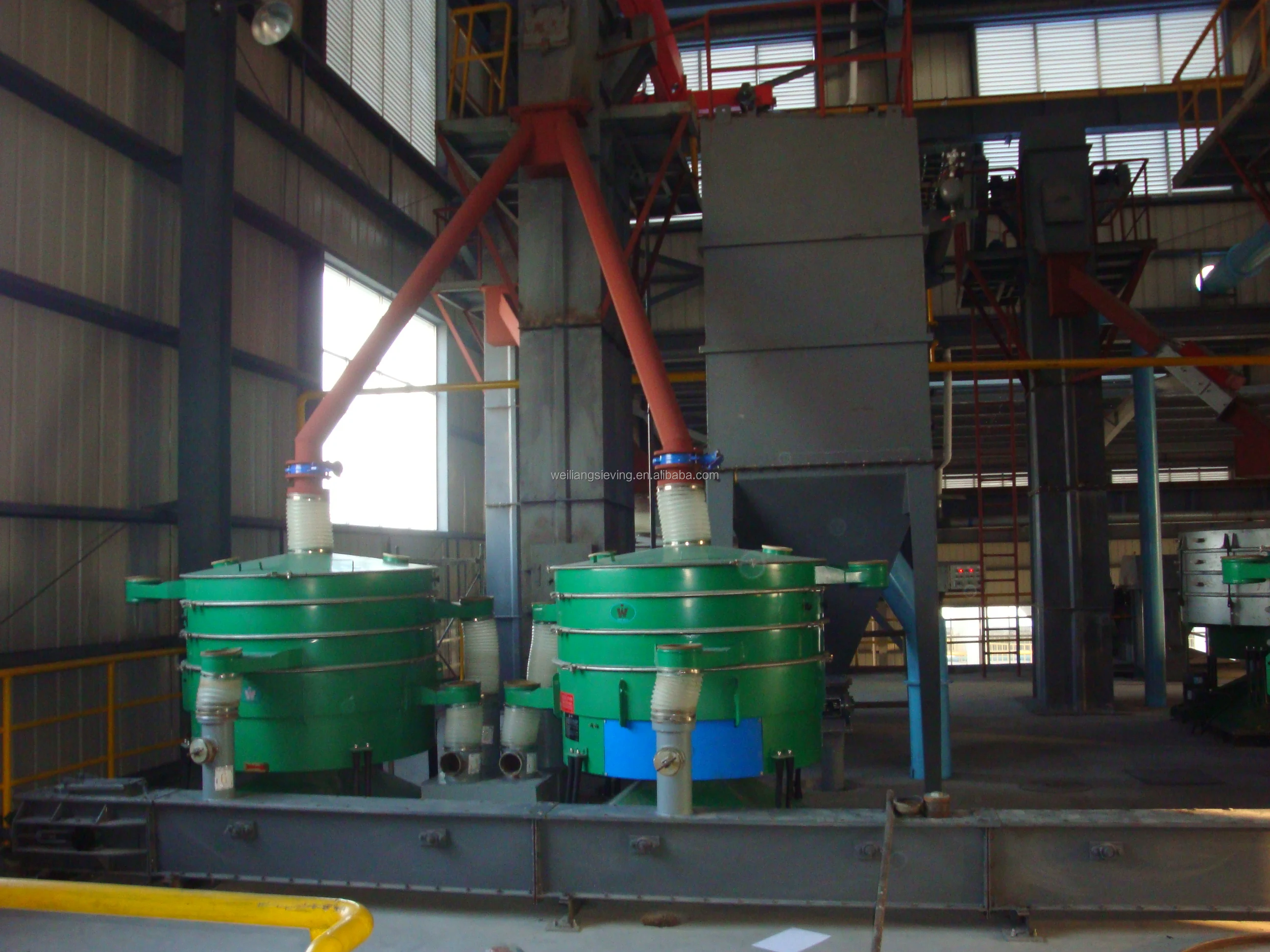

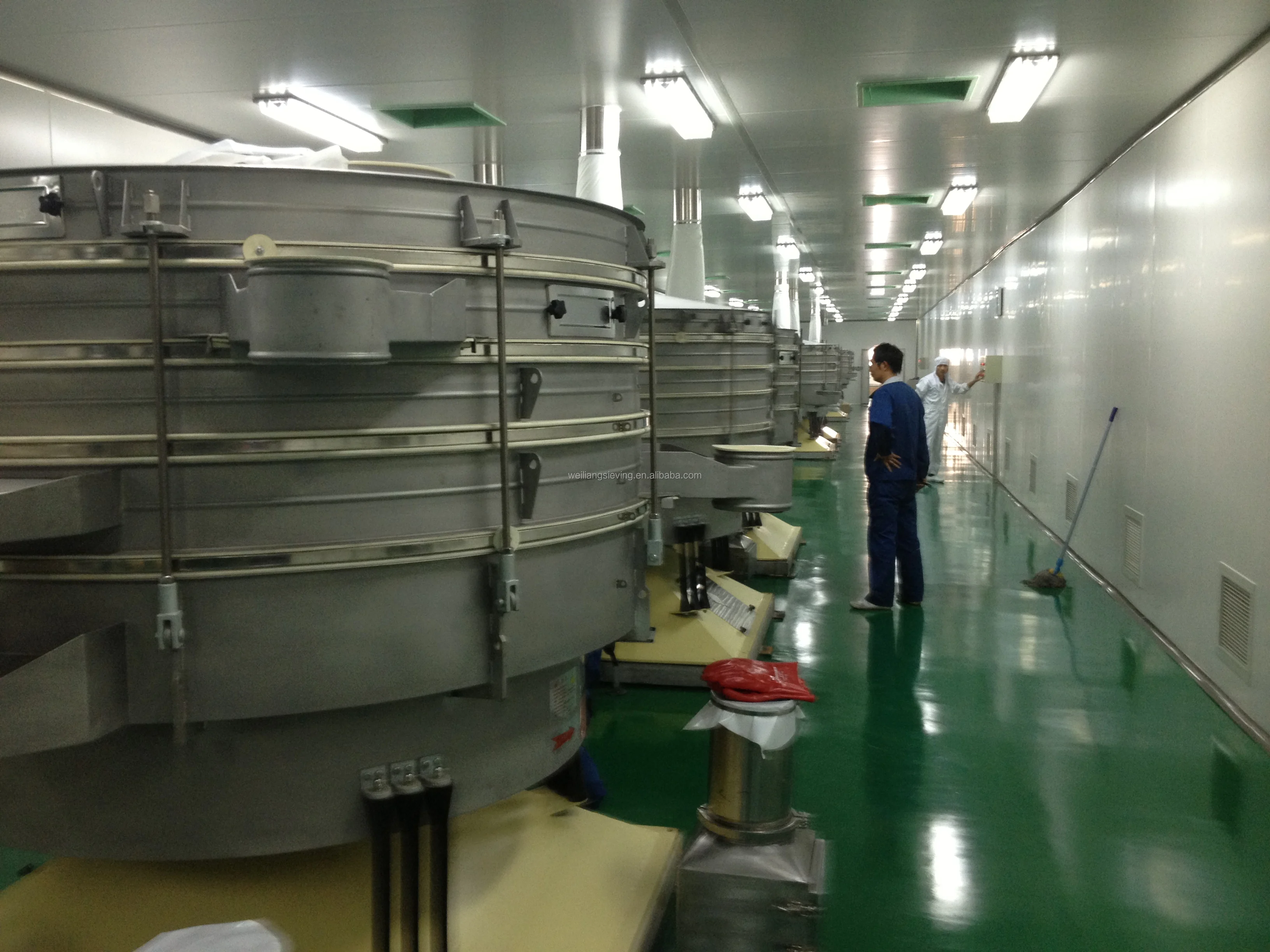

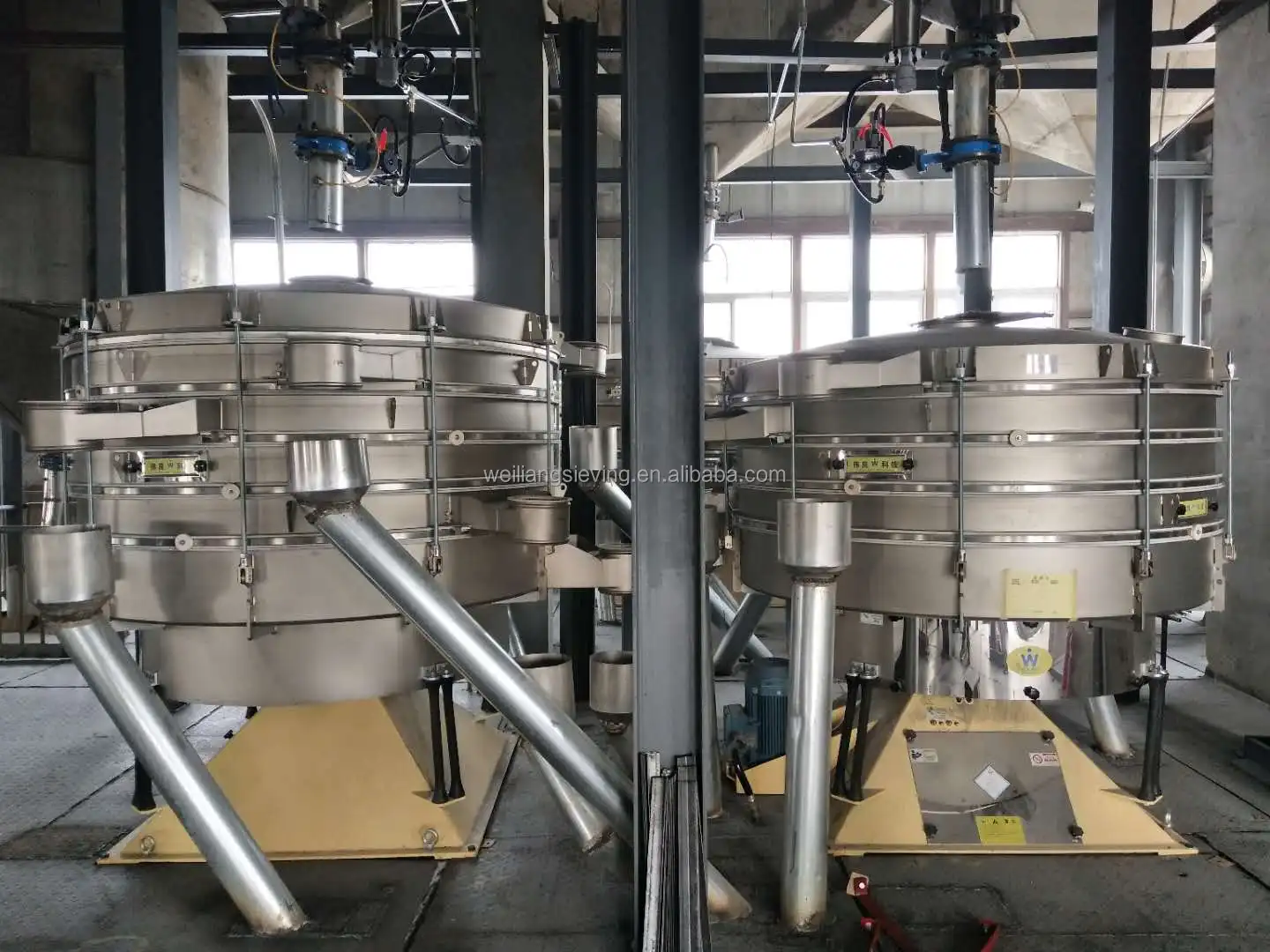

On-site Photos of YBS Tumbler Screen
Packing & Delivery

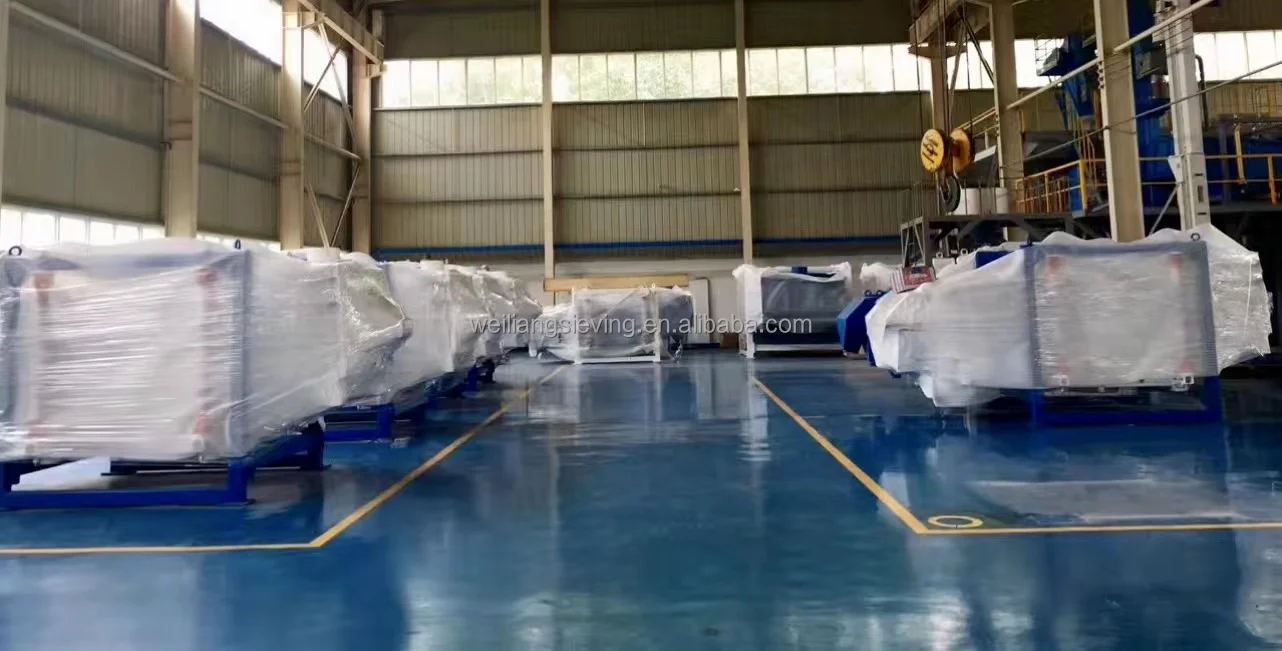

Inner packaging: Stretch film for machine
Outer packaging: Standard export wooden box
Company Profile
Xinxiang Weiliang Sieving Machinery Co.. Ltd was founded in 2006, after 16 years efforts, and with the help of our team and our customers, Weiliang has developed quickly, step by step, which has become one of the leading manufacturers in fine screening field in China. Since now Weiliang has exported high quality screeners to 53 countries and have gained high recognition and trust of numerous customers all over the world. With professional techniques and great services, Weiliang team has the ability to meet any requirement of customers. Additionally, Weiliang has 2600m2 first-class testing workshop, where our team of professionals will conduct personalized material samples test, which includes test analysis of material size, density, moisture, capacity and so on, which help to settle down the most suitable models for our customers. With excellent technical services, a full range types of screeners and professional product inspection, Weiliang consistently aims to add brilliance to your present splendor.
Hot Selling Products
S49A Vibrating Screen
FYBS Gyratory Screen
WLQ Centrifugal Screen
S49AQ
Multi Frequency Vibrating Screen
SZF Linear Vibrating Screen
S49AC
Ultrasonic Vibrating Screen
FAQ
1. What is the after-sales service of your factory?
Our machines are guaranteed for 12 months, excluding screens. During the warranty period, we will replace damaged parts for our clients. And we will continue to provide customers with operation guidance. We are available to offer help all the time.
2. What is the delivery time from the factory?
2. What is the delivery time from the factory?
The lead time for general products is 15-30 days, but bulk products and customized products require longer production time, generally 30-60 days. (Excluding shipping time)
3. What is the quotation for the product based on?
According to different models, mesh size (based on material properties and estimated screening yield), materials (Q235A, SUS304 or SUS316L), layers, and motor voltage and frequency to give quotations.
3. What is the quotation for the product based on?
According to different models, mesh size (based on material properties and estimated screening yield), materials (Q235A, SUS304 or SUS316L), layers, and motor voltage and frequency to give quotations.
4. Payment Terms?
We usually accept T/T, L/C;
We usually accept T/T, L/C;
T/T: 30% in advance as down payment, the balance before delivery.
