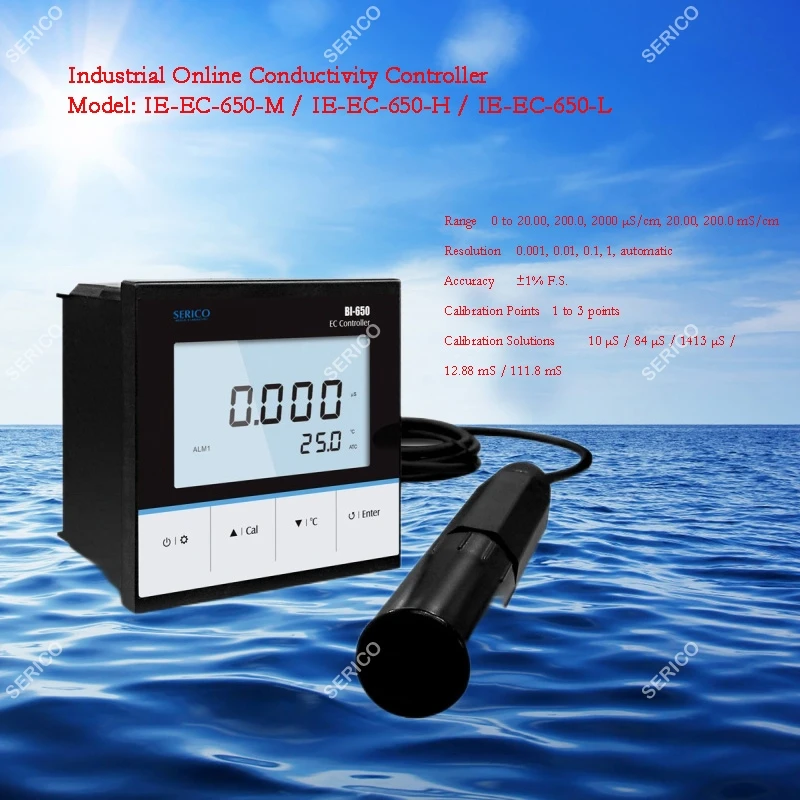

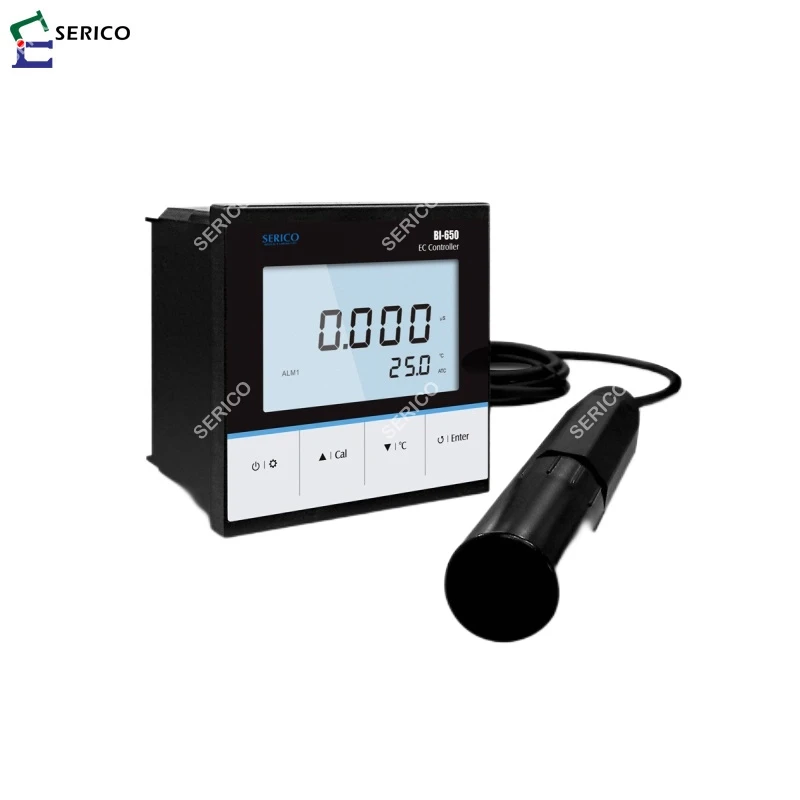

SERICO High Precise Tester Industrial Online Conductivity Controller Conductivity EC Meter Model: IE EC 650 H

Model

BI-650

Conductivity

Range

0 to 20.00, 200.0, 2000 µS/cm, 20.00, 200.0 mS/cm

Resolution

0.001, 0.01, 0.1, 1, automatic

Accuracy

±1% F.S.

Calibration Points

1 to 3 points

Calibration Solutions

10 µS / 84 µS / 1413 µS / 12.88 mS / 111.8 mS

TDS

Range

0 to 10.00, 100.0, 1000ppm, 10.00, 200.0 ppt

Resolution

0.01, 0.1, 1, automatic

Accuracy

±1% F.S.

TDS Conversion Factor

0.1 to 1.0 (default 0.5)

Temperature

Range

0 to 100°C / 32 to 212°F

Resolution

0.1°C/°F

Accuracy

±1°C / ±1.8°F

Offset Calibration

1 point

Calibration Range

Reading ±10°C

Communication

Signal Output

4 to 20 mA

High/Low Limit Alarm

0.02 uS/cm to 20.0 mS/cm, selectable

Load

Maximum 500 Ω

Communication Interface

RS485

Connection Terminals

Detachable screw terminals

Other Specifications

Temperature Compensation

0 to 100°C / 32 to 212°F, automatic

Temperature Coefficient

0.0 to 10.0%/°C

Reference Temperature

25°C

Cell Constant

K=0.1 / 1 / 10

Environmental Conditions

0 to 50°C / 32 to 122°F, relative humidity < 80%

Power Supply

DC 24V

Dimensions

96 × 96 × 75 mm

Weight

350 g

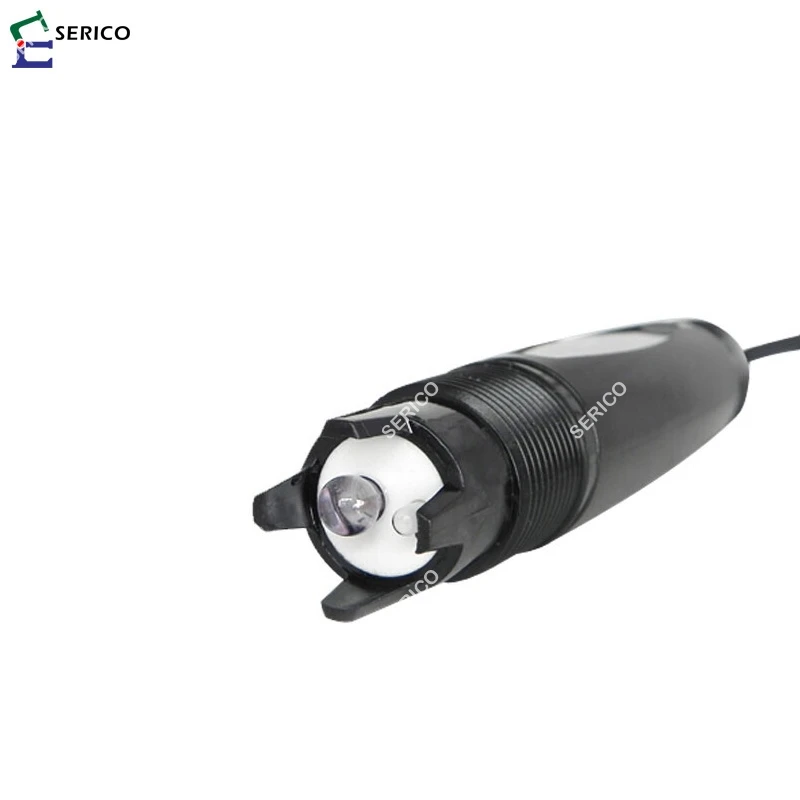

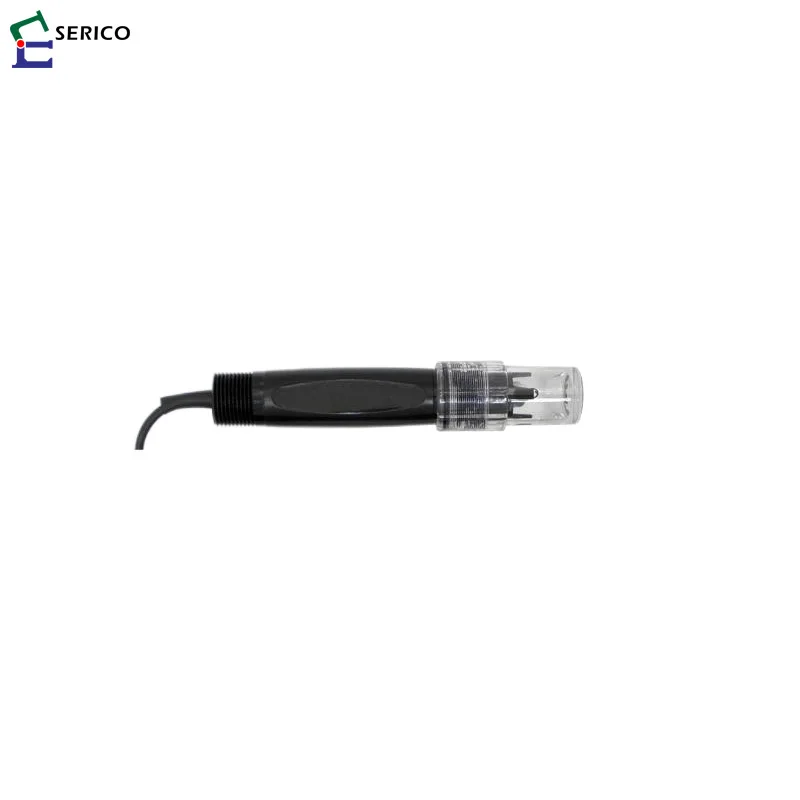

Series

IE-50T

Platinum conductivity electrode with a built-in temperature sensor

Strong and unbreakable stainless steel housing

3/4 inch thread is easy to install

Model

IE-50LT

IE-50MT

IE-50HT

Item No

20693258

20693259

20693260

Applications

pure water and low conductivity liquids

general water samples

high conductivity liquids

Range

0 to 100 µS/cm

10 µS/cm to 20 mS/cm

0.1 to 200 mS/cm

Cell Constant

K=0.1

K=1.0

K=10

Operating Temperature

0 to 80°C / 32 to 176°F

Temperature Sensor

NTC 10 KΩ

Maximum Process Pressure

0.6 MPa / 87 PSIG

Body Type

Stainless steel

Electrode Diameter

13mm (0.51 in.), with 3/4 in. NPT thread at ends

Electrode Length

130 mm

Maximum Transmission Distance

30 m / 98 ft

Cable Length

5 m / 16 ft

Weight

500 g
