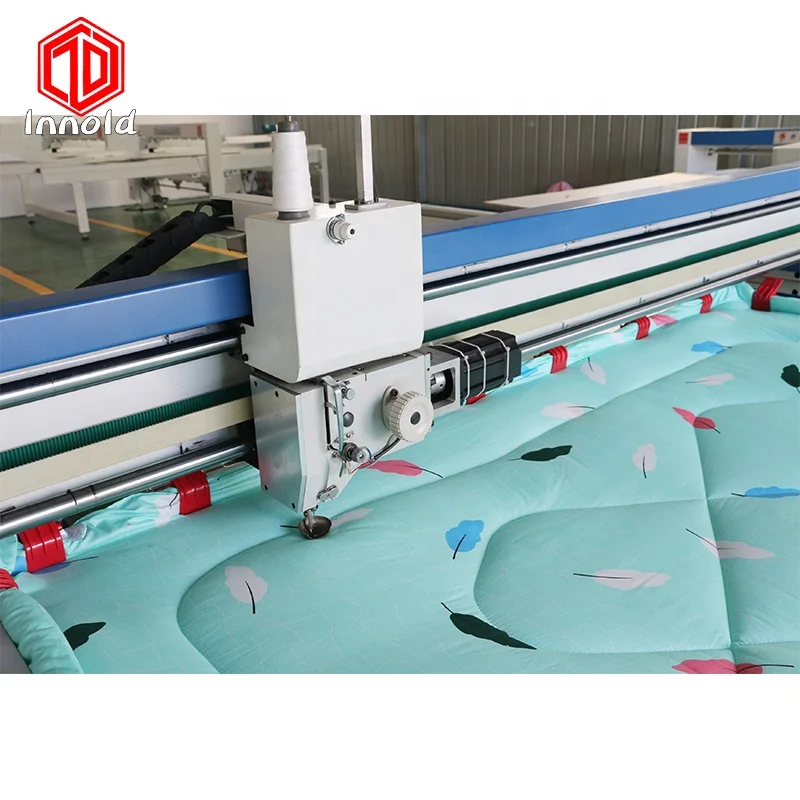

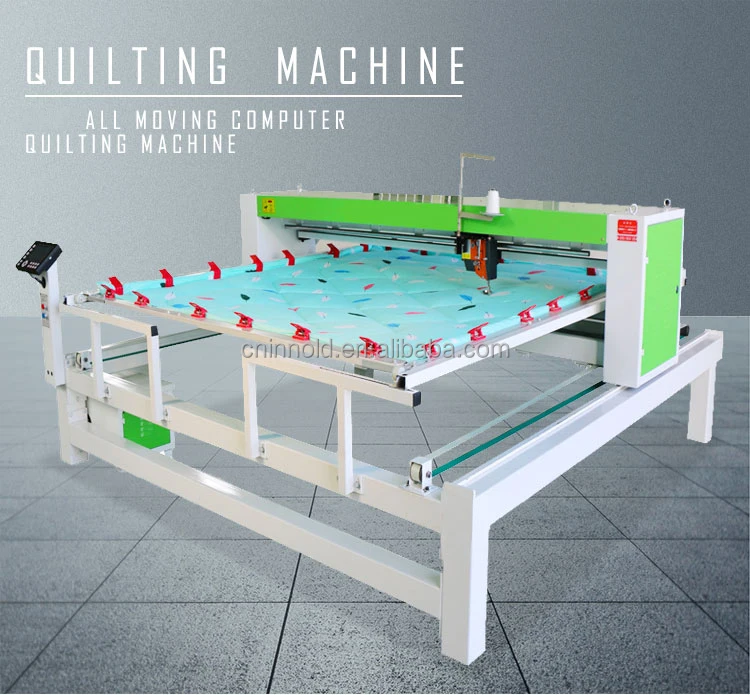

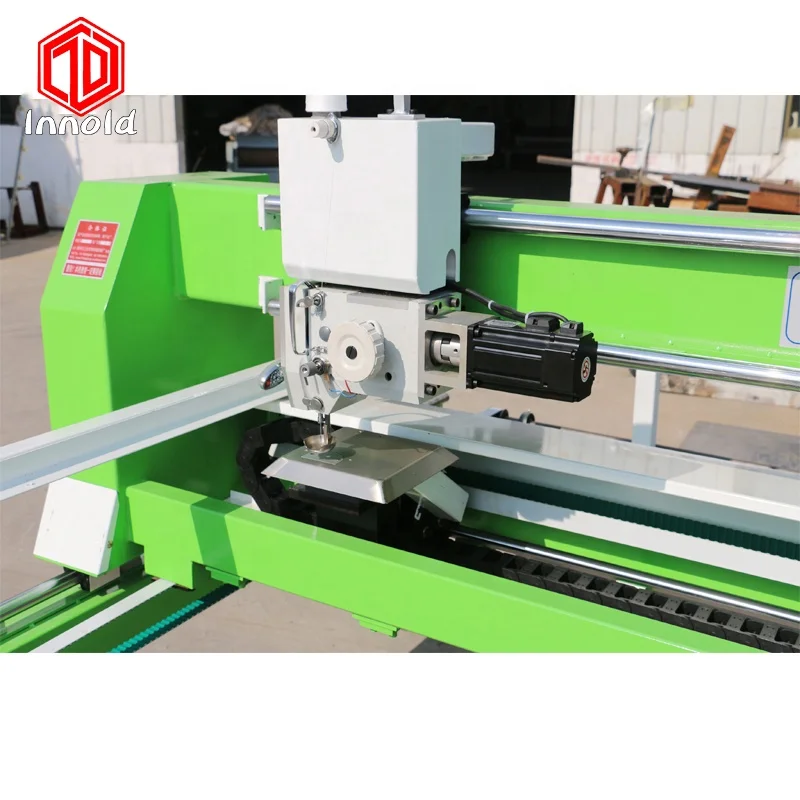

In Stock Automatic Duvet Sewing Type Of Industrial Uk Quilting Machine
This machine is mainly equipped with small factories, wholesale stores, such as old sweater processing wool by the store.

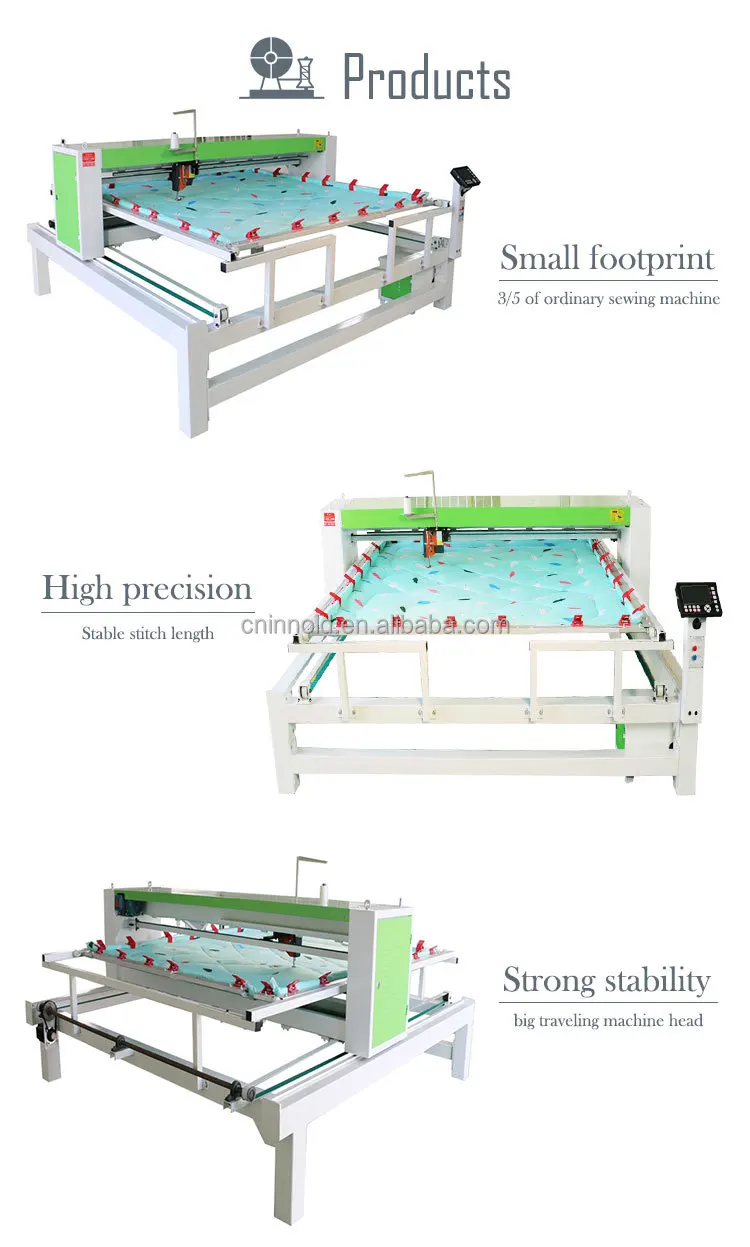

Suitable for quilting quilt, bedspread, curtain, clothing and other patterns. It has the advantages of small occupation area, small mechanical shaking, high precision and high electrical configuration performance. The start and end of the needle can be automatically repaired, the pattern can be enlarged and reduced, the needle distance can be adjusted and refined. The use of large capacity shuttle can be high-speed operation, high efficiency. It is an ideal economical equipment.
Product Description
Machine parameters of Quilting Machine:

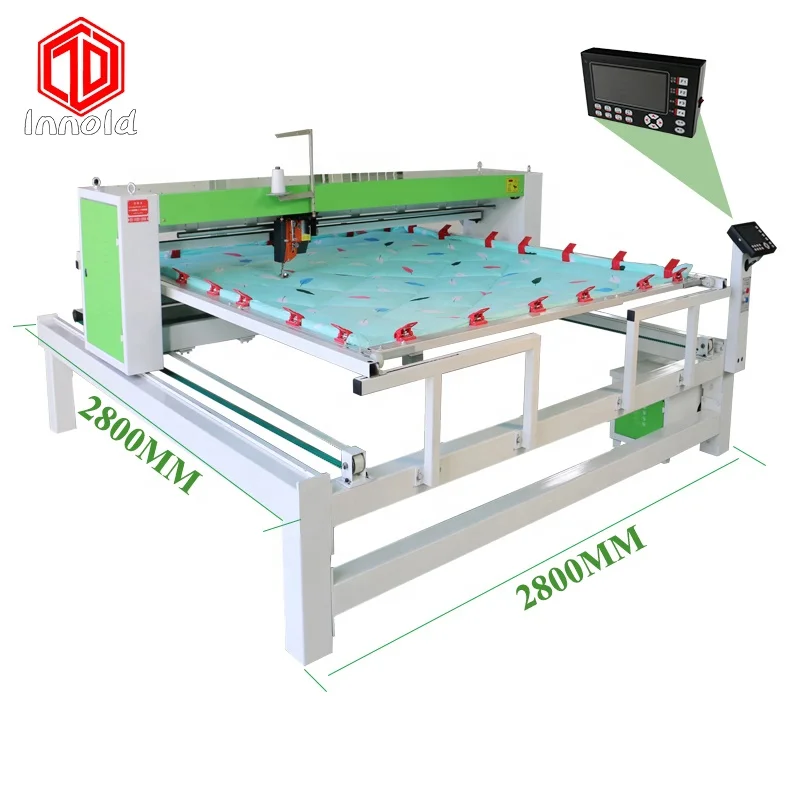

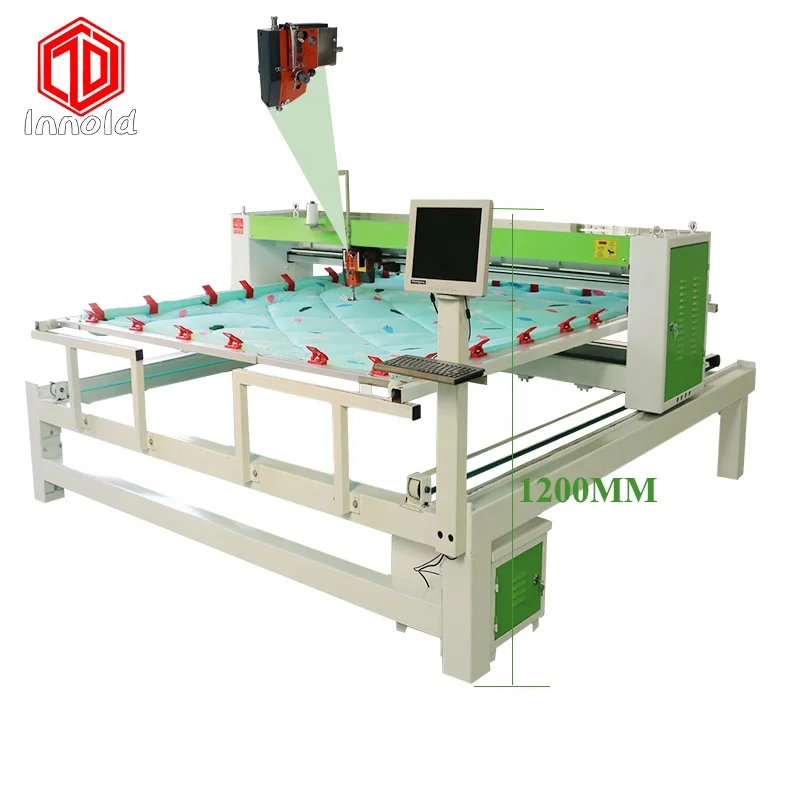

Dimensions | 2800*2800*1200mm |
Maximum speed | 300-2500 rpm |
Quilting thickness | 1300 g/m2 |
Quilting size | 2200*2400mm Single needle |
Needle drop distance | 2050*2150mm |
Needle distance | 1.0-11mm |
Mobile mode | Head movement, truss and chassis not moving |
Voltage | 220V/50Hz |
Power | 2.2KW |
Machine weight | 650KG |

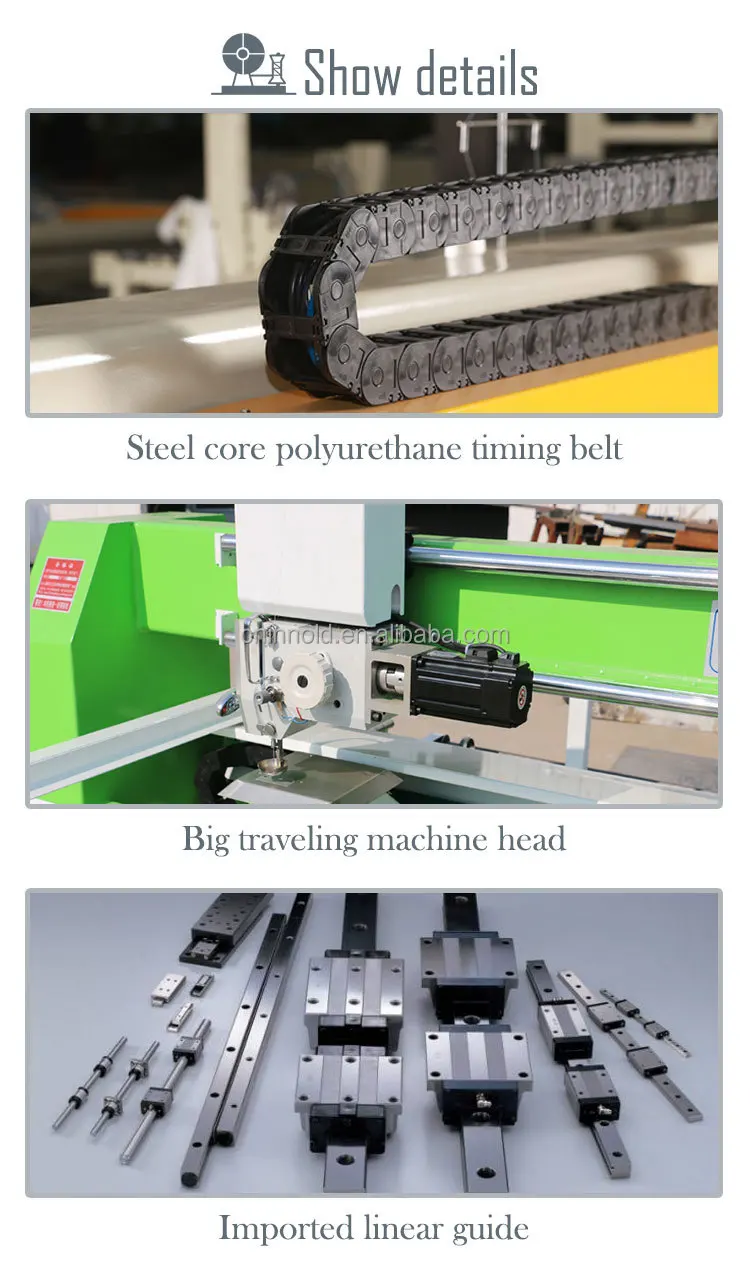

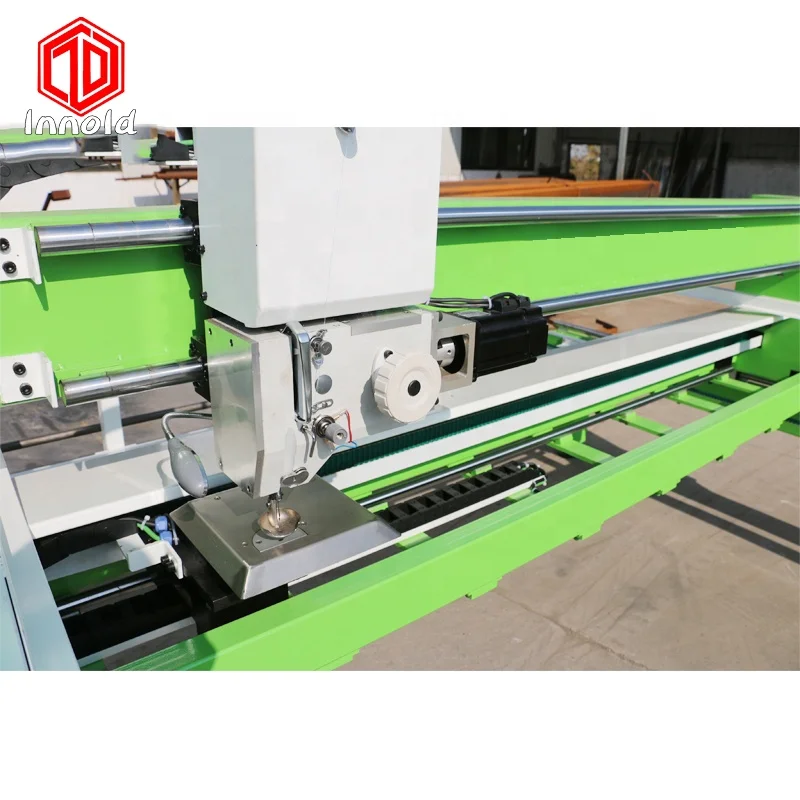

Host Computer | The display is separated, moving up and down, synchronous belt drive |
Warranty | 1 year |
Features&Functions of Quilting Machine:
1. Thinness adjustment function: to adjust different thinness and thickness, you can adjust the depth of quilting according to the relevant instructions.
2. Pattern storage function: computer quilting machine disk can store pattern for a long time, users can choose to add pattern according to their needs. Its operation is simple, convenient and fast.
3. Set the line step function: strong reliability, uniform line step, pattern is not easy to deformation.
4. Spindle function: it can effectively prevent wire breaking.
5. Broken line detection function: when the broken line, the system will stop automatically. (6) Occupation rate: computer quilting machine occupies a small area, but the quilting size is large.
6. Information display function: you can see the spindle speed, parking factor, output statistics, remaining memory display on the display.
7. Safety device: computer, motor, machine and other abnormal phenomenon will automatically stop, the screen appears fault content.
8. Reinforcement sewing function: After the reinforcement quilting function is enabled, the quilting machine automatically quilts back and forth at a specific point.
9. Power failure memory function: when power failure or power failure occurs during operation, or when the quilting machine (needle or thread) has problems and needs to be shut down, the computer quilting machine can automatically fast forward or backward along the pattern movement route. And when it is necessary to continue quilting, it can automatically or manually return to the quilting point when the machine is stopped to continue quilting.
10. Pattern function: The pattern is expanded or narrowed by 50%-200% transverse and longitudinal side, and the unit is automatically repaired by 1%. In the process of operation, when the thread is broken or there is no bottom line, it can automatically or manually use the specified needle to return along the needle trace direction for sewing.
FAQ
1.What payment way can you accept of Quilting Machine?
Normally,the payment way is T/T or trade assurance,if you have else favored payment way,please inform us.We can discuss together.
2.How can you guarantee the quality of Quilting Machine?
The international production process and professional QC system of our factory is the best guarantee of high quality. And before shipping the machine,we will take a test video for you,after you confirm it,then we will ship it.
3.What is your MOQ of Quilting Machine,Can you give me discount?
The MOQ of machine is 1 set.we can discuss the price of actual order.And the price is related to your quantity(we can negotiate too).
4.Do you Arrange Shipment for the Quilting Machine?
Yes,Dear,for FOB or CIF price,we will arrange shipment for you. We will provide full support until you received the machine.
5.How long is the delivery time of Quilting Machine?
For standard machines,it would be 10-15 days;For non-standard machines and customized machine according to clien's specific requirments,it would be 20 days.
