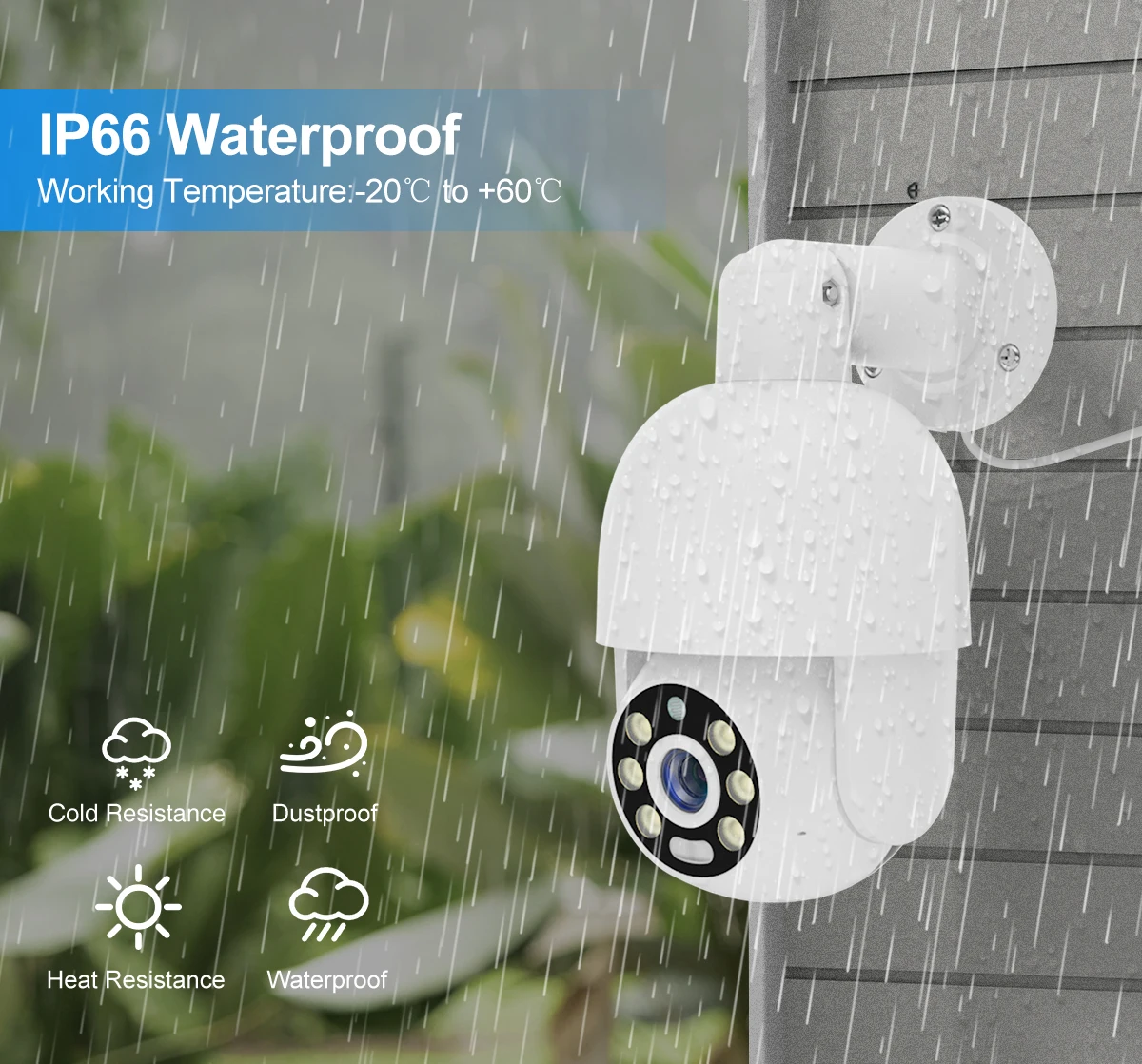

8CH 8MP Newest H.265 Cctv Camera System Nvr 8Mp Camera Ip Day And Night Dome Poe Camera System
- Category: >>>
- Supplier: Shenzhen Techage Technology Corp. Ltd.
Share on (1600689729552):
Product Overview
Description
Product Description
Main Features:
1.Our NVR and Cameras All Are Real H.265 4K 8MP,The NVR Can Support 8MP&4K max ,You can connect 720p,1080p,3mp,4mp ,5mp,8mp&4k cameras with our POE NVR;
2.Our NVR Support Face Detection,Face Smart Playback(Note:Camera not support face detection)Provides ultra high definition
surveillance video images, providing maximum detail and clarity available;
3.Our NVR and Cameras Support Advanced H.265 Video Compression,Power Over Ethernet,Plug and play ,Easy to Setup;
4,All Cameras are built-in Microphone and Speaker,Support Two way Audio Sound Recording;
5.All Cameras Support Ultra HD Day Night Vision;
6.Support Motion Detection, Email Alerts, Video Playback,Multi-Language;
7.Support Android,Iphone,Ipad,PC,VMS,P2P view;
8.Remote Access Anywhere,Anytime;.

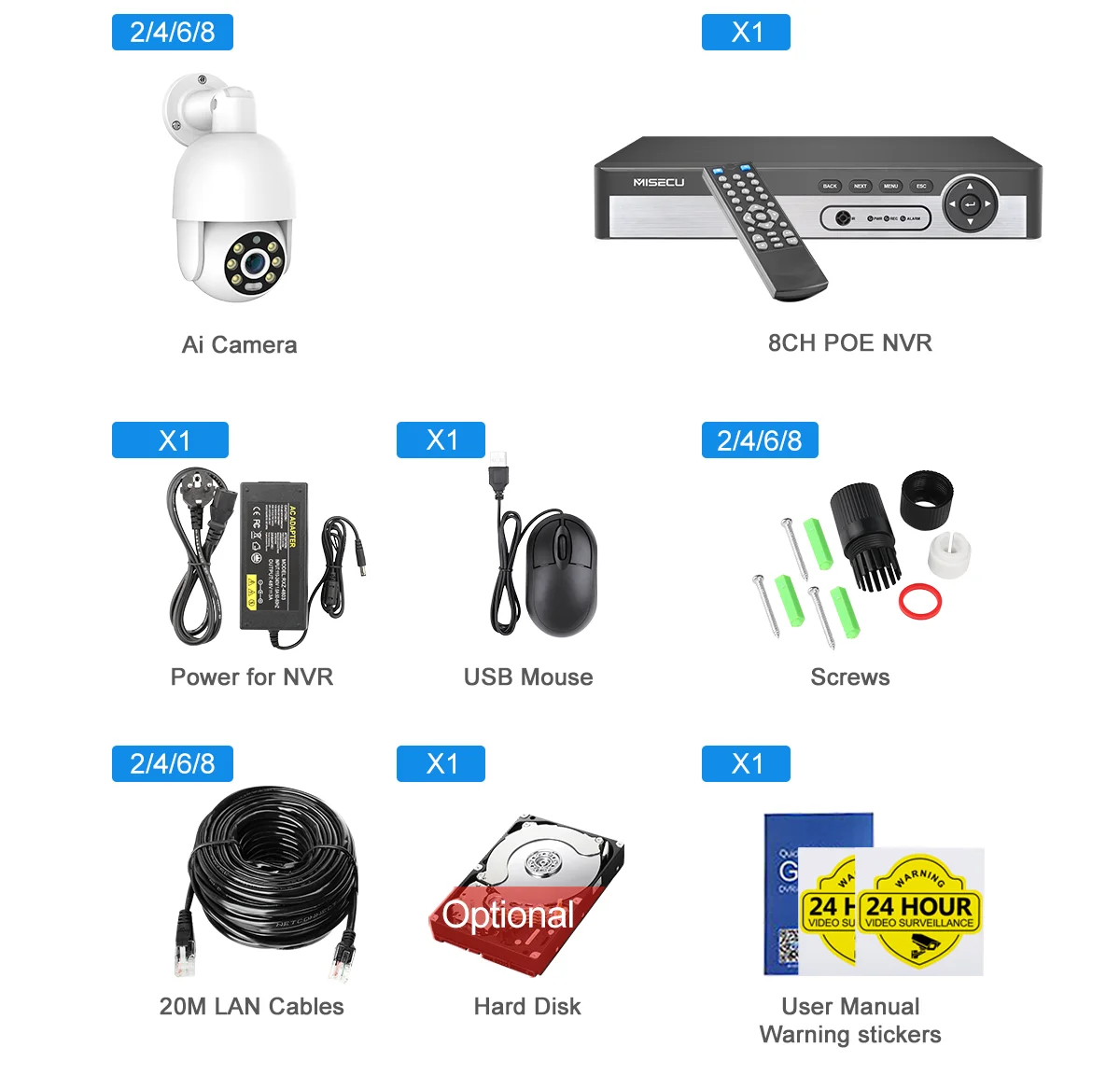

Package Included:
1 x 8CH 4K PoE NVR
8 x 8MP PoE IP Cameras
8 x 20M Network Cable for Cameras
1 x Power Supply for NVR
1 x USB Mouse for NVR
1 x Remote Contorller for NVR
1 x Network Cable for NVR
1 x User Manual
8 x bags Screw
2 x Warning Sticker (gift)
8 x Waterproof Connector for Cable (gift)
No HDD / 1TB / 2TB / 3TB / 4TB HDD for Optional
1.Our NVR and Cameras All Are Real H.265 4K 8MP,The NVR Can Support 8MP&4K max ,You can connect 720p,1080p,3mp,4mp ,5mp,8mp&4k cameras with our POE NVR;
2.Our NVR Support Face Detection,Face Smart Playback(Note:Camera not support face detection)Provides ultra high definition
surveillance video images, providing maximum detail and clarity available;
3.Our NVR and Cameras Support Advanced H.265 Video Compression,Power Over Ethernet,Plug and play ,Easy to Setup;
4,All Cameras are built-in Microphone and Speaker,Support Two way Audio Sound Recording;
5.All Cameras Support Ultra HD Day Night Vision;
6.Support Motion Detection, Email Alerts, Video Playback,Multi-Language;
7.Support Android,Iphone,Ipad,PC,VMS,P2P view;
8.Remote Access Anywhere,Anytime;.
Package Included:
1 x 8CH 4K PoE NVR
8 x 8MP PoE IP Cameras
8 x 20M Network Cable for Cameras
1 x Power Supply for NVR
1 x USB Mouse for NVR
1 x Remote Contorller for NVR
1 x Network Cable for NVR
1 x User Manual
8 x bags Screw
2 x Warning Sticker (gift)
8 x Waterproof Connector for Cable (gift)
No HDD / 1TB / 2TB / 3TB / 4TB HDD for Optional

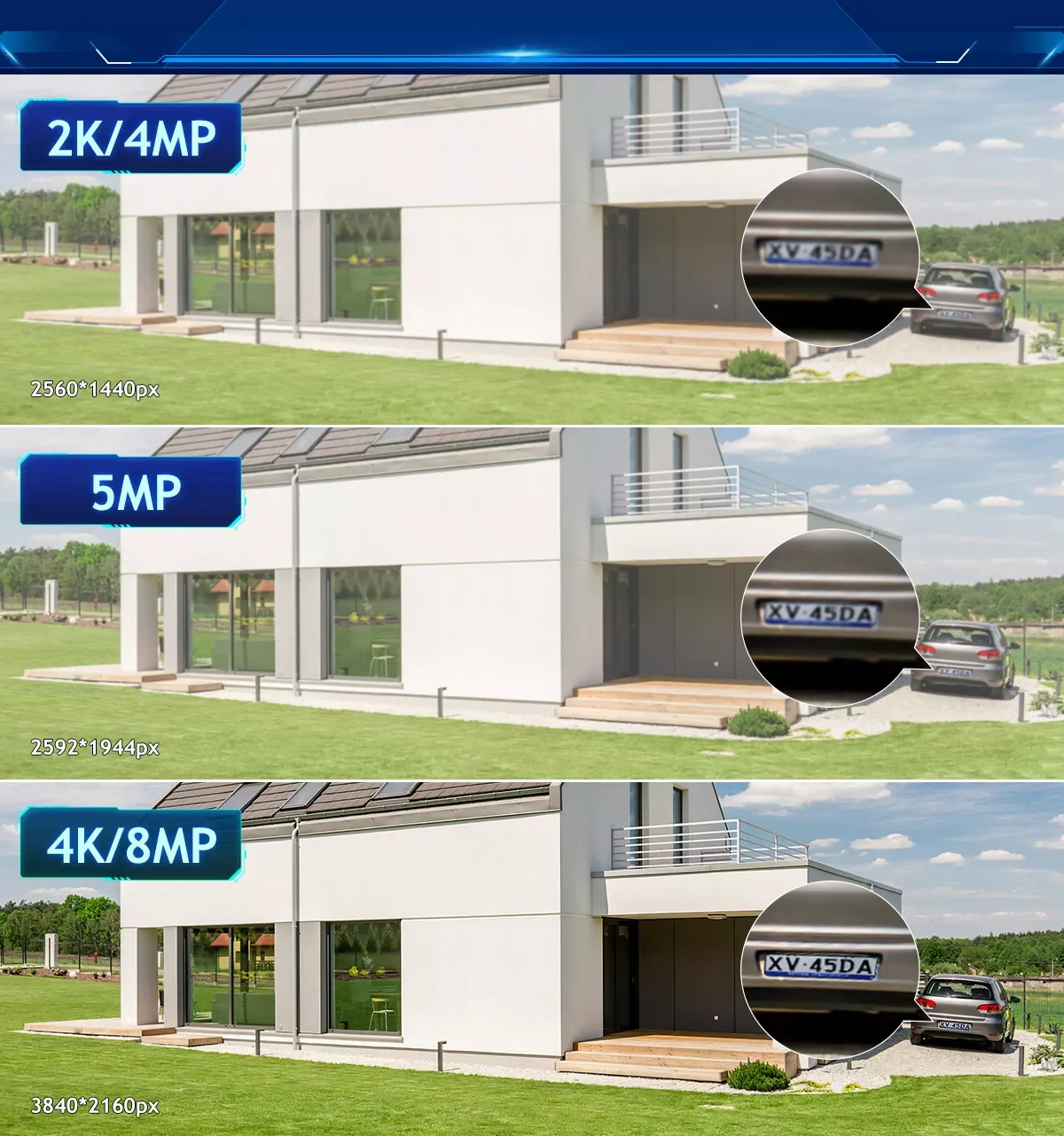

HD 4K Resolution
HD 4K camera can display fine image quality. The picture is clear and closer to the real scene
Smart AI Human Detection + Red-Blue Light Alarm
When it detects a moving human body at night, 6pcs white LED lights will light up as a warning deterrent and provide a color surveillance video.At the same time, the camera will sound alarm and the red and blue lights will flash alternately. Then the alarm messages will be sent to your mailbox
High-precision Intelligent Identification and Alarm
Only valid for human movement. Animals and items do not trigger alarm

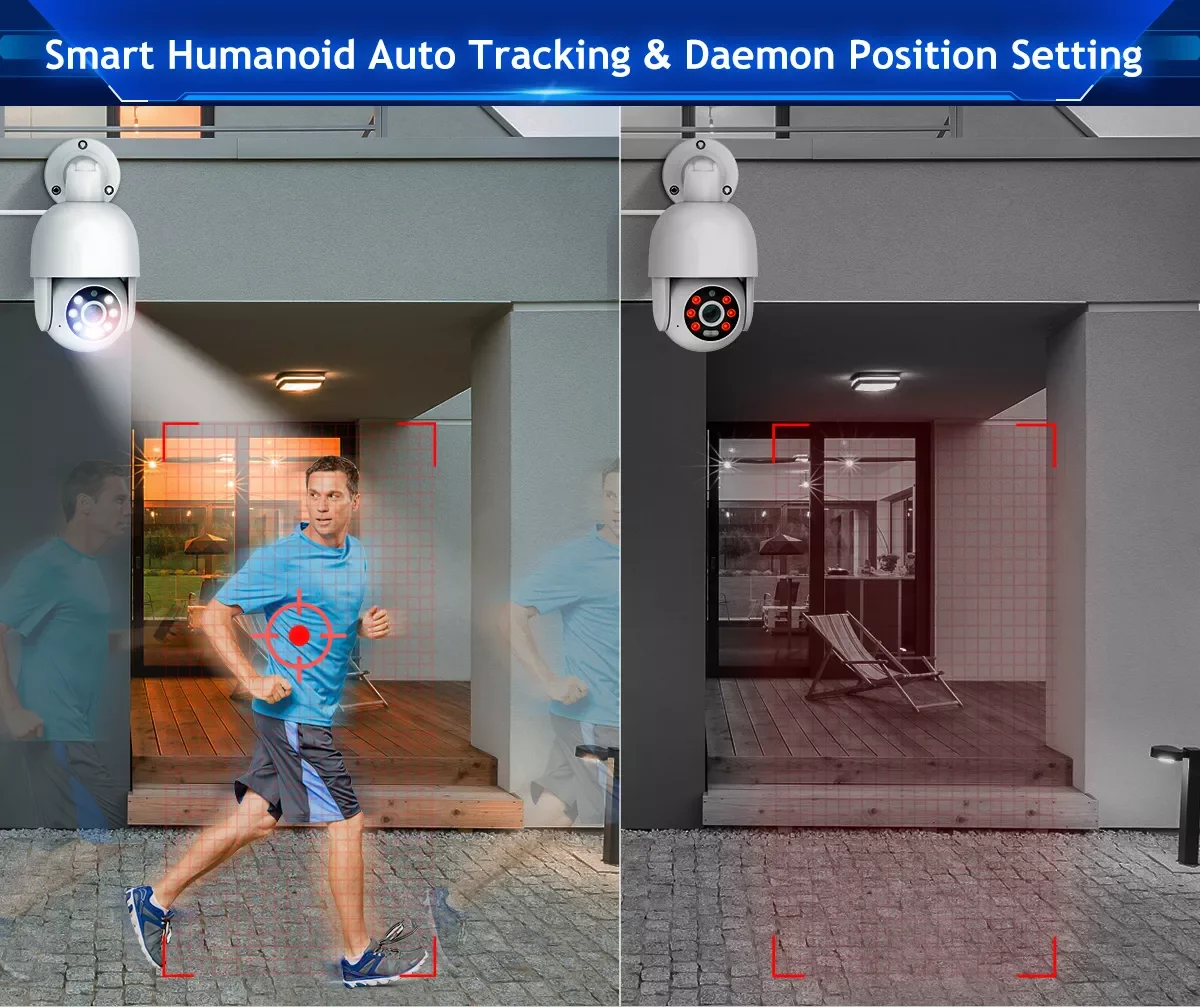

Smart Human Auto Tracking & Daemon Position Setting
When somebody move, the camera automatically track the body. When the human disappears from the camera's field of view, the camera will automatically rotate back to the daemon position you set, monitor the position you focus on at all times.
Real-time Two-way Audio
Camera has built in Microphone and Speaker. Never miss a moment with your family

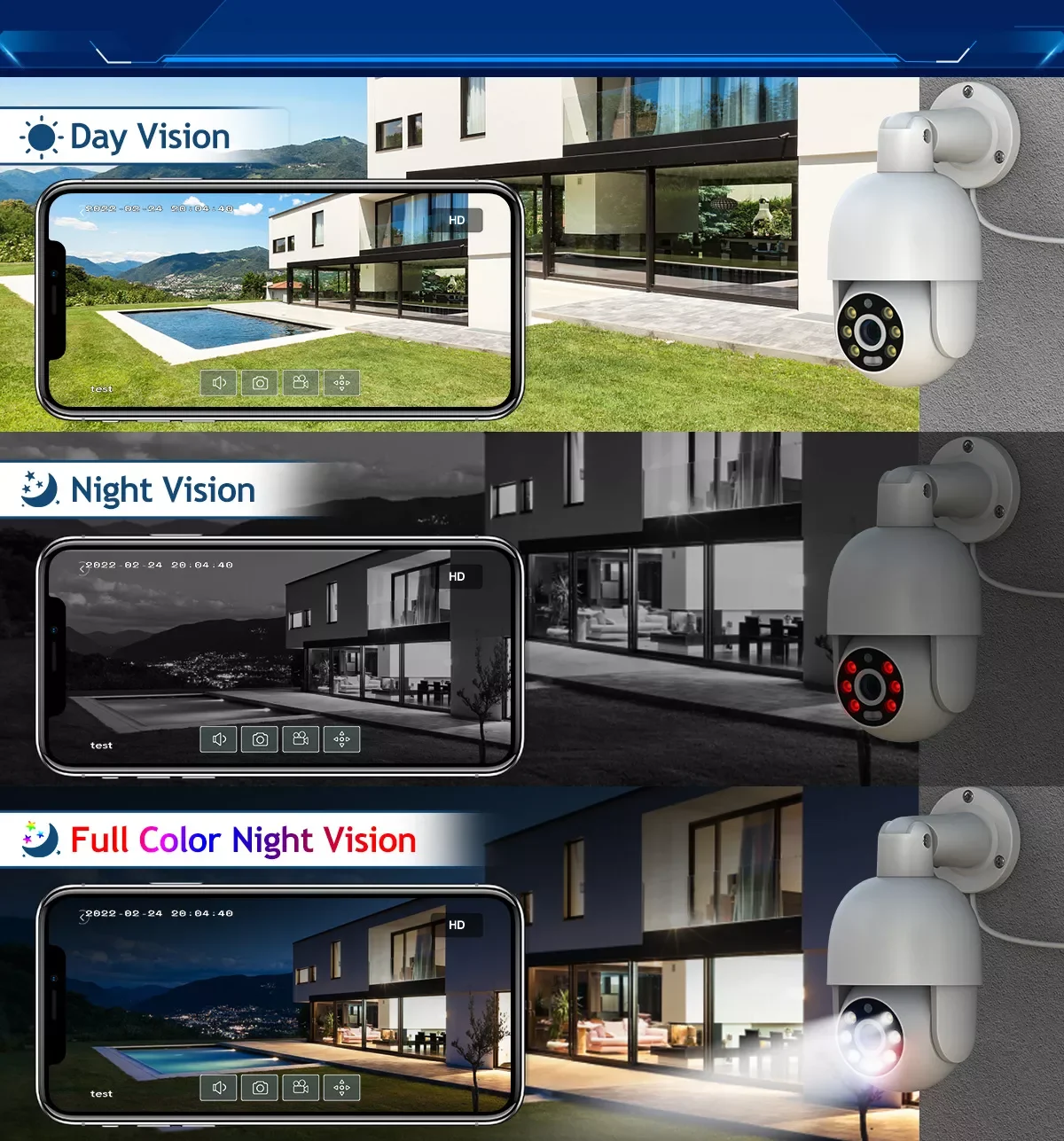

Full Color Night Vision
When the 2 white LEDs are lit, the surveillance video at night will show a colorful picture.Three night vision modes for you to choose: IR infrared night vision, dual warning lights, full color night vision

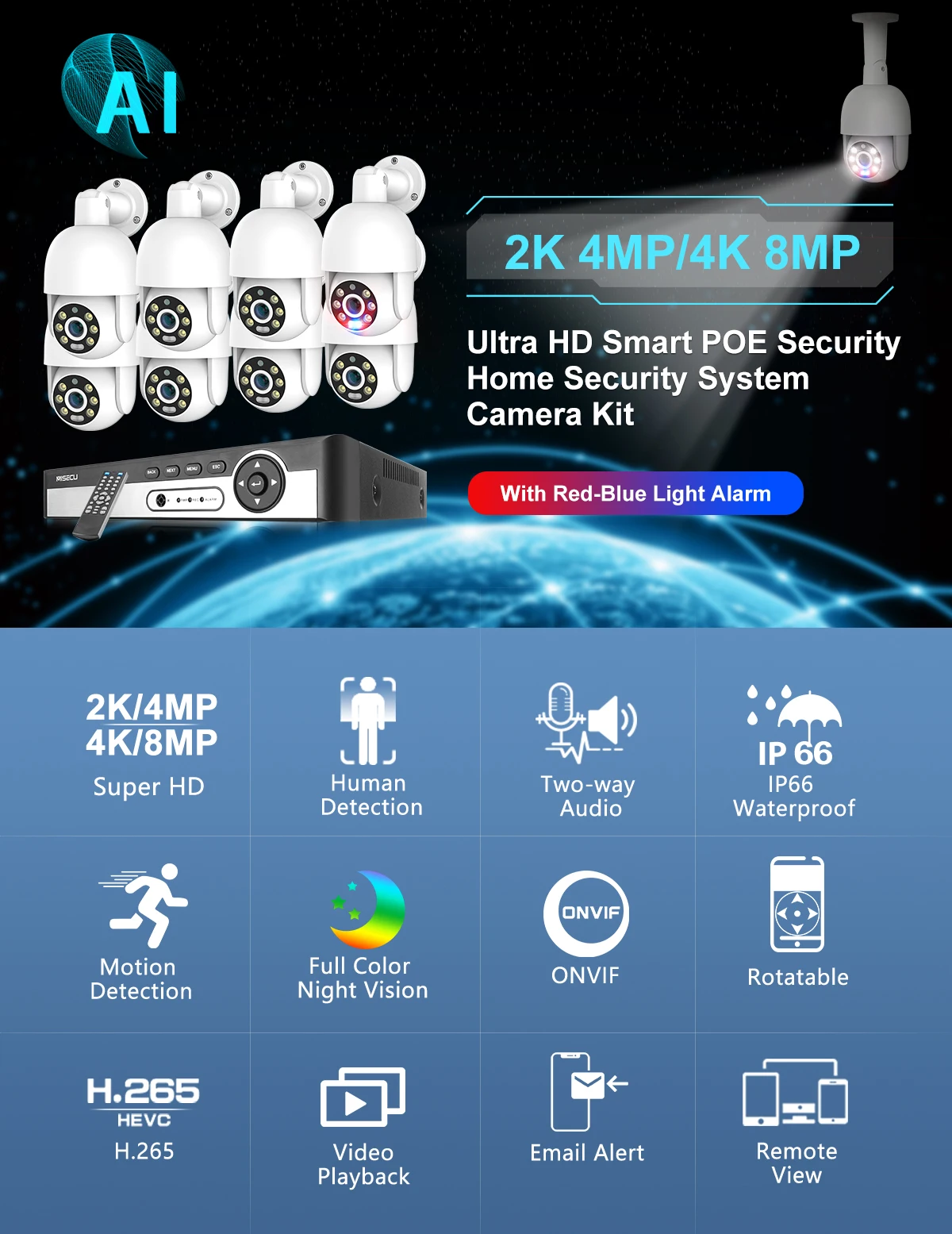

H.265 POE CCTV System
H.265 more clear , HD resolution offer you best image quality in a lower bit rate.Save more storage space,can reduce 40%-50% file size. H.265 only need a lower bandwidth, Speed loading faster, Play video more smoothly.

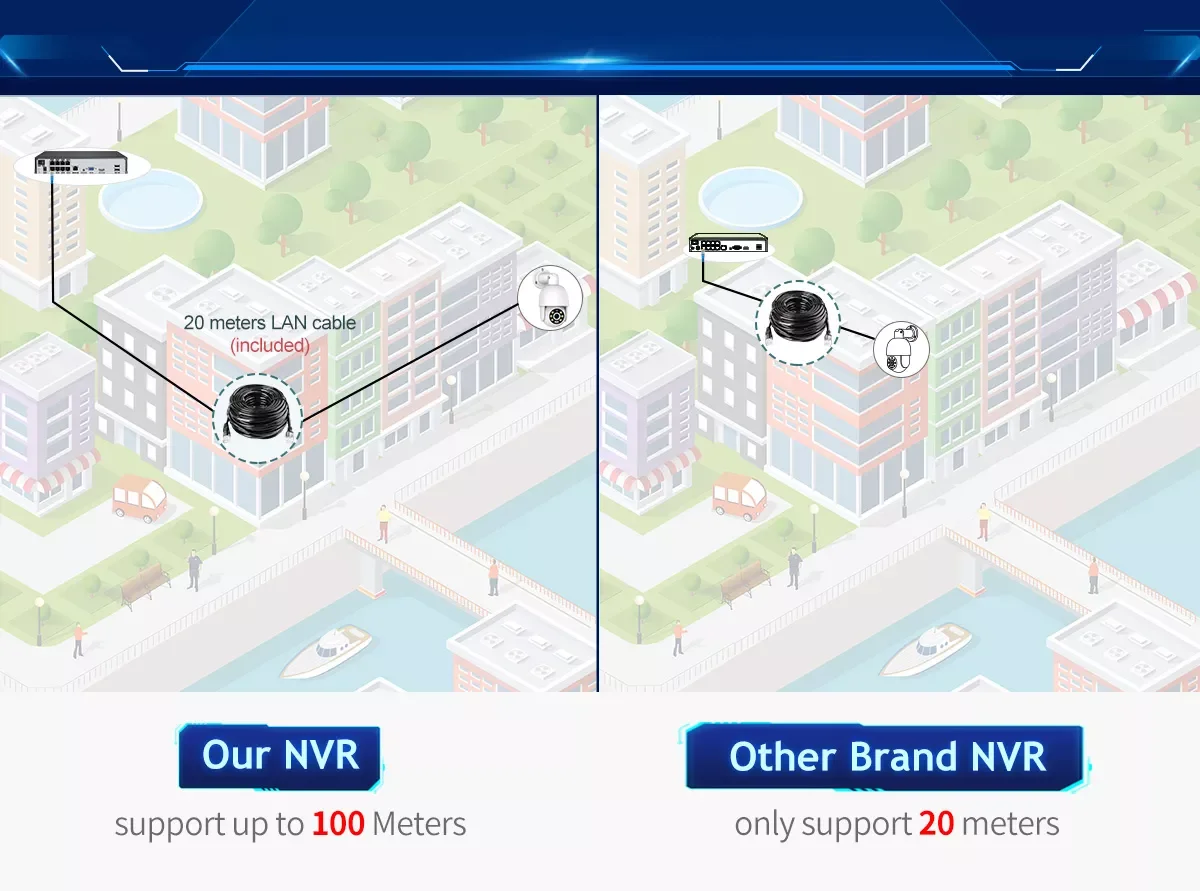

Max Support 100 Meters Cable Transmission Distance
Which Greatly Increases Home Installation Convenience
Details Images
Specification

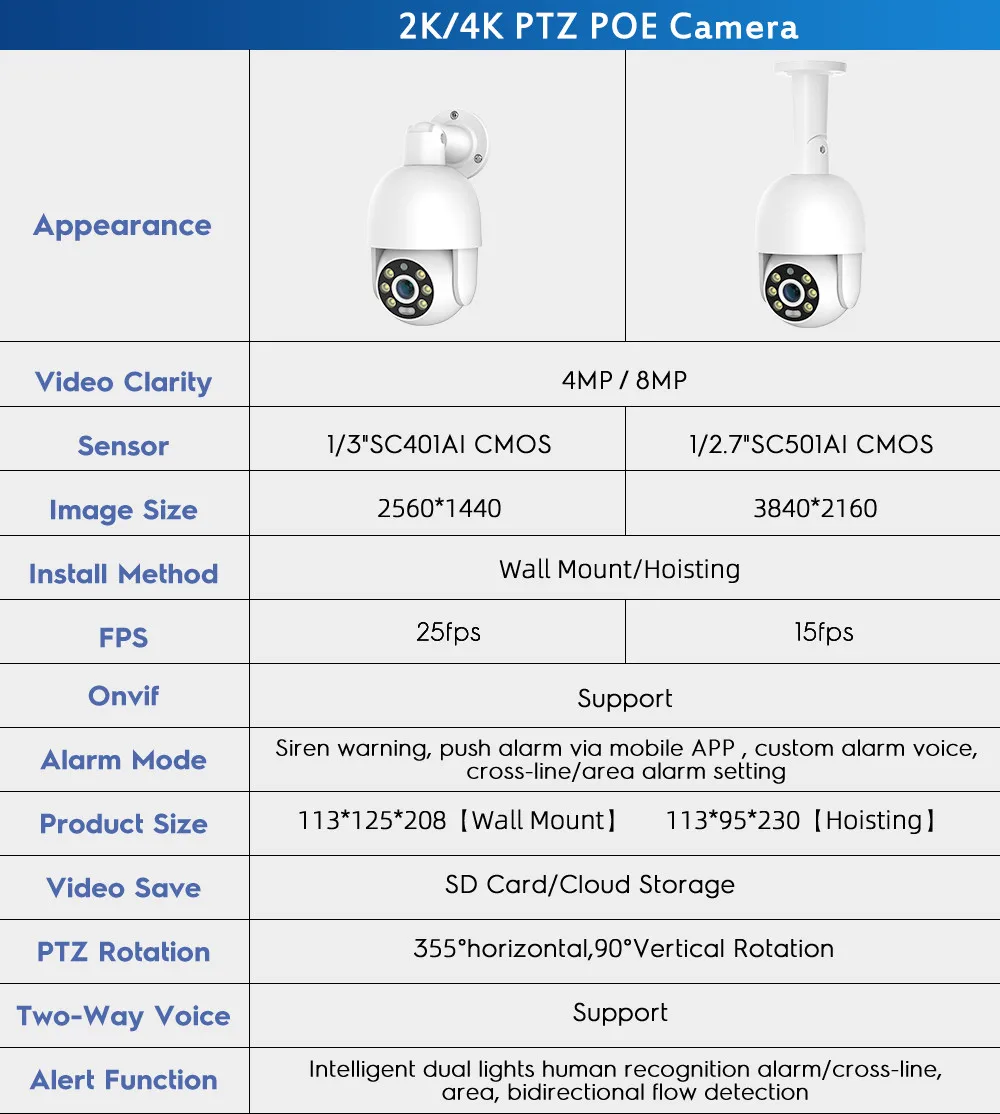

Model | Model Type: | POE Camera |
Model No. | XM-PT825-80P | |
System | System structure | Embedded RTOS design, dual core 32-bit DSP (NT98566), pure hard compression, watchdog |
Video | Sensor | 1 / 2.7 "sc501ai High Performance CMOS sensor; color 0.001Lux@F1.2 Yes, black and white 0.0001Lux@F1.2 |
Video processing | H. 265ai coding, double code stream, avi format; The code stream is adjustable from 0.1M to 10Mbps; Frame rate: 1 ~ 30 frames / second (adjustable) | |
Image output | "Main code stream:8MP 3840*2160@15fps；5MP 2880*1616@25fps；4MP 2560*1440@25fps；2MP1920*1080@25fps;Subcode stream: 800*448@25fps | |
Shutter | 1/50(1/60)to 1/10000 of a second | |
Noise reduction | 2 d / 3 d noise reduction | |
Wide dynamic | Digital-wide dynamic | |
Lens | 3.6mm hd lens | |
Night vision | IR-CUT，Infrared night vision, color filter automatically switch | |
light distance | Infrared 30m ，white light 20m(6 infrared light,6 white light) | |
Audio | Audio processing | G.711A，two way audio |
Audio interface | -33dB high sensitive mic, 8 Ω 1W horn | |
Network | Network interface | One RJ45 Ethernet port,10/100M auto-sensing |

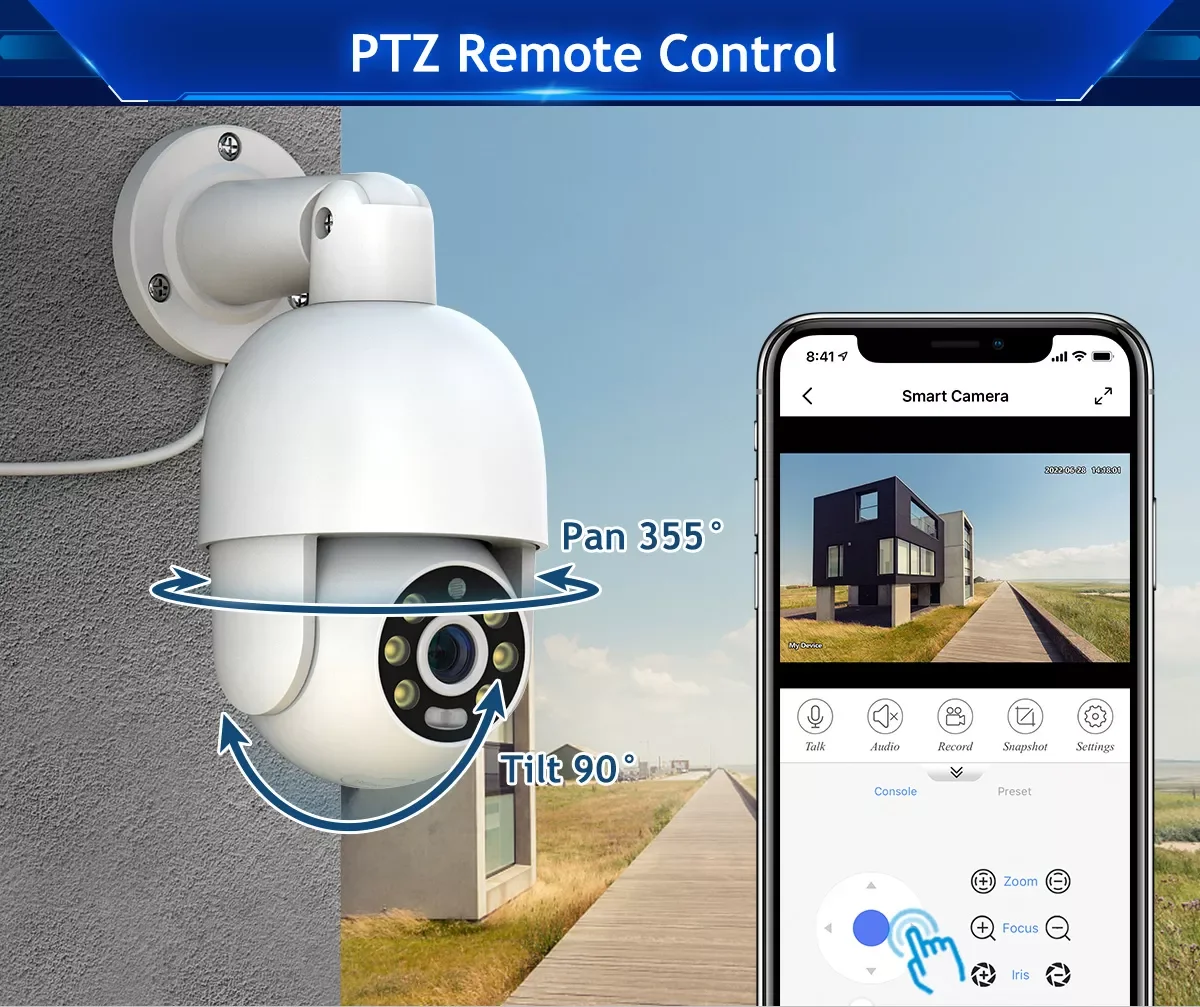

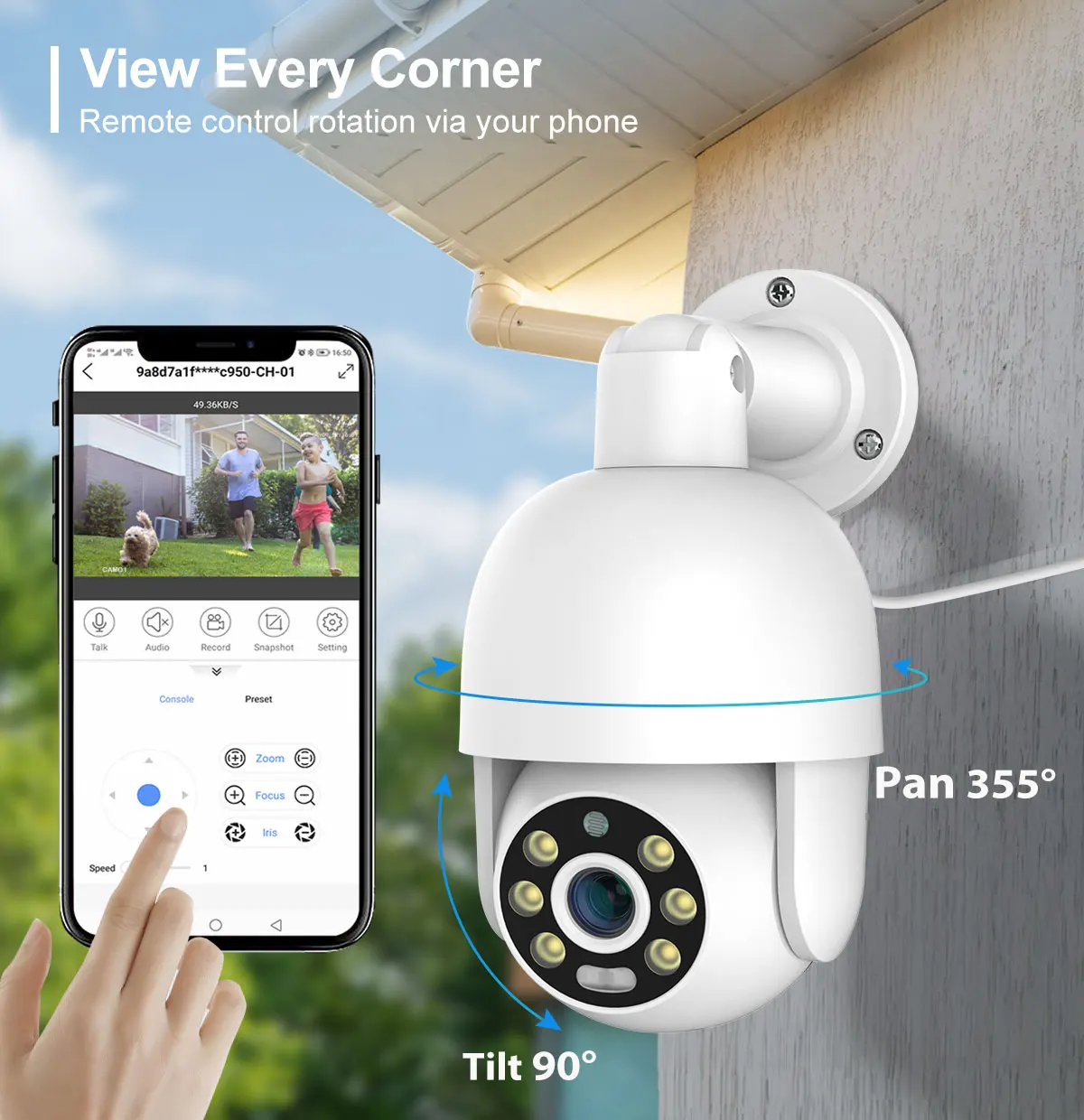

PTZ | Pan 355° Tilt 90 ° | |
Human tracking, guard position | ||
Alarm | Human detection, Motion detection, Smart AI alarm, Face detection | |
Red and blue alarm warning light | ||
APP push, voice alarm, video recording, capture pictures | ||
Video | Video mode | Timing video, event video |
Playback mode | Event playback, time playback | |
Storage | Local TF card, up to 128G; cloud storage | |
Other | Reliability | Comprehensive lightning protection，7*24 hours 65℃ high temperature test is stable and reliable |
ONVIF | support | |
Cell phone monitoring | Mobile phone monitoring (iOS, Android) | |
power | POE48V/DC12V 1A | |
Material | Plastic Housing | |
Work environment | Temperature | -20℃ to +55℃ |
Humidity | 30% to 80% RH |
System | Main processor | Hi3536E |
Operating System | Embedded Linux | |
System resources | Simultaneous multi-channel real-time recording, playback, network operation, USB backup | |
Interface | Operator interface | 16-bit true color graphic menu operation interface, support mouse operation |
Preview | 1/2/4/6/8/9/16 | |
Video | Video input (IP) | 16*4K（Access bandwidth 72Mbps） |
Video compression | H.265AI/H.265+(compatible H.265/H.264) | |
Display quality | Max:4K | |
Playback quality | 4K/5M/4M/3M/1080P | |
VR | Unsupport | |
human shape / Face | Support(depend on camera) | |
Audio | Audio compression | G.711A |
Intercom | unsupport | |
Record & playback | Recording mode | Manual>Alarm>Dynamic Detection>Timing |
Localpayback(real-time+ Un real-time) | 4K（1*real-time）/5M（1+1）/4M（2+1）/ 3M（3+1）/1080P（4+1） | |
Search mode | Search by Time/Calendar/Event/Channel/Face | |
Record storage | HDD、Network | |
Backup mode | Network backup, USB hard disk, USB burner, SATA burner | |
External interface | Video output | 1ch VGA，1ch HD output |
Audio I/O | 0/1（3.5MM audio output） | |
Alarm I/O | 0/0 | |
Network interface | 1*RJ45 10M/100M Adaptive Ethernet port | |
USB interface | 2*USB2.0 ports(one USB extension interface is reserved) | |
HDD | 1 SATA(Up to 14TB for each disk) | |
Other | ONVIF | Support |
Power supply | 52V/2.5A | |
Power Consumption | <10W(Without HDD) | |
Work environment | Temperature:0℃ －55℃ , Humidity:10%－90%RH , Atm:86kpa－106kp |
