Borehole packer injection rubber packer for coal mine

  Plugging and grouting hole packer , inflatable packer.

Inflatable packer working principle

Inflatable packer structure

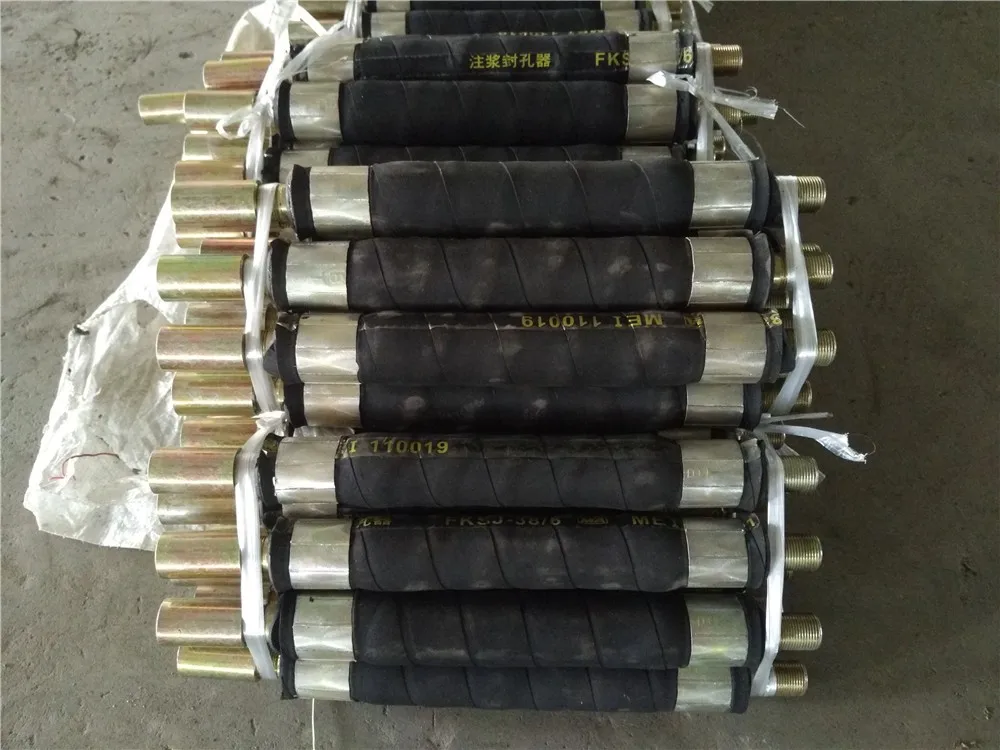

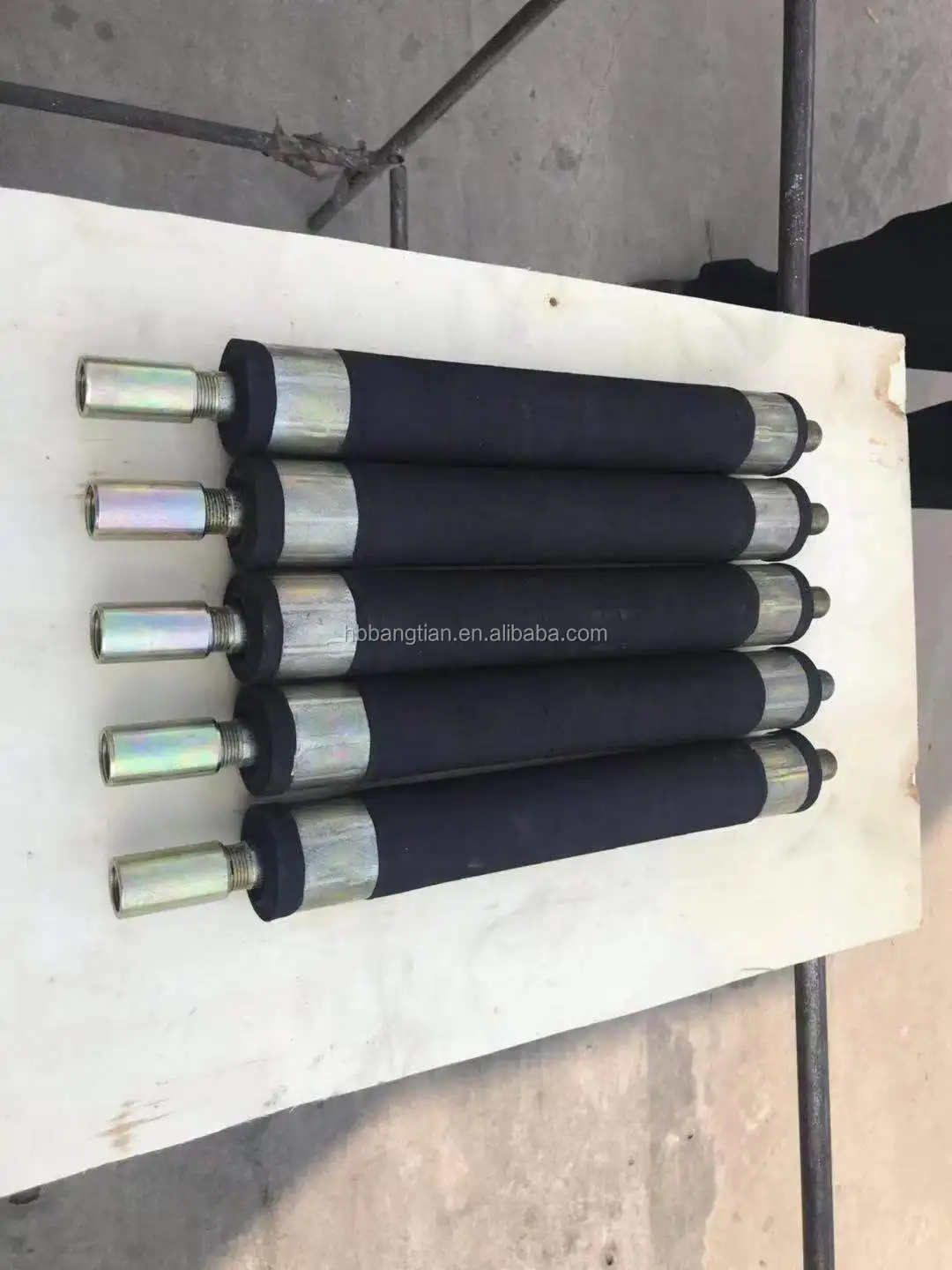

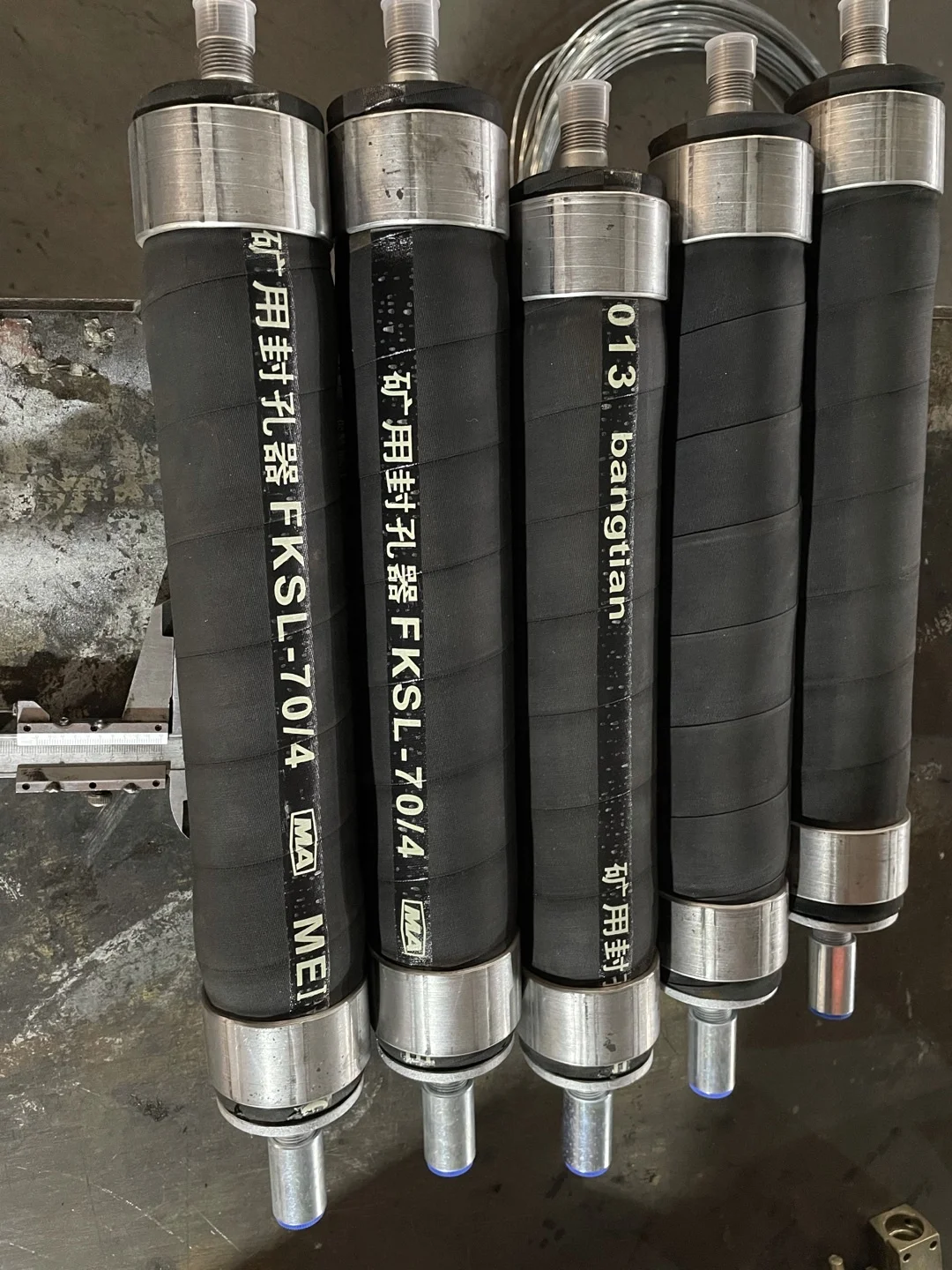

Picture of the real Inflatable packer

The plugging and grouting hole packer FKSM-83/6 (Patent Certificate No: 1605119) is used together with our Bangtian mining hole sealing materials.

Inflatable packer features:

1. All materials of the hole packer are inflaming retarding and antistatic and meet related national standards.

2. The high elasticity and tightness of rubber is utilized, so that the hole packer is applicable to irregular holes and better sealing performance can be realized especially in soft coal seams.

3. The rubber surface is processed by adopting special technologies, so that excess water will be extracted and grout will not flow out.

4. By using the hole packer's characteristics of high resistance to pressure, it may be used to realize high-pressure grouting on coal body, so that the grout can enter the gaps between coal seam and thus ensure the quality of hole sealing.

5. The hole sealing length may be designed at will.

6. It is applicable to all types of coal seams, whether soft or hard.

7. After boring is completed, the hole may be pre-sealed by using water pressure in the mine and then sealed by injecting grout.

8. It is easy to operate and can complete the hole sealing operation at one attempt.

Inflatable packer Working Principles:

The hole packer is connected to the grout injection pump, so that the hole sealing materials can enter the front and rear hole packer. Due to the effect of the check valve, grout can flow through the front and rear hole packers, and driven by the pressure (4Mpa) at the explosion relief valve, the expansion runner hose at both ends of the hole packer expands and fix the hole packer securely to the hole walls by the frictional force produced by the rubber materials. Then the hole packer can seal both ends of the hole. The explosion relief valve ruptures, so that grout flows through the explosion relief valve and fills the space between two hole packers, to realize hole sealing under pressure (1-3Mpa). A gas drainage hose is then connected to the gas drainage pipeline to drain the gas.

Inflatalbe packer specification:

 If you want this products, pls give us the  inflatable packer size below,

1. The hole diameter.

2. The hole depth,

3. Working pressure,

4. One time use or recycle use

Pls tell us the detail information by claire (at) hbbangtian.com, the best offer will be sent to you.

Keep waiting for your inquiries...

Hebei Bangtian Mine Safety Equipment Co., Ltd. is located in Fucheng, also known as the Canal City, an ancient town in southeast Hebei Province. Founded in 2010, the company is a specialized manufacturer of mining hole sealing devices, rubber hoses, and hole sealing materials. Currently, the company has 45 employees, of whom 6 are engineering and technical persons, besides, the company has specialized production and testing facilities, proving customers with qualified products.

Our products are mainly used in hole sealing area, including gas hole sealing, coal seam water injection hole sealing, coal seam grouting hole sealing and coal seam water plugging hole sealing, etc. The company has passed the certification of Mining

Products Safety Label, ISO9001:2008 Quality Management System. We have registered the Bangtian brand for some of our products and have obtained related patent certificates. In 2015, the company was rated as a technology based small and medium sized enterprise in Hebei Province.

We always stick to the objectives of "benefit by management and seek for development by innovation" and provide high-quality products and services and make all efforts to improve the management level and the "Bangtian" brand of the company.

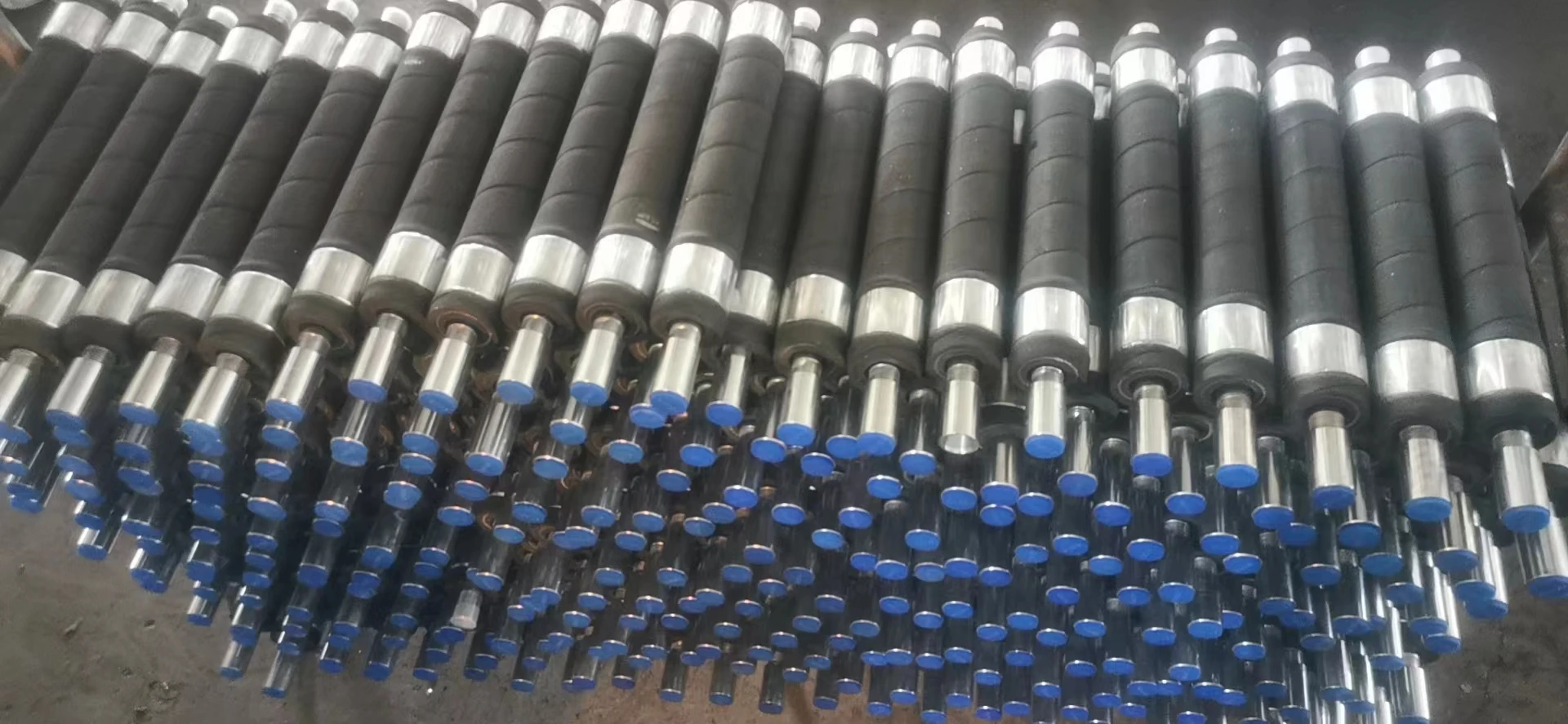

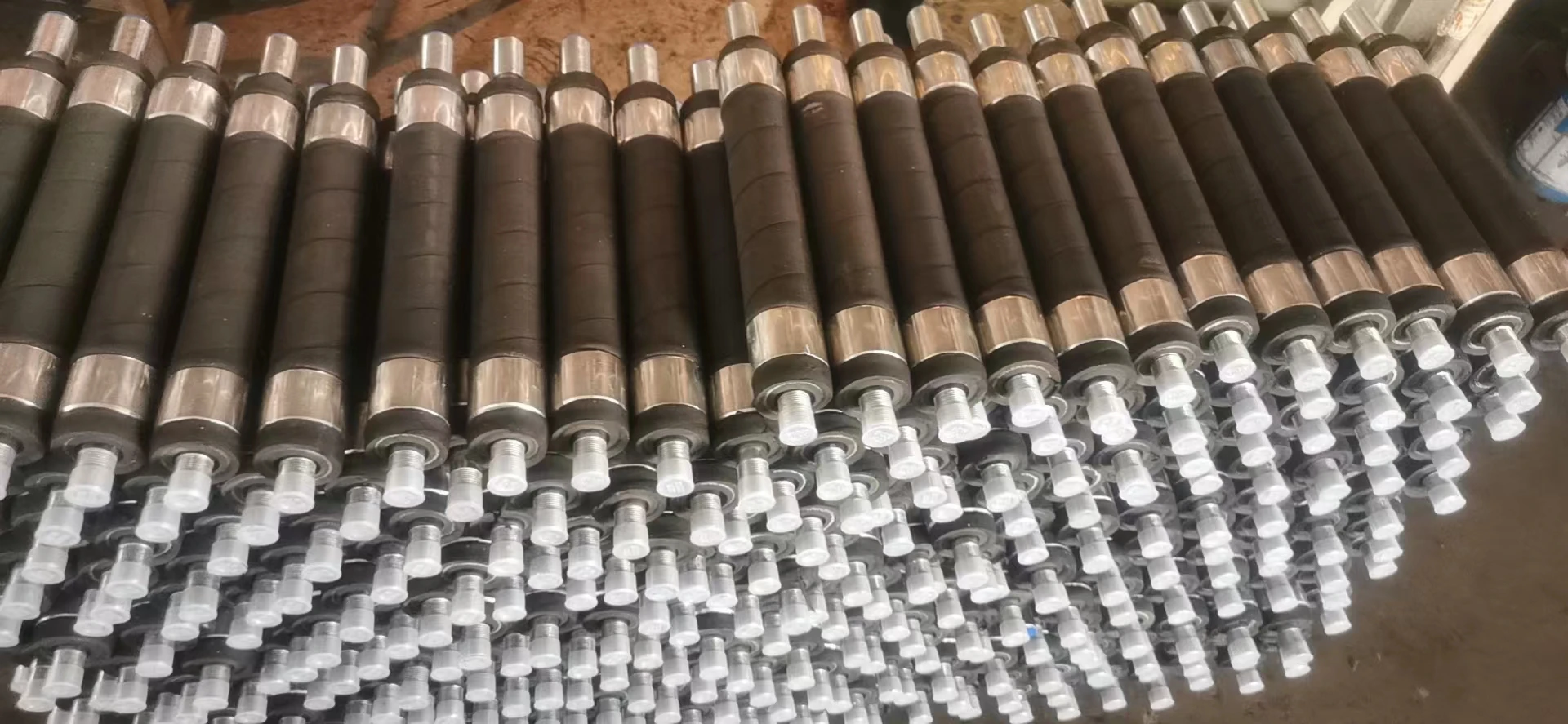

 Inflatable packer workshop
