Thermostatic Dry Heat Laboratory Hot Air Sterilizer

Share on (1600689782995):


Price:

Quantity:


Product Overview

Description

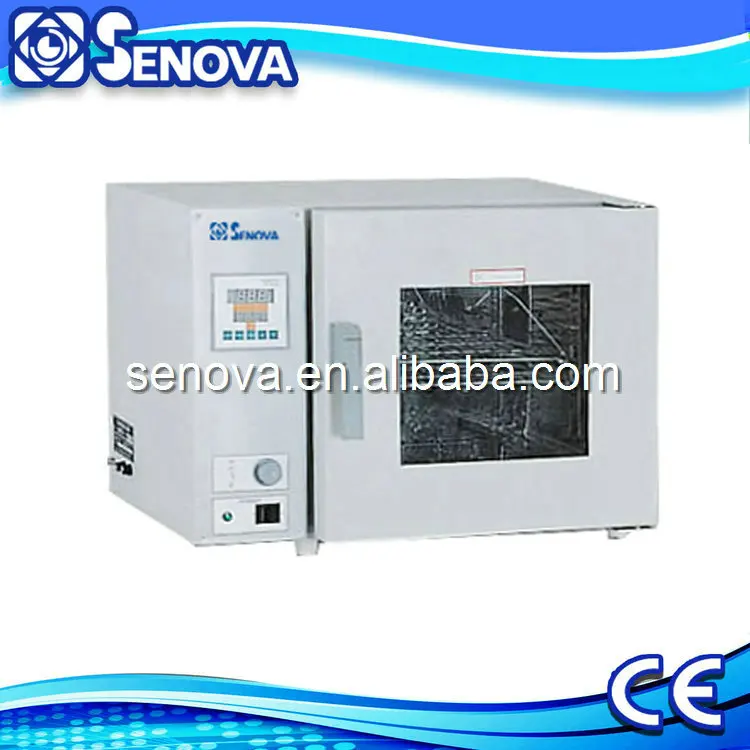

Thermostatic Dry Heat Laboratory Hot Air Sterilizer


25L  10C-250C Dry Heat Laboratory Oven


NuOven D25-I/NuOven D51-I



Product Description


Applications: NuOven D25-I/D51-I is used in laboratory,hospitals and pharmaceutical industry.


 Sterilizer


Main Features



  • Benchtop hot air sterilizer for laboratory sample dry heating

  • Horizontal forced convection with adjustable inflow and outflow dry hot air speed to ensure sterilizer chamber temperature uniformity

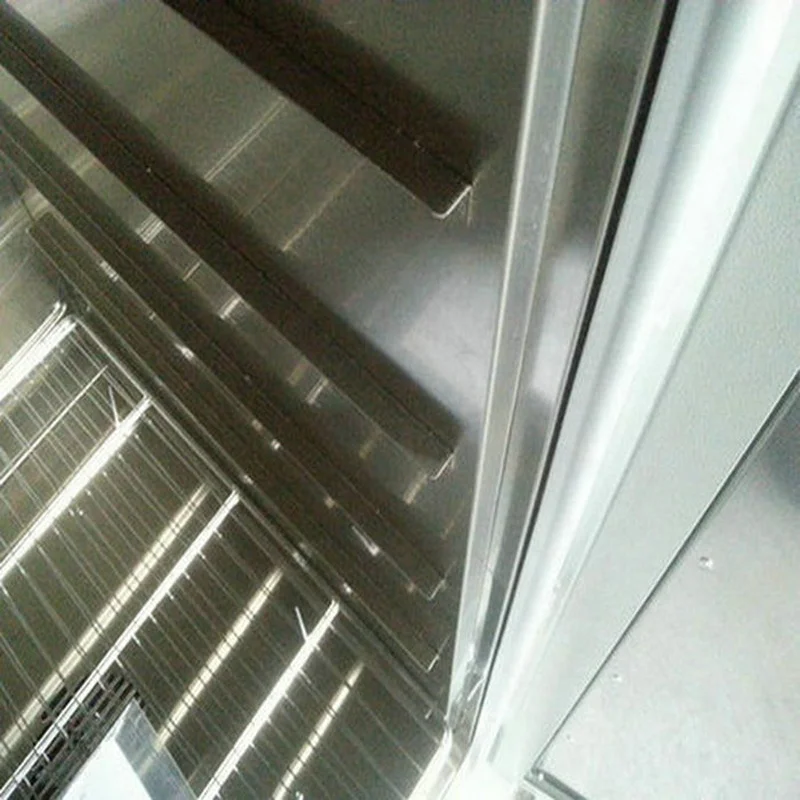

  • Stainless steel working chamber and powder coated steel housing with dual-layer toughened glass window

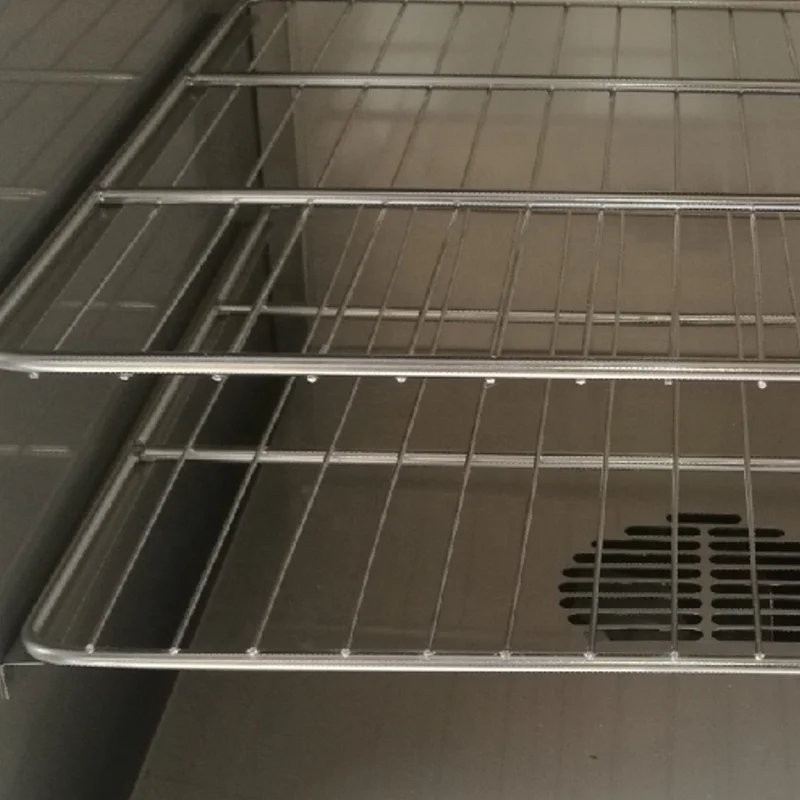

  • Stainless steel shelf with adjustable space

  • Thermostatic temperature controller with high-peed, high-performance CPU chip

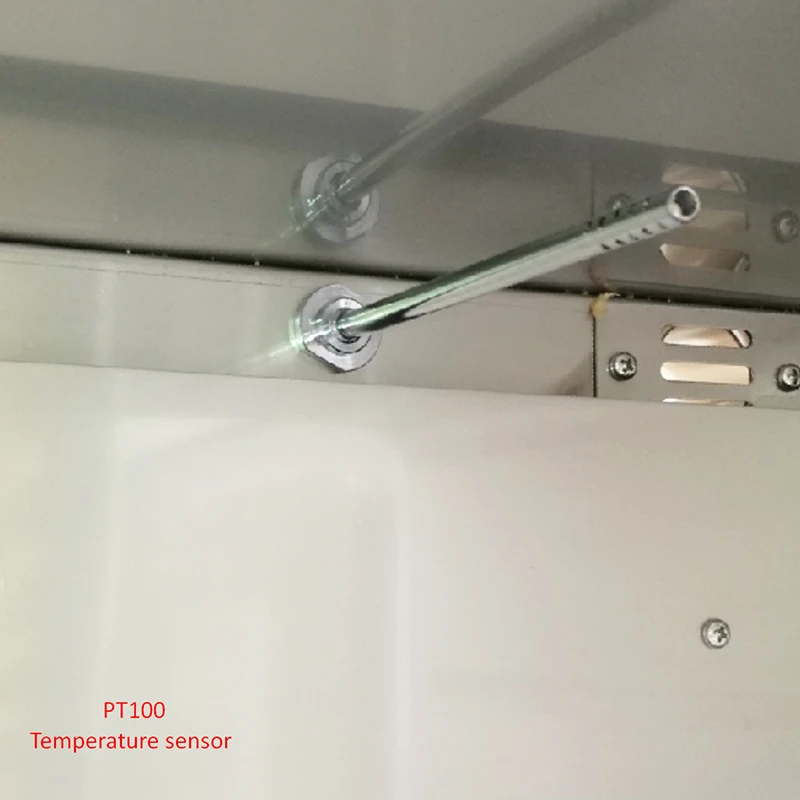

  • High-sensitivity and high precision Pt resistance sensor

  • Preset programmed control with timing range up to 99 hours for power-on, power-off and working

  • Multiple alarmings for sensor failure, high/low temperature deviation, over temperature

  • 10-segment temperature control program to realize temperature’s stepped program operation

  • Parameter memory

  • Temperature display calibration

  • Dynamic self-diagnostic control technology


 Specifications





























































































Product
ModelNuOven D25-INuOven D51-I
Chamber volume (L)2550
Convention MethodHorizontal Forced Convection (Fan)
Temp. Control RangeRT+10C~250C
Temperature Accuracy±1C at 100C
Temperature Fluctuation±1C
Temperature Uniformity±1C at 100C

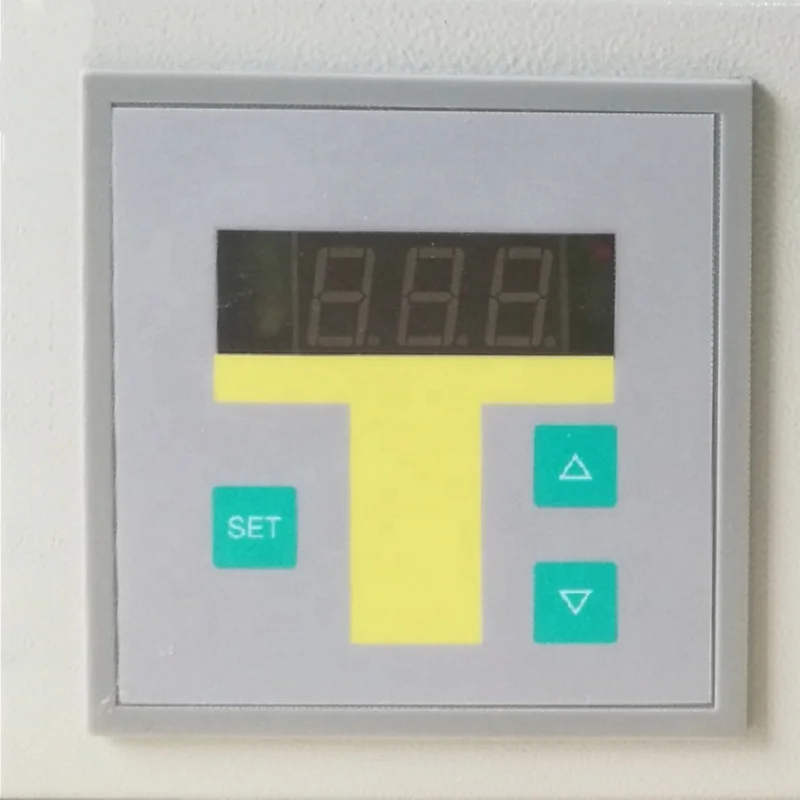

Temperature Controller


PID microprocessor control, soft touch, LED display

Temperature Sensor



Pt 100



Timer


Power-on, power off and working. Timing range: 1min-99hr

Chamber Material


304 stainless steel

Housing Material


Steel (powder coating)
Chamber Size  300×300×275420×350×350
Dimensions(WxDxH,mm) 580×470×445710×520×520
Net Weight(Kg)3043
Consumption Power(W)500740
Shelf Size(mm)246×280366×340
Shelf Qty(Std./Max.)2/42/7
Power Supply220V/50Hz (Optional: 220V/60Hz, 110V/60Hz)










Certifications


Hot Air Sterilizer





ISO9001 Certificate,  CE Certificate and Third-Party Factory Verification Report





Packing & Shipping


Shipment: By air courier, sea or air.


Standard package: Reinforced honeycomb carton with wooden pallet at the bottom and plastic corner protectors is wrapped with PE film before PET packing strip is used.  Each unit is pack in a reinforced carton filled with foam between the package and the product to protect the goods from external impact force during shipment.


Optional package: Wooden case or wooden pallet is also available upon request.





Laboratory Hot Air Sterilizer








Our Services


After-sales service


     Technical support for any enquiry for troubleshooting


     Quick supply of spare parts ensured


     Service training provided if necessary





Warranty and support


     14-month standard warranty


     Prompt technical support and fast supply of spare parts from stock


     Maintaining stock for fast delivery of the goods for regular orders


     Opportunities for exclusive distributorship


     Enquiry forwarding


     New model and product launch


     Website download service of updated product information on  brochures, price, etc.


     Special price support for big project


     Exclusive tender authorization offered upon request


     Provision of promotion material like product images and minimum brochures


     Demo units at special price


     Award discount policy


     Sales and service training


     Training material


     Electronic user & service manual


     Exhibitions cooperation








Company Profile


Sterilizer


With R&D and production base in Shanghai Premier Industry Zone as well as over 13 years of experience in international market for constant temperature laboratory equipment (thermal chamber including Thermostatic Dry Heat Laboratory Hot Air Sterilizer), Senova is the international sales center to serve our global distributors with both reliable products complying with international standard and after-sales service.





Hot Air Sterilizer


Photo: Factory Gate, Workshop and Office


 Product Album


 Laboratory Hot Air Sterilizer


Senova constant temperature laboratory equipment


Exhibitions


We attend laboratory equipment exhibitions, shows and fairs both in China and outside China to meet our new and old customers worldwide.


Sterilizer











FAQ


1. Are you a factory or trading company ?


 A : We are a factory with an international sales company specialized in support for global distributors. Please find our third-party factory audit (verfification) report shown above.





2 .Where is your company location ? How can we visit there ?


 A :Our factory is in Shanghai, the most booming city in China , 20Km away from Shanghai Pudong International Airport. Welcome to visit us !





3. What certification do you have?


 A : ISO 9001 and CE certificate.
