Product Overview

Description



Product Description




FHO1000-D22

22/20dB Dynamic Range
10mw VFL/Stable OLS/OPM/RJ45 cable test

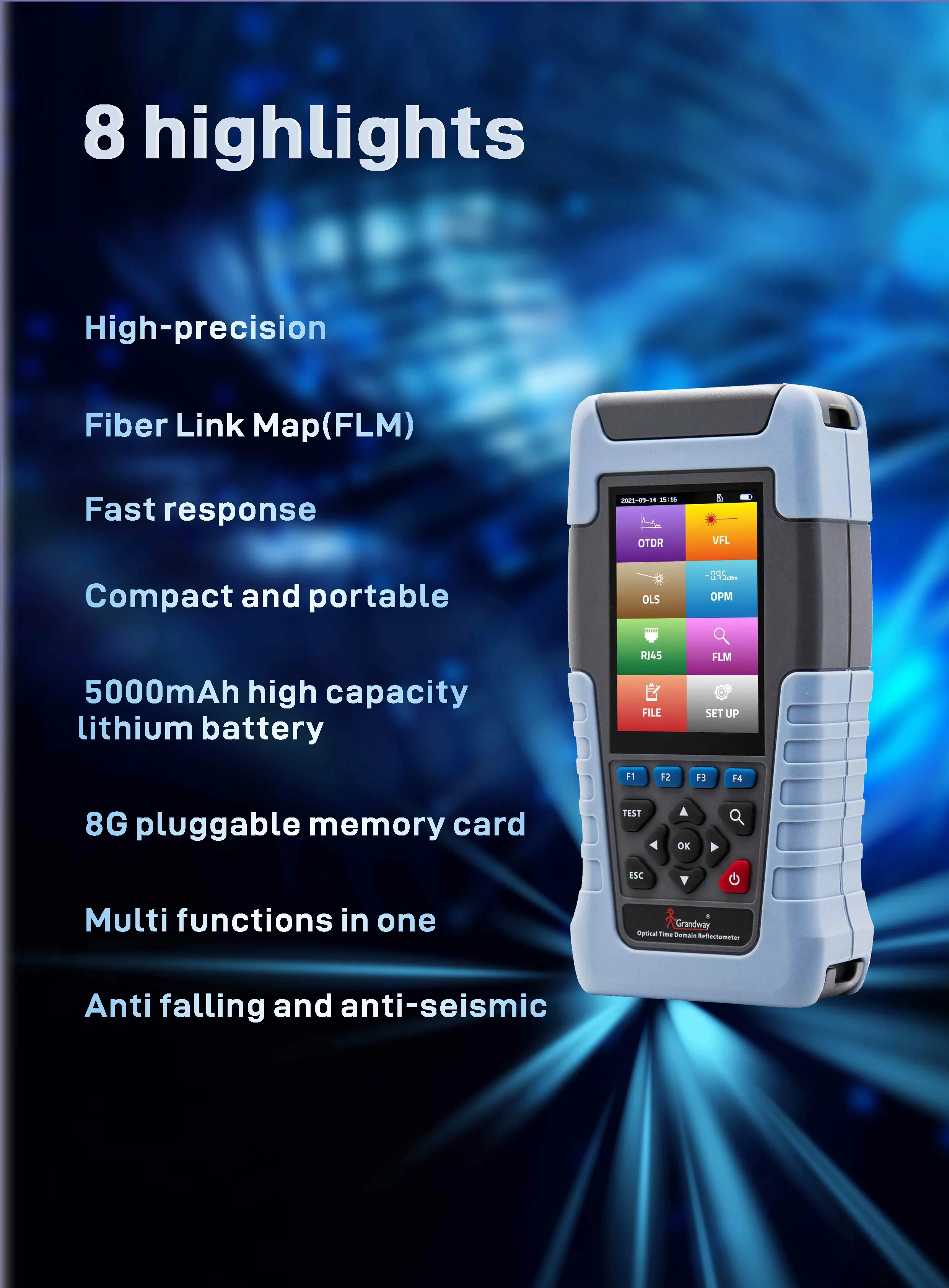

8 Highlights
High-precision
1m/4m small dead-zone
2m patchcord can be accurately tested
Fiber Link Map(FLM)
Display optical fiber events with intuitive icons
Fast response
Real time mode, fast test response
Compact and portable
192.9Lx93.8Wx47H(mm)/570g
5000mAh
Standby time>15HWorking time>8H
8G pluggable memory card
More than 80,000 test curves can be stored
Multi functions in one
10mw VFL/Stable OLS/OPM/RJ45 cable test
Anti falling and anti-seismic
Shockproof silica gel, sturdy and durable


Short distance test
Ordinary OTDR cannot accurately measure the 3M patch cords at both ends Ordinary OTDR cannot measure the attenuation value of
macro bend at 10m from the head endOrdinary OTDR cannot measure continuous connectors of 2m patch cords
Middle distance test
Ordinary OTDR cannot measure the 10m patch cord in the middle

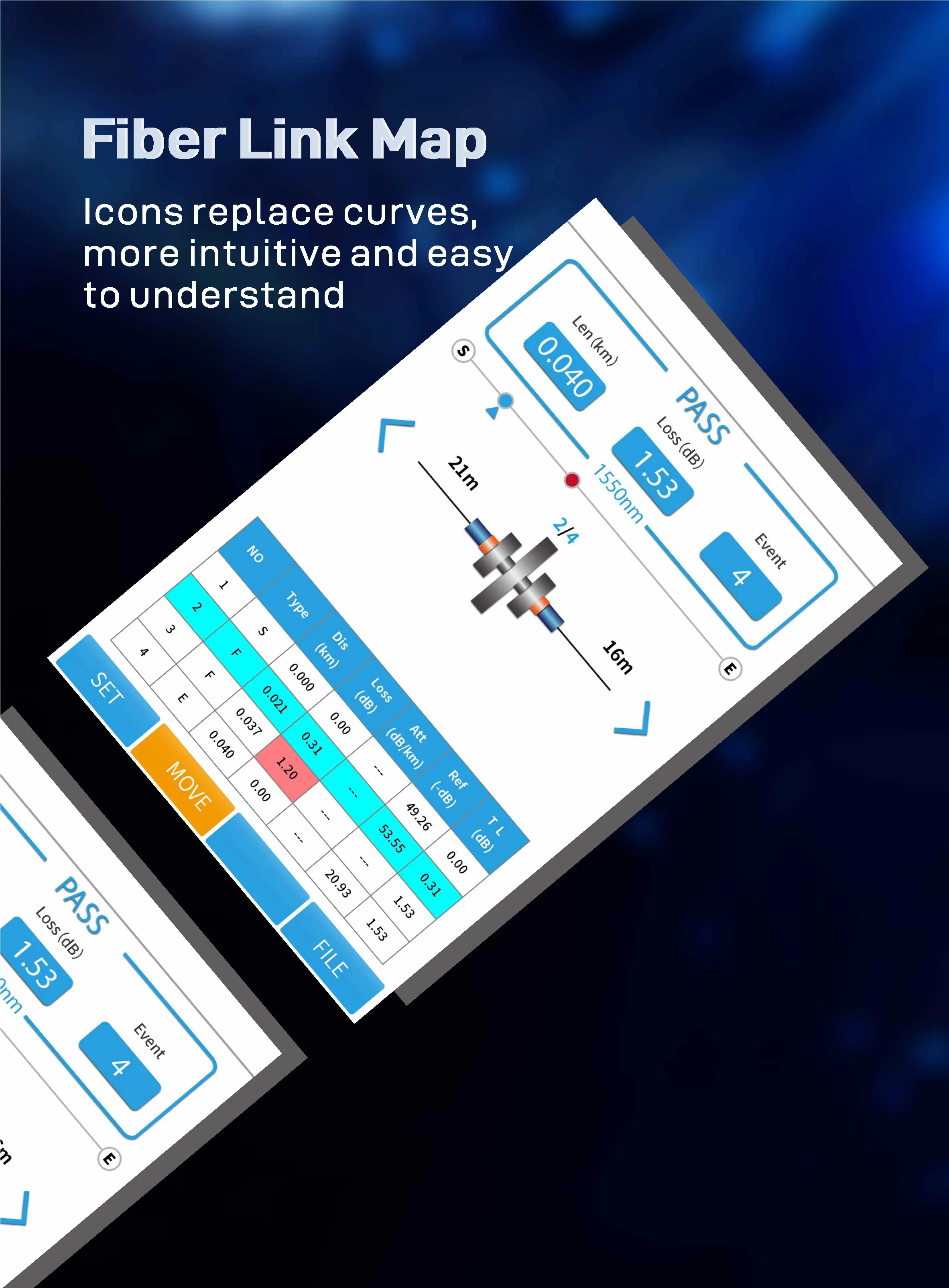

Fiber Link Map
Icons replace curves, more intuitive and easy to understand
Support Pass/Fail function
Analyze the optical fiber link intelligently
Clear overview of test results including Pass/Fail, length, loss and number of events


Multi functions in one
1310/1550nm Stable Laser Source
Output mode: CW/270/1k/2kHz
Optical Power Meter
850/1300/1310/1490/1550/1625/1650nm seven calibrated wavelength
10mw VFL
Output mode: CW/1Hz/2Hz
RJ45 cable test
RJ45 cable line sequence testing

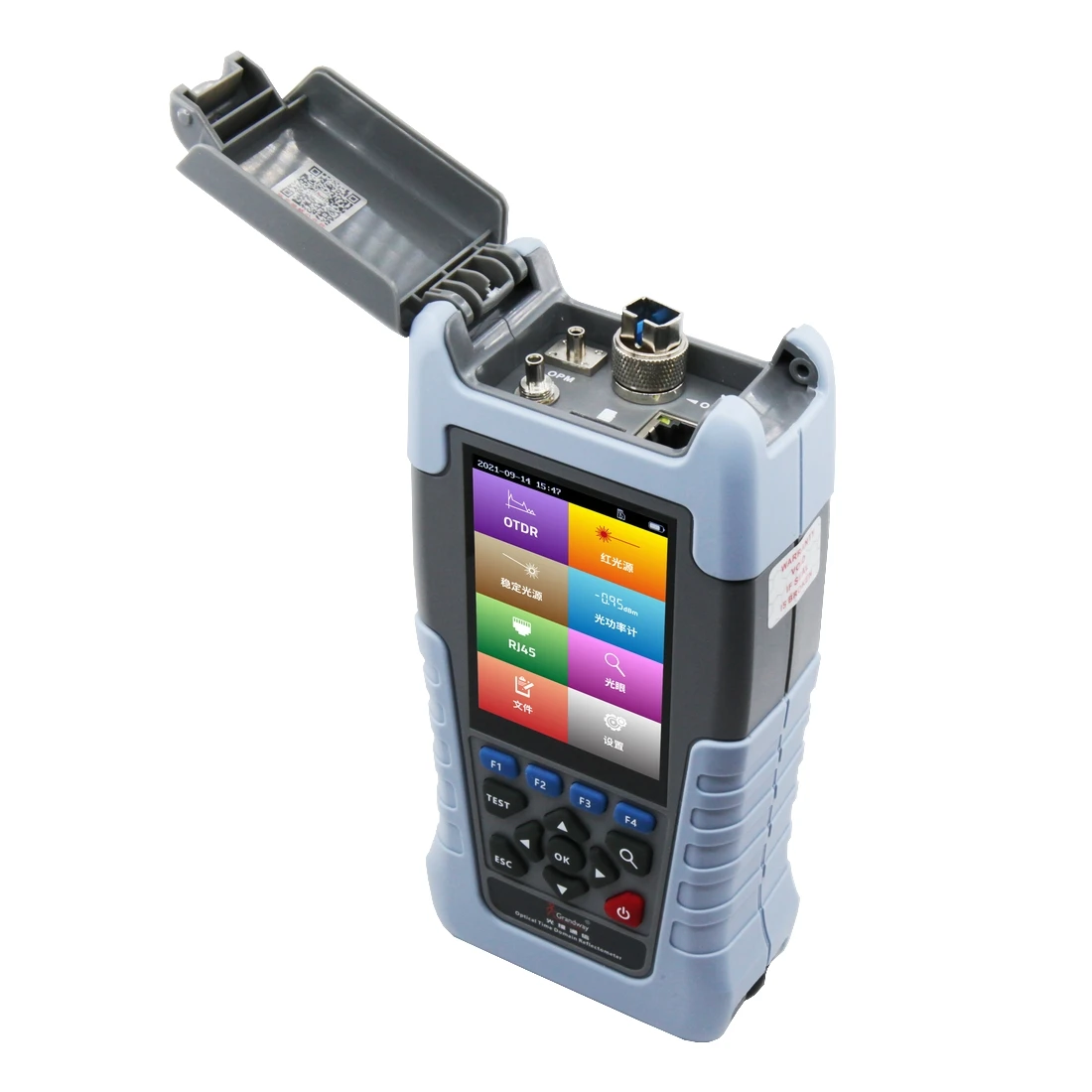

Multi interface
Abundant optical test interfaces
Clear test interface marking to avoid test errors

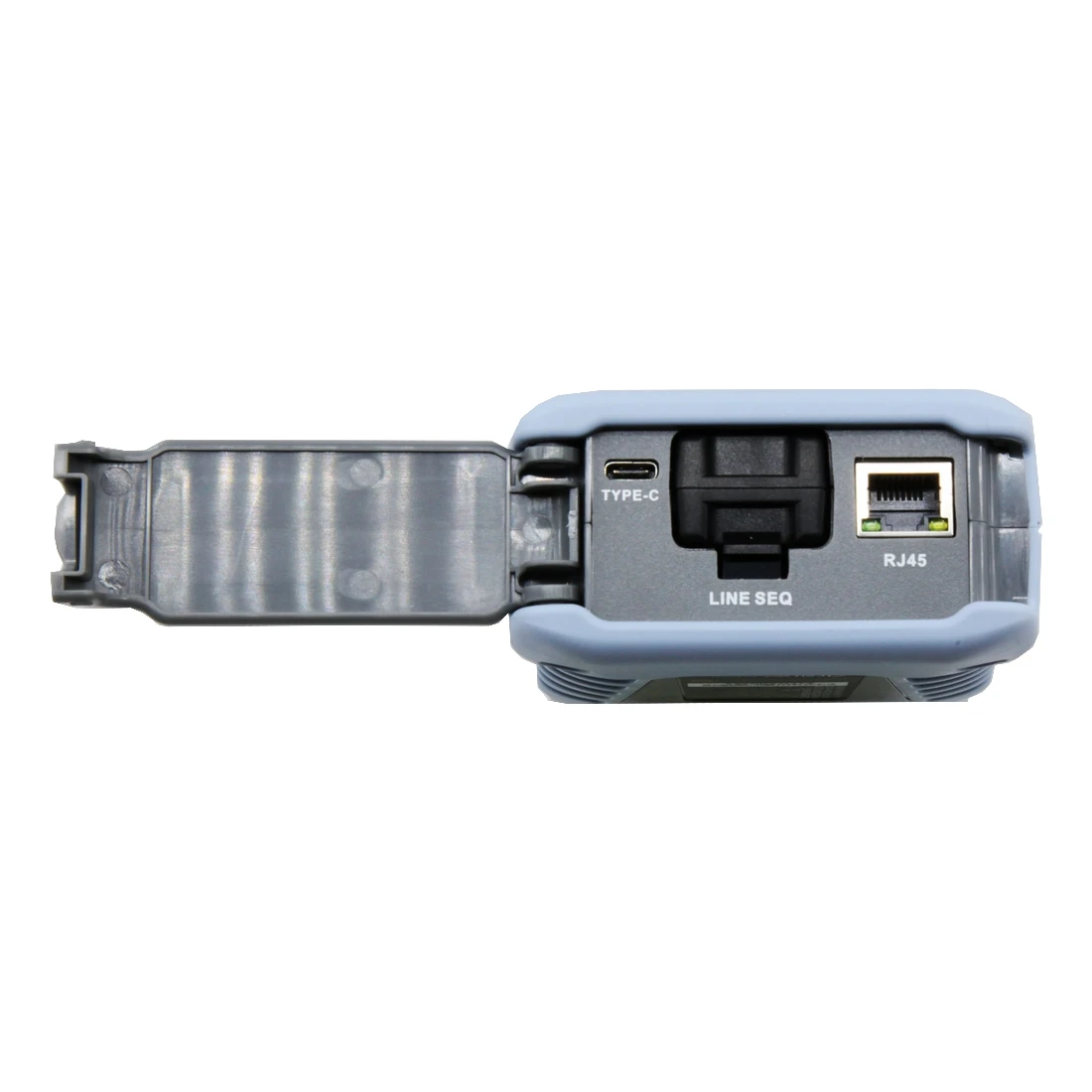

TYPE-C interface
Equipped with USB Type-C cable
for fast charging and data transmission
Support FC/UPC, SC/UPC, ST/UPC, LC/UPC OTDR optical port
(APC can be customized)


More than 80,000 test curves can be stored
8G pluggable SD memory card
Test results can be saved
automatically
Test files can be sent to the computer through the USB Type-C cable
5000mAh
Large capacity rechargeable lithium battery
5000mAh Standby time>15H
Working time>8H
USB Type-C interface for fast charging

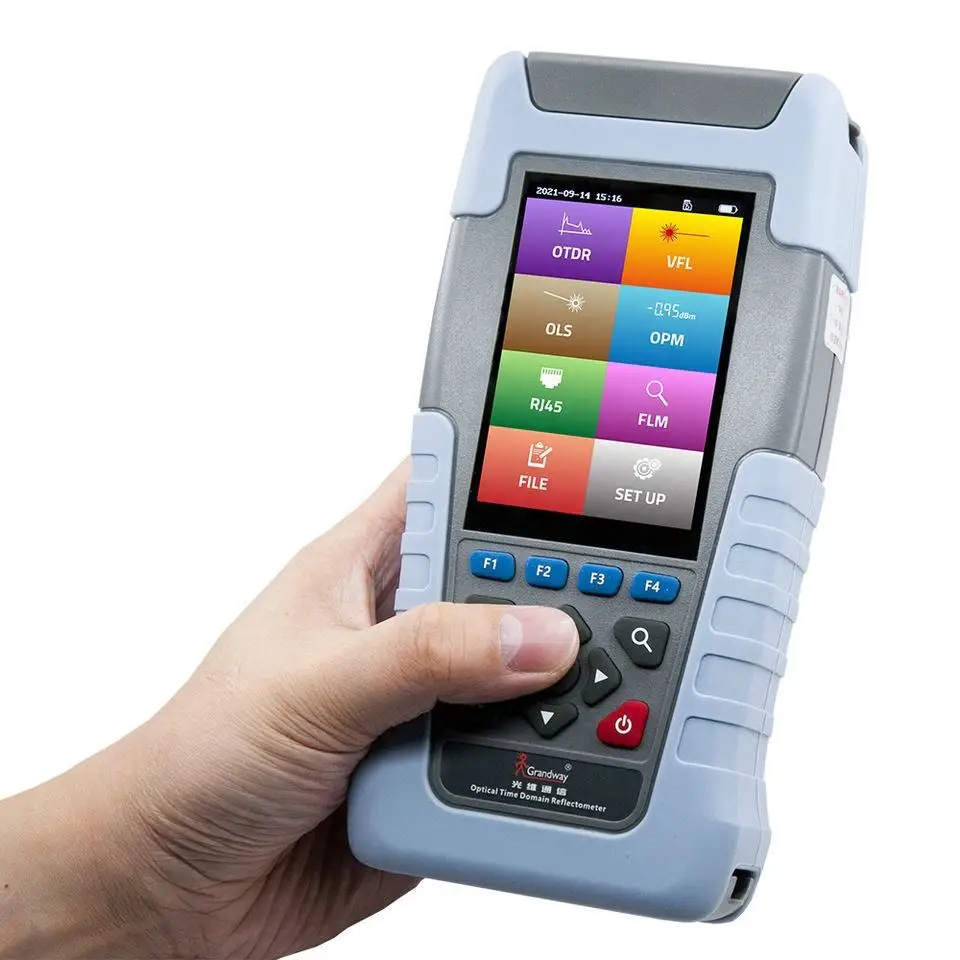

Humanized structural design
3.5inch color screen with protection of silicone housing
Simple test buttons give good touch experience


Specification


Items
Specifications
Fiber type
SMF (ITU-T G.652)
Wavelength
1310±20nm/1550±20nm
Dynamic range
22/20dB
Test range
1km, 2km, 5km, 10km, 20km, 40km, 80km, 120km
Pulse width
3ns/5ns/10ns/30ns/50ns/100ns/275ns/500ns/1us/2us/5us/10us/20us
Event deadzone①
≤1m
Attenuation deadzone②
≤4m
Refractive index
1.000~1.999
Sampling points
64000
Sampling accuracy
0.05m (1km)
Distance accuracy
±(1m+test distance×3×10-5+sampling resolution) (excluding IOR uncertainty)
Loss accuracy
0.1dB
Linearity
0.1dB
Reflectance accuracy
±2dB
Event display
1) Fiber end 2) Reflection event3) Splice loss
VFL
Working wavelength: 650±10nm Output: 10mW, CW/1Hz/2Hz
Stable OLS
Working wavelength: 1310±20nm/1550±20nm Output >-13dBm, CW/270Hz/1kHz/2kHz
OPM
Calibrated wavelength: 850/1300/1310/1490/1550/1625/1650nm Test range: -70~+10dBm
RJ45 line sequence test
TIA568-A and TIA568-B standard
Optical interface
OTDR: standard FC/UPC, optional SC/UPC, FC/APC, SC/APC VFL: 2.5mm universal port OLS: share the OTDR port OPM: 2.5mm universal
port
Electrical interface
RJ45 port×2, RJ45 remote module，USB Type-C
Data storage
Pluggable 8GB micro SD card
Battery
5000mAh lithium battery
Working humidity
0~85%(non condensing)
Working temperature
-10~50℃
Dimension
192.9×93.8×47mm
Weight
0.57kg
