316 Stainless Steel Electrode Flat Head Ph Monitor Sensor Smart Agriculture Sensors Ph
- Category: PH Meters >>>
- Supplier: Beijing,Leadmed,Technology,Co.,Ltd.
Share on:
Product Overview
Description
Product Display
Size | Φ30mm*225.50mm (length) |
Weight | 0.24KG |
Main material | 316 Stainless Steel + POM |
O ring:Viton ring+ rubber ring | |
Cable:PVC | |
Waterproof rate | IP68 |
Measuring range | 0.00~14pH |
Measuring Accuracy | ±0.1 |
Resolution | 0.01 |
Data output | RS 485, Modbus |
Power | DC 12~24V, current < 30mA |
Storage temperature | 0~+60℃ |
Working temperature | 0~ 50C |
Pressure range | ≤0.5Mpa |
Calibration Way | Two point or three point calibration |
Cable length | 5m standard cable, other length can be optional; |
Guarantee period | pH electrode 12 months (special circumstance is not included) |
Product Introduction:
PH sensor can be applied to surface water, groundwater, municipal sewage,
industrial wastewater and other applications that need to measure pH.
CHARACTERISTIC
Support kinds of installation methods, suitable for many application;
Automatic temperature compensation;
New double salt bridge structure design extends the service life of the sensor;
Flat head micro bubble design of electrode, easy to clean, and more robust;
RS485 communication interface, standard Modbus protocol, easy to install;

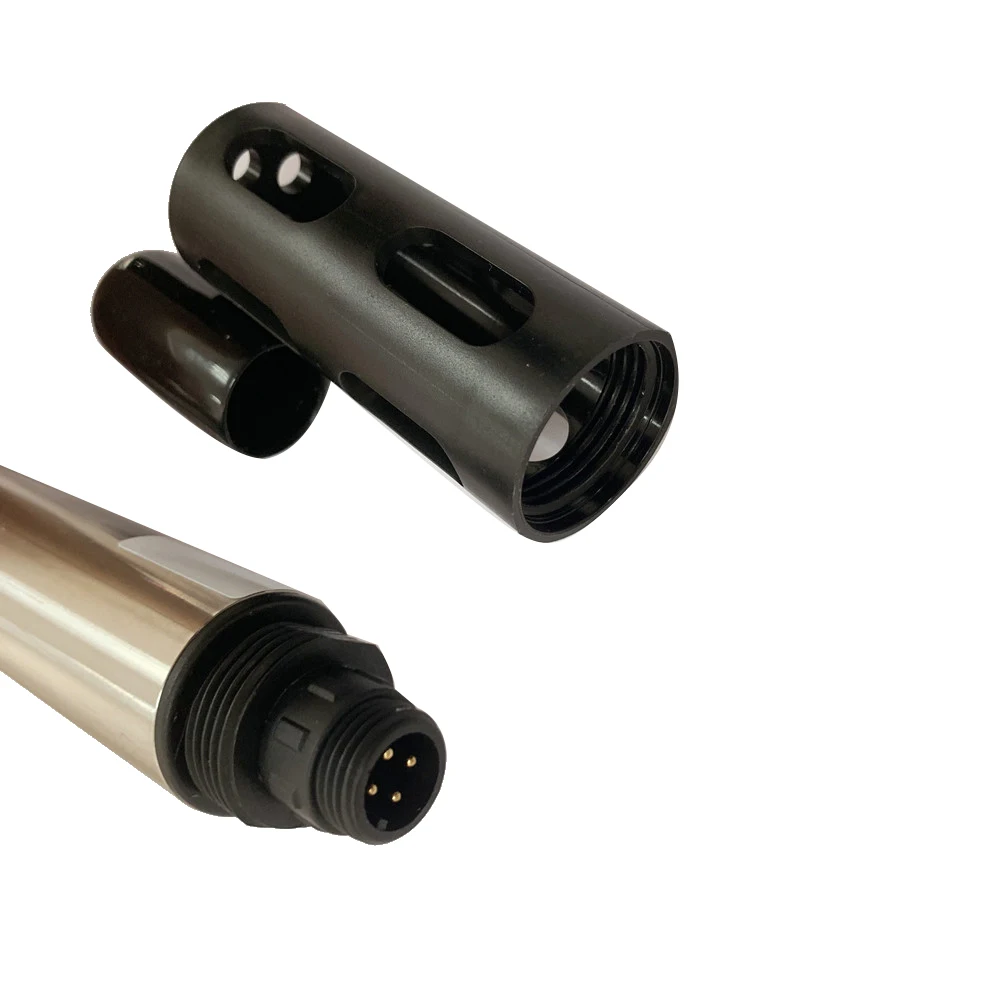

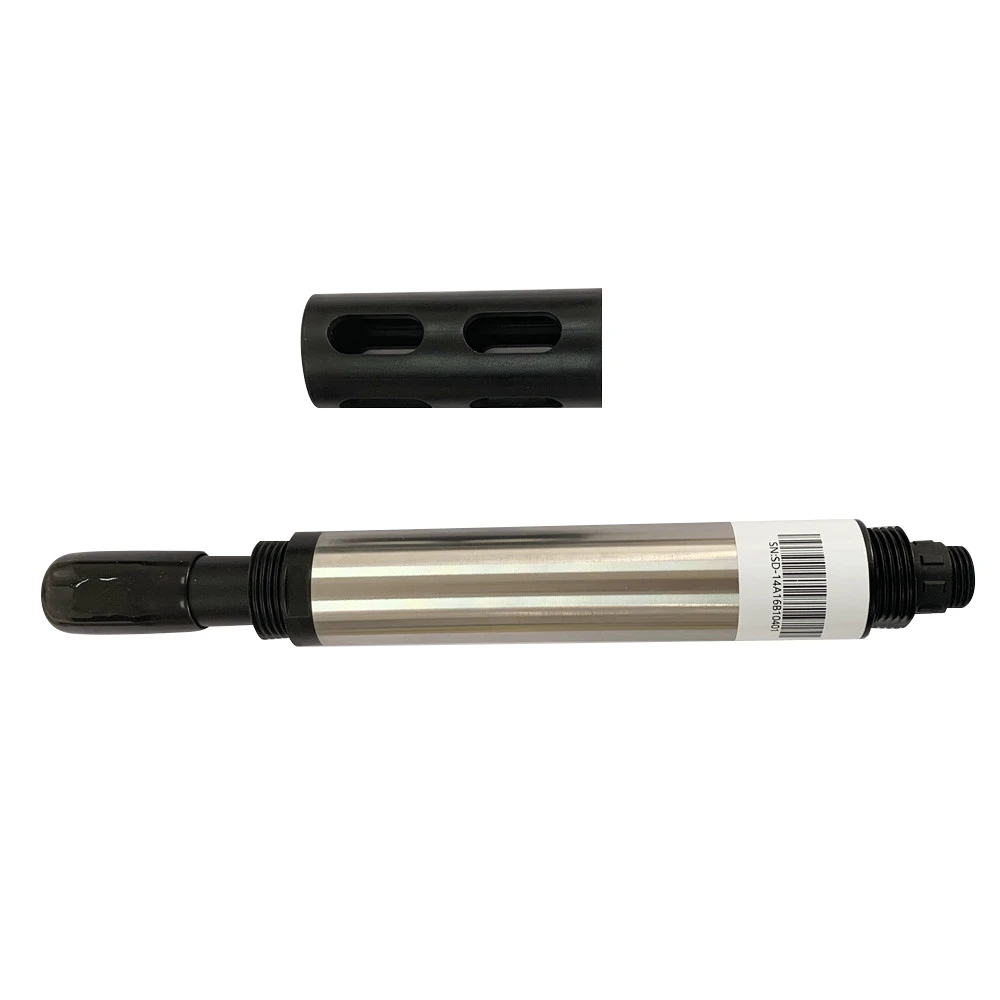

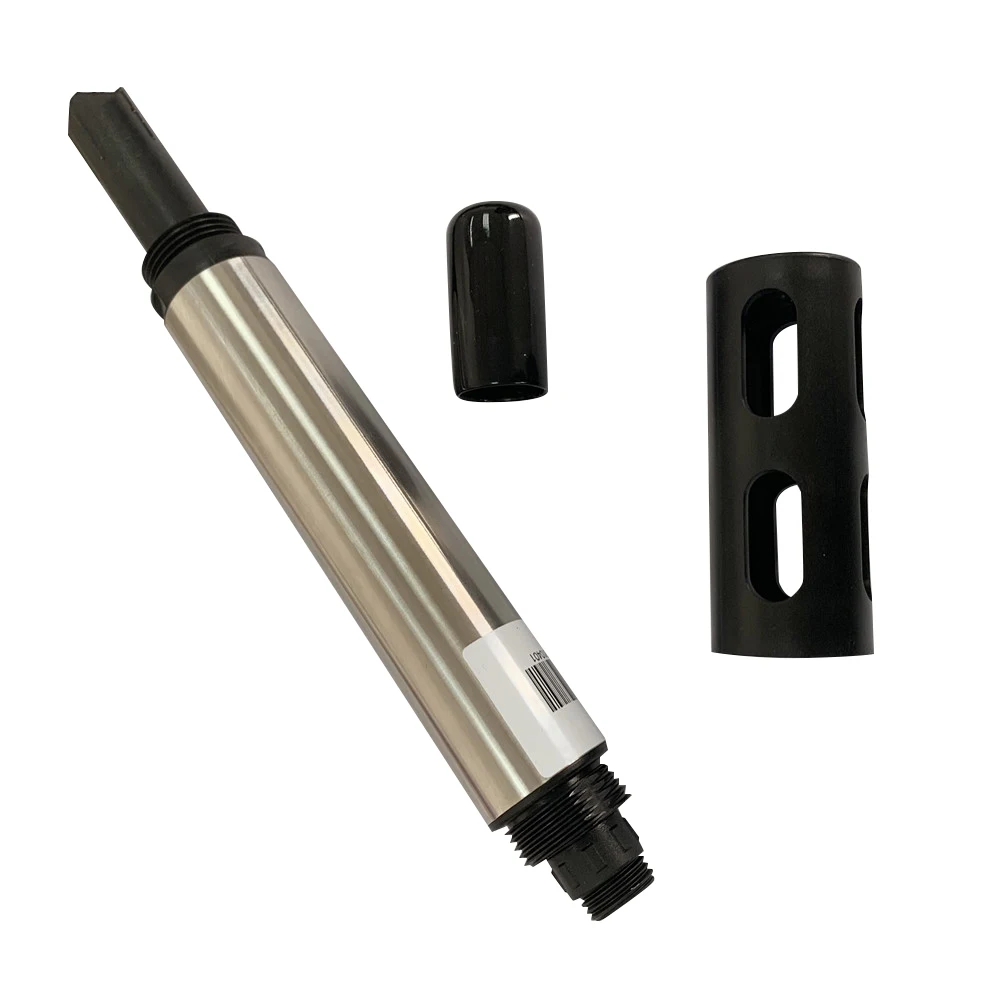

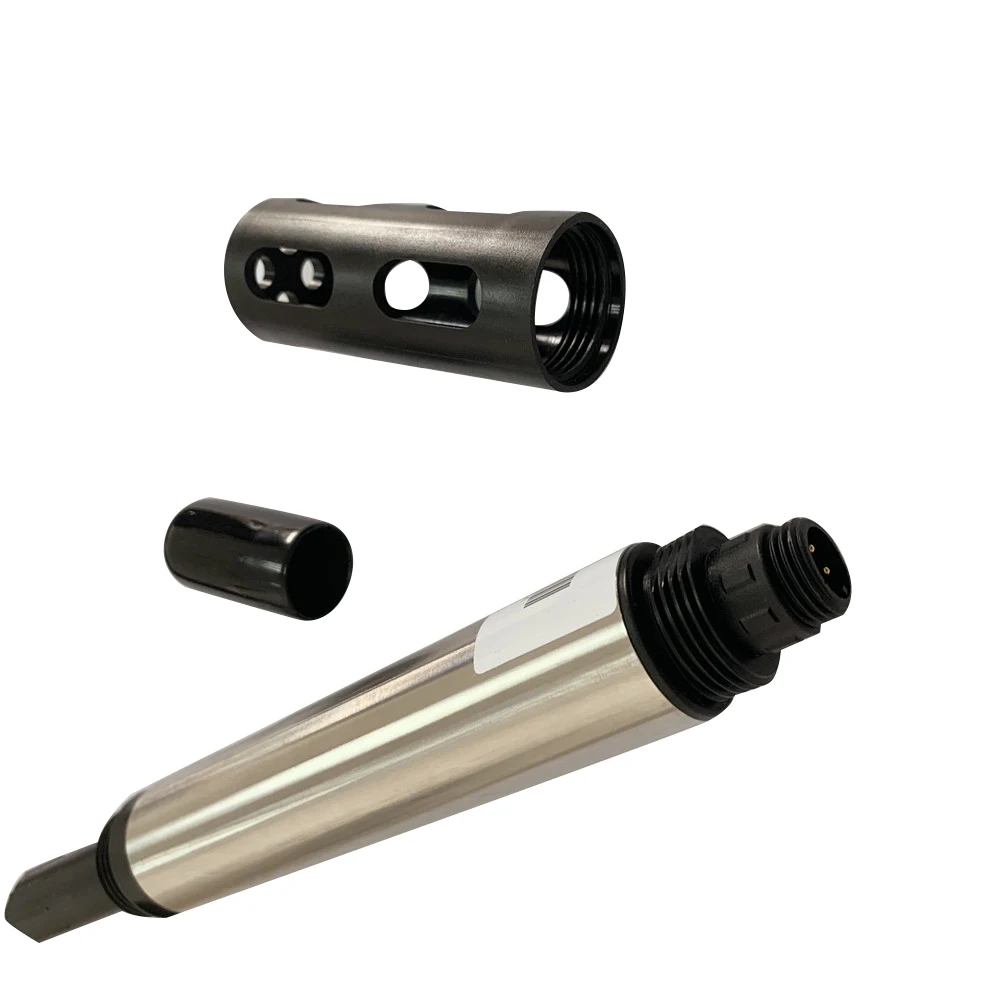

pH sensor picture is as below:
1. Plug |
2. NPT 3/4 thread |
3. Body shelf Stainless steel 316 |
4. Electrode |
5. Protective Cap |
