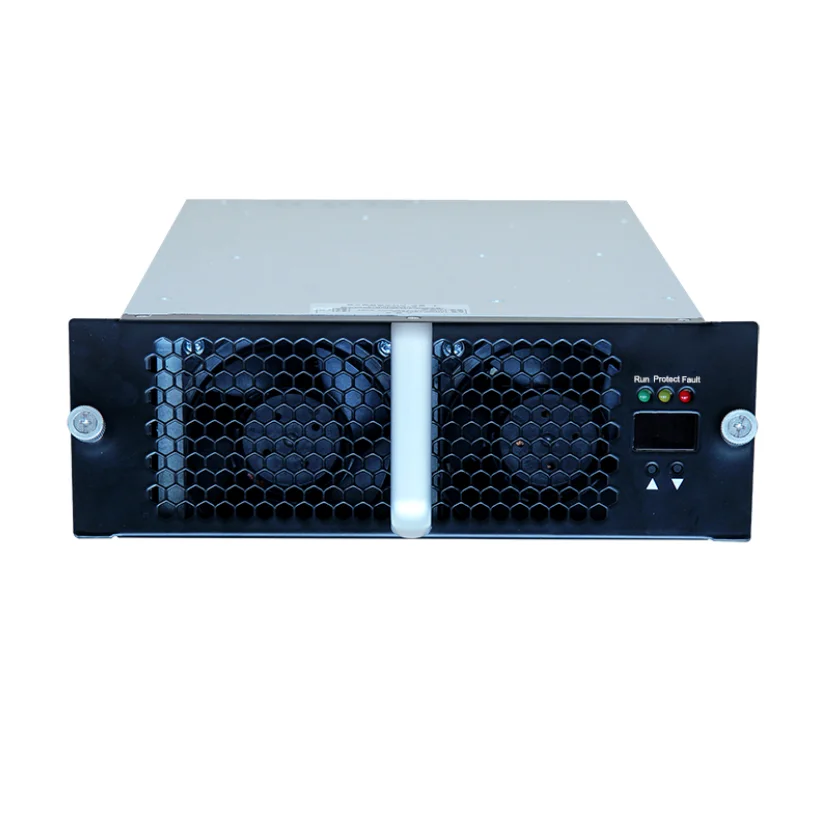

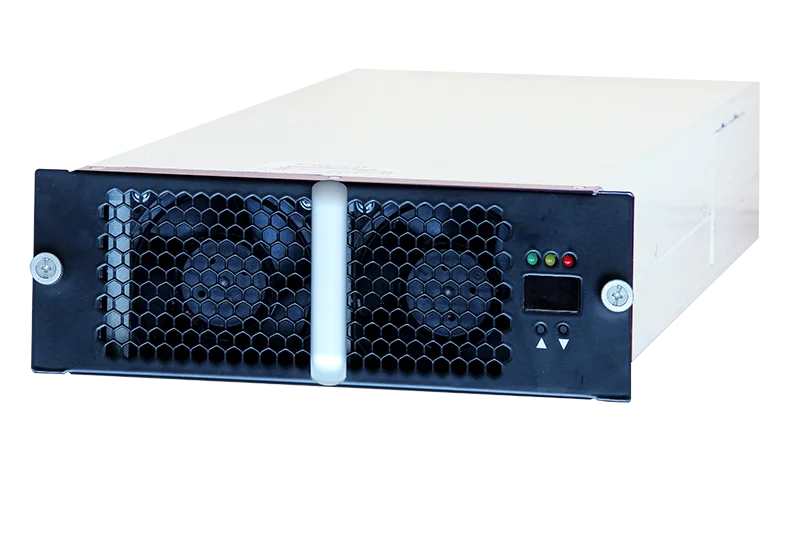

Electric Vehicle Charging Station Rectifier AC to DC Power Supply Module

Product Overview

Description

Electric Vehicle Charging Station Rectifier AC to DC Power Supply Module

FEATURES

*Input voltage rage:285~475V AC, Rated 380V AC
*Output adjustable voltage range(DC):200~1000V
*Max efficiency:≥95%
*High power factor:full load≥0.99
*THD:full load≤5%
*Standby power consumption:<10W
*CAN bus communication
*Quick plug and install
*Support parallel machine voltage regulation and current regulation functions

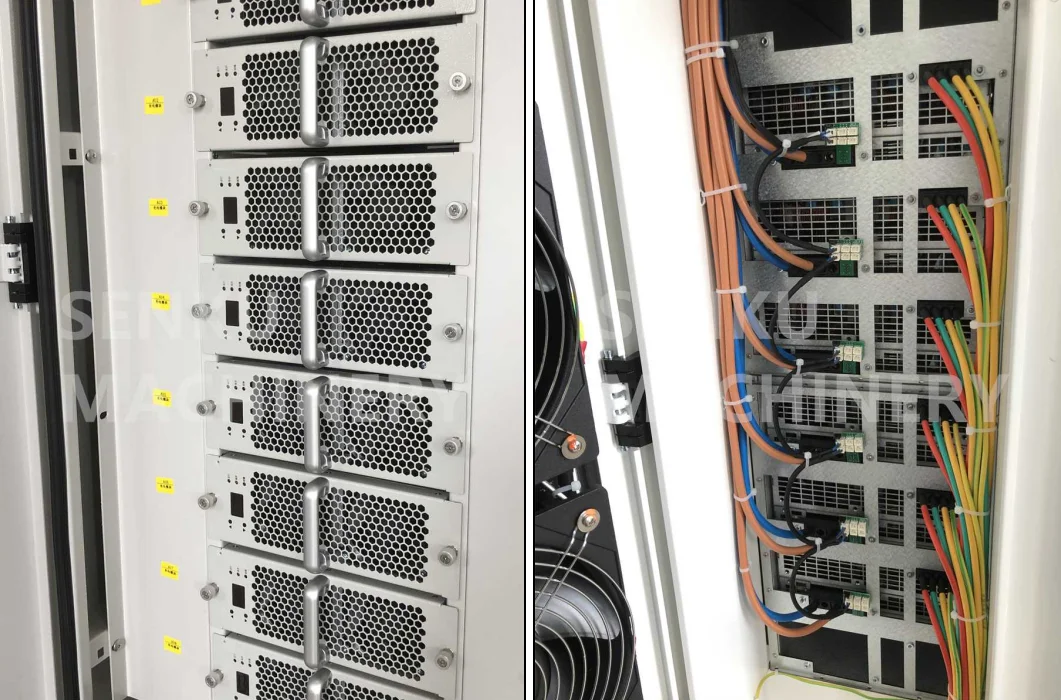

In the system, it is supported to set modules in groups. When grouping output, it is required that the output power lines of modules are isolated from each other. Only CAN bus is connected between each module. Each group of modules can independently control its output voltage and current, thus realizing grouping current sharing output.



INPUT DATA

Item	Parameters	Remark
Operating Voltage(AC)	266~494V AC, rated voltage  380V AC
Input Frequency(HZ)	45~55	In case of AC input
Power Factor	Full load≥0.99	In case of AC input
THD	Full load≤5%	In case of AC input
Standby Power Consumption	<10W

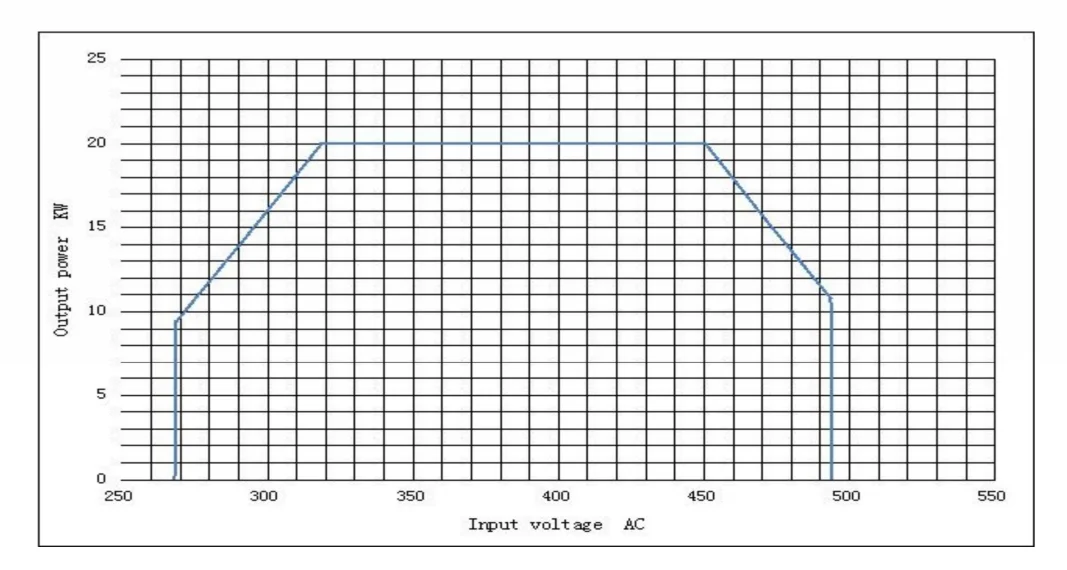

 Input voltage / output power curve

OUTPUT DATA

Item	Parameters	Remark
Output Voltage Range(DC)	200~1000	Constant power output range 250V -1000V DC 20KW
Max Output Current(A)	80A
Peak Efficiency	≥95.5%
Soft Start Time(s)(S)	3~8
Output prevent reverse irrigation	Support
Communication bus protocal	CAN

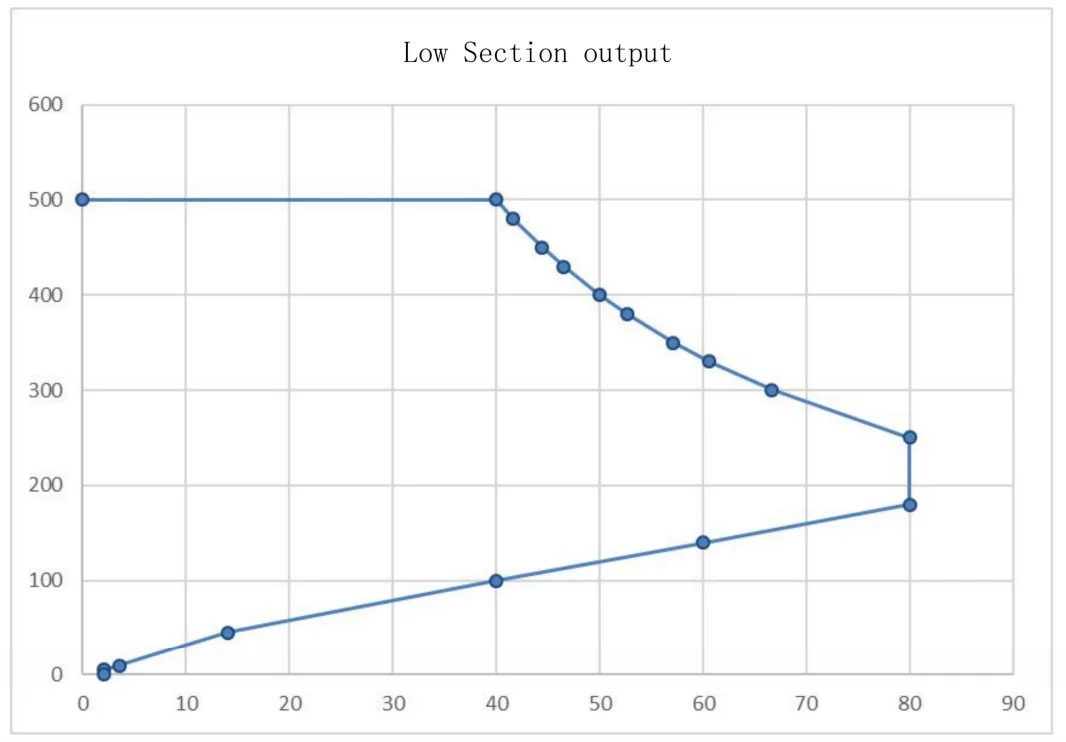

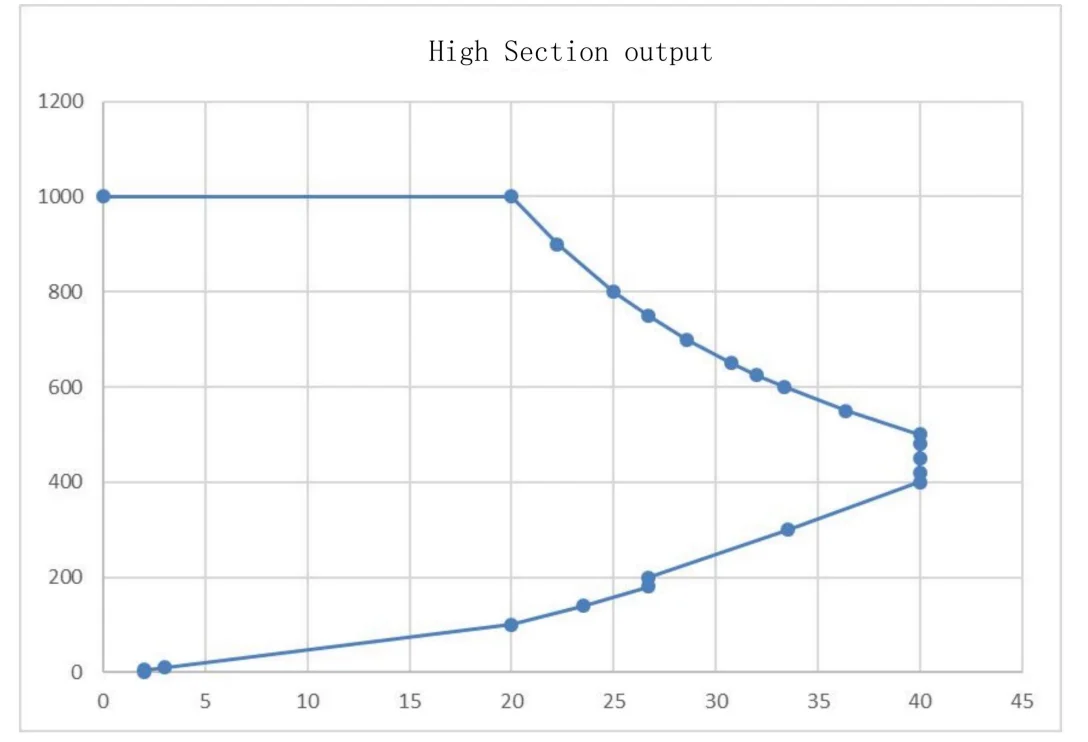

Output voltage / output current curve
