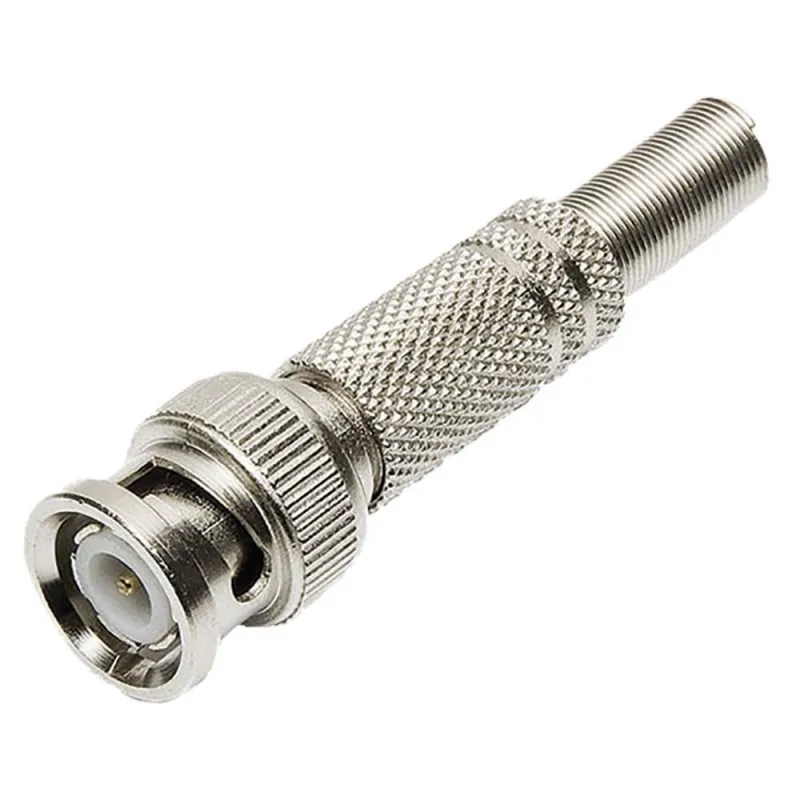

BNC Conector With Screw And Long Metal Boot
- Category: >>>
- Supplier: Guangzhou Zishen Electronic Technology Co. Ltd.
Share on (1600689929973):
Product Overview
Description
Products Description
Specification
BNC connectors are for low power ,quick connect / disconnect applications using a bayonet type coupling mechanism and can be interchangeable with the same type connectors of aborad. They are widely used connect of the RF coaxial -cables in electronic equipment and instuments. Characteristic impedance 50Ω , 75Ω
Model | BNC |
Temperature range | -65~+165 |
Insulation resistance | ≥1000MΩ |
Characteristic impedance | 75Ω |
Dielectric Withstanding voltage | 1500V(r ms) |
Frequency range | DC~1GHz |
Durability(mating) | 500 Cycles |
Center conductor retention force | ≥0.2 N |
Voltage Standing Wave Ratio | ≤1.30 |
Body | Brass , nickel plated |
Pin contact | Brass , gold or silver plated |
Resilient contact | Tin bronze, gold or silver plated |
Connector | Screw type/Weld type |
Gaskets | Silicon rubber |
Crimp ferrules | Copper alloy , nickel or gold plated |
Package | 100pcs/bag |
Features:
Suitable for Coaxial Broadband Networks Used in Video, Data and Telephony Applications with Standard, Tri-Shield or Quad-Shield Cable Anti-Corrosion Nickel-Plated Finish With Center Pin These Connectors are more reliable and easier to use than traditional crimp BNC Connectors High quality connectors are designed to provide a professional, secure, waterproof connection for RG59 Coaxial Cable Simply prepare the cable in the same manner as an F-type connector, insert the connector onto the coax cable and compress it 360° radial compression 360° radial compression provides superior RF integrity. Improved Conductivity.Quick and Easy Installation. Works with most standard compression tools.
Fully Sealed - Watertight - Without the Need for Silicone Grease.Made to work in any weather condition.
Permanent connection so your connector never comes loose.Heavy Duty and easy to use. Lightweight ergonomic design.
Simply & Professional! Easy to use & install!
Fully Sealed - Watertight - Without the Need for Silicone Grease.Made to work in any weather condition.
Permanent connection so your connector never comes loose.Heavy Duty and easy to use. Lightweight ergonomic design.
Simply & Professional! Easy to use & install!
Company Profile
Guangzhou Zishen Electronic Technology Co., Ltd.
ZISHEN is focusing on offering LED switch power, waterproof switch power,rainproof switch power,AC-DC power adapter and CCTV camera power. Withe the over load protection, over voltage protection and high temperature protection. ZISHEN wins customer’s favor by its high efficiency, reliability and long life span. Our switch powers are widely used in industrial automation field, indoor and outdoor LED lighting, LED lighting engineering.
Switching power supply : IP205V/ 12V/ 24V/ 36V/ 48V series switching power supply and IP67 waterproof power supply, rainproof power supply!
AC/DC adapters : There are mainly notebook adapters (covering the main circulating brands on the market) and display adapters (mainly 12V/24V series), and wall-mounted adapters (mainly 5V/9V/12V/24V series)!
Packing and Transportation
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Container | Door Openings | Internal Dimensions | Weight/kg | CBM | ||||||||||
Width | Height | Length | Width | Height | Max G.W | Tare | Max Payload | |||||||
20GP | 2438 mm | 2591 mm | 5898 mm | 2352mm | 2393 mm | 30480 KGS | 2185 KGS | 28295 KGS | 28m³ | |||||
40GP | 2438mm | 2591 mm | 12032mm | 2352mm | 2393 mm | 32500 KGS | 3740 KGS | 28760 KGS | 54m³ | |||||
40HQ | 2438mm | 2896 mm | 12032mm | 2352mm | 2698 mm | 32500 KGS | 3840 KGS | 28660 KGS | 68m³ | |||||
Air Transport
1. Advantages: short transportation time, suitable for goods with small volume and tight time requirements.
2. Disadvantages: The price is too expensive, which greatly increases the cost.
2. Disadvantages: The price is too expensive, which greatly increases the cost.
By Sea
1. Advantages: The freight is relatively cheap. 2. Disadvantages: long transportation time, greatly affected by the weather, unable to carry to inland countries and regions.
Rail Transport
1. Advantages: fast running speed, large carrying capacity, little influence by climate, strong accuracy and continuity.
2.Disadvantages: logistics costs have been high.
FAQ
1. What is your business promise?
We always provide best quality products with reasonable price to our customers. Customers' satisfaction is our only d riving force for development.
2. What is your delivery time?
For mass order, we normally need about 3-7 days to produce. It would by quantity.
3. What is your MOQ?
Our MOQ is 1 Units. As we are confident with our products. We can provide one or two units for you to test the quality.
4. What is your payment term?
Our payment term is by T/T. 30% deposit for us to start the production. If for samples order, we also able to recevie the money by Western Union and Paypal.
* For more questions and imformations, kindly send us an inquiry or Trade Manager message. *
We can't wait to build connection with you!
Why Choose Us
1. Any inquirie and contact will be replied within 24 hours.
2. We are the professional manufacturer of cables and power supply.
3. OEM and ODM services are supplied efficiently:
a) Provide design assistance.
b) Print customized logo on the power supply products.
c) Customized package boxes design and printing.
Kindly check our website for more products imformations. www.zsii.cn
Contact US
Guangzhou Zishen Electronic Technology Co., Ltd.
Address:Room 1314, No. 8, Shipaixi Road, Tianhe District, Guangzhou, Guangdong, China (Mainland)
Skpe: zishen008 WhatsApp: +86 13929574490 Tel:+86 13929574490 Web: www.zsii.cn
