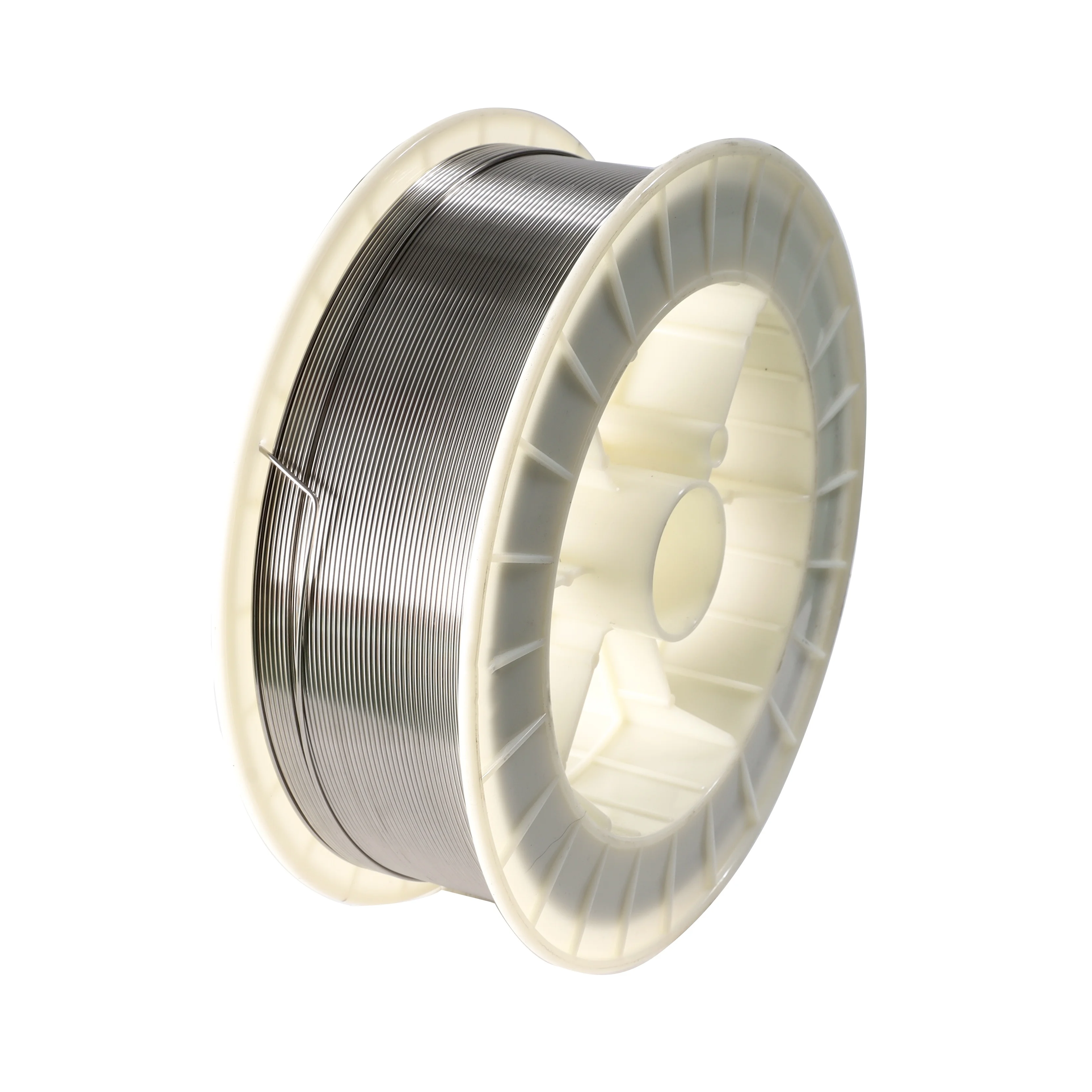

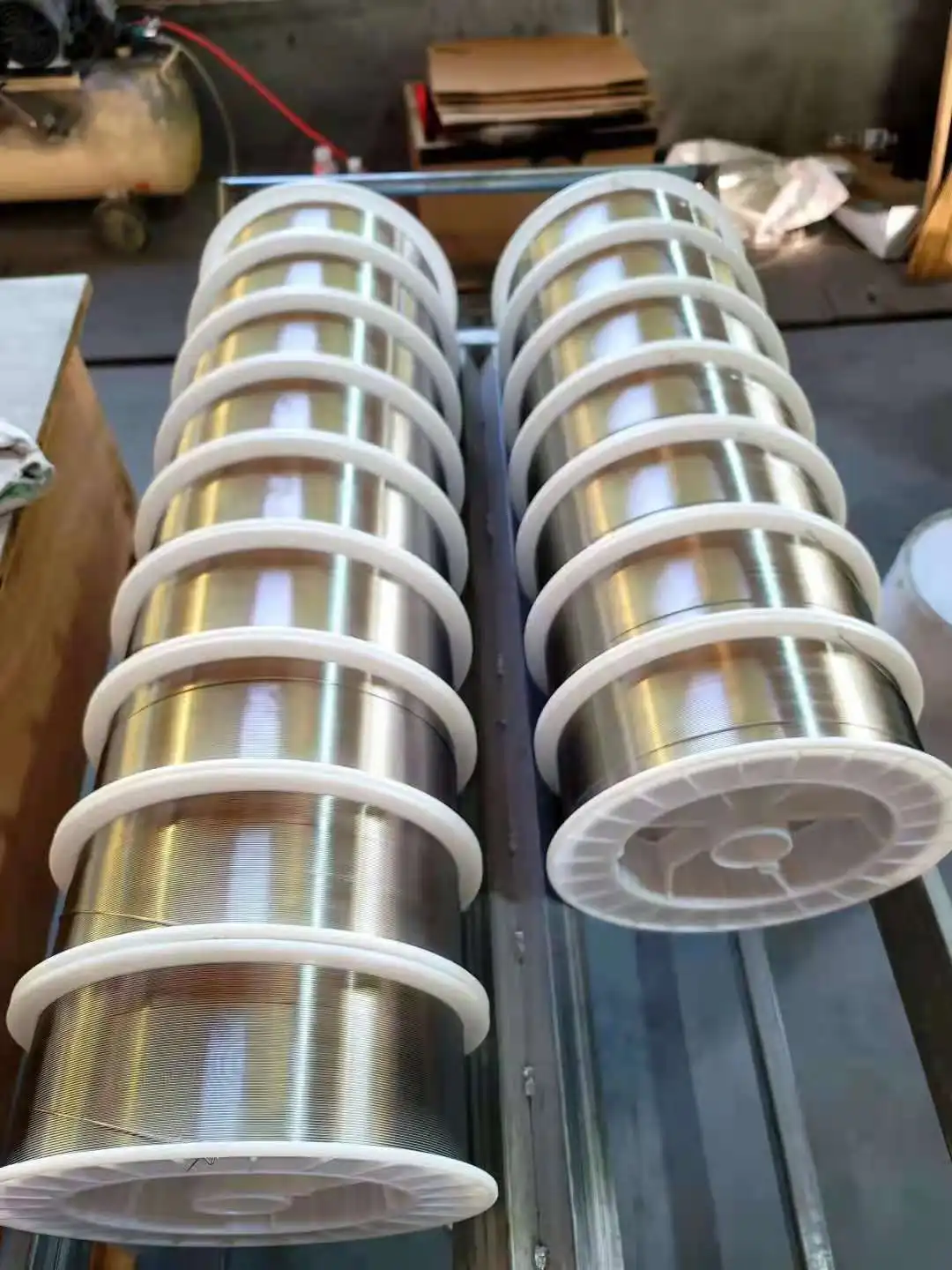

1.6mm 2.00mm Zinc Aluminum Alloy Znal85/15 ACR Thermal Spray Coating Wire
- Category: Zinc >>>
- Supplier: Changzhou Dlx Alloy Co. Ltd.
Share on (1600690060183):
Product Overview
Description
Product Description
1.6mm 2.00mm aluminum zinc alloy coated Znal85/15 ACR Thermal Spray Coating Wire
Key benefits:
1. The zinc-aluminum alloy coating has the stability similar to that of the sprayed aluminum layer and the electrochemical
protection similar to that of the sprayed zinc layer. It is an ideal protective layer against seawater corrosion.
2. Compared with pure zinc wire and pure aluminum wire, its coating has the characteristics of strong adhesion, better wear resistance and corrosion resistance, and superior construction performance. Zinc aluminum alloy wire is sprayed on the surface of steel components as a sacrificial anode , Which can extend the service life of components by 5-10 times.
Thermal Spray Wire Series: Ni95Al5,Monel 400,Monel K500,Inconel 625,Hastelloy C-276,Cr20Ni80
Size:

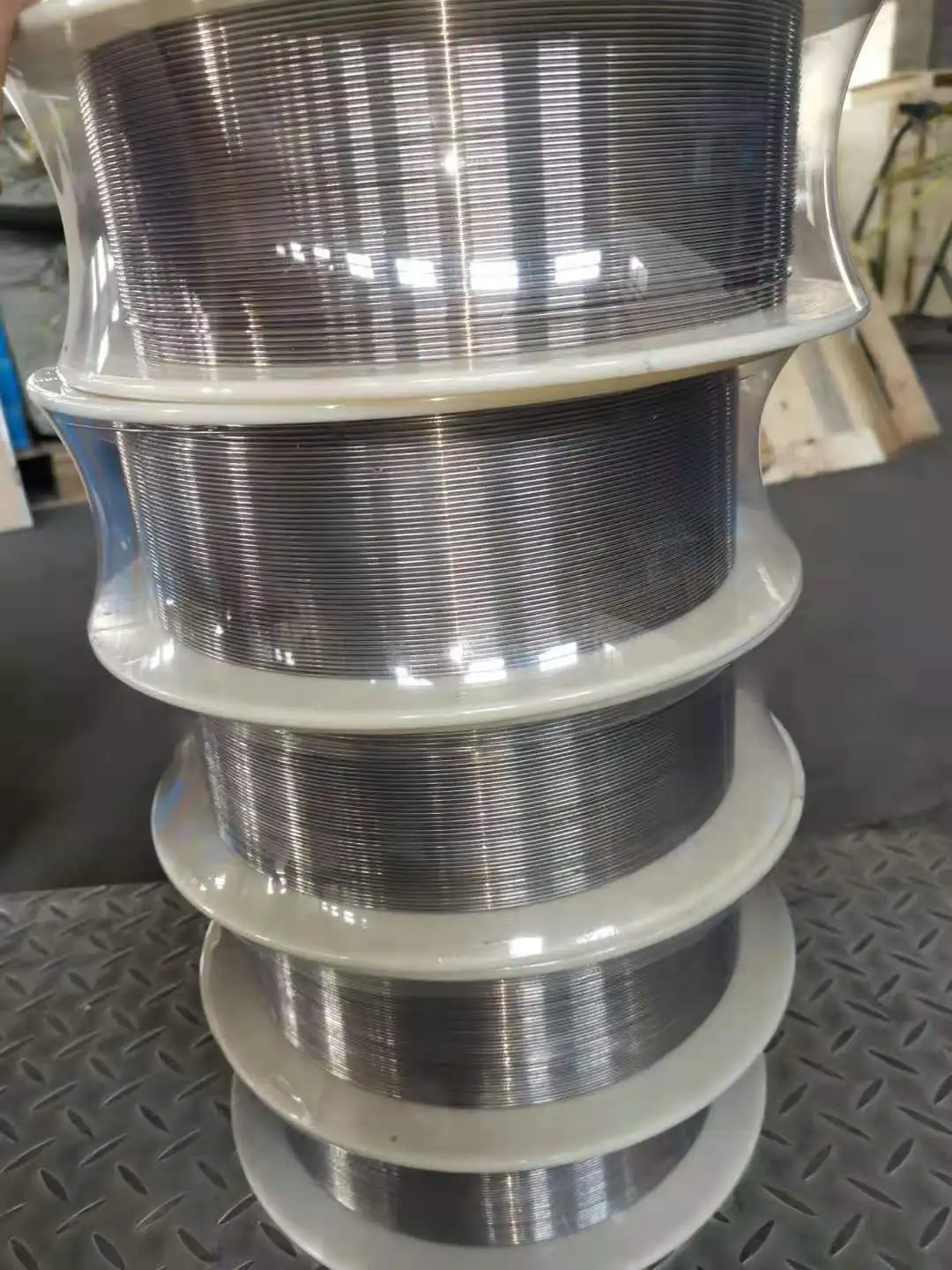

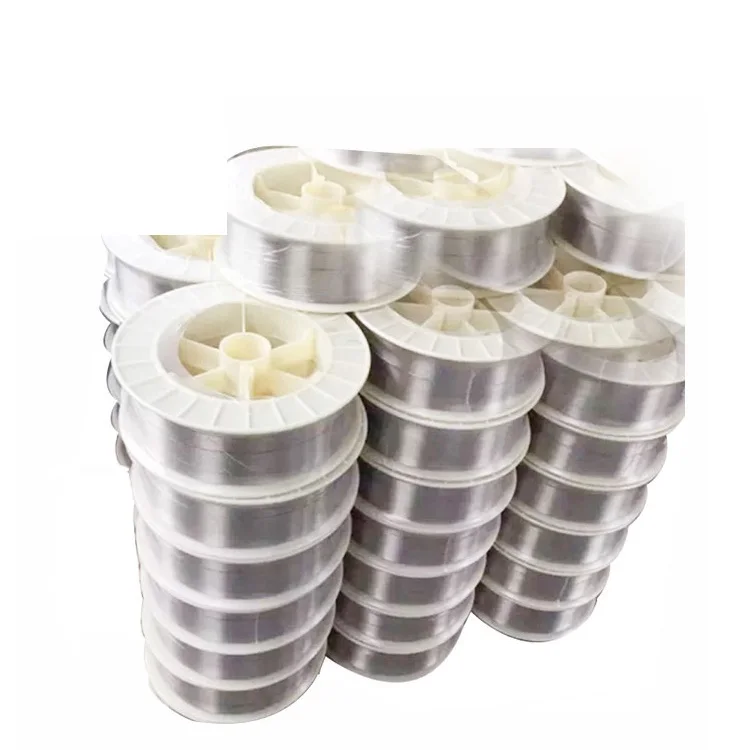

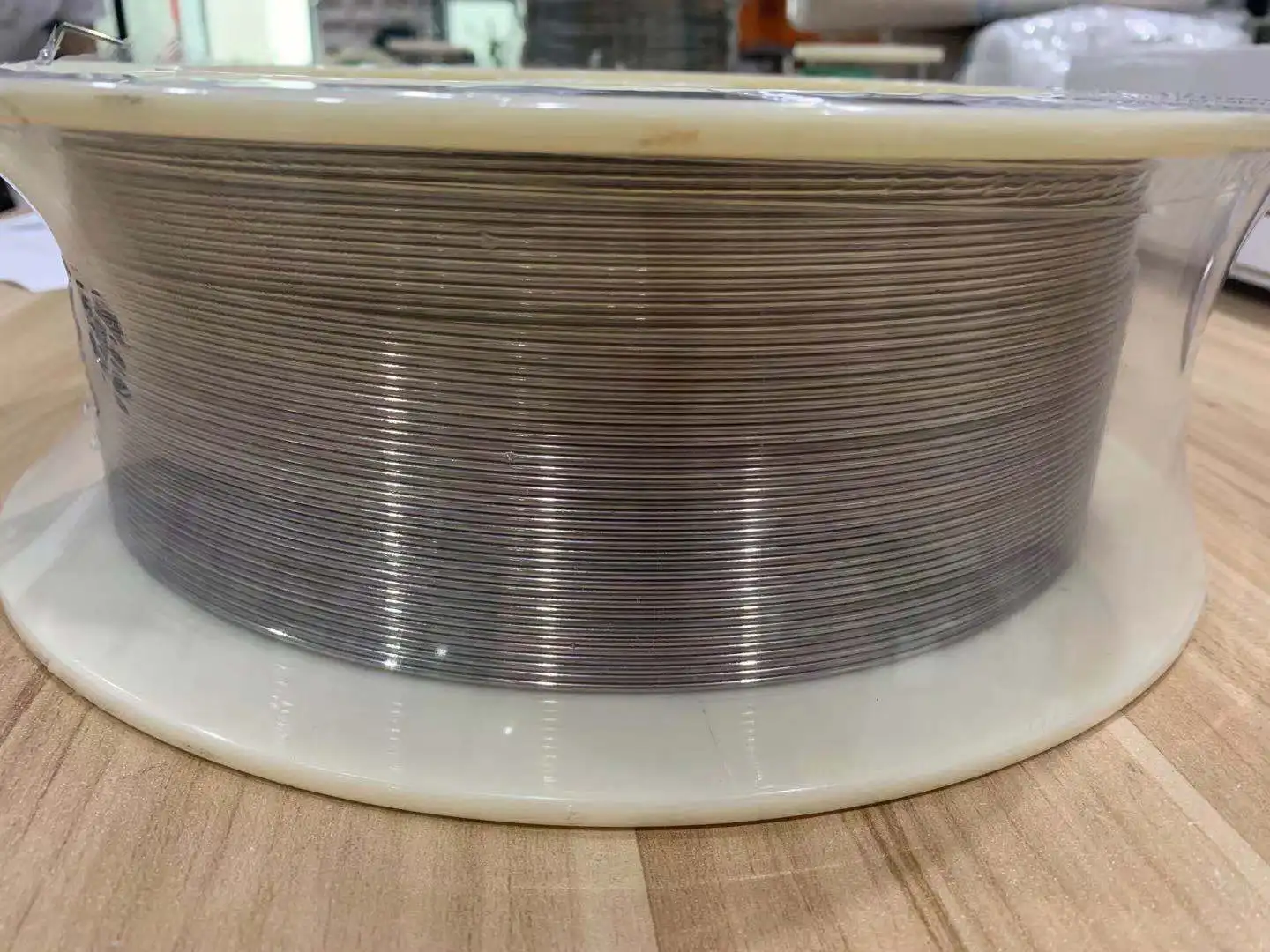

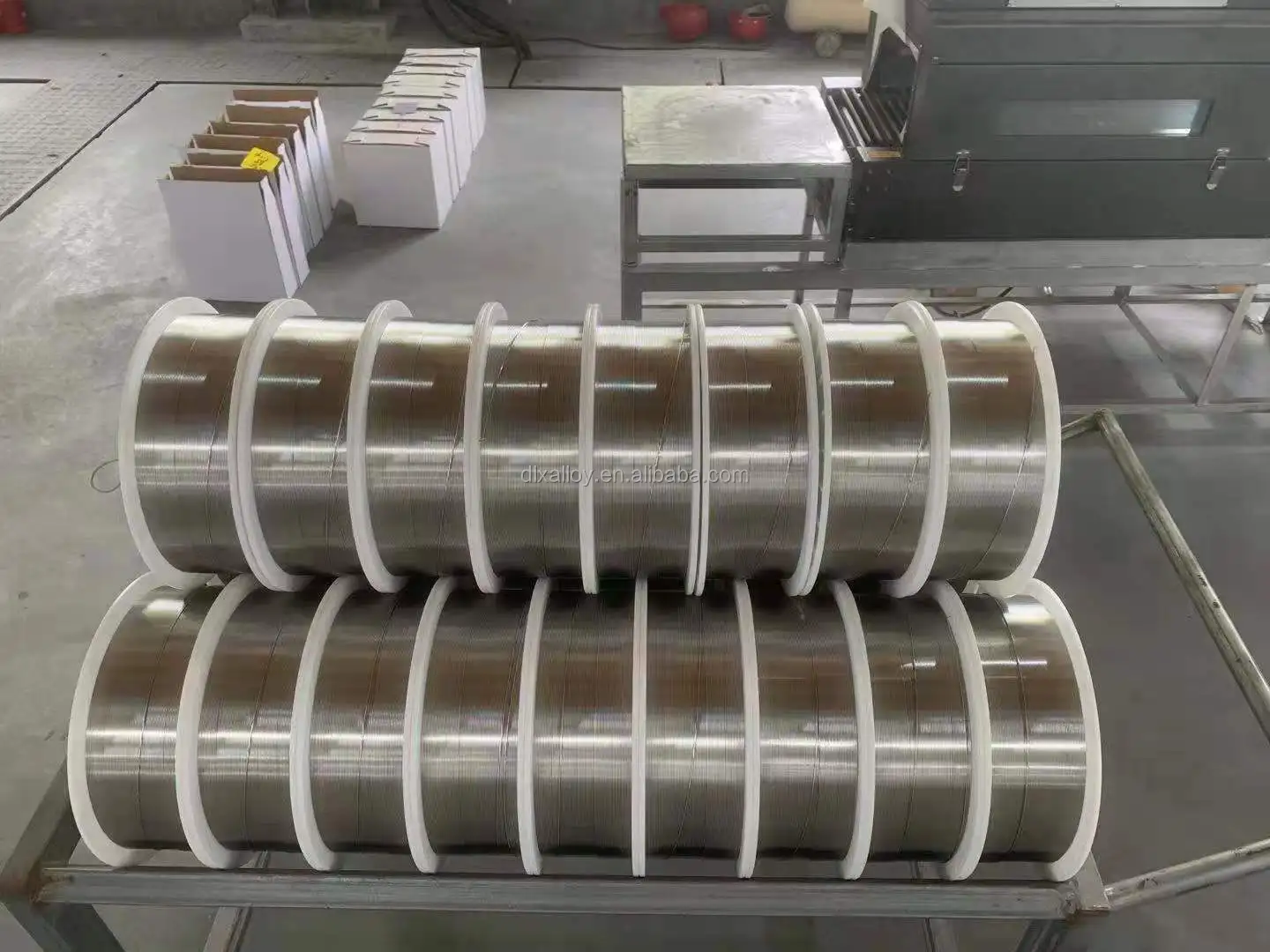

Packed on Spool:φ0.3 - 5.0mm,10 to 20 kgs per spool;Packed as coil:φ0.8 -5.0mm,20 to 50kgs per coil
Packed on Spool:φ0.3 - 5.0mm,10 to 20 kgs per spool;Packed as coil:φ0.8 -5.0mm,20 to 50kgs per coil
Key benefits:
1. The zinc-aluminum alloy coating has the stability similar to that of the sprayed aluminum layer and the electrochemical
protection similar to that of the sprayed zinc layer. It is an ideal protective layer against seawater corrosion.
2. Compared with pure zinc wire and pure aluminum wire, its coating has the characteristics of strong adhesion, better wear resistance and corrosion resistance, and superior construction performance. Zinc aluminum alloy wire is sprayed on the surface of steel components as a sacrificial anode , Which can extend the service life of components by 5-10 times.
Thermal Spray Wire Series: Ni95Al5,Monel 400,Monel K500,Inconel 625,Hastelloy C-276,Cr20Ni80
Chemcial Composition(%) | ||||||||
Zn | AL | Fe | Pb | Cd | ||||
84-86 | 14-16 | ≤0.015 | ≤0.005 | ≤0.002 | ||||
Cu | Sn | Si | Other | |||||
≤0.002 | ≤0.001 | ≤0.01 | ≤0.03 | |||||
Mechanical characteristics | ||
Tensile Strength: | ≥100 | |
Elongation After Rupture: | ≥30 | |
Specific Gravityg/cm3: | 5.6-5.8 | |
Specific resistance(mΩ.mm2/m)at20ºC: | ≤56 | |
Solidus/Liquidus Temp.(ºC): | 382-455 | |
Related Products
Other product series :
FeCrAl Alloy: OCr15Al5,1Cr13Al4, 0Cr21Al4, 0Cr21Al6, 0Cr25Al5, 0Cr21Al6Nb,0Cr27Al7Mo2.Go to Review
NiCr Alloy: Cr20Ni80,Cr30Ni70,Cr20Ni35,Cr20Ni30,Cr15Ni60.Go to Review
CuNi Alloy: NC003,NC010,NC012,NC015,NC020,NC025,NC030,NC040,NC050,Constantan,6J8/11/12/13/.Go to Review
Welding wire: ERNiCrMo-3/4/13,ERNiCrFe-3/7,ERNiCr-3/7,ERNiCu-7,ERNi-1, ER70S-6.Go to Review
Thermocouple alloy: K,J,E,T,N, S,R,B,KX,JX,EX,TX,NX.Go to Review
Inconel alloy: Inconel 600,601,617,X-750,625,690,718,825.Go to Review
Incoloy alloy: Incoloy 800,800H,800HT,825,925.Go to Review
Hastelloy alloy: HC-276,C-22,C-4,HB,B/2/3,X,N.Go to Review
Monel Alloy: Monel 400,K500.Go to Review
High-temperature alloy : A-286,Nimonic80A/90,GH131,GH1140,GH36,GH2706,GH2901,GH3625,GH3536,GH4169.Go to Review
Precision alloy series: 1J33,3J01,3J9,4J29,4J32.4J33,Invar36,4J45.FeNi50.Go to Review
Thermal spray alloy: Inconel 625,Ni95Al5,Monel400,45CT,HC-276,K500,Cr20Ni80.Go to Review
FeCrAl Alloy: OCr15Al5,1Cr13Al4, 0Cr21Al4, 0Cr21Al6, 0Cr25Al5, 0Cr21Al6Nb,0Cr27Al7Mo2.Go to Review
NiCr Alloy: Cr20Ni80,Cr30Ni70,Cr20Ni35,Cr20Ni30,Cr15Ni60.Go to Review
CuNi Alloy: NC003,NC010,NC012,NC015,NC020,NC025,NC030,NC040,NC050,Constantan,6J8/11/12/13/.Go to Review
Welding wire: ERNiCrMo-3/4/13,ERNiCrFe-3/7,ERNiCr-3/7,ERNiCu-7,ERNi-1, ER70S-6.Go to Review
Thermocouple alloy: K,J,E,T,N, S,R,B,KX,JX,EX,TX,NX.Go to Review
Inconel alloy: Inconel 600,601,617,X-750,625,690,718,825.Go to Review
Incoloy alloy: Incoloy 800,800H,800HT,825,925.Go to Review
Hastelloy alloy: HC-276,C-22,C-4,HB,B/2/3,X,N.Go to Review
Monel Alloy: Monel 400,K500.Go to Review
High-temperature alloy : A-286,Nimonic80A/90,GH131,GH1140,GH36,GH2706,GH2901,GH3625,GH3536,GH4169.Go to Review
Precision alloy series: 1J33,3J01,3J9,4J29,4J32.4J33,Invar36,4J45.FeNi50.Go to Review
Thermal spray alloy: Inconel 625,Ni95Al5,Monel400,45CT,HC-276,K500,Cr20Ni80.Go to Review
Why Choose Us
Packing&Shipping

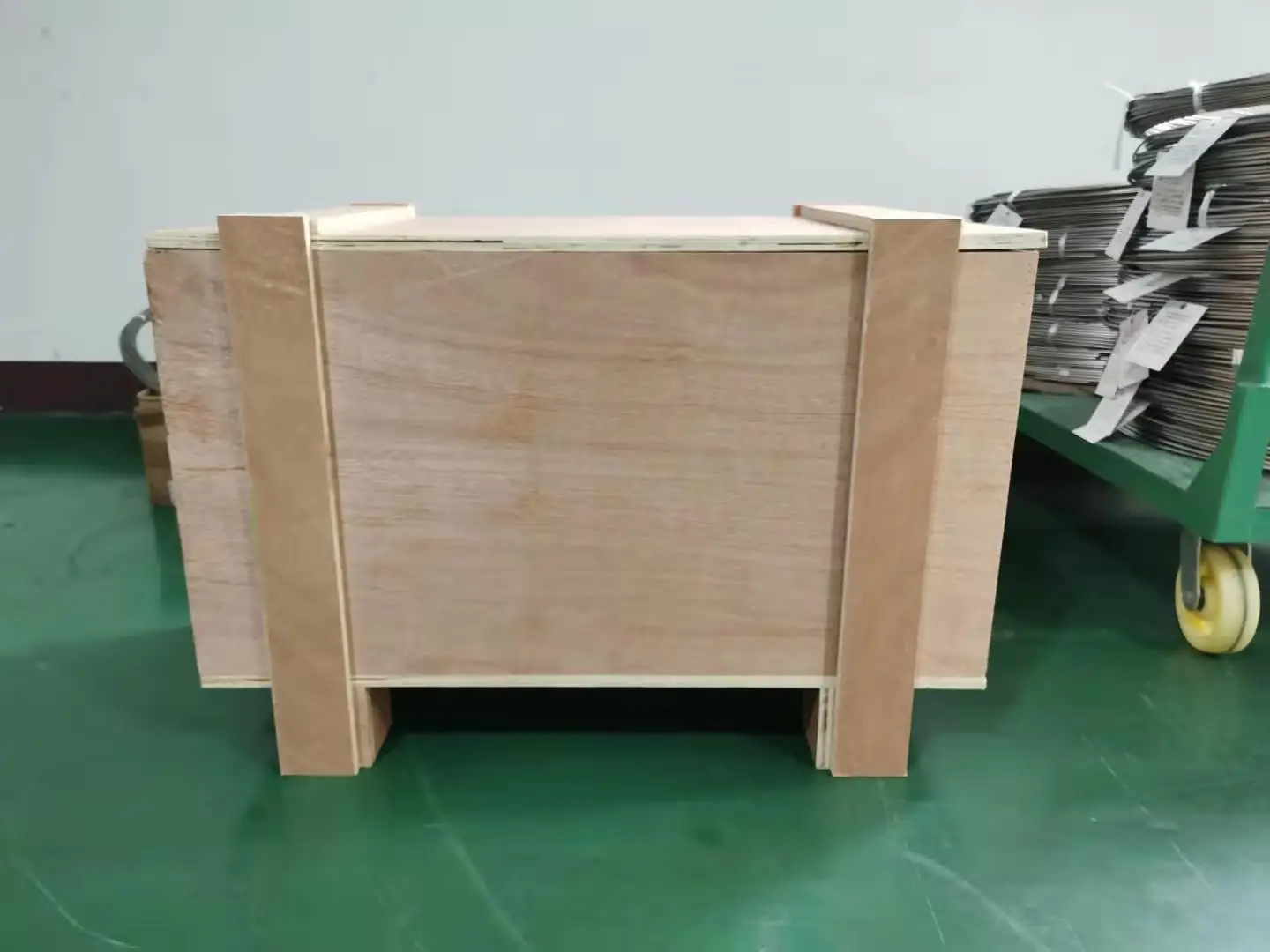

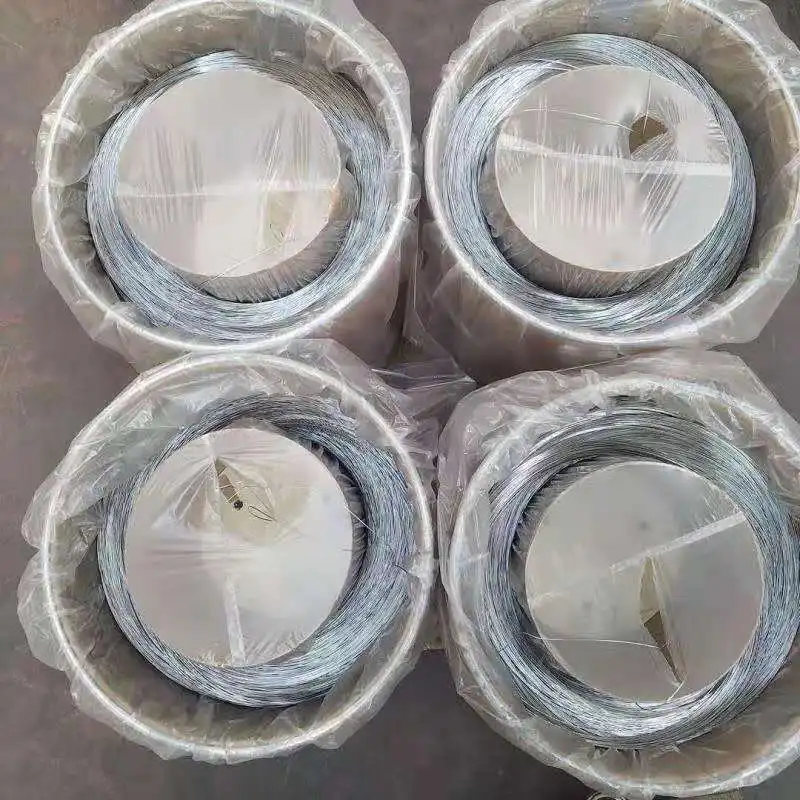

Products of coils wire and strip are packed with waterproof paper or weave bag, into pallets or wooden case.
Products of spool wire or ribbon are packed with plastic film, standard cardboard boxes,into pallets and wooden case
Products of spool wire or ribbon are packed with plastic film, standard cardboard boxes,into pallets and wooden case
