Copper nickel silicon alloy strip C19010 replaces C64750

Product Overview

Description

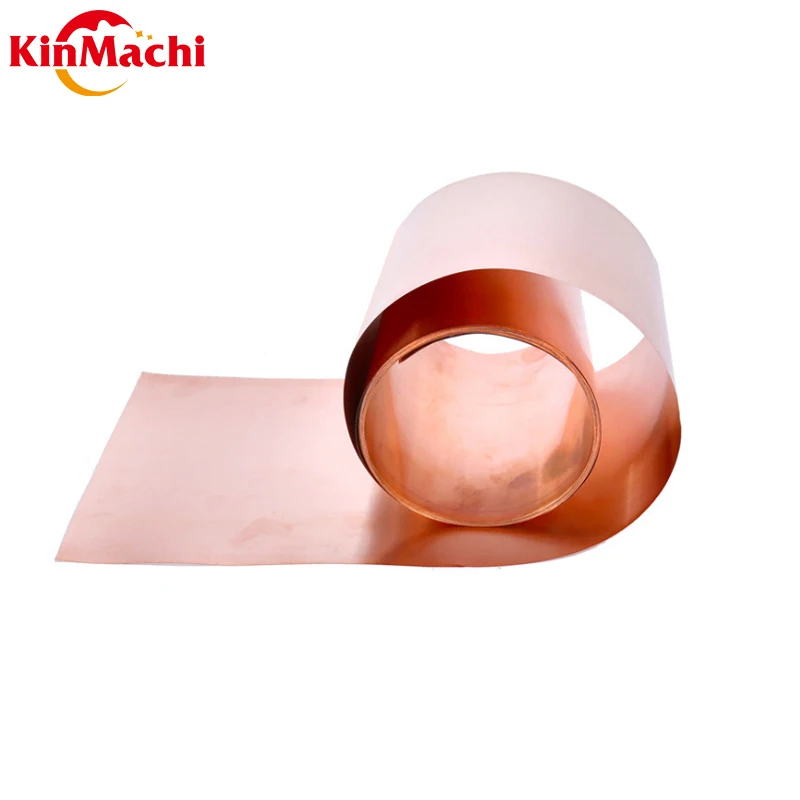

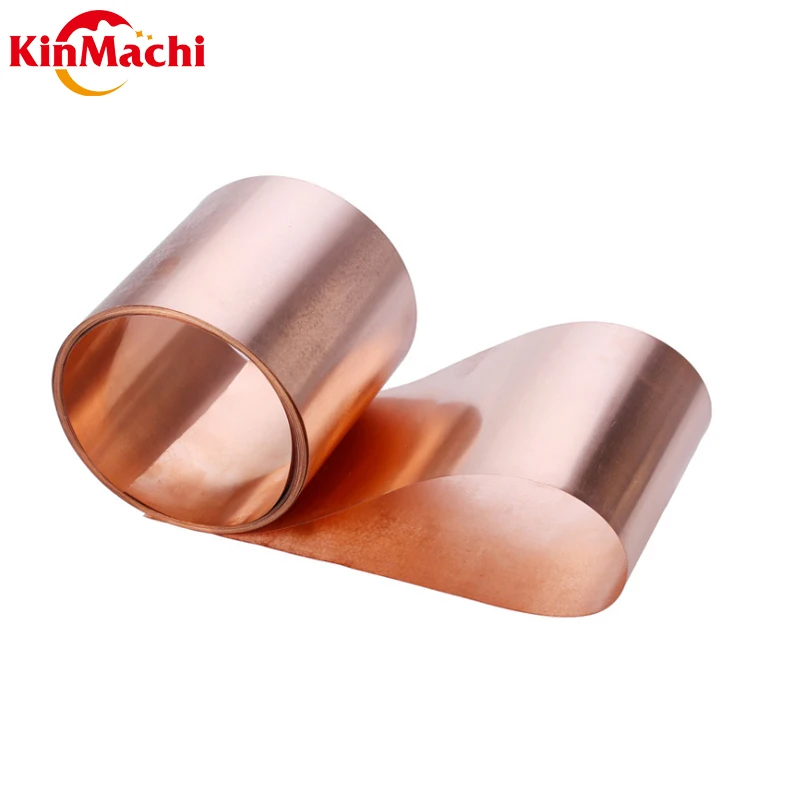

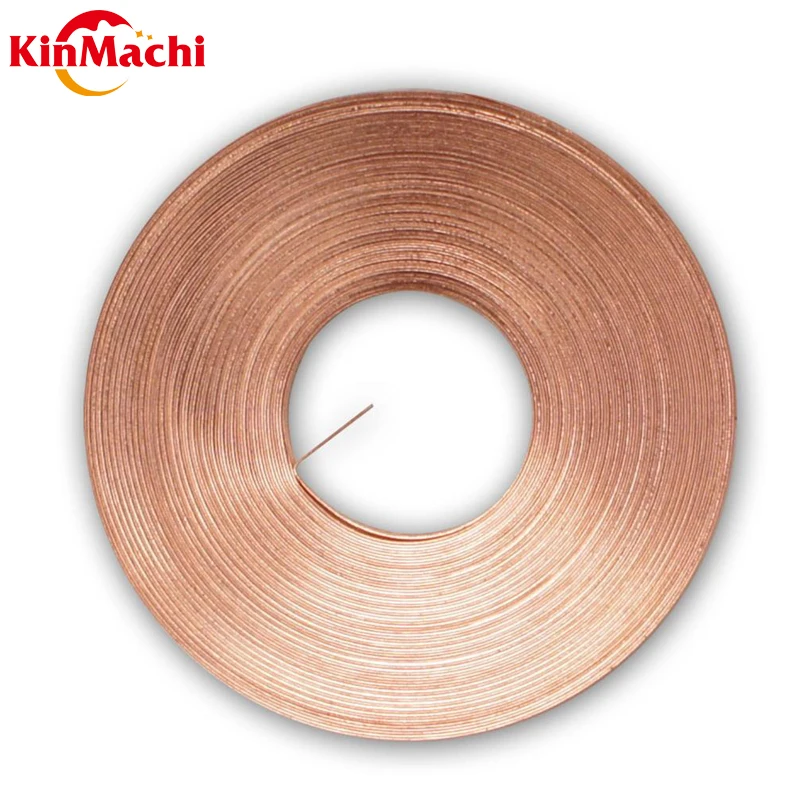

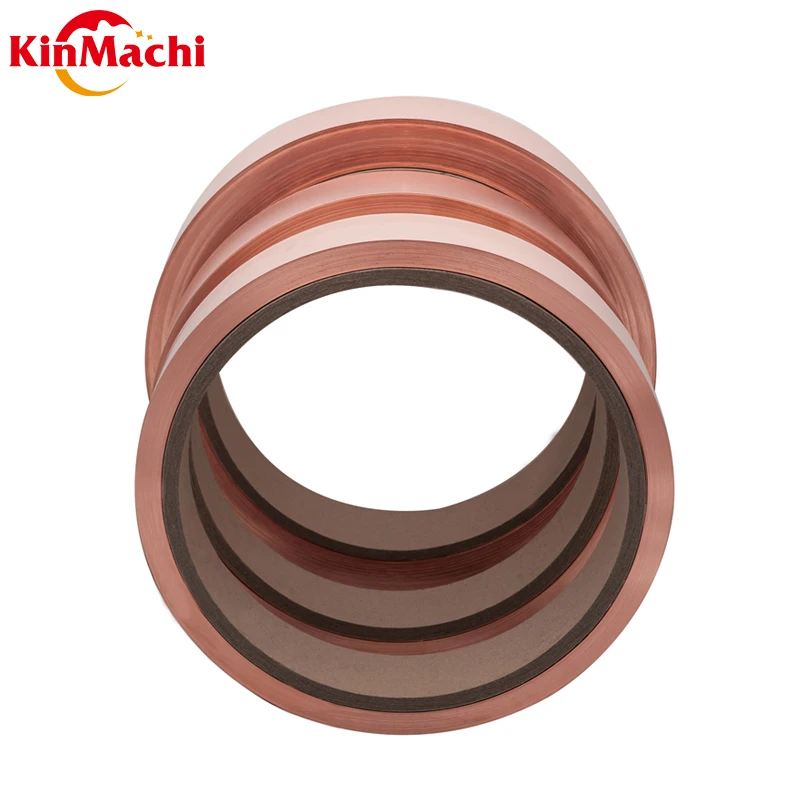

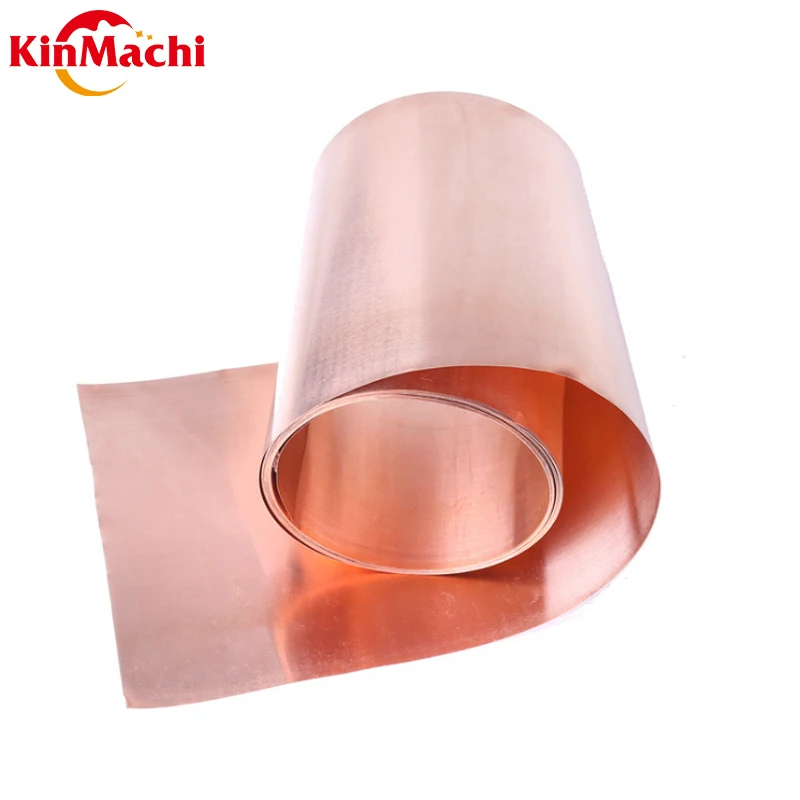

CuNiSiP C19010 Copper Strip and Coil



Standard:

DIN	ASTM	JIS
CuNiSiP	C19010	C1901

Chemical composition:

Cu	Rem
Ni	0.8-1.8
Si	0.15-0.35
P	0.01-0.05

Physical properties:

Density(g/cm3)	8.9
Electrical Conductivity IACS%(20℃)}	60min
Modulus Of Elasticity(KN/mm2)	135
Thermal Conductivity {W/(m*K)}	260
Coefficient Of thermal expansion ( 10-6/℃ 20/℃ ~100/℃)	16.8

Physical properties:

Temper Of Supply	Tensile Strength	Yield strength	Elongation (A50)	Hardness	Bending test
					90°(R/T)		180°  (R/T)
	(Rm,MPa)	(Rp0.2,MPa)	(%)	(HV)	GW	BW	GW	BW
R400	400-460	360min	8min	120-150	0	0.5	0.5	1
R490	490-550	410min	10min	140-170	0	0.5	1	1.5
R520	520-590	440min	9min	150-180	0.5	0.5	1.5	2
R580	580-650	540min	8min	170-200	1	1	2	3



  Copper-nickel-silicon alloys are found in the electrical/electronic industry and utilise the high strength

with the good electrical conductivity,stress relaxation resistance and corrosion resistance of the alloys.

Typical applications include:

  Lead frames,Connectors,Fuse clips,Contact springs,Resistance welding electrodes,Current carrying

formed parts,Switchgear,Press fit pins,Miniature sockets for surface mount devices,Power distribution

frets in automotive junction boxes,Clamps for catenary railway fittings
