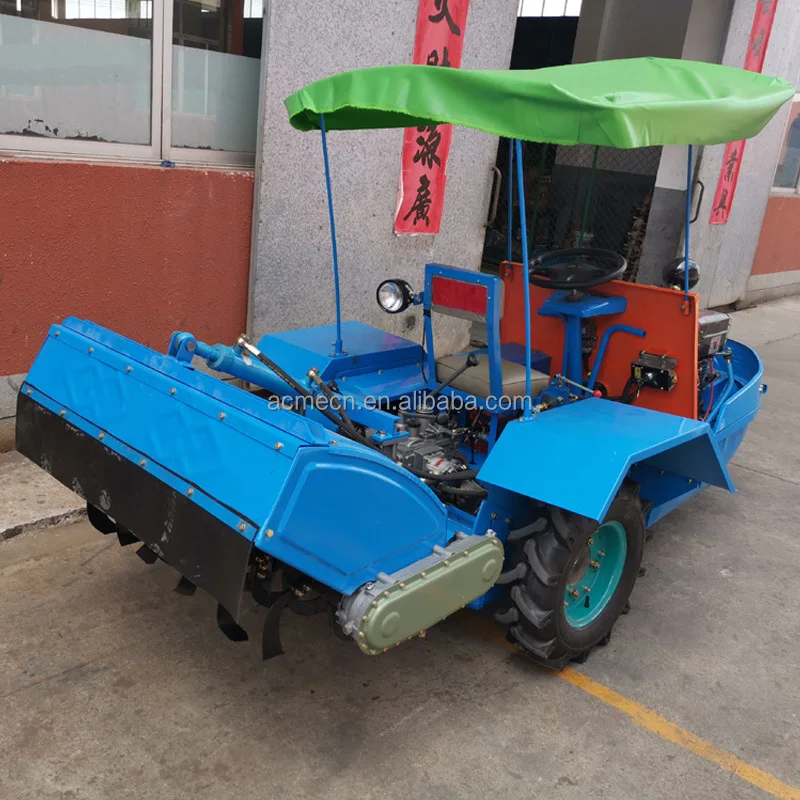

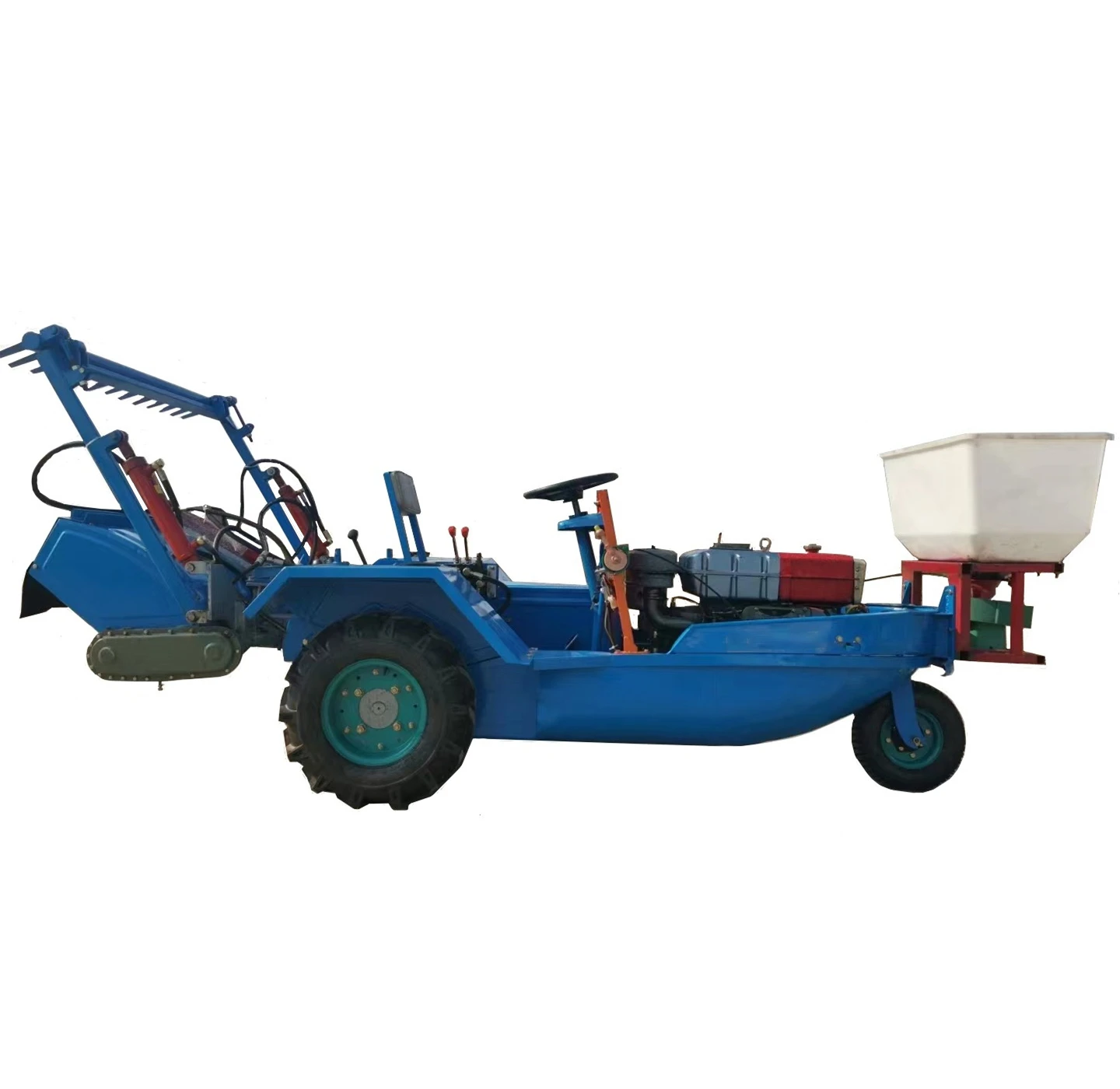

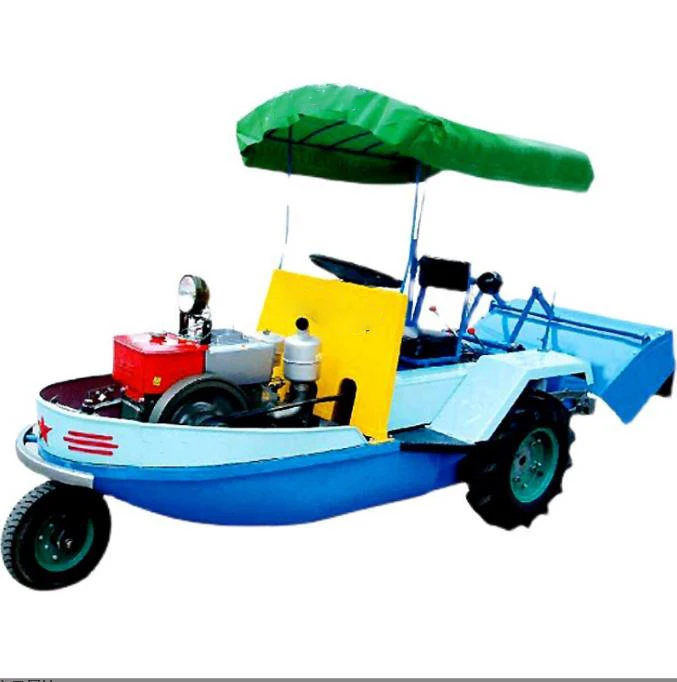

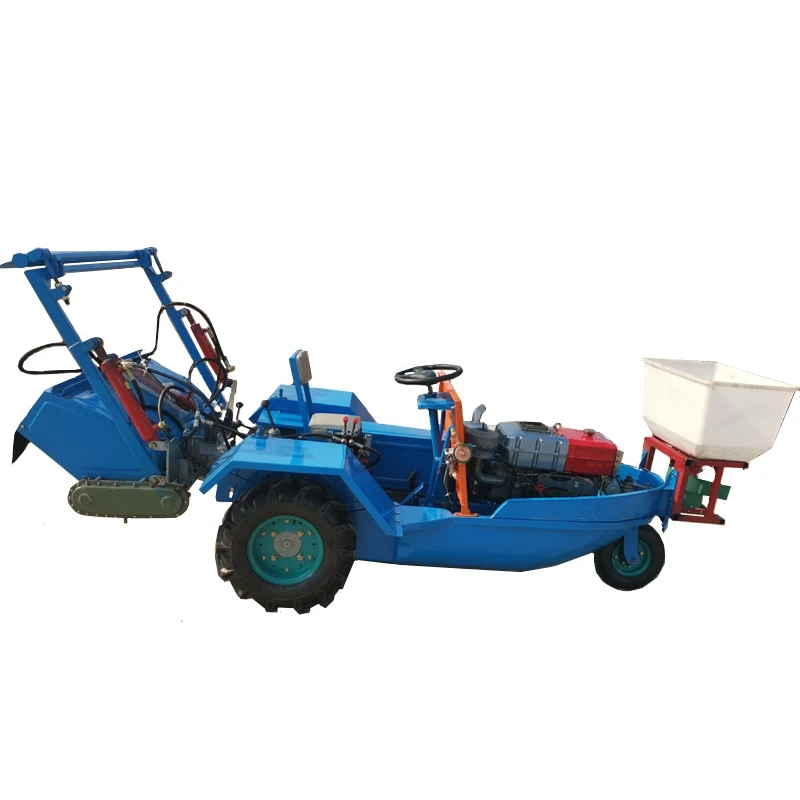

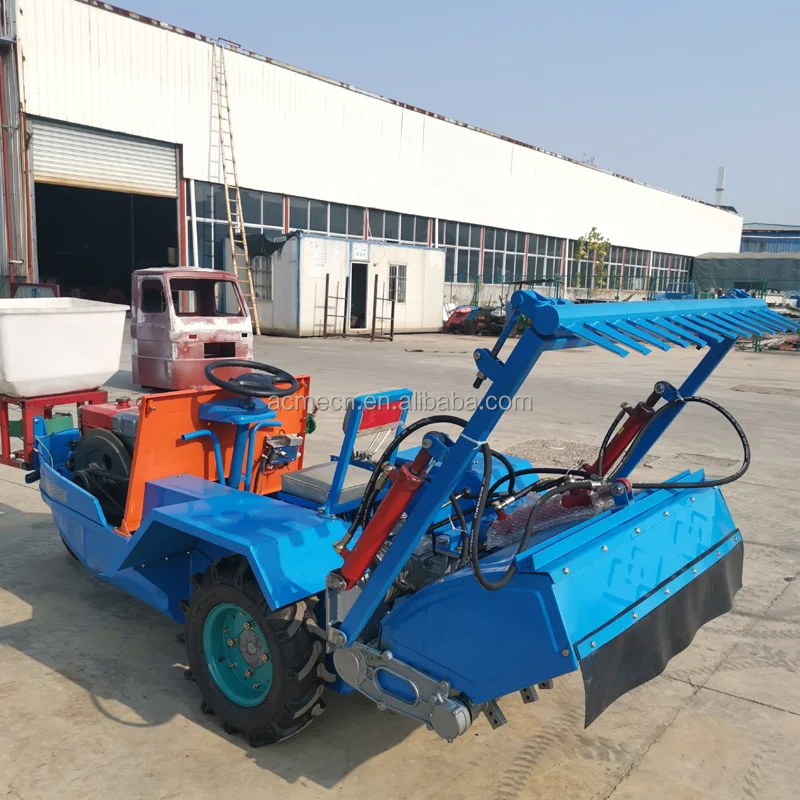

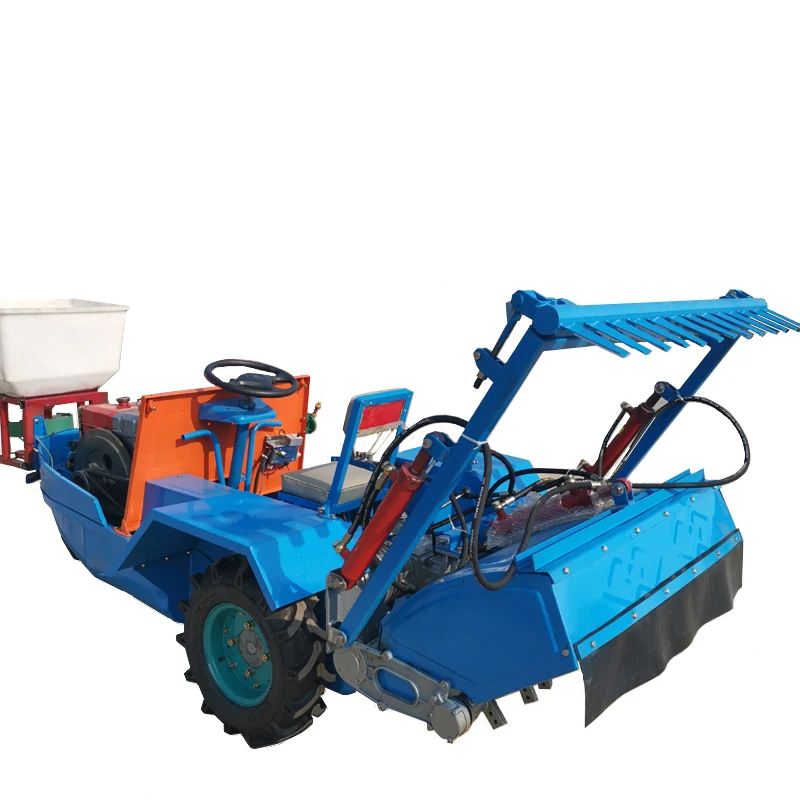

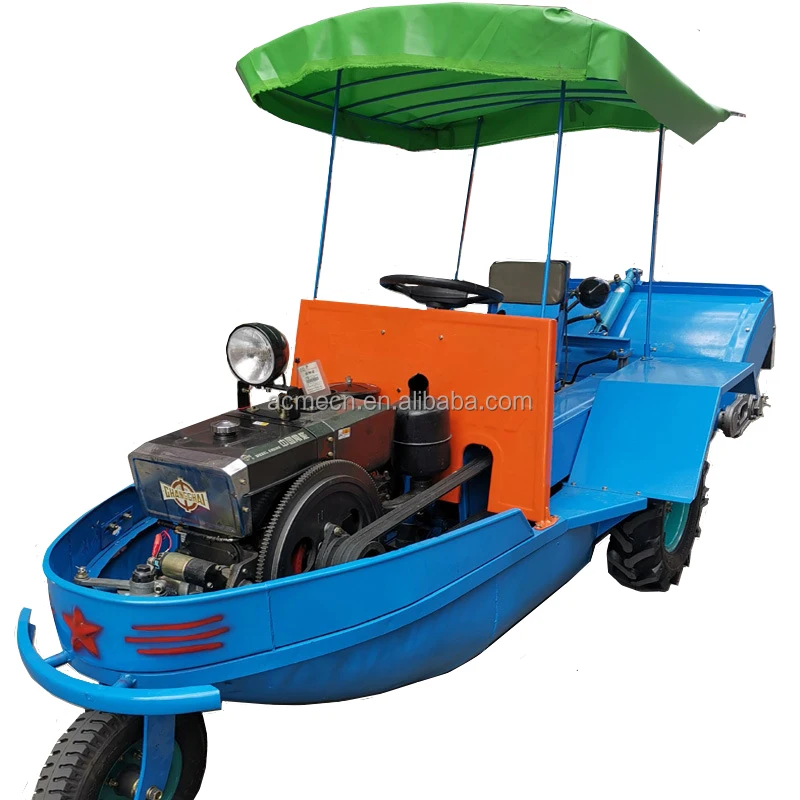

15hp-28hp boat Tractor Farm Tractor With Rotary Tiller Plow Various Agricultural Machinery

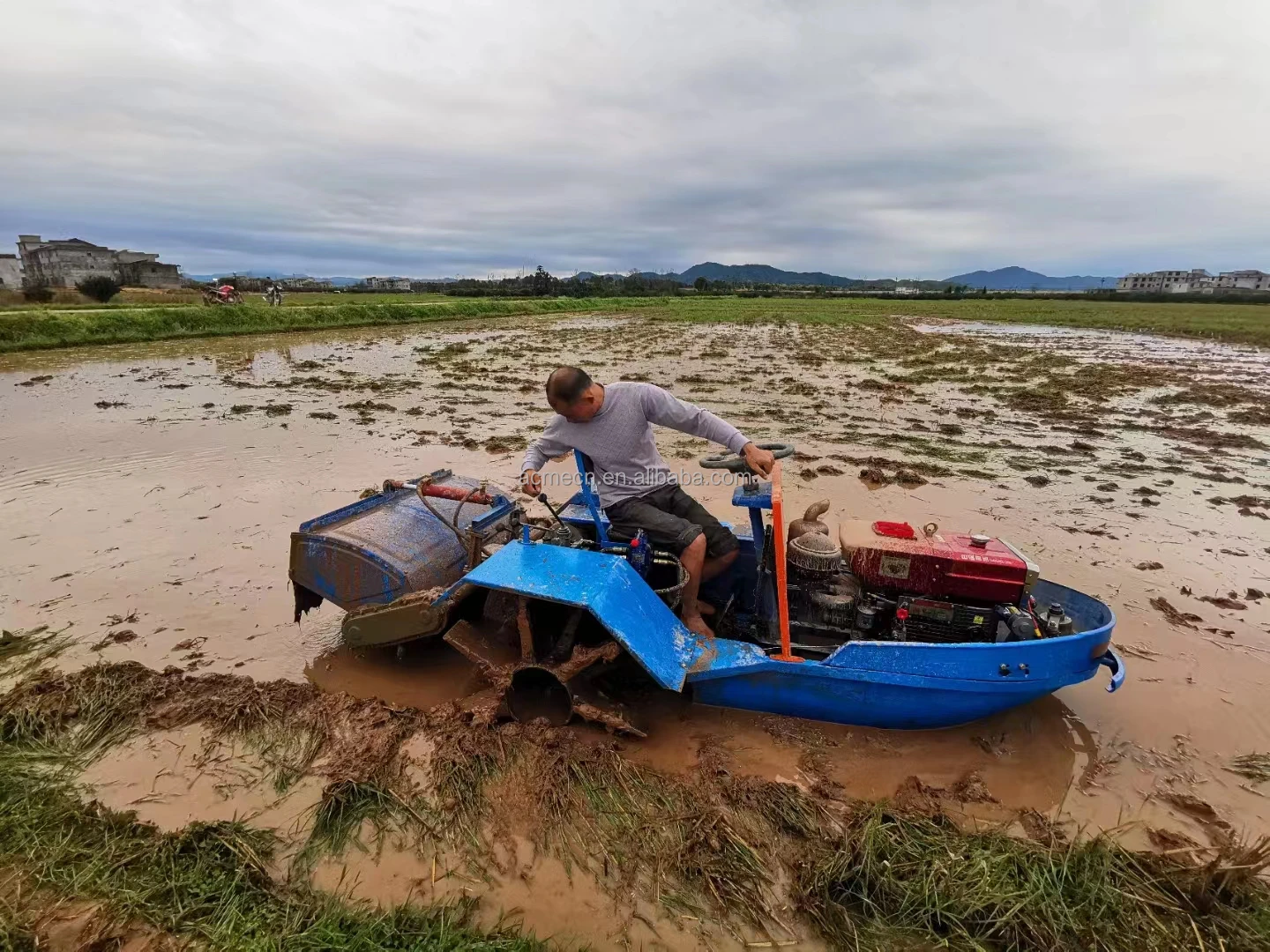

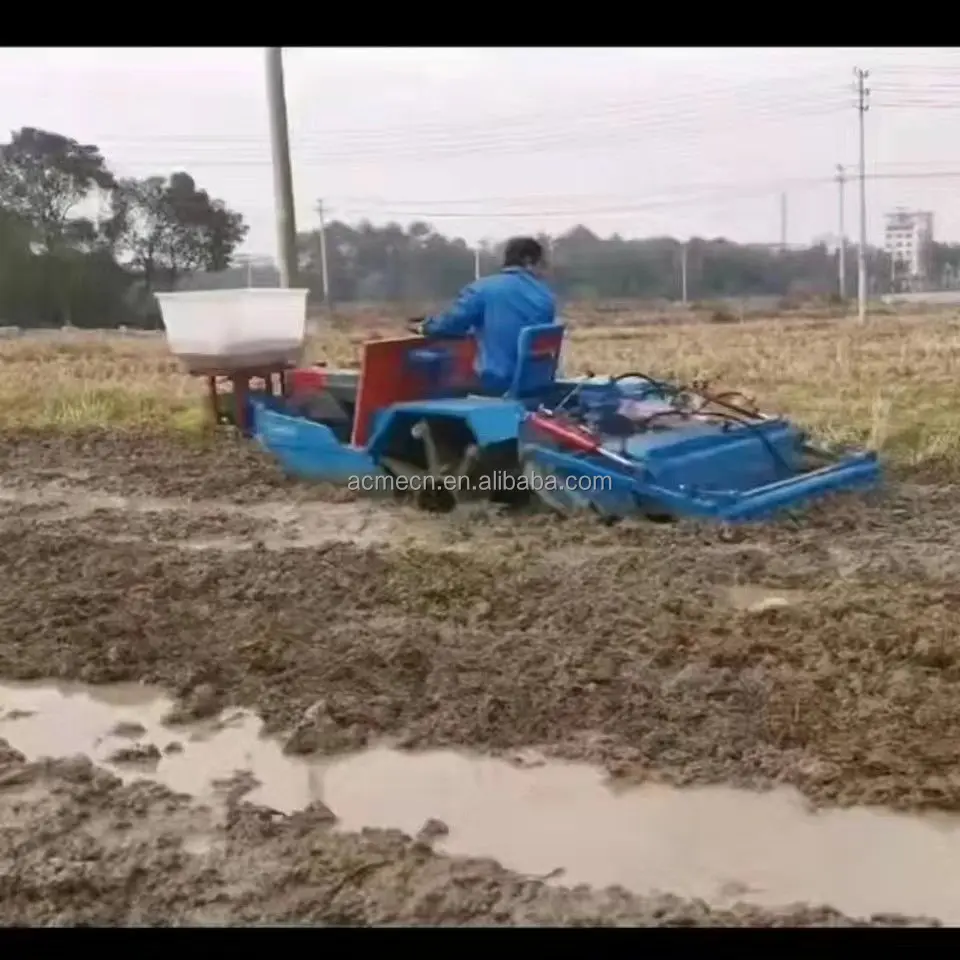

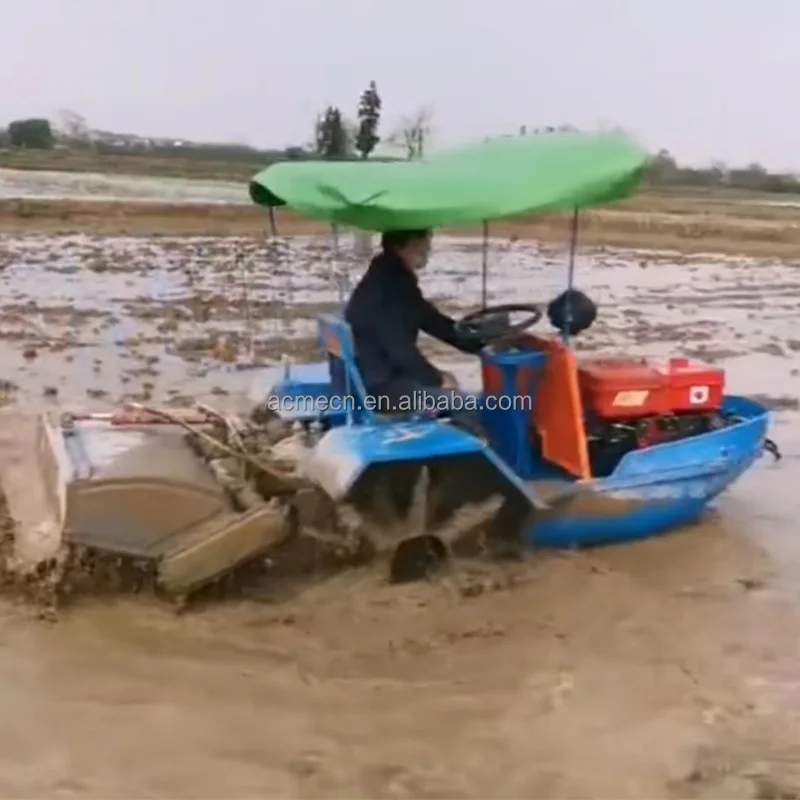

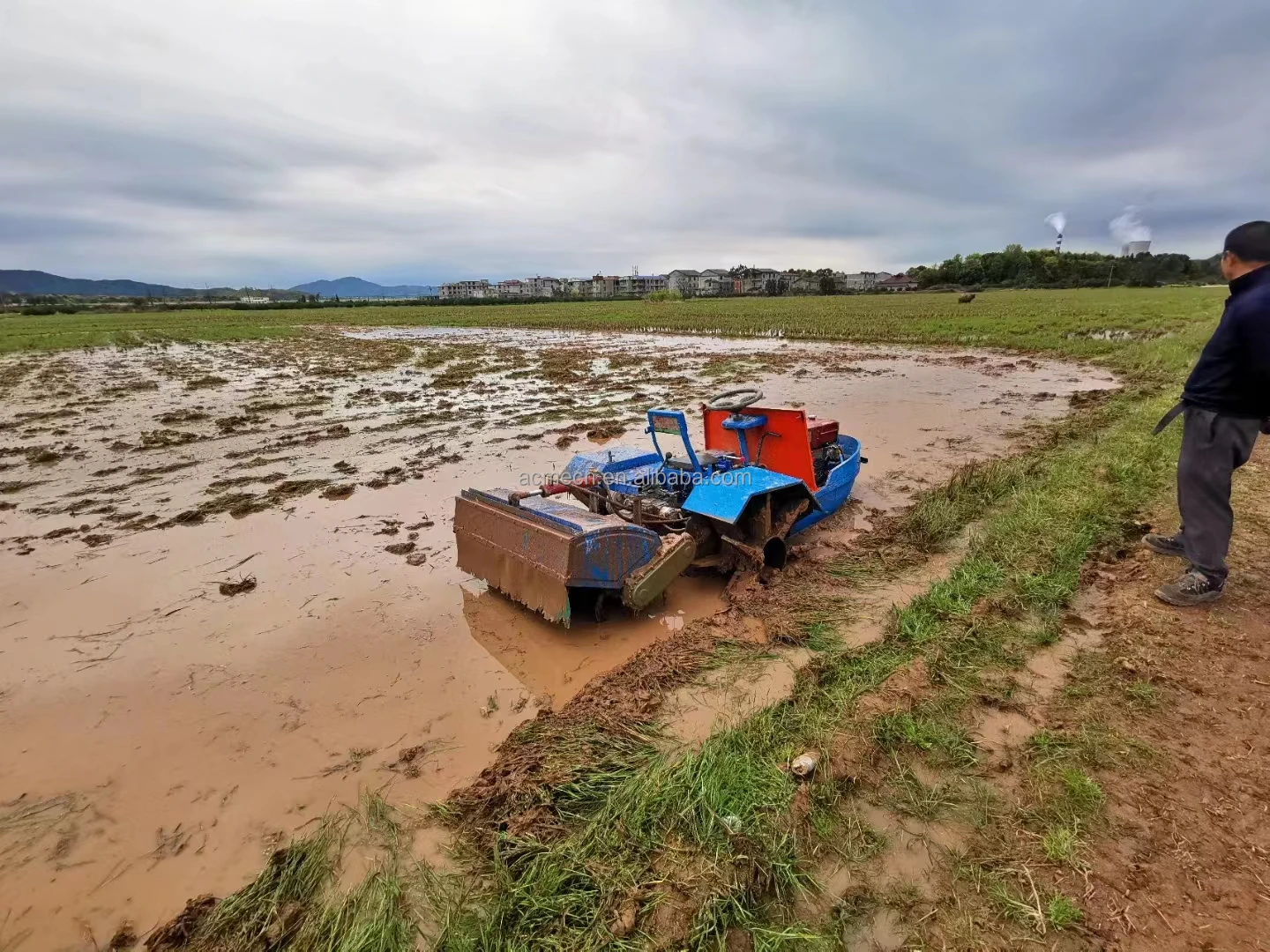

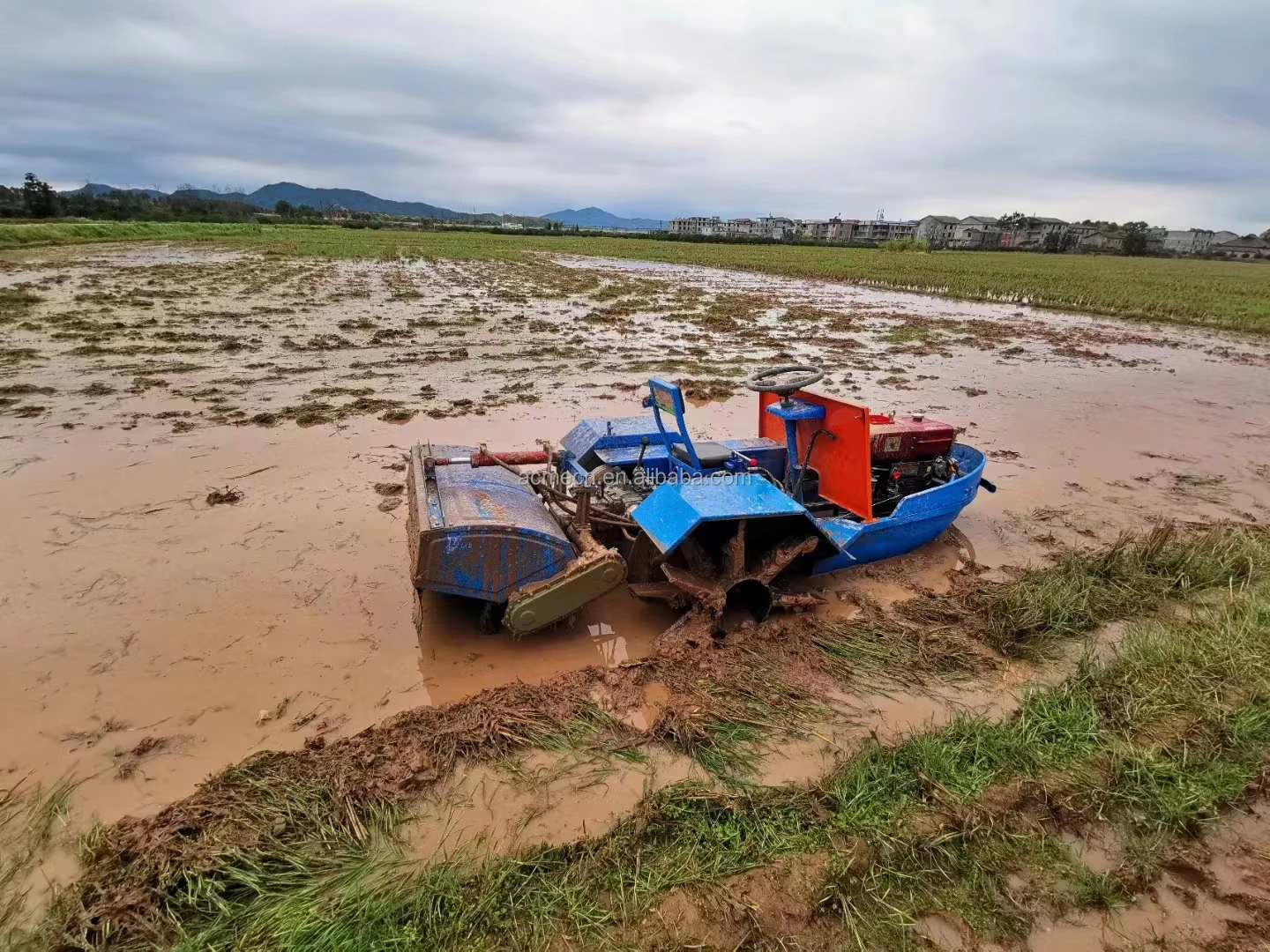

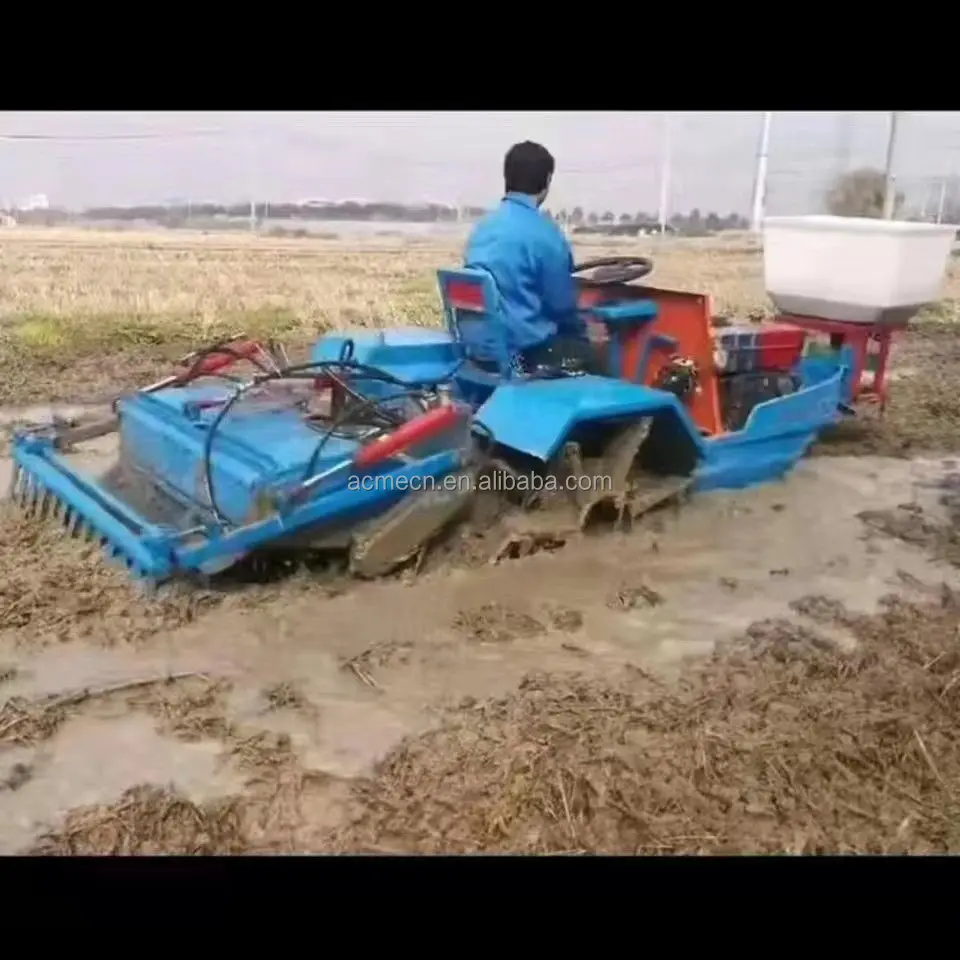

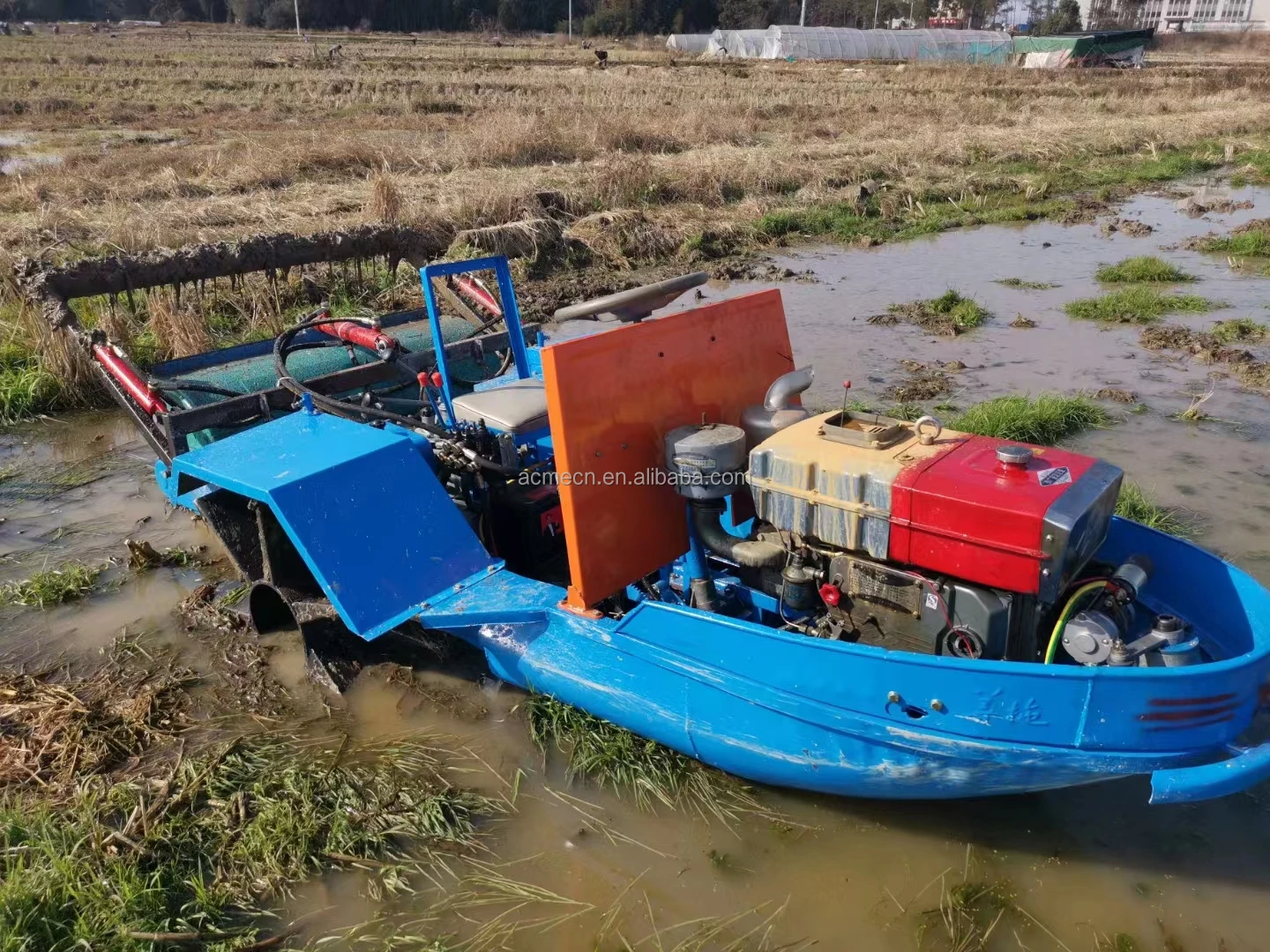

This boat tractor is a kind of agricultural machinery mainly used for tillage rice field, lotus root and other fields. This machine can work for both dry and wet/water land.

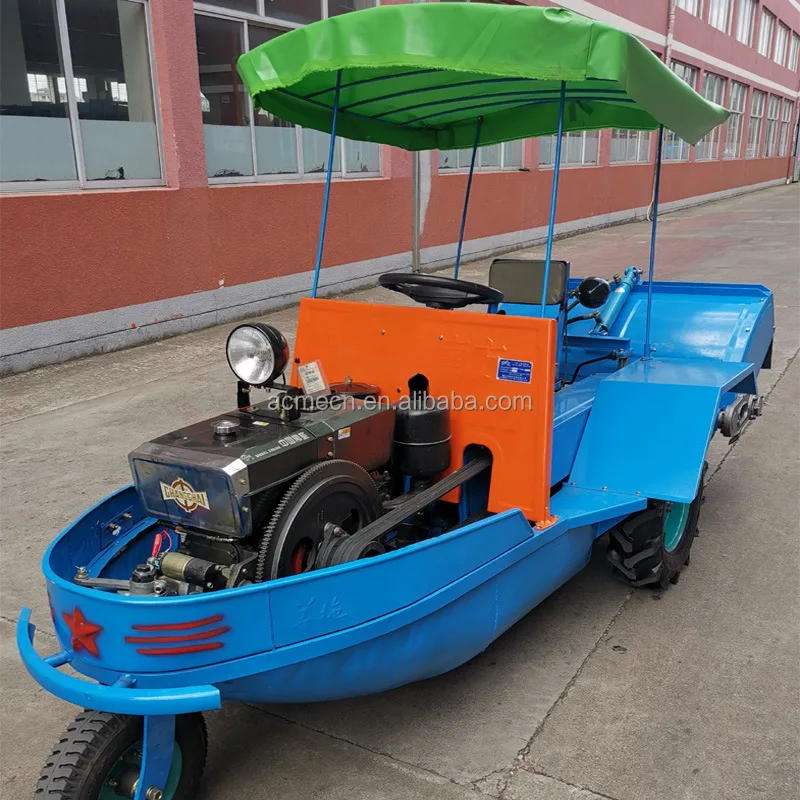

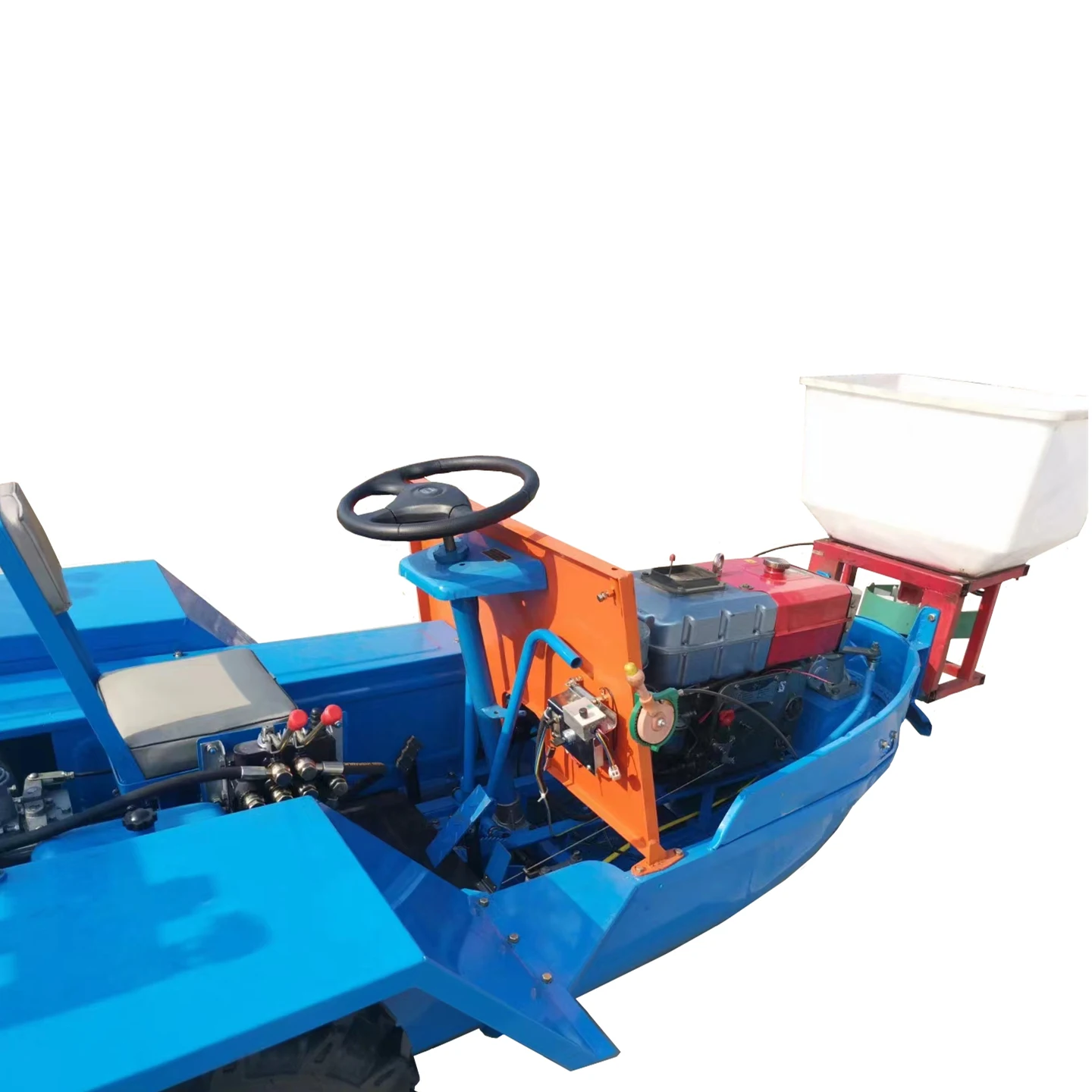

Mainly composed of diesel engine, gear box, clutch, guide wheel, direction machine, control system, lighting device, hull etc.
Specification
Model | AM-15B |
type | Boat tractor |
power | 15-18hp manual start diesel engine 22-28hp electric start diesel engine |
dimension | 3300*1300*1250mm |
Wheel tread | 1100mm |
Wheel base | 1920mm |
weight | 630kg |
Min. Ground clearance | 170mm |
Work speed 6 forward gear, 2 reverse gear | Forward: 1.89; 3.35; 5.36; 6.98; 12.38; 20.76 Reverse: 1.49; 5.56 |
Tyre size | Front 400-8, 0.2-0.4MPa Rear 600-12, 0.18-1.2MPa |
Rotary tiller Work width | 15-18hp, 70cm 22-28hp, 120cm |
Gear box | Gear transmission (3+1)x2 |
Optional implements | disc plough, roller, fertilizer spreader |
Pack volume | 4.5CBM |
