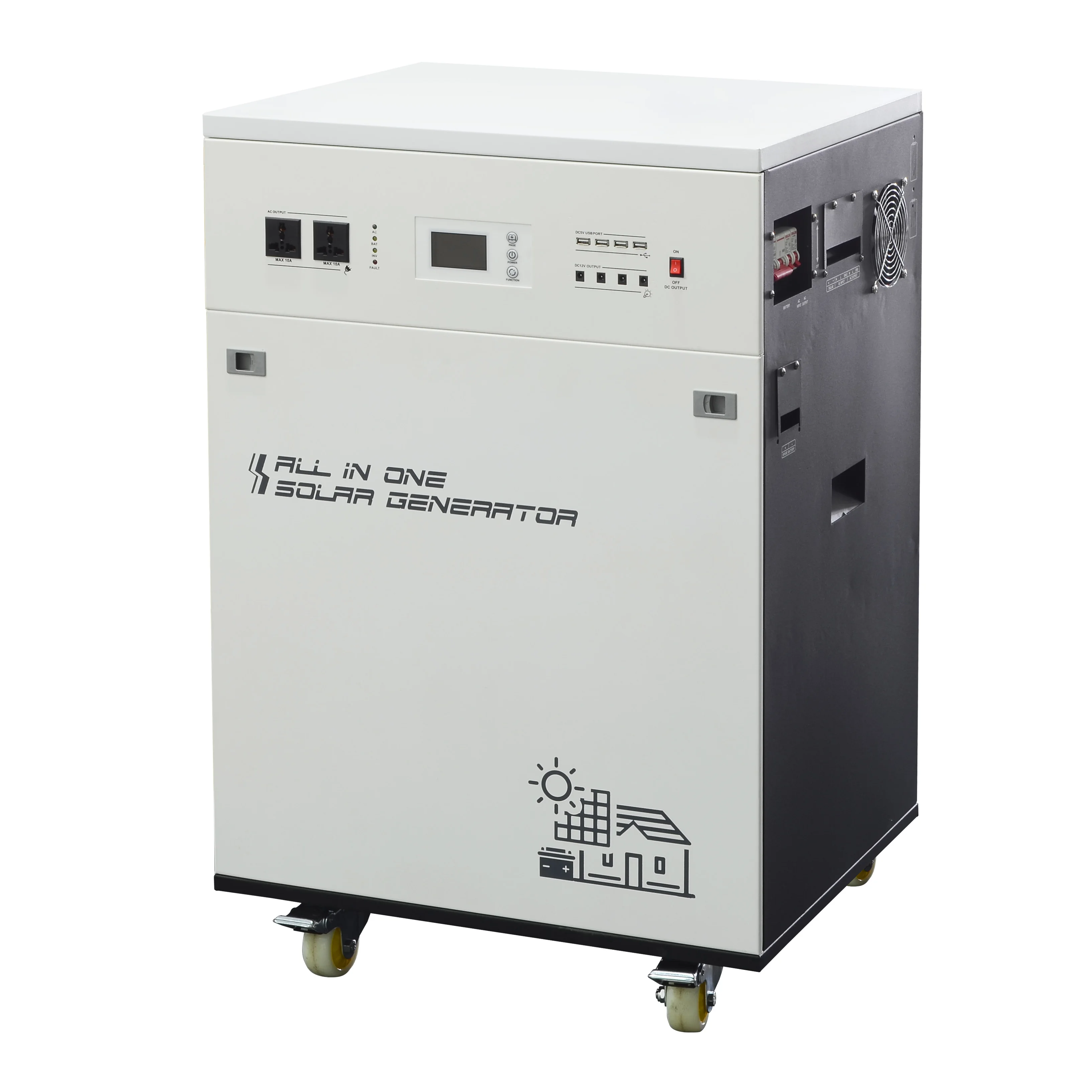

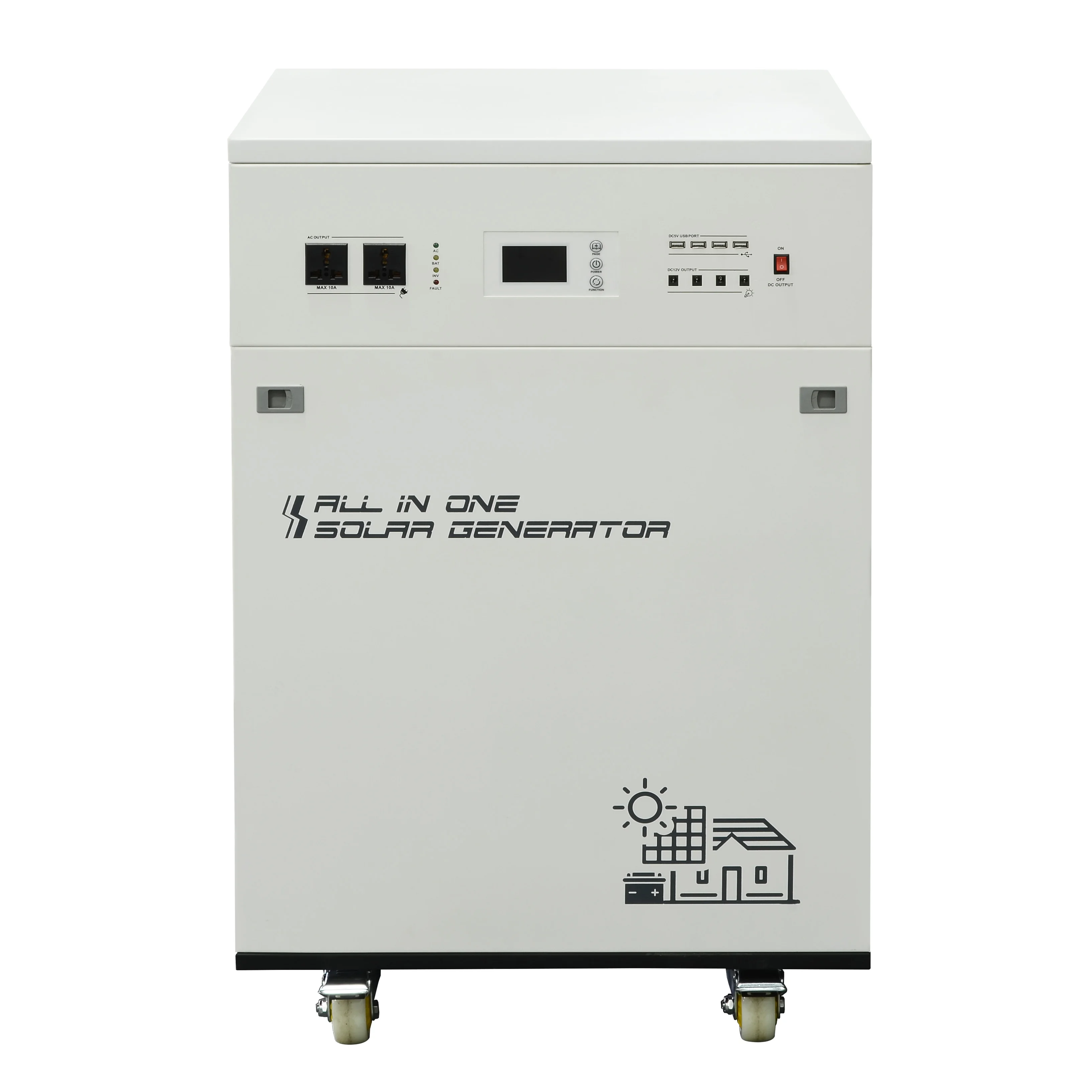

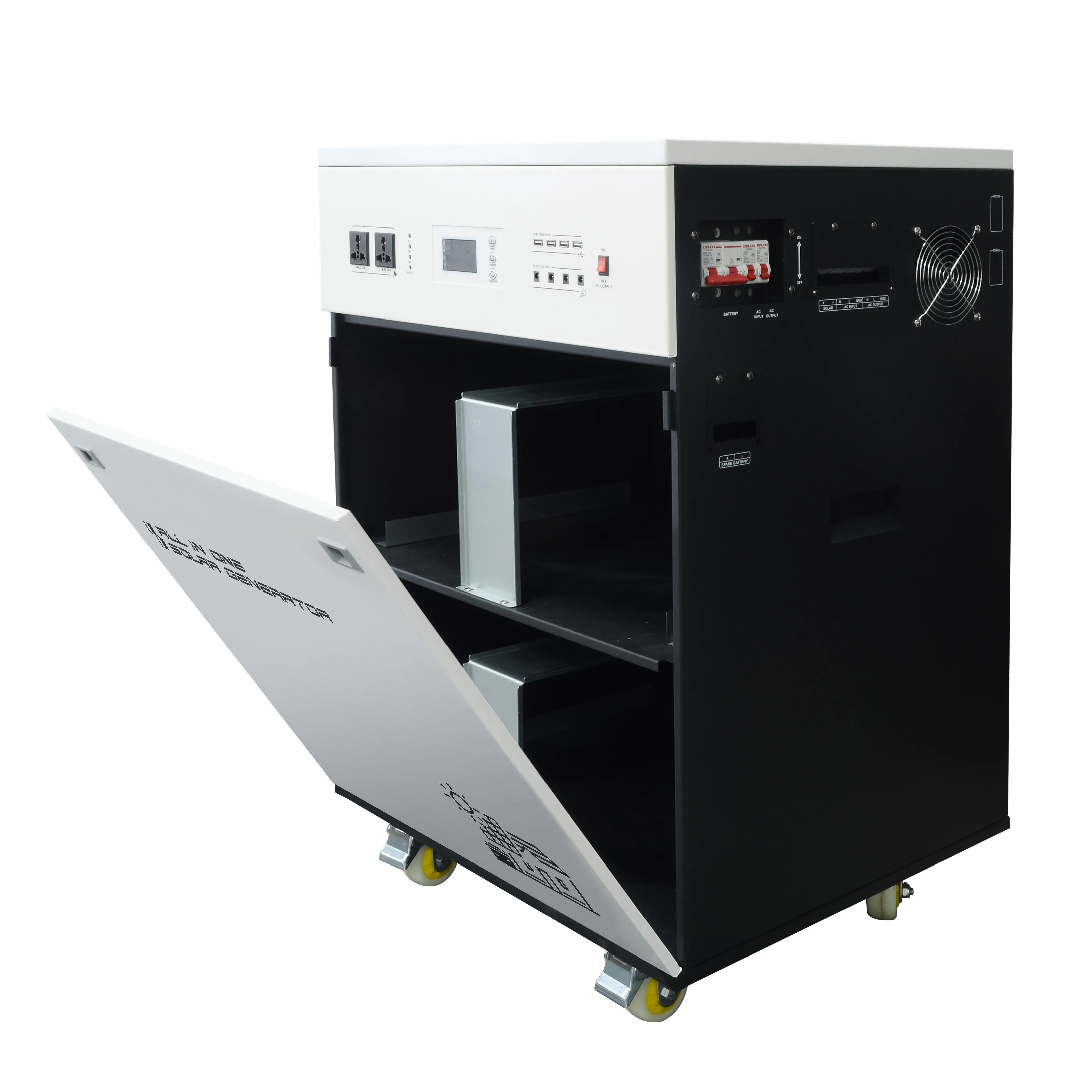

6000w 6kva MPPT PWM 48vdc UPS Supply Station 110v 120v 220v Solor Eneragy Inverter For Refrigerator
- Category: >>>
- Supplier: Harbin Shinenovo Technology Development Co. Ltd.
Share on (1600690105943):
Product Overview
Description
6000w 6kva MPPT PWM 48vdc UPS Supply Station 110v 120v 220v Solor Eneragy Inverter For Refrigerator
Products Features
1. 3 times peak power, excellent loading capability.
2. Combine inverter/solar controller/battery all in one.
3. Multiple output: 2*AC output socket, 4*DC 12V, 2*USB.
4. Working mode AC prior/ECO mode/Solar prior selectable.
5. AC charging current 0-10A selectable.
6. LVD/HVD/Charging voltage adjutable, suitable for kinds of battery
7. Adding fault code to monitor real-time work situations.
8. Continuous stable pure sine wave output with inbuilt AVR stabilizer.
9. Added fault codes query function,facilitate user to monitor the operation state in real time;
10. Digital LCD and LED for visualization of operation status of the equipment.
11. Inbuilt automatic AC charger and AC mains switcher, stwitch time ≤ 4ms.
2. Combine inverter/solar controller/battery all in one.
3. Multiple output: 2*AC output socket, 4*DC 12V, 2*USB.
4. Working mode AC prior/ECO mode/Solar prior selectable.
5. AC charging current 0-10A selectable.
6. LVD/HVD/Charging voltage adjutable, suitable for kinds of battery
7. Adding fault code to monitor real-time work situations.
8. Continuous stable pure sine wave output with inbuilt AVR stabilizer.
9. Added fault codes query function,facilitate user to monitor the operation state in real time;
10. Digital LCD and LED for visualization of operation status of the equipment.
11. Inbuilt automatic AC charger and AC mains switcher, stwitch time ≤ 4ms.
6000w 6kva MPPT PWM 48vdc UPS Supply Station 110v 120v 220v Solor Eneragy Inverter For Refrigerator
Specfication
Model : ESS | 152 P8/W8 | 202 P8/W8 | 302 P8/W8 | 402 P/W | 502 P/W | 602 P/W | 702 P/W | |||||||
Capacity | Rated power | 1500W | 2000W | 3000W | 4000W | 5000W | 6000W | 7000W | ||||||
Peak power（20ms） | 4500VA | 6000VA | 9000VA | 12KVA | 15KVA | 18KVA | 21KVA | |||||||
Input | Stardard battery voltage | 48VDC | ||||||||||||
AC input voltage range | 85VAC~138VAC (110VAC) / 95VAC~148VAC (120VAC) / 170VAC~275VAC (220VAC)/ 180VAC~285VAC (230VAC)/ 190VAC~295VAC (240VAC) | |||||||||||||
AC input frequency range | 45Hz~55Hz（50Hz);55Hz~65Hz（60Hz) | |||||||||||||
Output | Conversion efficiency | ≥85%(Battery mode); >99%(AC mode) | ||||||||||||
AC Output voltage | 110VAC±2% / 120VAC±2% / 220VAC±2% / 230VAC±2%/ 240VAC±2%(Battery mode); 110VAC±10% / 120VAC±10% / 220VAC±10% / 230VAC±10% /240VAC±10%(AC mode) | |||||||||||||
AC Output frequency | 50/60Hz±1%(Battery mode); Tracking Automatically(AC mode) | |||||||||||||
AC Output waveform | Pure Sine Wave | |||||||||||||
THD | ≤3%（Linear load) | |||||||||||||
DC Output voltage | 4*DC 12V; 4*USB（5V） | |||||||||||||
AC charger | AC charging current | 0~30A(Depends on model) | ||||||||||||
AC charging method | Three-stage(constant current, constant voltage, floating charge) | |||||||||||||
solar charger (Optional) | Charging mode | PWM/MPPT | ||||||||||||
Max PV input voltage(Voc) (At the lowest temperature) | PWM: 100V; MPPT: 150V | |||||||||||||
PV input voltage range | PWM: 60V-88V; MPPT: 60V-120V | |||||||||||||
Charge & discharge current | 60A | |||||||||||||
Max PV input power | 3360W | |||||||||||||

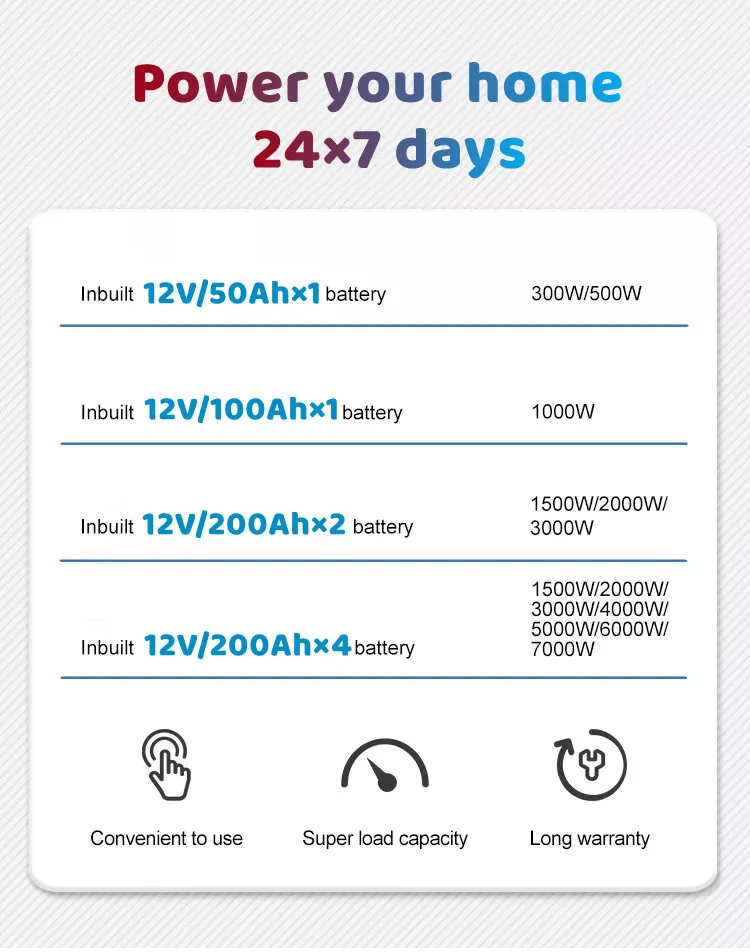

Inbuilt battery | Capacity | 4*200AH | ||||||||||||
Battery size(LxWxH)/pcs | 522*240*218（244） | |||||||||||||
Other | Transfer time | ≤4ms | ||||||||||||
Protection | with over-voltage, low-voltage, overload, short circuit, high tempreature protections | |||||||||||||
Display | LCD & LED | |||||||||||||
Cooling way | Cooling fan in intelligent control | |||||||||||||
Communication (Optional) | RS485/APP（WIFI monitoring or GPRS monitoring） | |||||||||||||
Working mode (selectabl) | d1 | AC priority mode | ||||||||||||
d2 | ECO mode | |||||||||||||
d3 | Solar priority mode | |||||||||||||
Work environment | Operating temperature | -10℃~40℃ | ||||||||||||
Storage temperature | -15℃~60℃ | |||||||||||||
Elevation | 2000m（More than derating） | |||||||||||||
Humidity | 0%~95% ,No condensation | |||||||||||||
Physical | Dimention LxWxH(mm) | 610*535*960 | ||||||||||||
Net weight(kg) (without battery) | 53 | 55 | 59 | 61 | 63 | 64 | 66 | |||||||
Packing | Dimention LxWxH(mm) | 688*612*1093 | ||||||||||||
Gross weight(kg) (without battery) | 68 | 70 | 74 | 76 | 78 | 79 | 81 | |||||||

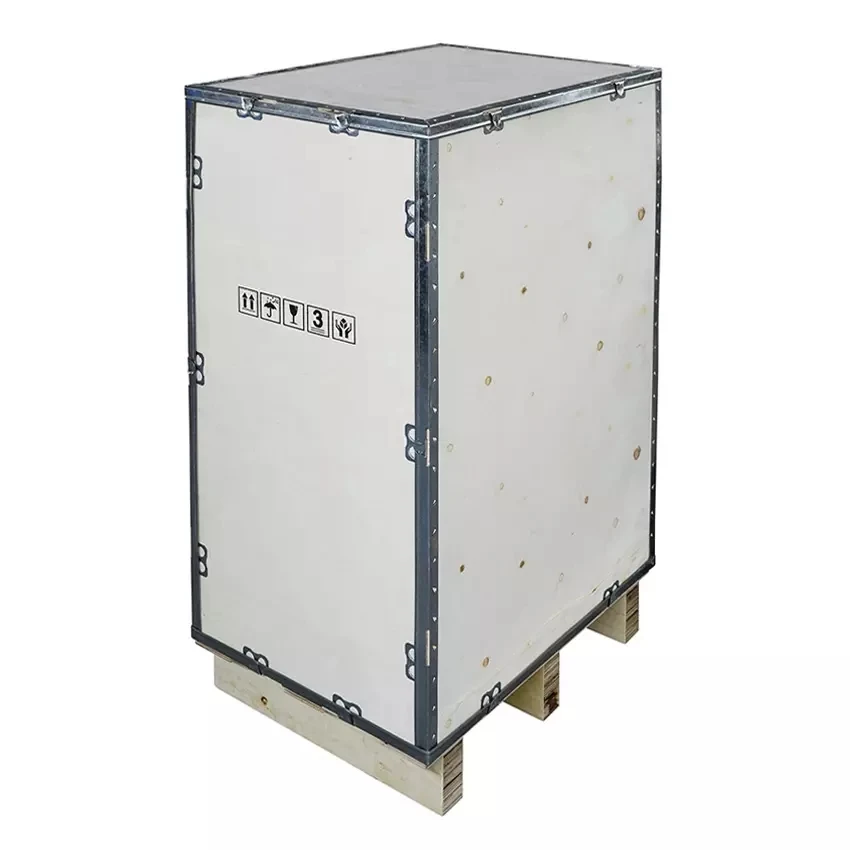

Quantity/CTN | 1pcs per wooden case | |||||||||||||
