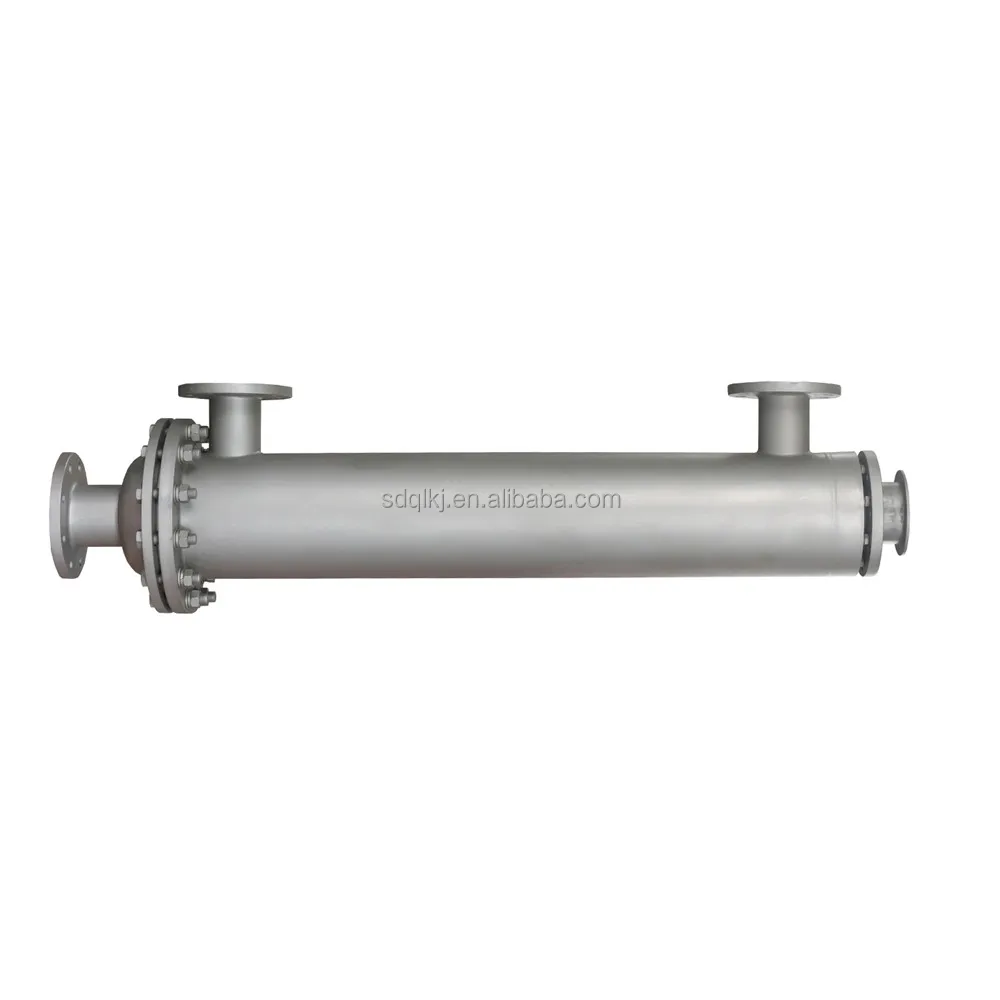

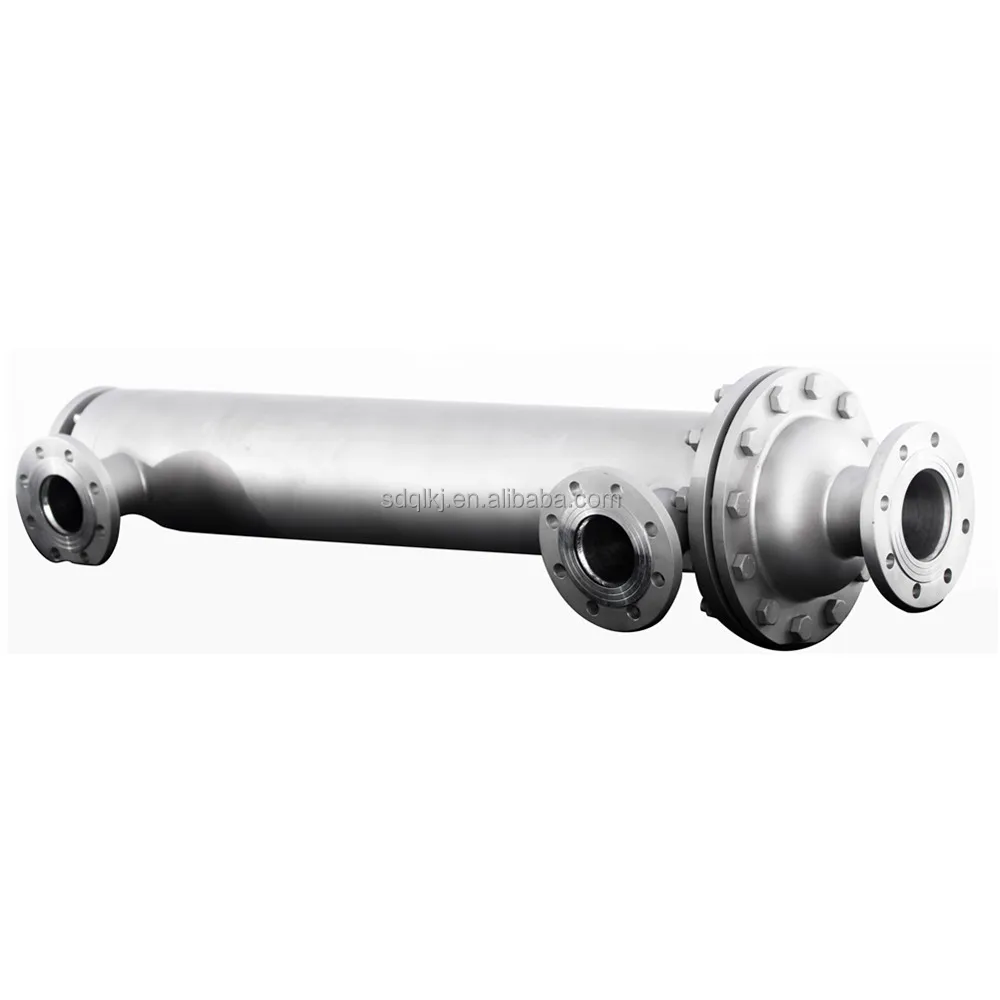

industrial stainless steel 316L shell and tube heat exchanger for pharmaceuticals
- Category: >>>
- Supplier: Shandong Qinglei Environmental Science And Technology Co. Ltd.
Share on (1600690129435):
Product Overview
Description
stainless steel 316L shell and tube heat exchanger for pharmaceuticals

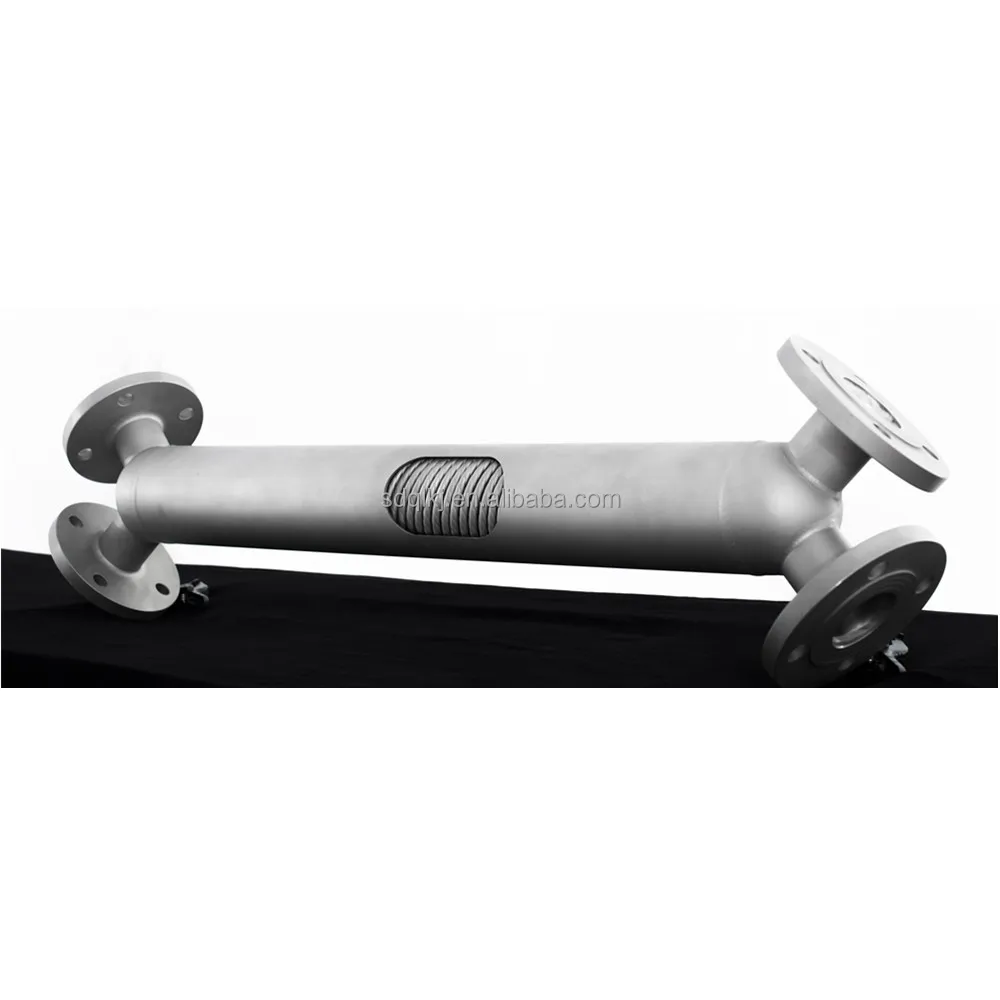

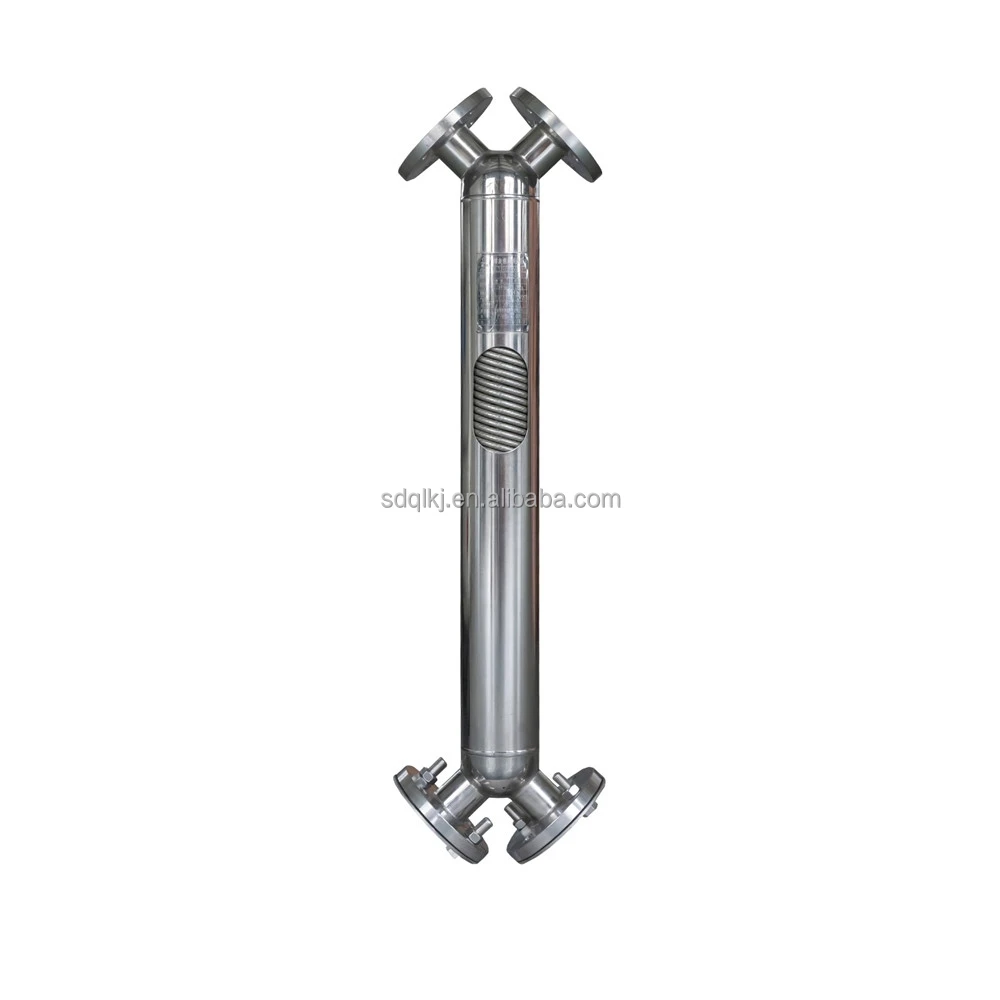

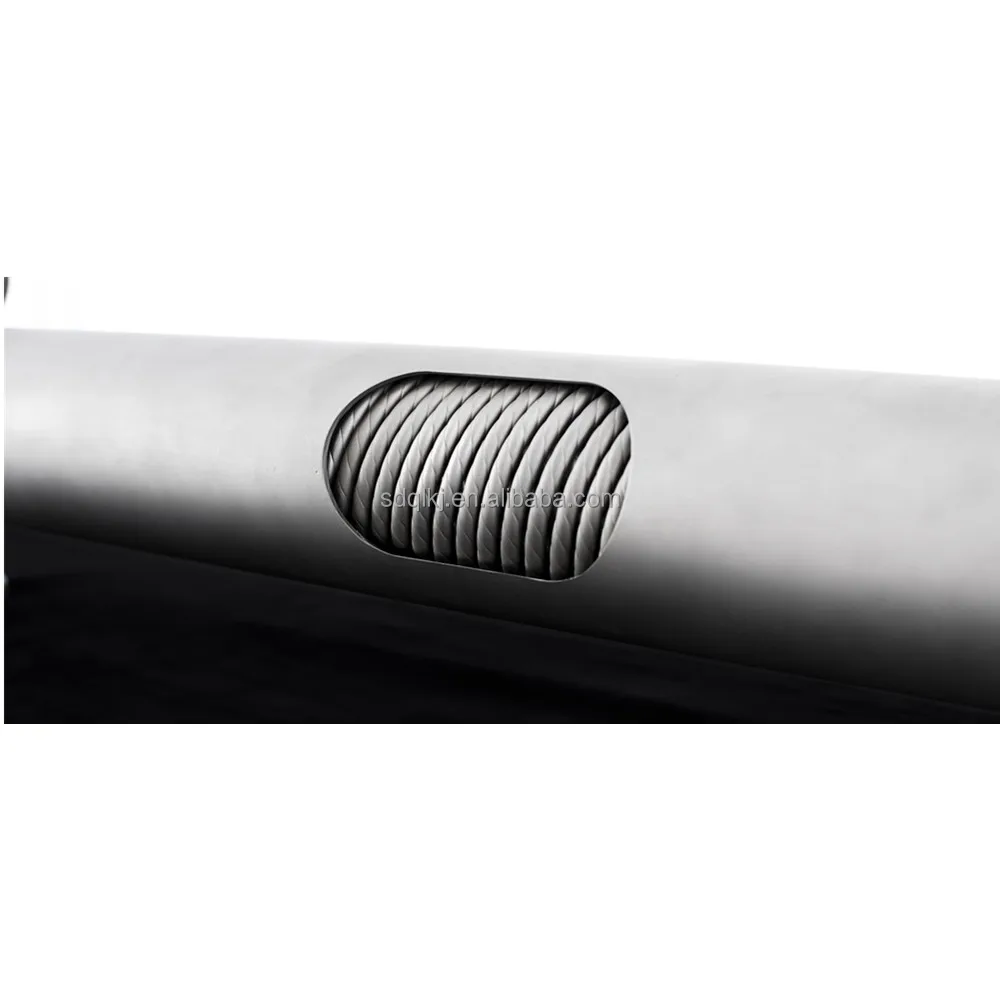

Compared with the ordinary tube heat exchanger,the spiral wound tube heat exchanger has incomparable advantages, such as wide temperature range,adaptability to thermal shock,self-elimination of thermal stress and high compactness . Due to its own special structure ,the flow filed is fully developed .There is no flow dead zone,especially by setting multi-strand tube side(shell side single strand),it can satisfy multi-strand fluid heat transfer at the same time in one equipment.
Spiral wound tube heat exchanger plays an important role in chemical ,petroleum,power ,food and many other industrial production.In chemical production,it can be used as heater,cooler ,condenser,evaporator and reboiler.
Type of Heat Exchanger | Y type, T type, detachable, non-detachable,double tubesheet, cold trap, gas-liquid separation |
Shell Material | austenitic stainless steel 316L, double-phase stainless steel 2205, 2507, pure titanium, zirconium, Hastelloy alloy, etc. |
Tube Material | 316L |
Tube Specification | Φ8，Φ10，Φ12, Φ14，Φ16,Φ19，Φ25 etc. |
Tube Thickness | 0.8mm |
Tube Type | Spiral wound tube/parallel tube/U type tube |
Applicable Fluids | steam, circulating water, frozen brine, glacial refrigerant, glycol; |
Maximum Working Pressure | 4Mpa(customizable) |
Heat Exchange Area | 0.1-1000 square meters |
Working Temperature | -20-300 degree celsius (customizable) |
Installation Type | Horizontal/Vertical |
Function | Heater, cooler, condenser, evaporate,distillation,rectification |
Executive Standard | Chinese standard,GBT151-2014 |
1. Are you manufacturer?
Yes,we are professional manufacturers, products can be customized according to customer requirements
2.What’s the MOQ?
The MOQ is 1 set,we accept loose quantity order,mixed order and any trial order.
Yes,we are professional manufacturers, products can be customized according to customer requirements
2.What’s the MOQ?
The MOQ is 1 set,we accept loose quantity order,mixed order and any trial order.
3.How long is the warranty period?
1 year
4.How to get a quotation?
Please provide us the material, product usage, name of hot media and cold media, hot media inlet and outlet temperature, cold media inlet and outlet temperature, pressure, flow rate etc.
4.How to get a quotation?
Please provide us the material, product usage, name of hot media and cold media, hot media inlet and outlet temperature, cold media inlet and outlet temperature, pressure, flow rate etc.
