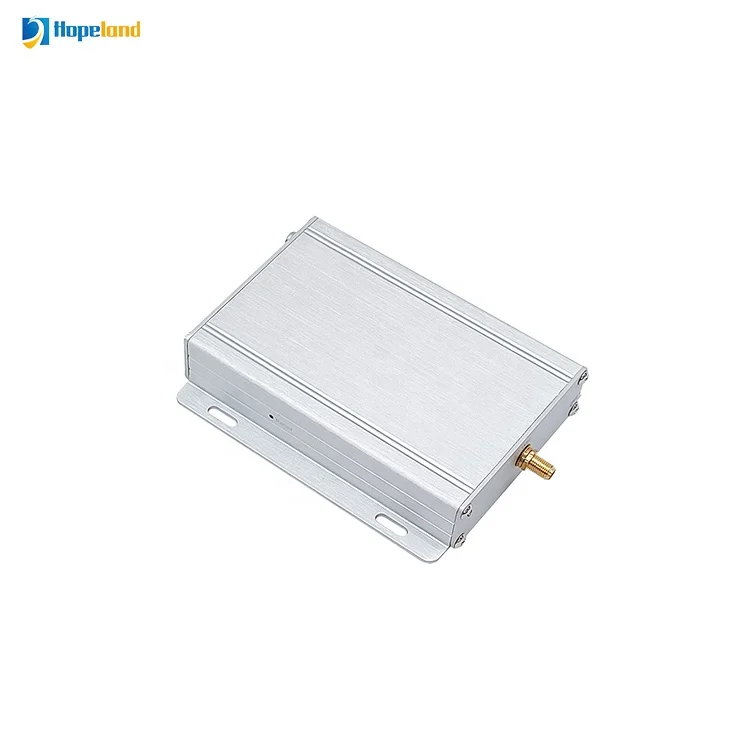

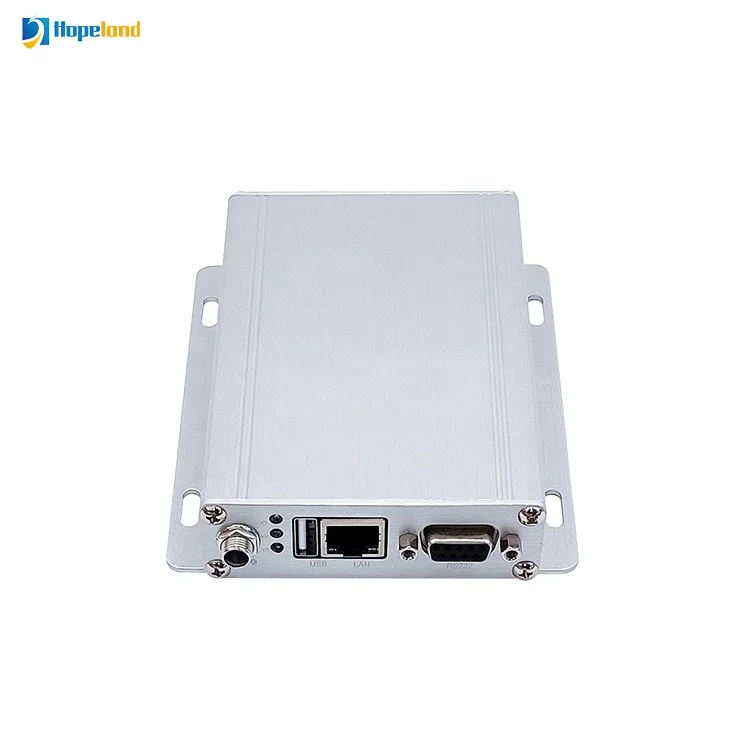

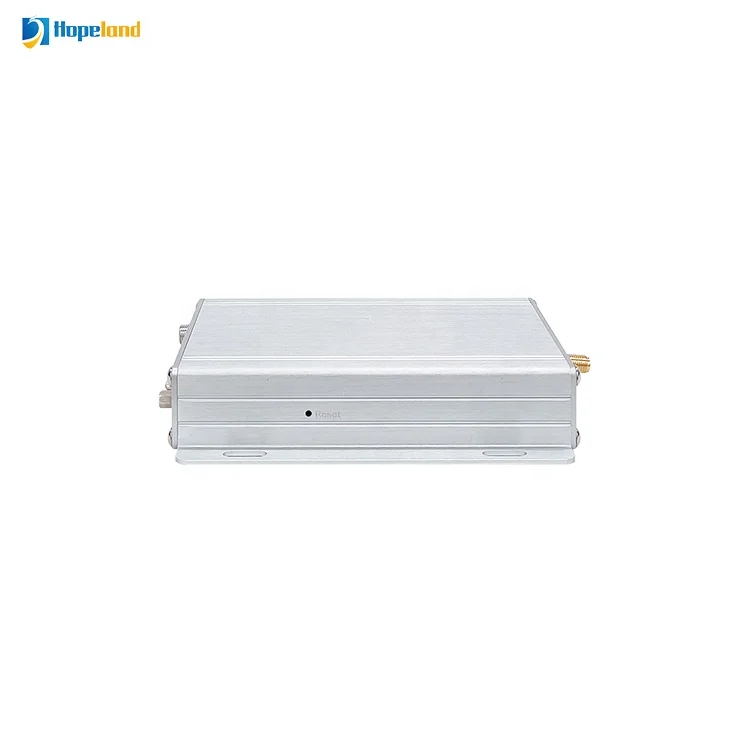

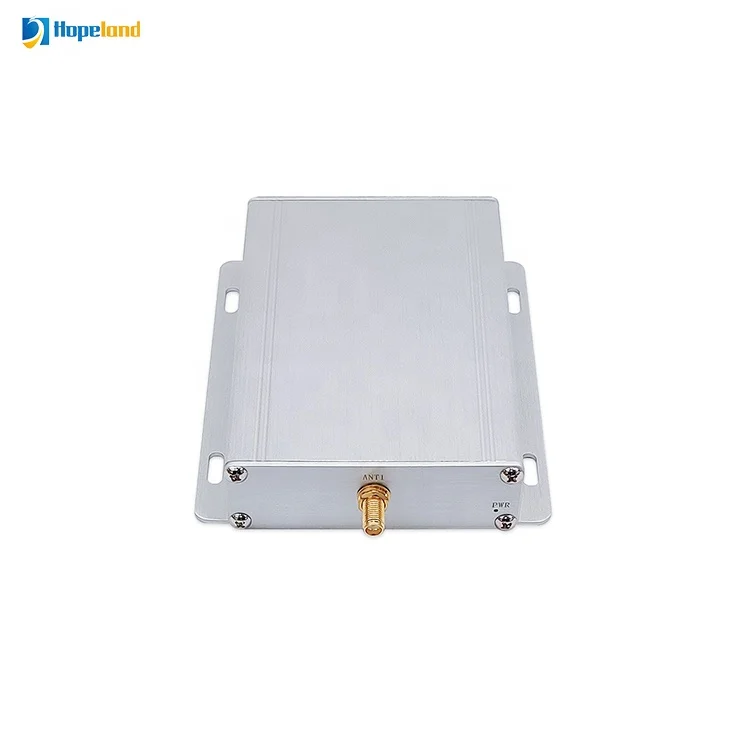

hot HW23 series industrial RFID reader Medium Power 13.56 MHz RS232 RJ 45 USB RFID reader
- Category: >>>
- Supplier: Shenzhen Hopeland Technologies Co. Ltd.
Share on (1600690206753):
Product Overview
Description
RFID HF medium power reader
HW2301 HW2304
* Support ISO 15693 and ISO 18000-3M1 standard.
* RF power: 0.25~1.5W (adjustable).
* Antenna interface: SMA(50Ω).
* Reading and writing range: single antenna can reach 75cm (antenna size: 560*650mm); (this distance is related to card performance and antenna size).
* Support noise detection, can detect the environment whether there is interference.
* It has multiple working modes which can be configured through software tools.
Details Images

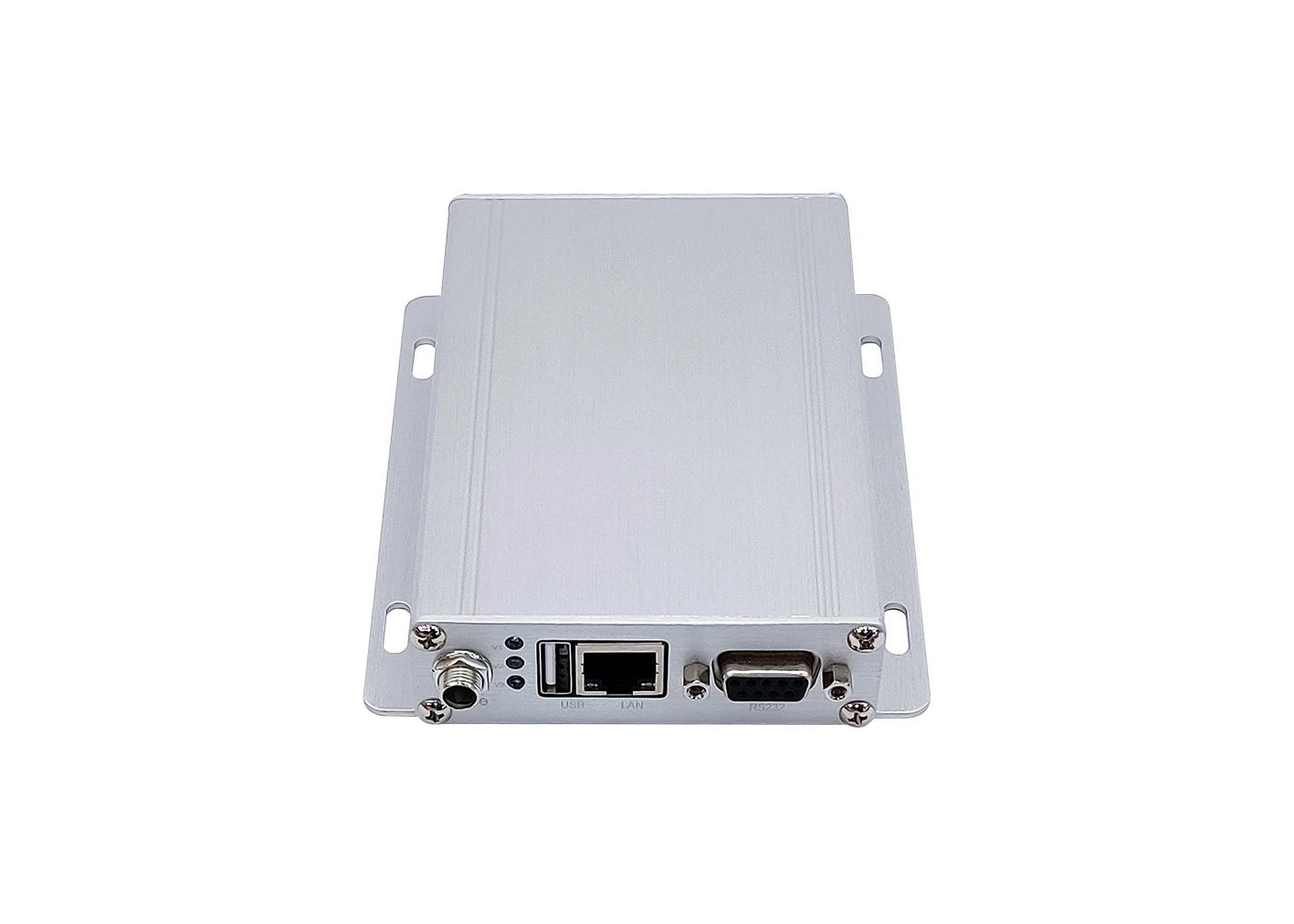

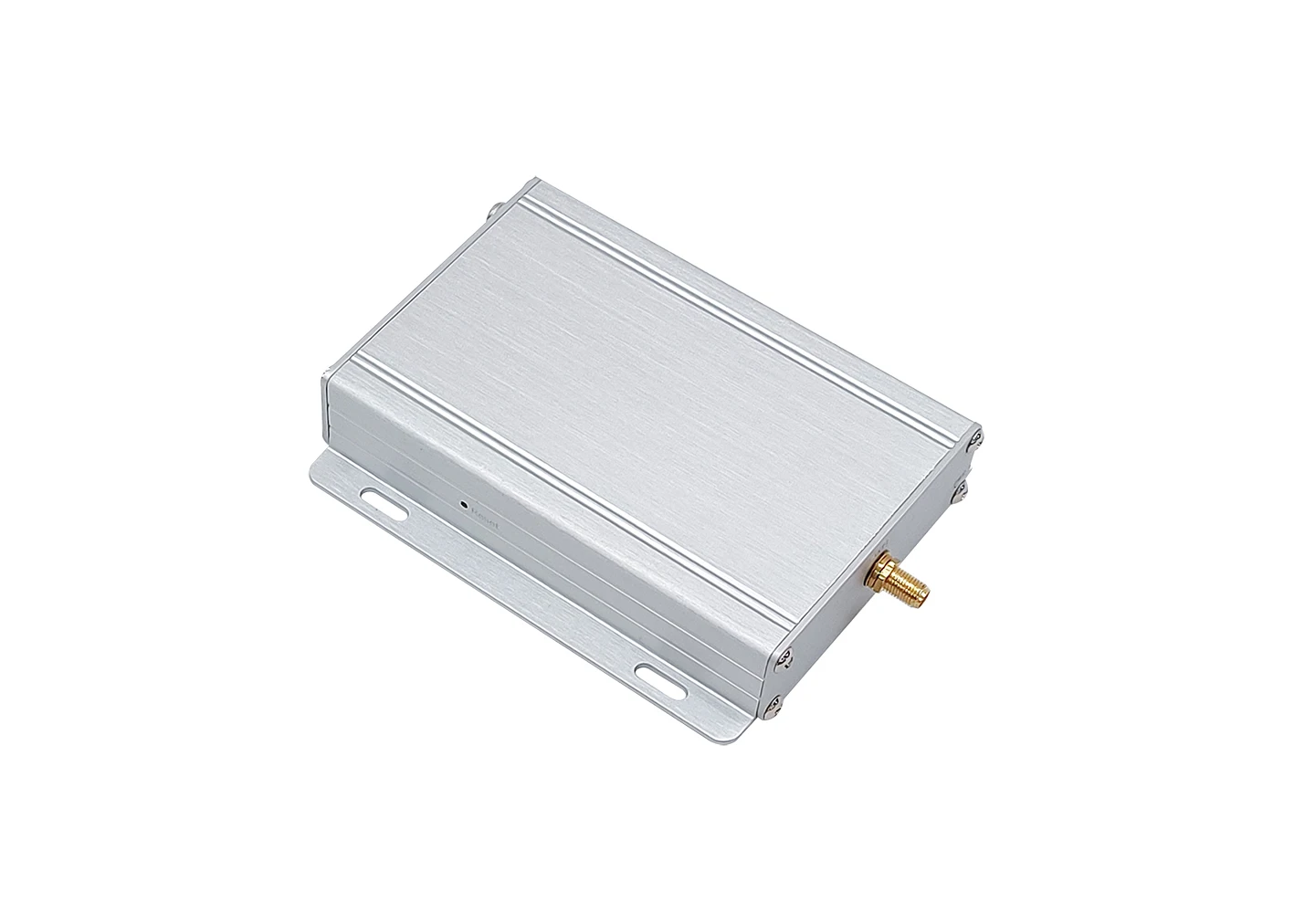

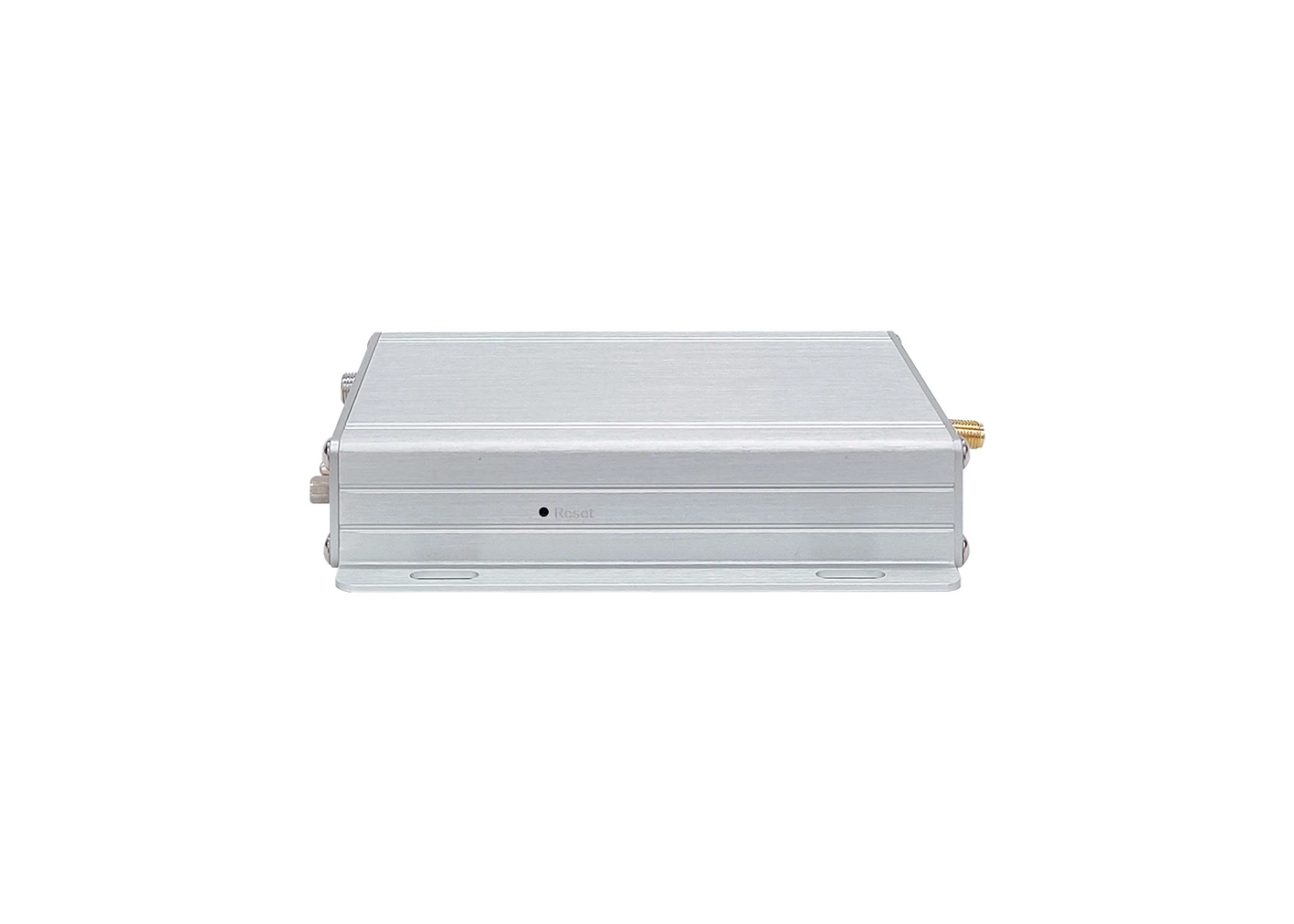

HW23 Sreies HW2301 and HW2304
Specifications | ||
Operating Frequency | 13.56 MHz | |
Support Standard | ISO/IEC 15693 and ISO/IEC 18000-3M1 | |
RF Power | 0.25~1.5W(configurable, the system default setting is1.5W) | |

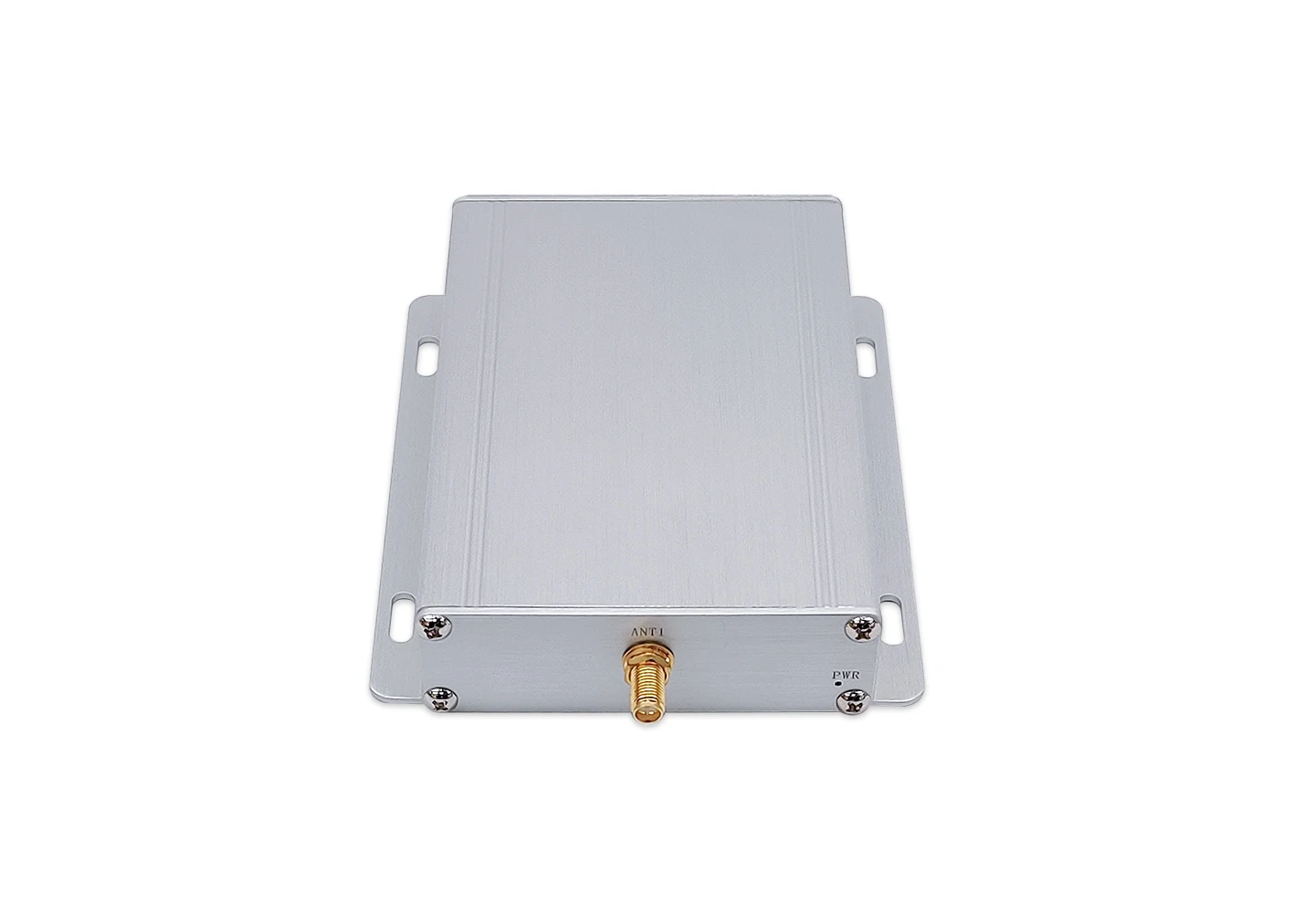

Antenna Interface | HW2301: SMA×1 | |

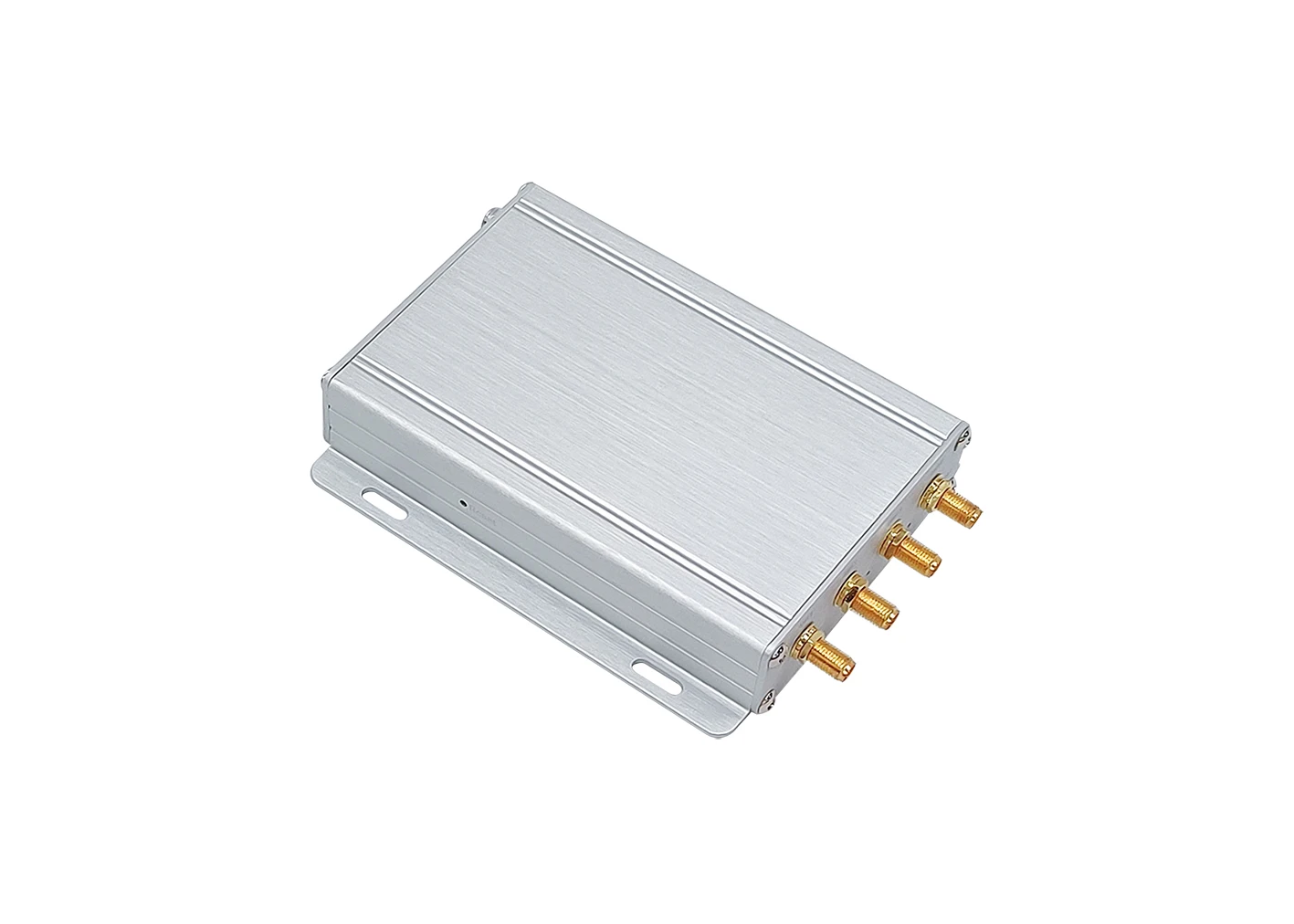

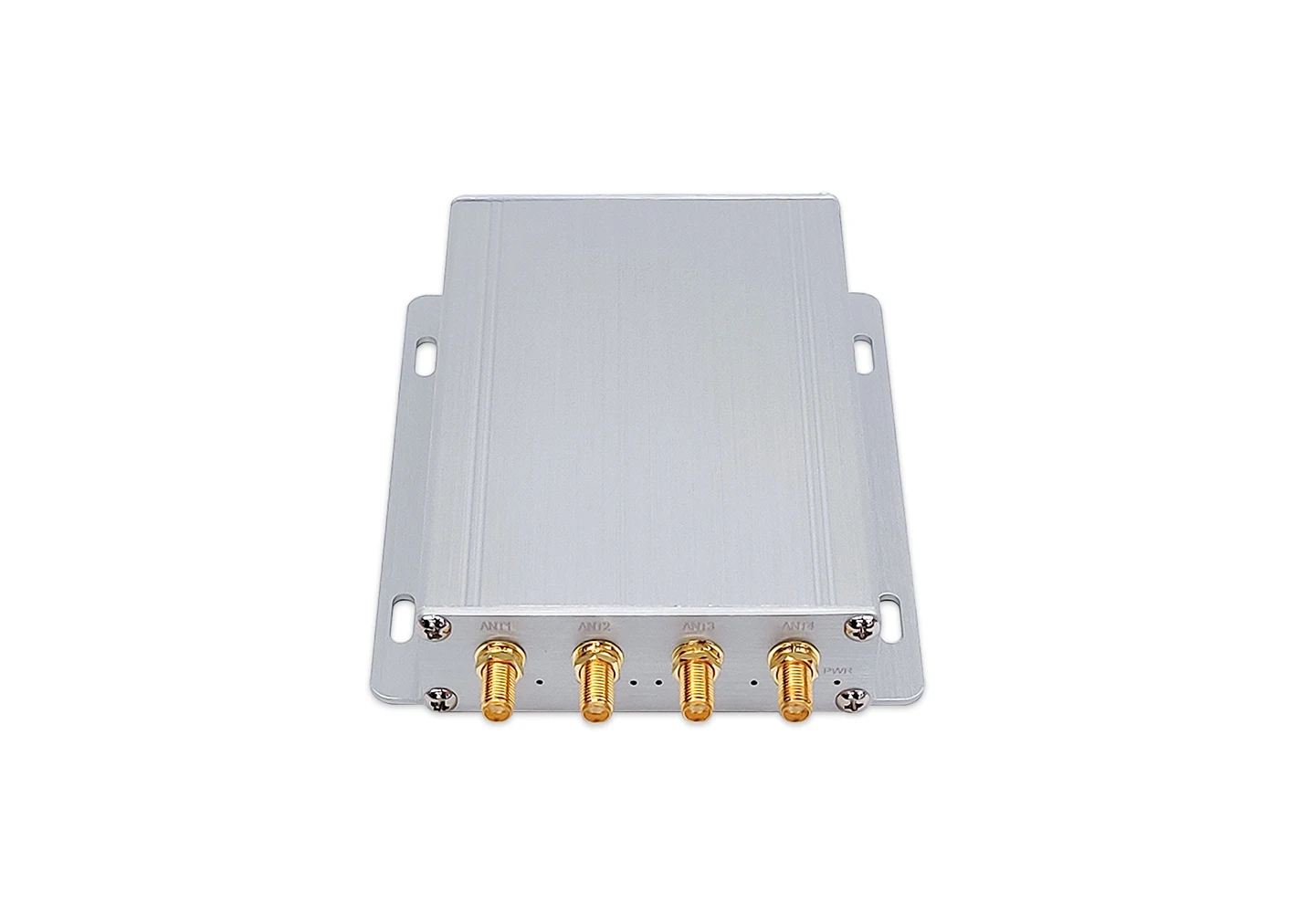

HW2304: SMA×4 | ||
Communication Interface | RS232 /RS485/USB/ Ethernet | |
Application& Cases
Company Introduction
About Hopeland
A national-level high-tech enterprise passed ISO9001,ISO14001, OHSAS18001 system certifications.
Since 2009, we are specialized in R&D on RFID core technologies and more than 200 patents inventions and copyrights, while manufacturing series of UHF RFID readers, handheld terminals, Antennas, RFID Tags, Middleware, System software, etc.
Since 2009, we are specialized in R&D on RFID core technologies and more than 200 patents inventions and copyrights, while manufacturing series of UHF RFID readers, handheld terminals, Antennas, RFID Tags, Middleware, System software, etc.
To support the success of distributors, OEM/ODM, and system integrator partners, we sell products into more than 80 countries & regions worldwide with multiple certifications such as CE, FCC, SRRC, NBIT, Anatel etc. Our solutions are also widely used in areas of ETC solution, Intelligent Parking, Aviation, Smart Retail, Medical, Smart Grid, Assets Management, Warehousing & Logistic, Supply Chain, Industry 4.0 and so on.
The Exhibitions
2018-2019
RFID & IoT Tomorrow in Germany.
2018
CEBIT Industrial in Germany
2019-2021
ID Forum in Russia. Online & Offline
2015-2019
RFID JOURNAL LIVE in USA.
2018-2019
GITEX Technology Week in Dubai.2013-2021
IOT Exhibition in Shenzhen China.
Partners conferences & share

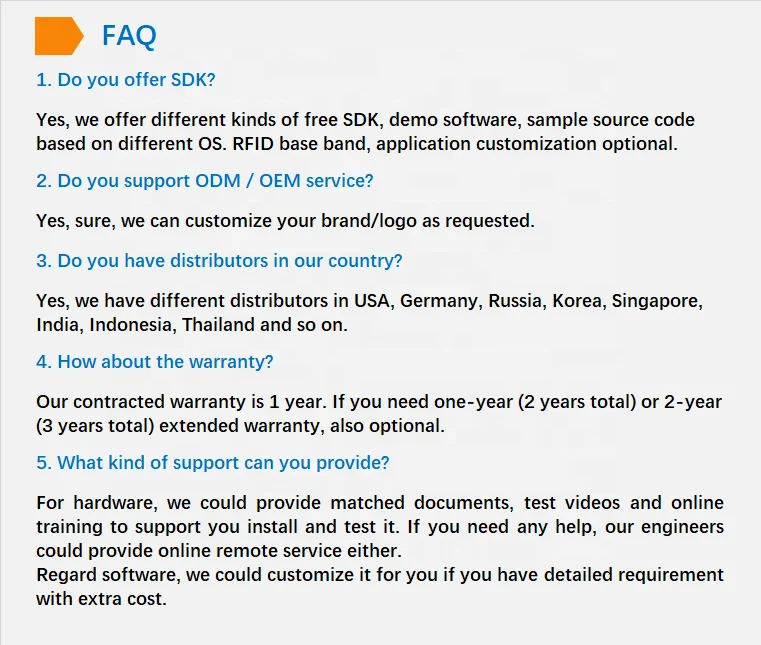

FAQ
