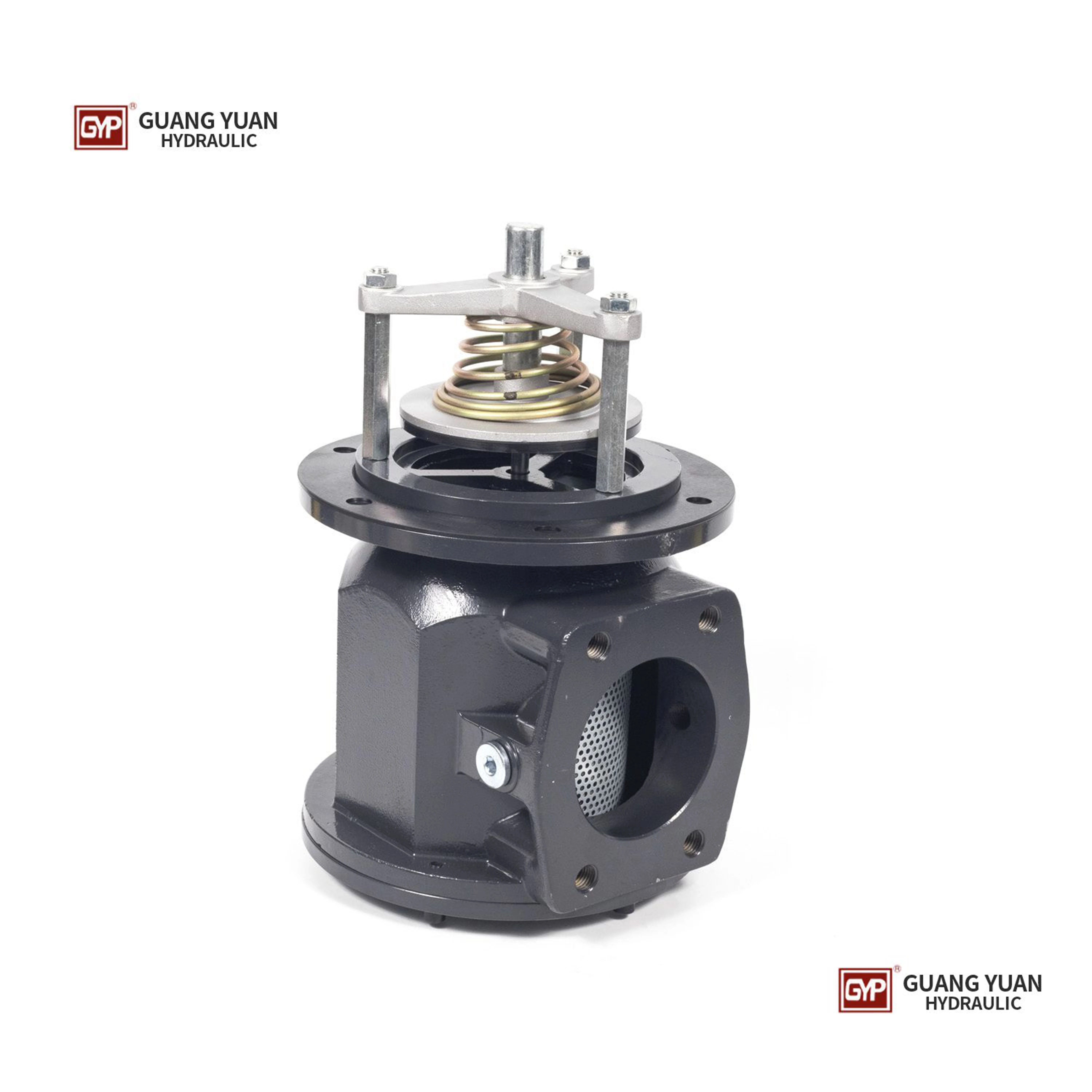

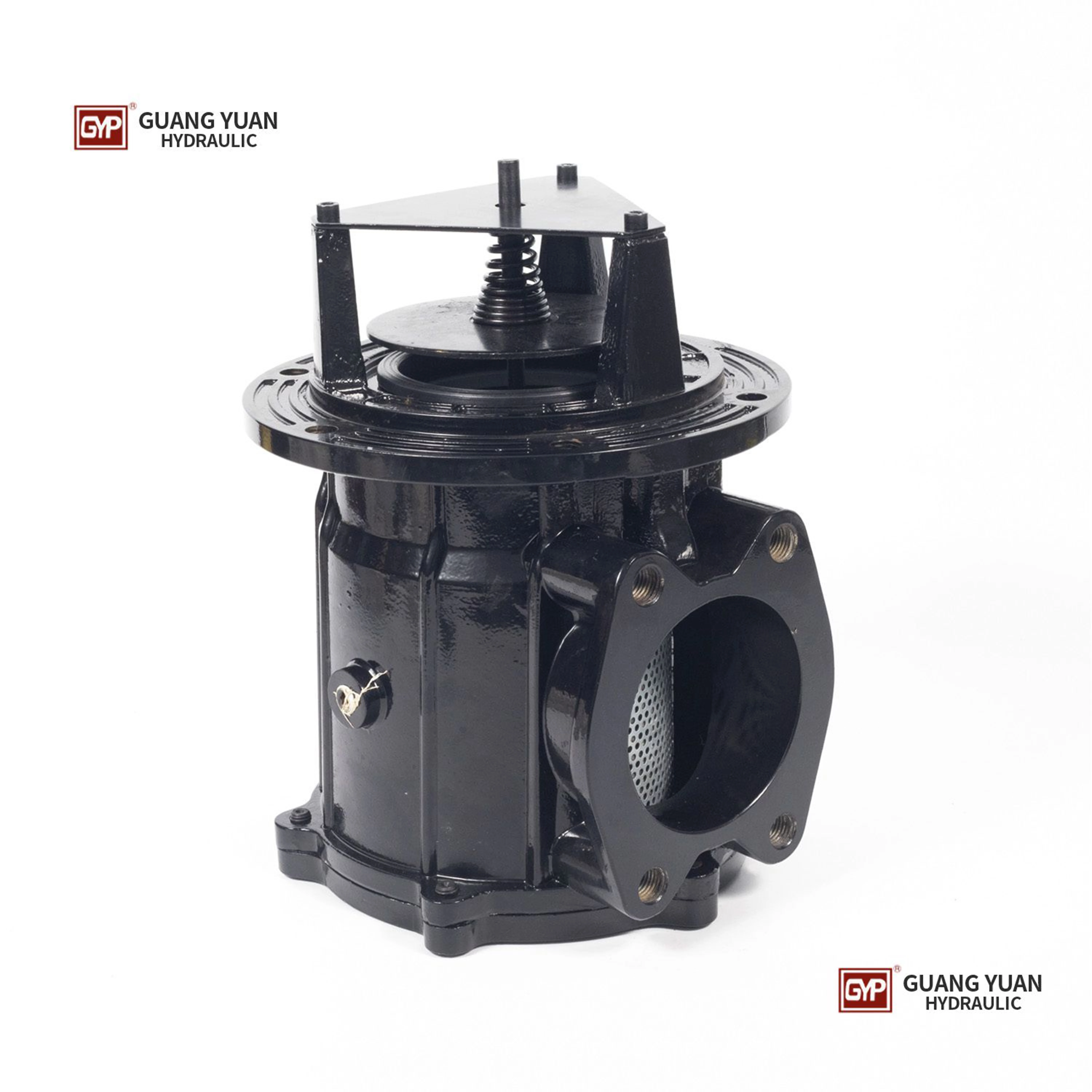

CFF 515 Suction filter with integrated shut off valve to change cartridges without dripping.
CFF-515 Suction filter with integrated shut-off valve to change cartridges without dripping.
CFF-515 Suction filter with integrated shut-off valve to change cartridges without dripping.
CFF-515 Suction filter with integrated shut-off valve to change cartridges without dripping.
CFF-515 Suction filter with integrated shut-off valve to change cartridges without dripping.
CFF-515 Suction filter with integrated shut-off valve to change cartridges without dripping.
CFF-515 Suction filter with integrated shut-off valve to change cartridges without dripping.

CFF 515 Suction filter with integrated shut off valve to change cartridges without dripping.

Share on (1600690293140):


Price:$75.00 - $80.00

Quantity:


Product Overview

Description



PRODUCT PARAMETERS
Type of construcion
Inline filter

Mounting method
 vertical installation
From outside to insideFlow direction
Inlet to outlet
Operating pressure
Max.10Bar
Operating temperature
-10 °C ~ +100 °C
Connection ports
threaded connection
Seal material
NBR /fluororubber
Filtration media
mesh         : 80,100,180 um
Opening pressure
no bypass valve
Bypass setting
no bypass valve
Indicator setting
no bypass valve
Filter housing
Aluminium
Fluid compatibility
Suitable for mineral oils , synthetic for use with water , please contact our company


New product!

Excellent performance!


CFFA is a range of suction fi lters with integrated shut-off valve for protection of the downstream pump against the coarse contamination.They are placed below the minimum oil level, directly connected to thesuction line of the pump.They can be fi tted on the side or below the tank, allowing a more fl exibledesign of the tank.

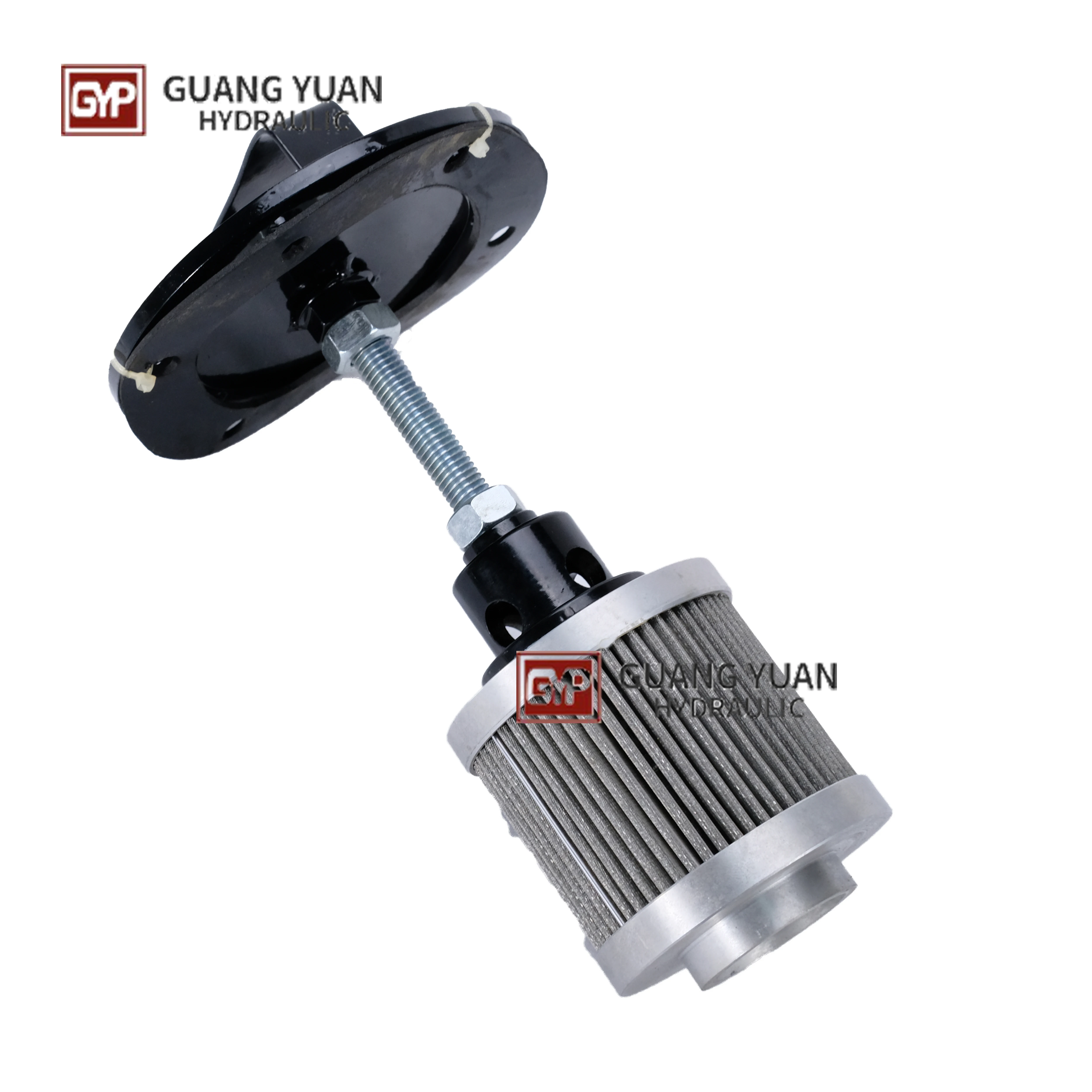

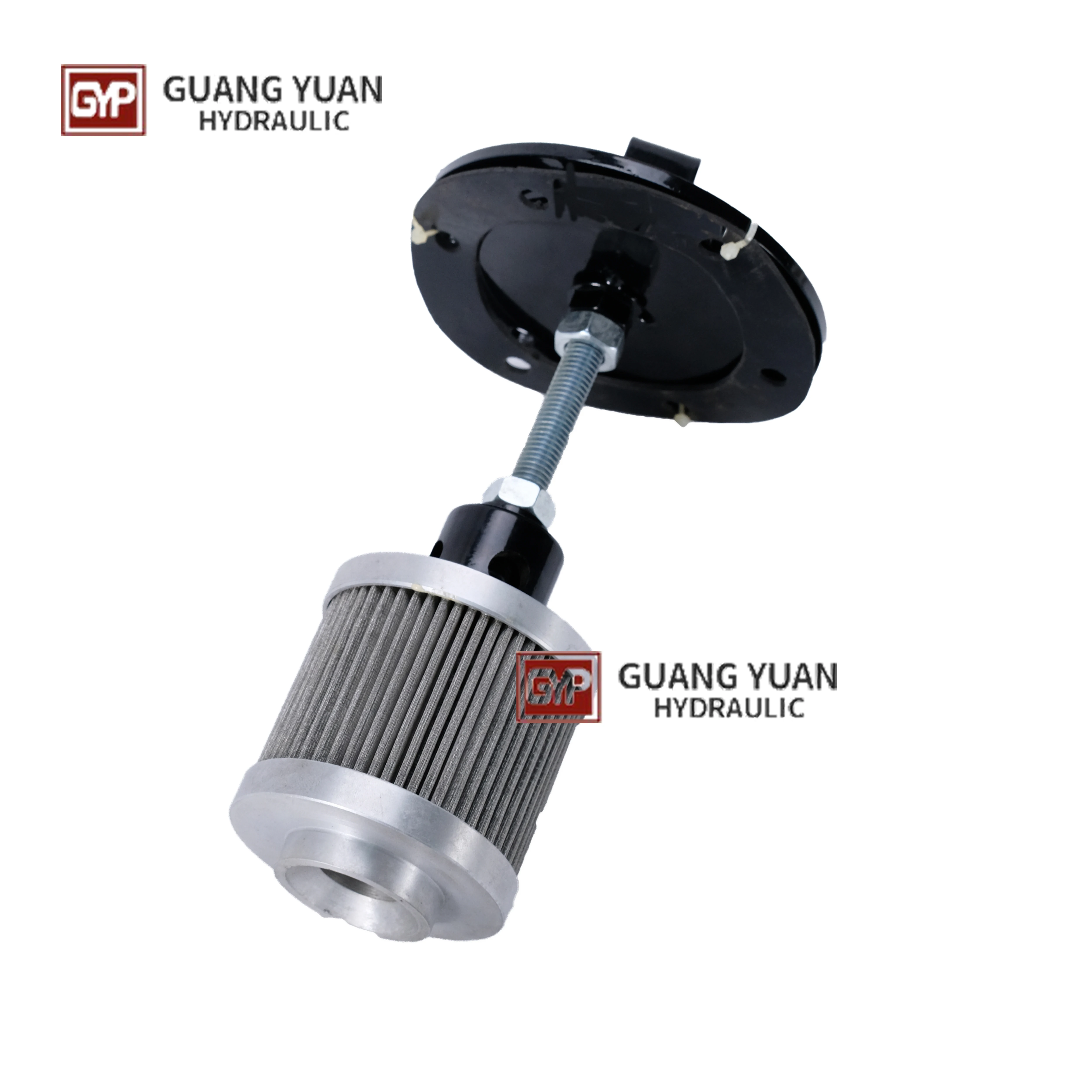

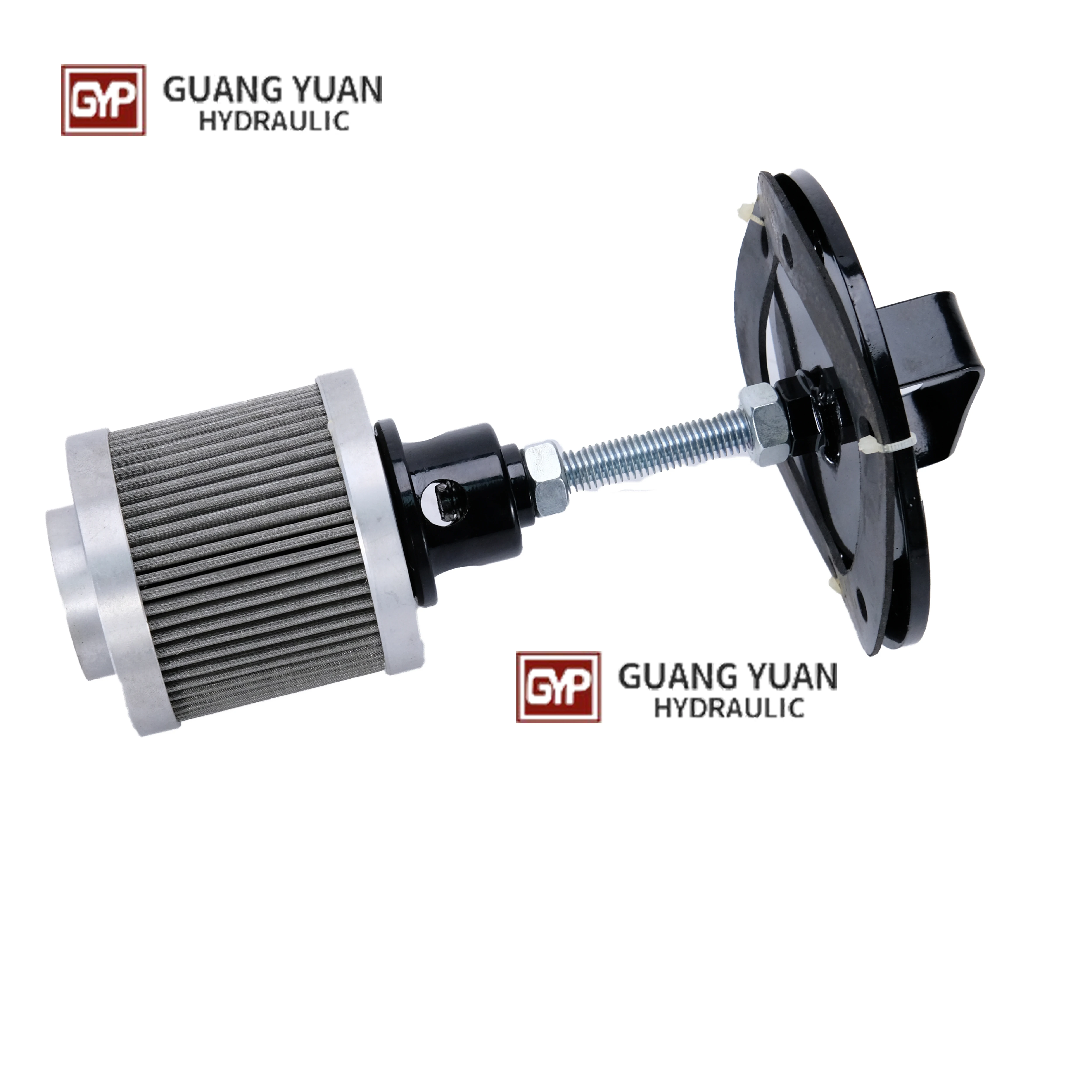

The shut-off valve closes automatically when the cover is removed, allowing the fi lter element replacement without the fl uid drop.
Available features:

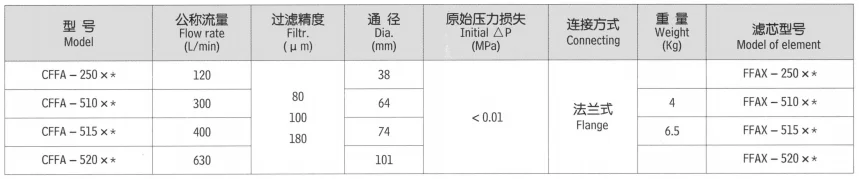

- Flanged connections up to 4”, for a maximum flow rate of 630 l/min
- Magnetic fi lter, to hold the ferrous particles
- Plastic and metal handle, to close the shut-off valve before the cover removal

Common application:
Industrial equipment



Q:What products do you have?
We are a company specializing in the production of hydraulic accessories, we specialize in the production of hydraulic filters, liquid level and temperature gauges, and pipe clamps. Our company's products include but are not limited to: oil return filter, pressure filter, rotary filter, fuel tank filter, respirator, particulate moisture absorber, visual level gauge, electronically controlled level gauge, pipe clamps , the liquid level relay.
Our company's products can be used interchangeably with those of most international companies


Modern high-pressure hydraulic systems are demanding. For better control and longer component life, clean hydraulic fluid is required. To provide a high standard of performance, hydraulic components are manufactured to tighter tolerances, which increases their susceptibility to contamination. This is where the wide source filter comes into play. They filter out incoming contaminants before they clog the valve or scratch the cylinder. They stop pump debris before it enters the servo or proportional valve. Wide source filters are a key element in meeting the demands of today's systems. Leave your hydraulic system to Guangyuan Hydraulic Filter. We are committed to designing and manufacturing the best filters available.
