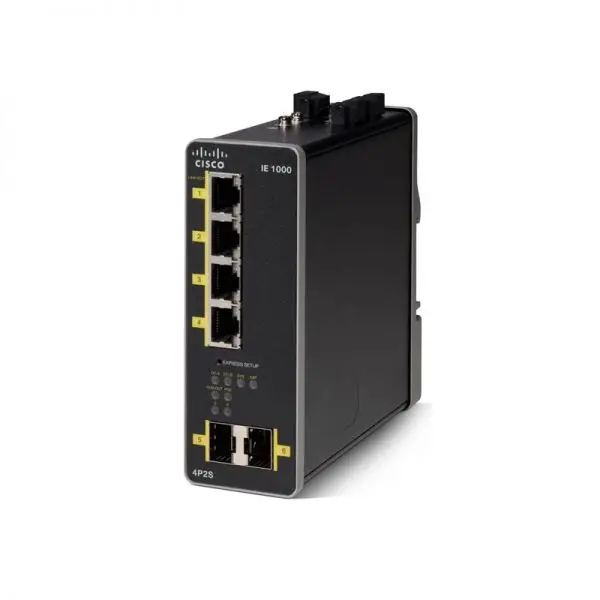

IE 1000 4P2S LM Networking Industrial Ethernet 1000 Switches
- Category: >>>
- Supplier: Hebei Tengyi Technology Co. Ltd.
Share on (1600690366703):
Product Overview
Description
Product Description
IE-1000-4P2S-LM Specification | ||
Forwarding Bandwidth | • Max:2.8Gbps | |
Switching Bandwidth | • Max:5.6Gbps | |
Hardware | • DRAM: 128 MB DDR2 without ECC • Onboard flash memory: 160 MB | |
Alarm | • Alarm I/O: output connector on top panel of 4P2S and 8P2S, 1.0A@24VDC or 0.5A@48VDC | |
Power consumption | Without PoE 8.6W, with PoE 72-140.4W | |
Connectors and cabling | • 100BASE-FX MMF (2 km)—TBD with engineer input • 10/100/1000BASE-T ports: RJ-45 connectors, 4-pair Category 5 UTP cabling | |
Dimensions (H x W x D)including DIN rail | 5.0”H x 1.8” W x 5.3”D (127mm H x 45.7mmW x 134mm D) | |
Software features | LLDP, Cisco CDP aware, MSTP, STP Portfast, ICMP Vlans, static IP, Trust Ingress DSCP, COS, Priority Port, port - security, IGMP querier, DHCP server SNMP v2/v3, SNMP traps, syslog, IGMP snooping, DHCP snooping, BPDU guard, Etherchannel, Alarms, PoE capability, Smartport Macro, SPAN/Port Mirroring, Strom Control, EtherNet/IP (EDS) | |
Safety Certifications | • UL/CSA 60950-1 • EN 60950-1 • CB to IEC 60950-1 (with country deviations) • NOM to NOM-019-SCF1 (through partners and distributors) • UL/CSA/IEC/EN 61010-2-201 • CE Marking | |
Hazardous Locations | • ANSI/ISA 12.12.01 (Class1, Div2 A-D) • EN 60079-0, -15 ATEX certificate (Class 1, Zone2 A-D) • IEC 60079-0, 15 (report only) • UL 60079-0, 15 • CAN/CSA C22.2 No. 60079-0, -15 * Cabinet enclosure required | |
EMC Emissions and Immunity Compliance | • FCC 47 CFR Part 15 Class A • EN 55022/CISPR 22 Class A • EN 55016-1-1, -1-4, -2-3 Class AVCCI Class A • RoHS compliance • AS/NZS CISPR 22 Class A, AS/NZS CISPR 24 • CISPR11 Class A, CISPR22 Class A • ICES 003 Class A • KCC Marking (Korea) • CE Marking • RCM Marking (Australia/New Zealand) • EAC Marking (Eurasian Conformity) • Anatel (Brazil) • China NAL • IEC/EN/EN61000-4-2 (Electro Static Discharge), 8kV air/6kV contact • IEC/EN 61000-4-3 (Radiated Immunity, 10 V/m 80-2000MHz, 3V/m 2000-2700MHz) • IEC/EN 61000-4-4 (Fast Transients - 2kV DC power, 2kV data line, 4kv earth) • IEC/EN 61000-4-5 (Surge 2 kV/1 kV DC power, 2 kV shielded and unshielded data line) • IEC/EN 61000-4-6 (Conducted Immunity, 10 V/emf 0.15-80MHz) • IEC/EN 61000-4-8 (Power Frequency Magnetic Field Immunity 30A/m 60 sec, 300A/m 3 sec) • IEC/EN 61000-4-9 (Pulse Magnetic Field Immunity 300A/m) • IEC/EN 61000-4-29 (Voltage Dips Immunity) | |
Shock and Vibration | • IEC 60068-2-27 (Operational Shock: 30G 11ms, half sine) • IEC 60068-2-27 (Non-Operational Shock 65-80G, trapezoidal) • IEC 60068-2-6, IEC 60068-2-64 (Operational Vibration) • EC 60068-2-6, IEC 60068-2-64, IEC 60068-2-47 (Non-operational Vibration) | |
Industry Standard | • IEC/EN 61000-6-1 (Immunity for Light Industrial Environments) • IEC/EN 61000-6-2 (Immunity for Industrial Environments) • IEC/EN 61000-6-4 (Emissions for Industrial Environments) • EN 61131-2 (PLC Zone A & B, EMC/EMI, environmental, mechanical) • EN61326-1 (Industrial Controls) • Marine –TAC (Temp-A, Humid-B, Vib-A, EMC-A, Enc-A) • EN 50581 (RoHS) • China RoHS • EU WEEE • NEMA TS-2 (EMC, environmental, mechanical) • IP30 | |
Humidity | • IEC 60068 -2-3 • IEC 60068-2-30 (Test Db) • Relative humidity: 5% to 95% non-condensing | |
Operating Temperature | • -40 °C to +70°C (vented enclosure operating) • -40 °C to +60 °C (sealed enclosure operating) • -34 °C to +75 °C (fan or blower-equipped enclosure operating) • Operational altitude: Up to 13.8k ft • IEC 60068-2-1 • IEC 60068-2-2 • IEC 60068-2-56 • -40 C to +85 C (storage temperature) • IEC 60068-2-14 (Test Nb) • Storage altitude: Up to 15,000 ft | |
Mean Time Between Failure (MTBF) | • Meantime between failure: 374,052 hours (42.7 years) | |
Warranty | • Five-year limited warranty on all IE-1000 hardware PIDs and all IE power supplies defined in Table 2 previously. See the following link for details on warranty | |
Fully Configured (lbs) | 185 | |
Input Voltage | 100 to 240 VAC -48 to -60 VDC | |
Safety | UL 60950 Second Edition CAN/CSA-C22.2 No. 60950 Second Edition EN 60950 Second Edition IEC 60950 Second Edition AS/NZS 60950 | |
EMC | FCC Part 15 (CFR 47) Class A VCCI Class A EN55022 Class A CISPR 22 Class A CE marking AS/NZS 3548 Class A ETS300 386 EN55024 EN61000-6-1 EN50082-1 | |
ETSI | ETS 300 019 Storage Class 1.1 ETS 300 019 Transportation Class 2.3 ETS 300 019 Stationary Use Class 3.1 | |
Operating Environment | ||
Operating Temperature | 32°F to 104°F (0 to 40°C) | |
Storage Temperature | -4 to 149°F (-20 to 65°C) | |
Thermal Transition | 0.5°C per minute (hot to cold) 0. 33°C per minute (cold to hot) | |
Relative Humidity | Ambient (noncondensing) operating: 5% to 90% Ambient (noncondensing) nonoperating and storage: 5% to 95% | |
Operating Altitude | Certified for operation: 0 to 6500 ft (0 to 2000 m) Designed and tested for operation: -200 to 10,000 ft (-60 to 3000 m) | |
Overview
Industrial Ethernet 1000 Series provides these features:
• Scalability: Four models are available supporting 5, 6, 8 and 10 Ethernet ports, with Fast Ethernet (FE) and Gigabit Ethernet(GE), copper and fiber uplinks options
• Easy integration:Zero-touch IP discovery or Dynamic Host Configuration Protocol (DHCP)IP addressing and simple web GUI-based management
• PnP (Plug and Play): Automates the process of provisioning the new devices in to the network by applying configurations,
installing required image without manual intervention.
• Fast startup time: Starts 30 seconds from cold boot
• Manageability: Web GUI interface, and diagnostics and analysis options through Simple Network Management Protocol (SNMP) and syslog
• Security:secure access; port-security; TACACS+ and RADIUS AAA Client: Security protocols to control access into networks;
• IEEE 802.1x security:Provides an authentication mechanism to devices wishing to attach to the network. Single host mode with MAC authentication bypass.
• Minimize data load:VLAN aware, Internet Group Management Protocol (IGMP) and DHCP snooping to filter unwanted data
• Lightly-managed:Spanning-tree protocol (STP), Link Layer Discovery Protocol (LLDP), Cisco Discovery Protocol aware
• Sticky-MAC:Enables the IE1K to retain MAC addresses it dynamically learns and avoid new devices to connect on the port
• BootP server with per-port support: When client sends a BootP request, the server responds with BootP response based on same DHCP pool configuration.
• Gigabit uplink:Two fiber-optic SFP based uplink for up to 50 miles (80 kilometers) links
• Industrial PoE: Up to eight PoE (IEEE 802.af) and PoE+ (802.3at) supported on selected models
• Redundant voltage feeds, alarm relays support and DIN rail mount
• Industrial environmental compliance and certifications: Ethernet/IP (CIP) Product
• Scalability: Four models are available supporting 5, 6, 8 and 10 Ethernet ports, with Fast Ethernet (FE) and Gigabit Ethernet(GE), copper and fiber uplinks options
• Easy integration:Zero-touch IP discovery or Dynamic Host Configuration Protocol (DHCP)IP addressing and simple web GUI-based management
• PnP (Plug and Play): Automates the process of provisioning the new devices in to the network by applying configurations,
installing required image without manual intervention.
• Fast startup time: Starts 30 seconds from cold boot
• Manageability: Web GUI interface, and diagnostics and analysis options through Simple Network Management Protocol (SNMP) and syslog
• Security:secure access; port-security; TACACS+ and RADIUS AAA Client: Security protocols to control access into networks;
• IEEE 802.1x security:Provides an authentication mechanism to devices wishing to attach to the network. Single host mode with MAC authentication bypass.
• Minimize data load:VLAN aware, Internet Group Management Protocol (IGMP) and DHCP snooping to filter unwanted data
• Lightly-managed:Spanning-tree protocol (STP), Link Layer Discovery Protocol (LLDP), Cisco Discovery Protocol aware
• Sticky-MAC:Enables the IE1K to retain MAC addresses it dynamically learns and avoid new devices to connect on the port
• BootP server with per-port support: When client sends a BootP request, the server responds with BootP response based on same DHCP pool configuration.
• Gigabit uplink:Two fiber-optic SFP based uplink for up to 50 miles (80 kilometers) links
• Industrial PoE: Up to eight PoE (IEEE 802.af) and PoE+ (802.3at) supported on selected models
• Redundant voltage feeds, alarm relays support and DIN rail mount
• Industrial environmental compliance and certifications: Ethernet/IP (CIP) Product
