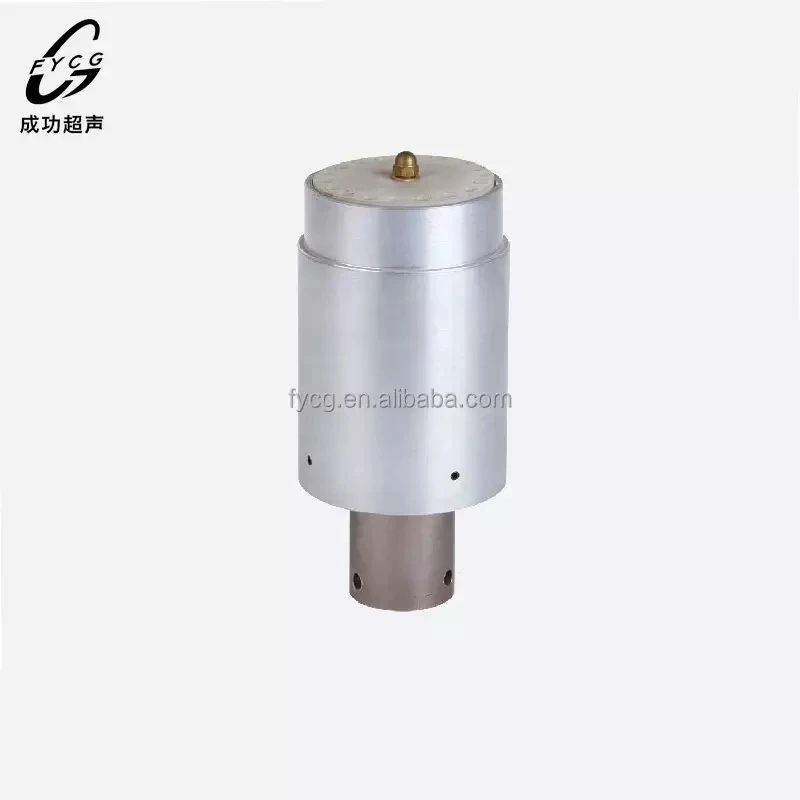

Factory directly sale 20khz 11000 12000pf Ultrasonic Branson Transducer High Amplitude Ultrasonic transducer for Branson
- Category: >>>
- Supplier: Hangzhou Success Ultrasonic Equipment Co. Ltd
Share on (1600690384388):
Product Overview
Description
Product Description
11000-12000pf Ultrasonic Branson Transducer 20khz
Ultrasonic device consists of ultrasonice transducer, booster and work horn. The transducer is an energy converter, which can converted the high frequency, high power current, output of power supply into reciprocating mechanical energy of the ultrasonic vibration, the vibration frequency output of drive power with the same frequency as the current. To further enlarge the amplitude of ultrasonic energy input to the place where we need.
Main Features
1.High Efficiency: of high mechanical factor. High transfer efficiency is obtained when working in resonance frequency.
2.Big amplitude: designed and chosen by computer, high rate in oscillation speed and big amplitude in front operculum.
3.Big Power: under the function of the pre-stressed force screw rod, the piezoelectricity ceramics can work freely in the highest level of power.
2.Big amplitude: designed and chosen by computer, high rate in oscillation speed and big amplitude in front operculum.
3.Big Power: under the function of the pre-stressed force screw rod, the piezoelectricity ceramics can work freely in the highest level of power.
4.In good heat resistance: of small resonance impedance, less heat produced, can be.
Detailed Images

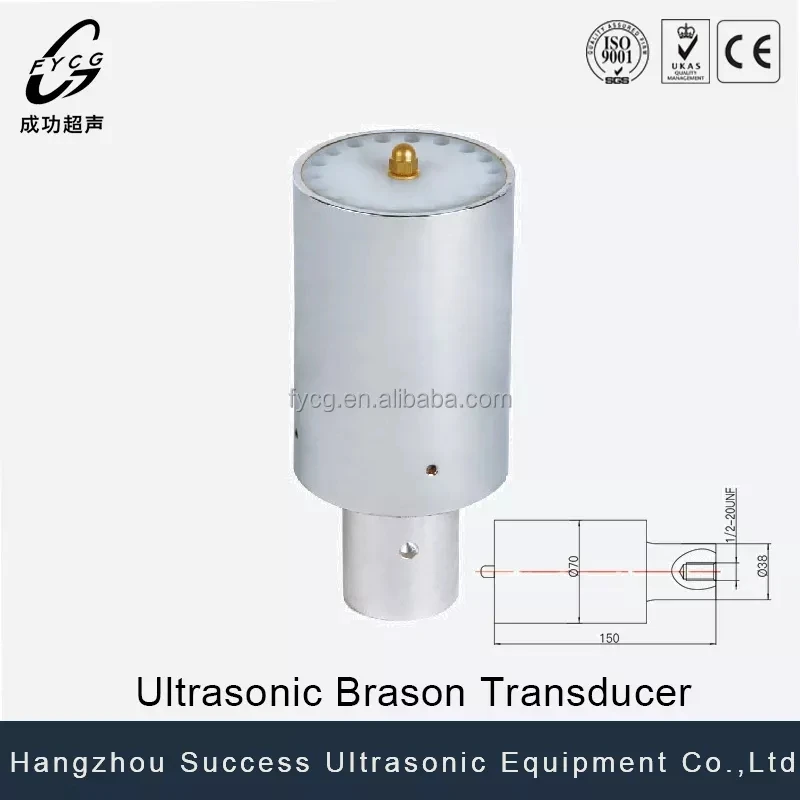

Item | YP-J2020-W2 |
Frequency | 19.70-20.10 KHz |
Capacitor | 11000-12000 pf |
Diameter | 70 mm |
Screw Size | 1/2-20UNF |
Substitute type | Brason 402 |
Order Code | 2020-2 |

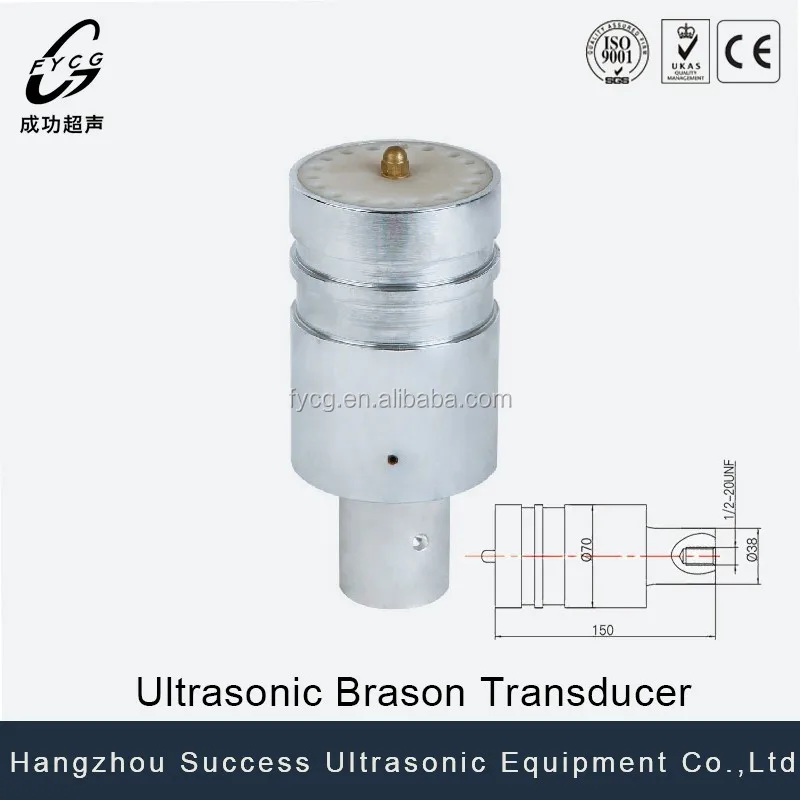

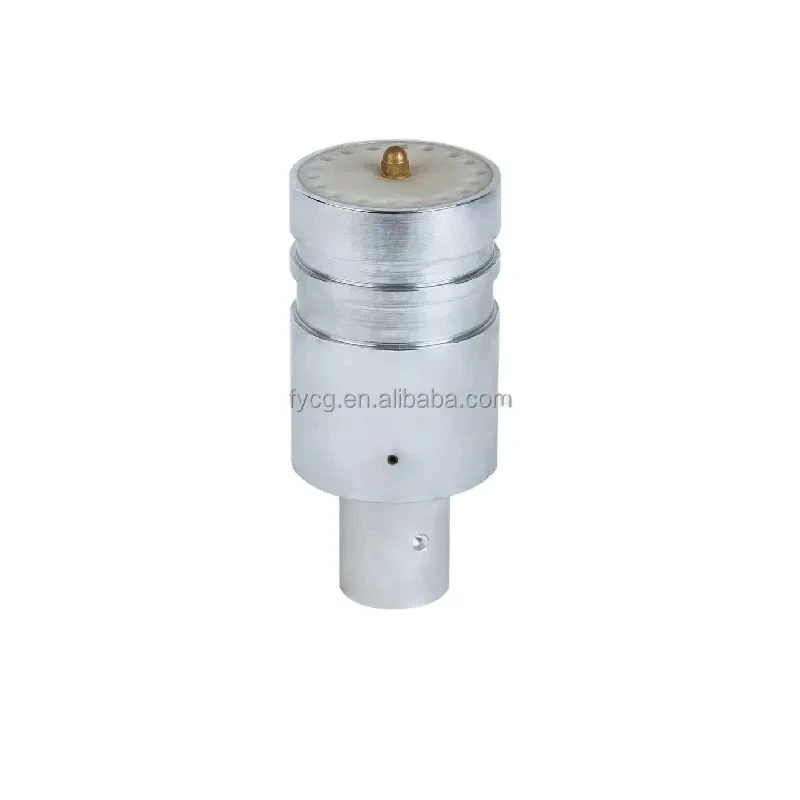

Item | YP-J2020-W3 |
Frequency | 19.70-20.10 KHz |
Capacitor | 11000-12000 pf |
Diameter | 70 mm |
Screw Size | 1/2-20UNF |
Substitute Type | Brason 902 |
Order Code | 2020-3 |

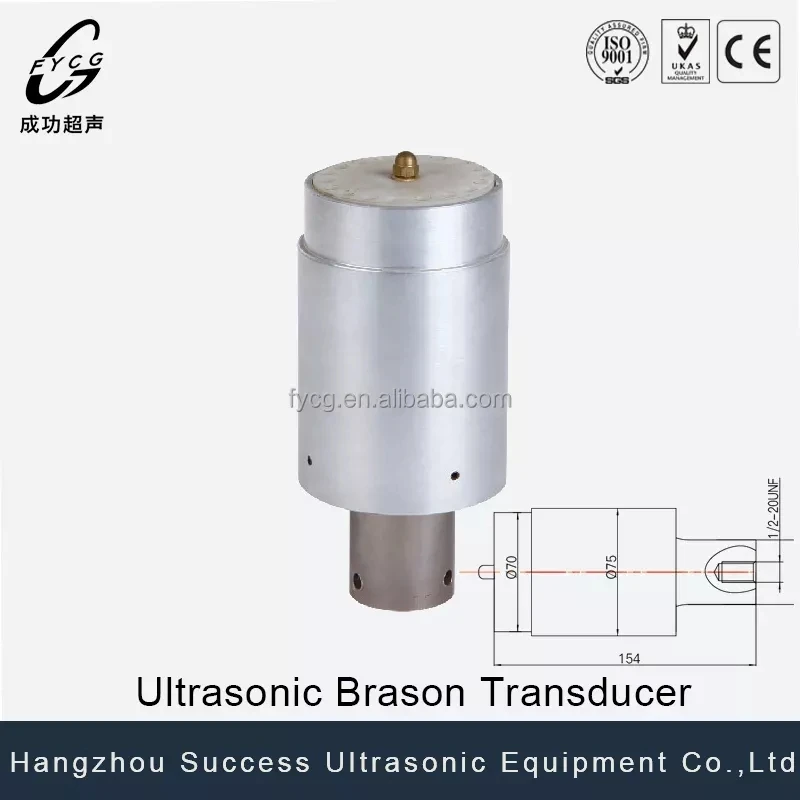

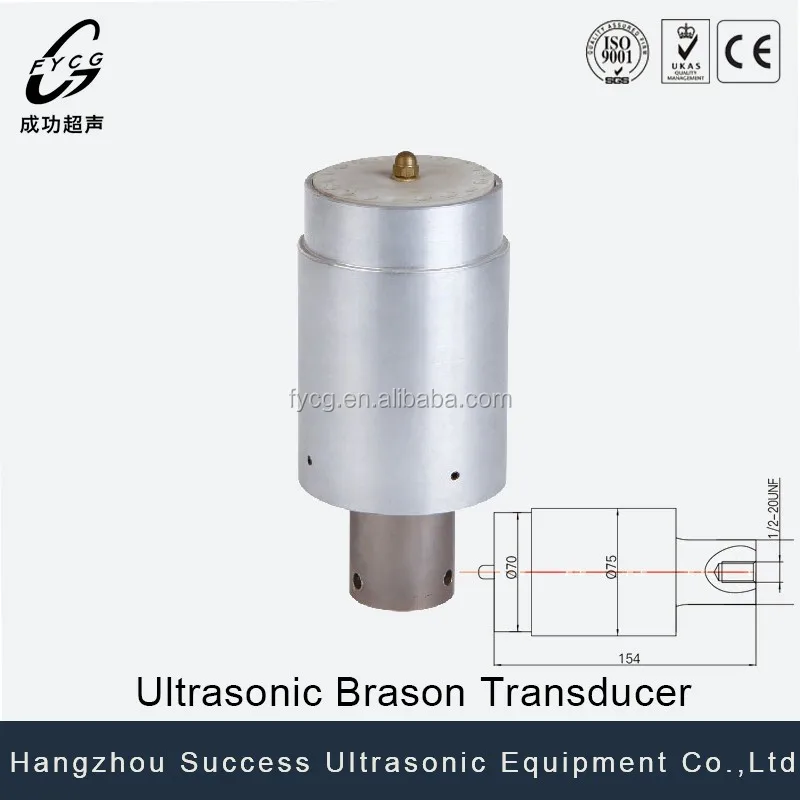

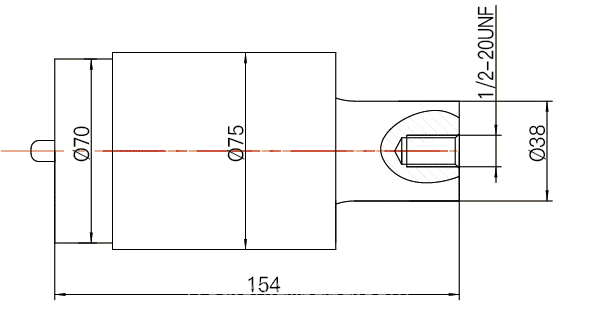

Item | YP-2020-W4 |
Frequency | 19.70-20.10 |
Capacitor | 11000-12000 pf |
Diameter | 75 mm |
Screw Size | 1/2-20-UNF |
Substitute Type | Brason 502 |
Order Code | 2020-4 |
YP-J2020-W2
YP-J2020-W3
YP-J2020-W4
Our Certifications
Our Service
Pre-sale Service
High power ultrasonic technology program design
1.strict mechnical processing requirements to ensure every product meet customer's remonds;
2. high automtic assembly processes to to ensure the consistency of parematers for each product
3.good aging test to enusre each product work stable and longer its service life
Humanized User experience
With 30 years design and produce experience

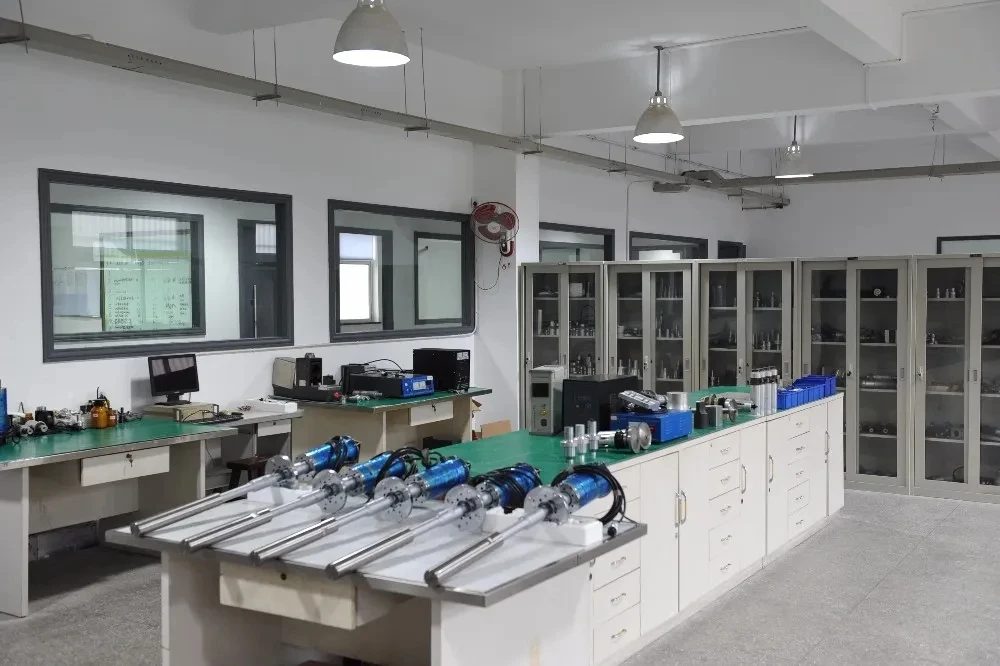

1. opening lab for testing the sample and doing experiment
2. supply ultrasonic conceptual design solution, creating the most value for customers
After-sales Service
1. 1 Year warranty
2. Installation and Debugging
3. Equipment operation training
4. Any problem will be responsed in 24 hours
Our Company

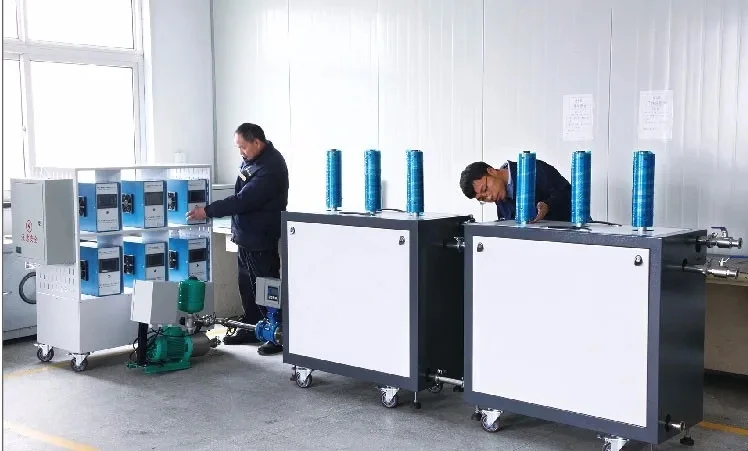

Our Workshop
Our Warehouse
Product Show
Service Team

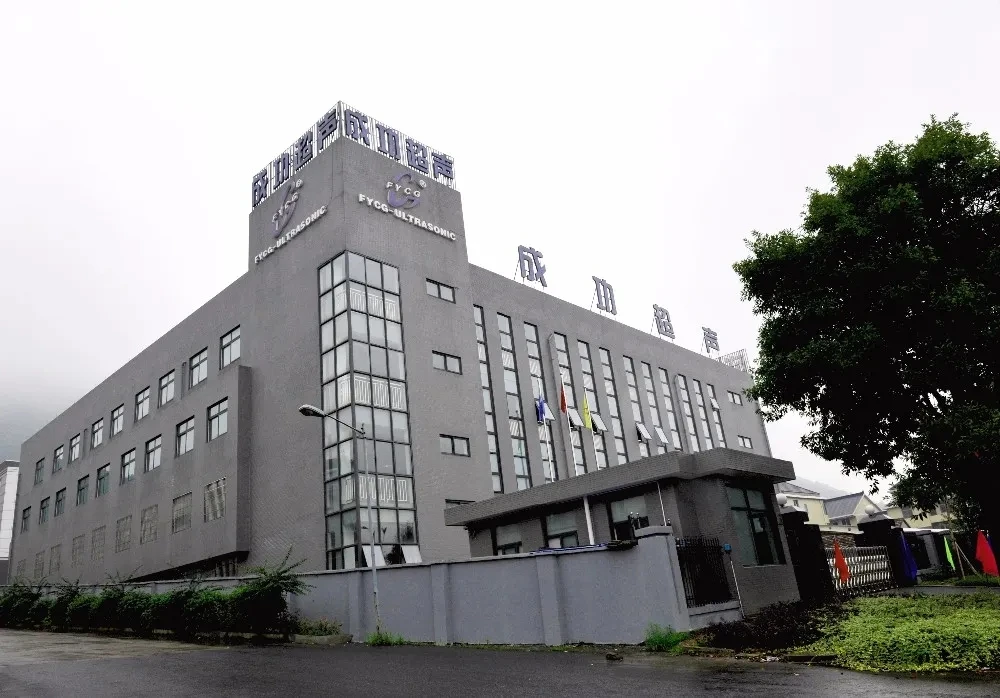

Hangzhou Success Ultrasonic Equipment Co.,Ltd
Founded in 1995, with about 30 Years Experiences, from a small Transuder manufacture develop into a professional ultrasonic equipment manufacturer. we fousced on Design and Development of High Power Ultrasonic Products, FYCG supply ultrasonic core parts and technical support for ultrasonic complete equipment company, developing new style high-power ultrasonic applications. Our suctomers thoughout research institutions, universities, large and small enterprises. We also has a High-power Opening Ultrasonic Laboratory, has enough strength to provide superior solution.
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample and it's not free.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below:
Contact Us
HANGZHOU SUCCESS ULTRASONIC EQUIPMENT CO.,Ltd
Since 1995
the professional manufacturer of ultrasonic research, high power ultrasonic trasducer development and production in China. our main products are transducers, ultrasonic generator and application equipment. These products are widely used in plastic welding, rubber cutting, non-woven welding and so on.
with more than 20 years experience of Transducer Application, advanced production equipment and the full implementation of ISO 9000 quality assurance system, the transducers of our company are in good performace, quality and stablity
Add: No. 16 South Shangsong Road, Yinhu Street, Fuyang District, Hangzhou City, Zhejiang Province, China(mainland)
Contact: Carol Yu
Any questions or requirement pls feel free to contact us, we will reply you within 24 hours.
