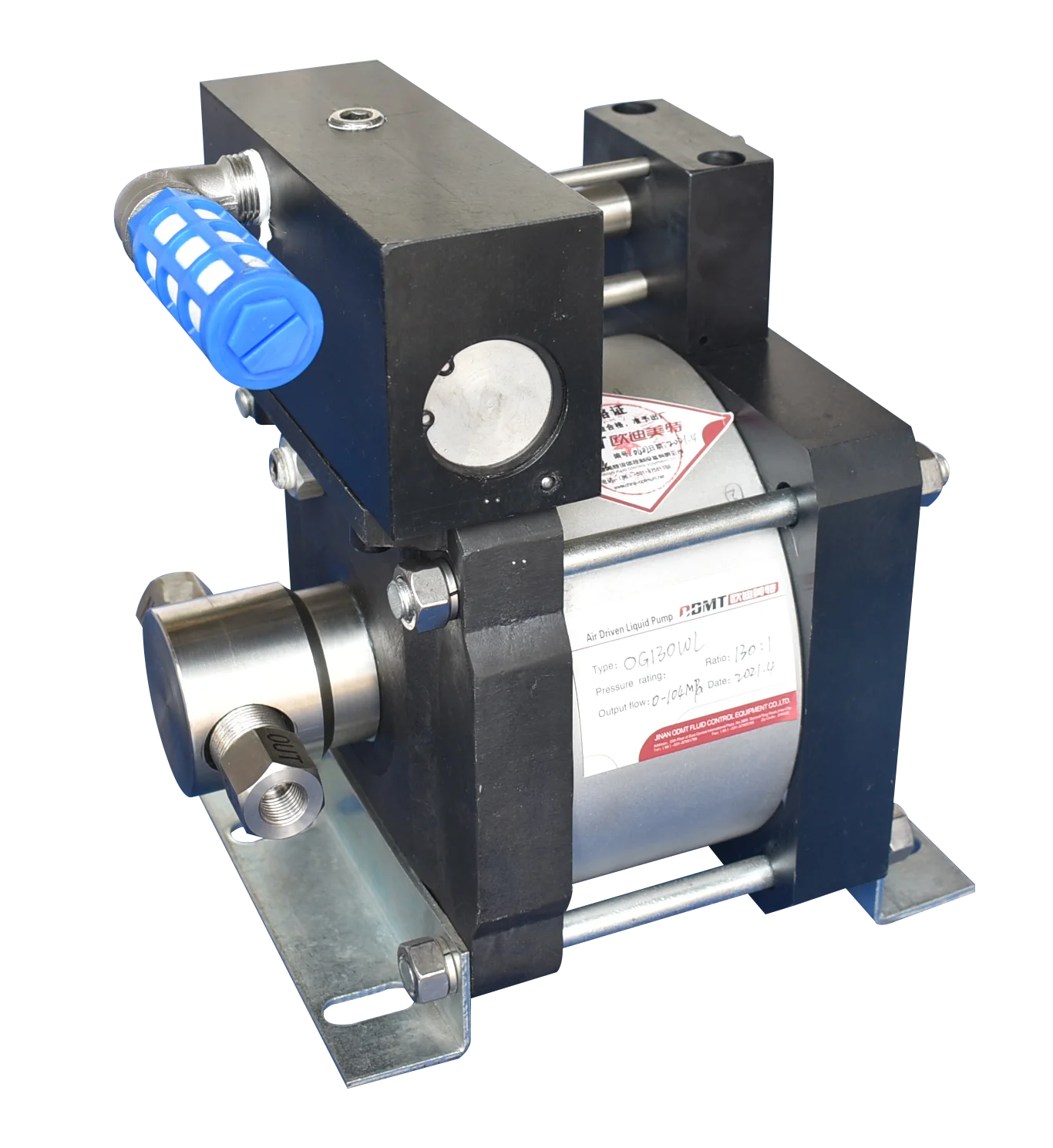

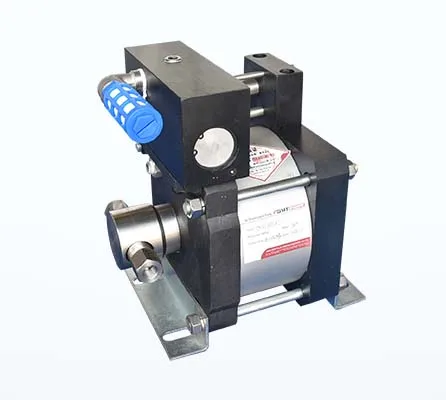

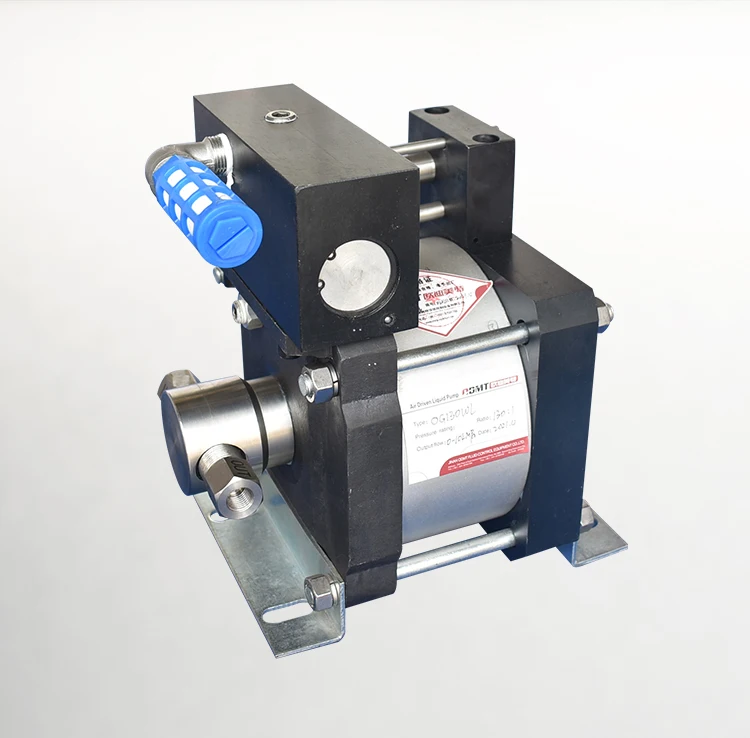

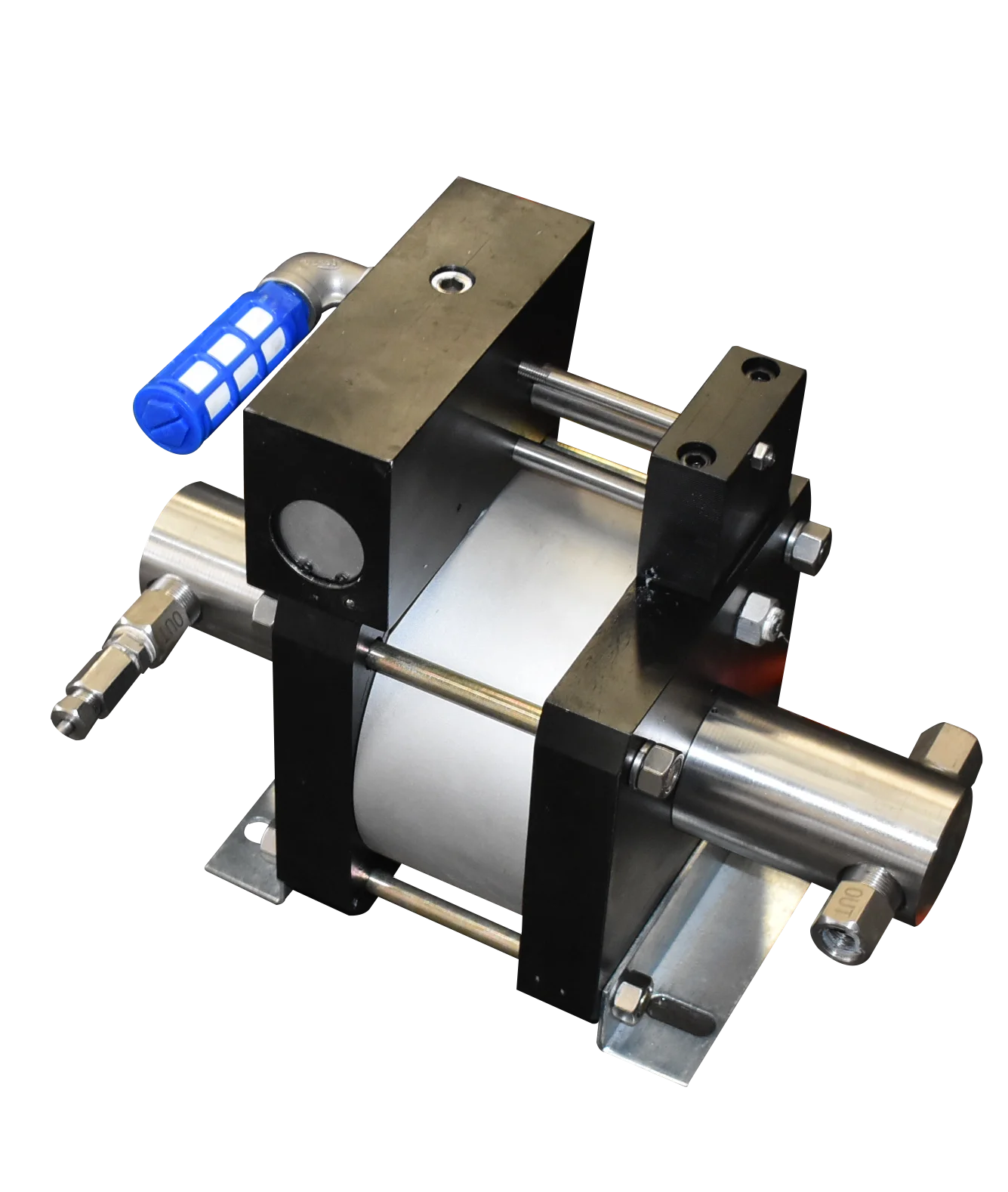

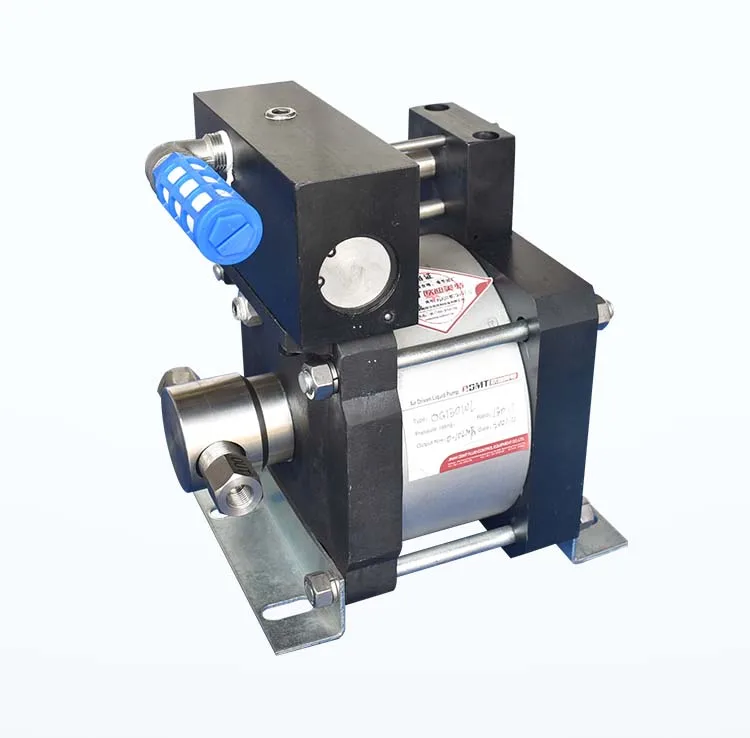

Pneumatic High Pressure Double drive Action Gas Drive Liquid Pneumatic Booster Pumps
- Category: >>>
- Supplier: Shandong Hailaitaide Machinery Co. Ltd.
Share on (1600690485461):
Product Overview
Description
Product information
Product Description

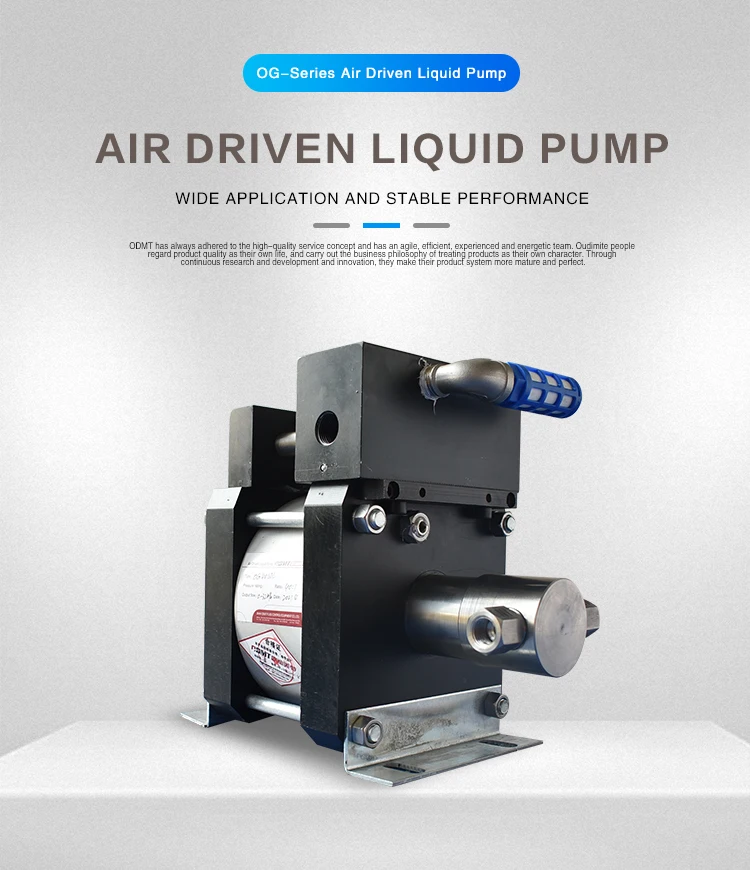

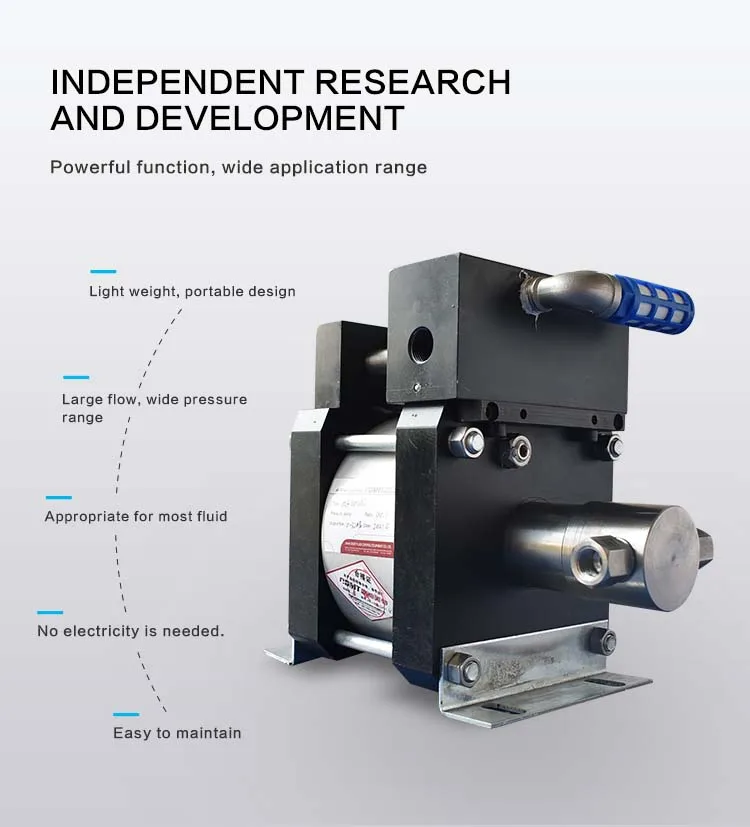

M-Series air driven liquid pump uses a built-in pneumatic control four-way two-position valve to move to and fro
automatically. This series of product is produced by introducing related technology abroad and designing according
to the standards of our country. The air driven parts are all made of aluminum alloy and are treated with oxidation.
The pump head is made of carbon steel or stainless steel according to different media.
automatically. This series of product is produced by introducing related technology abroad and designing according
to the standards of our country. The air driven parts are all made of aluminum alloy and are treated with oxidation.
The pump head is made of carbon steel or stainless steel according to different media.
The diameter of the drive piston of this series is up to 80mm, air pressure≤8bar.
Technical parameter
Model | Pressure ratio | Outlet pressure | Flow 1／Min | Connections | Net weight KG | ||||||
bar | psi | Drive port | Inlet | Outlet | |||||||
OG6 | 6:1 | 48 | 696 | 27.74 | G1/2 | G 1 | ZG 3/4 | 12.7 | |||
OG10 | 10:1 | 80 | 1160 | 18.53 | G1/2 | G 3/4 | ZG 1/2 | 12.7 | |||
OG16 | 16:1 | 128 | 1856 | 12.86 | G1/2 | G 3/4 | ZG 1/2 | 12.7 | |||
OG28 | 28:1 | 224 | 3248 | 7.24 | G1/2 | ZG 1/2 | ZG 3/8 | 12.2 | |||
OG40 | 40:1 | 320 | 4640 | 5.02 | G1/2 | ZG 1/2 | ZG 3/8 | 12.2 | |||
OG64 | 64:1 | 512 | 7424 | 3.21 | G1/2 | ZG 1/2 | ZG 3/8 | 12.2 | |||
OG80 | 80:1 | 640 | 9280 | 2.44 | G1/2 | ZG 1/2 | ZG 3/8 | 12.2 | |||
OG100 | 100:1 | 800 | 11600 | 1.81 | G1/2 | ZG 1/2 | M14X 1.5 | 12 | |||
OG130 | 130:1 | 1040 | 15080 | 1.36 | G1/2 | ZG 1/2 | M14X 1.5 | 12 | |||
OG175 | 175:1 | 1400 | 20300 | 1.14 | G1/2 | ZG 1/2 | M14X 1.5 | 12 | |||
OG255 | 255:1 | 2040 | 29580 | 0.77 | G1/2 | ZG 3/8 | M14X 1.5 | 12 | |||
OG400 | 400:1 | 3200 | 46400 | 0.51 | G1/2 | ZG 3/8 | M14X 1.5 | 12 | |||
Wide range of applications
1、Provide static and burst testing for valves,
pipe fittings, pressure vessels, etc.
pipe fittings, pressure vessels, etc.
2、Power for clamping, forming, drilling, cutting, stamping and other equipment.
3、Automobile brake system and fuel injector test.
4、Water pressure test of building material testing machine.
5、Large-scale press overload protection mold buffer and support power.
6、Canned refrigerant.
7、Performance testing and calibration of instruments.
