Контроллер регулировки яркости ZigBee, 1-10 В/0-10 В, 1/ 2/ 3 канала, 1-10 В, IP65, водонепроницаемый беспроводной контроль освещения iot Zigbee
- Category: Dimmers >>>
- Supplier: Shenzhen,Amelech,Technology,Ltd
Share on:
Product Overview
Description
Products Description
AHLC833-Z-SC-BS-PM-XX-XXXX-R-WP-OTA-PRO is a kind of IP65 ZigBee 2.4G 1-10V LED dimming controller with low cost, low consumption and low voltage, developing based on IEEE 802.12.4. It works with 0-10V/ 1-10V dimming drivers, to be applied to outdoor sports lighting for 100m control range from gateway. It’s available in 1/ 2/ 3 channels, with big external antenna and big external antenna with cable.
It works with Amelech’s ZigBee lighting control system to achieve short-distance or long-distance controlling led lights by Mobile Phone, Tablet, PC, Touch Switch, Remote Control, Daylight Sensor and Motion Sensor
Parameters | AHLC833-Z-SC-BS-PM-XX-XXXX-R-WP-OTA-PRO | ||||
Input power | AC100-277Vac 50/60Hz | ||||
Output voltage | AC100-277Vac 50/60Hz 1-10V | ||||
0-10V output current | Max 15mA | ||||
Channels | 1 Channel | 2 Channels | 3 Channels | ||
Relay Max Exchange Current | 10A | 10A+5A | 10A+5A+5A | ||
Standby Power | 3.2W | 3.5W | 3.8W | ||
PF | > 0.4 (MAX Load) | ||||
Wireless frequency | 2.4GHz | ||||
Antenna | Big external antenna/ Big external antenna with cable | ||||
Transmission distance | 100 meters | ||||
Power metering | YES | ||||
SPD | 6K | ||||
IP rate | IP65 waterproof | ||||
Operation temperature | -40°C to 85°C | ||||
Cable size (diameter) | 9mm | ||||
Power supply | 0-10V/ 1-10V LED dimmable driver (IP65) | ||||
Specifications：
Wireless Technology: IEEE 802.15.4Wireless Frequency: 2.4GHz
Protocol Version: ZigBee 3.0 standard protocol
Transmission Distance: 30 meters
Operation Temperature: -40°C to 85°C
Input Voltage: AC100-277V
Output Current: 1st 10A, 2nd 5A, 3rd 5A
1-10V Dimming Current: 15mA MAX
Color: Beige
IP Rating: ≥IP65
Place of Origin: Guangdong, China
Warranty:5 year
1 Channel
2 Channel
3 Channel
Interface Definition | Comment | ||
AC Input | L | AC100 – 277V | |
N | AC100 – 277V | ||
E | AC100 – 277V | ||
AC output | L | AC100 – 277V | |
N | AC100 – 277V | ||
E | AC100 – 277V | ||
Dim output | DIM+ | 0-10V | |
DIM- | 0-10V | ||
Software Operation
1. Initial states. When the ZigBee controller is powered up, lights blink 4 times before staying 100%.
2. First 30 minutes. The Zigbee controller in initial state is searchable by the ZigBee gateway in the first 30 minutes after power up.
3. Choose a gateway. Power on the ZigBee gateway, open the App “iLightsIn Pro”, select gateway from Settings/Add device.
4. Add device. Click “Search” button. Light is on 30% after added successfully.
5. Create a new area and add the ZigBee controller into this area. On/off /dim this controller in this area.
6. Binding. Click “Binding Setting” on “Setting” page. Bind the ZigBee controller with motion sensor/ daylight sensor/ wall switch/ remote control.
7. For more operating details please refer to user manual of gateway.
2. First 30 minutes. The Zigbee controller in initial state is searchable by the ZigBee gateway in the first 30 minutes after power up.
3. Choose a gateway. Power on the ZigBee gateway, open the App “iLightsIn Pro”, select gateway from Settings/Add device.
4. Add device. Click “Search” button. Light is on 30% after added successfully.
5. Create a new area and add the ZigBee controller into this area. On/off /dim this controller in this area.
6. Binding. Click “Binding Setting” on “Setting” page. Bind the ZigBee controller with motion sensor/ daylight sensor/ wall switch/ remote control.
7. For more operating details please refer to user manual of gateway.
Initial States Setting
1. Soft reset: keep the device powered on and delete it on the “iLightsIn Pro” App. Or,
2. Hard reset: power off the device and wait for > 3 secs, power on and wait for < 3 secs, power off power on, power off power on, 4 times in total.
3. If reset is successful, the light blinks 4 times and then stay ON. All data of the device is cleaned up.
2. Hard reset: power off the device and wait for > 3 secs, power on and wait for < 3 secs, power off power on, power off power on, 4 times in total.
3. If reset is successful, the light blinks 4 times and then stay ON. All data of the device is cleaned up.

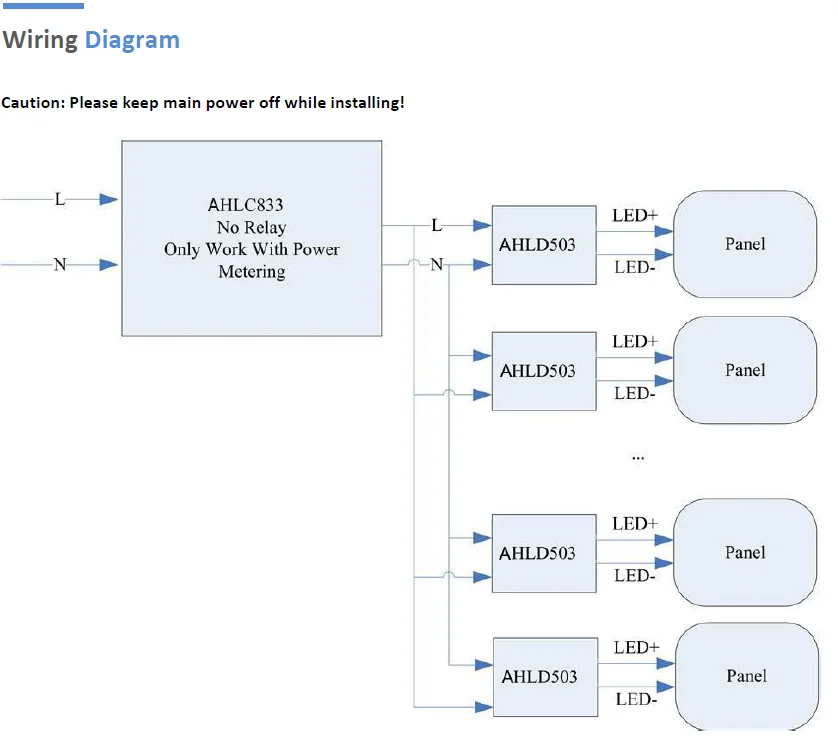

Part Number | Dimmable Version | CCT Version | Sensor Interface | Motion Function | Daylight Function |
AHLD503-Z-SC-PA-PRO | Y | - | - | - | - |
AHLD503-Z-SC-MD-PA -PRO | Y | - | Y | Y | Y |
AHLD503-Z-SC-MB-PA-PRO | Y | - | Y | Y | - |
AHLD503-Z-CT-PA-PRO | - | Y | - | - | - |
AHLD503-Z-CT-MD-PA-PRO | - | Y | Y | Y | Y |
AHLD503-Z-CT-MB-PA-PRO | - | Y | Y | Y | - |
Type | Definition |
AHLD503-Z-SC-PA-PRO | SC Version-EU |
AHLD503-Z-SC -MB-PA-PRO | SC Version-EU work with motion sensor |
AHLD503-Z-SC -MD-PA-PRO | SC Version-EU work with motion & daylight sensor |
AHLD503-Z-CT-PA-PRO | CCT Version-EU |
AHLD503-Z-CT-MB-PA-PRO | CCT Version-EU work with motion sensor |
AHLD503-Z-CT-MD-PA-PRO | CCT Version-EU work with motion & daylight sensor |
Parameters | AHLD503-Z-XX-XX-PA-PRO |
Input power | 100-240VAC |
Channels | 2 Channels or 1 channel |
Output Current | 1050mA MAX(CCT version)/ 1200mA Max(Dimmable version) |
Output DC | 24-42V |
PF | > 0.9 |
EFFICIENCY | Max 85% |
Wireless frequency | 2.4GHz |
Operation temperature | -20°C to 55°C |
No land power | <0.5W |
iLightsIn Pro Product List:
