bificial standard factory price double sided solar panels factory manufacturer photovoltaic panel
- Category: >>>
- Supplier: Rosen Solar Energy Co. Ltd.
Share on (1600690577667):
Product Overview
Description
Product Description

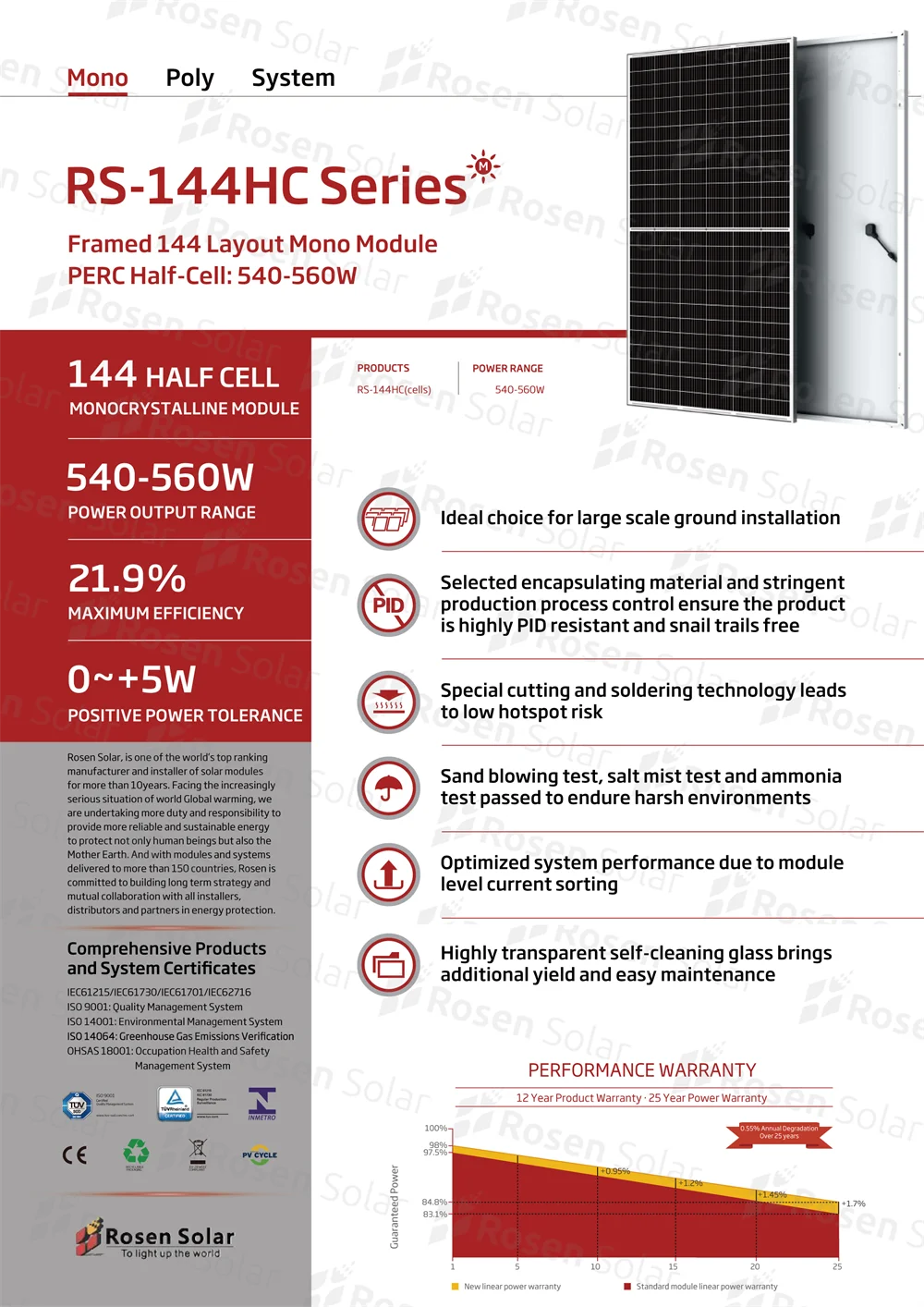

Technical Specification
Model | RSM540-144HC | RSM545-144HC | RSM550-144HC | RSM555-144HC | RSM560-144HC | ||||
Rated Maximum Power at STC | 540W | 545W | 550W | 555W | 560W | ||||
Open Circuit Voltage(Voc) | 49.60 | 49.75 | 49.90 | 50.05 | 50.20 | ||||
Maximum Power Voltage(Vmp) | 41.64 | 41.80 | 41.96 | 42.12 | 42.28 | ||||
Short Circuit Current(Isc) | 13.86 | 13.93 | 14.00 | 14.07 | 14.14 | ||||
Maximum Power Current(Imp) | 12.97 | 13.04 | 13.11 | 13.18 | 13.25 | ||||
Module Efficiency(%) | 21.1 | 21.3 | 21.5 | 21.7 | 21.9 | ||||
Standard Test Condition(STC) | Irradiance 1000w/m2, Cell Temperature 25 Centigrade, Air Mass 1.5 | ||||||||
ELECTRICAL DATA(NMOT) | ||||||||||
Maximum Power-PMAX (Wp) | 408 | 412 | 416 | 420 | 424 | |||||
Maximum Power Voltage(VMPP) | 38.99 | 39.21 | 39.44 | 39.67 | 39.90 | |||||
Maximum Power Current(Imp) | 10.47 | 10.51 | 10.55 | 10.59 | 10.63 | |||||
Open Circuit Voltage-VOC (V) | 46.43 | 46.55 | 46.68 | 46.81 | 46.93 | |||||
Short Circuit Current-ISC (A) | 11.09 | 11.13 | 11.17 | 11.21 | 11.25 | |||||
NOCT:Irradiance 800W/m2,Ambient Temperature 20°C,Wind Speed 1m/s. | ||||||||||

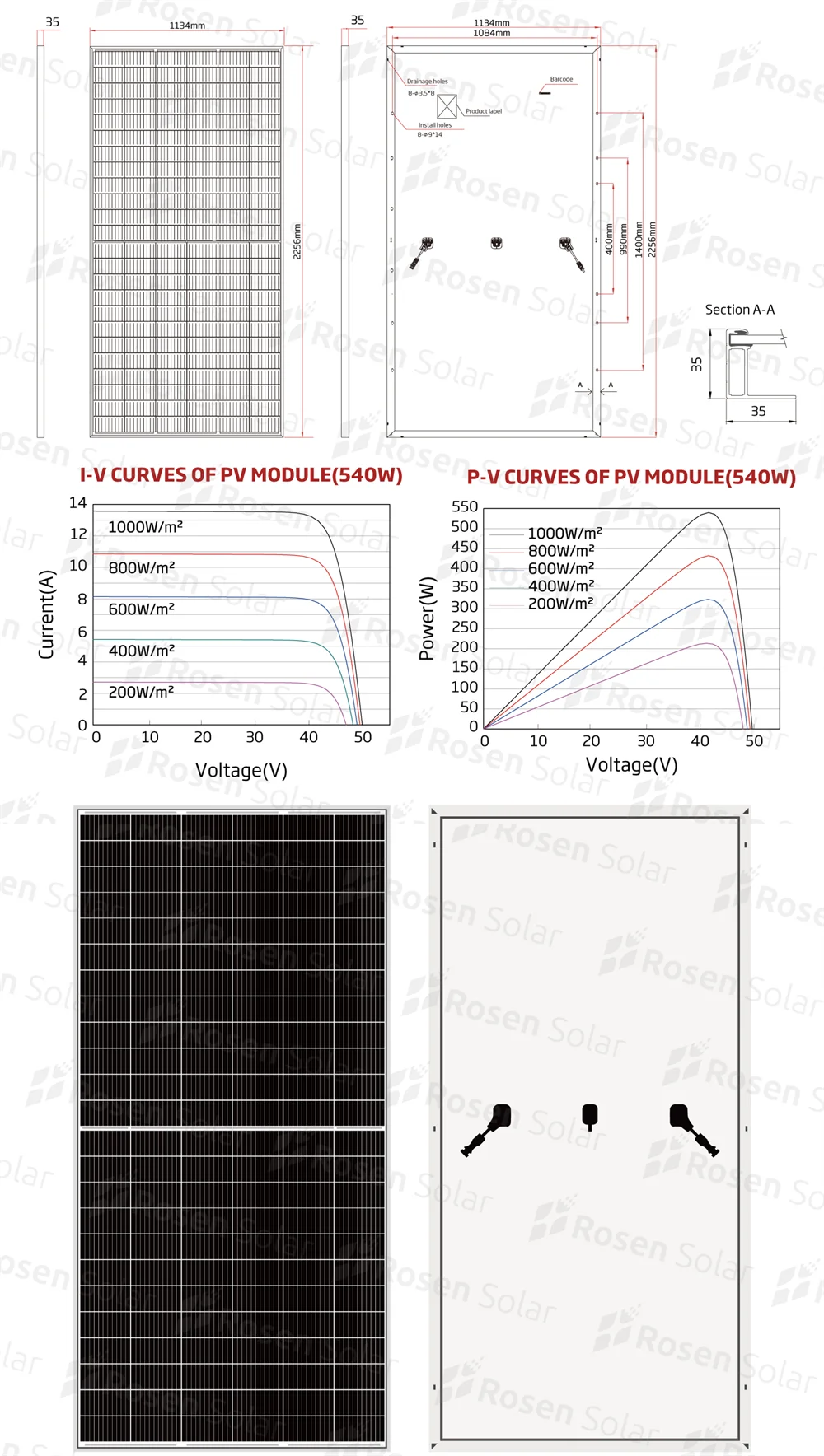

Detailed Images
EVA
High Transmittance EVA,High GEL Content To Provide Good Encapsulation And Protect Cells From Vibration With Longer Durability.
Solar Cell
5BB, 6BB, 9BB, 10BB, 12BB Available
158.75cells, 166cells, 182cells, 210cells High Efficiency Cells
Anti-Pid
Frame
35mm 40mm Anodized Aluminium Alloy
Black/Silver Color Optional
Junction--Box
IP 68 rated Waterproof
Innovative Full-Glue-Filled
Portrait/Landscape Length Optional
Innovative Full-Glue-Filled
Portrait/Landscape Length Optional
Compatible MC4
MC4 Compatible /MC4 EVO2/TS4*
500N Tensile Strength
Female/Male/Fuse
Label
Waterproof Customized Label
OEM/ODM with your Logo
Professional Silver Color
Recommend Products

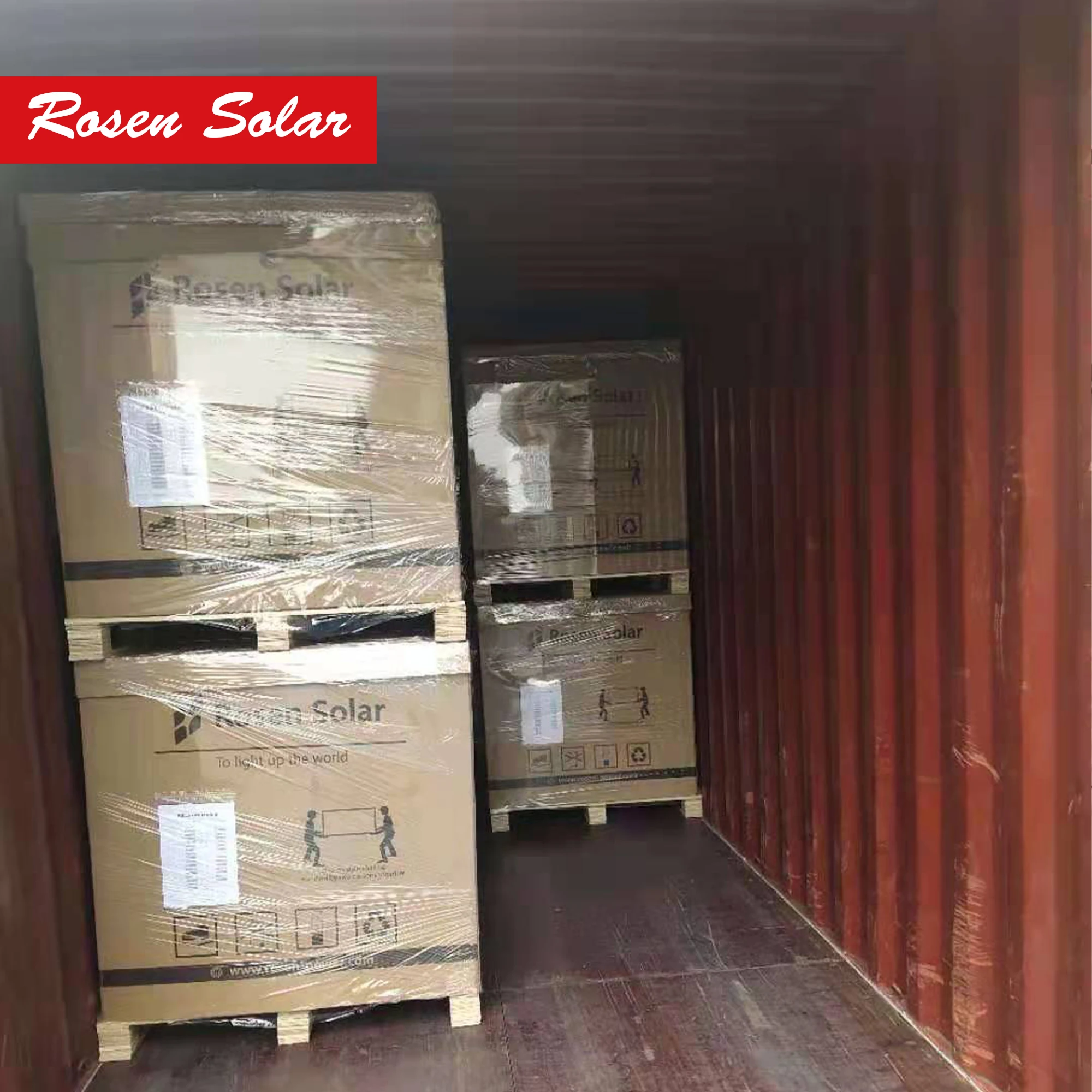

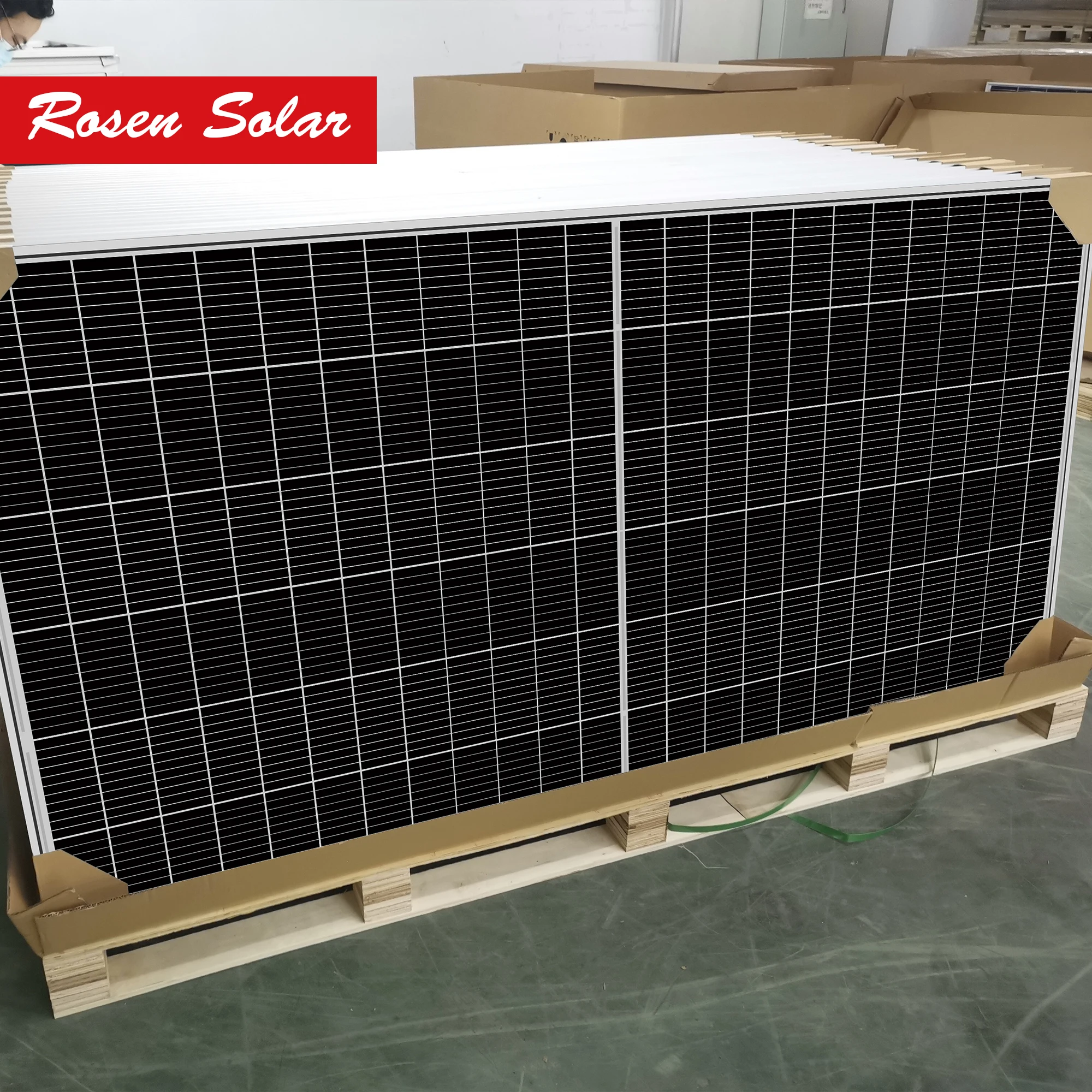

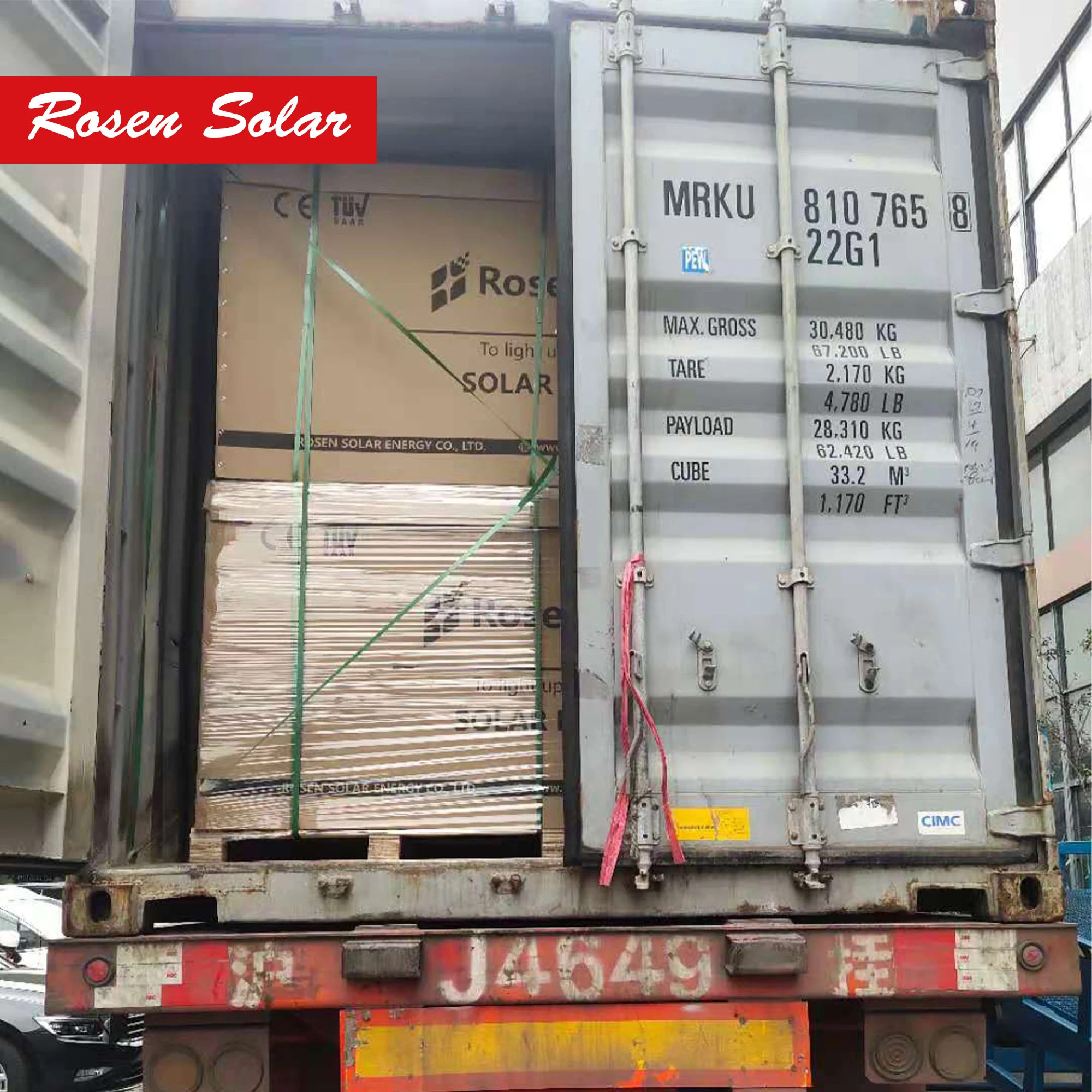

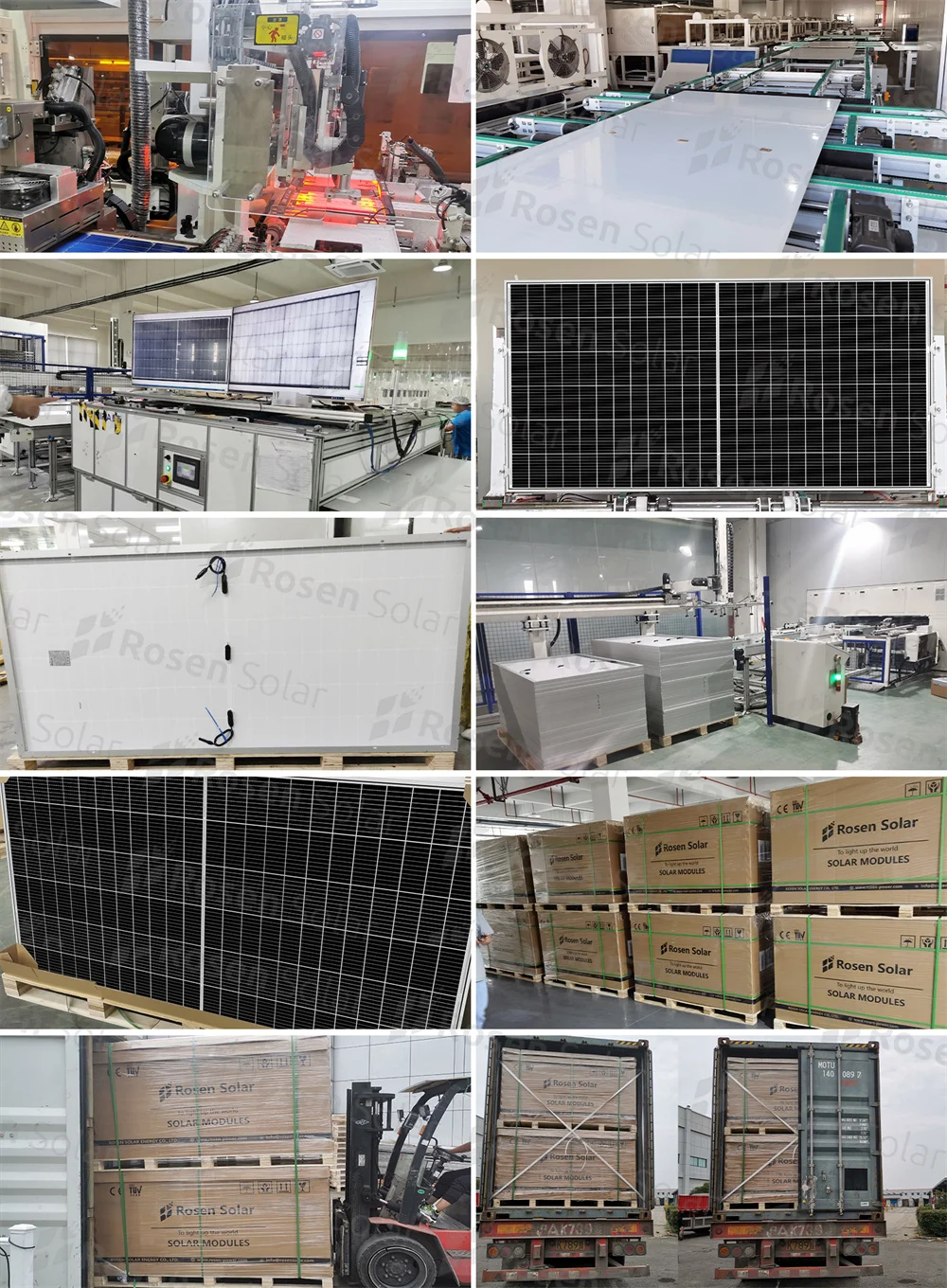

Packing & Delivery
Packing Details : In carton on pallet or wooden box, OEM with your logo available
Delivery Details : 5-10 working days
Delivery Details : 5-10 working days
Company Profile

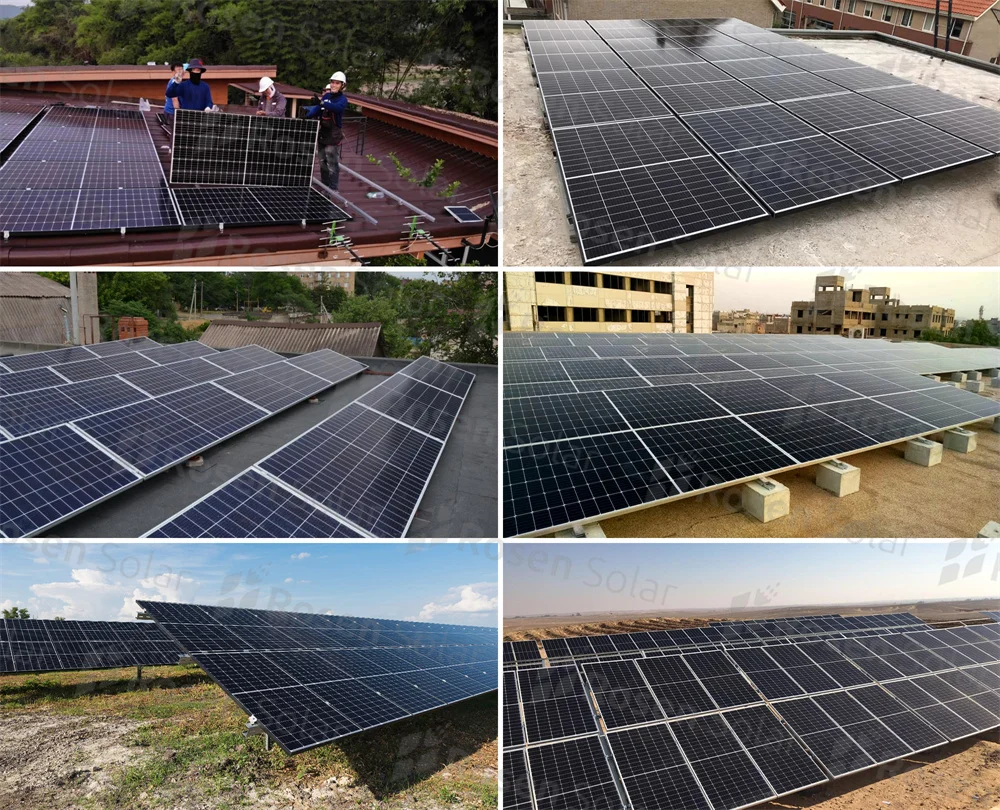

Projects
