M181 fingerprint module semiconductor capacitance fingerprint sensor for smart lock FPC connector
- Category: >>>
- Supplier: Guangzhou Gouku Technology Co. Ltd.
Share on (1600690613625):
Product Overview
Description
Product Description
Product overview
M181 fingerprint module is a new type of array semiconductor fingerprint module. Compared with existing products in the market, M181 fingerprint module has advantages of small size, low power consumption, fast identification speed and high identification accuracy.
M181 fingerprint module is easy to use, especially suitable for small, battery-powered equipment such as door lock, card reader and safe. With low power consumption, it can maintain excellent reaction performance and high recognition speed.
This fingerprint module adopts capacitive fingerprint sensor, which can effectively detect the problem of false finger by
measuring fingerprint signal.

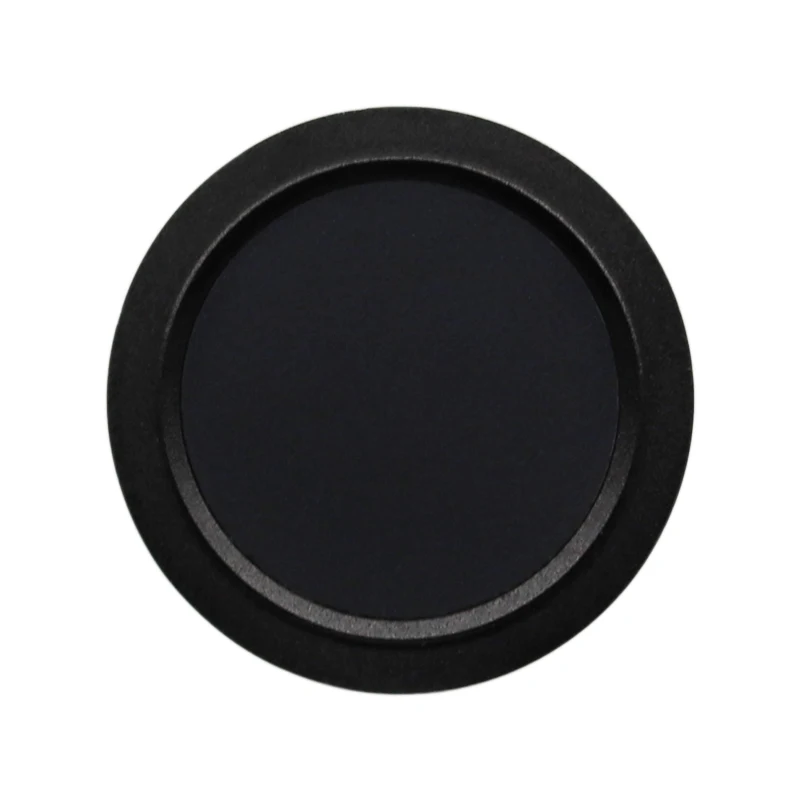

The surface of fingerprint sensor uses a high hardness coating, which can greatly reduce the wear of fingerprint sensor in daily use.
In addition, M181 can withstand 15KV static electricity, which is not easy to damage the fingerprint sensor when used in winter or in northern areas with high static electricity.

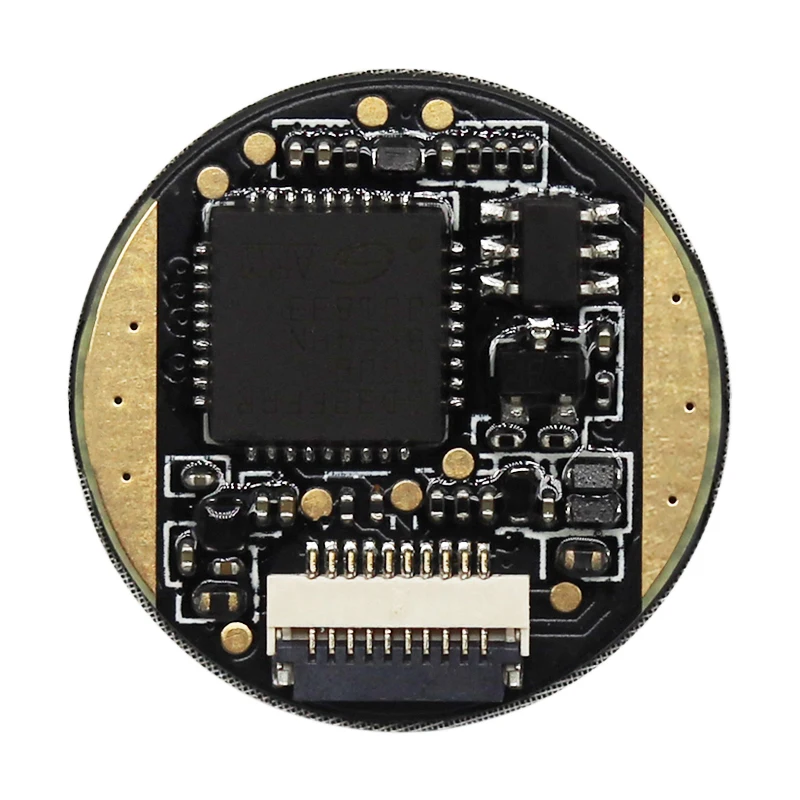

M181 fingerprint module uses 0.5mm FPC connector, which can be connected with ordinary cable to enhance connection reliability.
The M181 fingerprint module’s interface supports UART, and the default baud rate of UART is 115,200.
The baud rate can be set by software. (Note: the baud rate will take effect immediately after the successful setting. Please use the new baud rate to communicate. If you forget to set the baud rate, please verify all the baud rates that may have been set or ask our factory for help).
M181 fingerprint module is easy to use, especially suitable for small, battery-powered equipment such as door lock, card reader and safe. With low power consumption, it can maintain excellent reaction performance and high recognition speed.
This fingerprint module adopts capacitive fingerprint sensor, which can effectively detect the problem of false finger by
measuring fingerprint signal.
The surface of fingerprint sensor uses a high hardness coating, which can greatly reduce the wear of fingerprint sensor in daily use.
In addition, M181 can withstand 15KV static electricity, which is not easy to damage the fingerprint sensor when used in winter or in northern areas with high static electricity.
M181 fingerprint module uses 0.5mm FPC connector, which can be connected with ordinary cable to enhance connection reliability.
The M181 fingerprint module’s interface supports UART, and the default baud rate of UART is 115,200.
The baud rate can be set by software. (Note: the baud rate will take effect immediately after the successful setting. Please use the new baud rate to communicate. If you forget to set the baud rate, please verify all the baud rates that may have been set or ask our factory for help).
The main features
* Planar array fingerprint sensor
* The sensor is coated with a protective coating
* UART interface
* 5mm FPC connector
* TOUCH supports 3.3v power supply
* The fingerprint module supports 3.3v power supply
* ESD protection >15KV
* Support storage of 100 fingerprint features (6 mosaics)
* The sensor is coated with a protective coating
* UART interface
* 5mm FPC connector
* TOUCH supports 3.3v power supply
* The fingerprint module supports 3.3v power supply
* ESD protection >15KV
* Support storage of 100 fingerprint features (6 mosaics)
Algorithm specifications
* FAR (False Acceptance Rate) : <1/1000000
* FRR (False Rejection Rate) : <1%
* Response speed: feature extraction time <0.25s, single matching time <0.002s
* Support fingerprint stitching, the maximum number of stitching: 6 times
* Number of fingerprints: 100 fingerprints (6 mosaics)
* FRR (False Rejection Rate) : <1%
* Response speed: feature extraction time <0.25s, single matching time <0.002s
* Support fingerprint stitching, the maximum number of stitching: 6 times
* Number of fingerprints: 100 fingerprints (6 mosaics)
Application scenarios
Security field: fingerprint door lock, safe, jewelry box
Management area: licensing, management software, etc.
Financial and other areas of identity authentication: access control system, POS machine, attendance machine, etc.
Management area: licensing, management software, etc.
Financial and other areas of identity authentication: access control system, POS machine, attendance machine, etc.

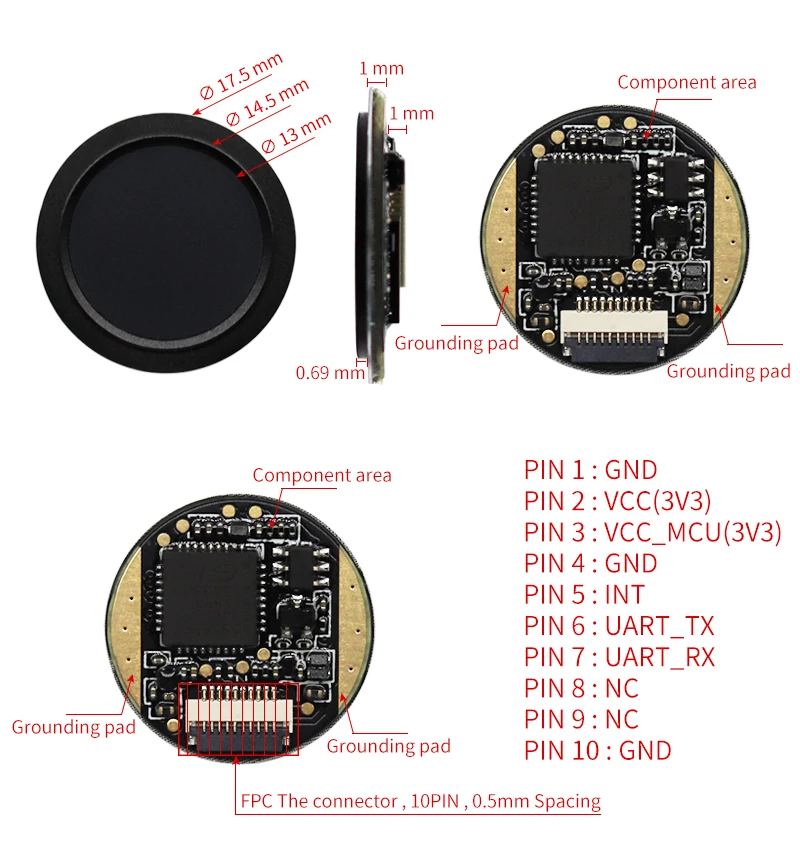

Specification
parameters | description | value | unit |
interface | 0.5mm FPC connector | 10 | pin |
voltage | DC voltage (typical value) | 3.3 | V |
electricity | Typical value (supply voltage: 3.3v) | <45 | mA |
hibernation mode | Typical value (fingerprint detection) | <12 | uA |
Baud rate of serial port | Baud rate | 115200 | Bps |
size | Appearance structure (width x length), standard value | Φ14.50 | mm |
pixel resolution | 256 gray value | 8 | bit |
electrostatic protection | IEC61000-4-2, level X air discharge | ±15 | kV |
Natural wear and tear | Press repeatedly at a pressure of 0.6n | >10,000,000 | time |
work environment | temperature | -20 ～ +55 | ℃ |
relative humidity | 40%～ 85%(RH) | RH | |
Fingerprint Capacity | Joining together 6 times | 100 | time |
Company Profile
Guangzhou Gouku(sounds like GO COOL) Technology Co., Ltd. is located in Guangzhou, one of the four major cities in China.
The company was founded in 2016 by three scientists who graduated from Sun Yat-sen University, one of China's top universities, and the best in south China.
Focusing on the original technology of fingerprint recognition, our company is a leading fingerprint recognition high-tech enterprise in China, and provides fingerprint algorithms, fingerprint modules and technical services to global customers.
At present, Gouku Technology has developed advanced fingerprint modules, whose recognition speed and efficiency are in the world's leading level.
The company was founded in 2016 by three scientists who graduated from Sun Yat-sen University, one of China's top universities, and the best in south China.
Focusing on the original technology of fingerprint recognition, our company is a leading fingerprint recognition high-tech enterprise in China, and provides fingerprint algorithms, fingerprint modules and technical services to global customers.
At present, Gouku Technology has developed advanced fingerprint modules, whose recognition speed and efficiency are in the world's leading level.
Exhibition
Certifications
Good Development Ability
Our fingerprint module is independently developed by us, and the algorithm is written by ourselves, which is in the world's
leading level.
We have a strong technical team, the technical director graduated from China's top 10 university, and after working for a very
famous enterprise in the industry for ten years, he led more than 10 engineers to spend a year to develop the low power
consumption, high performance of intelligent fingerprint recognition algorithm, the algorithm is in a leading position in China
even all over the world.
This picture shows that we have obtained the computer software copyright registration certificate issued by the National Copyright
Administration of the People's Republic of China, which proves our strong development ability.Name of the algorithm: Fingerprint
algorithm software based on artificial intelligence and biological characteristics
leading level.
We have a strong technical team, the technical director graduated from China's top 10 university, and after working for a very
famous enterprise in the industry for ten years, he led more than 10 engineers to spend a year to develop the low power
consumption, high performance of intelligent fingerprint recognition algorithm, the algorithm is in a leading position in China
even all over the world.
This picture shows that we have obtained the computer software copyright registration certificate issued by the National Copyright
Administration of the People's Republic of China, which proves our strong development ability.Name of the algorithm: Fingerprint
algorithm software based on artificial intelligence and biological characteristics
FAQ
1. Are you a factory or a trader?
We are a profession high tech company who focus on developing bio identification technology, especially fingerprint identification technology.
We are one of the best fingerprint identification development companies in China.
2. What are your company's strengths?
Our company was founded by several scientists who graduated from China’s top university; they led a professional team to develop the fingerprint algorithms, which makes our fingerprint modules to be fast speed, high stability, low power consumption and self-learning.
Because of the advantages of our products and technology, some the top security companies in the world use our products.
3. What is the MOQ?
The MOQ of all products is 1,000 pieces, and if you order less than 1,000 pieces, please let me know and we will produce that with other orders, and the lead time maybe a litter longer.
4. Do your modules have samples?
Yes, most of our modules have samples, and you can take an order of the samples, we will send them to you as soon as possible.
5. How will you send the products?
We will send them by express. You can choose which express company to do that.
6. Can your modules be used in ESP32 or Arduino?
Yes.
It’s no matter which platform you are using; we have the communication protocol for you, and the example code.
Our module is a passive serial port device, as long as the master can provide a serial communication interface.
Call our communication protocol directly, and the module will work.
A lot of our customers who use ESP32 and Arduino can use it.
7. What is the waterproof rating of the fingerprint module?
The module as a whole is not waterproof because of the exposed electronics on the back.
The surface (and only the surface) of the module has a waterproof rating of IP67, specifically, only the surface.
We are a profession high tech company who focus on developing bio identification technology, especially fingerprint identification technology.
We are one of the best fingerprint identification development companies in China.
2. What are your company's strengths?
Our company was founded by several scientists who graduated from China’s top university; they led a professional team to develop the fingerprint algorithms, which makes our fingerprint modules to be fast speed, high stability, low power consumption and self-learning.
Because of the advantages of our products and technology, some the top security companies in the world use our products.
3. What is the MOQ?
The MOQ of all products is 1,000 pieces, and if you order less than 1,000 pieces, please let me know and we will produce that with other orders, and the lead time maybe a litter longer.
4. Do your modules have samples?
Yes, most of our modules have samples, and you can take an order of the samples, we will send them to you as soon as possible.
5. How will you send the products?
We will send them by express. You can choose which express company to do that.
6. Can your modules be used in ESP32 or Arduino?
Yes.
It’s no matter which platform you are using; we have the communication protocol for you, and the example code.
Our module is a passive serial port device, as long as the master can provide a serial communication interface.
Call our communication protocol directly, and the module will work.
A lot of our customers who use ESP32 and Arduino can use it.
7. What is the waterproof rating of the fingerprint module?
The module as a whole is not waterproof because of the exposed electronics on the back.
The surface (and only the surface) of the module has a waterproof rating of IP67, specifically, only the surface.
