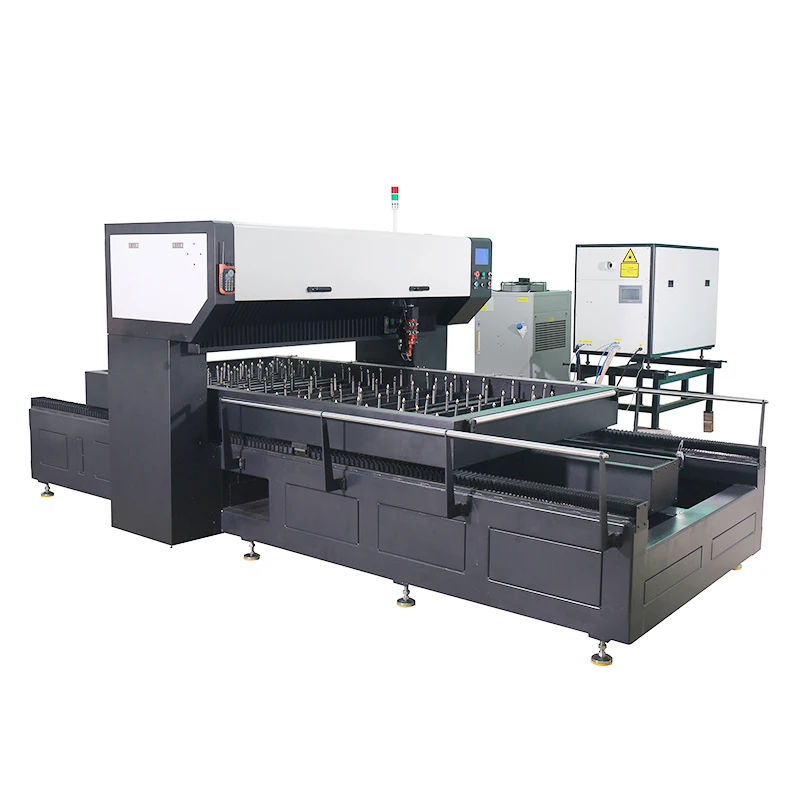

WT LC 1000w 1500w 2000w Flat Die Board Co2 Laser Cutting Machine For Die Making
WT-LC 1000w 1500w 2000w Flat Die Board Co2 Laser Cutting Machine For Die Making
WT-LC 1000w 1500w 2000w Flat Die Board Co2 Laser Cutting Machine For Die Making
WT-LC 1000w 1500w 2000w Flat Die Board Co2 Laser Cutting Machine For Die Making
WT-LC 1000w 1500w 2000w Flat Die Board Co2 Laser Cutting Machine For Die Making
WT-LC 1000w 1500w 2000w Flat Die Board Co2 Laser Cutting Machine For Die Making
WT-LC 1000w 1500w 2000w Flat Die Board Co2 Laser Cutting Machine For Die Making

WT LC 1000w 1500w 2000w Flat Die Board Co2 Laser Cutting Machine For Die Making

Share on (1600690810550):


Price:$10,000.00 - $30,000.00

Quantity:


Product Overview

Description



Product Description

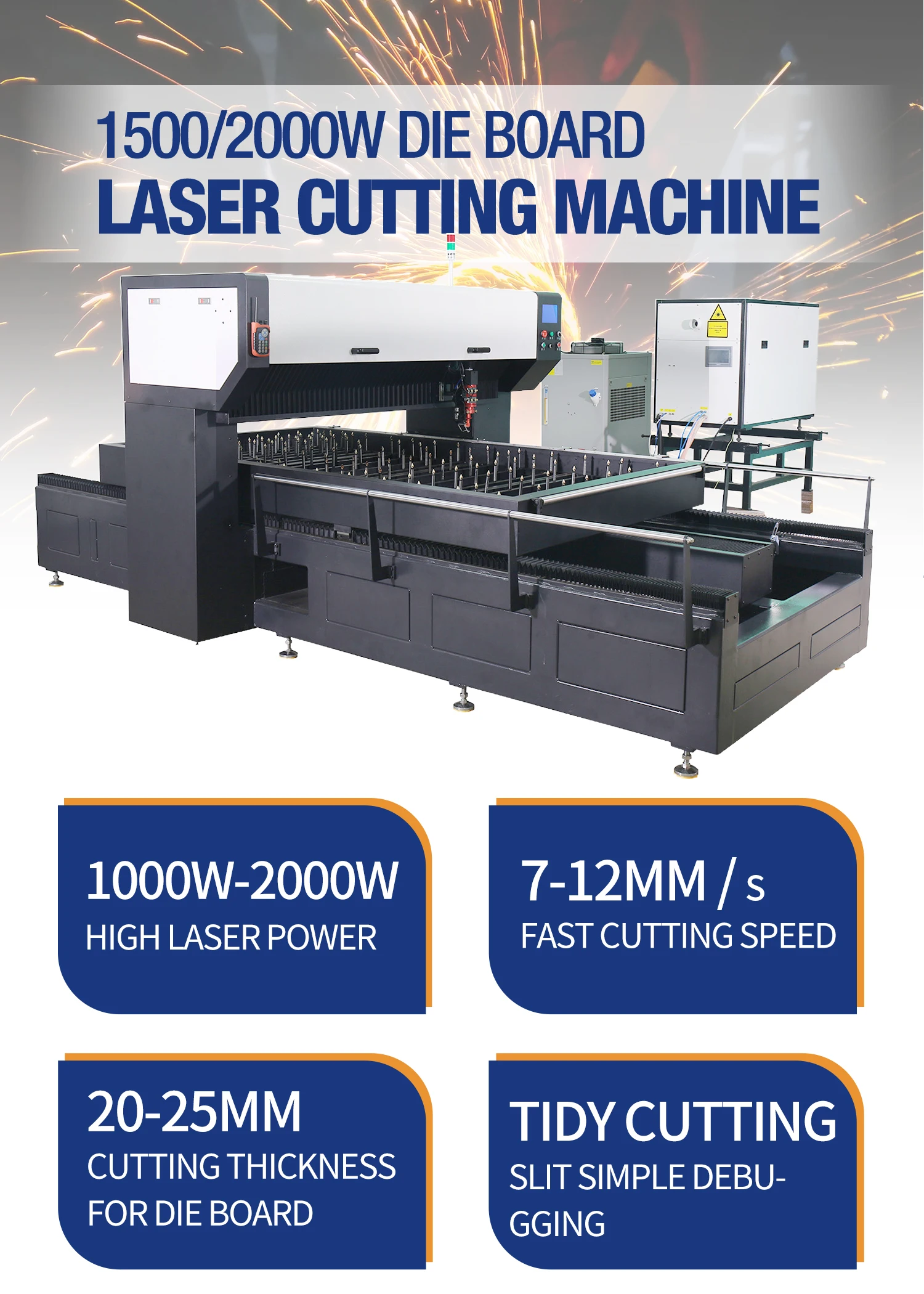

WT-LC1500 1500W Laser Die Board Cutting Machine, Die Board Laser Cutting Machine, Plywood CO2 Laser Cutting Machine, Laser Cutting Machine For Die Board, Die Board Plywood Laser Cutting Machine is suitable for producing Cutting Die Board For Packing Priting And Shoe Die Making Industry. By Cutting The Plywood Acrylic MDF Metal Board with designed drawings. It is widely used to produce paper box paper bag corrugated boxes cutting die board, Arcrylic Shoe Dies, Blist Cutting Die Board, Label Cutting Dies, medicine Box Cutting Dies, cigarette packing box die board etc.






WT-LC1500 Specifications
Laser output power
1500Watts axial flow CO2 laser source
X-axis travel-length
1300mm
Y-axis travel-length
2500mm
Cutting precision
±0.05mm
Re-Positioning Precision
≤0.02mm
Cutting width
0.45mm, 0.71mm, 1.05/1.07mm at one line (die board)
Average. cutting speed
60-100meters/hour for 18mm plywood
Controlling system
PMAC Motion card PMAC
Transmission system

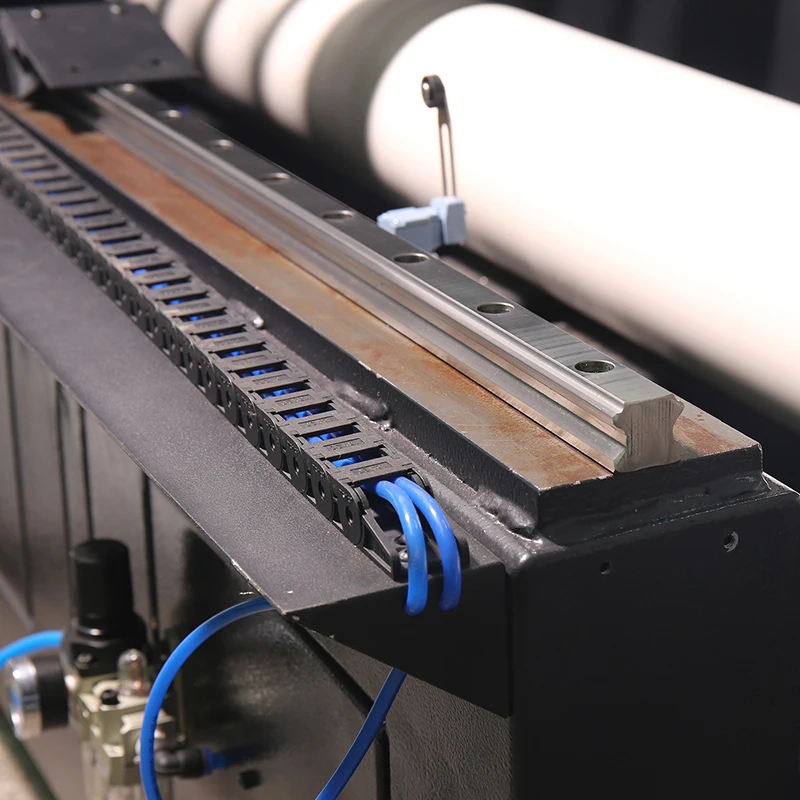

Ball screw & Linear guide
Driving system
3 Axial Servo
Optical system
Semi-optical
Moving structure
Gantry
Chiller system
Special Chiller system for laser generator system
Machine table whole sizes.
3500mm*2500mm*2000mm (1300x2500mm)
Laser generator size 1000W
L1950 * W850 * H1350MM 600KGS
G. Weight
2000KGS/2500KGS
Voltage (Working table)
Single Phrase 220V 50Hz
Voltage (Laser generator)
3 Phrase 380V/50Hz/30A
Pressure of accessory air source
0.8Mpa
Laser generator gas matched
He, N2, CO2(99.99%)
H.S. Code
8456110090


Show Details


WT-LC400 Laser Cutting Machine Wood Die Cutting Features
1. The die-cutting machine adopts the gantry type mixed beam structure, which has good rigidity, good dynamic performance, beautiful appearance, small footprint, short optical path and good spot consistency.

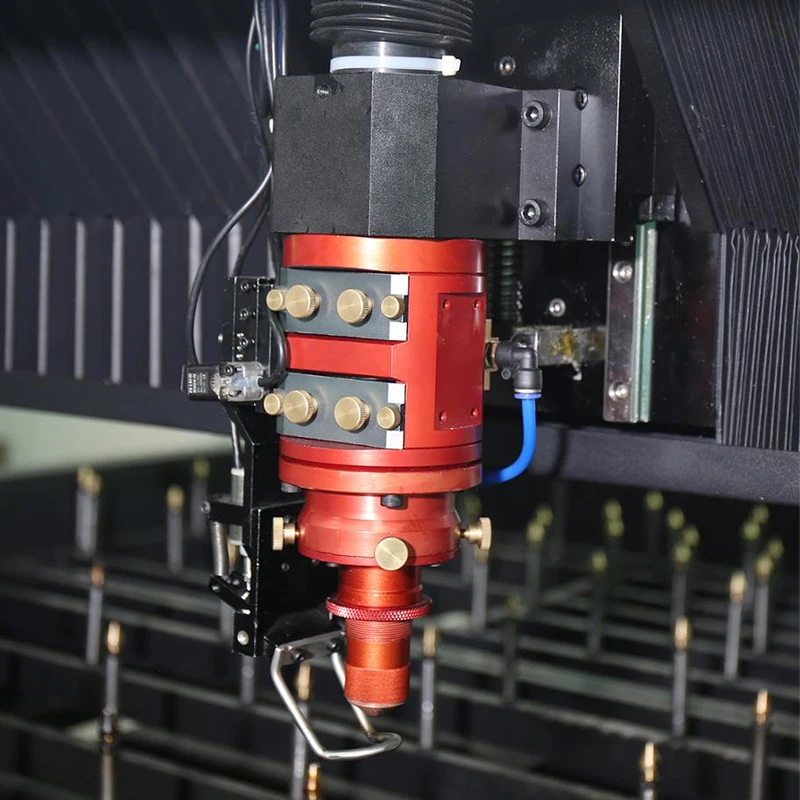

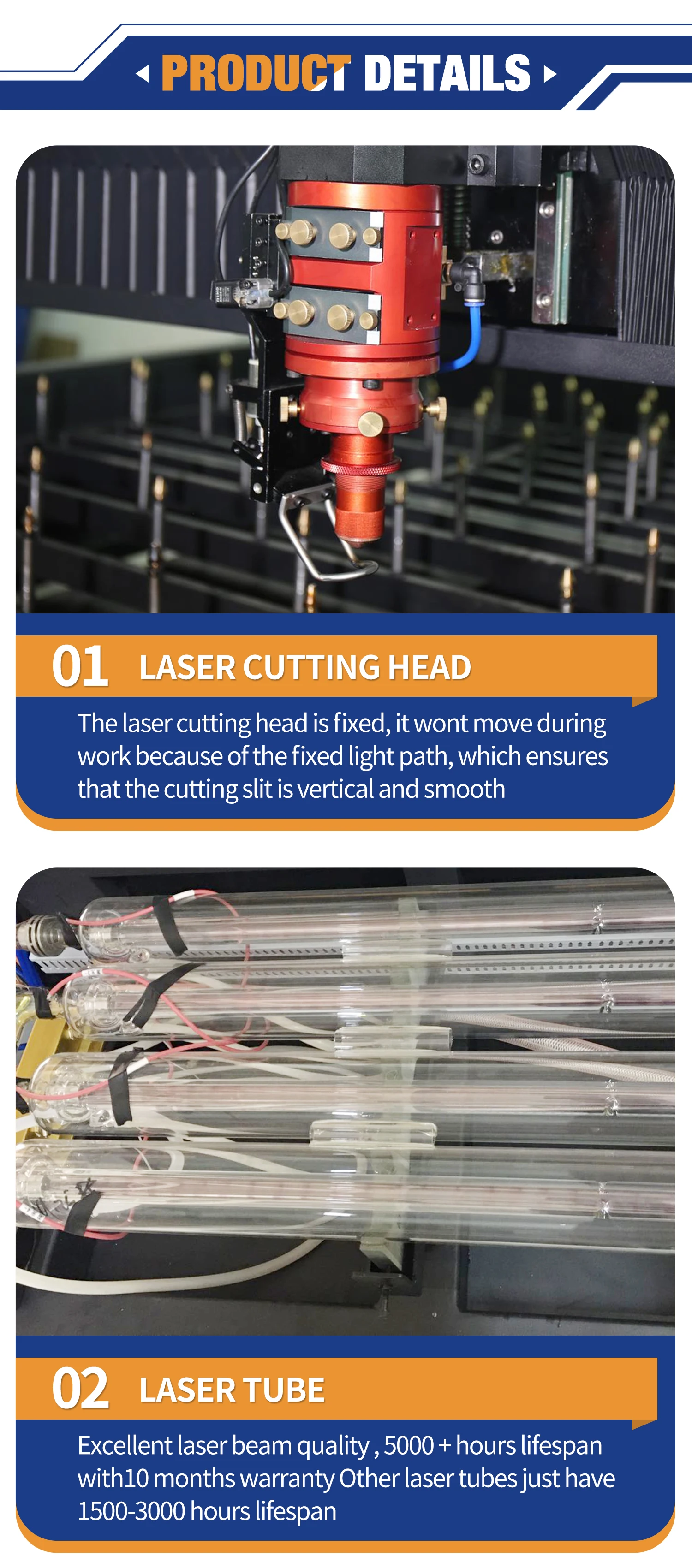

2. Using the intelligent electronic servo laser head cutting system, the die-cutting machine can automatically adjust the curvature and thickness of the material to ensure the consistency of the cutting seam.

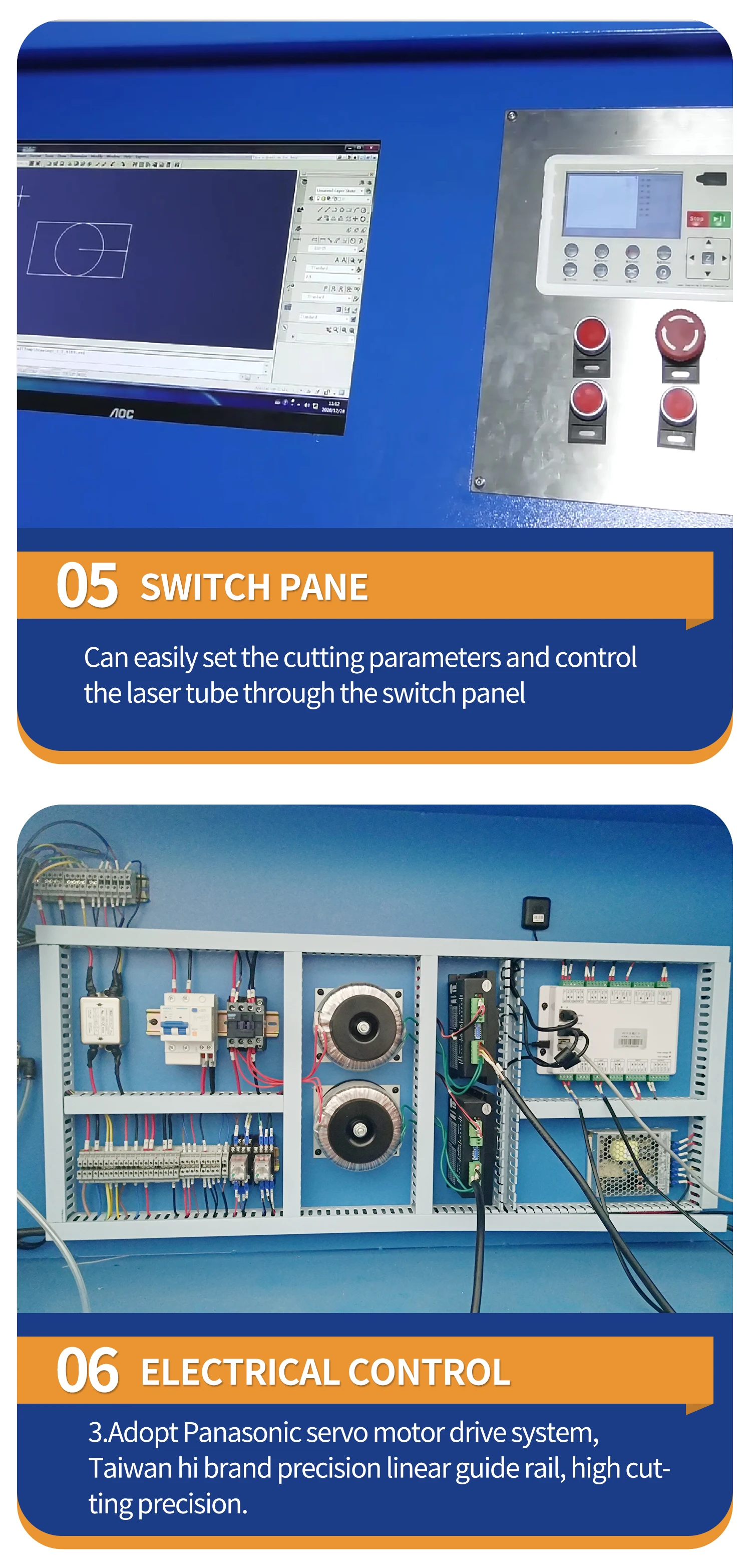

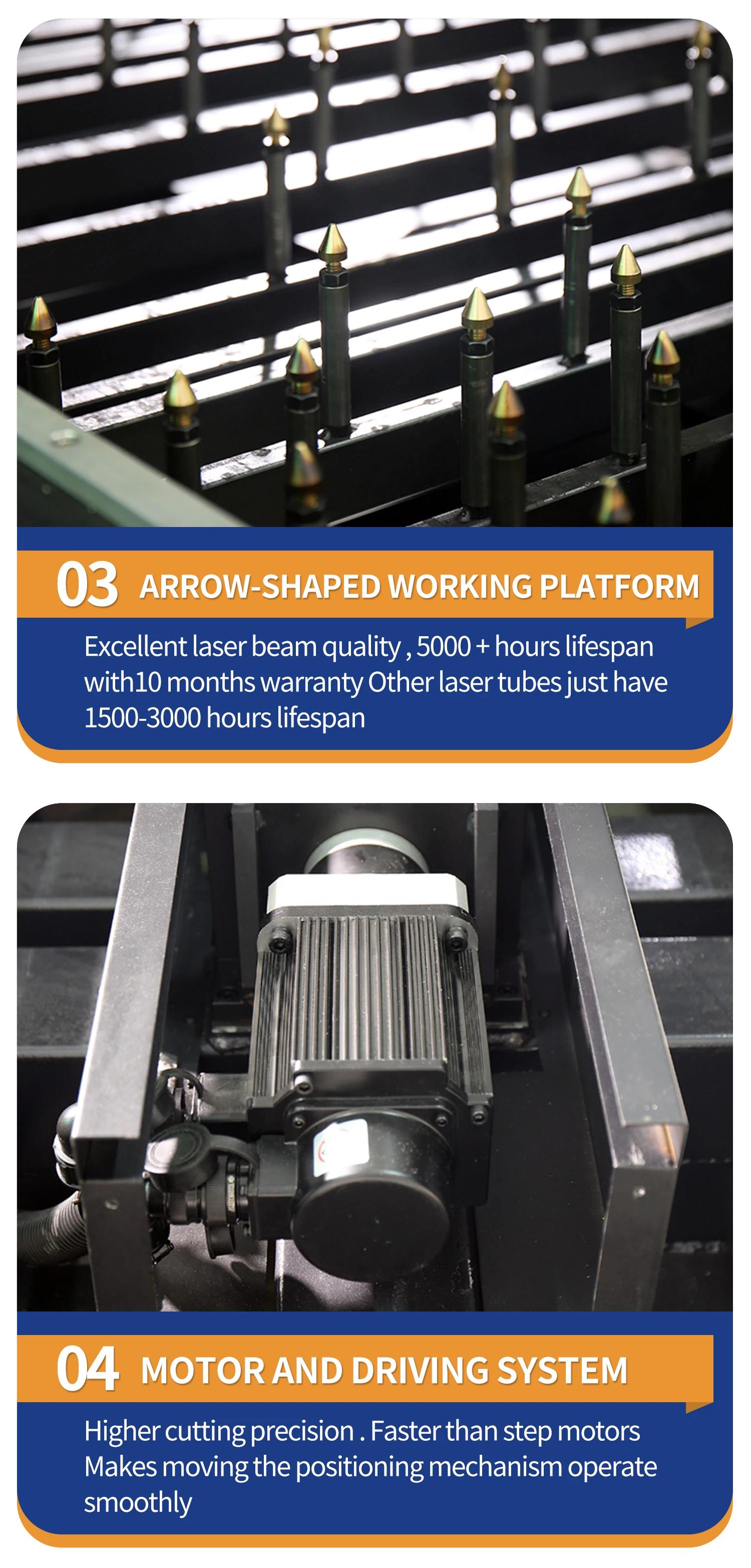

3. Adopt Panasonic servo motor drive system, Taiwan brand precision linear guide, high cutting precision.
4. Equipped with industrial laser constant temperature cooling system and freeze dryer.
5. It can optimize the mixed optical path, reduce laser refraction, simple operation and uniform slitting.
6. Equipped with high-strength and stable machine tools, the die-cutting machine can work for a long time without deformation and deformation.
7. Both sides imported precision ball screw drive (more accurate than general precision), precision electronic die error 0.05mm.
8. Non-contact production, simple operation process. Laser cutting requires no touch.








Why Choose Us

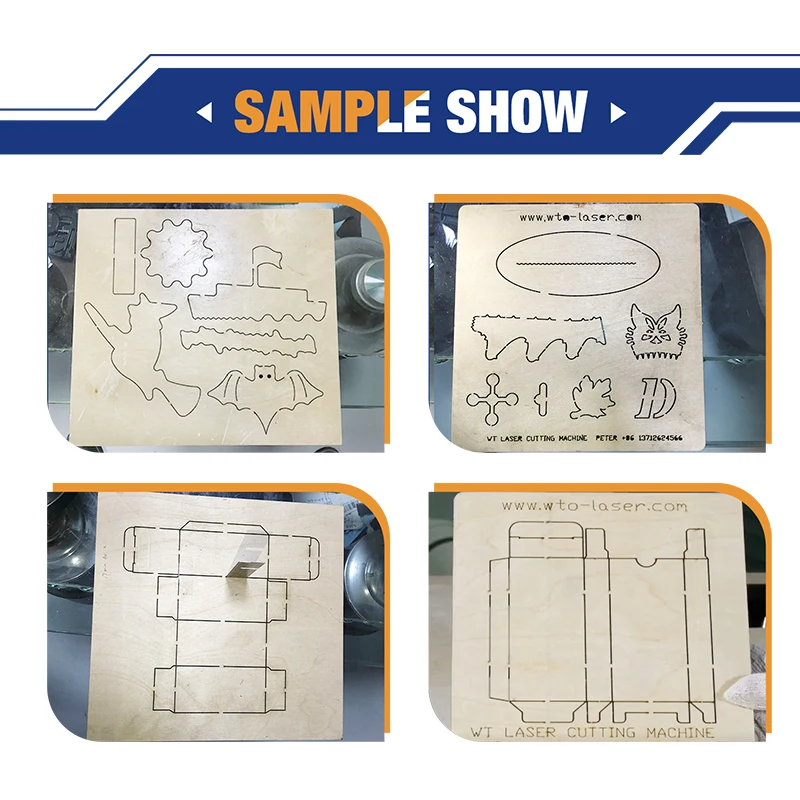

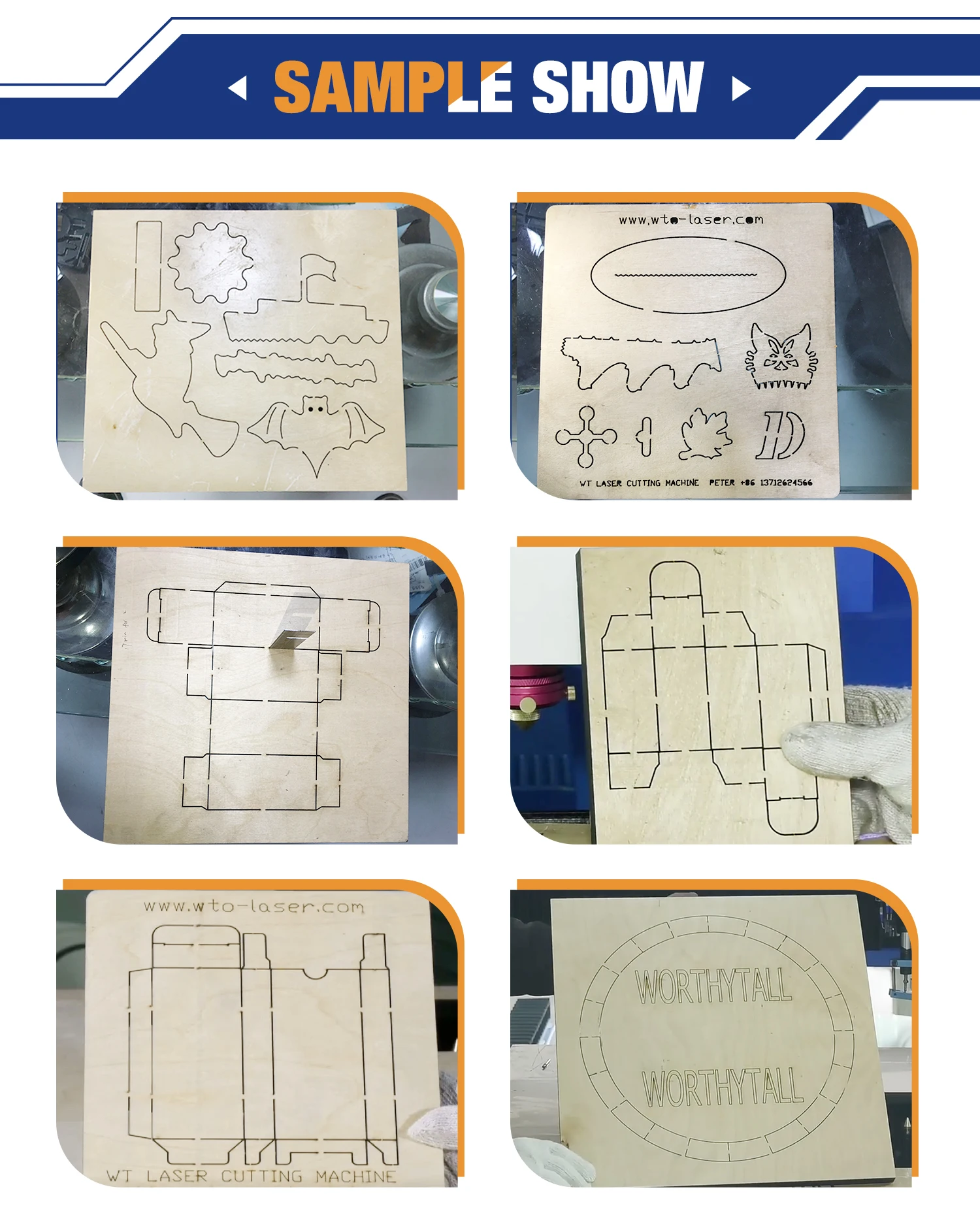

Sample Display


Applicable materials: This die-cutting machine is widely used in printing plates, die-cutting, offset plates, wood, leather, cloth
Application field: This die-cutting machine is widely used in printing factory, die-cutting factory, plastic factory, die-cutting factory, proofing factory, carton factory, packaging factory, handicraft die-cutting machine.






Exhibition






Packing&Shipping




Company Introduction




FAQ


Related Machine Working Video.

We offer the laser Die Board cutting machine for cutting die board up to 22mm, and Auto Blade bender for 1.3pt 2pt 3pt 4pt and height from 8-65mm .steel rule bender, and die cutting material like steel rule, plywood sheet.


Please check below video to know more of our machines:
1. Auto bender for 2pt and 3pt?  https://youtu.be/2pMCjEZUR_8
3. flat die board cutting 1000w? https://youtu.be/RyE7Sb0EoyY
4. flat die board cutting machine 400w/600w?  https://youtu.be/ftkd-hQG47s

5.Creasing Rule Cutting Machine?   https://youtu.be/e0w4OWajfYQ


5. How do I learn to operate Auto Blade Bender Machine?
1) User manual, CD with video will along with machine for training you how to install, how to use, and how to maintains,
2) Moreover, WhatsApp, Skype, Team viewer online service is available for you.
3) Free training will offer you on our factory, Engineer is available to offer international service!
4) Local agent service available is extending all over the world!

6.How to solve the problem when using the machine?
All of our engineers are English avaliable.We can teach you how to find the problem. engineers are Ready to serve customers 7*24hours by video call or teamviewer. if all are helplesss we can arrange engineers to solve for you in your factory within 48 hours. Noramlly it is ok to solve the problems by video call. There is no any customer need us to send engineer to repair in their factory. Because all parts of our machine is designed and produced by ourselves. We have a skilled group of engnieers. They can solve all problems by video call.

7. How about the spare parts of auto blade steel rule bender and its lifetime?
we have 10 years of mould making experience. We have all the spare parts on stock. We can send it out As soon as customer make commands to us. Normally it is ok to use at least for one year.

8. How can I become a Agent of WT Laser?

Agent all over the world is wanted, welcome to visit our factory to know more of each other for start our long term cooperation!.
