China Wholesale Industrial Ups Power Supply 30kva 10kva Three 3 Phase 20kva 150kva 100kva 60 kva 50kva Ups 80kva 200kva Price
- Category: >>>
- Supplier: Sichuan Convenient You And I Information Technology Co. Ltd.
Share on (1600690824601):
Product Overview
Description
Products Specification
China Wholesale Industrial Ups Power Supply 30kva 10kva Three 3 Phase 20kva 150kva 100kva 60 kva 50kva Ups 80kva 200kva Price
Specification | ||||||||||||||||||
Model HDSX | 4KVA | 6KVA | 8KVA | 10KVA | 15KVA | 20KVA | 25KVA | 30KVA | ||||||||||
Rated Power | 3.2KW | 4.8KW | 6.4KW | 8KW | 12KW | 16KW | 20KW | 24KW | ||||||||||
Peak Power(20ms) | 9.6KW | 14.4KW | 19.2KW | 24KW | 36KW | 48KW | 60KW | 72KW | ||||||||||
Start Motor | 3HP | 4HP | 4HP | 5HP | 7HP | 10HP | 10HP | 15HP | ||||||||||
Battery Voltage | 48/96/192VDC | 96/192/384VDC | 192/384VDC | |||||||||||||||
Size(L*W*Hmm) | 565*300*775 | 725*365*1010 | ||||||||||||||||
Packing Size(L*W*Hmm) | 625*360*895 | 785*425*1135 | ||||||||||||||||
N.W.(kg) | 65 | 73 | 80 | 122 | 134 | 160 | 176 | 189 | ||||||||||
G.W.(kg)(Wooden Packing) | 78 | 86 | 93 | 146 | 158 | 184 | 200 | 213 | ||||||||||
Installation Method | Tower | |||||||||||||||||
Specification | ||||||||||||||||||
Model HDSX | 40KVA | 50KVA | 80KVA | 100KVA | 125KVA | 150KVA | 200KVA | |||||||||||
Rated Power | 32KW | 40KW | 64KW | 80KW | 100KW | 120KW | 160KW | |||||||||||
Peak Power(20ms) | 96KW | 120KW | 192KW | 240KW | 300KW | 360KW | 480KW | |||||||||||
Starter Motor | 15HP | 20HP | 30HP | 40HP | 50HP | 60HP | 80HP | |||||||||||
Battery Voltage | 192/384VDC | 384VDC | ||||||||||||||||
Size(L*W*Hmm) | 720*575*1275 | 875*720*1380 | 1123*900*1605 | |||||||||||||||
Packing Size(L*W*Hmm) | 785*640*1400 | 980*825*1560 | 1185*960*1750 | |||||||||||||||
N.W.(kg) | 287 | 307 | 355 | 512 | 552 | 612 | 705 | |||||||||||
G.W.(kg)(Wooden Packing) | 320 | 340 | 388 | 552 | 592 | 652 | 755 | |||||||||||
Installation Method | Tower | |||||||||||||||||
Parameter | ||||||||||||||||||
Input | DC Input Voltage Range | 10.5VDC-15VDC(Single battery voltage) | ||||||||||||||||
AC Input Voltage Range | 380Vac/400Vac±10%(customized 190Vac/200Vac) | |||||||||||||||||
AC Input Frequency Range | 45Hz-65Hz | |||||||||||||||||
Max AC charging current | 20A/10A/5A | 20A/10A/5A | 25A/15A/10A | 25A/15A/10A | 30A/20A/10A | 30A/20A/10A | 45A/30A/15A | 30A/15A | ||||||||||
40A/20A | 45A/25A | 30A | 45A | 45A | 45A | 45A | ||||||||||||
AC charging method | Three-stage (constant current, constant voltage, floating charge) | |||||||||||||||||
Phase | 3/N/PE | |||||||||||||||||
Output | Efficiency(Battery Mode) | ≥85% | ||||||||||||||||
Output Voltage(Battery Mode) | 380Vac/400Vac±10%(customized 190Vac/200Vac) | |||||||||||||||||
Output Frequency(Battery Mode) | 50/60Hz ±1% | |||||||||||||||||
Output Wave(Battery Mode) | Pure Sine Wave | |||||||||||||||||
Output waveform distortion | Linear load≤3% | |||||||||||||||||
Efficiency(AC Mode) | >99% | |||||||||||||||||
Output Voltage(AC Mode) | Conforming to AC input | |||||||||||||||||
Output Frequency(AC Mode) | Conforming to AC input | |||||||||||||||||
No load loss(Battery Mode) | ≤1% rated power | |||||||||||||||||
No load loss(AC Mode) | ≤2% rated power( charger does not work in AC mode) | |||||||||||||||||
No load loss(Energy saving Mode) | ≤10W | |||||||||||||||||
Phase | 3/N/PE | |||||||||||||||||
Battery type (Optional) | U0: Gel U.S.A | Charge Voltage:14V;Float Voltage:13.7V(Single battery voltage) | ||||||||||||||||
U1: A.G.M.1 | Charge Voltage:14.1V;Float Voltage:13.4V(Single battery voltage) | |||||||||||||||||
U2: A.G.M.2 | Charge Voltage:14.6V;Float Voltage:13.7V(Single battery voltage) | |||||||||||||||||
U3: Sealed lead Acid | Charge Voltage:14.4V;Float Voltage:13.6V(Single battery voltage) | |||||||||||||||||
U4: Gel European | Charge Voltage:14.4V;Float Voltage:13.8V(Single battery voltage) | |||||||||||||||||
U5: Open lead Acid | Charge Voltage:14.8V;Float Voltage:13.5V(Single battery voltage) | |||||||||||||||||
U6: Calcuim(open) | Charge Voltage:15.1V;Float Voltage:13.6V(Single battery voltage) | |||||||||||||||||
U7: Sulphation cycle | 15.5V for 4hrs | |||||||||||||||||
customize battery | Charge and discharge parameters of different types of batteries (such as lithium batteries, etc.) can be customized according to user requirements. | |||||||||||||||||
Protection | Battery undervoltage alarm | 11V(Single battery voltage) | ||||||||||||||||
Battery undervoltage protection | 10.5V(Single battery voltage) | |||||||||||||||||
Battery overvoltage alarm | 15V(Single battery voltage) | |||||||||||||||||
Battery overvoltage protection | 17V(Single battery voltage) | |||||||||||||||||
Battery overvoltage recovery voltage | 14.5V(Single battery voltage) | |||||||||||||||||
Overload power protection | Automatic protection (battery mode), circuit breaker or insurance (AC mode) | |||||||||||||||||
Inverter output short circuit protection | Automatic protection (battery mode), circuit breaker or insurance (AC mode) | |||||||||||||||||
Temperature protection | >90°C(Shut down output) | |||||||||||||||||
Alarm | A | Normal working condition, buzzer has no alarm sound | ||||||||||||||||
B | Buzzer sounds 4 times per second when battery failure, voltage abnormality, overload protection | |||||||||||||||||
C | When the machine is turned on for the first time, the buzzer will prompt 5 when the machine is normal | |||||||||||||||||
Working Mode | Battery First/AC First/Saving Energy Mode | |||||||||||||||||
Transfer Time | ≤4ms | |||||||||||||||||
Display | LCD | |||||||||||||||||
Thermal method | Cooling fan in intelligent control | |||||||||||||||||
Communication(Optional) | RS232/RS485/APP(WIFI/GPRS) | |||||||||||||||||
Environment | Operating temperature | -10℃~40℃ | ||||||||||||||||
Storage temperature | -15℃~60℃ | |||||||||||||||||
Noise | 2000m(More than derating) | |||||||||||||||||
Elevation | ≤65dB | |||||||||||||||||
Humidity | 0%~95% ,No condensation | |||||||||||||||||
Warranty | 1 year | |||||||||||||||||
Note: All specifications are subject to charge without prior notice | ||||||||||||||||||

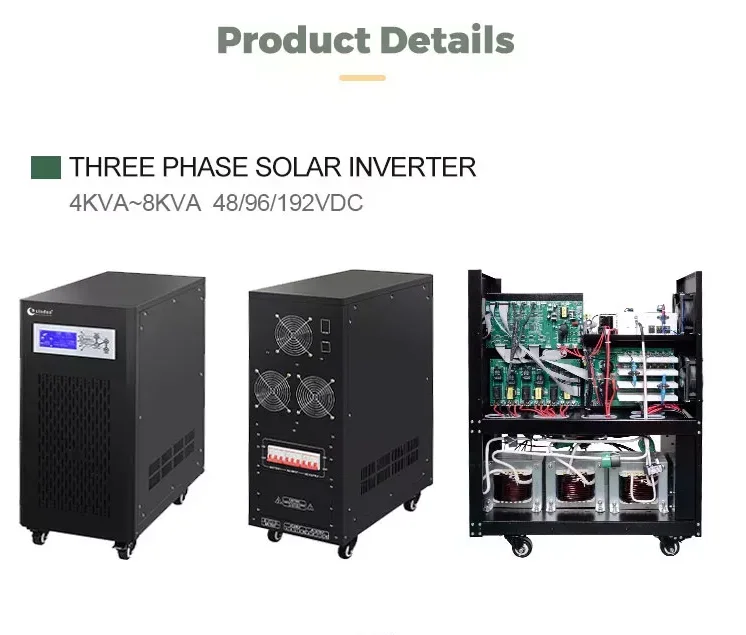

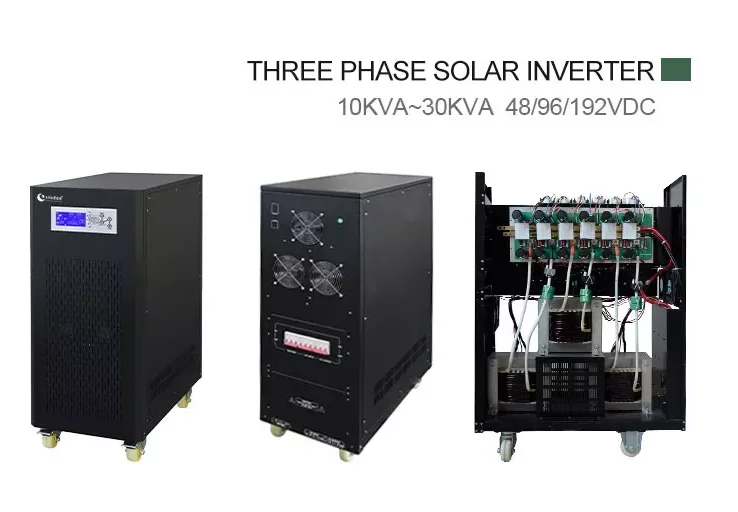

Produts Details

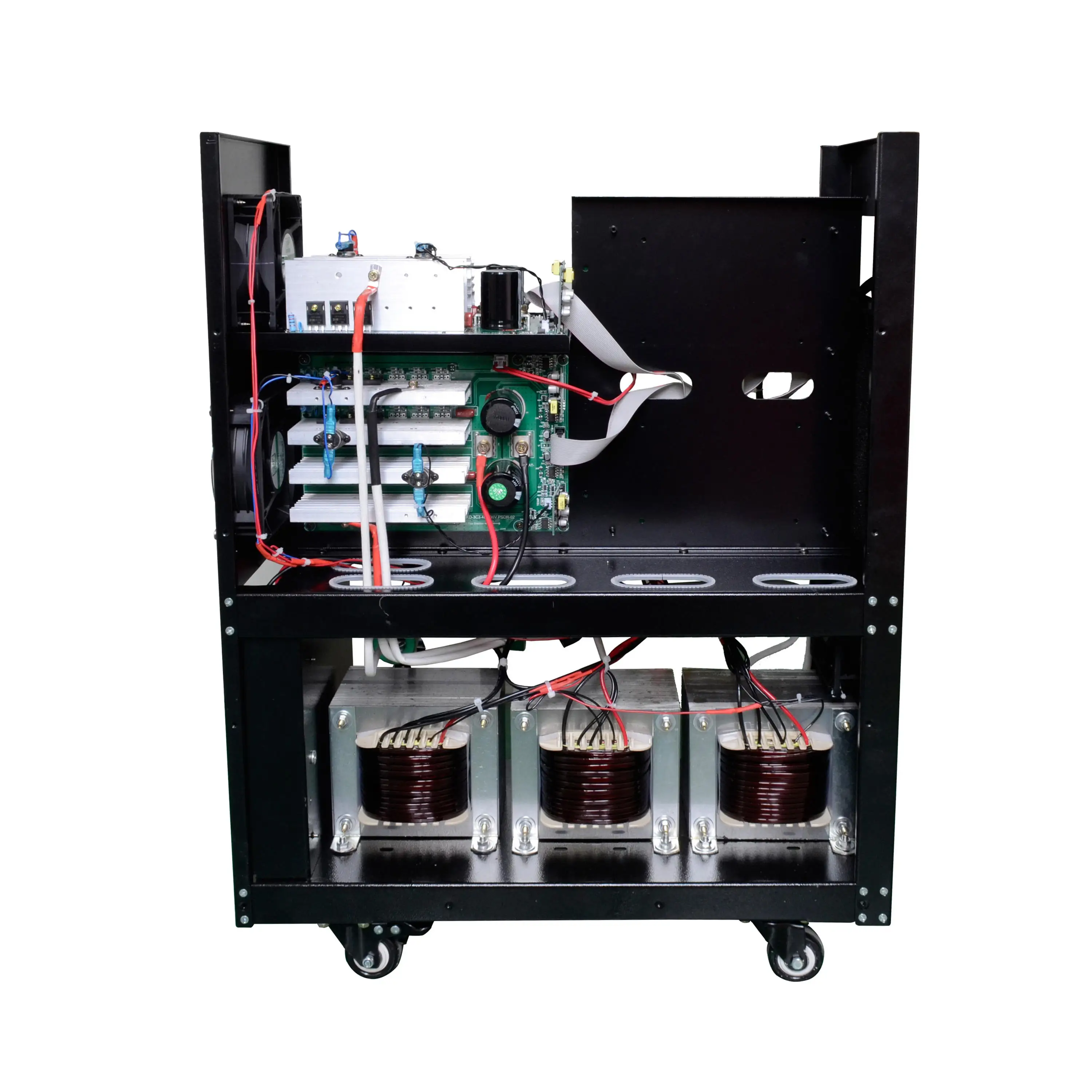

Inverter Feature
1.Pure sine wave output;
2.Low DC voltage, saving system cost;
3.Built-in PWM or MPPT charge controller;
4.AC charge current 0-45A adjustable;
5.Wide LCD screen, clearly and precisely shows icon data;

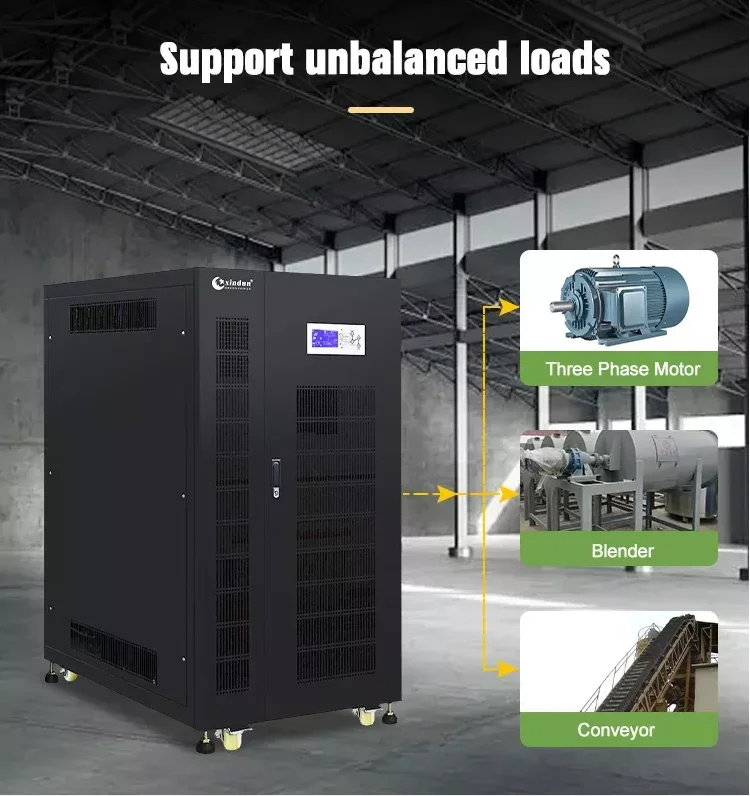

6.100% imbalance loading design, 3 times peak power.;
7.Setting different working modes based on variable usage requirements;
8.Various communication ports and Remote monitoring RS485/APP(WIFI/GPRS) (Optional).
2.Low DC voltage, saving system cost;
3.Built-in PWM or MPPT charge controller;
4.AC charge current 0-45A adjustable;
5.Wide LCD screen, clearly and precisely shows icon data;
6.100% imbalance loading design, 3 times peak power.;
7.Setting different working modes based on variable usage requirements;
8.Various communication ports and Remote monitoring RS485/APP(WIFI/GPRS) (Optional).

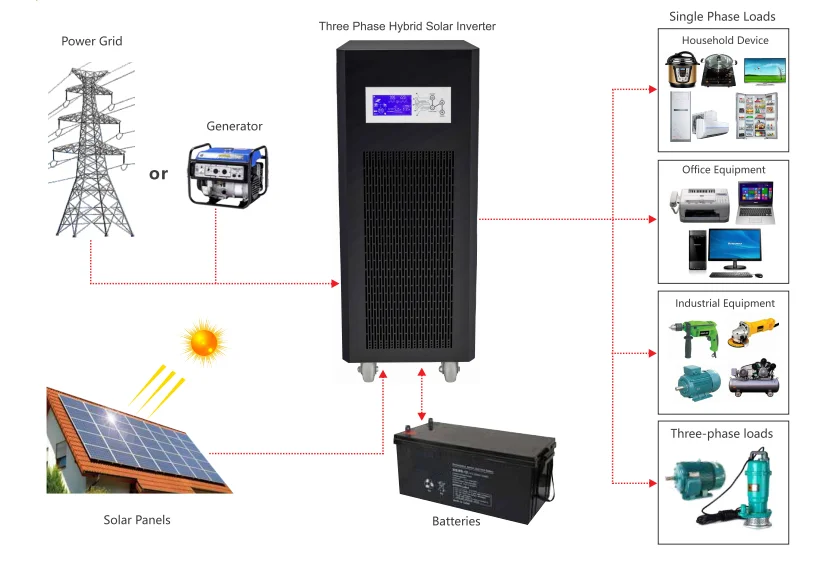

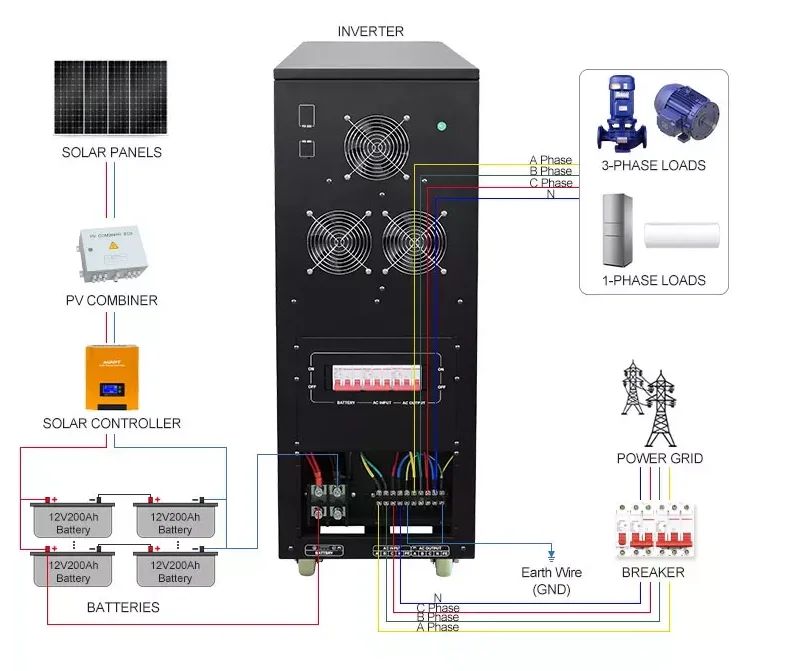

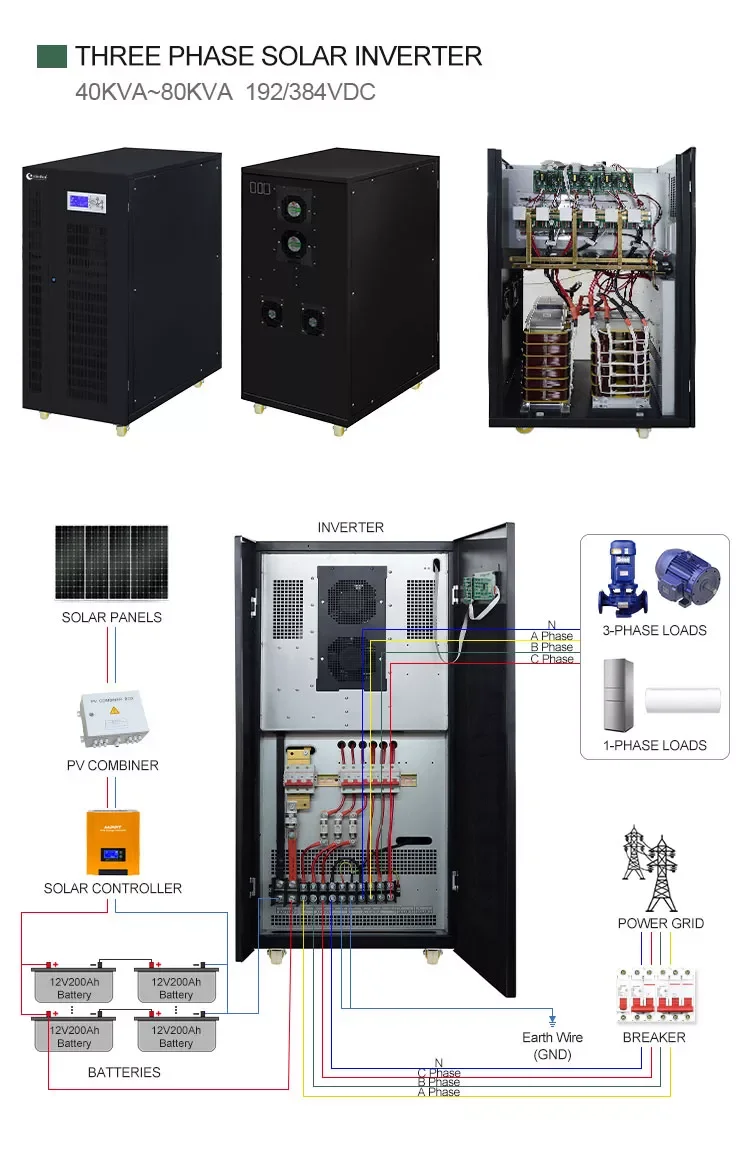

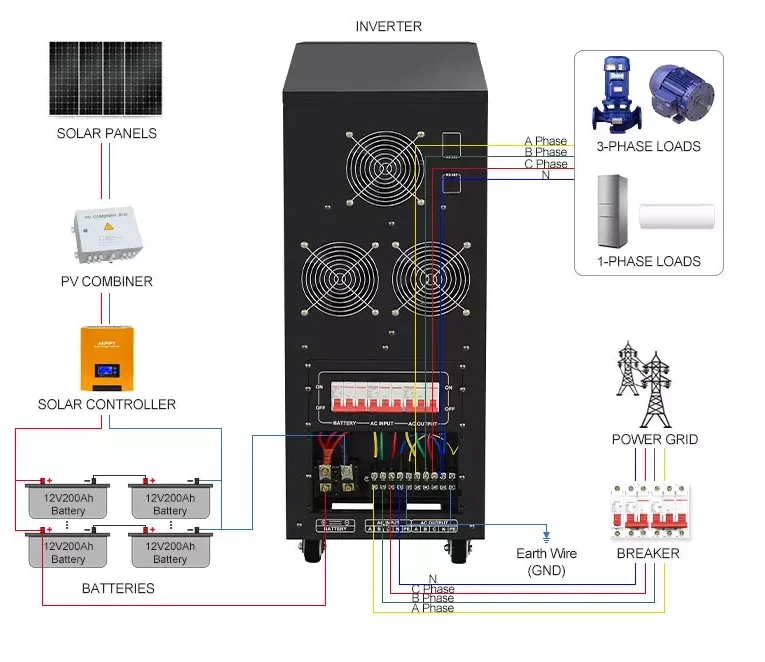

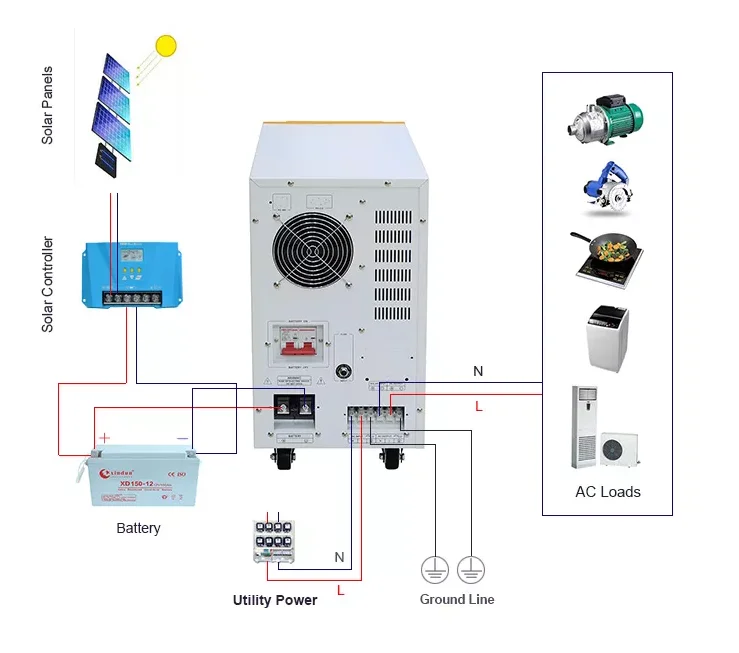

How to Use the Solar Inverter?
1. Battery number and capacity should be configured according to the rated voltage of the solar power system or inverter;
2. We offer 3 optional working modes:
01 Grid priority mode: When the grid and battery are connected to the inverter, grid will supply power to the loads directly after
voltage being stabilized and charge batteries via inverter. When the grid is cut off, the battery will automatically continue to
supply power via inverter.
02 Energy saving mode: If the power of the connected AC loads is lower than 5% of the inverter’s rated power, there will be no
output from the inverter. Only the chip of inverter is working. The power consumption of the inverter is only 1~6W. The LCD shows
the output voltage 0. If the power of the connected loads is over 5%, within 5S the inverter will automatically convert DC to AC
to supply power for the loads . The LCD shows the output voltage.
03 Battery priority mode: When the grid and battery are connected to the inverter, battery will supply power to the loads first.
When battery capacity is not enough, the grid will continue to supply power automatically.
2. We offer 3 optional working modes:
01 Grid priority mode: When the grid and battery are connected to the inverter, grid will supply power to the loads directly after
voltage being stabilized and charge batteries via inverter. When the grid is cut off, the battery will automatically continue to
supply power via inverter.
02 Energy saving mode: If the power of the connected AC loads is lower than 5% of the inverter’s rated power, there will be no
output from the inverter. Only the chip of inverter is working. The power consumption of the inverter is only 1~6W. The LCD shows
the output voltage 0. If the power of the connected loads is over 5%, within 5S the inverter will automatically convert DC to AC
to supply power for the loads . The LCD shows the output voltage.
03 Battery priority mode: When the grid and battery are connected to the inverter, battery will supply power to the loads first.
When battery capacity is not enough, the grid will continue to supply power automatically.
Packing&Delivery
Certifications
Company Profile
Sichuan Convenient you and I new energy was founded in 2013, is a leading solar photovoltaic system solutions provider, is a professional engaged in new energy industry science and technology research and development, production, sales in the integration of high-tech enterprises, the main products include solar panels, solar charge controller, solar inverter, inverter with a built-in controller, solar water pump, MC4 connector, solar power cable, gel battery, LED solar street lamp, etc.
Our foreign trade team
We are a cohesive team with nearly 10 years of cooperation. We have received many customers together. I believe that with the professionalism and service of our entire team, we can provide you with better service and create more value for you.
Our foreign trade team
Team belief: the pursuit of excellence in technology, and the pursuit of wholeheartedness in service. Do a good job of details.With your heart and win trust with sincerity. With our sincerity, in exchange for your approval.
Production workshop
This is the production workshop for inverters. The environment is bright and clean. The company implements the 8S production standard to ensure that every employee can produce high-quality products in such an environment.
Production workshop
The company always follows the following principles: the most stringent quality control system, product research and development excellence, the pursuit of the perfect combination of product quality and industrial design, to provide a variety of product solutions, to create the best social, economic and environmental benefits.
International Technical Guidance
We and the German technical team in-depth research and development of products, committed to products more efficient, convenient,energy-saving, to create more value for customers.
Professional machine production
We use advanced production machines to make our products efficient and energy-saving and generate more economic benefits.
Why Choose Us

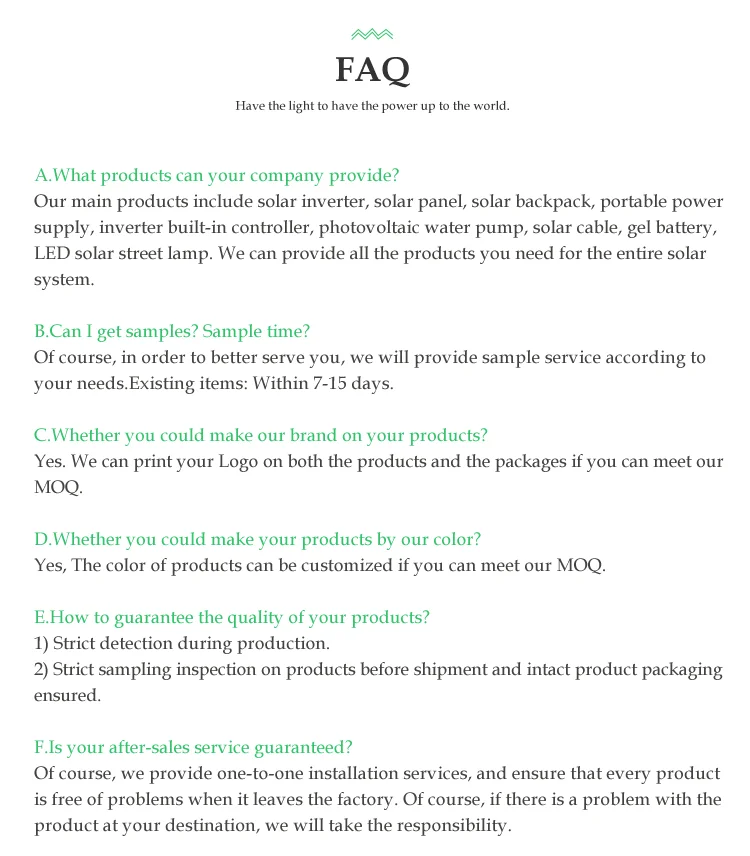

FAQ
