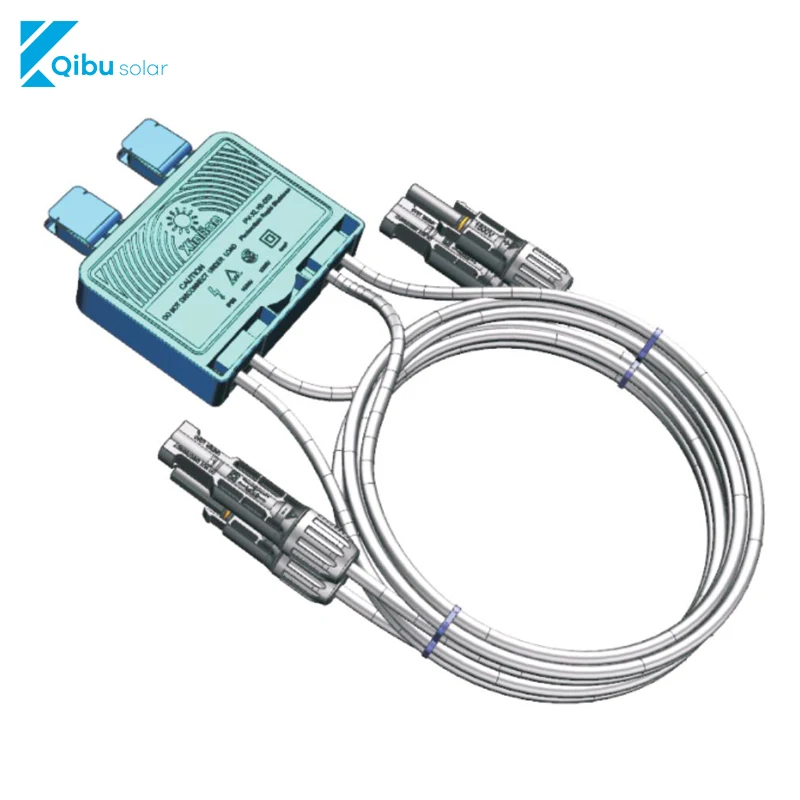

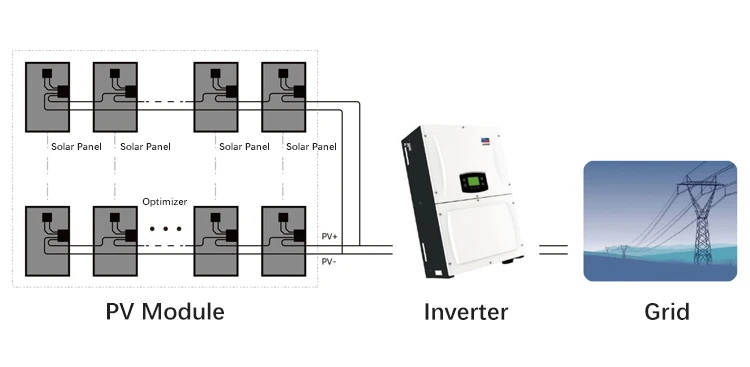

PV Module MPPT Optimizer

Introduction:

* The optimizer uses a unique software algorithm that can track the maximum powerpoint of a single module in real time. The user can choose different types of products according to the actual operating conditions of the solar panel system to solve the problem of occlusion or component electrical specifications. Differences caused by the reduction of solar panel system power generation, to achieve the maximum power output of a single module and online monitoring, improve system efficiency.

Features:

* MPPT plug-in intelligent optimizer suitable for all types of solar panel, optimization + voltage limiting + anti-hotspot;
* Based on the overall solution of digital semiconductor power optimization, current mismatch is eliminated and power generation loss is recovered;
* Solve the mismatch problems caused by occlusion, dust/snow cover, pv attenuation, pv toward, bifacial cells, etc.;
* Optimize power generation, reduce LCOE/KWH costs, improve system reliability, and extend component service life.




SPECIFICATIONS



DC Input
Max Input Power
600W
Operating Voltage Range
7~60V
MPPT Voltage Range
7~60V
Maximum Input Current
15A/Custom
Over-current Protection
25A
Over-temperature Protection
150℃



DC Output
Maximum Output Current
15A
output Voltage Limiting Threshold
42V/Custom
Total Maximum System Voltage
1500V
72 Type Module String @1500V
36 Modules
72 Type Module String @1100V
26 Modules
72 Type Module String @1000V
24 Modules



Conversion Efficiency
Peak Conversion Efficiency
99.50%
Power Consumption @5 A
0.9w
Power Consumption @8 A
1.4W
Power Consumption @12 A
2.9w
Power Consumption @15A
4.5W
Power Consumption @20 A
7.2W



Specifications
Size
105*105*20mm
Weight
500g
Cable
4.0mm²(Input 100cm*2/Output 70cm*2)
Connector
MC4 (Compatible)
Operating Temperature Range
-40℃~+65℃
Protection Rating
IP65
Standard Features
Optimization/Voltage Limiting/Anti-hotspot

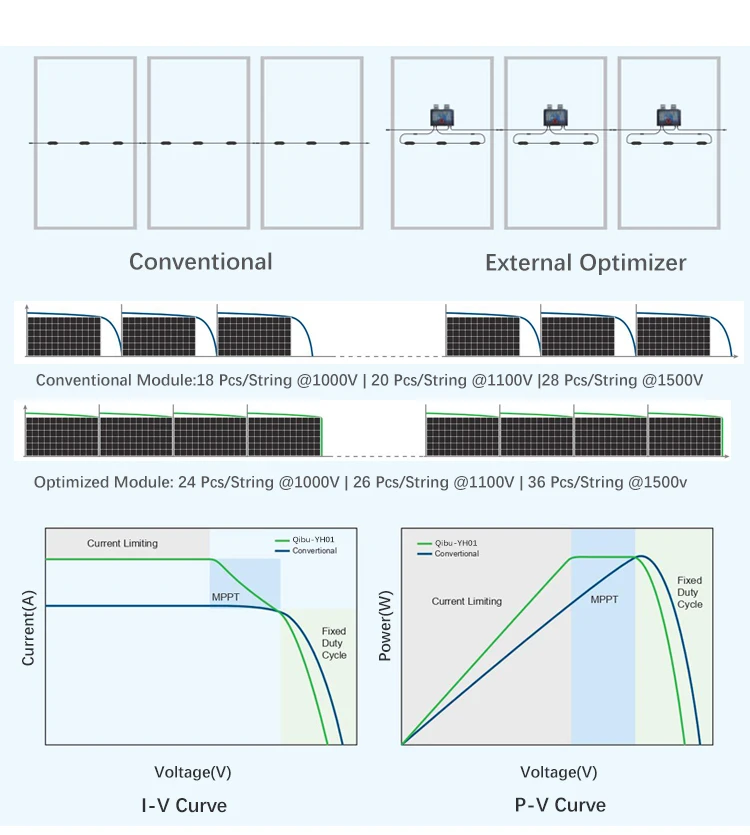

Advantage of Long String installation (Voltage Limiting)
Module & lnverter
Conventional Module
Optimized Module
Cost Reduction
Maximum Module Quty./String
1000V/53V=18Pcs
100oV/42V= 24Pcs
Module Quty add 33%
Power/String
18Pcs * 450W= 810ow
24Pcs * 45oW= 1080ow
Power add 33%
Tandem Inverter (2 strings)
8100Wx 2 strings = 16.2kW
10800W x 2 strings = 21.6kW
Cost /Wp ↓
Cable
DC Cable
string Quty/Labor Cost/Line Loss ↓
Cost /Wp ↓
string Operating Voltage
600V~700v
800v~930v
Higher System Efficiency
*166 battery | 72 Type | 450Wp Mono Module; 1000V | 20K tandem inverter

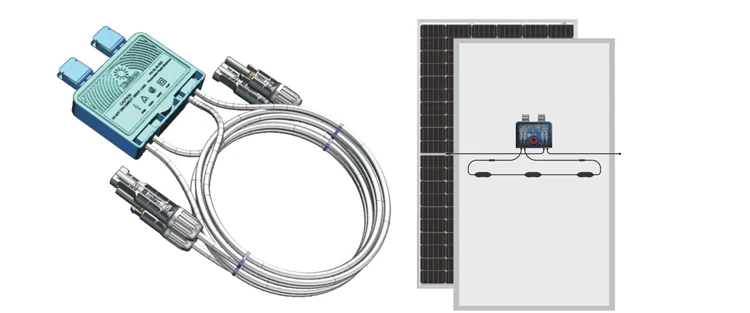

Step 1:
Before installing the optimizer, make sure that the inverter is shut down and disconnect the inverter from the solar panel.

Step 2:

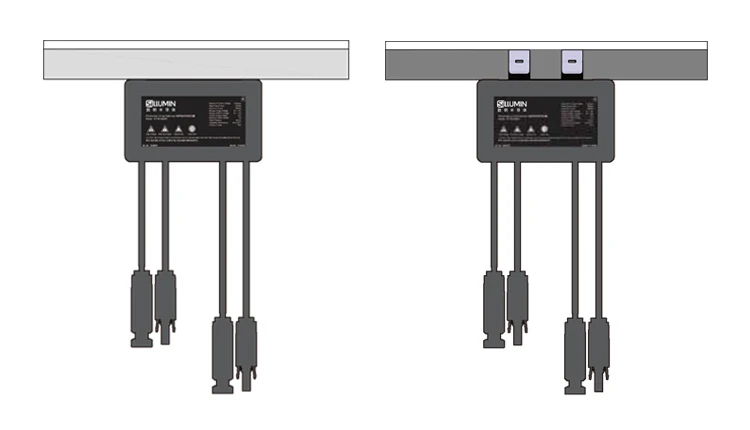

Screw installation Buckle installation


Place the optimizer into the solar panel frame in the direction shown in the figure, align the mounting screw hole with the mounting hole of the panel frame, and tighten the screws. Confirm that the optimizer is firmly fixed and the installation is complete.
Install the optimizer on the frame of the solar panel through a clip, and install the clip completely into the frame.




+IN- +OUT-
+IN- +OUT-

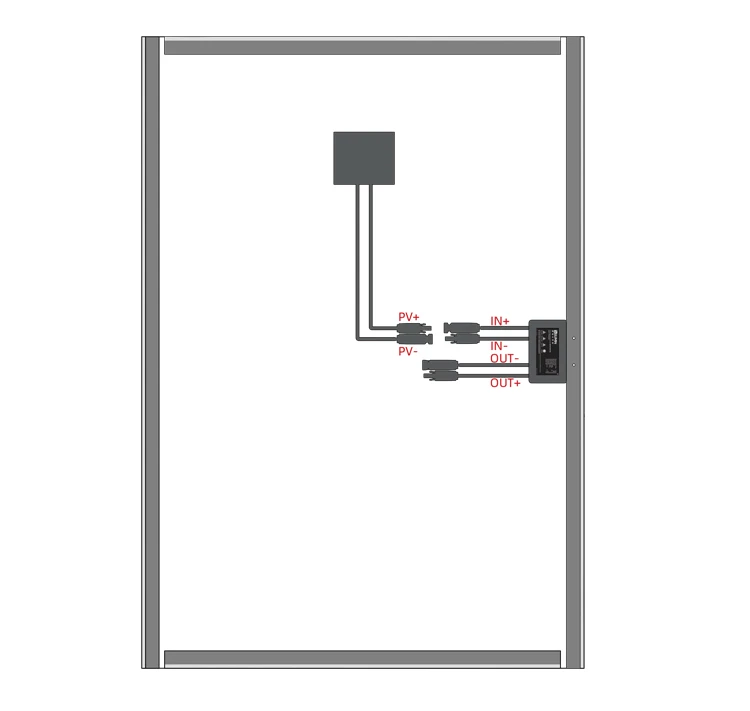

Step 3. Input line connection

1. The set of lines marked “+IN-” in the optimizer shell is the input line (a shorter pair of lines), which is connected to the output terminal of the solar panel (PV+, PV-).
2. The positive output (PV+) connector of the solar panel is connected to the positive input (IN+) connector of the optimizer.
3. The negative output (PV-) connector of the solar panel is connected to the negative input (IN-) connector of the optimizer.
4. And confirm that the joint is firmly connected.

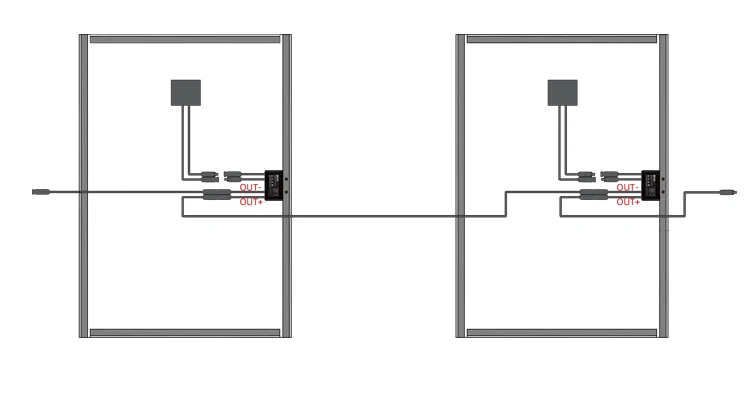

Step 4: The output line is connected to form a string

1. After the input line is connected, connect the output lines of the optimizer in series in turn.
2. Connect the positive output (OUT+) connector of the first optimizer in the string to the negative output (OUT-) connector of the second optimizer in the string; repeat the above actions until the string connection is completed.




Step 5: String integrated inverter

After confirming that the entire string is connected correctly, the string is incorporated into the post-stage inverter or combiner box.

Step 6:

Inverter turned on After confirming that the system connection is correct, turn on the inverter.
