Nitinol one way shape memory alloy nitinol spring
- Category: >>>
- Supplier: Baoji Hanz Material Technology Co. Ltd.
Share on (1600690841573):
Product Overview
Description

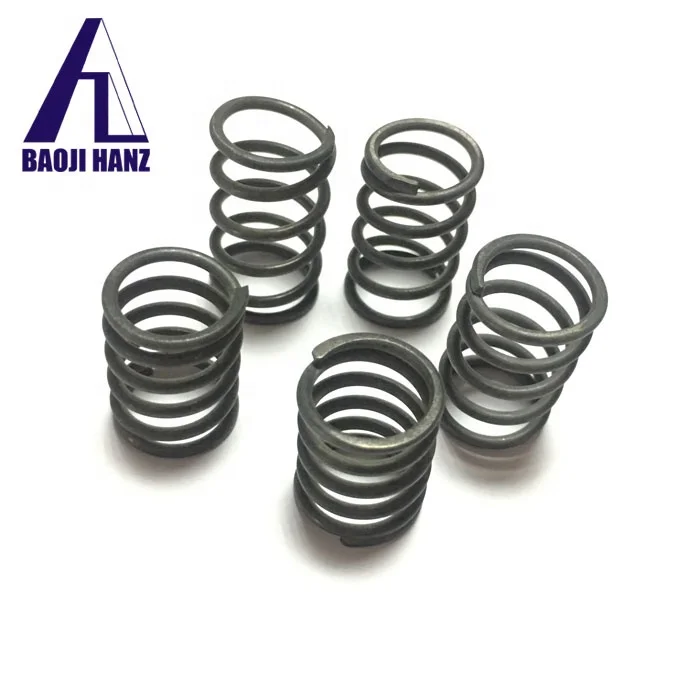

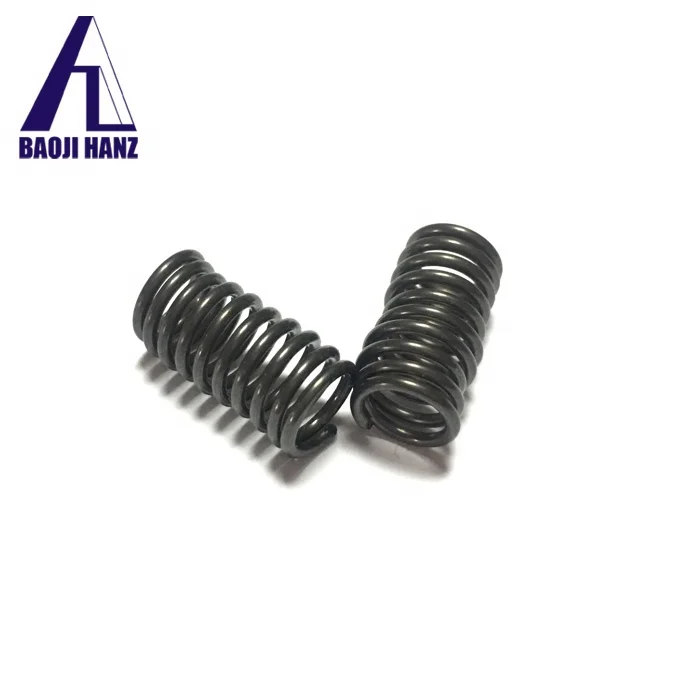

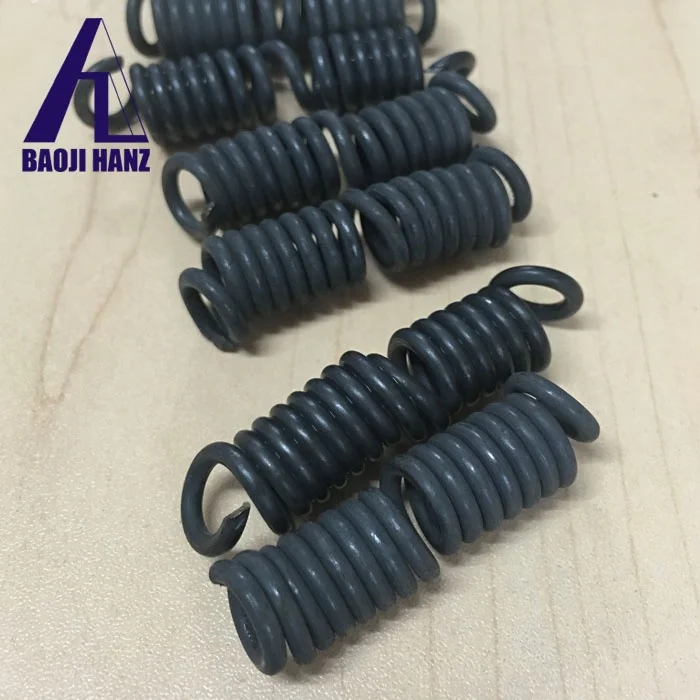

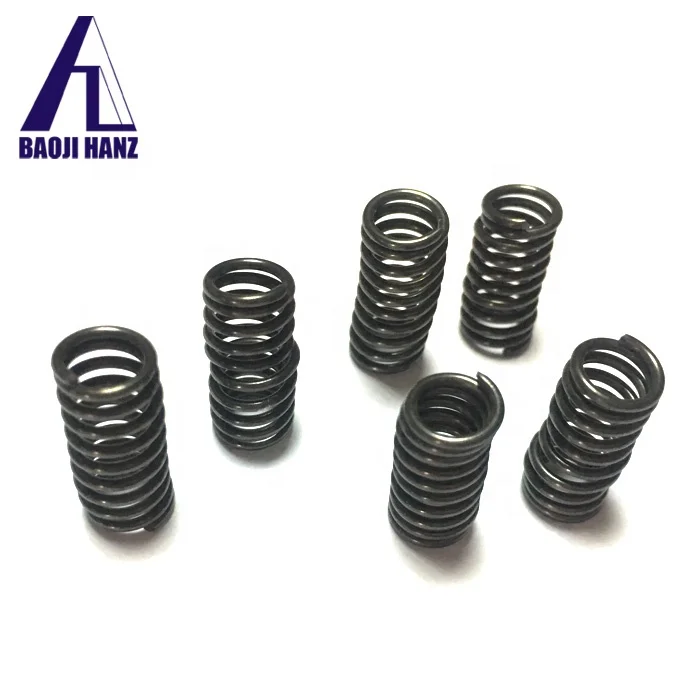

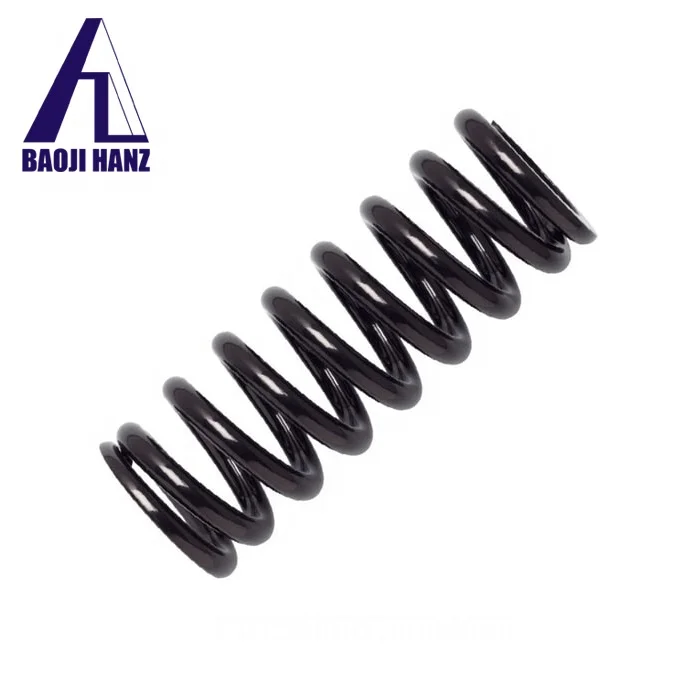

Nitinol one-way shape memory alloy spring

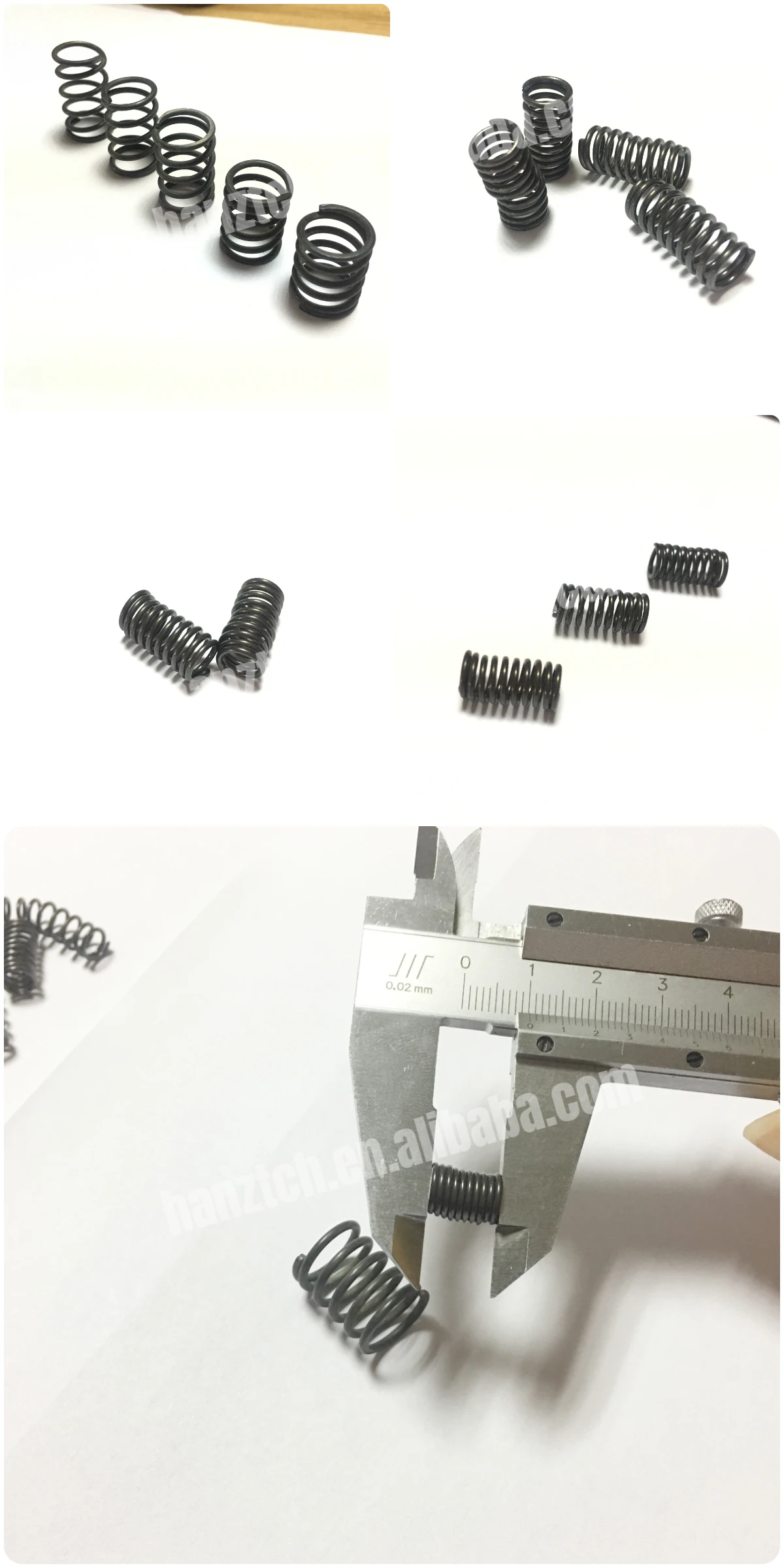

Detailed Images
Product Description
| Name | Grade | Transformation Temperature AF | Form | Standard |
Shape Memory Nitinol Alloy | Ti-Ni-01 | 20 °C~ 40 °C | Wire, bar, plate
| Customer specified or Industry standard |
Ti-Ni-02 | 45 °C~ 90 °C | |||
Superelastic Nitinol Alloy | TiNi-SS | -5 °C~ 5 °C | ||
Low Temperature Superelastic Nitinol Alloy | TN3 | -5°C~ -15°C -20°C~ -30°C | ||
TNC | ||||
Medical Nitinol Alloy | TiNi-SS | 33 ± 3 °C |
| ASTM F2063 |
Narrow Hysteresis Nitinol Alloy | Ti-Ni-Cu | As-Ms ≤ 5 °C |
Wire, bar | |
Wide Hysteresis Nitinol Alloy | Ti-Ni-Fe | As-Ms ≤ 150 °C |
1..Size: superelastic nitinol wire 1.5mm
Wire:Dia0.05-6.0mm
Bar:Dia3.0mm—20mm
Sheet: Thickness 0.3-10.0mm Width≤400mm Length≤2500mm
2.Surface State Options: Nitinol one-way shape memory alloy spring
♣ Black oxide surface
♣ As cleaned surface
♣ Medical grade polished surface
♣ Centerless ground surface
3. Chemical composition:
Ni: 55.4% --56.2% C≤0.07 H≤0.005 O≤0.050 N:≤ 0.05
4.ApplicationoNitinol one-way shape memory alloy spring
cell phone antenna, children's toys, experimental materials, glasses leg, women bra, Women's Sports Central,arch wires, instruments, and medical equipment, such as surgical stitching wire,
birth control loop and other areas of high-quality memory alloy wire.
ASTM F2063 polished nitinol dental implant wire
5.Standard: Nitinol one-way shape memory alloy spring
ASTM F2063-05 Q/XB1516 Customer specified or Industry Standard
Alloy | Chemical composition | Af (Fully annealed) | Min. elongation to failure [%] | Max. Residual elongation after 6% strain [%] | Main Applications | |
Superelastic Ni-Ti alloy | TiNi-SS | Ti-50.8at% | -5°C ± 5°C. | 10 | 0.1 | Eyeglass Frames, Cellular Phone Antennae, Bra Underwire |
TN3 TNC | TiNiVAl TiNiCr | -40°C ~50°C | 10 | 0.1 | ||
Body temperature Ni-Ti alloy | TiNi-YY | Ti-50.7at%Ni | Functional Af=33 ± 3 | 15 | 0.1 | Implantable devices,Bone staples Vascular Stents |
Ti-Ni-01 | 55.6~55.8 wt%Ni | 20 - 40 | 15 | 0.1 | Guide wires, Stents Orthodontic Arches | |
High temperature Ni-Ti alloy | Ti-Ni-02 | 54.8~55.5wt%Ni | 45 - 95 | 10 | 0.1 | Implantable active devices, Surgical tools, Thermostats Coffeepots |
TiNiCu | TiNiCu | As-Ms ≤ 5 | 10 | 0.1 | ||
Nitinol Shape Memory Alloys undergo a phase transformation in their crystal structure when cooled from the stronger, high temperature from (Austenite) to the weaker, low temperature from (Martensite). This inherent phase transformation is the basis for the unique properties of these alloys - in particular, Shape Memory and Superelasticity.
Shape Memory of superelastic nitinol wire 1.5mm
When shape memory alloys are in their martensitic form, they are easily deformed to a new shape. However, when the alloy is heated through its transformation temperatures, it reverts to austenite and recovers its previous shape with great force. This process is knows as Shape Memory.
The temperature at which the alloy remembers its high temperature from when heated can be adjusted by slight changes in alloy composition and through heat treatment. In the Nickel Titanium alloys, for instance, it can be changed from above +100 deg. C to below -100 deg. C. The shape recovery process occurs over a range of just a few degrees and the start or finish of the transformation can be controlled to within a degree or two if necessary.
Superelasticity of superelastic nitinol wire 1.5mm
These unique shape memory alloys also show a Superelastic behavior if deformed at a temperature which is slightly above their transformation temperatures. This effect is caused by the stress-induced formation of some martensite above its normal temperature. Because it has been formed above its normal temperature, the martensite reverts immediately to undeformed austenite as soon as the stress is removed. This process provides a very springy, "rubberlike" elasticity in these alloys.
