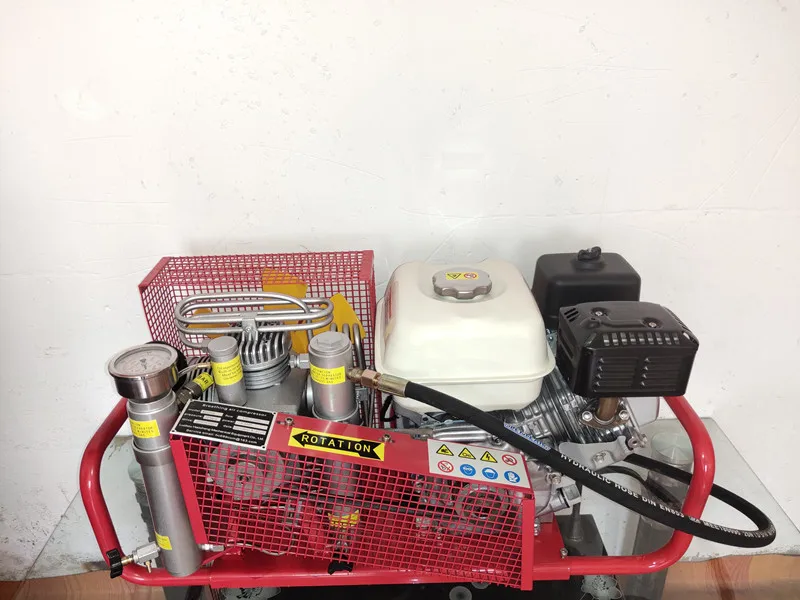

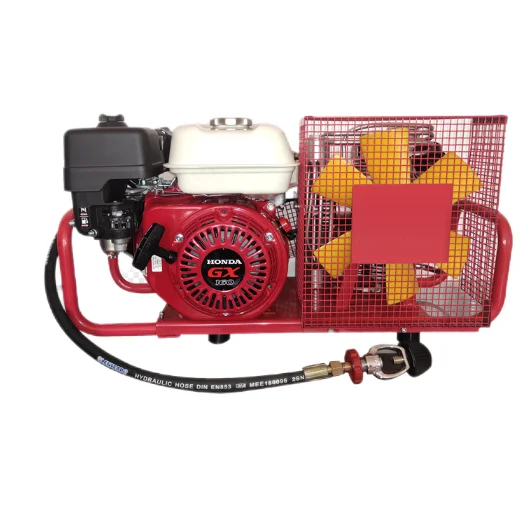

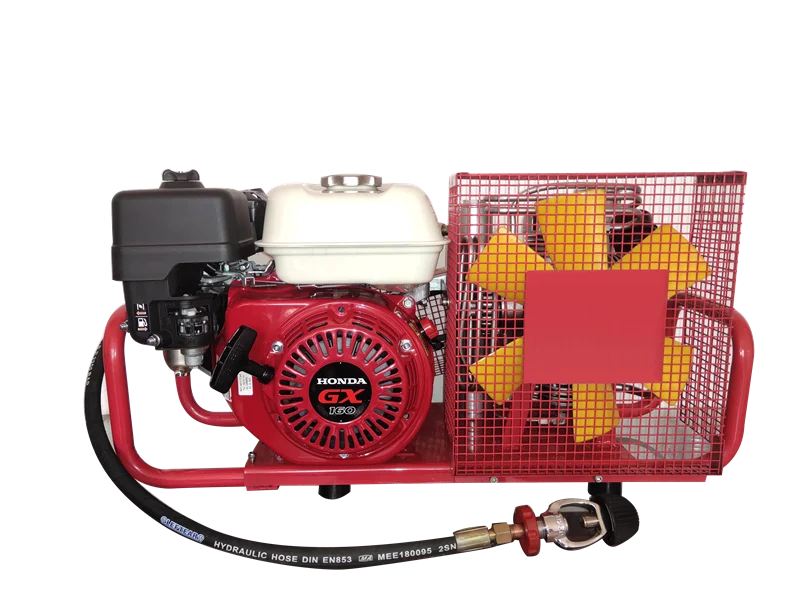

High Purity scuba diving oxygen refill High Pressure Air compressor by Gasoline Drive
- Category: >>>
- Supplier: Xuzhou Huayan Gas Equipment Co. Ltd.
Share on (1600690858801):
Product Overview
Description
High Purity scuba diving oxygen refill High Pressure Air compressor by Gasoline Drive
Product Paramenters
Model：HC-X100/EM/ET/SH
Work pressure：30Mpa Mpa(300bar)
Displacement (inhalation state)：100L/min L/min
Type：X-type layout-four-cylinder four-stage reciprocating piston compression
Work pressure：30Mpa Mpa(300bar)
Displacement (inhalation state)：100L/min L/min
Type：X-type layout-four-cylinder four-stage reciprocating piston compression

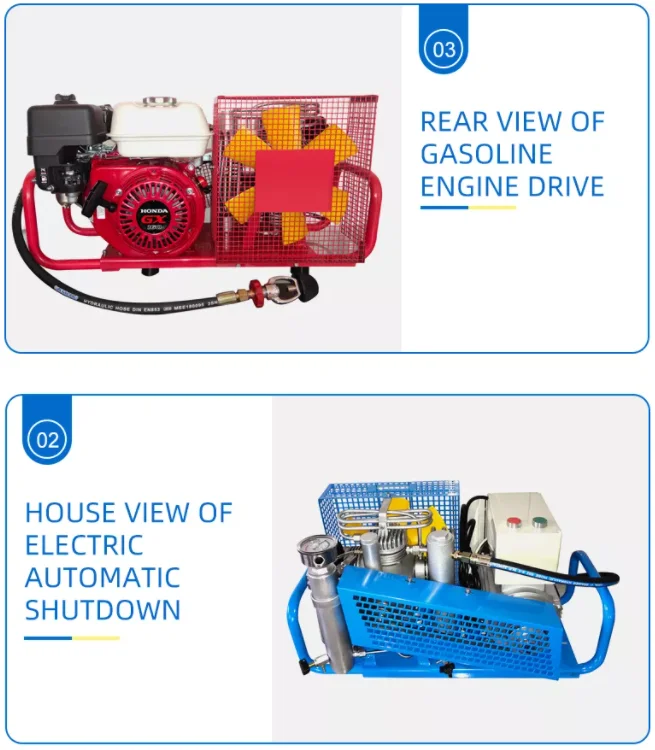

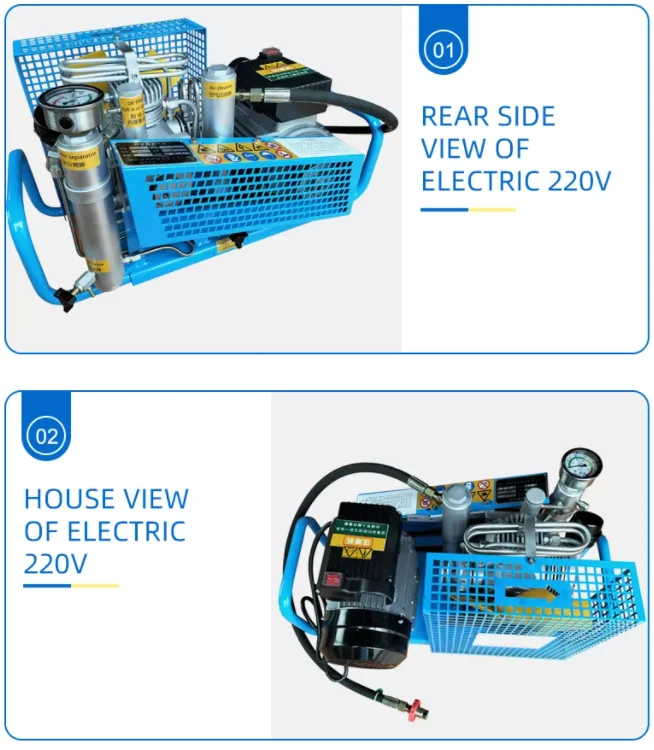

Drive：Electric 220V/50Hz/2.2kw or 380V/50Hz/3kw or Honda gasoline engine drive
Lubrication method：Splash lubrication
Cooling method：Air-cooled
Control method：Manual shutdown or (optional to automatically shut down to pressure)
Clean air：1 air filtration, 1 oil-water separation, 1 air purification
Safety devices：Final stage installation valve, transmission part installation protective cover
Packing size (length×width×height)：60×36×43cm
Weight：45kg
Inflation speed：It takes about 22 minutes to fill a 6-liter bottle with 30Mpa
Certified product：CE certification, MA test report
Packing List：Instruction manual, safety inspection report certificate, 1 set of inflation hose and joint, 1 bottle of standard lubricating oil.
Lubrication method：Splash lubrication
Cooling method：Air-cooled
Control method：Manual shutdown or (optional to automatically shut down to pressure)
Clean air：1 air filtration, 1 oil-water separation, 1 air purification
Safety devices：Final stage installation valve, transmission part installation protective cover
Packing size (length×width×height)：60×36×43cm
Weight：45kg
Inflation speed：It takes about 22 minutes to fill a 6-liter bottle with 30Mpa
Certified product：CE certification, MA test report
Packing List：Instruction manual, safety inspection report certificate, 1 set of inflation hose and joint, 1 bottle of standard lubricating oil.
Manufacturing Technique

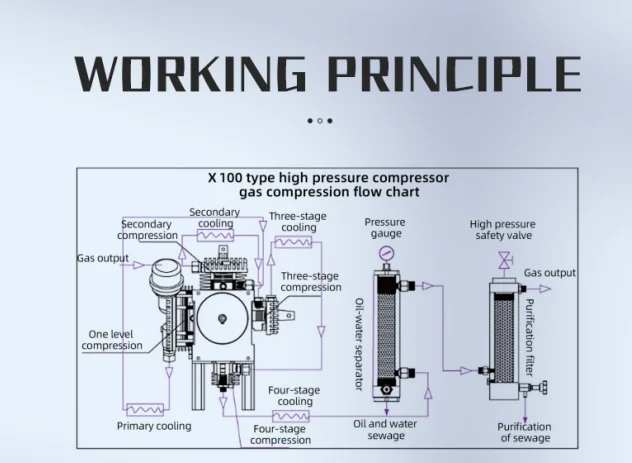

This product is mass-produced after design changes and optimizations in accordance with the Italian model. The final piston adopts a special process, and the piston ring adopts the Japanese Riken process. Unanimous praise from users. This product adopts four-cylinder four-stage compression, splash lubrication, last-stage safety valve and filter system. HC-X100 can provide safe compressed air for any industry that requires high-pressure pure air source, and provide safe compressed air that meets the requirements of human breathing. This product is designed, produced and tested and accepted in accordance with the requirements of GB/T 12929-2008 "Marine High Pressure Piston Air Compressor"; the air quality meets the EN12021 international breathing compressor breathing standard; HC-X100 is a kind of air compression equipment, which will be free 1 kg (1bar/0.1Mpa) of air in the state is compressed to a high-pressure gas with a gauge pressure of 300 kg (300bar/30Mpa) step by step. After passing through the separator and filter in the unit, the air is removed from the The oil and impurities in the high-pressure air can filter the fine particles (PM2.5) in the inhaled air to a safety value of less than 10 micrograms, which meets the standards set by the World Health Organization, making the exhaust gas clean and tasteless. The personnel provide highly purified, clean, odorless, safe and reliable compressed breathing air.
Specification
Work pressure | Displacement （L/min） | Power （KW） | Motor （V） | Rotate speed （rpm) | Compressor grade | Noise （dB） | Cooling Method | Dimension （cm) | |
HC-X100Q | 30 | 100 | 5.5hp | Gasoline | 2800 | 4 | ≤80 | Air-cooling | 50×33×52 |
HC-X100D | 30 | 100 | 2.2 | 220/380 | 2800 | 4 | ≤80 | Air-cooling | 50×33×52 |
HC-W200D | 30 | 200 | 4 | 380 | 1100 | 3 | ≤85 | Air-cooling | 100×60×72 |
HC-W300D | 30 | 300 | 5.5 | 380 | 1250 | 3 | ≤85 | Air-cooling | 100×60×72 |
HC-W400D | 30 | 400 | 7.5 | 380 | 1360 | 3 | ≤85 | Air-cooling | 100×60×72 |
HC-W400DZ | 30 | 400 | 7.5 | 380 | 1360 | 3 | ≤70 | Air-cooling | 130×70×108 |

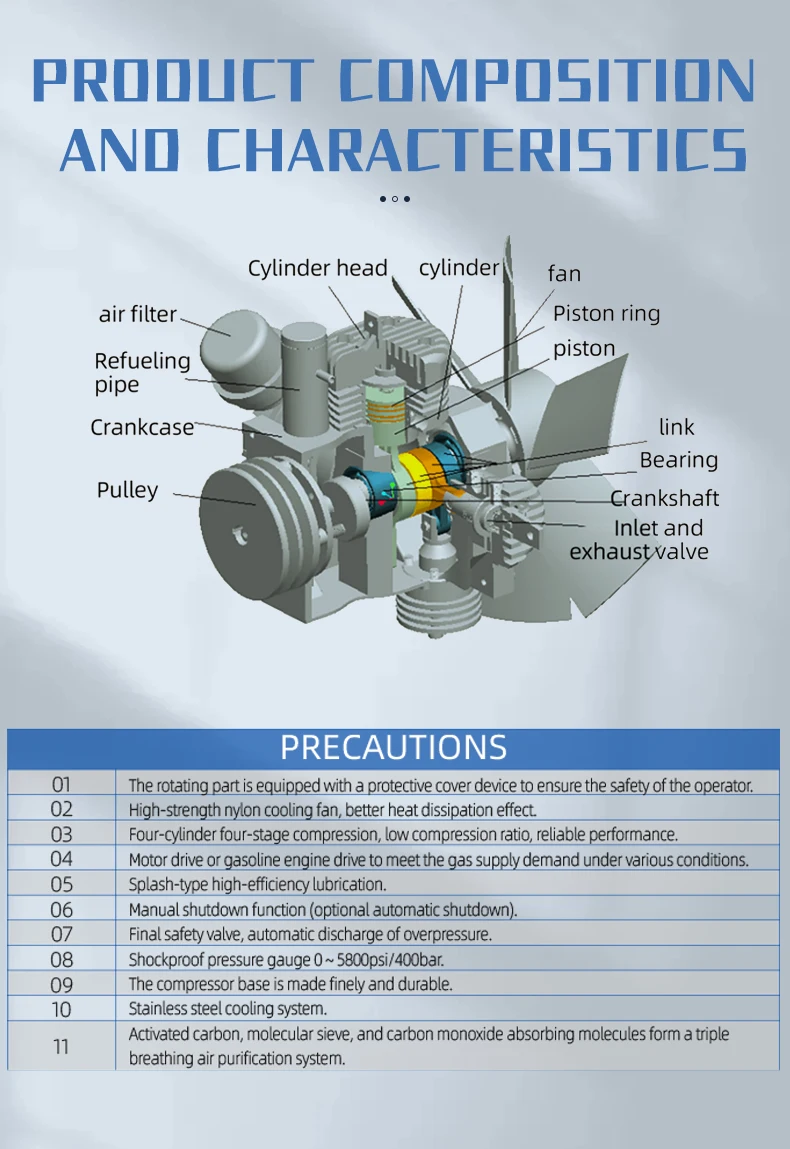

Product composition and characteristics
The rotating part is equipped with a protective cover device to ensure the safety of the operator;
High-strength nylon cooling fan, better heat dissipation effect;
Four-cylinder four-stage compression, low compression ratio, reliable performance;

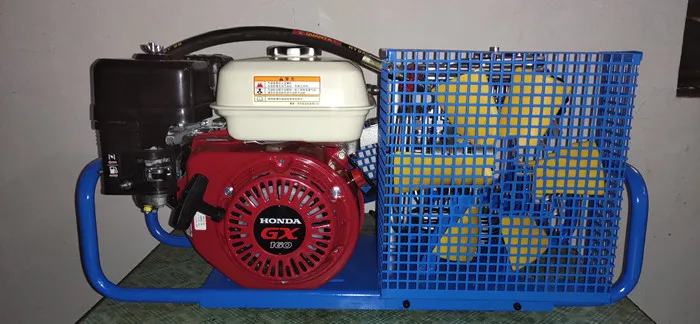

Motor drive or gasoline engine drive to meet the gas supply demand under various conditions;
Splash-type high-efficiency lubrication;
Air filter (paper filter element)
Oil-water separator (standard with manual blowdown)
Air purification system (standard with manual blowdown) activated carbon, molecular sieve, carbon monoxide absorption molecules constitute a triple breathing air purification system, reusable packing cartridge, simple and convenient replacement, saving cost
Manual shutdown function (optional automatic shutdown)
Final safety valve, automatic discharge of overpressure
Shockproof pressure gauge 0～5800psi/400bar
The compressor base is made finely and durable;
Stainless steel cooling system;
High-strength nylon cooling fan, better heat dissipation effect;
Four-cylinder four-stage compression, low compression ratio, reliable performance;
Motor drive or gasoline engine drive to meet the gas supply demand under various conditions;
Splash-type high-efficiency lubrication;
Air filter (paper filter element)
Oil-water separator (standard with manual blowdown)
Air purification system (standard with manual blowdown) activated carbon, molecular sieve, carbon monoxide absorption molecules constitute a triple breathing air purification system, reusable packing cartridge, simple and convenient replacement, saving cost
Manual shutdown function (optional automatic shutdown)
Final safety valve, automatic discharge of overpressure
Shockproof pressure gauge 0～5800psi/400bar
The compressor base is made finely and durable;
Stainless steel cooling system;

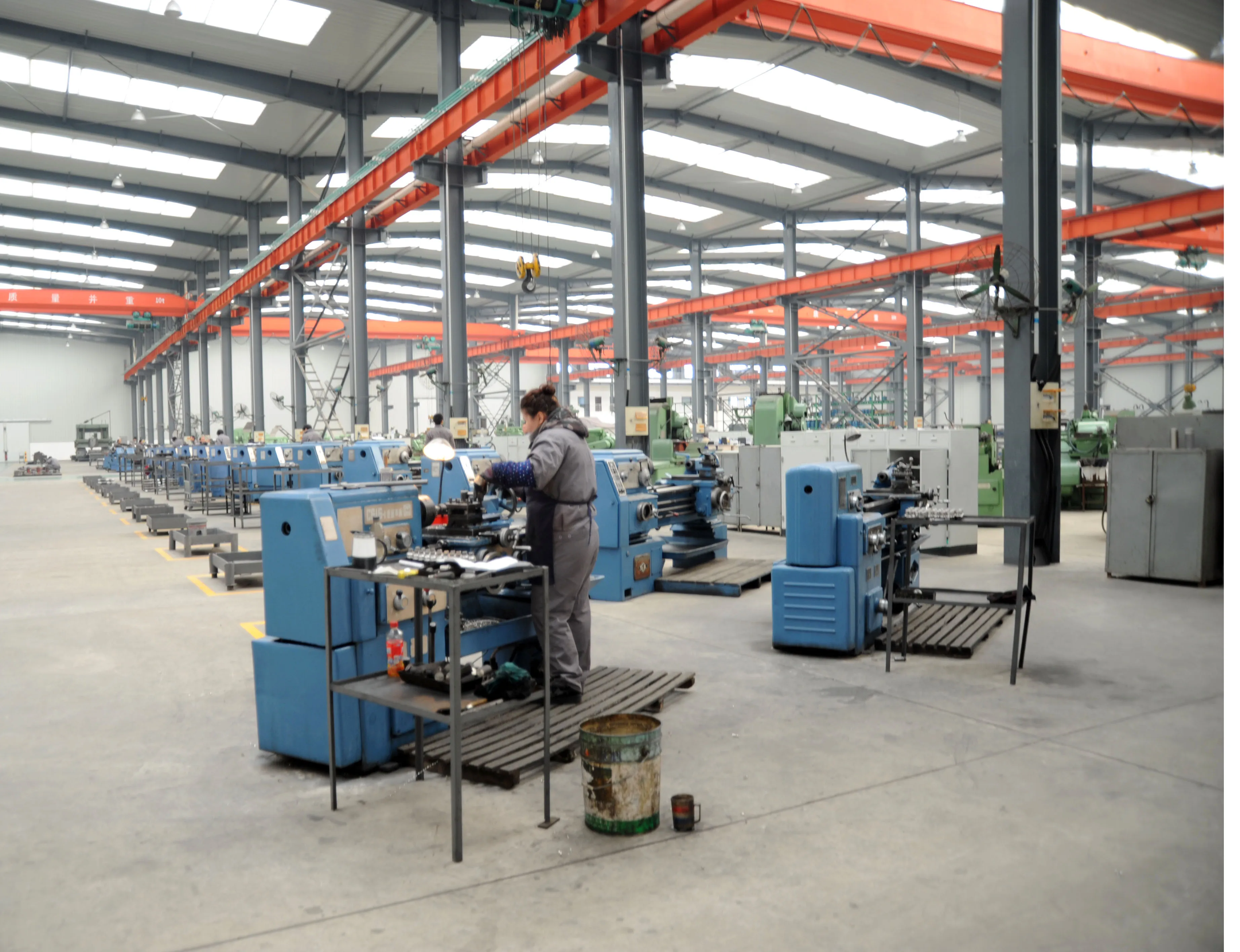

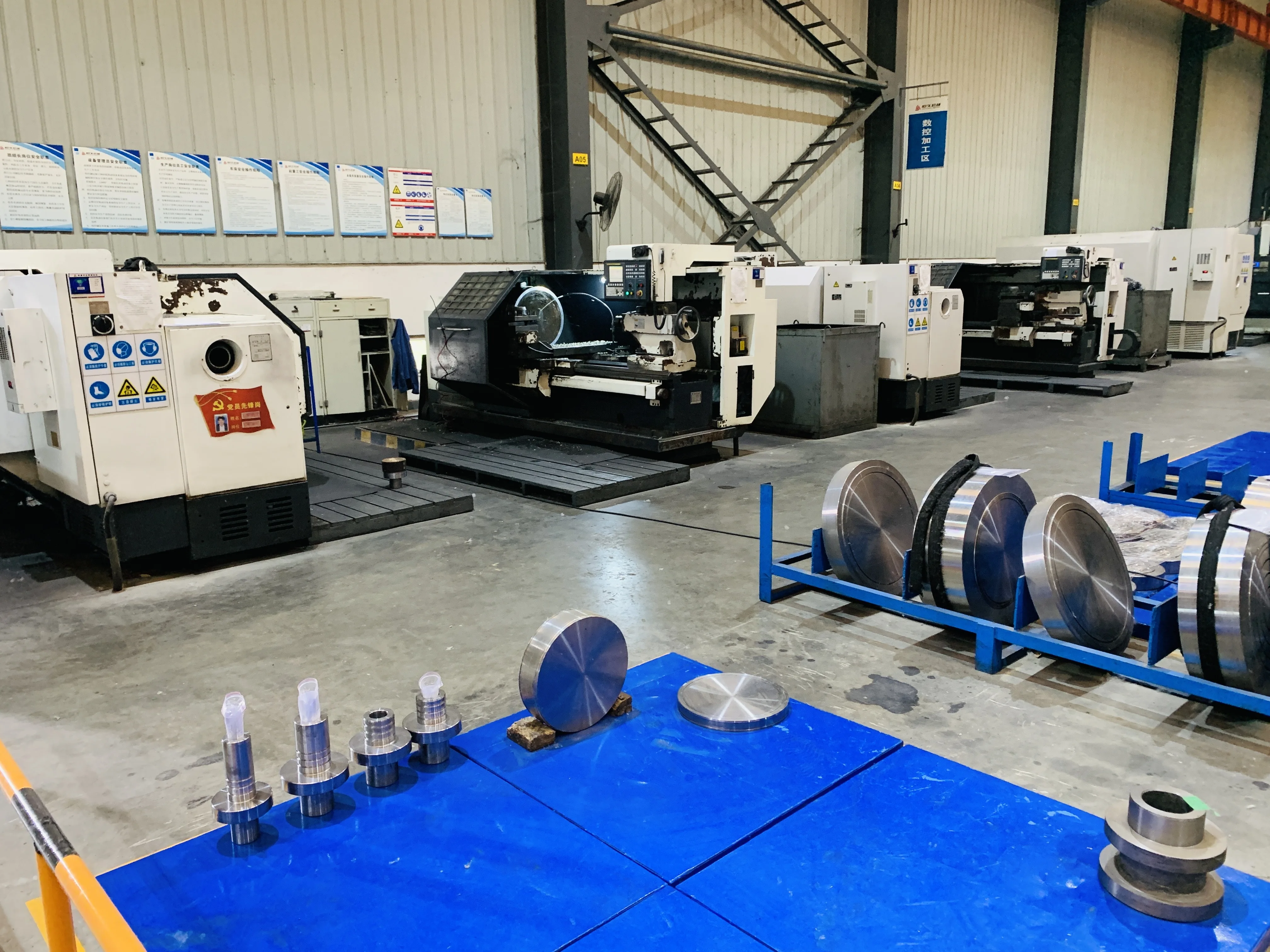

Company Profile
Huayan Gas Equipment Co., Ltd. is a professional high-pressure gas compressor solution provider, which can meet the needs of different customers, and is dedicated to the high-end demand in the field of medium and high pressure compressors, providing users with customized production, OEM and other high-quality services .
Not only provide high-quality products, but also provide users with better and more complete solutions, all from the actual situation of users, to meet the needs of users and the development of the market.
Not only provide high-quality products, but also provide users with better and more complete solutions, all from the actual situation of users, to meet the needs of users and the development of the market.
Main application
Diving breathing application
Diving clubs, diving enthusiasts, marine breeding, marine rescue, shipboard equipment, underground operations, fishery fishing, aquaculture, sunken object salvage, underwater engineering, water parks, shipbuilding and other industries, providing divers with high purification, clean and tasteless , Safe and reliable compressed breathing air. In an environment that cannot meet the requirements of the human body for normal breathing, the air is filled into a high-pressure gas cylinder for human breathing.
Fire breathing application
Equipped in the gas supply stations of the fire brigade or various fire-fighting vehicles, it provides emergency gas supply at the scene of a fire or in the rescue and relief process, so that the majority of firefighters will be exposed to various environments such as dense smoke, poisonous gas, steam or oxygen deficiency. Breathing high-purity, clean, odorless, safe and reliable compressed air ensures that fire extinguishers can safely and effectively carry out fire fighting, rescue, disaster relief, and rescue.
