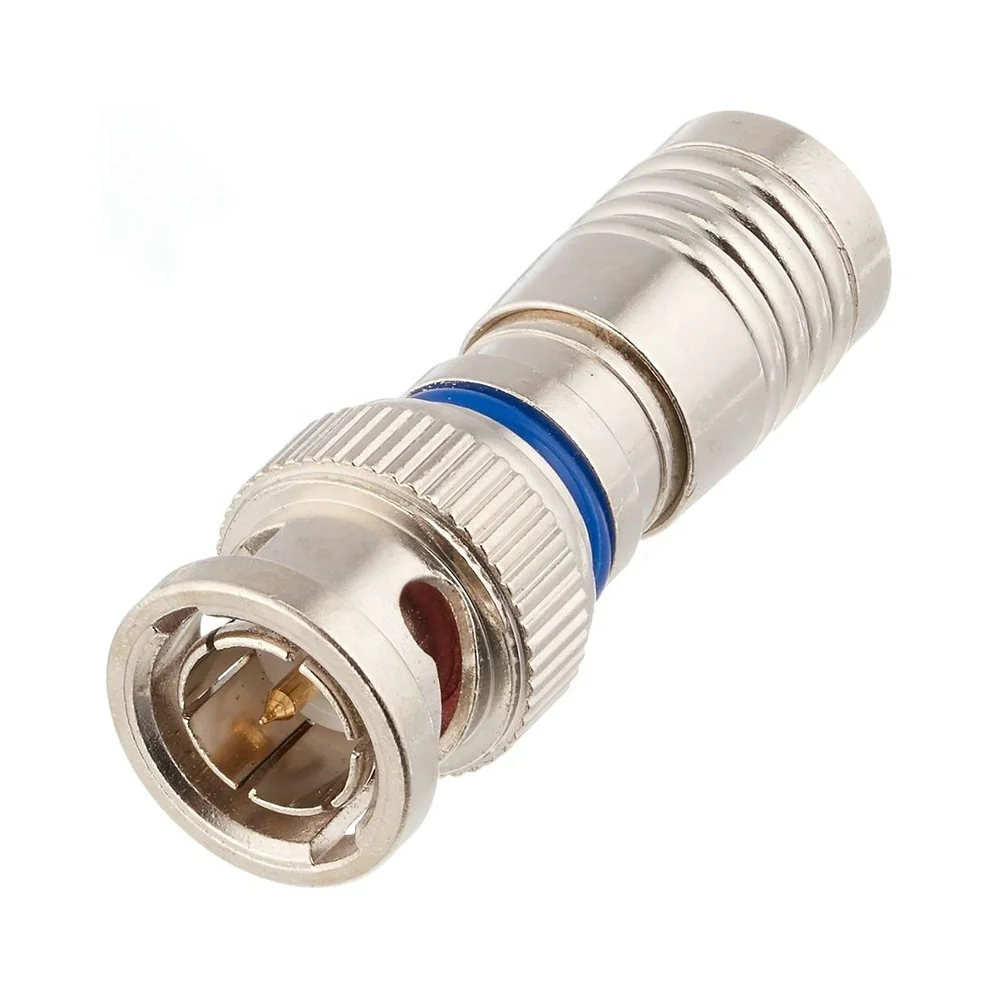

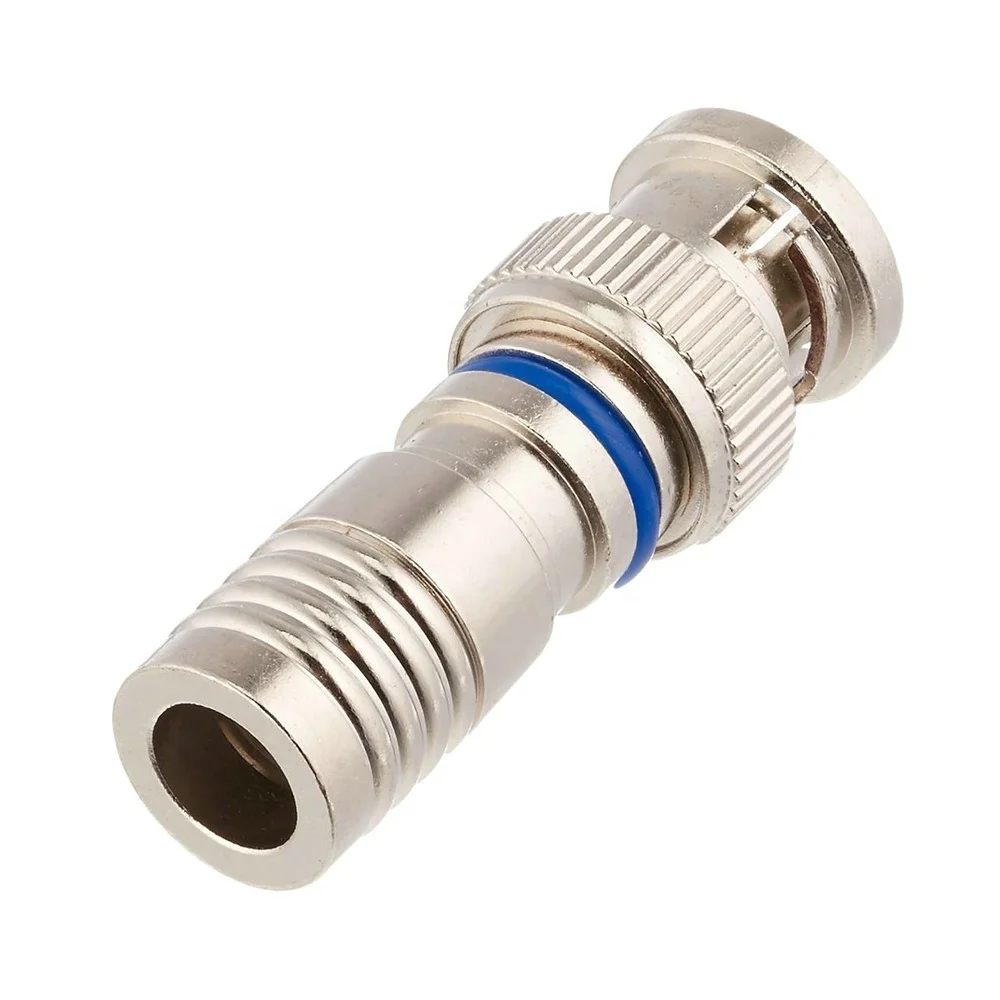

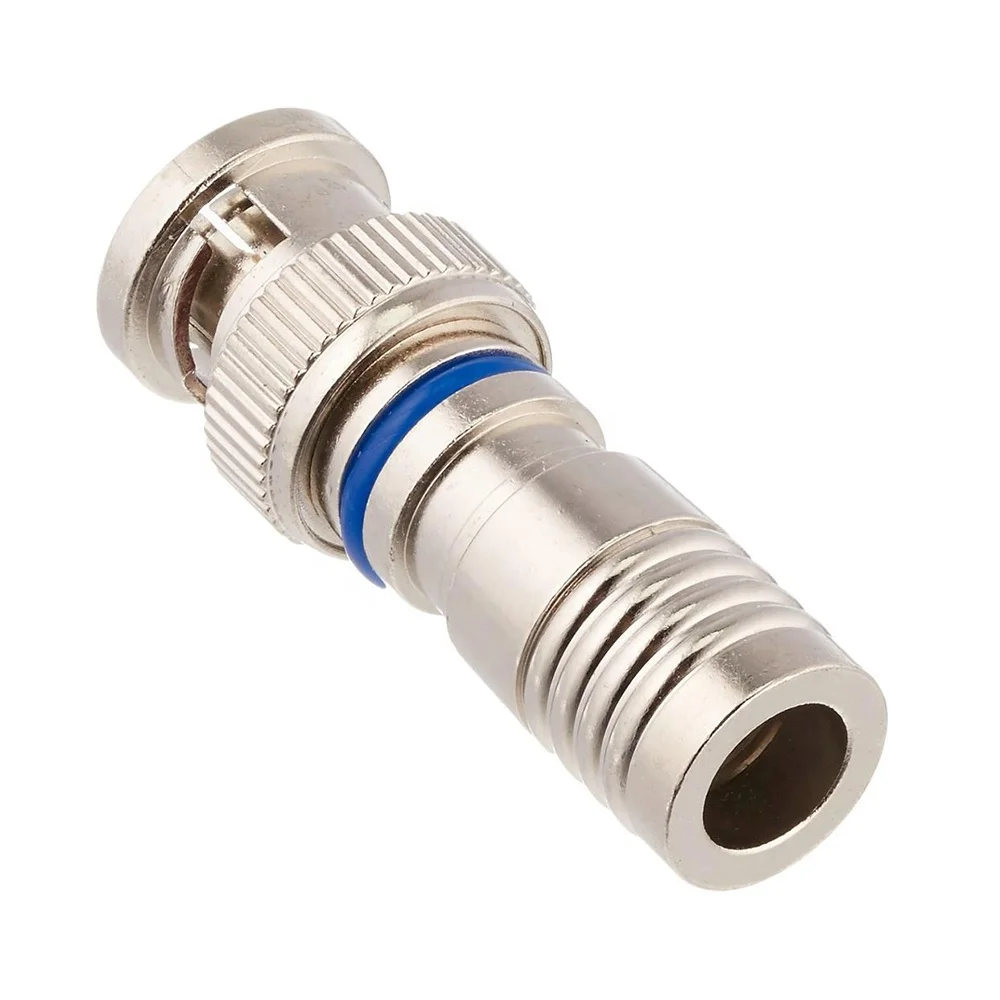

RF Connector 75ohm BNC Male Compression Coax Connector for RG59 RG140 LMR240 Cable
- Category: >>>
- Supplier: Zhenjiang Dongming Telecom Technology Co. Ltd.
Share on (1600690921909):
Product Overview
Description
Product Description
| Key Performance | ||||||
| Temperature range | -65~+165 | Insulation resistance | ≥5000MΩ | |||
| Characteristic impedance | 50Ω/70Ω | Dielectric Withstanding voltage | 750V(r ms) | |||
| Frequency range | 0~4GHz(50Ω) | VSWR | ≤1.30 | |||
| 0~2GHz(75Ω) | ||||||
| Voltage rating | 500V(r ms) | Disengage force | ≥0.6N | |||
| Contact resistance | Center conductor | ≤1.5mΩ | Durability | 500 Cycles | ||
| Outer conductor | ≤1mΩ | |||||
| Material And Plating | ||||||
| Body | Brass , nickel plated | |||||
| Male center contacts | Brass , gold plated | |||||
| Female center contacts | Beryllium copper or phosphor bronze , gold plated | |||||
| Insulators | PTFE | |||||
| Gaskets | Beryllium copper , gold plated | |||||
| Crimp ferrules | Copper alloy , gold or nickel plated | |||||
Detailed Images
