2000LPH Small Scale Reverse Osmosis Filter System Water Treatment Machine
- Category: >>>
- Supplier: Zhangjiagang Sky Machine Co. Ltd.
Share on (1600690933183):
Product Overview
Description
Water treatment equipment description
This is water treatment system adopts modular design enabling the system to have various characteristics, such as
independence,modularization and simple operation, etc. These functions ensure the consecutiveness, stability and reliability of the equipment. In addition,we will make more than two design plans for the selection by the clients in accordance with the water quality report and URS, including pretreatment configuration combined with desalination system,selection of distribution system and disinfection methods, etc. In the mean time, we also provide a complete set of verification system for clients, including design validation in the preliminary stage, FAT test within the factory, installation validation in later stage, operation validation and performance validation as well as perfect after-service system.
independence,modularization and simple operation, etc. These functions ensure the consecutiveness, stability and reliability of the equipment. In addition,we will make more than two design plans for the selection by the clients in accordance with the water quality report and URS, including pretreatment configuration combined with desalination system,selection of distribution system and disinfection methods, etc. In the mean time, we also provide a complete set of verification system for clients, including design validation in the preliminary stage, FAT test within the factory, installation validation in later stage, operation validation and performance validation as well as perfect after-service system.
Equipment Details Show
Water Source Pump
Pump Introduction:
Water Source Pump is made of stainless steel, which is characterized by corrosion resistance and has a long service life.
Silica Sand
Filter Introduction:
When the water through the machine, it machine will stop suspend through the good quality silica sand. Protect the following machines and clean the water. This machine can achieve the back washing itself through the manual valve device, and can prolong the life of machine.
When the water through the machine, it machine will stop suspend through the good quality silica sand. Protect the following machines and clean the water. This machine can achieve the back washing itself through the manual valve device, and can prolong the life of machine.
Active Carbon Filter
Filter Introduction:
It can remove the pigment, smell and a large number of biological organisms in the water. This active carbon filter is simple and reliable, easy to maintain. It is suitable for the places which are strict with water quality like enterprises, hotel, army,station and dock.
It can remove the pigment, smell and a large number of biological organisms in the water. This active carbon filter is simple and reliable, easy to maintain. It is suitable for the places which are strict with water quality like enterprises, hotel, army,station and dock.
Sodium Ion Exchanger
Sodium Ion exchanger we also called softener, that soften theory is exchanging NA++ of resin itself of Ca++ Mg++ of water resource with ion to make water resource soften and become soft water.

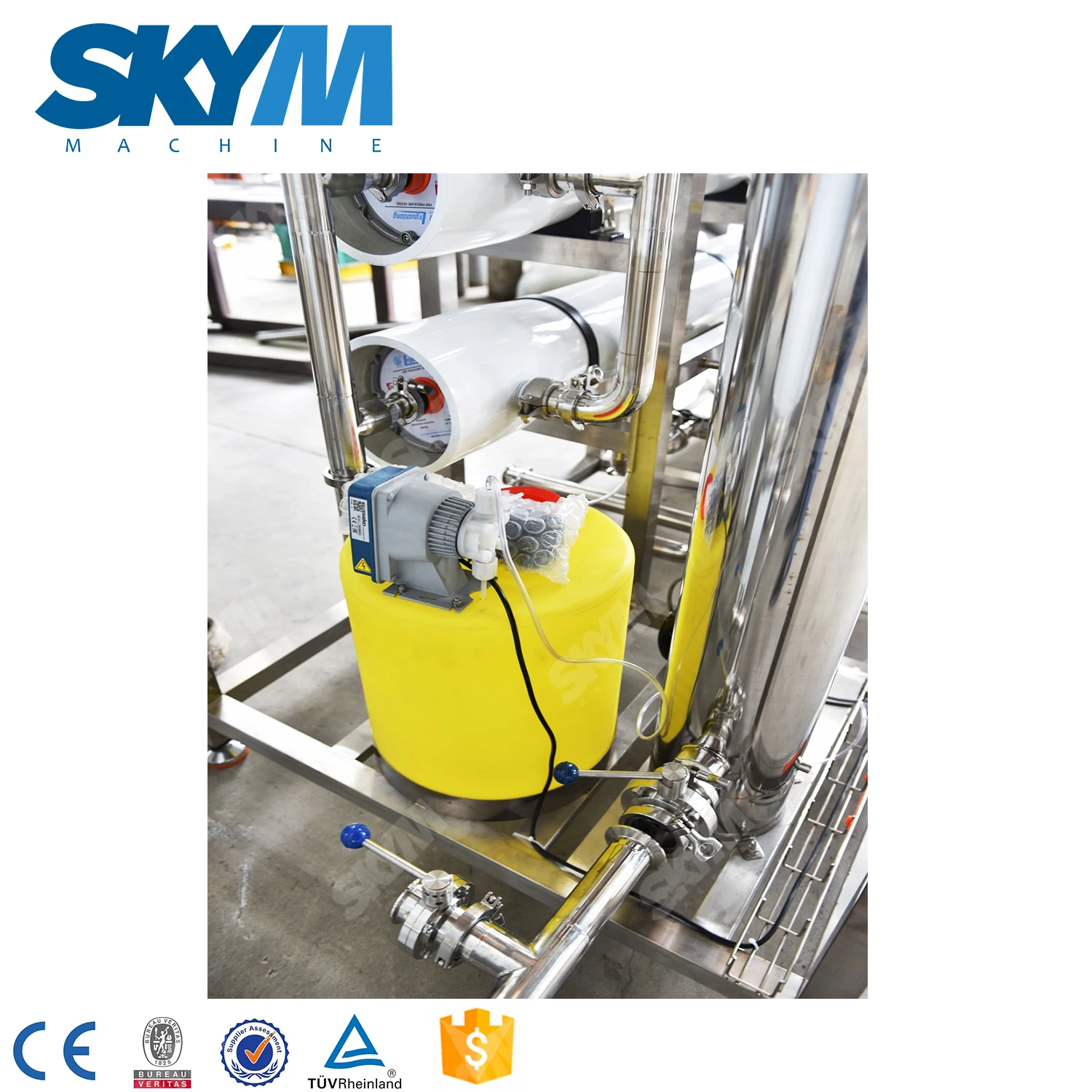

Chemical Dosing Device
It can control the water PH and anti scale adding. So it can prolong the machine using time. In addition, it can even control the water flavor.

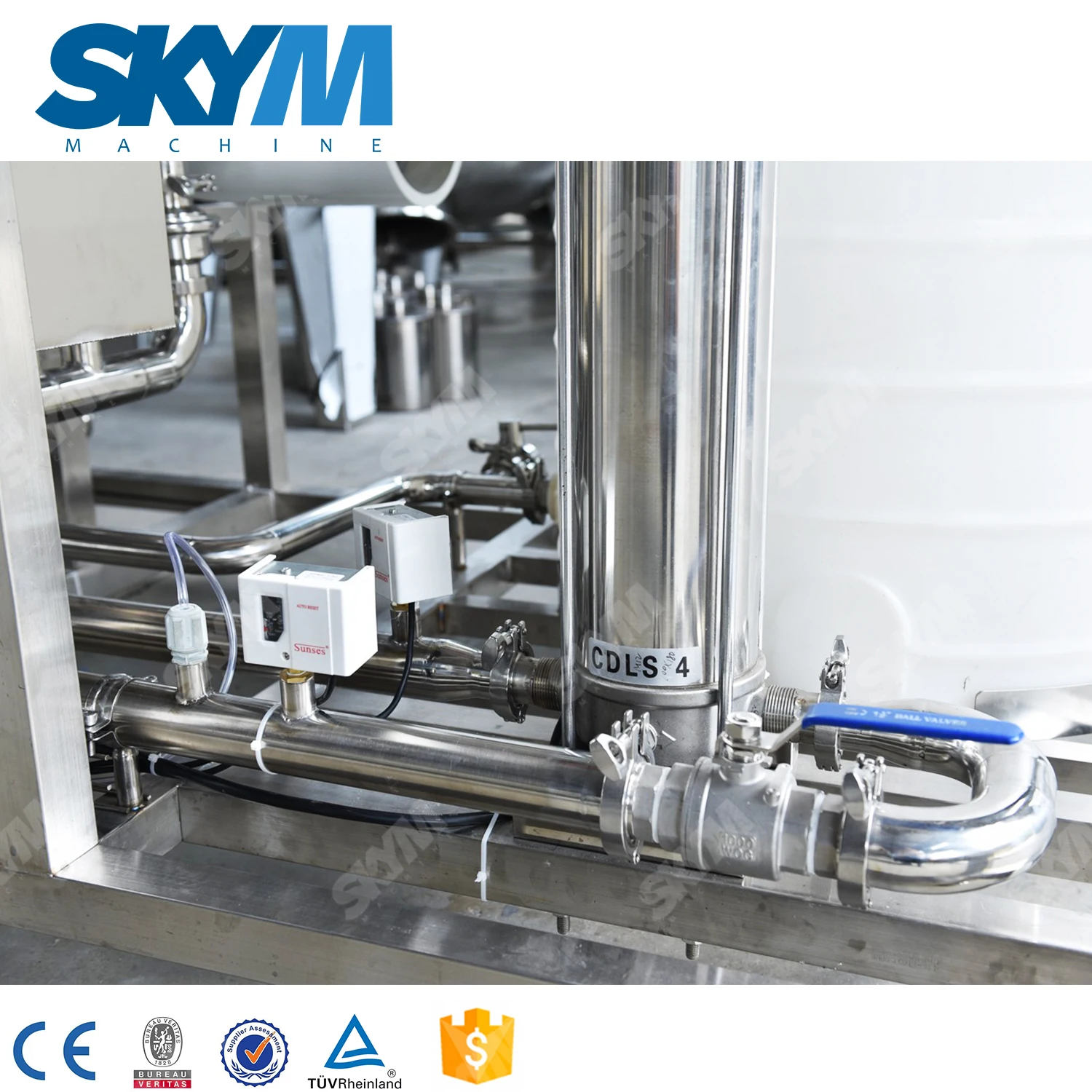

Micron Filter
It can ensure that granularity of the water into reverse osmosis is less than 0.5um / 0.1um.

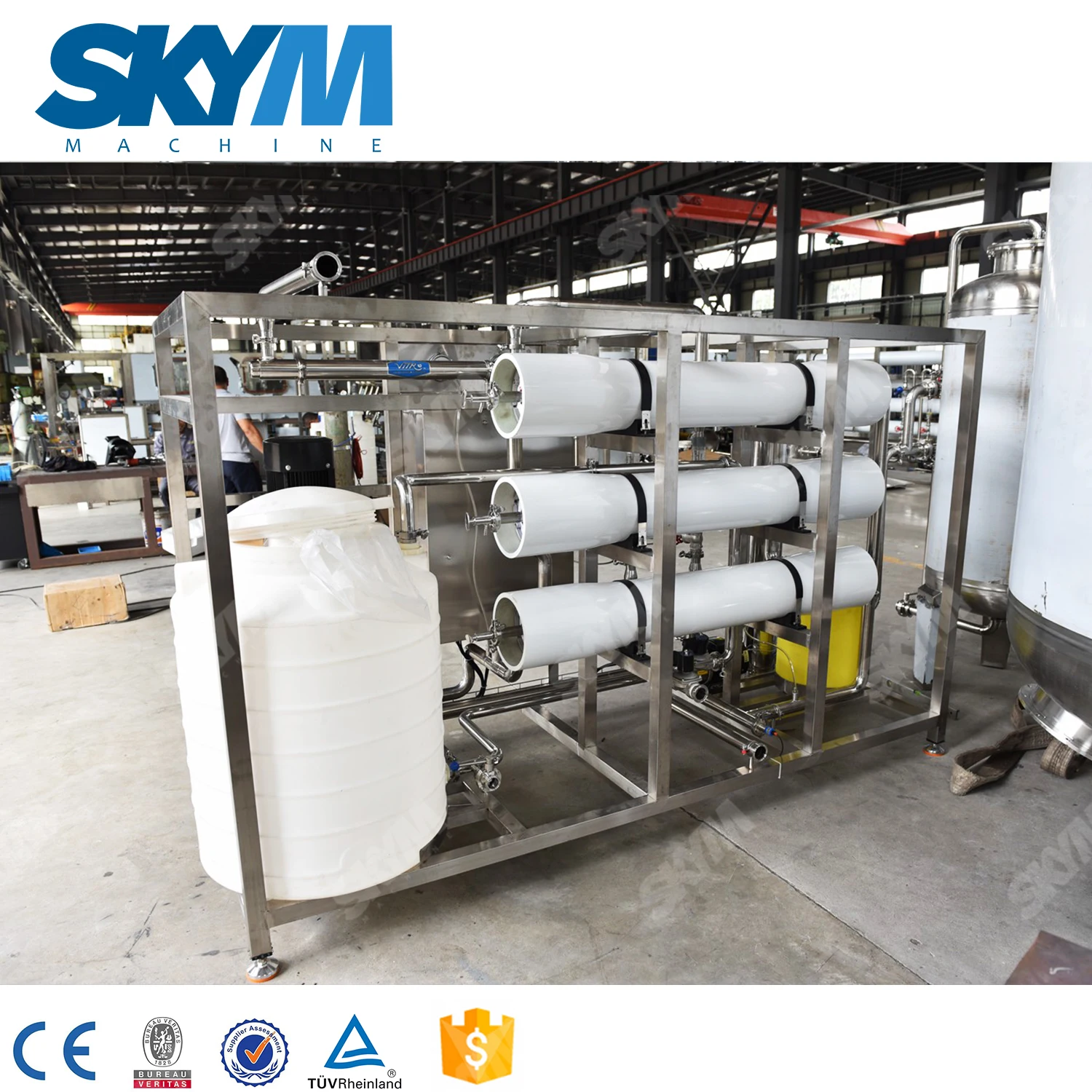

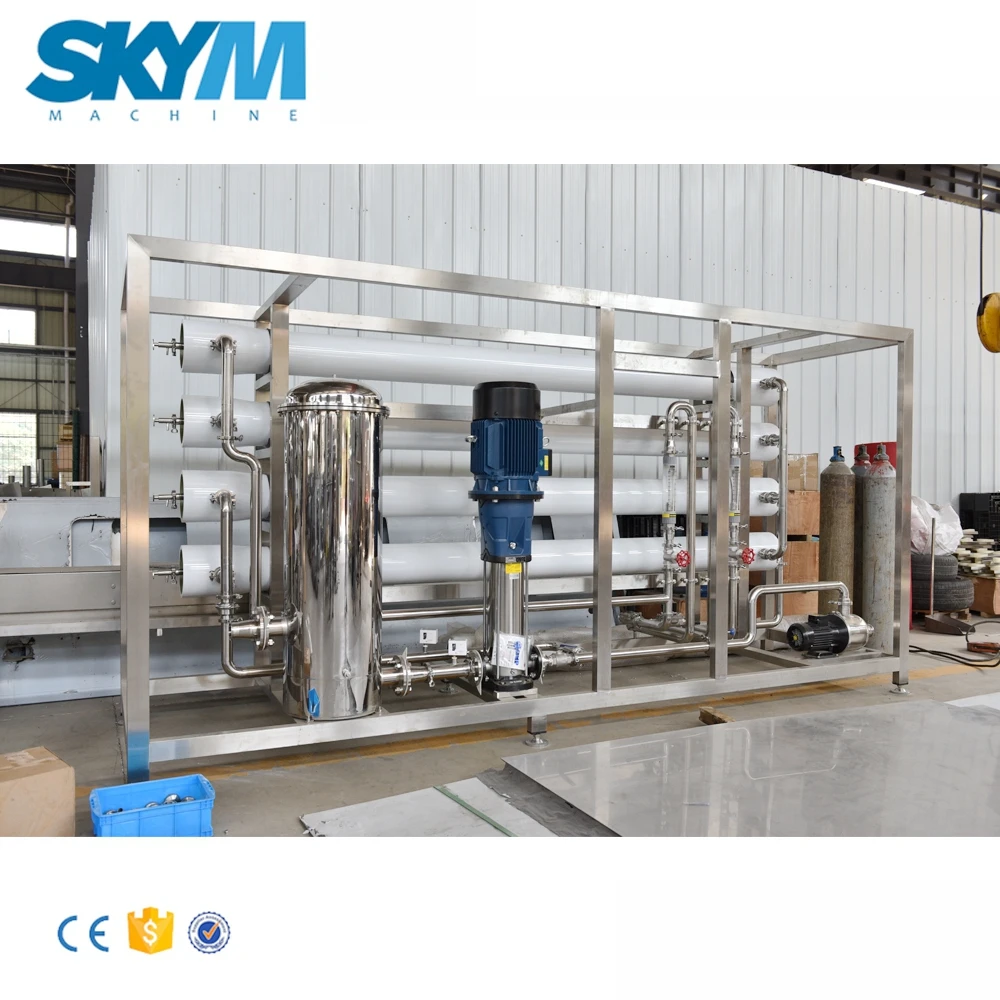

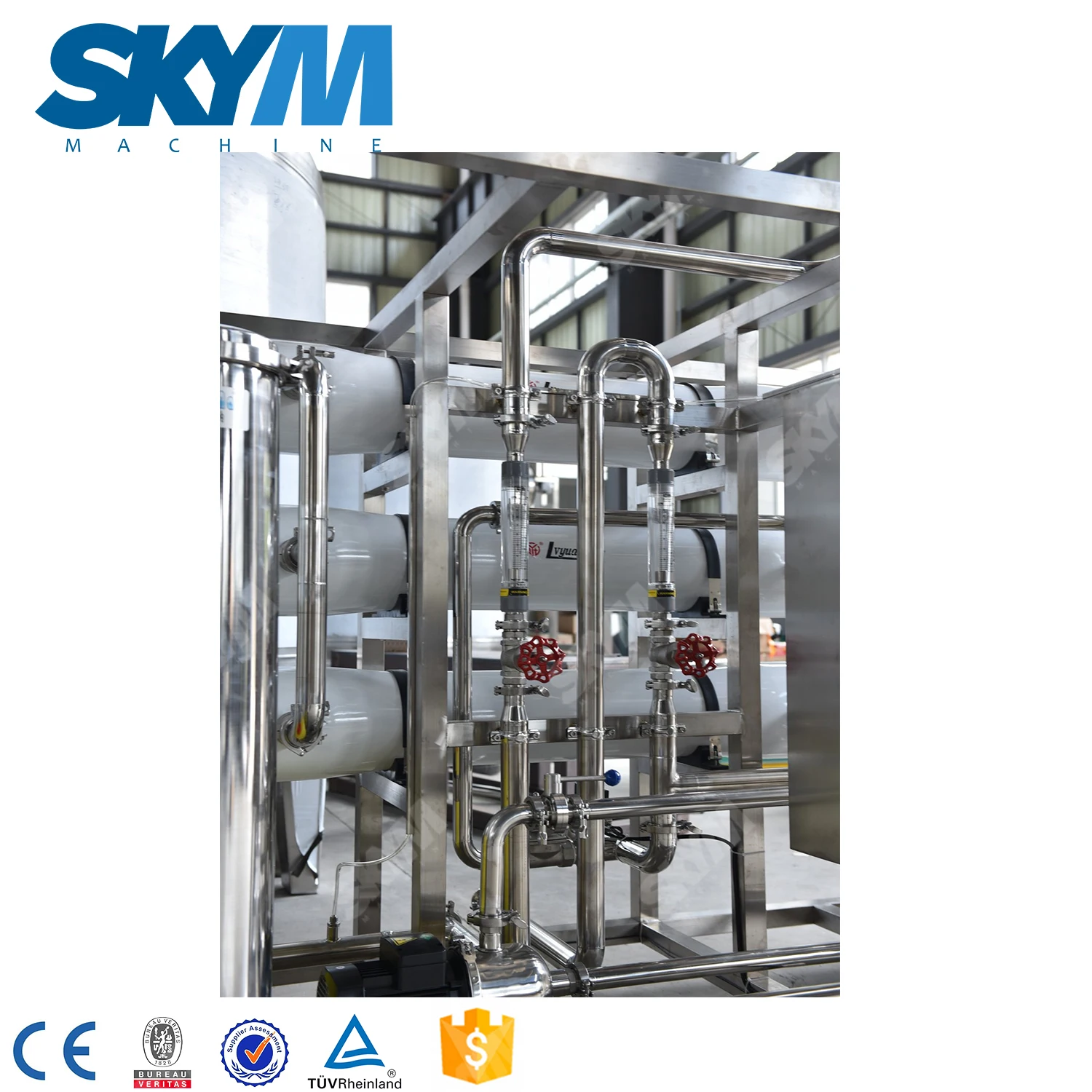

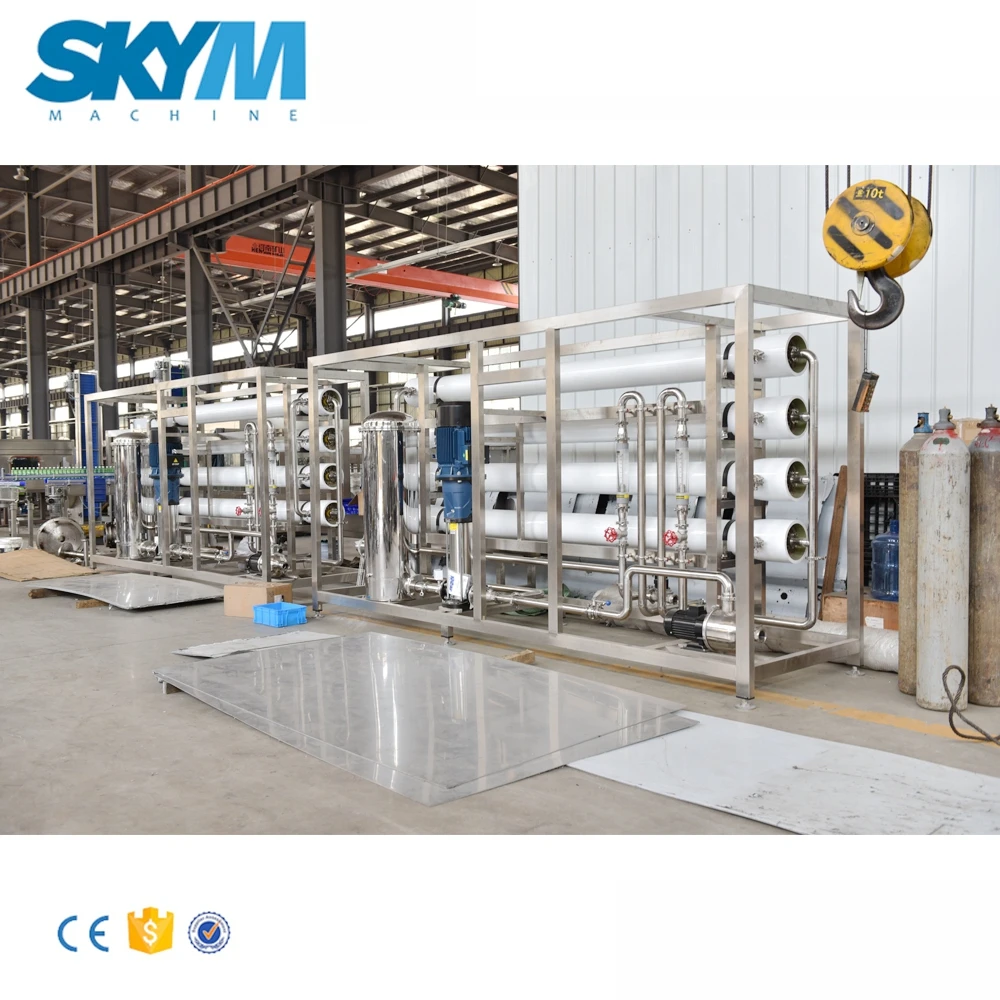

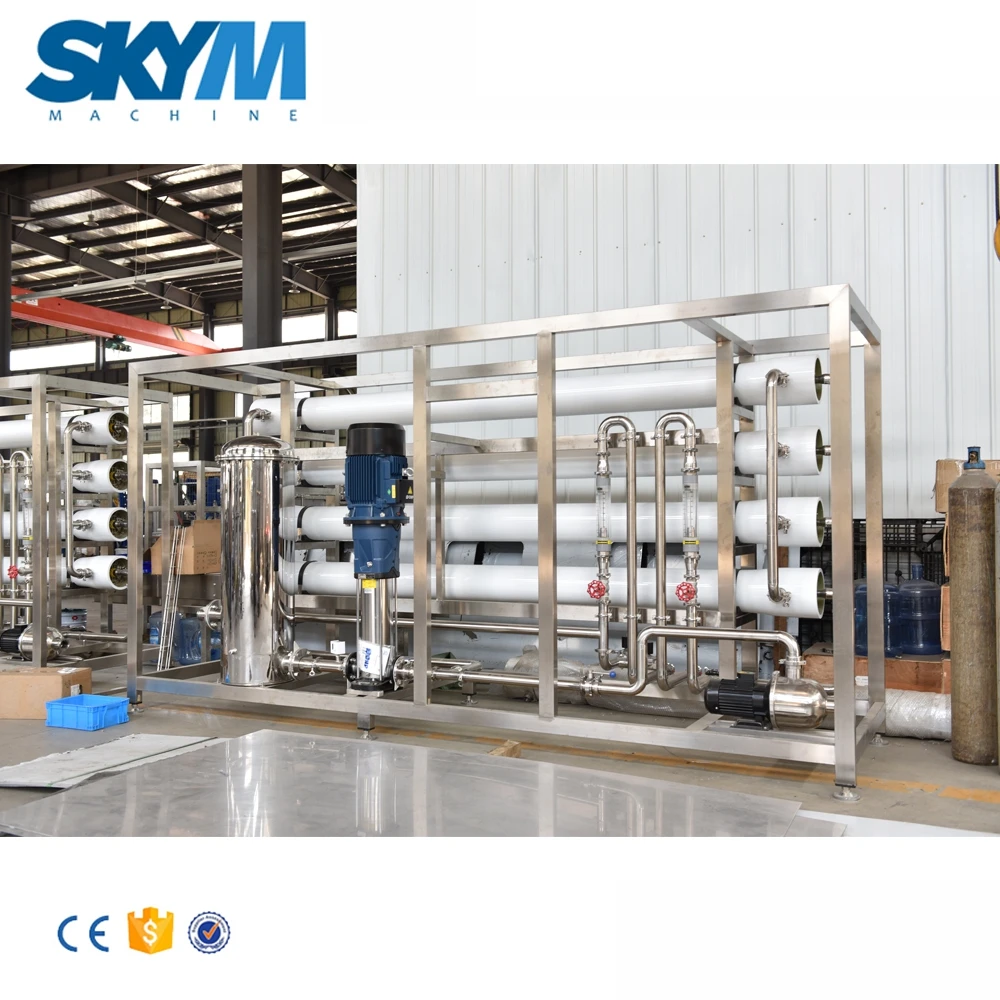

Reverse Osmosis Water Treatment System

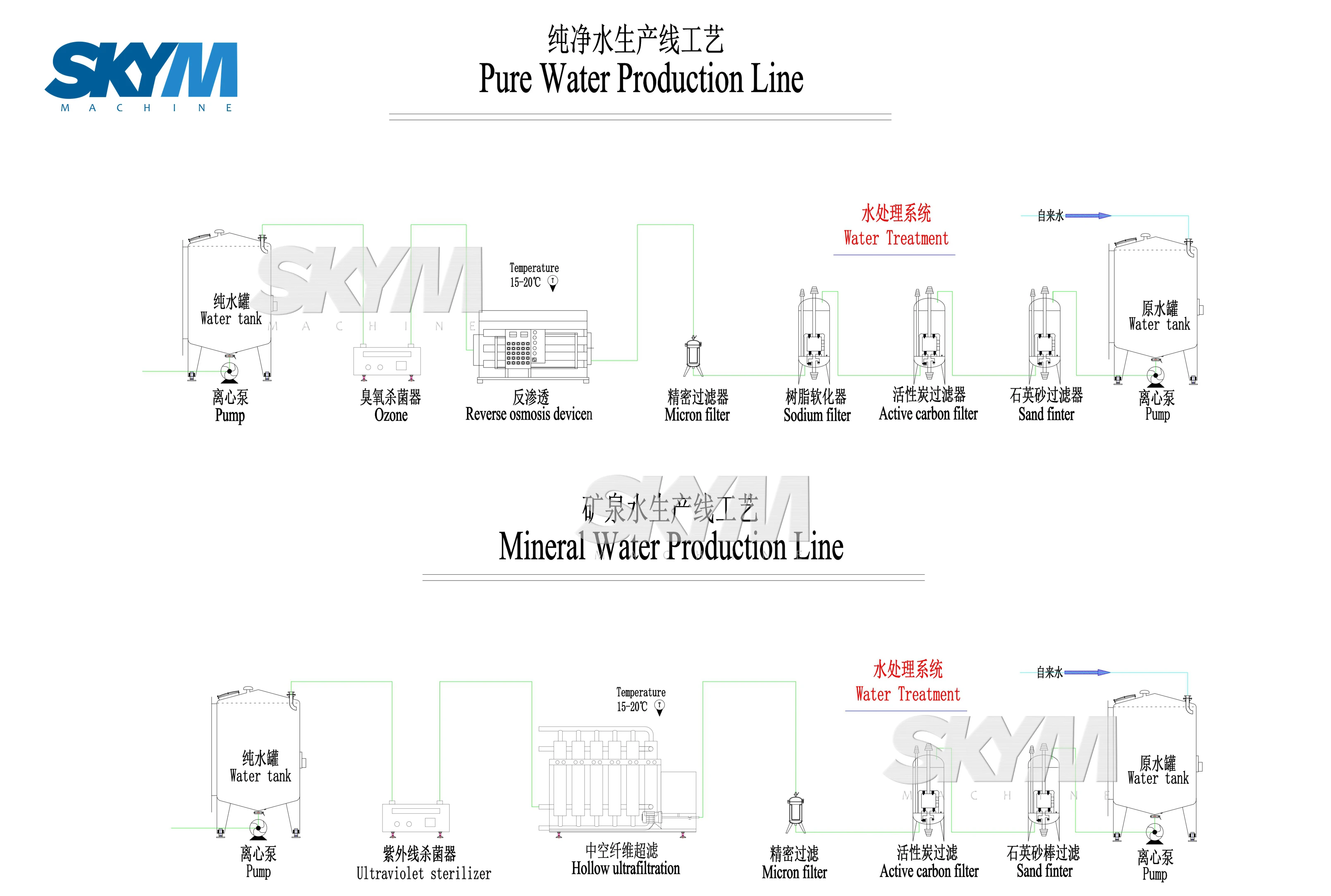

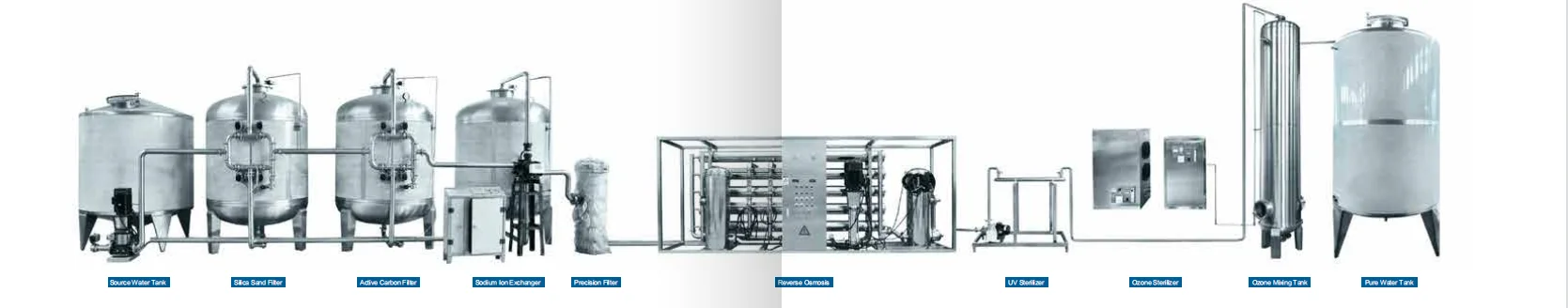

Reverse osmosis (RO) is a water purification process that uses a partially permeable membrane to remove ions, unwanted molecules and larger particles from drinking water. The system main equipment are silica sand filter, active carbon filter, sodium ion
exchanger, hollow fiber, RO( reverse osmosis), UV sterilizer, precision filter, ozone generator, water tank etc.
exchanger, hollow fiber, RO( reverse osmosis), UV sterilizer, precision filter, ozone generator, water tank etc.
Introduction:
* The device’s key part is reverse osmosis membranes that is from America, it has a good performance to eliminate salts and the high-pressure pump is from a high-quality pump producer in China, it is easy to handle for its simple structure. The source water, in the case that the TDS is less than 400mg/L, can reach the national standards totally after treatment by this device, it is the most ideal equipment for water treatment.
* The reverse osmosis can remove more than 97% of the soluble salt and above 99% of the colloid, microorganism, particles and rganic materials, becoming the best first-choice equipment in the engineering of modern purified water, highly purified water and space water (super-purified water). The most highlighted features are low energy consumption, no pollution, simple technique, high-quality water and convenient operation and maintainable.
* Stainless-steel high-pressure film shell.
* All kinds of capacity indicator, pressure indicator, electricity magnetic valve, balance device and pipe valve system.
* Online type pressure auto self-protection device.
* Online type of electricity indicator (with stable compensation).
* System safe protecting and alarm system.
* The reverse osmosis can remove more than 97% of the soluble salt and above 99% of the colloid, microorganism, particles and rganic materials, becoming the best first-choice equipment in the engineering of modern purified water, highly purified water and space water (super-purified water). The most highlighted features are low energy consumption, no pollution, simple technique, high-quality water and convenient operation and maintainable.
* Stainless-steel high-pressure film shell.
* All kinds of capacity indicator, pressure indicator, electricity magnetic valve, balance device and pipe valve system.
* Online type pressure auto self-protection device.
* Online type of electricity indicator (with stable compensation).
* System safe protecting and alarm system.
Control cabinet with transducer:
ABB transducer is used for the source water pump, High-pressure pump, pure water pump when the input and output pressure is not stable, it can control it automatically and the reverse osmosis membrane can lift pressure slowly, to avoid the damage of high-pressure water impact.

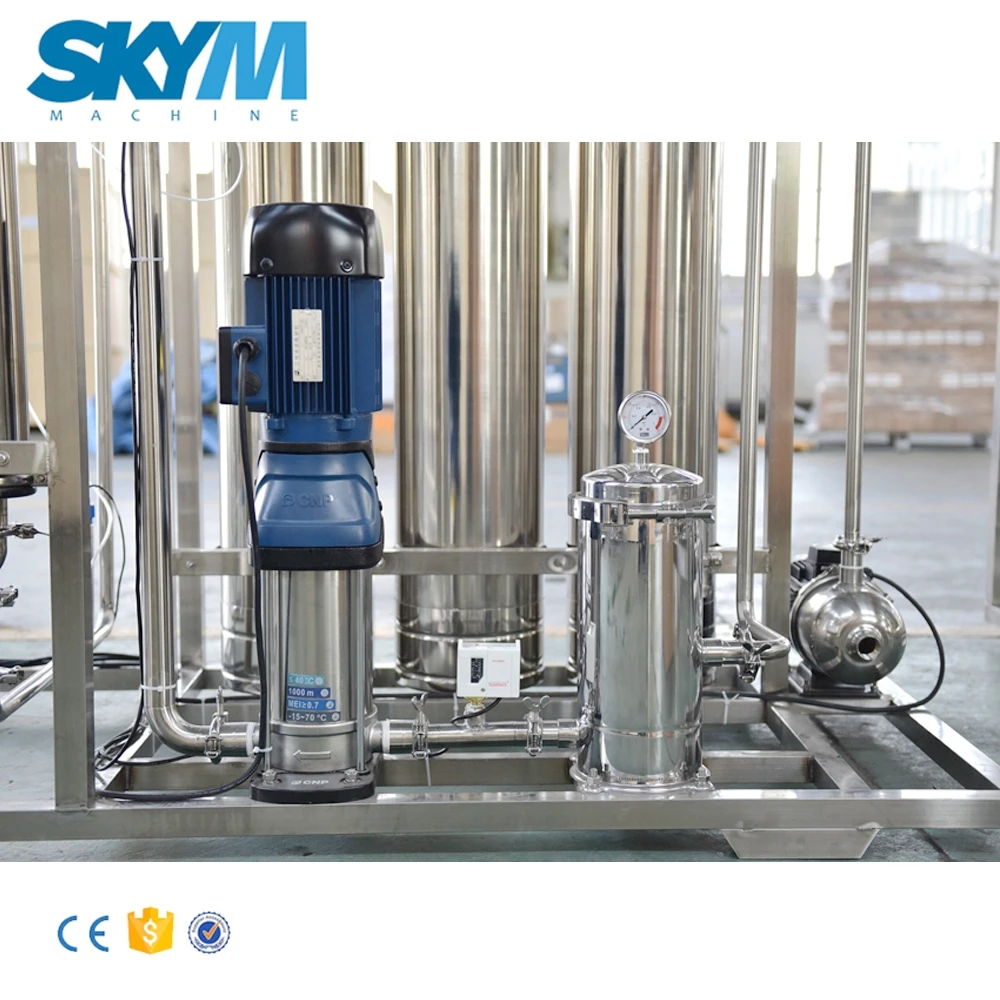

High Pressure Pump
This system is equipped with a high-pressure water pump, which is used to pressurize reverse osmosis and provide a power source
for reverse osmosis system Each high-pressure pump is equipped with a soft starter and a low-pressure protection device to prevent the high-pressure pump from generating strong water shock and damaging the high-pressure pump and reverse osmosis membrane components during the start-up and shutdown.
for reverse osmosis system Each high-pressure pump is equipped with a soft starter and a low-pressure protection device to prevent the high-pressure pump from generating strong water shock and damaging the high-pressure pump and reverse osmosis membrane components during the start-up and shutdown.

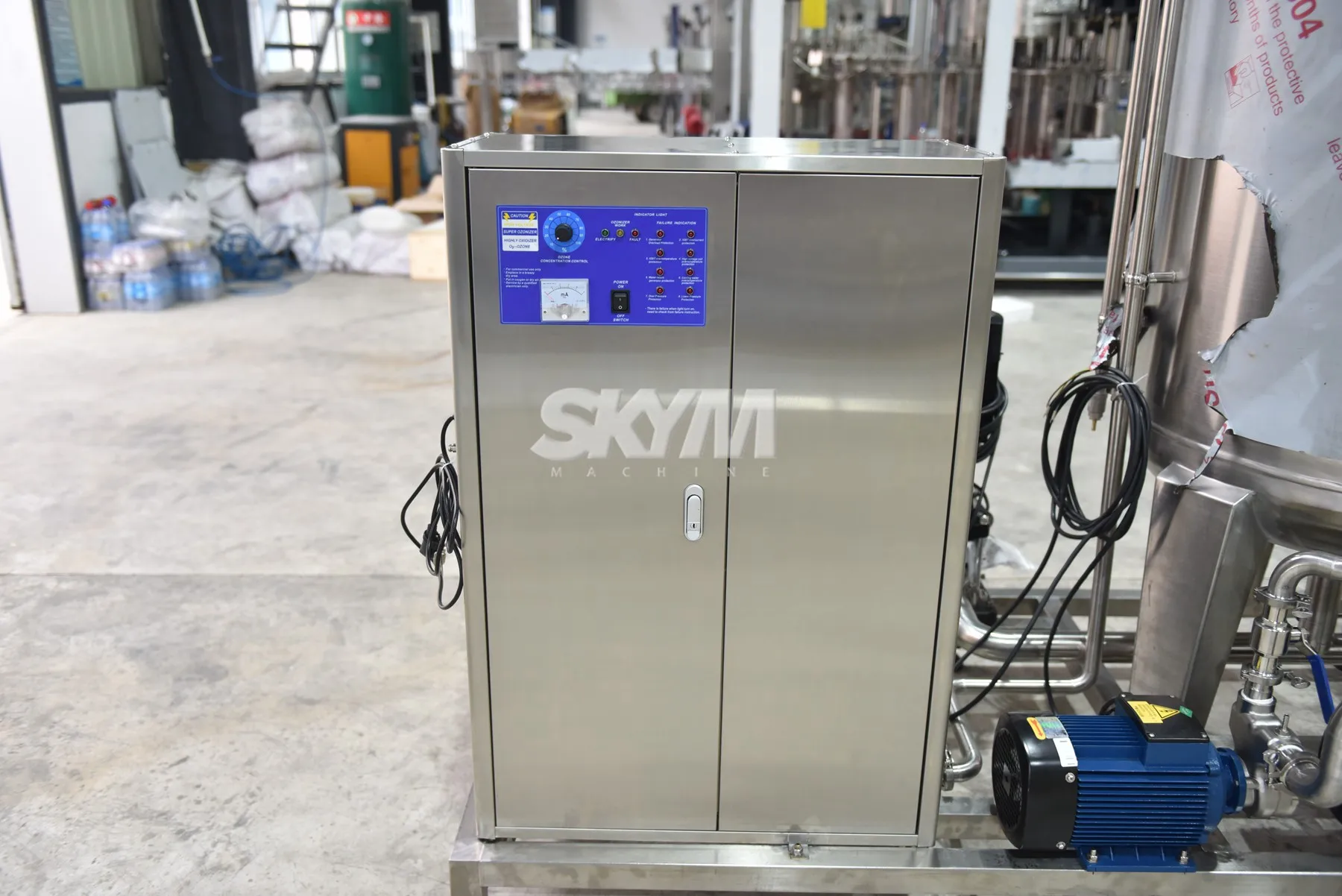

Ozone Sterilizer
Some bacteria may not be killed by UV, the sterilizer uses ozone to kill those bacteria.

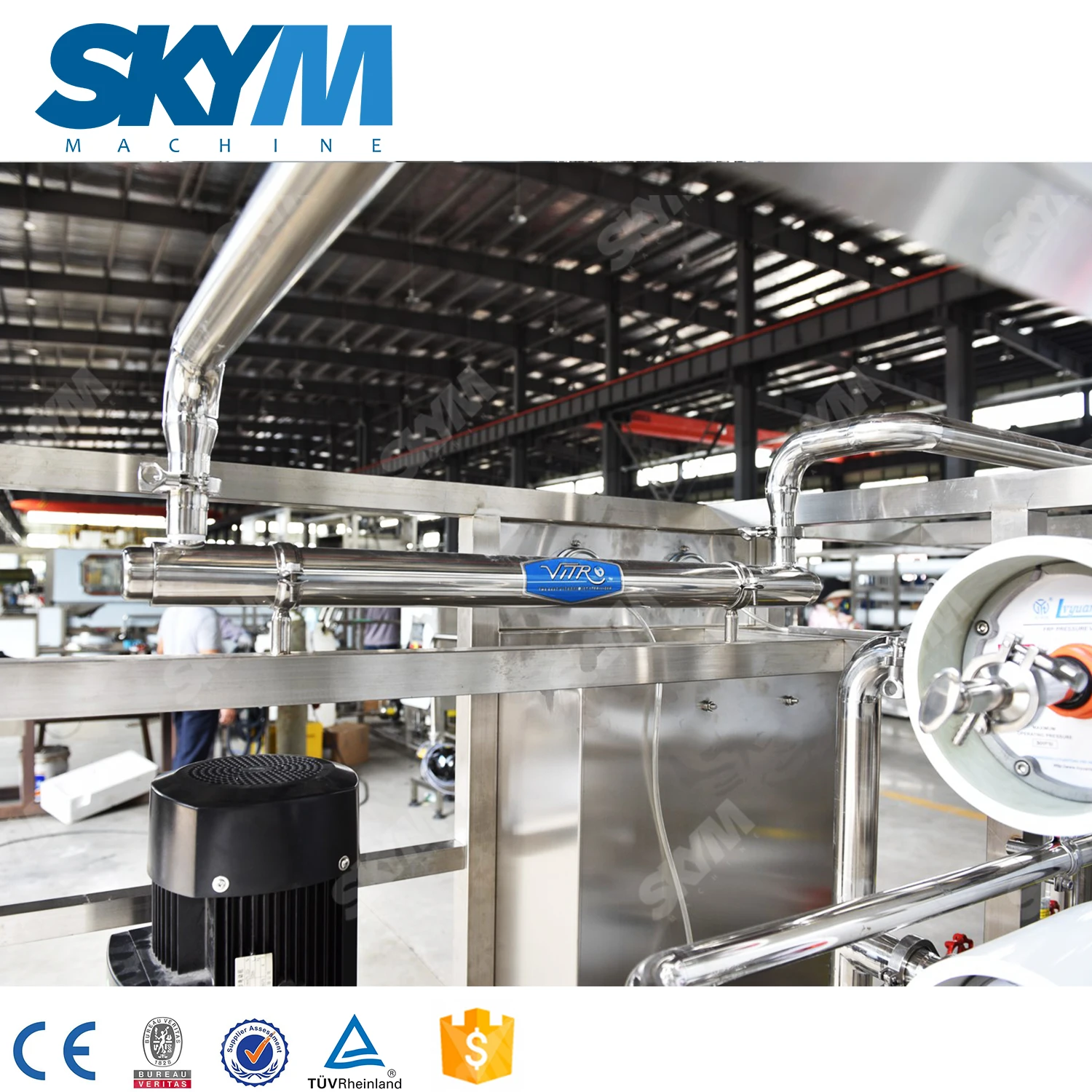

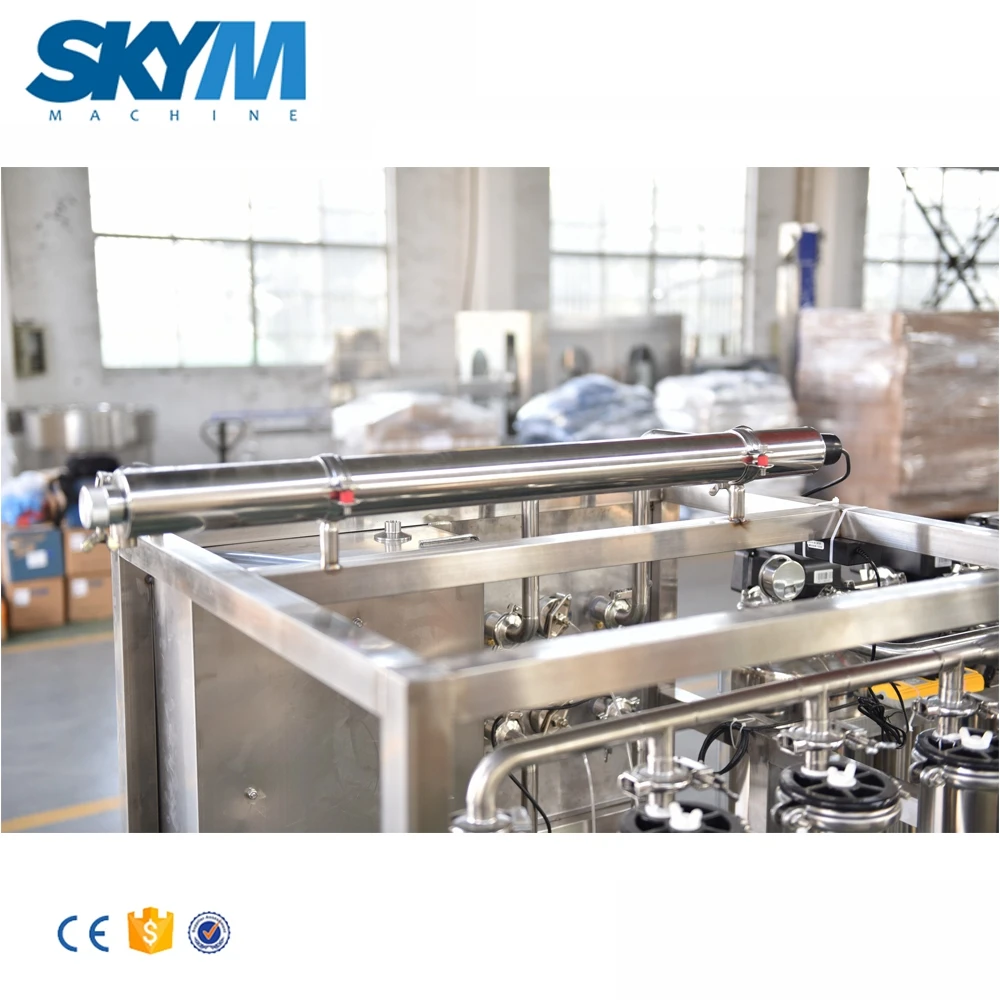

UV Sterilizer
It uses the UV to kill some bacteria that may also pass through the reverse osmosis system.

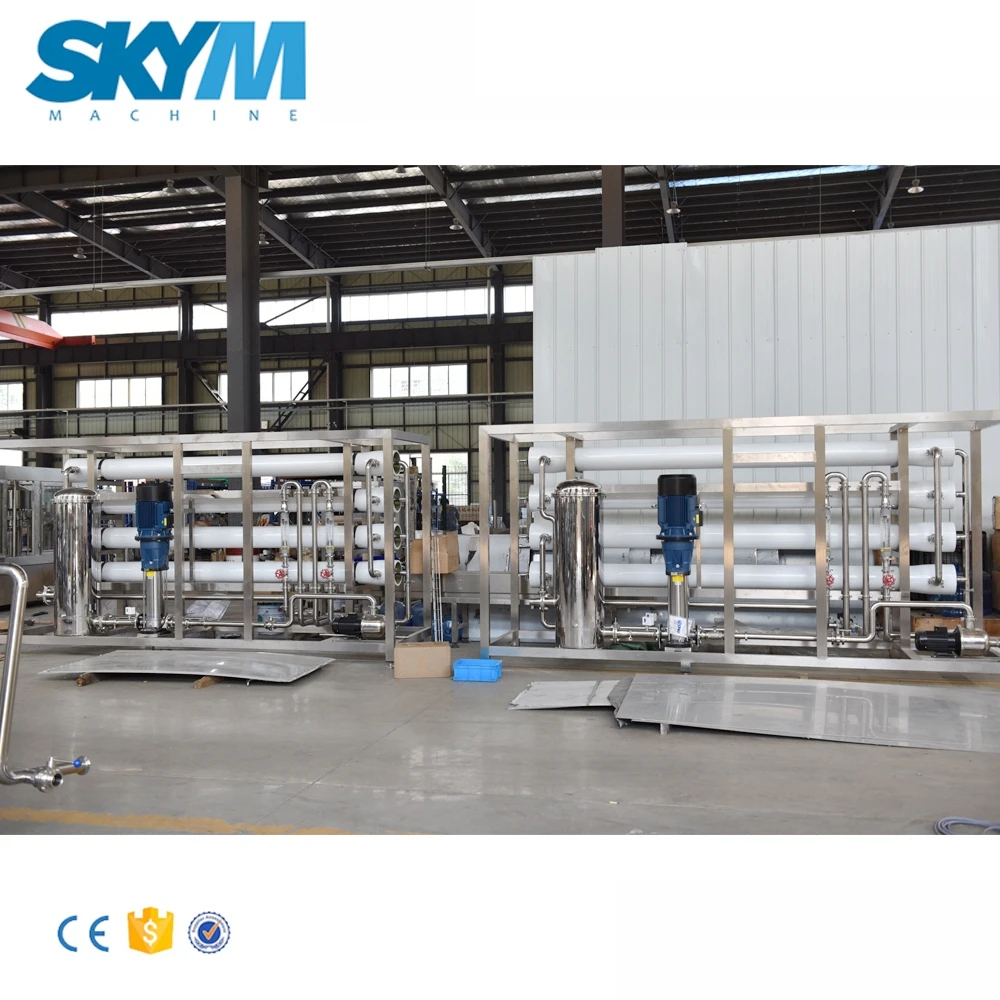

Real Picture Of Customer Factory
Product Paramenters
Model No. | Capacity (M3/H) | Power (kw) | Recovery Rate(%) | Total land area LX W X H (mm) |
RO-250 | 0.25 | 1.5 | 50 | 2500*1000*2800 |
RO-500 | 0.5 | 1.5 | 50 | 2500*1000*2800 |
RO-1000 | 1 | 2 | 50 | 3500*1200*2800 |
RO-2000 | 2 | 4 | 50-60 | 6500*1500*2800 |
RO-3000 | 3 | 4.5 | 55-65 | 7500*1500*2800 |
RO-4000 | 4 | 6.5 | 55-65 | 7500*1500*2800 |
RO-5000 | 5 | 11 | 60-70 | 10000*2500*3500 |
RO-6000 | 6 | 11 | 60-70 | 10000*2500*3500 |
RO-8000 | 8 | 18 | 60-70 | 10000*3500*3500 |
RO-10000 | 10 | 20 | 60-70 | 10000*4000*3800 |
RO-20000 | 20 | 30 | 70-75 | 15000*5000*5000 |
RO-30000 | 30 | 40 | 70-75 | 20000*6000*5000 |
RO-50000 | 50 | 50 | 70-75 | 30000*8000*5000 |
