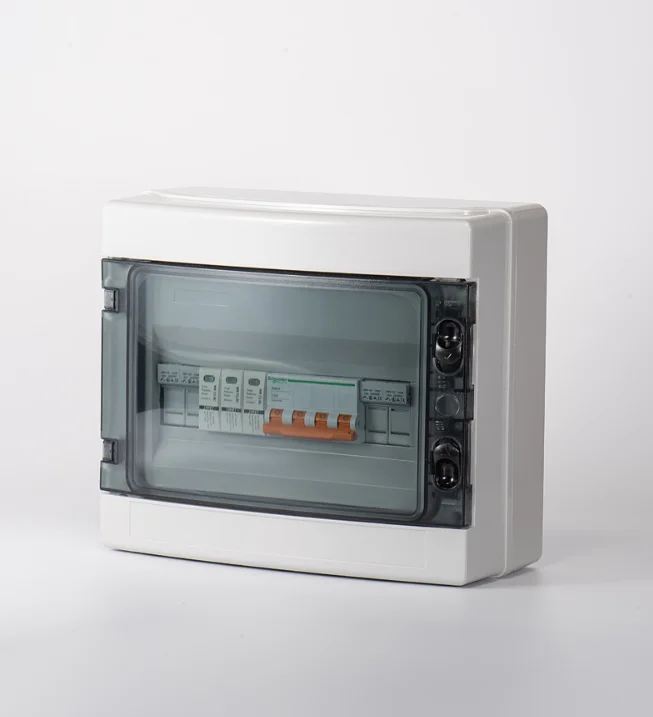

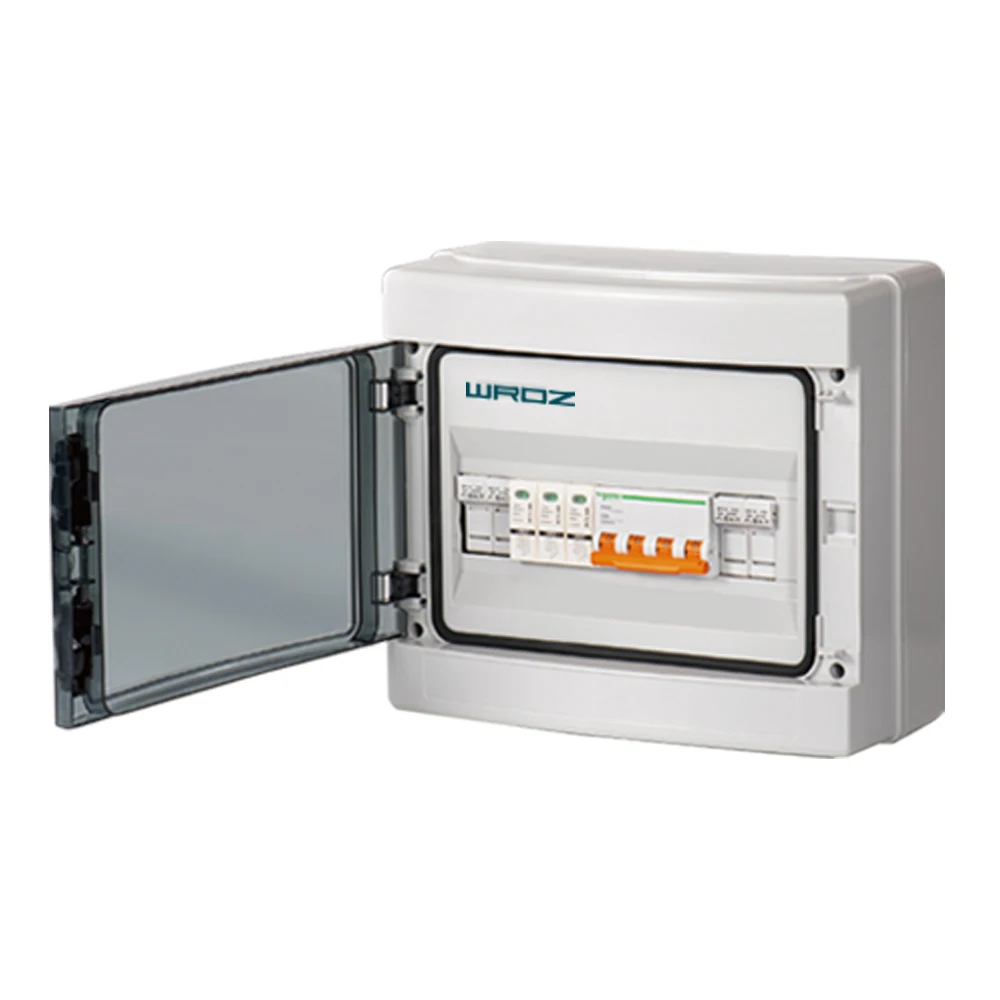

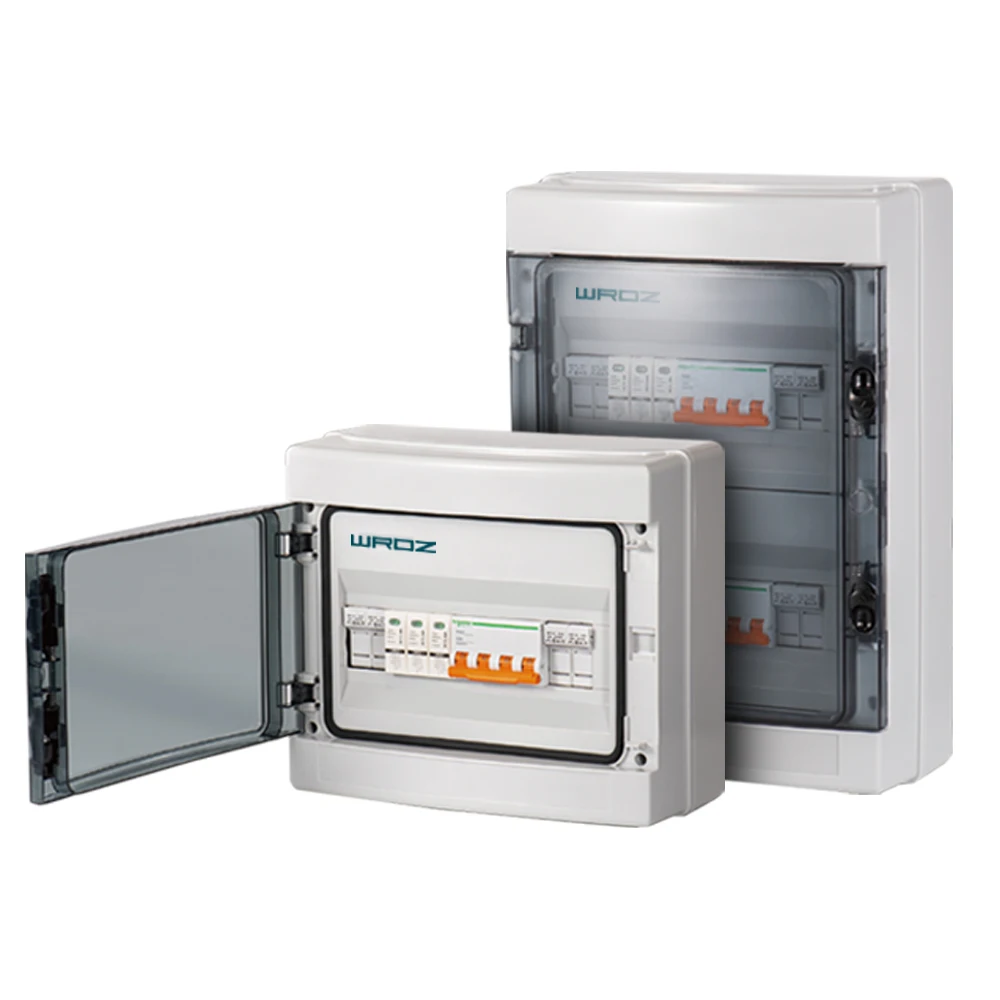

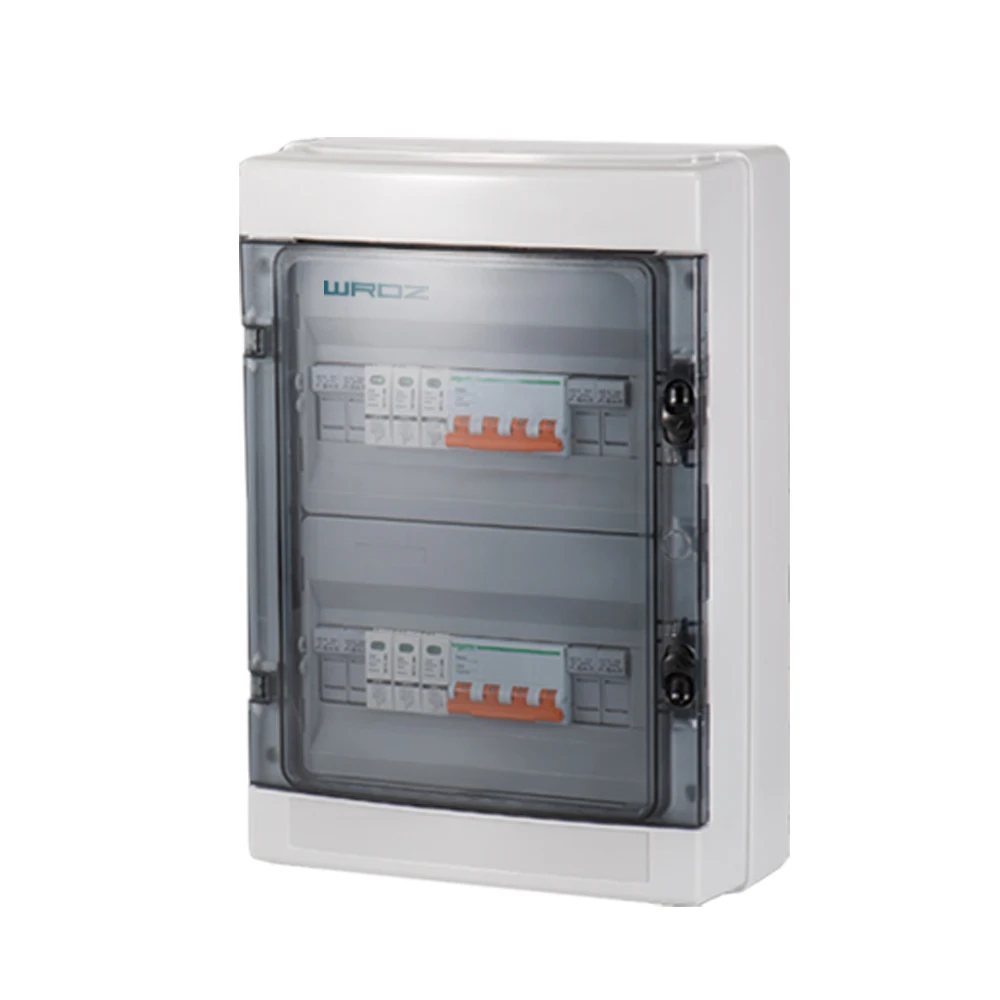

WRDZ Solar System PV Waterproof Combiner Box for 4 Strings 1 in Solar Panel

Product Overview

Description



•


  PV Combiner For a large-scale grid-connected PV system, it is a general practice to install a DC combining device in between the PV modules and inverters for the sake of minimizing the cable distance between them, facilitating maintenance and improving reliability.





•


  With many years of PV grid-connected system design experience, our PVB PV array combiner box series is specially-designed for meeting the need of high performance and high reliability of PV systems.





•


  In combining with our Solar Access inverters, Sandi PVB provides a turnkey solution for PV power plant systems.





•


  By using PV array combiner box, according to the input voltage of the inverter, Clients can connect a fixed number of similar PV modules to form a PV array.





•


  Then different strings of PV array can be converged into the PV array string box.





•


  After that, together with lightning arresters and circuit breakers, it is connecting to the inverter to reduce the system installation time and increase the system safety.






SPECS List
System maximum DC voltage	550	1000	550	1000	550	1000	550	1000
Maximum input current per channel	20A		20A		20A		20A
Maximum  input channels	1		2		4		4
Maximum input switch current	16A/20A		20A/32A		50/63A		20/32A
MPPT Qauntity	1		1		1		2
Output channel	1		1		1		2
Lightning Protection
Lightning Level	Type 2		Type 2		Type 2		Type 2
Nominal discharge current (ln)	20kA		20kA		20kA		20kA
Maximum discharge current (lmax)	40kA		40kA		40kA		40kA
Voltage protection level (Up)	3.2kV	4.0kV	3.2kV	4.0kV	3.2kV	4.0kV	3.2kV	4.0kV
max.continuous a.c.voltage (Uc)	630V	1050V	630V	1050V	630V	1050V	630V	1050V
Pole	2P		2P		2P		2P
Structural features	plug-in module		plug-in module		plug-in module		plug-in module
System
IP Degree	IP65
Output switch	PV FUSE(standard)/PV Isolation switch(optional)
SMC4 glands	standard
PV Fuse	standard
PV SPD	standard
Detection module	N
BOX Materail	PC/ABS
Installation	Wall-mounted
Operating temperature	-25℃~+55℃
Altitude	2000meters
Relative humidity	0-95%
