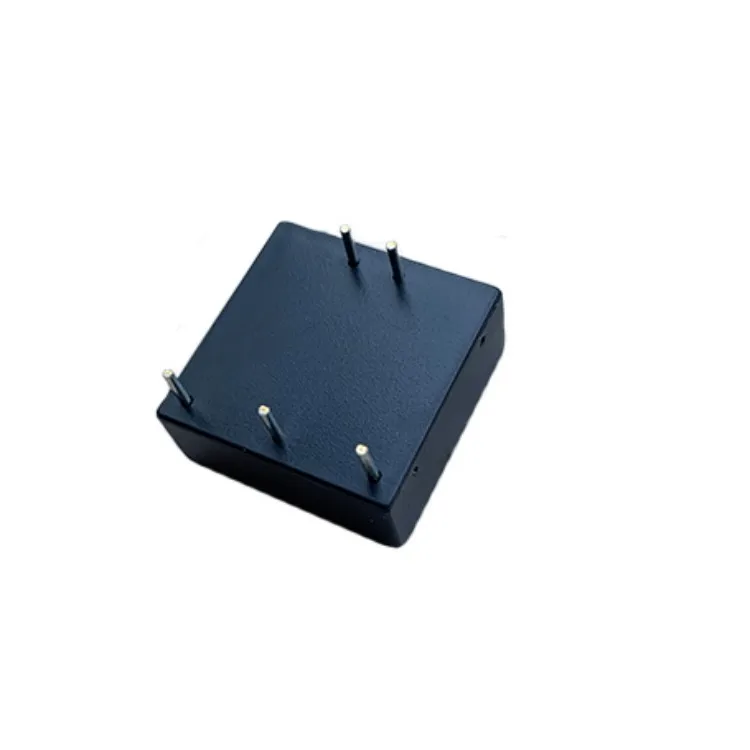

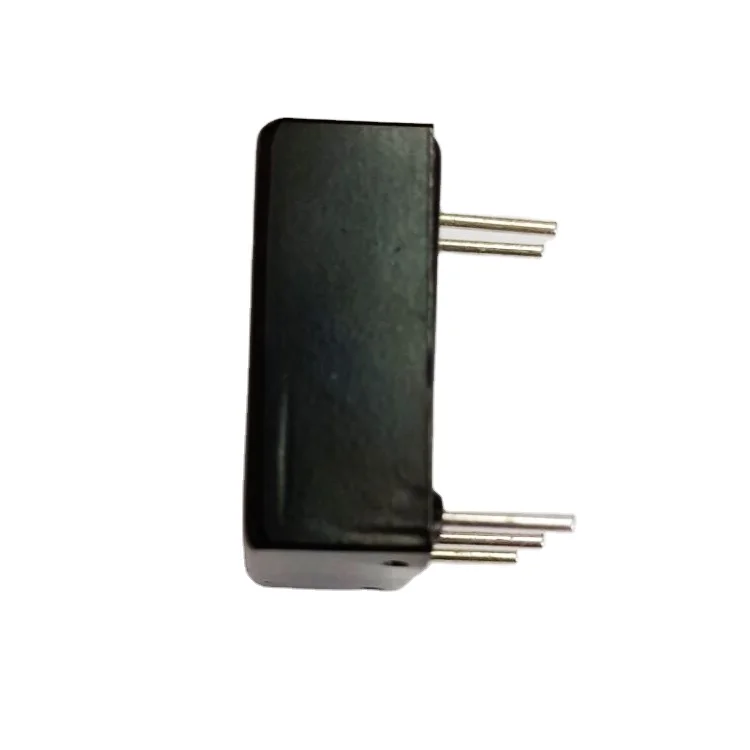

12VDC to Dual 15V 200mA 6W 1500VDC Isolation Switching Power Supply Manufacturer
- Category: >>>
- Supplier: Henlv Technology (shanghai) Co. Ltd.
Share on (1600690971908):
Product Overview
Description
Specification
Name | Switching Power Supply |
Item No. | WRFD12D15-6W |
Input Voltage | 9~18VDC |
Output Voltage | ±15VDC |
Max Output Current | ±200mA |
Max Output Power | 6W |
Material | Metal Shell |
Size | 25.4X25.4X10.5mm |
Working Tempraturer | -40~+85℃ |
MTBF | 500000H |

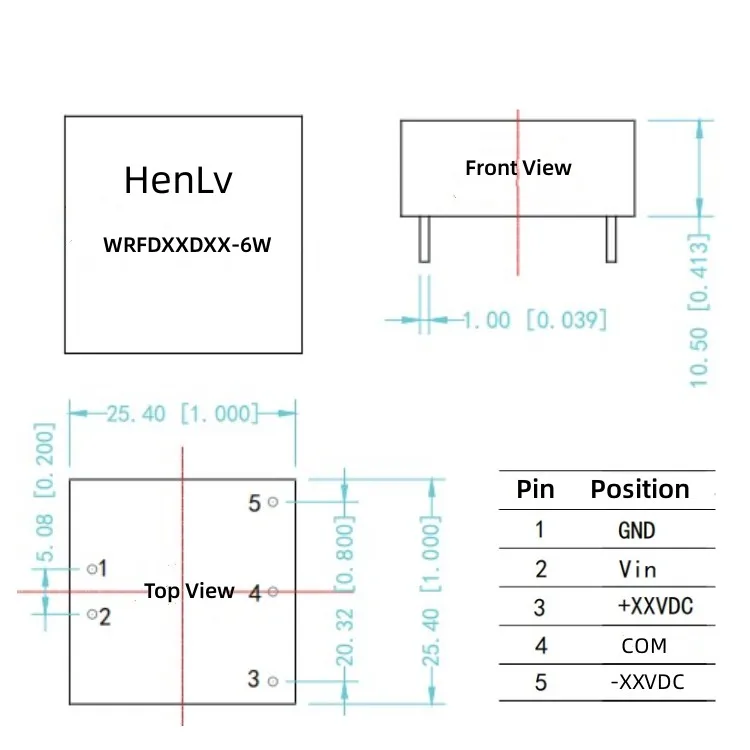

DC-DC Power converter drawing and details
WRFDXXDXX-6W DC-DC Converter | ||||||||||
Item No. | Input Voltage | Output Voltage(VDC) | Full Load Current (mA) | Isolation voltage | Size | |||||
WRFD05D05-6W | 4.5~9VDC | ±5VDC | ±600mA | 1500VDC | 25.4x25.4x10.5mm | |||||
WRFD05D12-6W | ±12VDC | ±250mA | 1500VDC | 25.4x25.4x10.5mm | ||||||
WRFD05D15-6W | ±15VDC | ±200mA | 1500VDC | 25.4x25.4x10.5mm | ||||||
WRFD05D24-6W | ±24VDC | ±125mA | 1500VDC | 25.4x25.4x10.5mm | ||||||
WRFD12D05-6W | 9~18VDC | ±5VDC | ±600mA | 1500VDC | 25.4x25.4x10.5mm | |||||
WRFD12D12-6W | ±12VDC | ±250mA | 1500VDC | 25.4x25.4x10.5mm | ||||||
WRFD12D15-6W | ±15VDC | ±200mA | 1500VDC | 25.4x25.4x10.5mm | ||||||
WRFD12D24-6W | ±24VDC | ±125mA | 1500VDC | 25.4x25.4x10.5mm | ||||||
WRFD24D05-6W | 18~36VDC | ±5VDC | ±600mA | 1500VDC | 25.4x25.4x10.5mm | |||||
WRFD24D12-6W | ±12VDC | ±250mA | 1500VDC | 25.4x25.4x10.5mm | ||||||
WRFD24D15-6W | ±15VDC | ±200mA | 1500VDC | 25.4x25.4x10.5mm | ||||||
WRFD24D24-6W | ±24VDC | ±125mA | 1500VDC | 25.4x25.4x10.5mm | ||||||
WRFD48D05-6W | 36~72VDC | ±5VDC | ±600mA | 1500VDC | 25.4x25.4x10.5mm | |||||
WRFD48D12-6W | ±12VDC | ±250mA | 1500VDC | 25.4x25.4x10.5mm | ||||||
WRFD48D15-6W | ±15VDC | ±200mA | 1500VDC | 25.4x25.4x10.5mm | ||||||
WRFD48D24-6W | ±24VDC | ±125mA | 1500VDC | 25.4x25.4x10.5mm | ||||||
URFD12D05-6W | 9~36VDC | ±5VDC | ±600mA | 1500VDC | 25.4x25.4x10.5mm | |||||
URFD12D12-6W | ±12VDC | ±250mA | 1500VDC | 25.4x25.4x10.5mm | ||||||
URFD12D15-6W | ±15VDC | ±200mA | 1500VDC | 25.4x25.4x10.5mm | ||||||
URFD12D24-6W | ±24VDC | ±125mA | 1500VDC | 25.4x25.4x10.5mm | ||||||
URFD24D05-6W | 18~72VDC | ±5VDC | ±600mA | 1500VDC | 25.4x25.4x10.5mm | |||||
URFD24D12-6W | ±12VDC | ±250mA | 1500VDC | 25.4x25.4x10.5mm | ||||||
URFD24D15-6W | ±15VDC | ±200mA | 1500VDC | 25.4x25.4x10.5mm | ||||||
URFD24D24-6W | ±24VDC | ±125mA | 1500VDC | 25.4x25.4x10.5mm | ||||||
Packing & Delivery

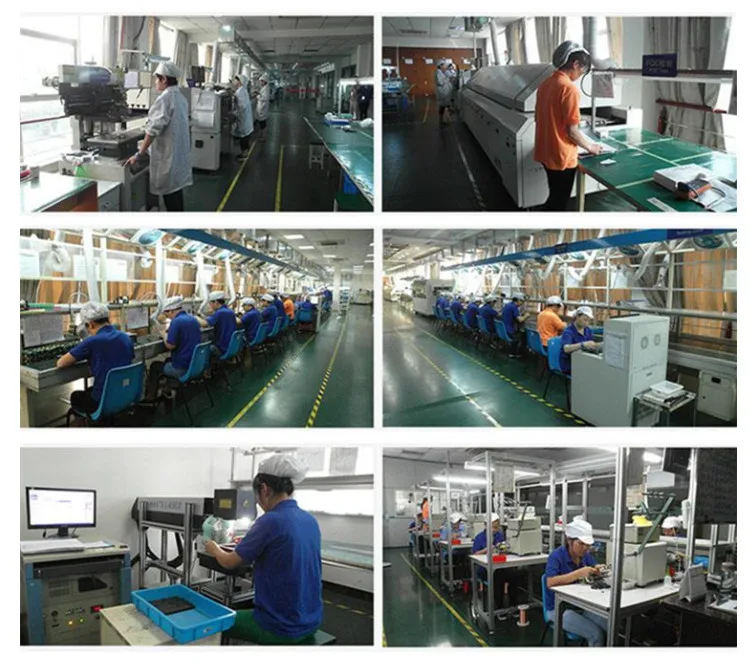

Company Profile
Our Exhibition
FAQ
1. Can I have a sample order?
Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
2. What is the lead time?
Sample needs 3-7 days, mass production time needs 7-15 workdays according to the quantity.
Sample needs 3-7 days, mass production time needs 7-15 workdays according to the quantity.
3. Do you have any MOQ limit?
Our MOQ EXW is 2pcs
Our MOQ EXW is 2pcs
4. How do you ship the goods and how long does it take arrive?
We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive.
We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive.
5. Do you accept to put our label on the products or box ?
Yes, we accept .
Yes, we accept .
6.What method of payment do you support?
T/T,PayPal,Western Union,Trade Assurance are all OK.
T/T,PayPal,Western Union,Trade Assurance are all OK.
7.What if I cannot find what I need on your products list?
What we list are standard types of power module, if can't find what you needed, please tell us, we will send you the specificaiton on mail or skype.
What we list are standard types of power module, if can't find what you needed, please tell us, we will send you the specificaiton on mail or skype.
