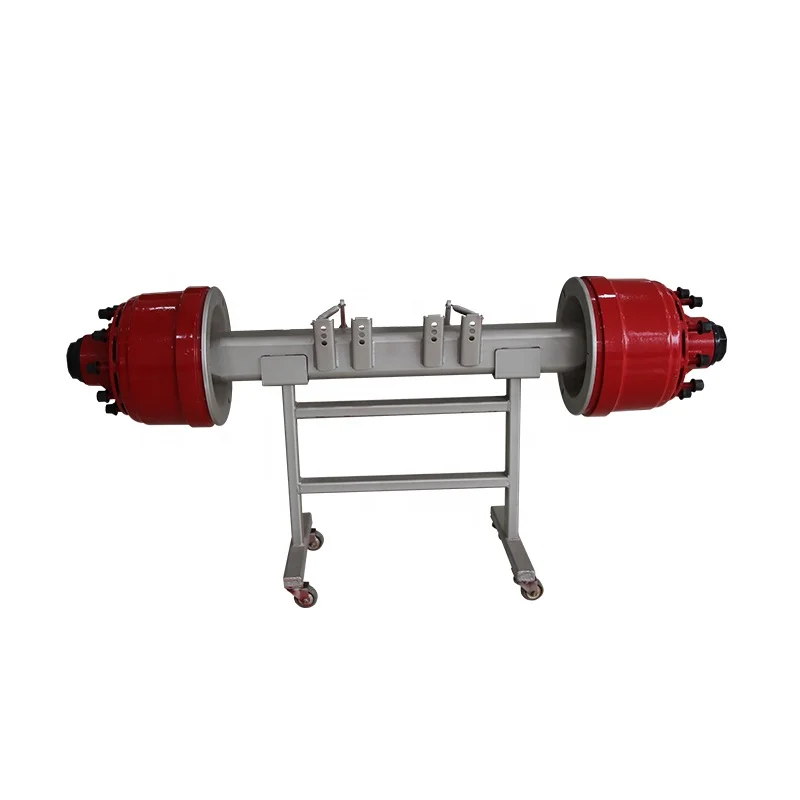

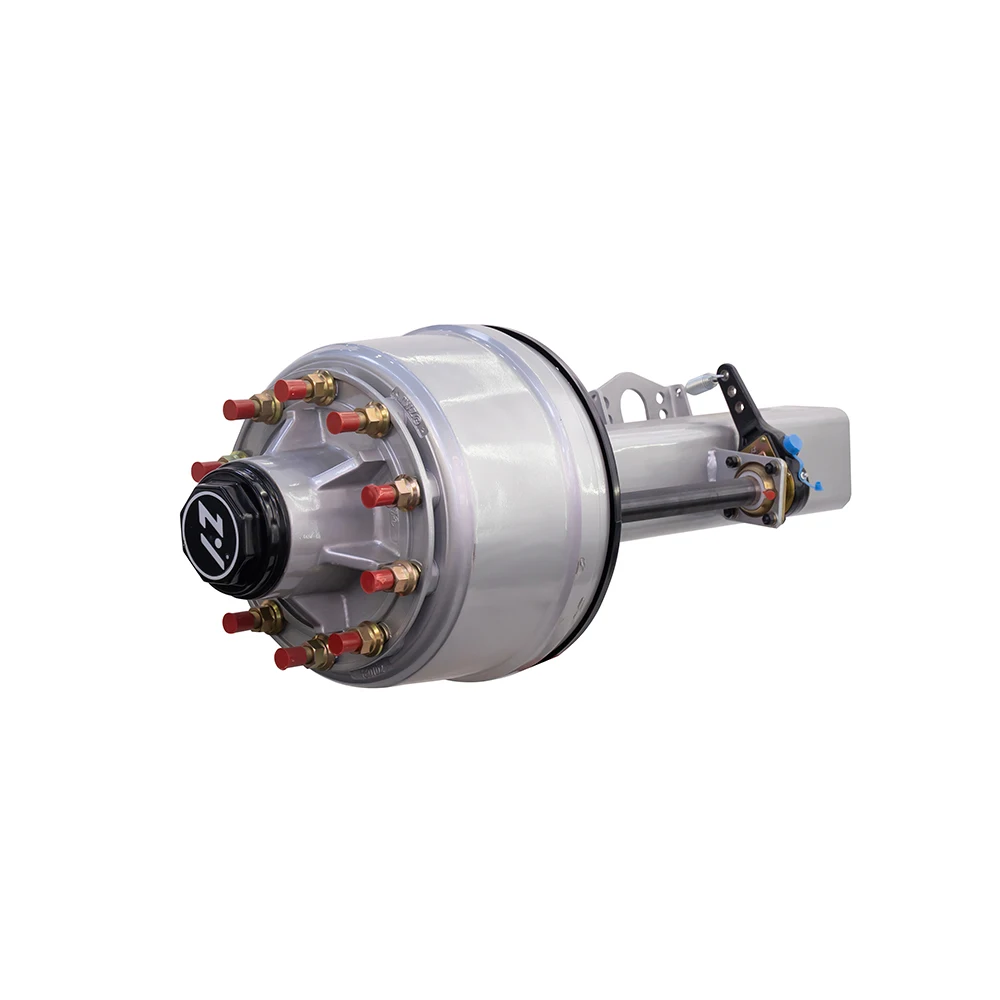

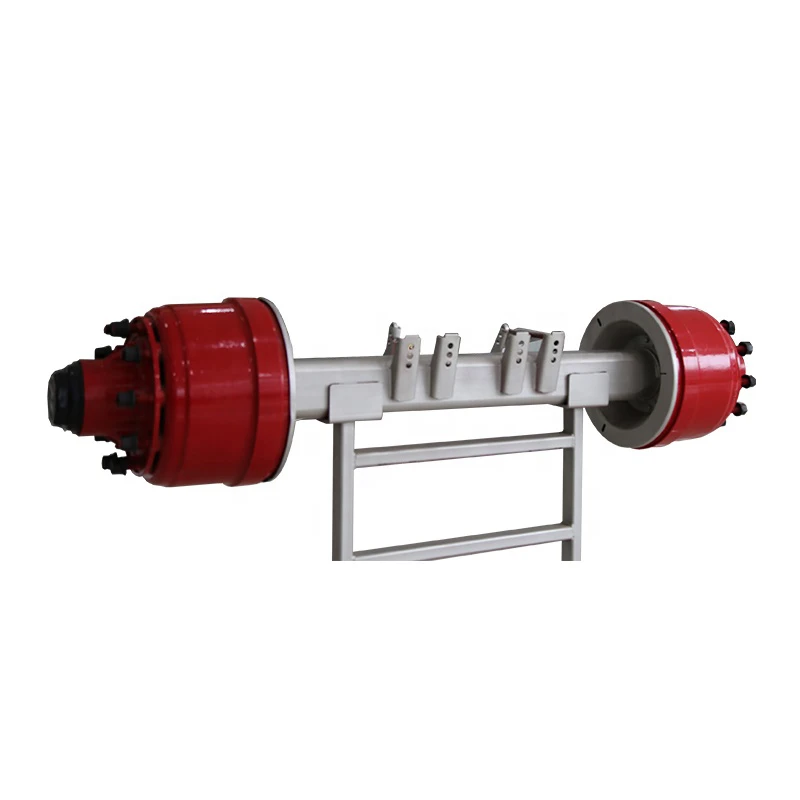

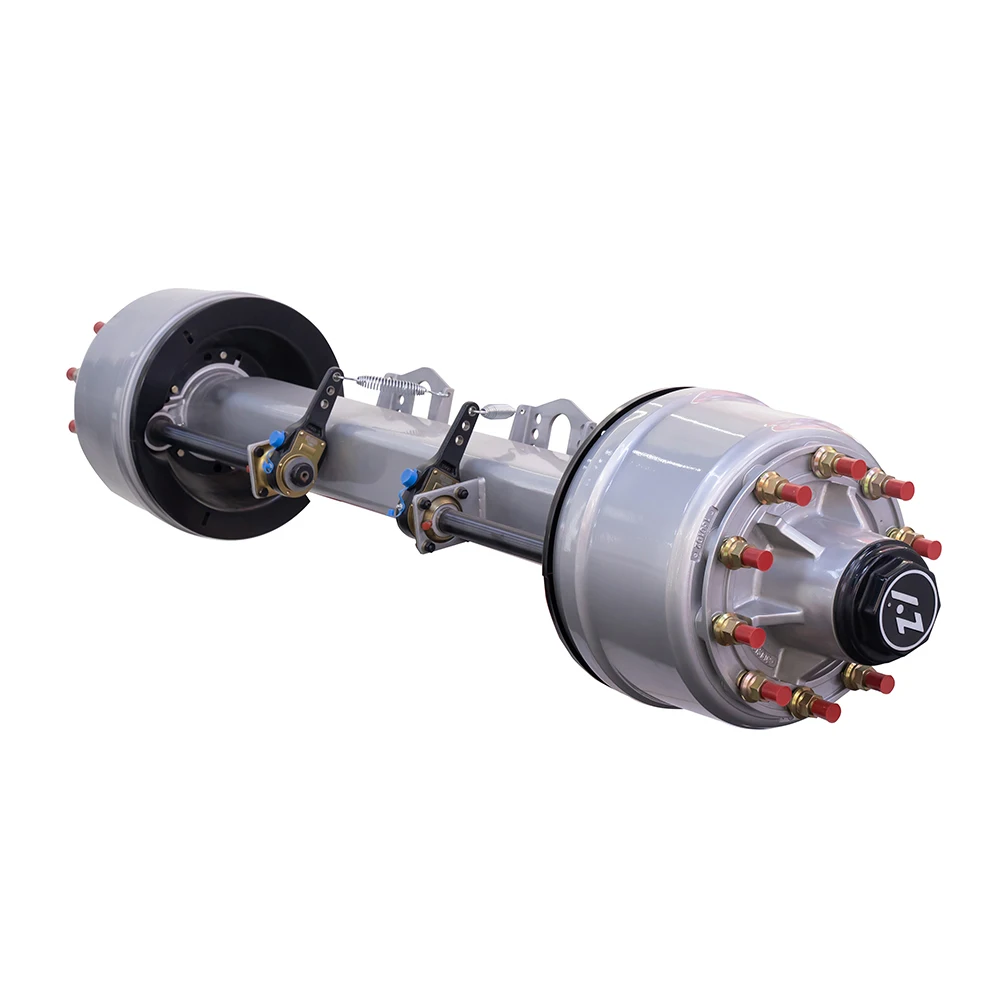

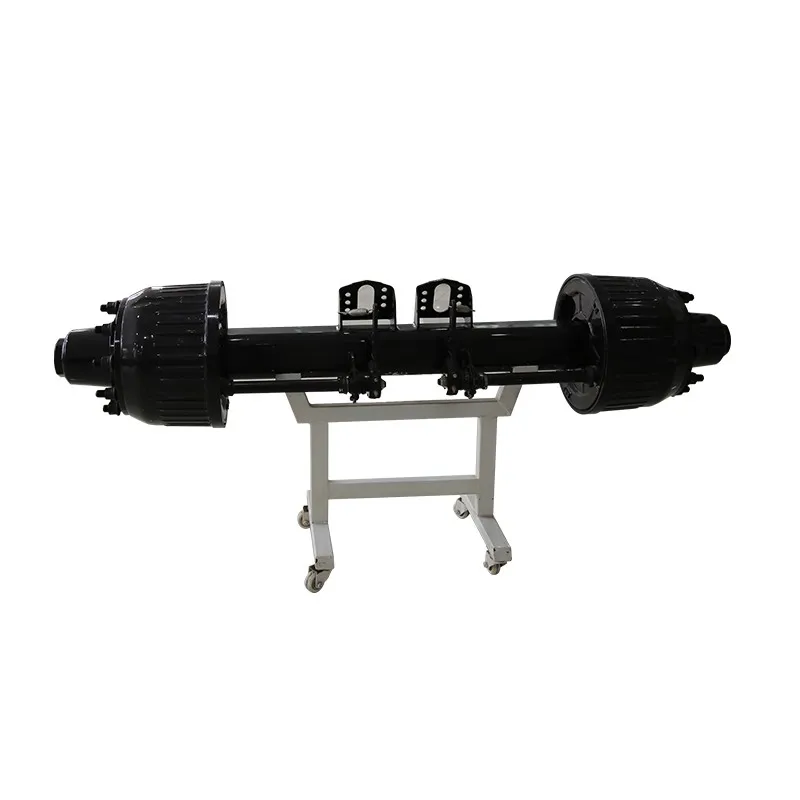

heavy truck agricultural dump truck single rear front air brake truck trailer axle
- Category: >>>
- Supplier: Shandong Zhengyang Machinery Co. Ltd.
Share on (1600690987902):
Product Overview
Description

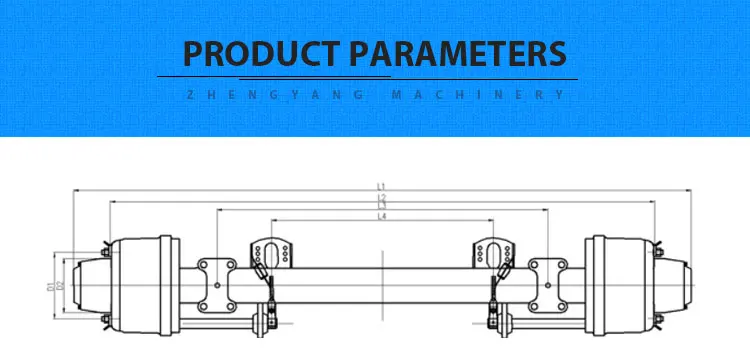

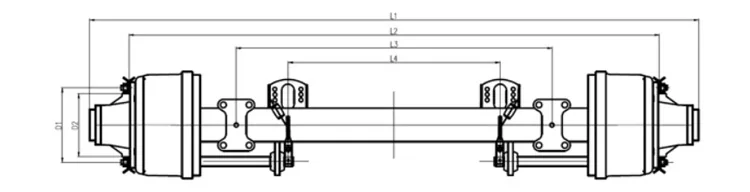

Model | Capacity (t) | Brake (mm) | Distance of brake chamber L4 | Axle Tube (mm) | Center distance of spring seat L3 | P.C.D D1 |
ZY-1056 | 13 | 420*180 | 392 | Φ127 | ≥970 | 285.75 |
ZY-1057 | 13 | 420*180 | 388 | Φ127 | ≥970 | 335 |
ZY-1058 | 13 | 420*200 | 372 | Φ127 | ≥970 | 285.75 |
ZY-1059 | 13 | 420*200 | 372 | Φ127 | ≥970 | 335 |
ZY-1060 | 13 | 420*180 | 392 | Φ127 | ≥970 | 285.75 |
ZY-1061 | 13 | 420*180 | 388 | Φ127 | ≥970 | 335 |
ZY-1062 | 13 | 420*200 | 372 | Φ127 | ≥970 | 285.75 |
ZY-1063 | 13 | 420*200 | 372 | Φ127 | ≥970 | 335 |
ZY-1064 | 13 | 420*180 | 392 | Φ127 | ≥930 | 285.75 |
ZY-1065 | 13 | 420*180 | 388 | Φ127 | ≥930 | 335 |
ZY-1066 | 13 | 420*200 | 372 | Φ127 | ≥930 | 285.75 |
ZY-1067 | 13 | 420*200 | 372 | Φ127 | ≥930 | 335 |
Model | stud | Total Length L1（mm） | Weight（kg） | Recommeend Wheel | Seam allowance D2 | Track L2 (mm) |
ZY-1056 | 10-M22*1.5 | 2180 | 345 | 7.5V-20 | 280.8 | 1840 |
ZY-1057 | 10-M22*1.5 | 2180 | 365 | 7.5V-20 | 280.8 | 1840 |
ZY-1058 | 10-M22*1.5 | 2180 | 348 | 7.5V-20 | 280.8 | 1840 |
ZY-1059 | 10-M22*1.5 | 2180 | 360 | 7.5V-20 | 280.8 | 1840 |
ZY-1060 | 10-M22*1.5 | 2180 | 340 | 7.5V-20 | 280.8 | 1840 |
ZY-1061 | 10-M22*1.5 | 2180 | 358 | 7.5V-20 | 280.8 | 1840 |
ZY-1062 | 10-M22*1.5 | 2180 | 343 | 7.5V-20 | 280.8 | 1840 |
ZY-1063 | 10-M22*1.5 | 2180 | 355 | 7.5V-20 | 280.8 | 1840 |
ZY-1064 | 10-M22*1.5 | 2180 | 343 | 7.5V-20 | 280.8 | 1840 |
ZY-1065 | 10-M22*1.5 | 2180 | 362 | 7.5V-20 | 280.8 | 1840 |
ZY-1066 | 10-M22*1.5 | 2180 | 348 | 7.5V-20 | 280.8 | 1840 |
ZY-1067 | 10-M22*1.5 | 2180 | 360 | 7.5V-20 | 280.8 | 1840 |

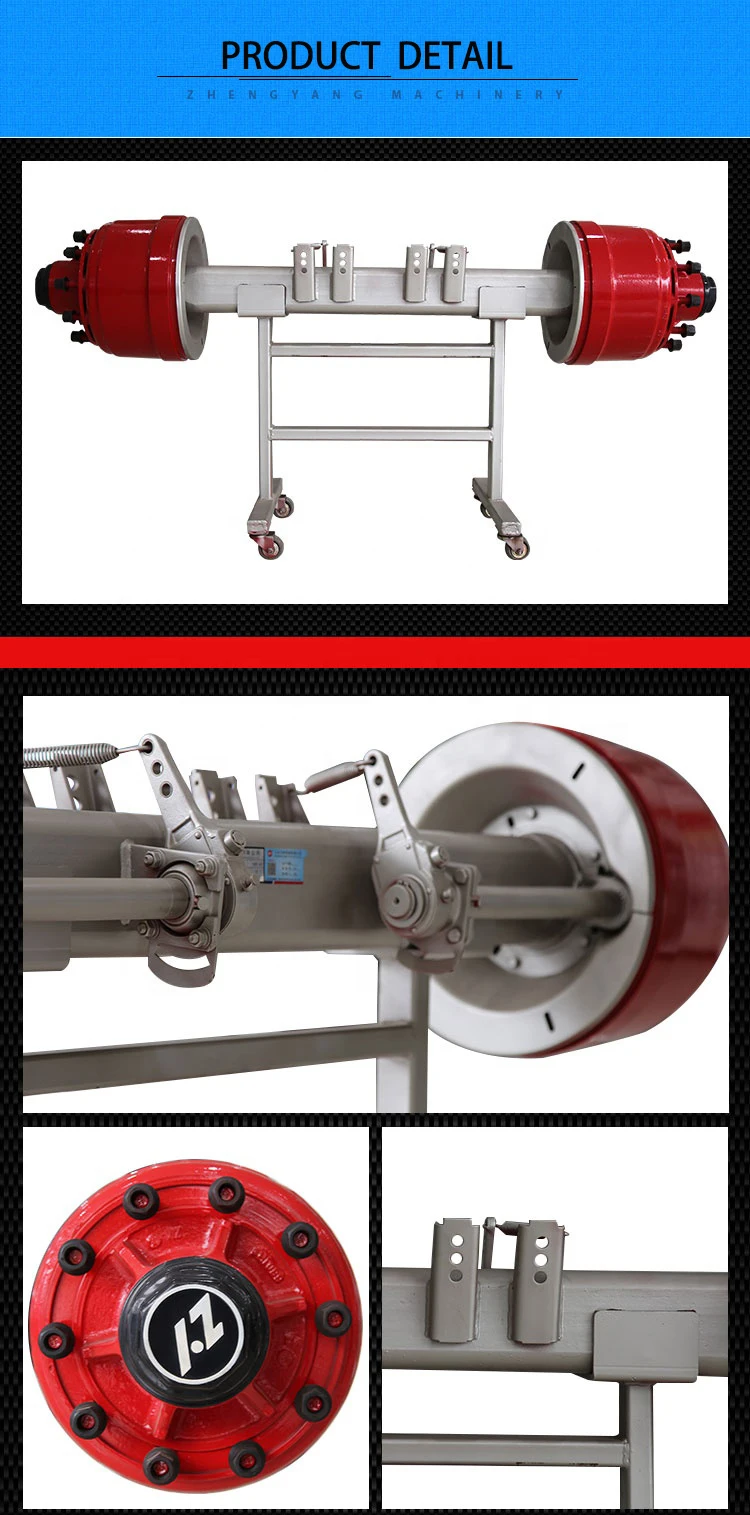

Special heat treatment, low alloy steel axle beam, good comprehensive performance, strong bearing capacity, low dead weight
High quality alloy solid spindle provides superior fatigue resistance through integral heat treatment
Camshaft adopts special sealing processing to ensure that grease will not enter the brake drum, which is more safe
New tight fit wheel hubcap, O-ring seal, good sealing performance
Zhengyang Group is a national high-tech enterprise that has passed ISO9001, ISO140001, OHSAS18001 management system certification and intellectual property management standardization certification. It has 12 national patented technologies and provincial-level
famous trademarks. Manufacturers and exporters specializing in the design, development, and production of semi trailer suspension systems and axle series. The company currently has over 100 sets of various production and processing equipment, including suspended automatic welding systems. Control every step from raw materials, semi-finished products to finished products to ensure that our customers receive consistent quality products.
famous trademarks. Manufacturers and exporters specializing in the design, development, and production of semi trailer suspension systems and axle series. The company currently has over 100 sets of various production and processing equipment, including suspended automatic welding systems. Control every step from raw materials, semi-finished products to finished products to ensure that our customers receive consistent quality products.
FAQ
1.Who are we?
We are located in Shandong, China. Founded in 2001, we focus on the R & D and manufacturing of trailer axles. At present, the group's main products include disc axles, drum axles, low plate axles, three-line six axle axles, concave axles,eccentric axles, small tonnage trailer axles, semi-finished axles and various types of suspensions, leaf springs, outriggers and
traction pins. The cooperative customers are located in more than 50 countries and regions such as Asia, Europe, Latin America,the Middle East, Australia and Africa, helping many customers create higher benefits and values.
2.How can we guarantee quality?
Our products have passed ISO9001 international quality standard certification. We implement all-round quality control from raw materials to finished products. The quality inspection system tracks the whole process and matches the extreme performance test of finished products to fully guarantee the product quality.
3.What can you buy from us?
Trailer Axle,Trailer Mechanical Suspension,Trailer Parts Air Suspension,Trailer Parts Bogie Suspension,Semi Trailer Spare Parts.
4.Why should you buy from us not from other suppliers?
We are a global supplier specializing in R & D and manufacturing of semi-trailer axles/accessories; The production process is subject to unified, strict and perfect quality control and quality inspection procedures; After 20 years of testing in the market, our cooperativecustomers are all over the world, and so far we have maintained zero quality disputes.
5.Do you have MOQ?
Depends on different ideas, Can be negotiated.The larger the quantity is, the competitive the unit price willbe. If you are interested in purchasing.
6.Could you please provide us with the specifications of the products?
Yes, please select thecorresponding product model in our product catalog.
