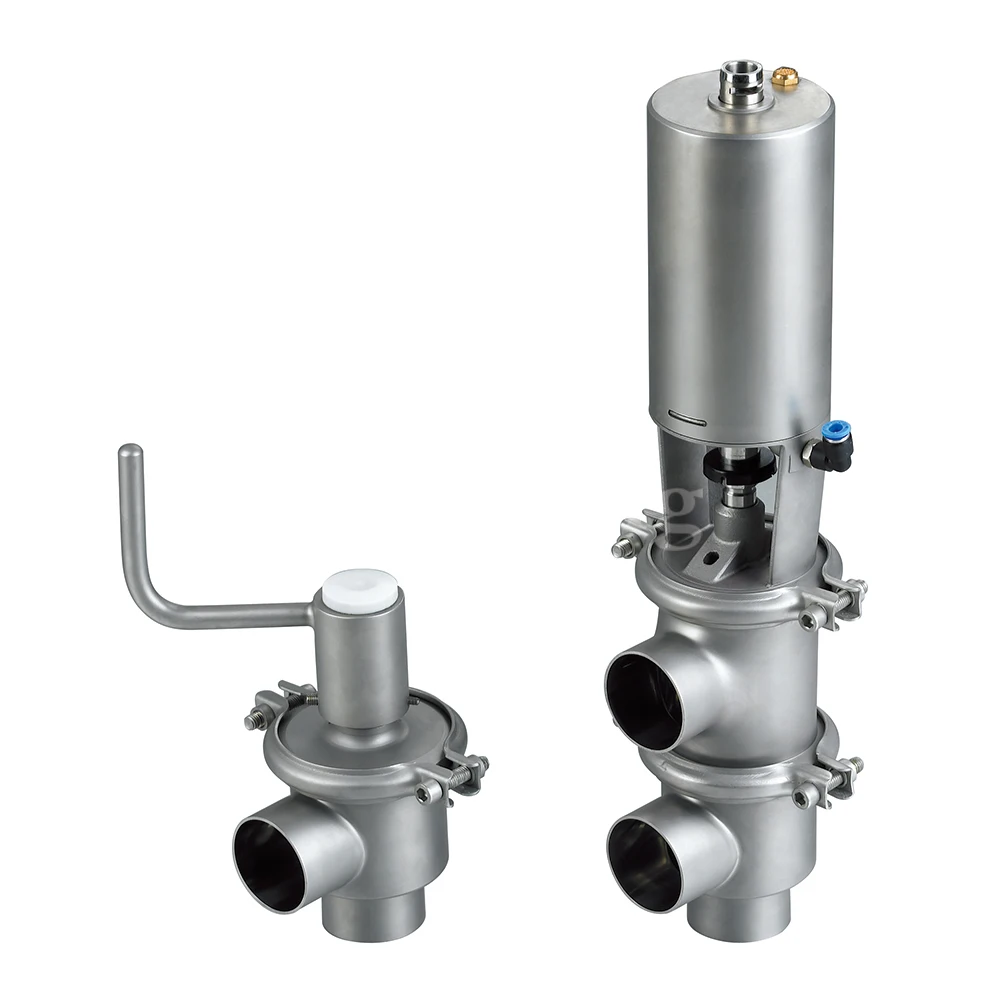

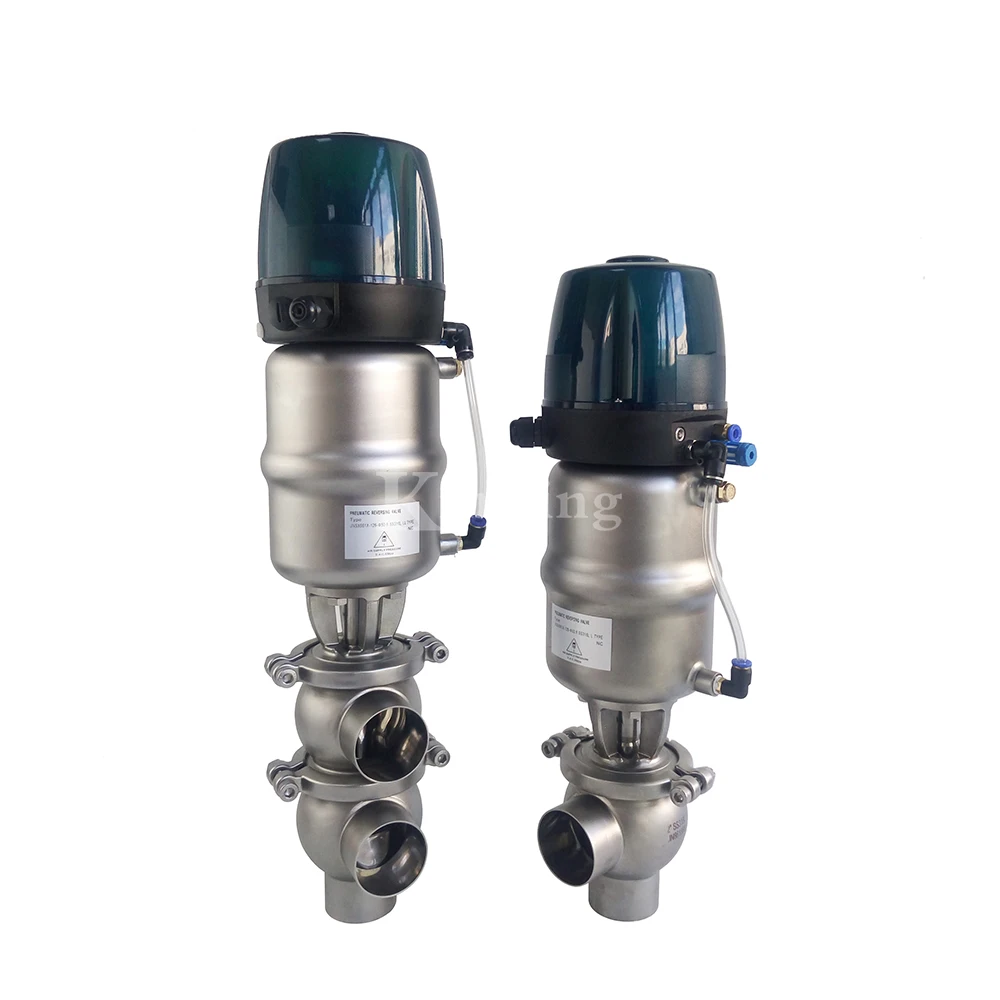

Sanitary reversing valve intelligent divert valve with control unit
- Category: >>>
- Supplier: Wenzhou Kinding Machinery Co. Ltd.
Share on (1600690989007):
Product Overview
Description
Products Description
Application
The series of valves are major let the medium reach the purpose of reversing or end stop, because the good sealing performance and cleanability, they are extensively use to different sanitary industry areas. The flow diversion valves are widely used in food, beverage, dairy, bio-tech, pharmacy industries.
Working principle

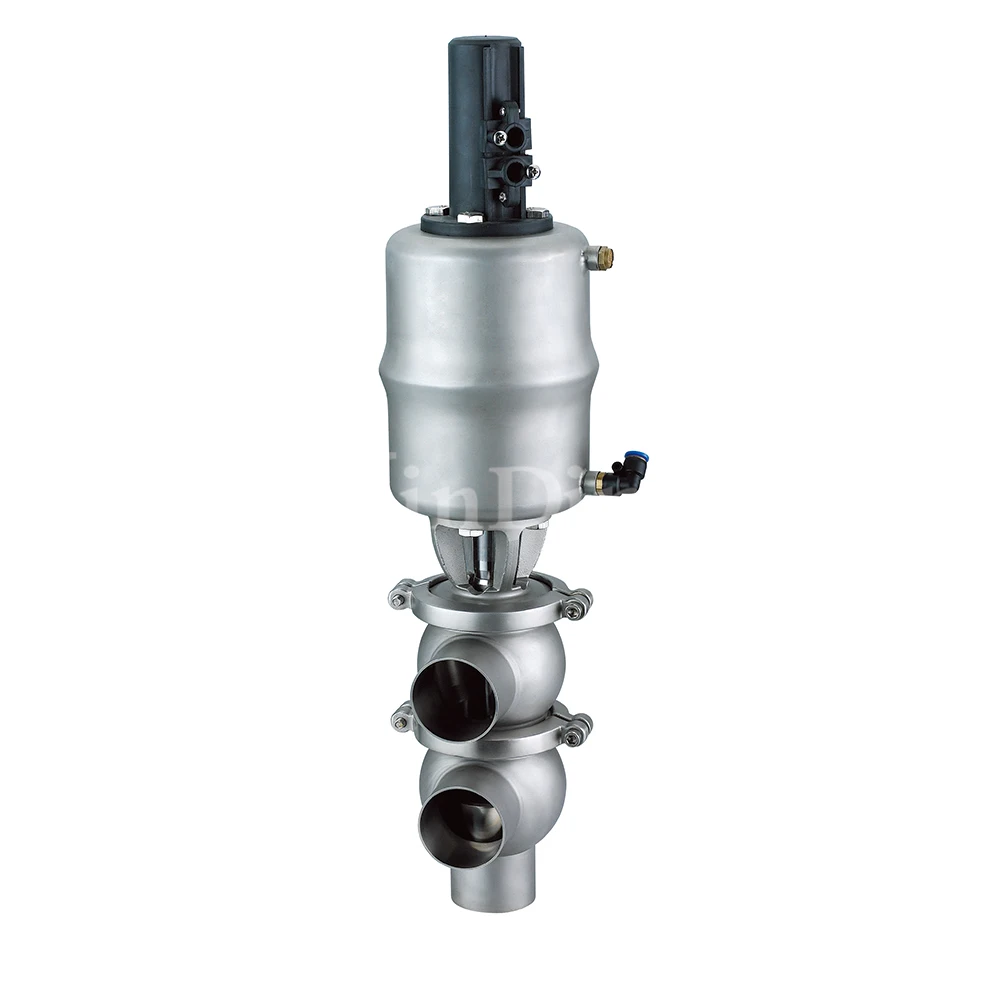

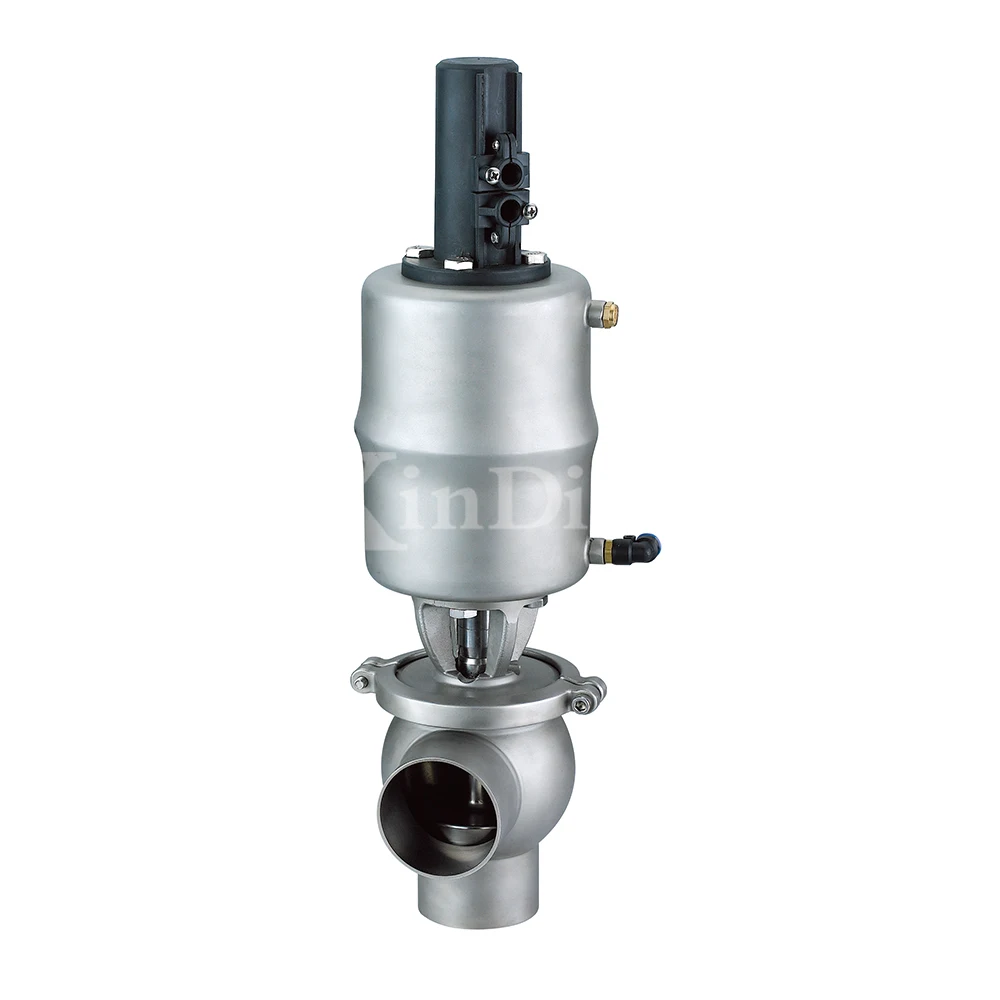

The series of pneumatic cut off reversing valve change the energy which process by compressed air to the mechanical energy, the mechanical energy can drive the valve rod axial moving, thus move the different location of seal elements, which can control the switch for inlet of pipeline, finally realize the purpose of medium reversing or stop.

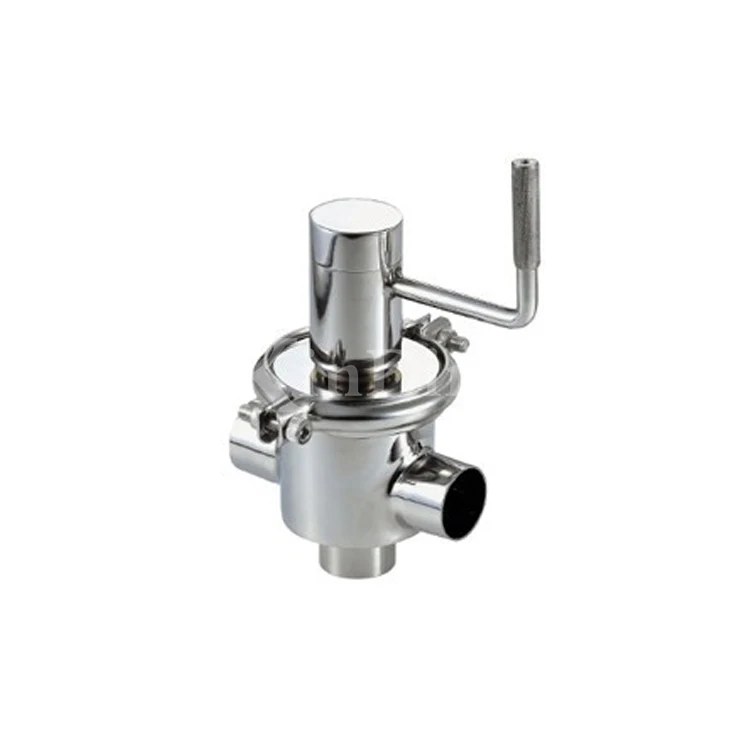

The manual cut-off reversing valve series control by handle also reach the purpose of medium reversing or stop at the end.
The manual cut-off reversing valve series control by handle also reach the purpose of medium reversing or stop at the end.
Valve Body Material | AISI304/AISI316L |
Seat material | EPDM/VMQ/FPM/PTFE |
Surface | Mirror polish, or stand blasting type |
Size | 1”-4”,DN25-DN100 |
Connection types | weld, clamp, screw, flange |
Driving mode | manual or Pneumatic |
Related Products
Recommend Products
Our Company

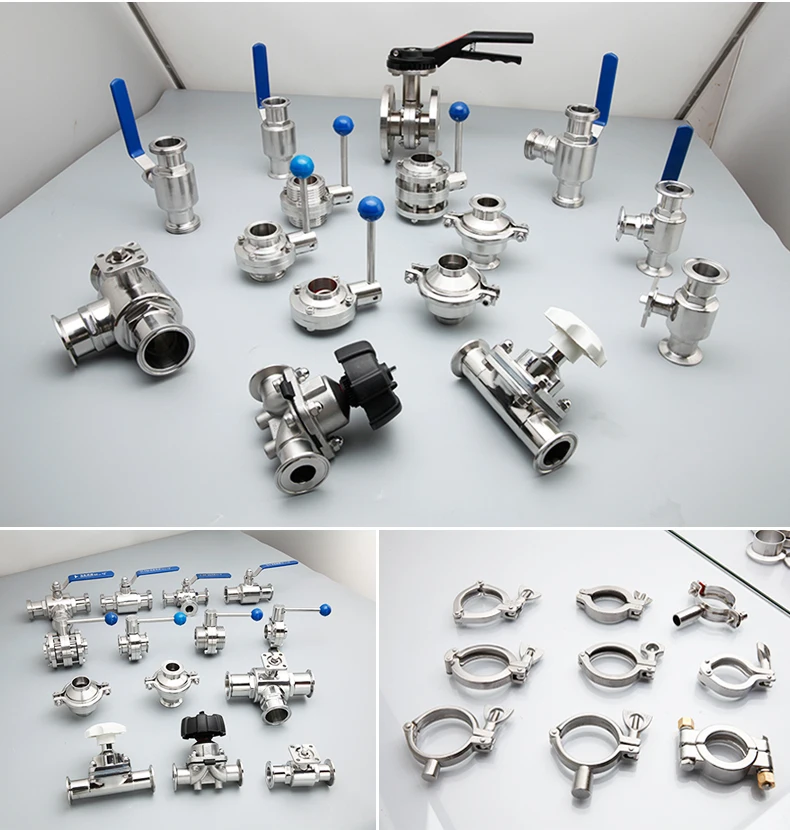

Wenzhou Kinding Machinery co.,Ltd is located at a beautiful and traffic-convenient Longwan district of Wenzhou city, ,mainly engaged in developing,manufacturing,installation and techanical service in food, beverage, biology, pharmacy, chemical industry fields. We have advantage in producing high quality stainless steel equipment, such as fruit pulping machine, sanitary centrifugal pump, rotary lobe pump, high shear pump, etc. The enterprise has passed ISO9001:2008, our products are made of SUS304, SUS316 and SUS316L, conforming to sanitary standard stated in GMP specification.
Our Certifications
Best stainless
Design material according to customer ' s requirement, test all the raw material to confirm SS304, SS304L, SS316, SS316L.
Package and Shipping
FAQ
A: We are factory.
Q2: How long is your delivery time?
A: Generally it is 3-7 days if the goods are in stock. or it is 10-15 days if the goods are not in stock, it is according to quantity.
Q3: Do you provide samples? is it free or extra?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight for the fittings.
Q4: What is your terms of payment?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below:
Mobile/Whatsapp: +86 15058983705 . Skype: hyq5871 . QQ: 1783023369.
