2022 New Design Tile Machine With Tracking And Shearing Function Roof Tile Making Machine Arc Roof Sheet Forming Machine

Share on:

Price:$12,000.00 - $14,000.00
Price in USD:Details


Product Overview


Products Description


Working speed
10-20 m/min(Shear time is not included)
Pressed plate thickness
Control mode
Siemens PLC
Discharging rack
5T manual discharging rack
Number of molding passes
22 lanes
Roll material
After finishing, the surface of 45# steel is chrome plated.
Shaft material and diameter
45# Steel finishing,Shaft diameter is¢70mm
Main engine power
Power of hydraulic station
Hydraulic pressure
Scissors material
Cr12Mov, quench HRC 58-62℃
Length tolerance
380V, 50HZ,3 phase(According to customer requirements can be adjusted)
Transmission mode
1.0 inch single row chain
Equipment form
Guide pillar structure
Equipment color
Company color
Equipment size
L*W*H— 10.5m*1.8m*1.0m
Date of delivery
80 days
Payment method
30% advance charge,70% pay off on delivery

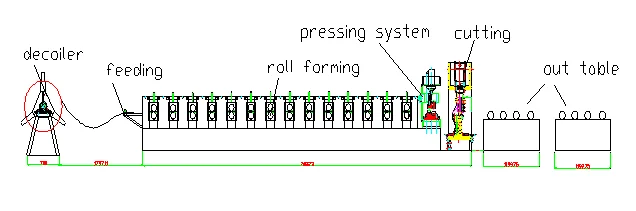

Flow Chart

Equipment composition

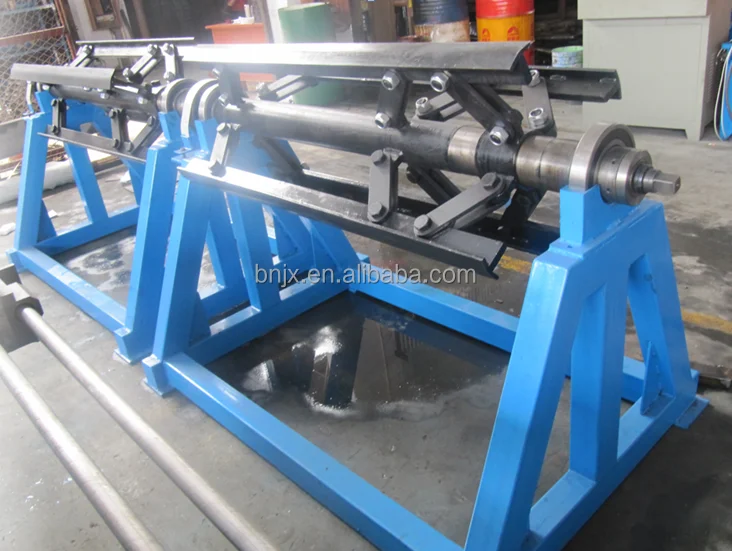

5T manual discharging rack
1 set

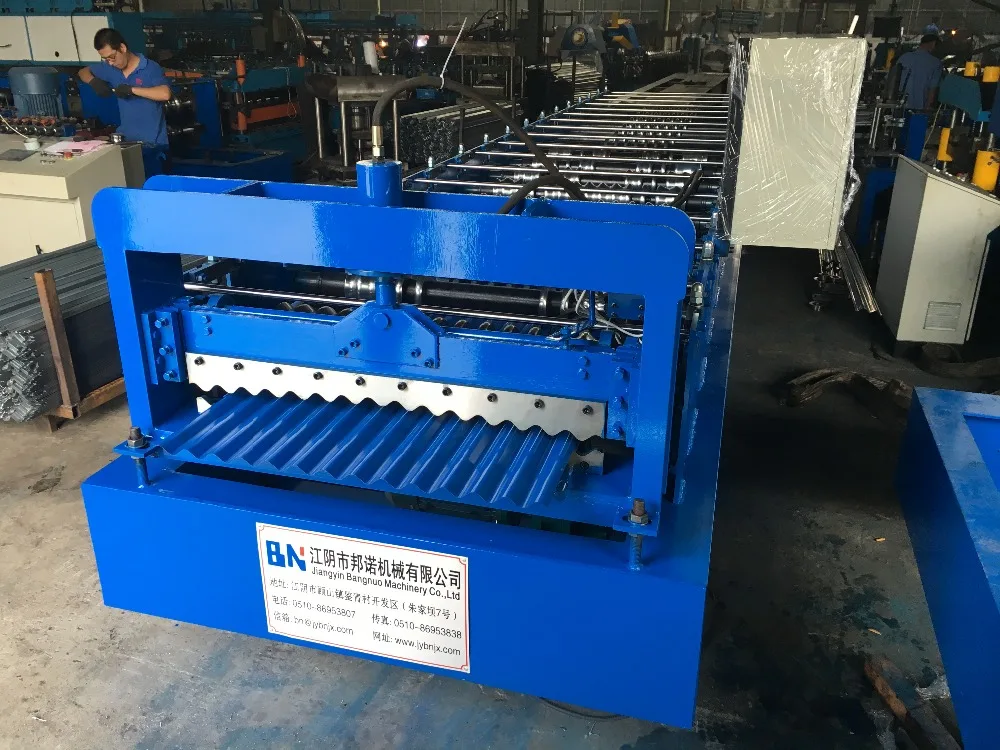

Molding machine
1 set
Post-shear structure
1 set

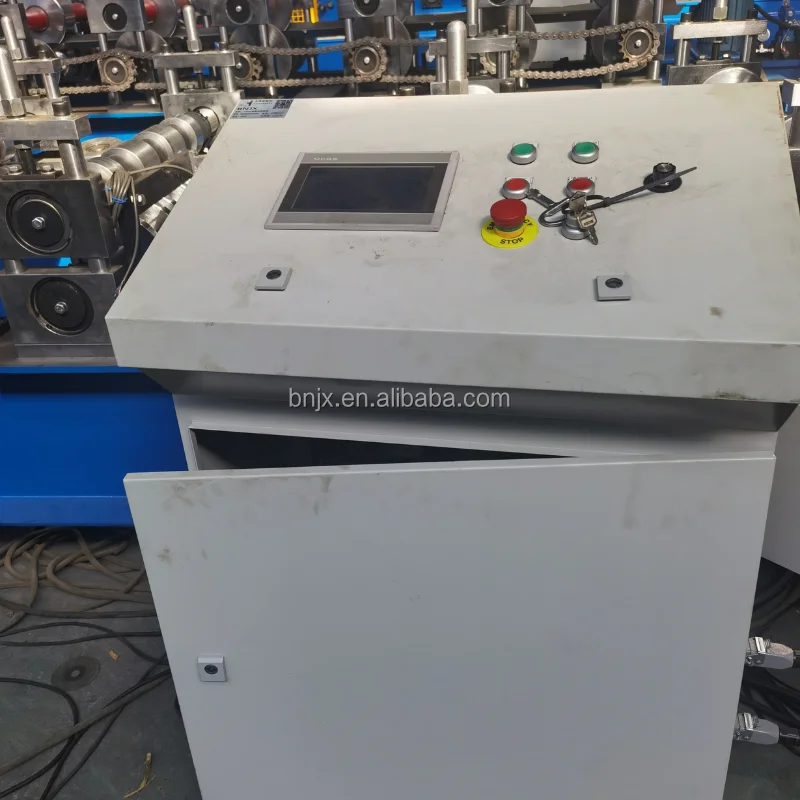

Control cabinet
1 set
Hydraulic station
1 set
Discharge table
2 sets

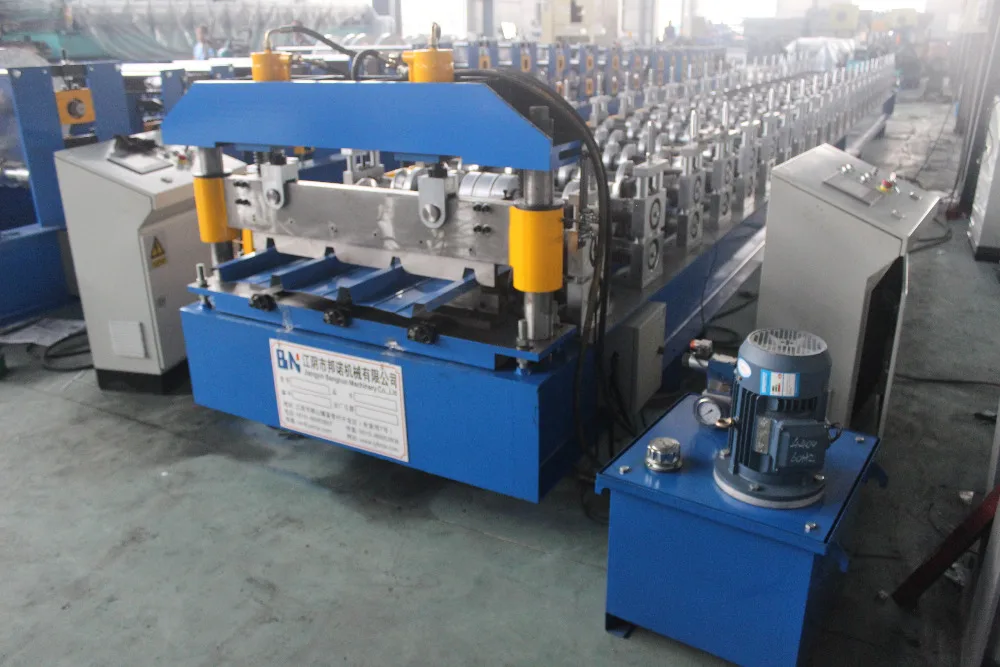

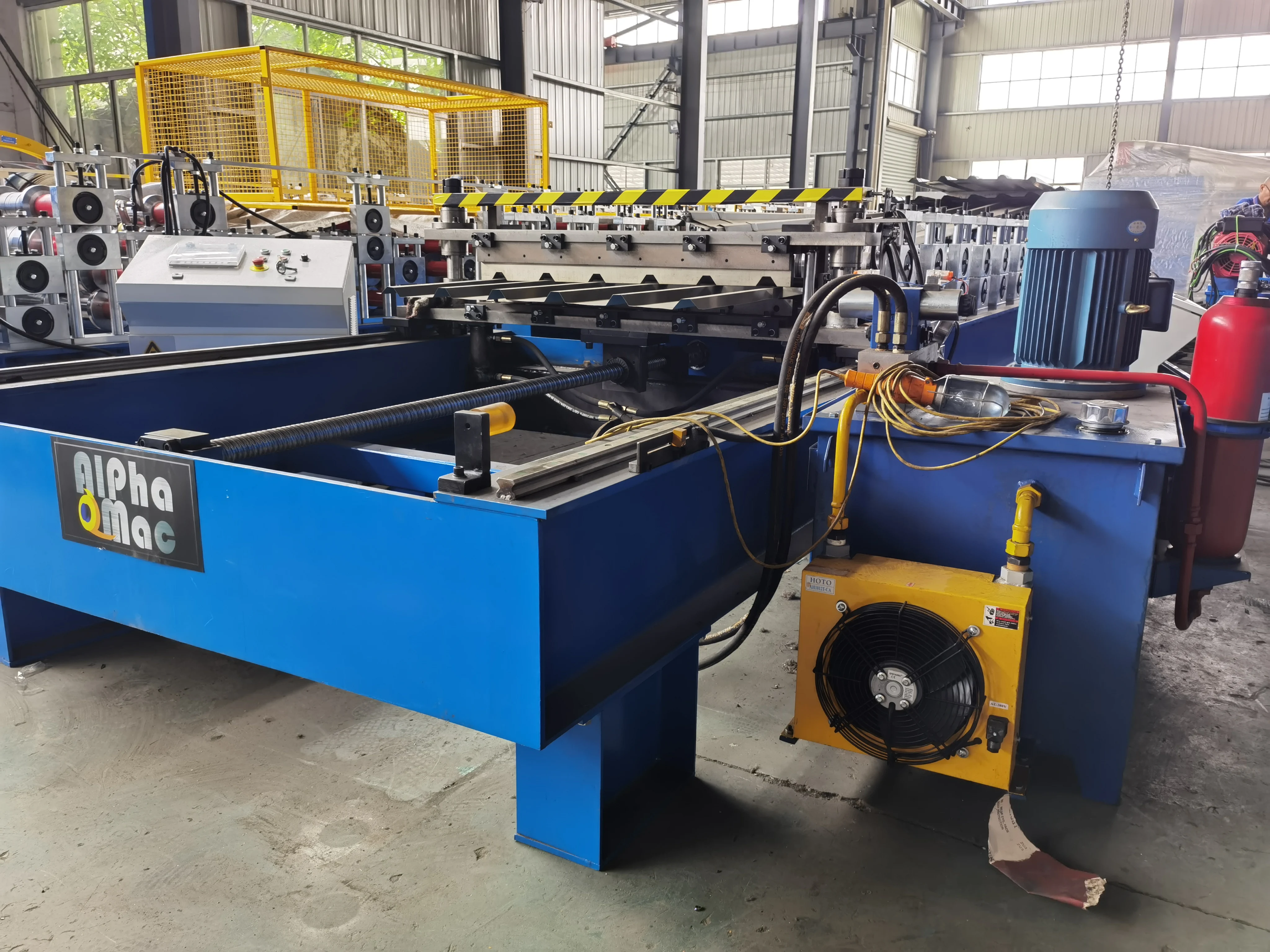

Details Images


Q1.Does one machine can only produce one size?
Not exactly. It depends on the type and version of machine you need.

Q2.Do you have after sales support?
Yes,we are happy to give advice and also have skilled technicians available to maintain the machine if needed.

3. You are trade company or factory?
We are Manufacturer,and also a CE manufacturer.

4.How long the machine could be made?
Normally speaking, high precision roll forming machine could be made out with 40 working days.If you need machines in hurry, we
can make it for you less than a month.

5. Do you provide customized?
Sure, we can design the equipment according to the data of the structural section you provide.Our engineers can offer the best
professional solution to our worldwide clients.Meanwhile we can provide door-to-door service.

6.How to visit your factory?
By high speed train from Shanghai to Wuxi, half an hour.You can also fly directly to Wuxi.

7.What's the warranty period?
12 months warranty period, starting from the date of the successful installation and commissioning of the equipments at the
Buyer’s Installation site.

8.May we visit your factory?
Sure,Warmly welcome to our factory at any time.

9. How to get a quotation?
1. Give me the dimension drawing and thickness, it is very important.
2. If you have requirements for production speed, power, voltage and brand, please explain in advance.
3. If you don't have your own outline drawing, we can recommend some models according to your local market standard.


Company Profile

Company Profile.
Jiangyin Bangnuo Machinery Co.. Ltd. is a professional manufacturer dedicated Color light steel construction . C. Z steel equipment and rolling, bending molding equipment enterprises. with the design and manufacture of various types of steel sheet thickness roll forming production line strength.
Company specializing in the productian of Dagong machines, foor plate machine, guardrail plate machine, corrugated tie machine , shearing machine, sub-board machine , highway guardrail , tile machine equipment , automatic tile press , iron Piva machine, iron tile machine, all automatic C-shaped steel machine. glazed tile machine


No additional packaging,

firmly fixed in containers
 with belt and wood.
suitable for sea transportation
