Product Overview

Description

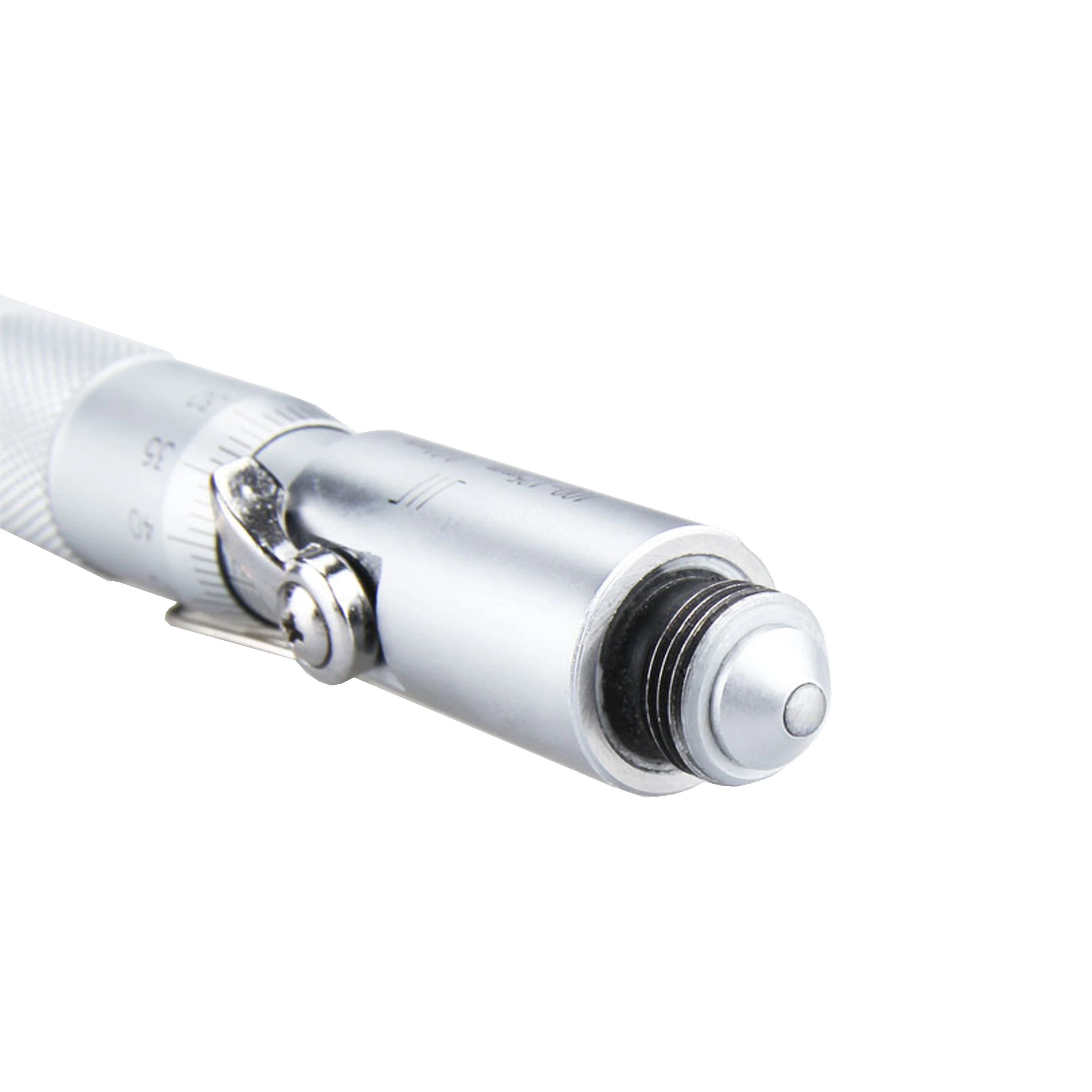

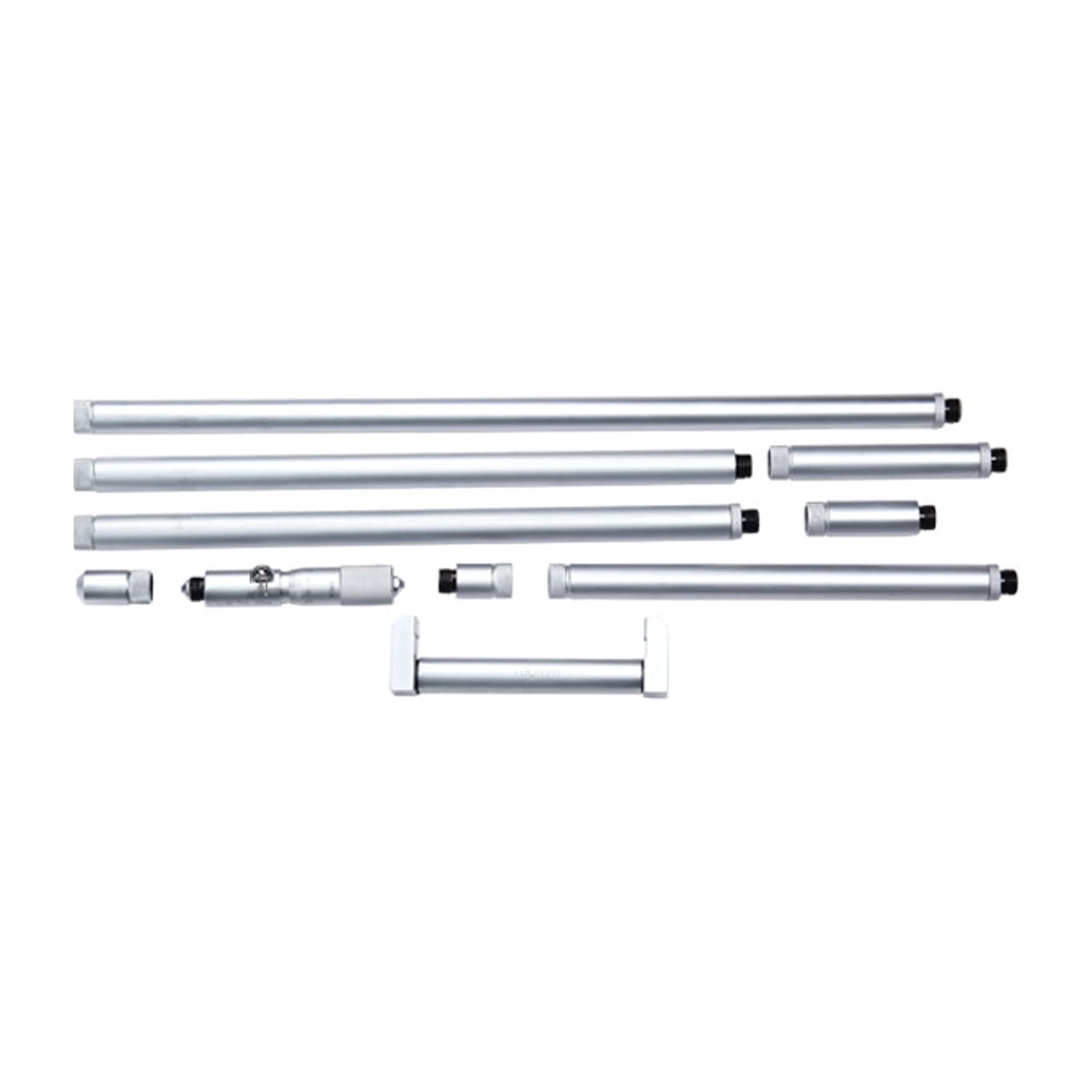

Internal Micrometer
(two-point type)*50-1500mm




1.Measure the internal dimension, groove width and the distance between two internal end faces. The combined "extension rod" has a wide range of internal dimensions.
2.Equipped with a calibration caliper to calibrate the zero position.
3.Carbide measuring surface.
4.Dark chromium plating on the surface of micrometer head and extension rod.


Product number
Measuring range
（mm）
Graduation value
（mm）
Precision
（mm）
Micrometer
Measuring head
Check card board(mm)
50-63
100-125
distance
13
25
1011171042
50-160
0.01
0.007
⚪

13
⚪

50
1011171063
50-250
0.01
0.008
⚪

13


⚪

50
1011171041
50-600
0.01
0.016
⚪

13
⚪

50
1011171001
100-1200
0.01
0.022

⚪
13

⚪
100
1011171036
100-1400
0.01
0.027

⚪
13

⚪
100
1011171037
100-1500
0.01
0.027

⚪
13

⚪
100


Extension rod
Model
Stock
L1
L2
L3
L4
L5
L6
L7
L8
13
25
50





Ⅰ
standing
13
（2 pieces）
25
50
100




Ⅰ
standing
13
25
50
100
150
200


Ⅰ
standing

25
50
100

200
300
400
Ⅱ
standing

25
50
100

200
（2 pieces）
300
400
Ⅱ
standing

25
50
100

200
300
（2 pieces）
400
Ⅱ
standing

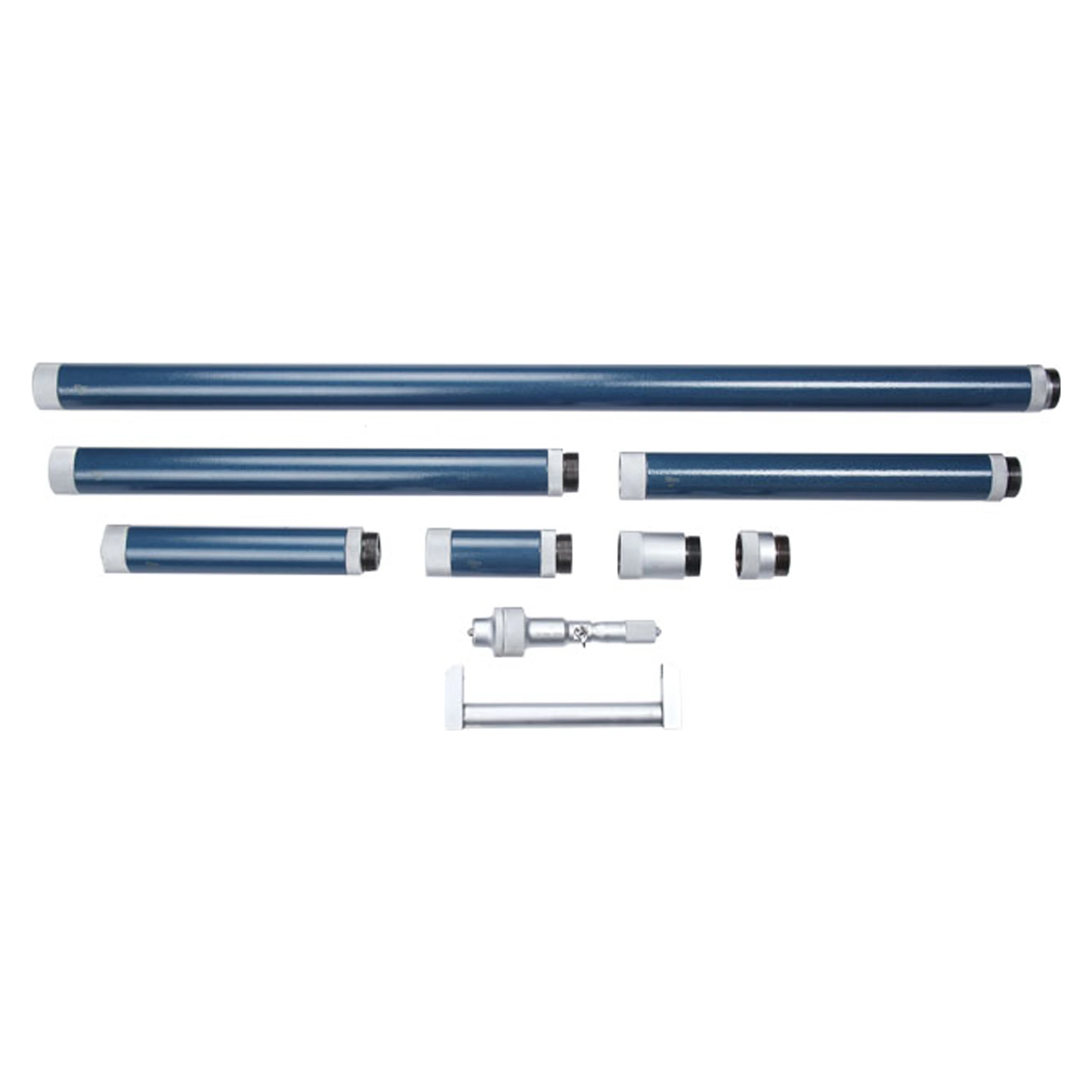

Internal Micrometer
(two-point type)*150-6000mm




1.Measure the internal dimension, groove width and the distance between two internal end faces. The combined "extension rod" has a wide range of internal dimensions.
2.Equipped with a calibration caliper to calibrate the zero position.
3.Carbide measuring surface. 4.Dark chromium plating on the surface of micrometer head and extension rod.
4.Micrometer head is plated with dark chrome;> 50mm extension rod aluminum alloy pipe blue spray.


Product number
Measuring range
（mm）
Graduation value
（mm）
Precision
（mm）
Micrometer
Rod diameter D（mm）

150-175
distance
1011171038
150-2000
0.01
0.032
⚪
25
38
1011171039
150-3000
0.01
0.050
⚪
25
38
1011171040
150-4000
0.01
0.060
⚪
25
38
1011171060
150-5000
0.01
0.072
⚪
25
53
1011171061
150-6000
0.01
0.090
⚪
25
53


Extension rod
Model
Stock
L1
L2
L3
L4
L5
L6
L7
L8
25
50
100
200
300
400
800

Ⅲ
standing
25
50
100
200
300
400
800
1000
Ⅲ
standing
25
50
100
200
300
400
800
1000（2 pieces）
Ⅲ
standing
25
50
100
200
300
400
800
1000（3 pieces）
Ⅲ
standing
25
50
100
200
300
400
800
1000（4 pieces）
Ⅲ
standing


Internal Micrometer

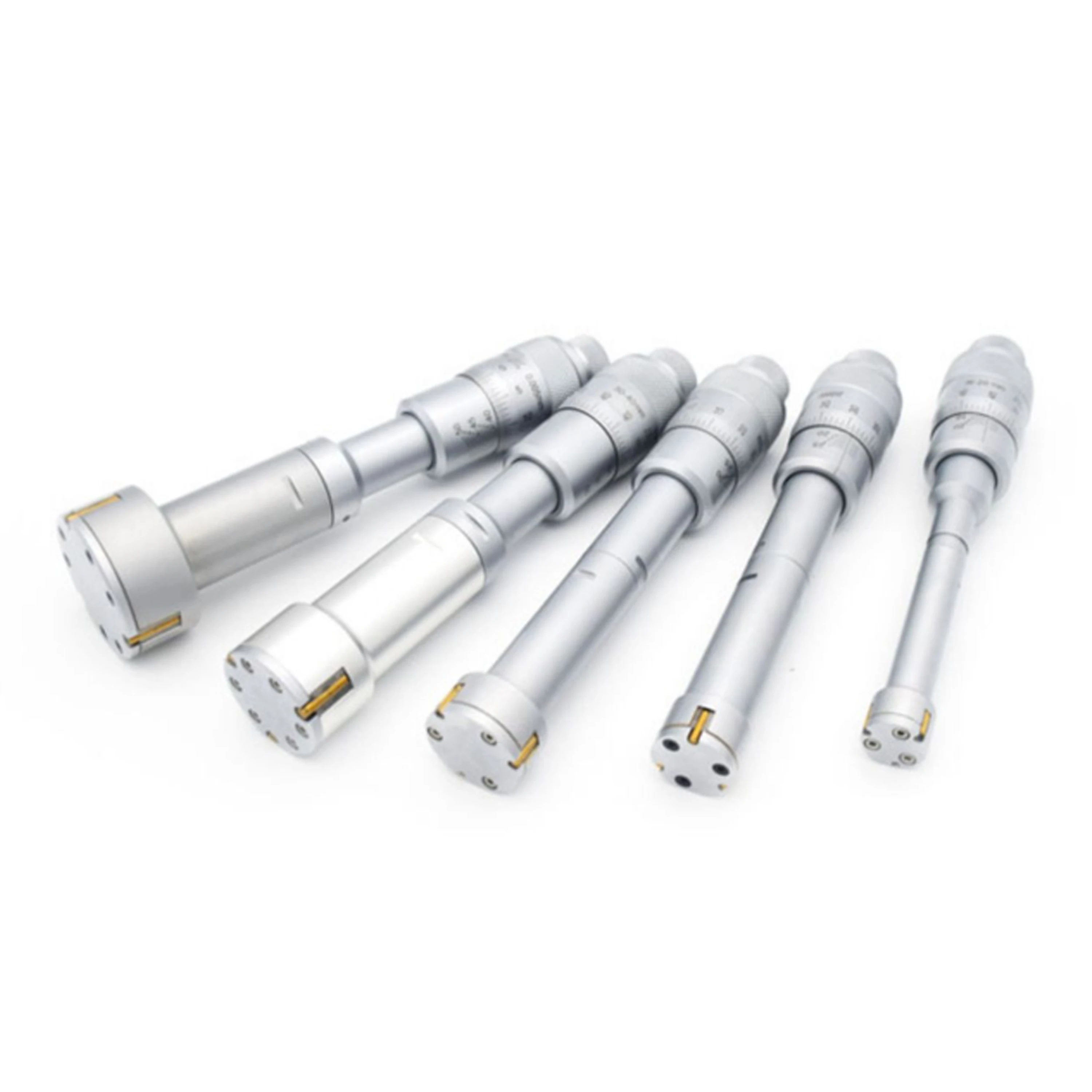

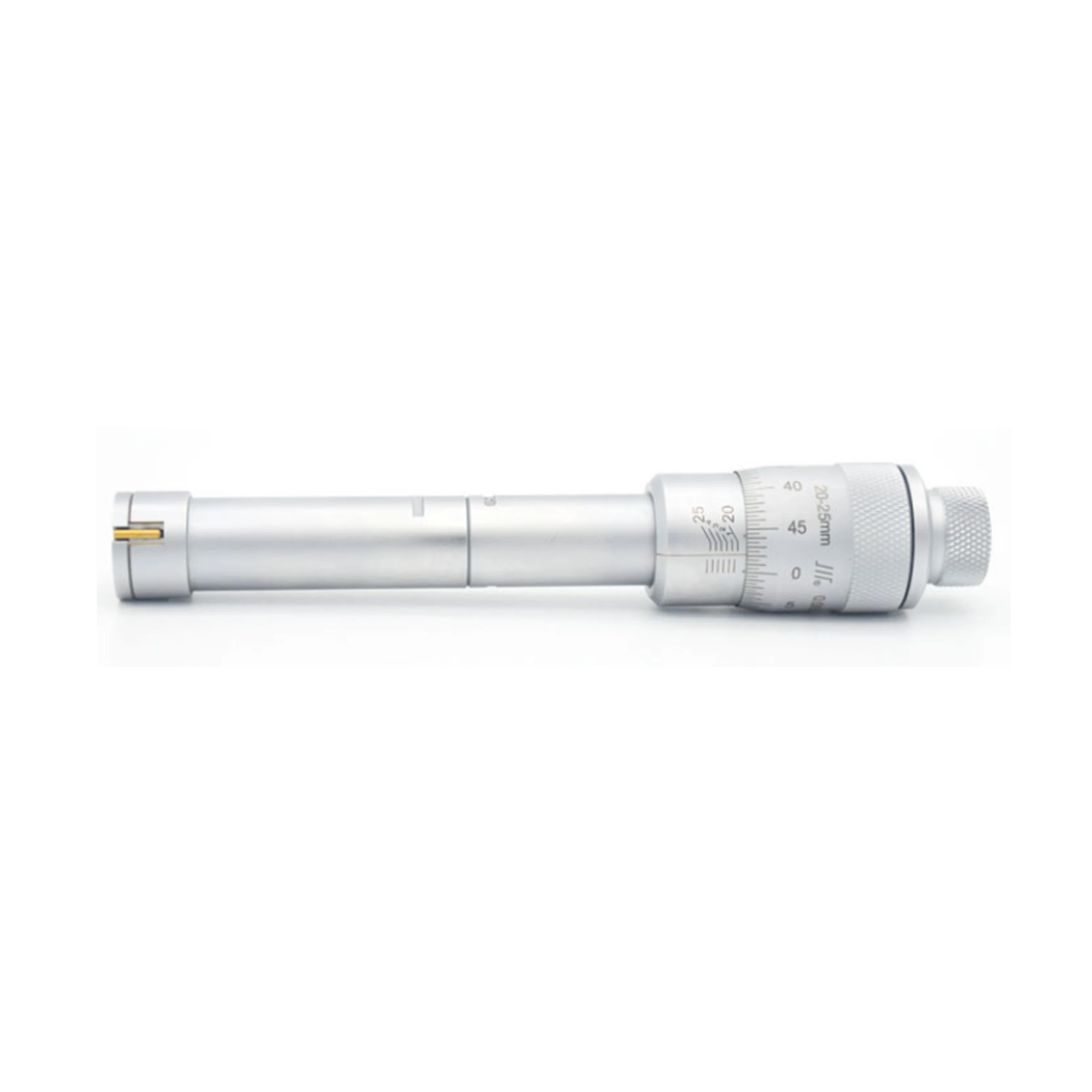

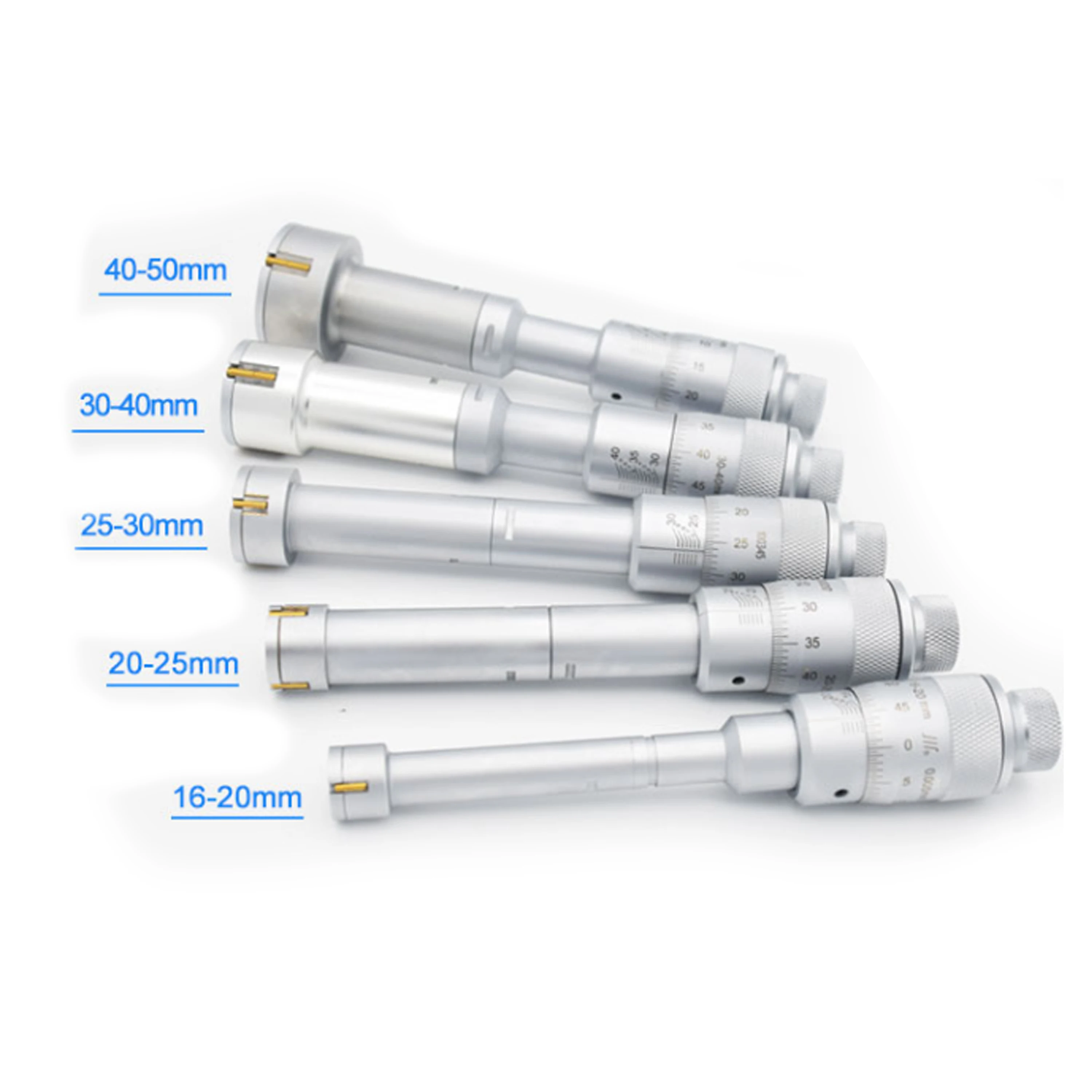

(three-point type)*16-150mm




1High precision laser marking, clear and accurate, division value 0.005mm.
2.Torsion spring structure.
3.Titanium nitride coating, carbide probe.
4.Good wear resistance and long service life.
5.Force measuring fine adjustment device.


Product number
Measuring range
（mm）
Graduation value
（mm）
Precision
（mm）
Basic dimensions（mm）
Collating ring gauge(mm)
Extension rod(mm)
L
L1
1011301216
12-16
0.005
0.004
95
0.5
12
150
1011031620
16-20
0.005
0.004
95
0.5
16
150
1011302025
20-25
0.005
0.004
95
0.5
20
150
1011302530
25-30
0.005
0.004
95
0.5
25
150
1011303040
30-40
0.005
0.004
95
0.5
30
150
1011304050
40-50
0.005
0.004
95
0.5
40
150


Product number
Measuring range
（mm）
Graduation value
（mm）
Precision
（mm）
Basic dimensions（mm）
Collating ring gauge(mm)
Extension rod(mm)
L
L1
1011305063
50-63
0.005
0.005
110
1
50
150
1011306275
62-75
0.005
0.005
110
1
62
150
1011307588
75-88
0.005
0.005
110
1
75
150
1011308700
87-100
0.005
0.005
110
1
87
150
1011300025
100-125
0.005
0.006
200
1
no
200
1011302550
125-150
0.005
0.006
200
1
no
200
