Vacuum homogenizer mixer high shear with tank machines for the manufacture of cosmetics homogenizer mixer
- Category: >>>
- Supplier: Guangzhou,Jinfeng,Light,Industry,Machinery,Co.,Ltd.
Share on:
Product Overview
Description
Viscous Liquid Mixer stainless steel Vacuum Emulsifying Mixer Mayonnaise Blender Homogenizer
Product Description
Characteristic
1.Vacuum suction is adopted, especially for powder materials to avoid dust flying
2.Prevent material from bubbles after high speed stirring, can meet requirements of hygiene and asepsis.
3.The contact part between container and material is made of SUS316L material.
4.The machine is made completely according to the GMP request , which is the most advanced and most perfect cream production equipment.
5.It is suitable for production of ointment and cream products in cosmetic and pharmaceutical plants.
6.The emulsifying effect is more prominent for materials of high base viscosity and high solid content .
No | Item | Data |
1 | Description | vacuum homogenizer emulsifier mixer machinery cosmetic cream production making equipment |
2 | Working capacity | 100L / customizable |
3 | working pot | emulsion pot , water phase , oil phase |

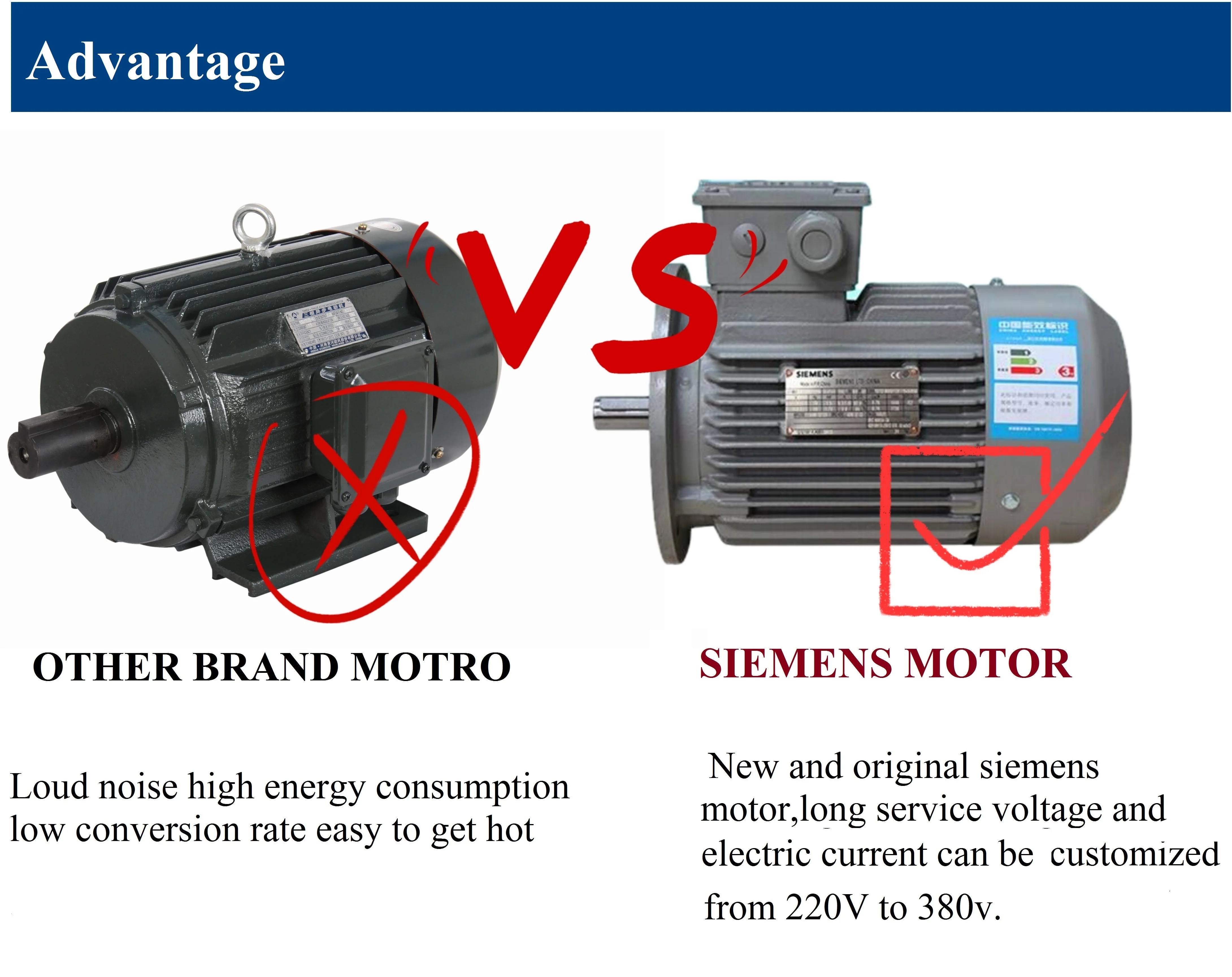

4 | motor | Siemens |
5 | frequency converter | Delta, Mitsubishi (option) |
6 | mixing type | Main pot : frame mixer and bottom homogenizer mixerWater and oil pot : high speed disperser |
7 | Power | main pot : 5.5kw / 11kwwater and oil pot : 2.2kw vacuum pump : 5.5kw |

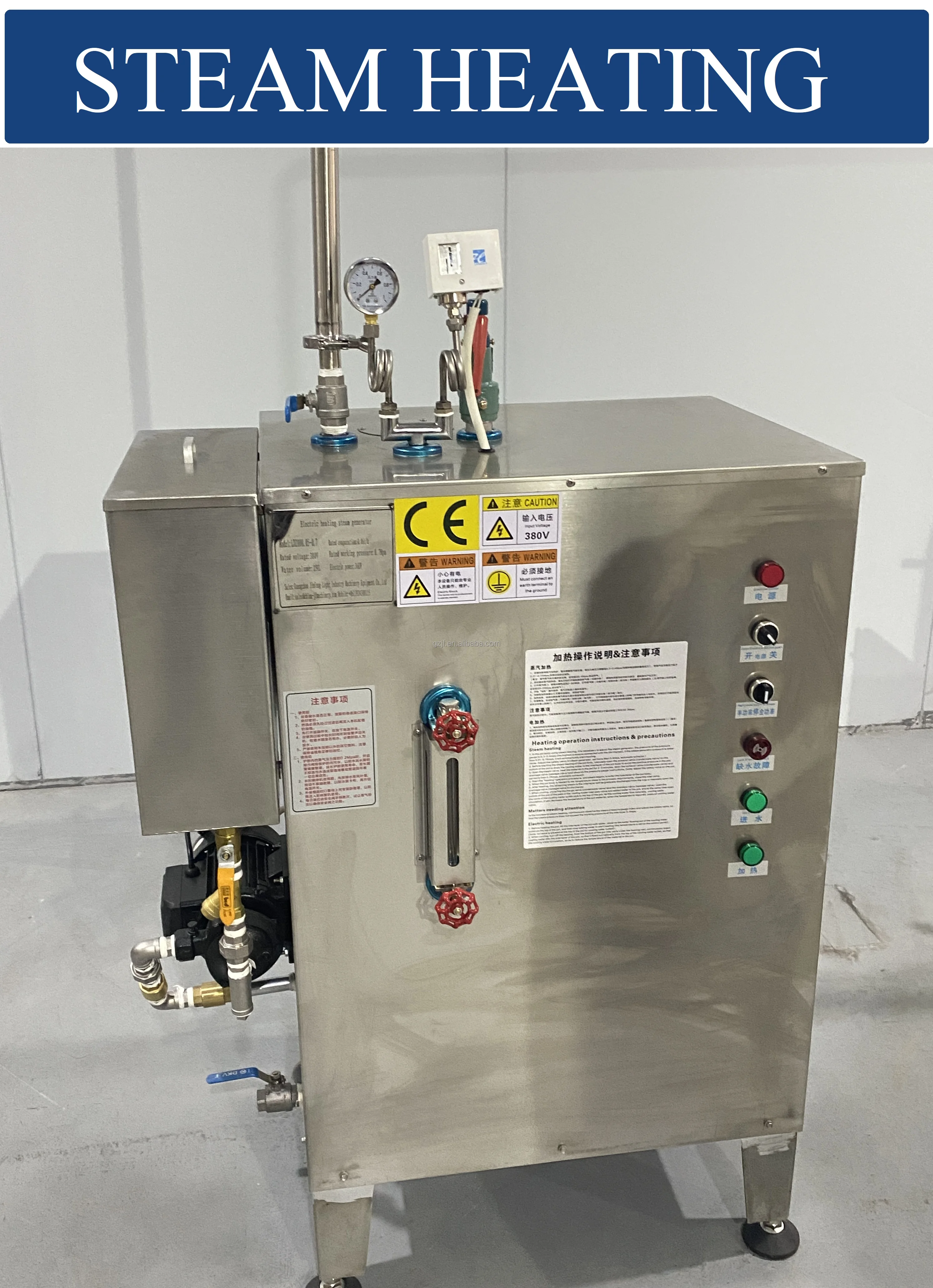

8 | heating system | Steam heating or electric heating |
9 | control system | Button control ( PLC Touch screen is optional) |
10 | products outlet | bottom discharge outlet pipe or pressure discharge |
11 | Function | cosmetic cream body lotion gel liquid soap detergent shampoo emulsifying mixing blending making machinery |

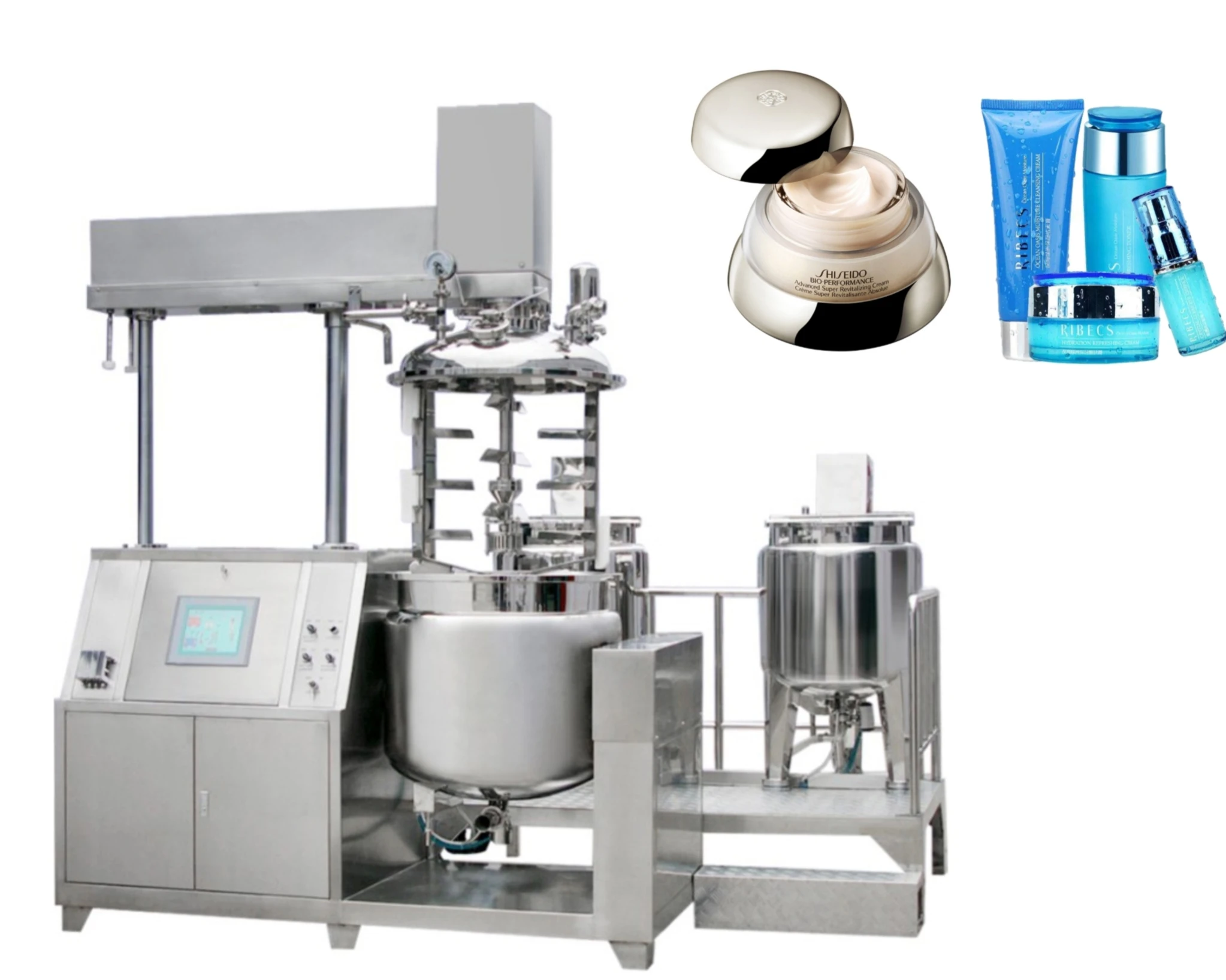

Vacuum emulsifier is professionally designed according to the ointment manufacturing process of cosmetics and ointments etc.Products through introducing advanced technology from abroad. The machine unit is composed of pretreating boiler, vacuum emulsifying and blending boiler , vacuum pump. Hydraulic system, dumping system , electric control system and work platform etc.The machine unit is featured by simple operation , stable performance, good homogenizing performance high production efficiency , convenient cleaning , reasonable structure , small land area and high automatic degree etc.
Technical parameters
Model | Effective capacity | Emulsifier | Agitator | Dimension(mm) | ||||||||||
(L) | KW | R/min | KW | R/min | (L) | (W) | (H) | Max Height | ||||||
JF-A-20 | 20 | 0.75 | 0-3000 | 0.37 | 0-40 | 1800 | 1600 | 1850 | 2700 | |||||
JF-A-50 | 50 | 2.2 | 0-3000 | 0.37 | 0-40 | 2700 | 2000 | 2015 | 2700 | |||||
JF-A-100 | 100 | 3 | 0-3000 | 1.5 | 0-40 | 2920 | 2120 | 2200 | 3000 | |||||
JF-A-150 | 150 | 3 | 0-3000 | 1.5 | 0-40 | 3110 | 2120 | 2200 | 3100 | |||||
JF-A-200 | 200 | 4 | 0-3000 | 1.5 | 0-40 | 3150 | 2200 | 2550 | 3100 | |||||
JF-A-350 | 350 | 4 | 0-3000 | 2.2 | 0-40 | 3650 | 2650 | 2700 | 3600 | |||||
JF-A-500 | 500 | 5.5 | 0-3000 | 2.2 | 0-40 | 3970 | 2900 | 3150 | 3950 | |||||
JF-A-1000 | 1000 | 11 | 0-3000 | 4 | 0-40 | 3900 | 3400 | 3150 | 4550 | |||||
JF-A-2000 | 2000 | 15 | 0-3000 | 7.5 | 0-40 | 4850 | 4300 | 3600 | No rise and fall | |||||

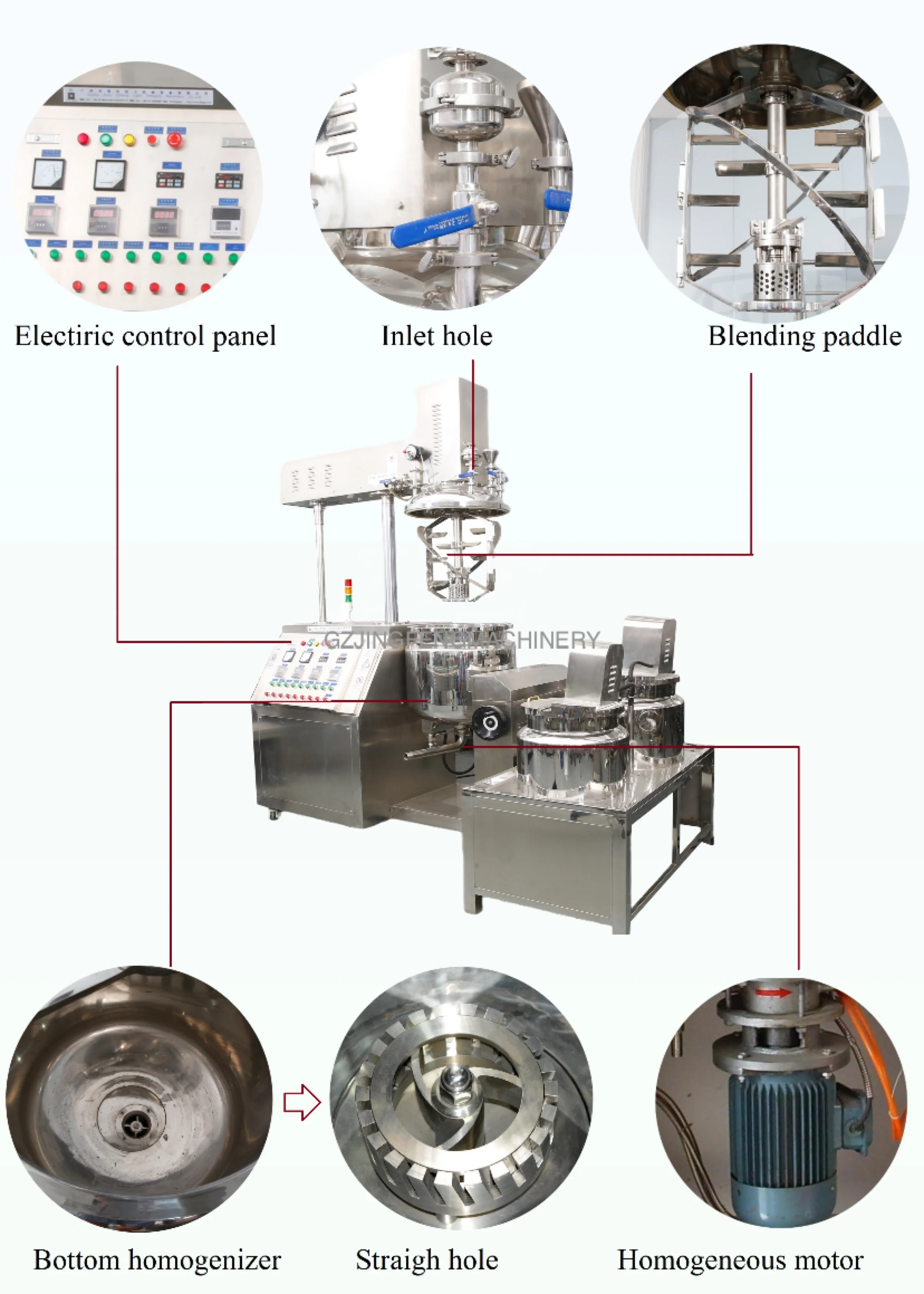

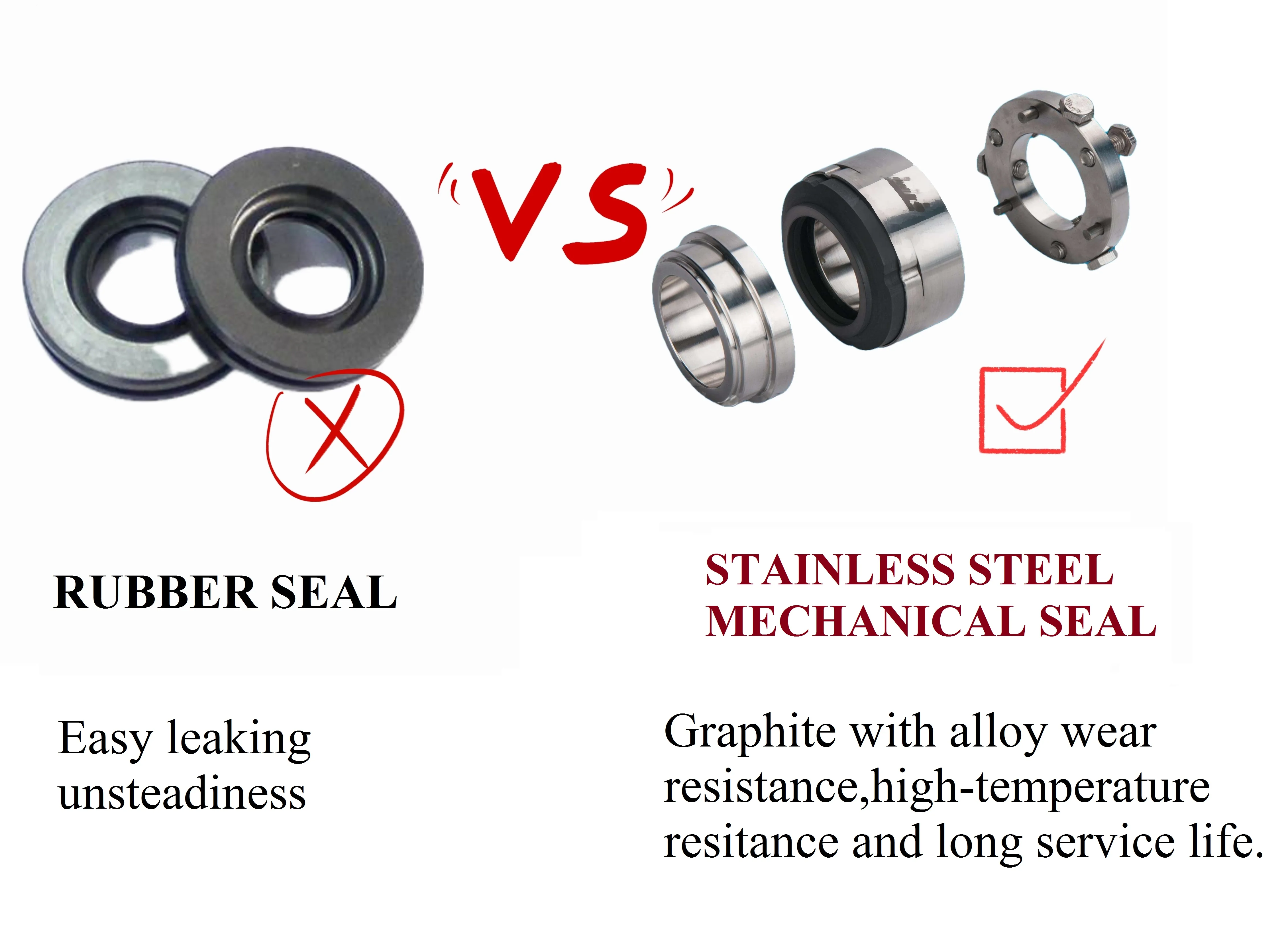

Product details:
Why Choose Us

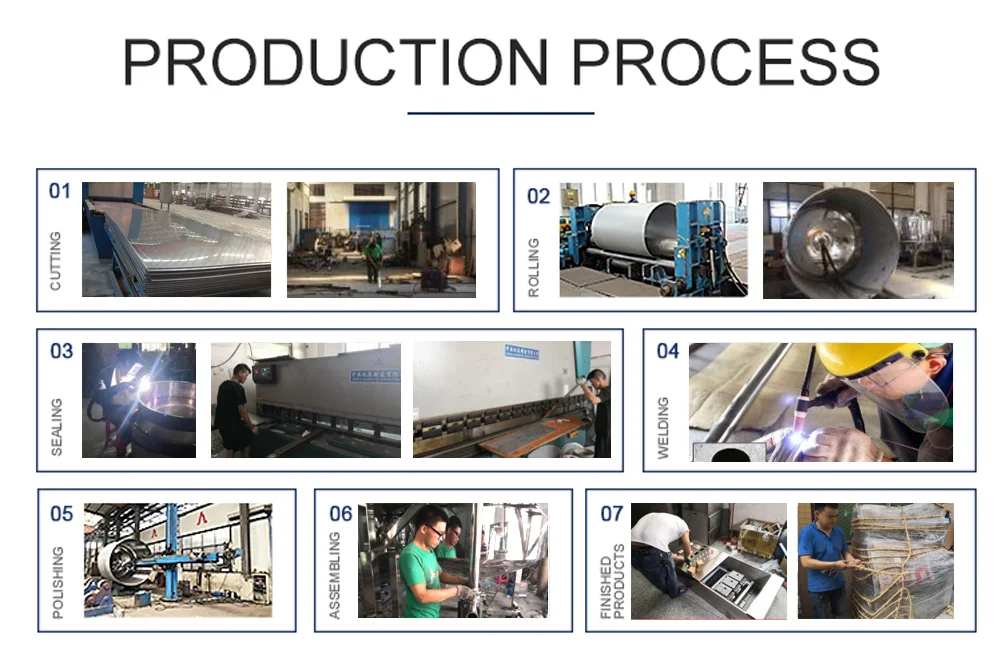

Productive process
Packing & Delivery
2. Accept terms: EXW, FOB, C&F, CIF, etc.
3. Shipping by Express, Air or Sea based on customers' requirements and lowest cost solution.
We will packs all of the machine and parts in the firm case that suitable for shipping.Machine packed by packed with sea worthy strong wooden case as the general export package. We use carton as inner packing, in case of damage in the course of carriage, we
also can pack it according to clients' requirements
3. Shipping by Express, Air or Sea based on customers' requirements and lowest cost solution.
We will packs all of the machine and parts in the firm case that suitable for shipping.Machine packed by packed with sea worthy strong wooden case as the general export package. We use carton as inner packing, in case of damage in the course of carriage, we
also can pack it according to clients' requirements

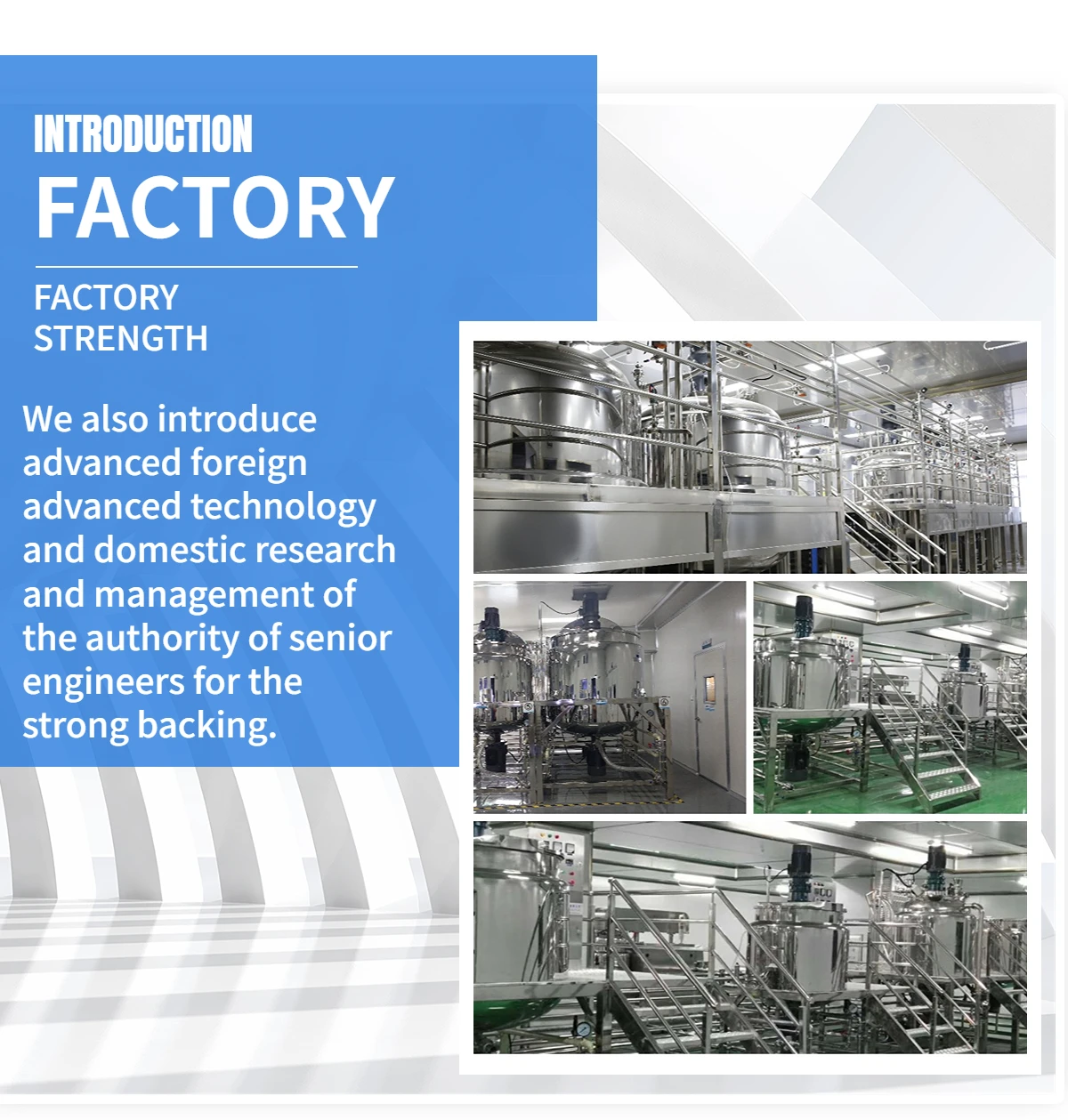

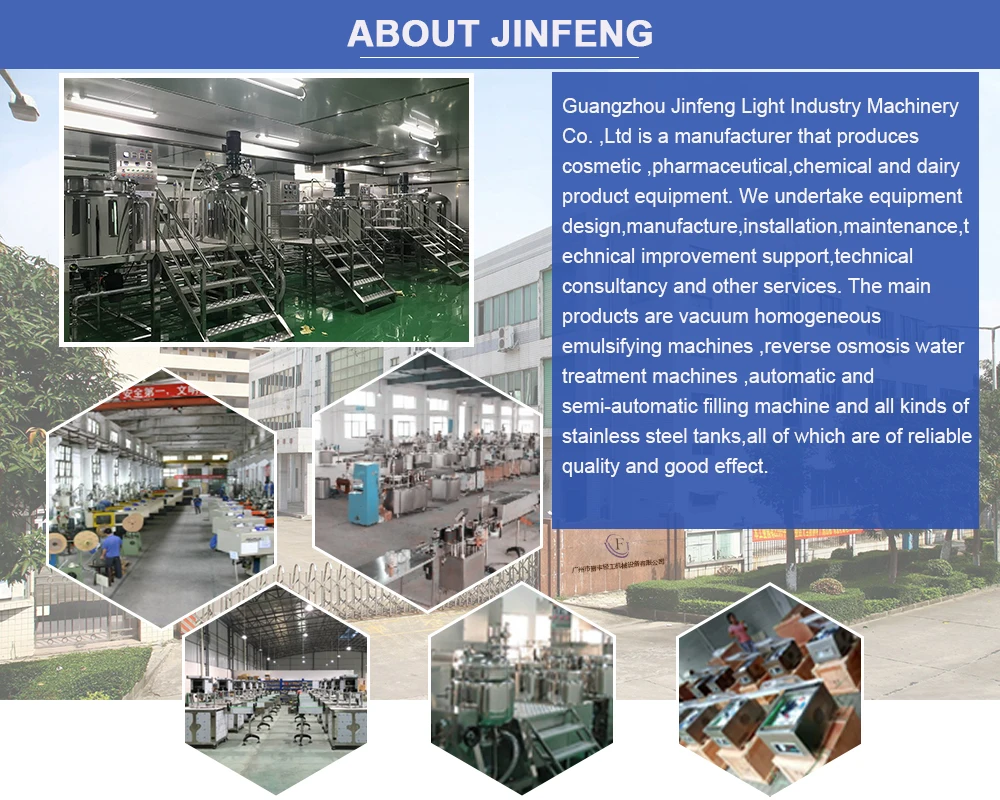

Company Profile
We offering Turnkey service from A to Z to customers, we will can suggest customer the most su itable machines according to theirFormula, Raw material. Support you Manufacturing- Installation- Training- Maintenance- Technical Support. We could also customize machines according to your demands, We could send our engineer to your factory to install machines and train your workers of operation and maintenance.
MATERIAL SOURCES OF PARTS
80%of the main parts of our products are provided by world's famous suppliers. During long term cooperation and exchange with them, we have accumulated much valuable experience, so that we can provide customers with high quality products and more effective guarantee.
80%of the main parts of our products are provided by world's famous suppliers. During long term cooperation and exchange with them, we have accumulated much valuable experience, so that we can provide customers with high quality products and more effective guarantee.
FAQ
1. who are we?
We are based in Guangdong, China, start from 2012,sell to Domestic Market(46.00%),Southeast Asia(15.00%),Western Europe(13.00%),North America(10.00%),Africa(4.00%),Oceania(4.00%),South America(00.00%),Eastern Europe(00.00%),Mid East(00.00%),Eastern Asia(00.00%),Central America(00.00%),Northern Europe(00.00%),Southern Europe(00.00%),South Asia(00.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?

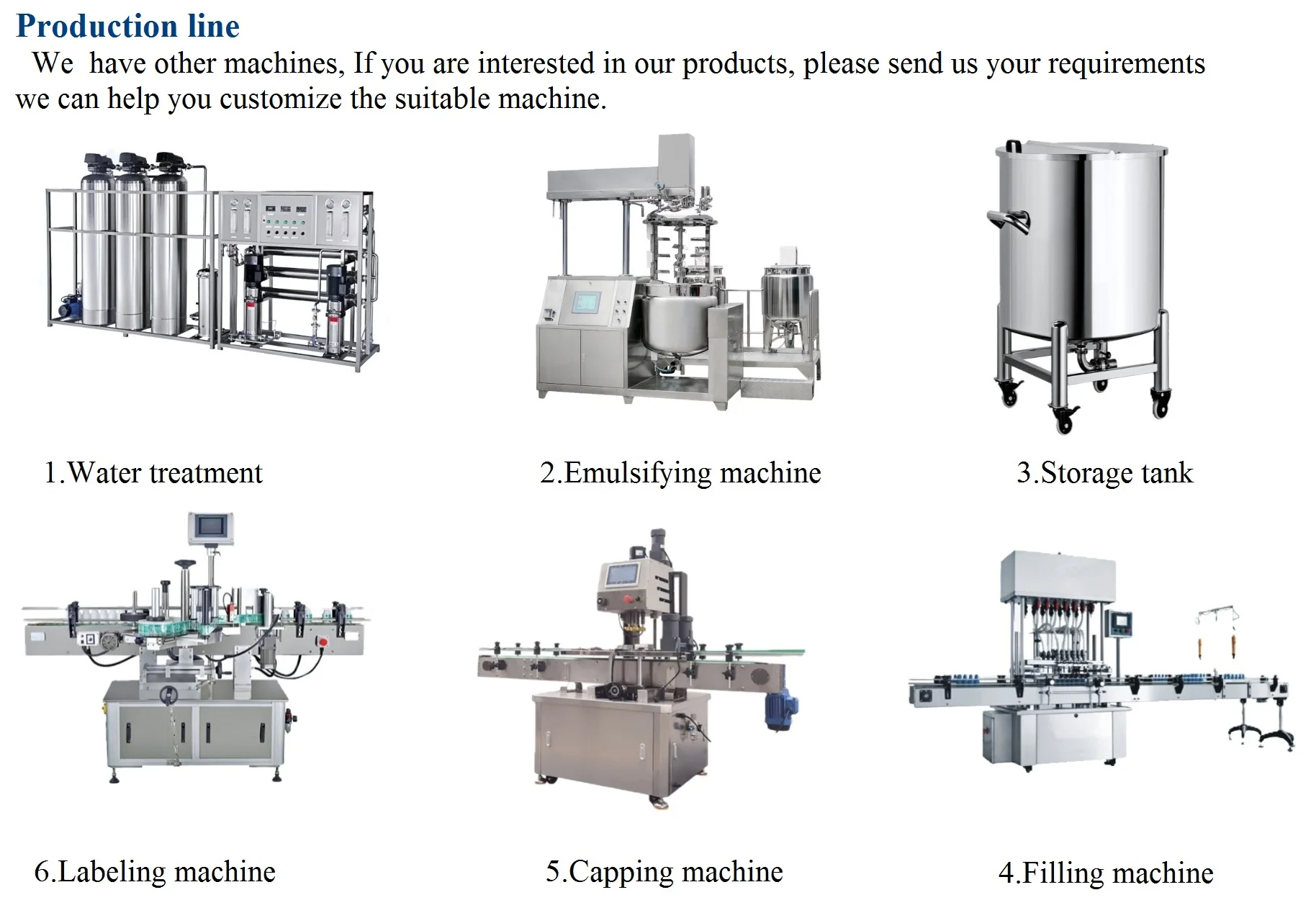

Vacuum Homogeneous Emulsifying Machine/Homogenizing Mixer/Reverse Osmosis Water Treatment Machine/Automatic and Semi Automatic Filling Machine/Perfume Machine/Dryer Equipment
4. why should you buy from us not from other suppliers?
JINFENG company aims to build high quality, high efficiency, high performance equipment, stick to Science-First,People-oriented principles.We have the first-class after-sale service team and gain the customer's recognition.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish
We are based in Guangdong, China, start from 2012,sell to Domestic Market(46.00%),Southeast Asia(15.00%),Western Europe(13.00%),North America(10.00%),Africa(4.00%),Oceania(4.00%),South America(00.00%),Eastern Europe(00.00%),Mid East(00.00%),Eastern Asia(00.00%),Central America(00.00%),Northern Europe(00.00%),Southern Europe(00.00%),South Asia(00.00%). There are total about 11-50 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Vacuum Homogeneous Emulsifying Machine/Homogenizing Mixer/Reverse Osmosis Water Treatment Machine/Automatic and Semi Automatic Filling Machine/Perfume Machine/Dryer Equipment
4. why should you buy from us not from other suppliers?
JINFENG company aims to build high quality, high efficiency, high performance equipment, stick to Science-First,People-oriented principles.We have the first-class after-sale service team and gain the customer's recognition.
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish
