Factory Price Plastic Recycling Pellets Extruder Machine Twin Screw Granulator PVC Granules Cutting Production Line
- Category: >>>
- Supplier: Nanjing,Tengda,Machinery,Co.,Ltd.
Share on:
Product Overview
Description
Products Description
Cost of Plastic PLA Recycling Pellet Machine Line Co Extruder Polymer Machinery
Model table
Models of our Twin Screw Extruder
Type | TSH-20 | TSH-35 | TSH-40 | TSH-52 | TSH-65 | TSH-75 | TSH-95 |
Screw Diameter (mm) | 22 | 35.6 | 41 | 51.4 | 62.4 | 71 | 93 |
Screw Speed (rpm) | 600 | 600 | 600 | 600 | 600 | 600 | 600 |
Motor Power (kw) | 4 | 18.5 | 30 | 55 | 90 | 132 | 315 |
L/D | 32-60 | 32-68 | 32-68 | 32-68 | 32-68 | 32-68 | 32-68 |
Output (Kg/Hr) | 2-15 | 15-95 | 70-120 | 155-255 | 255-400 | 450-750 | 950-1600 |
Type | TDH-35 | TDH-40 | TDH-52 | TDH-65 | TDH-75 | TDH-95 |
Screw Diameter (mm) | 35.6 | 41 | 51.4 | 62.4 | 71 | 93 |
Screw Speed (rpm) | 600 | 600 | 600 | 600 | 600 | 600 |
Motor Power (kw) | 30 | 45 | 75 | 132 | 250 | 550 |
L/D | 32-68 | 32-68 | 32-68 | 32-68 | 32-68 | 32-68 |
Output (Kg/Hr) | 10-150 | 100-230 | 200-380 | 400-660 | 750-1250 | 1650-2750 |
Product Details

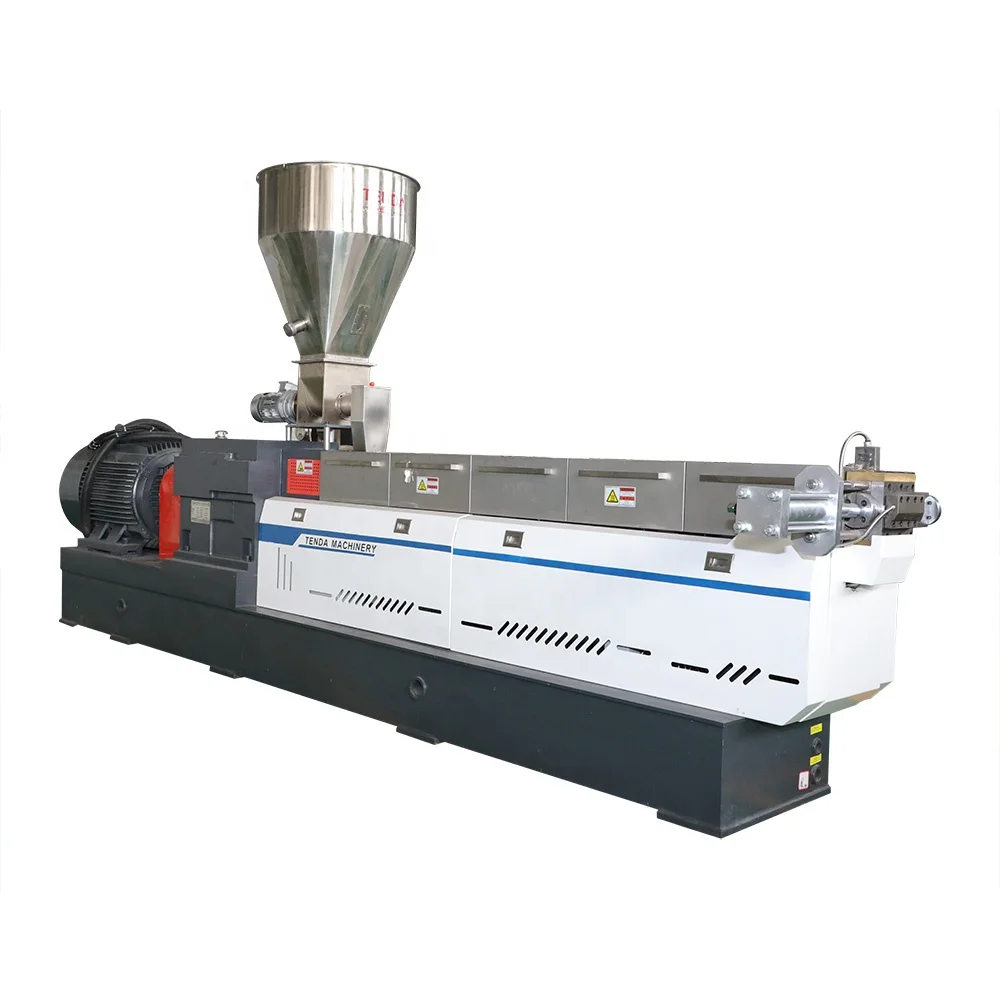

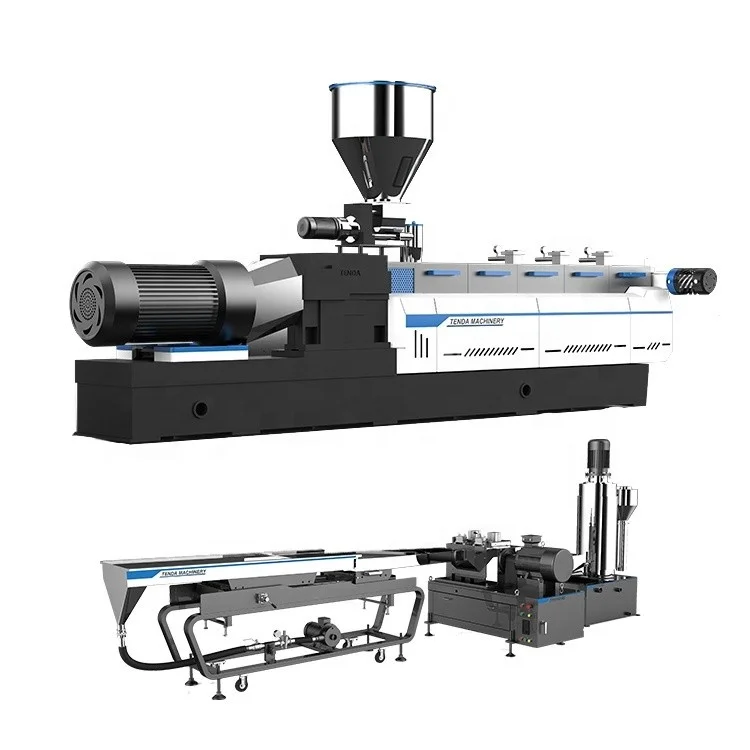

Brief Introduction of Twin Screw Extruder
1.Main extruder:
(1) CE, ISO, TUV, 45+ patents；
(2) Main motor: Imported "WEG"or "SIEMENS" Variable frequency motor
(2) Main motor: Imported "WEG"or "SIEMENS" Variable frequency motor
（The frequency converter will automatically change the frequency to reduce the frequency of the motor. The operating current will always run between 80%, 50%, and 30% of the rated power. This will greatly reduce the motor's operating current and achieve the effect of saving electricity).
2.Gearbox:
(1) Warranty: 3 years;
(2) Concentricity deviation of output shaft and input shaft: within 0.2mm;
(3) Both output shaft radial bearings are imported 'IKO' and 'NSK' bearings;
(2) Concentricity deviation of output shaft and input shaft: within 0.2mm;
(3) Both output shaft radial bearings are imported 'IKO' and 'NSK' bearings;
3.Screw elements:
W6Mo5Cr4V2 (high speed tool steel) with the best wear resistance, the whole adopts vacuum quenching treatment, hardness is 60 ~ 62HRC.
4.Screw shaft:
C-type liner: barrel shell is made of #45 steel and embedded with high bimetallic bushing made of A-101.
Intergral type: barrel shell is made of #45 steel and embedded with high bimetallic bushing made of Cr12MoV.
Intergral liner has better wear-resistance ability.
Intergral liner has better wear-resistance ability.
5.Screen changer & Die head
We have the most advanced screen changer and die-head which can improve your production efficiency. Our screen changer, when you change the mesh on the screen, no need stop or decrease the speed of the machine, the strand won’t be broken.
Our Advantages
（1）Strictly selected brands: variable frequency motor(WEG or SIEMENS), imported inverter(ABB or TOSHIBA)
（2）High output with low cost: output is 5-15% higher than the same model in the market.
（3）Acvanced design: oil circuit, water circuit, vacuum and other pipeline are integrated designed with no need to install the pipeline separatedly, which can save 2 days on installation and $1000 from piping system.
（4）Certificate: CE, ISO:9001, TUV, 30+ patents
（2）High output with low cost: output is 5-15% higher than the same model in the market.
（3）Acvanced design: oil circuit, water circuit, vacuum and other pipeline are integrated designed with no need to install the pipeline separatedly, which can save 2 days on installation and $1000 from piping system.
（4）Certificate: CE, ISO:9001, TUV, 30+ patents
（5）Rich experience: 1) Engineers with 30+ years experience in twin screw extruder.
2) Exported to 60+ countries.
（6）Guaranteed after-sale service: 1) Whole extruder machine: 1 year warranty
2) Main gearbox: 3 years warranty
3) Overseas service provided.
2) Main gearbox: 3 years warranty
3) Overseas service provided.
Our certifications
Tengda has obtained National High-tech Enterprise.
Our company has passed ISO:9001 International Quality Management System Certification, CE Certification, TUV Certification and obtained more than 30 patents.
Packing&Delivery
Packing procedure:
(1) Wipe the machine with anti-rust oil.
(2) Pack the machine with wrapping film or bubble film.
(3) Put the machine in the container or wooden box.
(4) Fix the machine with wire or nail.
Delievery time：
(1)Machine: about 40-45 days.If you are urgent, we can help you with free expedited processing. 7 working days is possible because of the machine in the stock specially for urgent customers.
(2)Spare parts: 1-7 days according to different models.
(3)Auxiliary machine: 3-25 days according to different machine.
Our company
Exported to 60+countries, 20000M3 Factory area, 13 years history.
Tengda twin-screw extruder-a pioneer in the development of twin-screw extruders, specializing in the design of various plastics(PP PE ABS PC TPE etc.), environmentally friendly materials (biodegradable resins), water-soluble materials, chemical, etc.compounding systems manufacture. In order to promote the research and development of high-end twin-screw, we established a twin-screw business research and development department with China North Industries Group in 2013. Our company has passed ISO,TUV, CE certification, and has 17 utility model patents, 4 invention patents, and 1 appearance patent.
Tengda twin-screw extruder has a lot of experience and exclusive technology. Cooperating with us, you can obtain the best solution for every compounding requirement, from laboratory-level special applications to industrial production. The teams of Tengda's various divisions composed of engineers, chemical researchers, technicians and experts in various fields will provide customers with powerful process solutions.
Tengda twin-screw extruder adheres to the tenet of paying great attention to the customer's use of the equipment, focusing on the high production and efficiency of the equipment, the orderly design and the purpose of serving customers, to design and deliver the ideal equipment, and continue to create more value for customers.
Tengda twin-screw extruder has a lot of experience and exclusive technology. Cooperating with us, you can obtain the best solution for every compounding requirement, from laboratory-level special applications to industrial production. The teams of Tengda's various divisions composed of engineers, chemical researchers, technicians and experts in various fields will provide customers with powerful process solutions.
Tengda twin-screw extruder adheres to the tenet of paying great attention to the customer's use of the equipment, focusing on the high production and efficiency of the equipment, the orderly design and the purpose of serving customers, to design and deliver the ideal equipment, and continue to create more value for customers.
