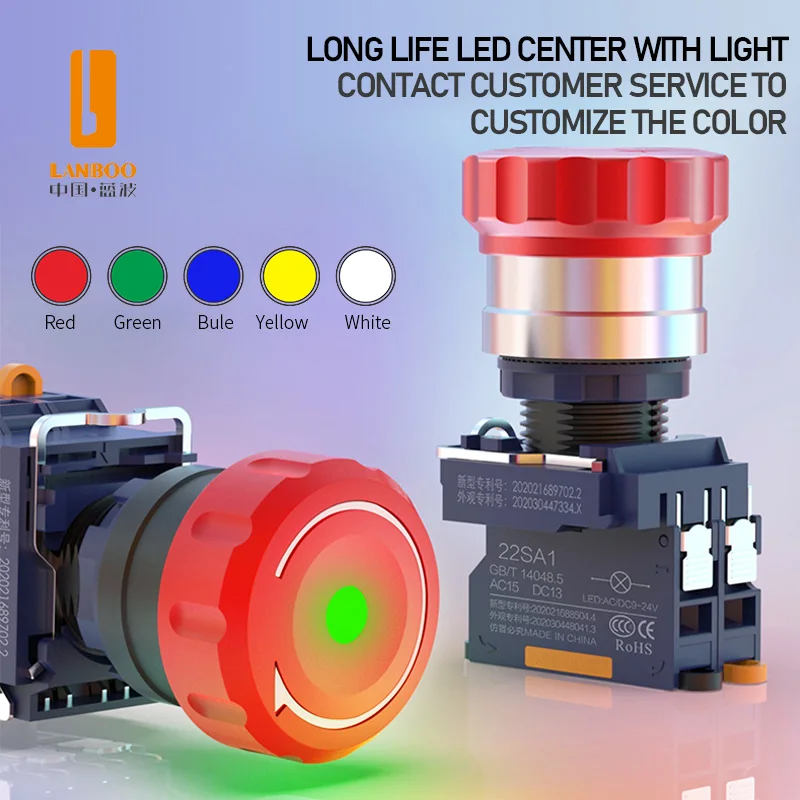

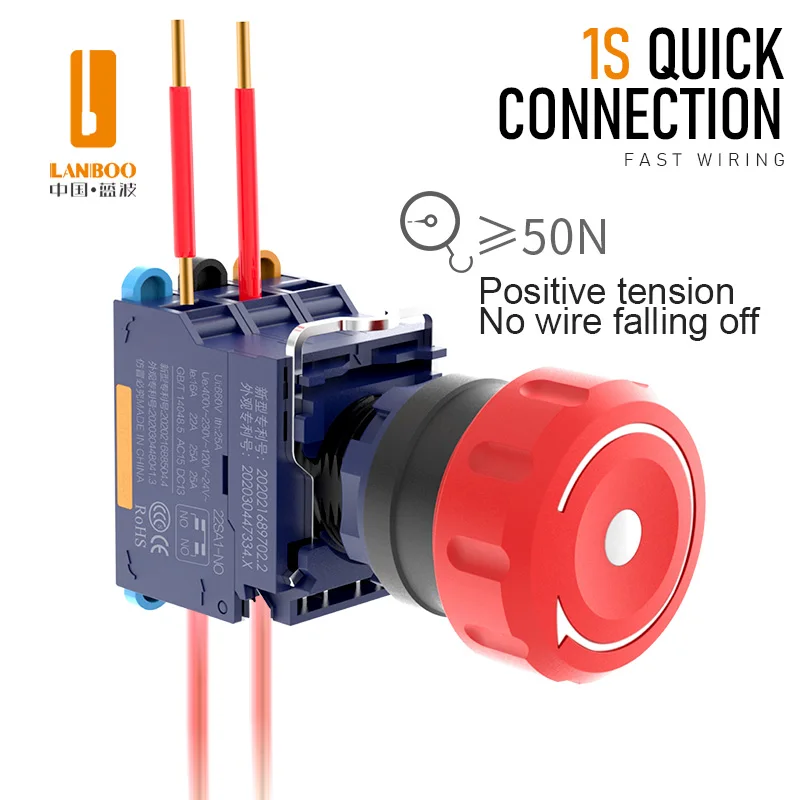

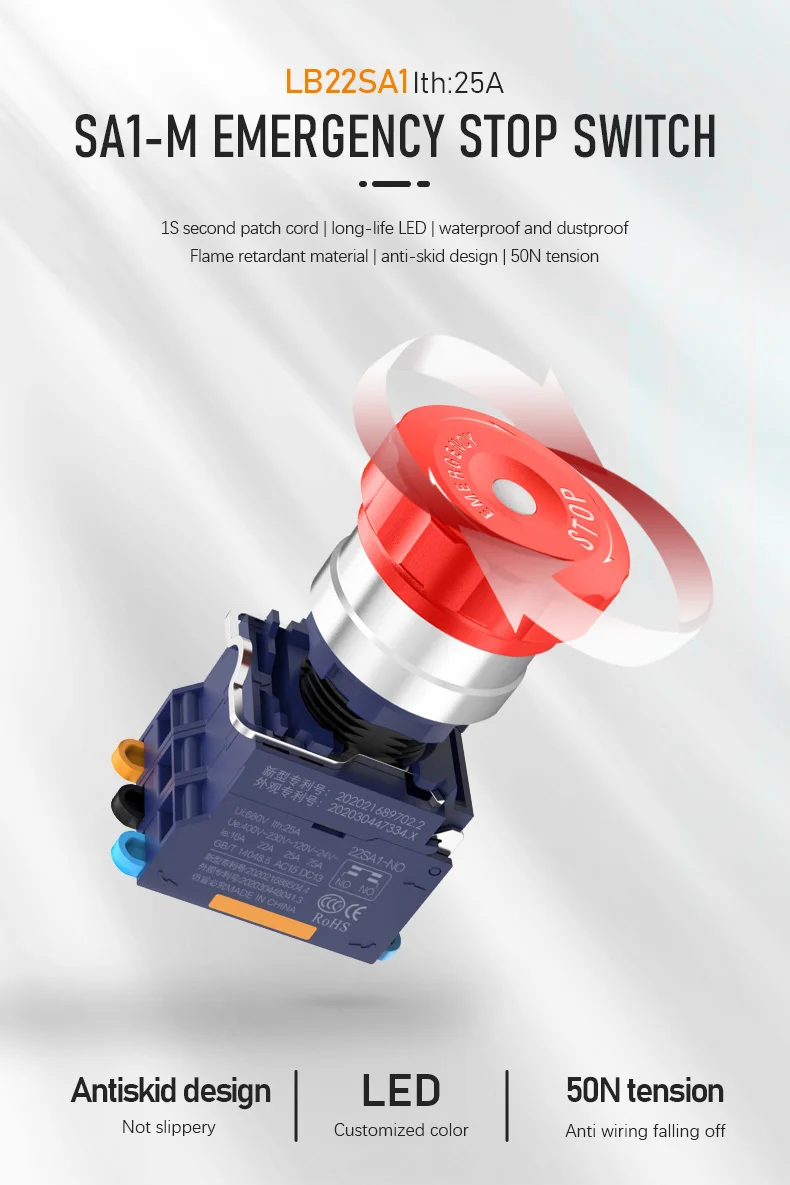

LANBOO safety high current plastic emergency stop switch
- Category: >>>
- Supplier: Guangdong LANBOO Button Manufacturing Co. LTD. Yueqing branch
Share on (1600691970202):
Product Overview
Description

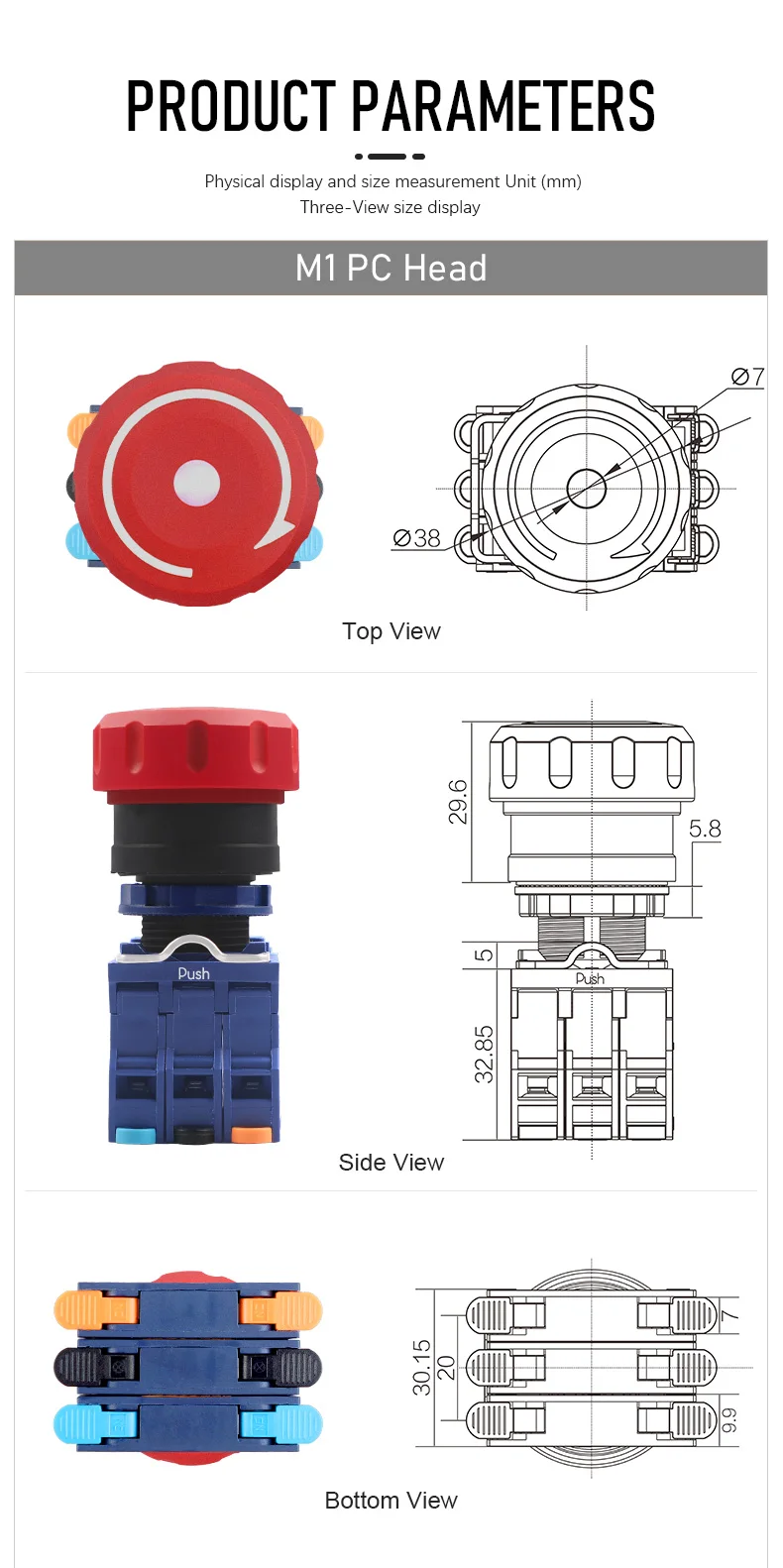

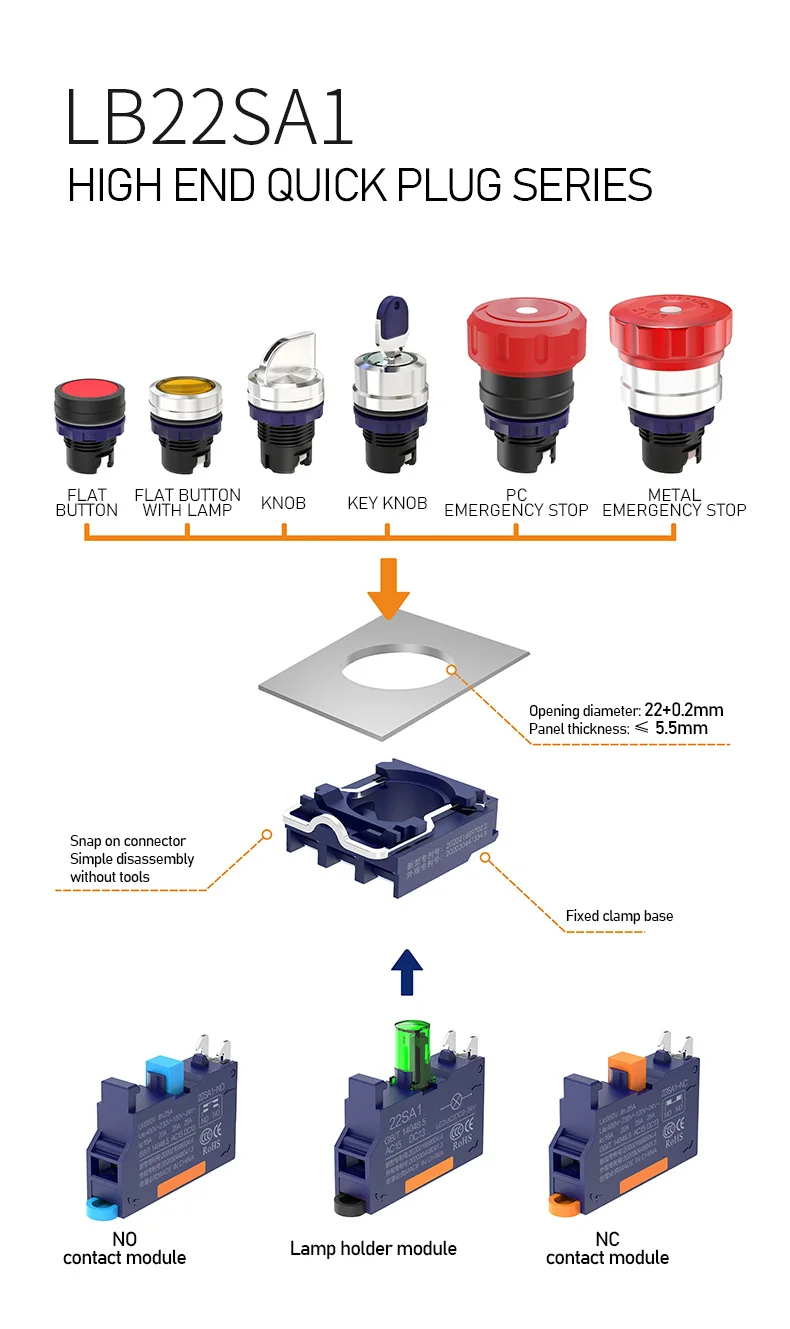

| Mounting Aperture | 22mm |

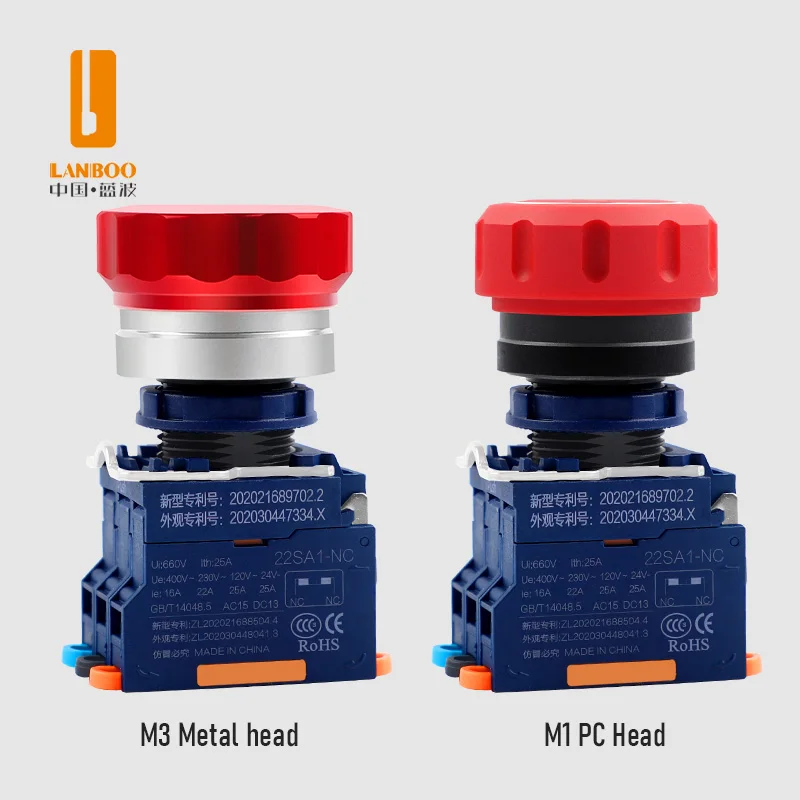

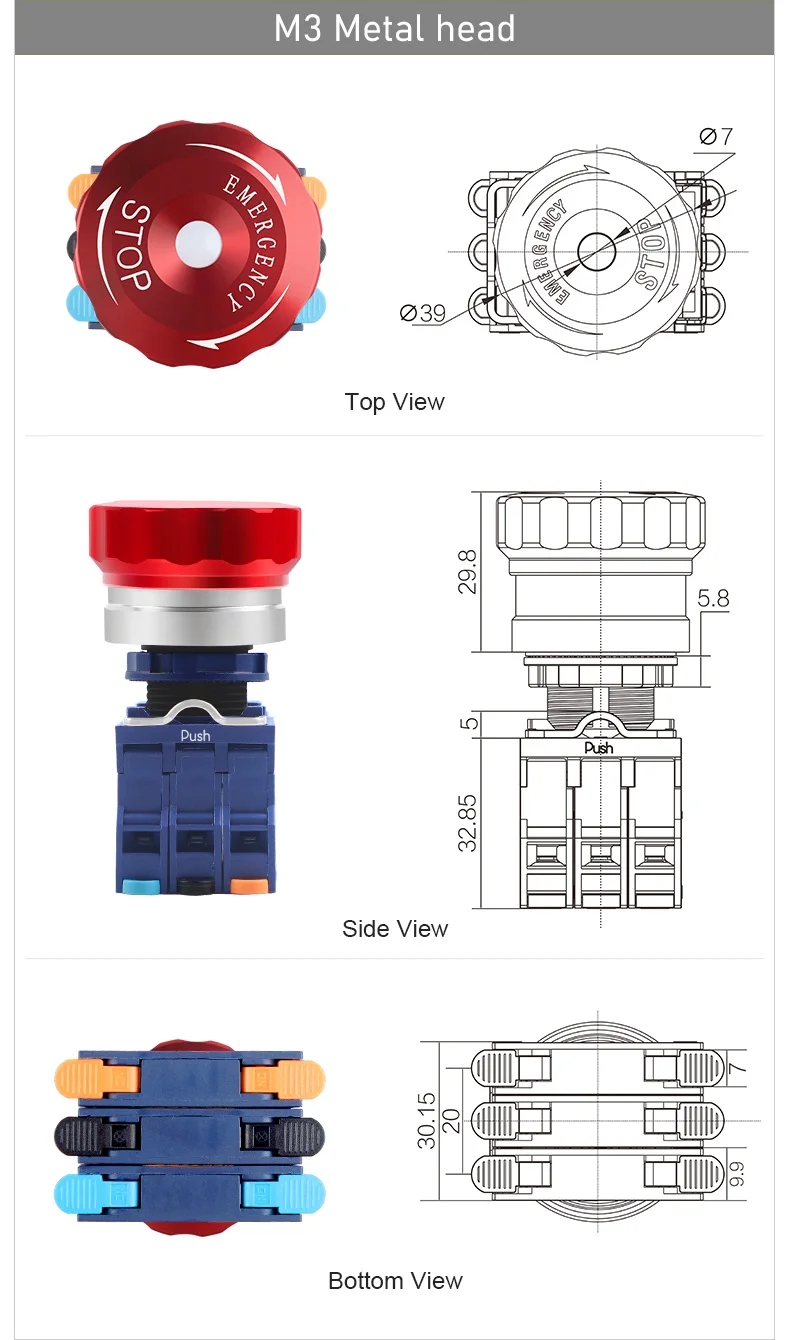

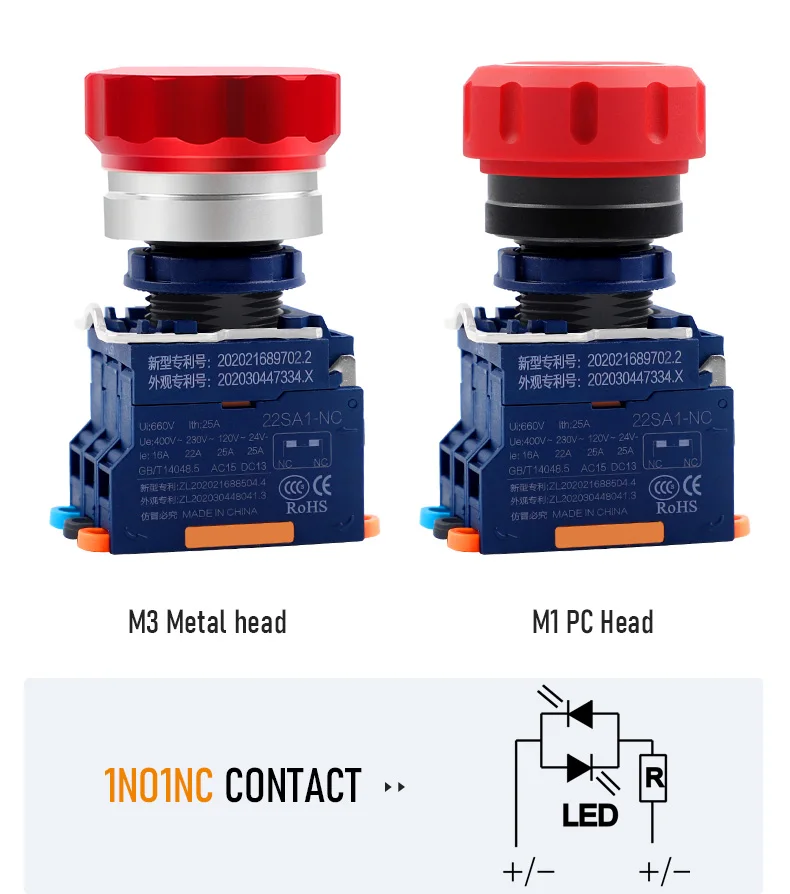

| Serial Number | Type SA1M1/M3 Plastic/metal strip lamp waterproof high current switch |

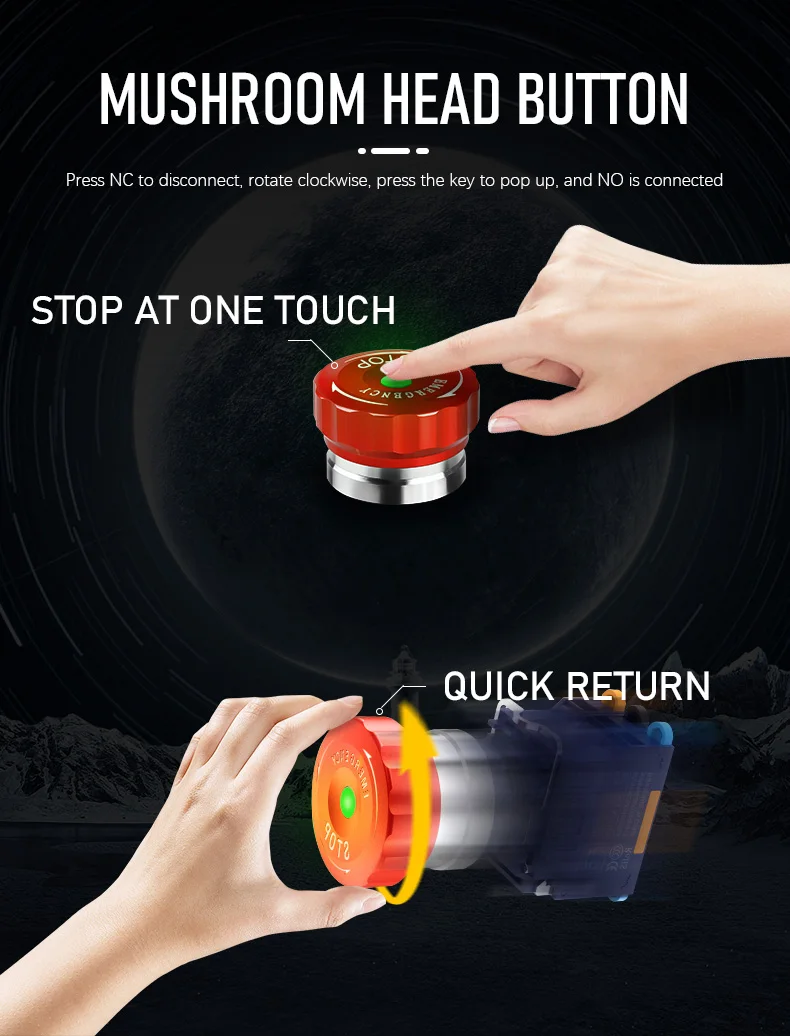

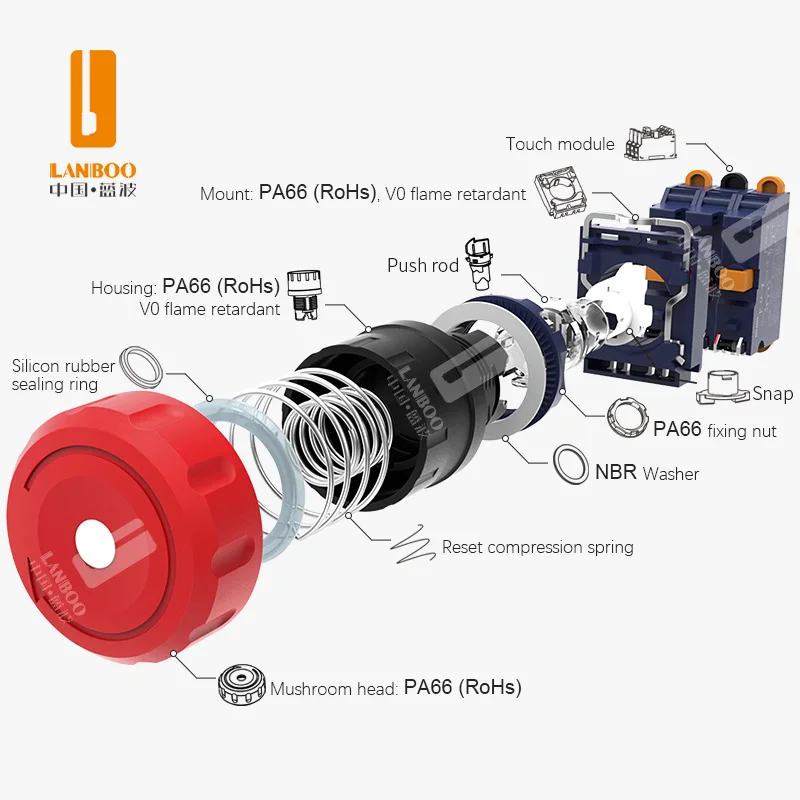

| Head shape | Mushroom Head |
| Switch combination | Self-locking (default) Self-recovering (custom) |
| Action form | 1NO normally open contact, slow acting double contact 1NC normally closed contact, slow acting double contact 2NO normally open contact, slow acting double contact 2NC normally closed contact, slow acting double contact 1NO1NC1 normally open 1 normally closed contact, slow acting double contact (custom) |
| Waterproof level | IP65, anti-collision IK08 (refer to GB/T 20138) |
| Heating current | Ith: 25A |
| Working environment | -40°C~+80°C (non-vacuum state, without freezing) |
| Insulation resistance | ≥1000MΩ |

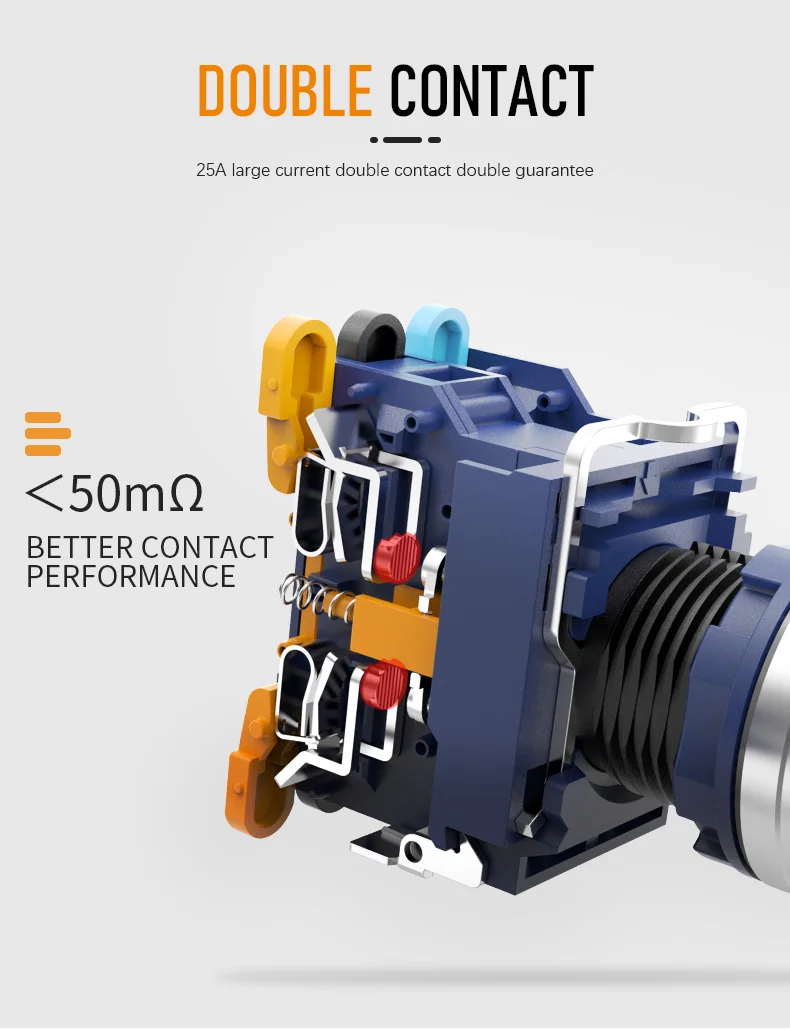

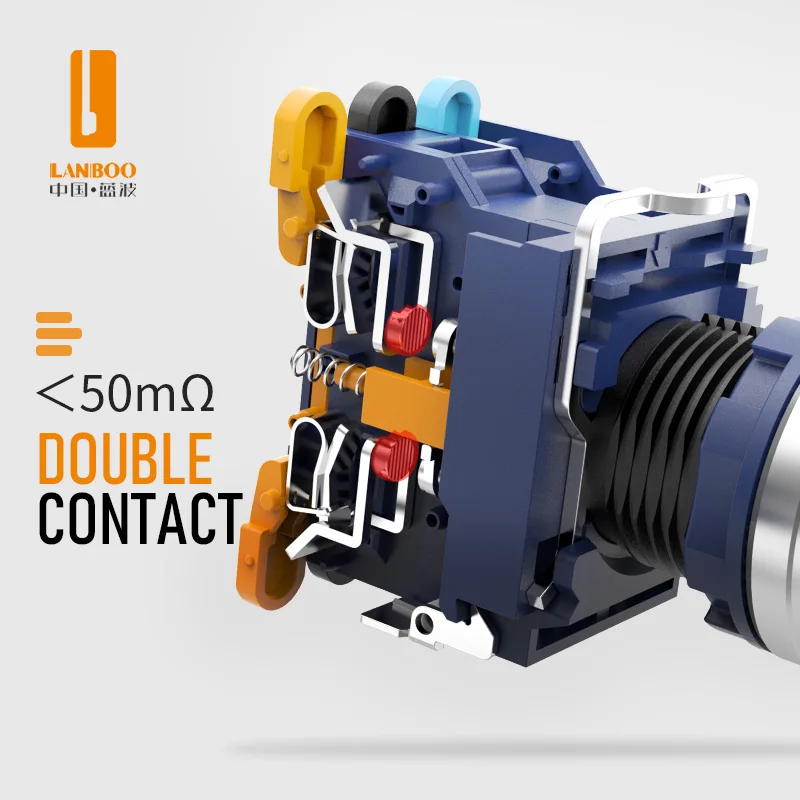

| Contact resistance | ≤50mΩ |
| LED voltage | 9-24V, 220V / Customized: ,25-48V, 110V,AC/DC Currency |
| Resistive load | AC-15: 400V: 16A,230V:22A, 120V:5A DC-13:24V:25A |
| Inductive load | AC-15: 400V:2A,230V:22A,120V:25A DC-13: 24V:6A |
| Glowing shape | Point of light |

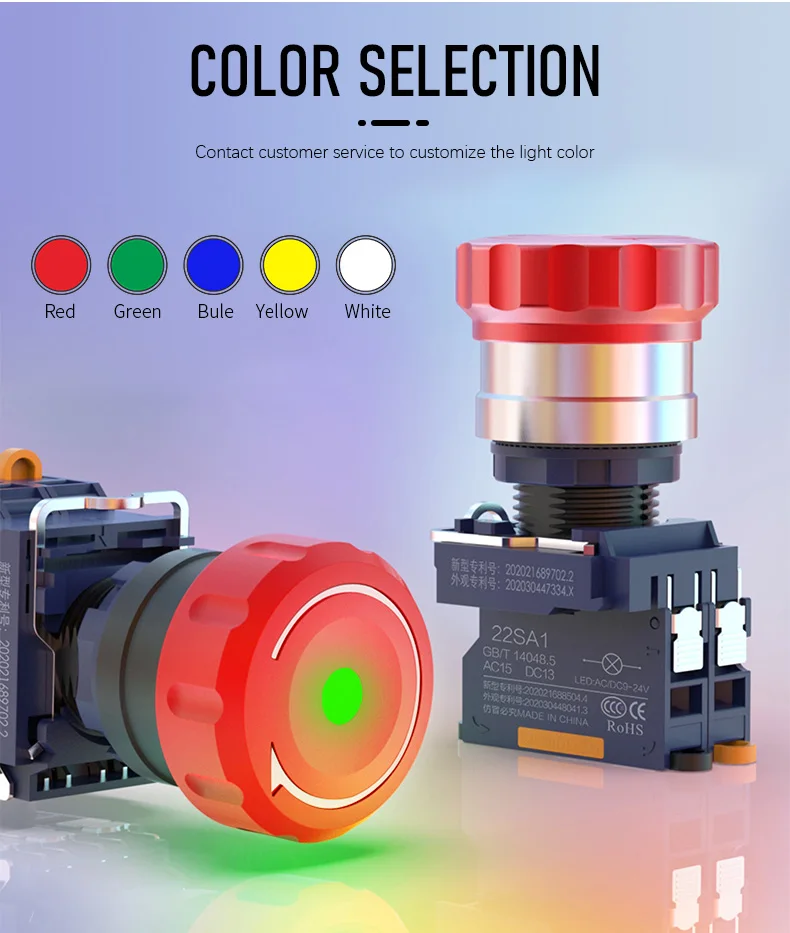

| Glow color | Red, Green / Customized:Blue, Yellow, White |
