On car brake disc lathe MA2002 machine

Product Overview

Description

On car brake disc lathe  NEW

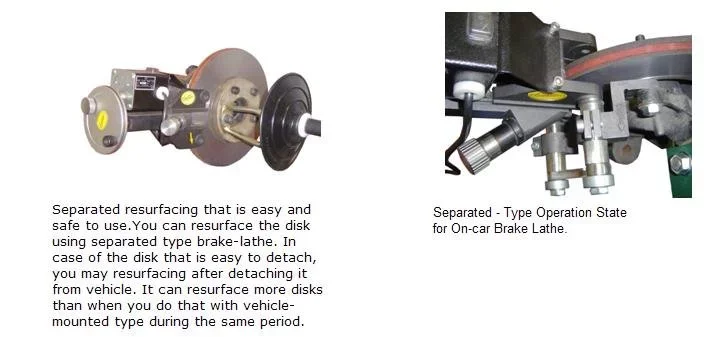

MA2002 is attached directly on vehicles for resurfacing.
The existing model is upgraded and remodeled from customer-oriented perspectives to enable easier and safer car brake disc resurfacing.

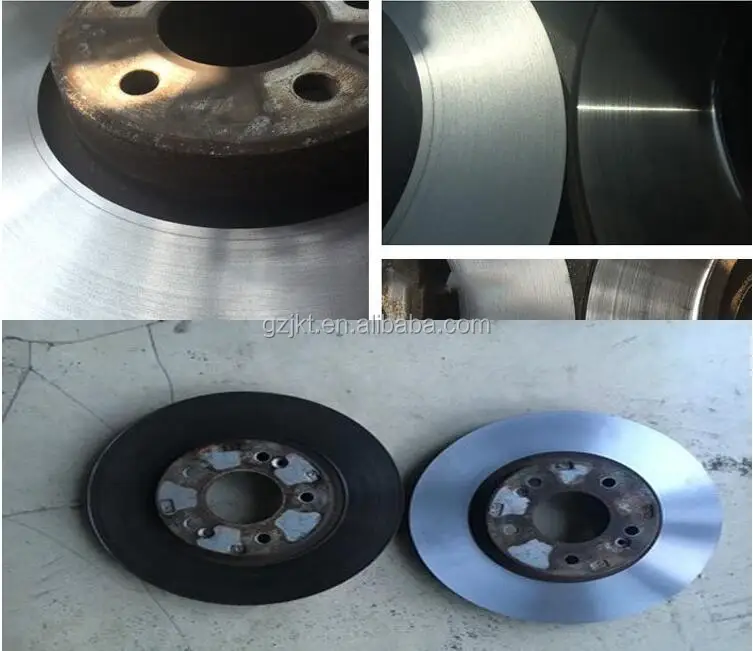

Resurfacing articularly improves the performance of brake disc and shortens the braking distance to guarantee safer operations.
Try operation it on various vehicle types.



Technical data

Disc Lathe:

Maximum brake disc thickness: 40mm
Adjustment knob accuracy: 0.005mm
Feed rate: 8.5mm/min
Electrical specifications: 220V / 110V
Net weight: 6.5kg

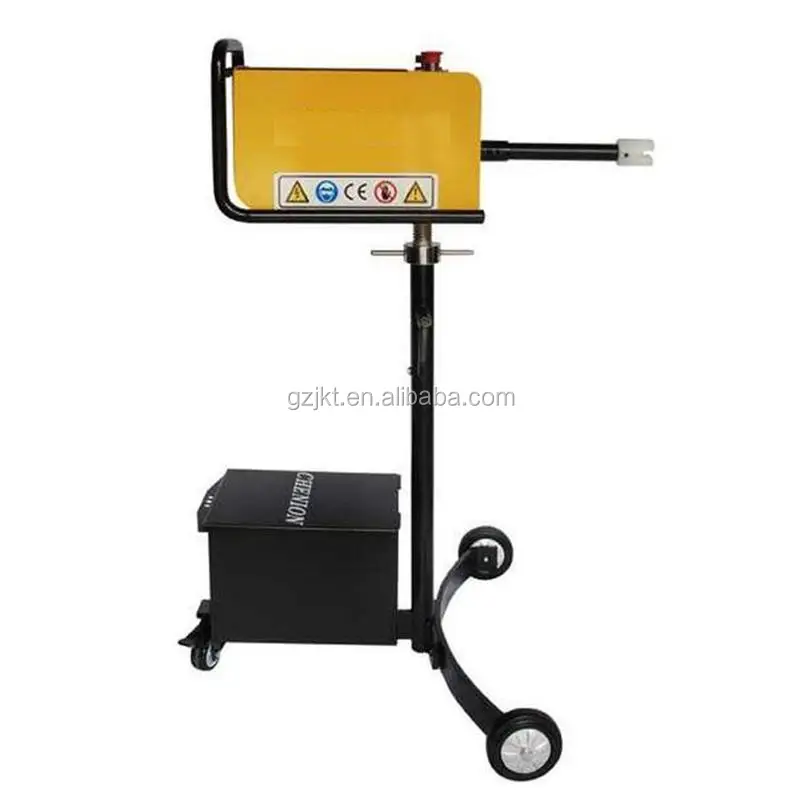

Drive Unit:

Working height min / max: 1 / 1.25m
Drive speed: 98rpm
Electrical specifications: 220V / 110V
Weight: 45kg
Ambient temperature range: -5°C to 35°C
Turning accuracy: ≤ 0.005mm
Brake disc runout: ≤ 0.005mm
Brake disc thickness variation: 0.005 – 0.01mm
Brake disc surface roughness: Ra 1.5 – 2.0um
