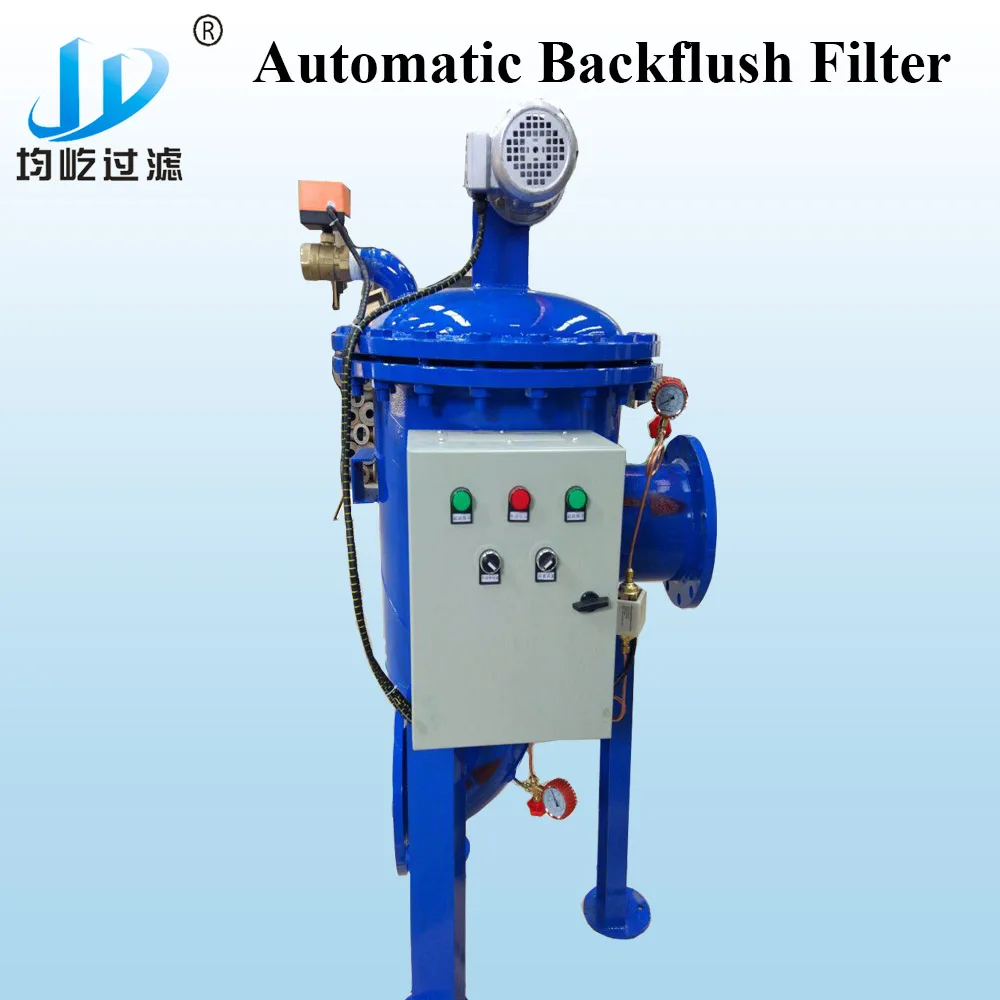

Automatic self cleaning filter auto backwash fine filtration strainer housing
- Category: >>>
- Supplier: Shanghai Junyi Filter Equipment Co. Ltd.Shanghai Ltd.
Share on (1600692077116):
Product Overview
Description
Product Description

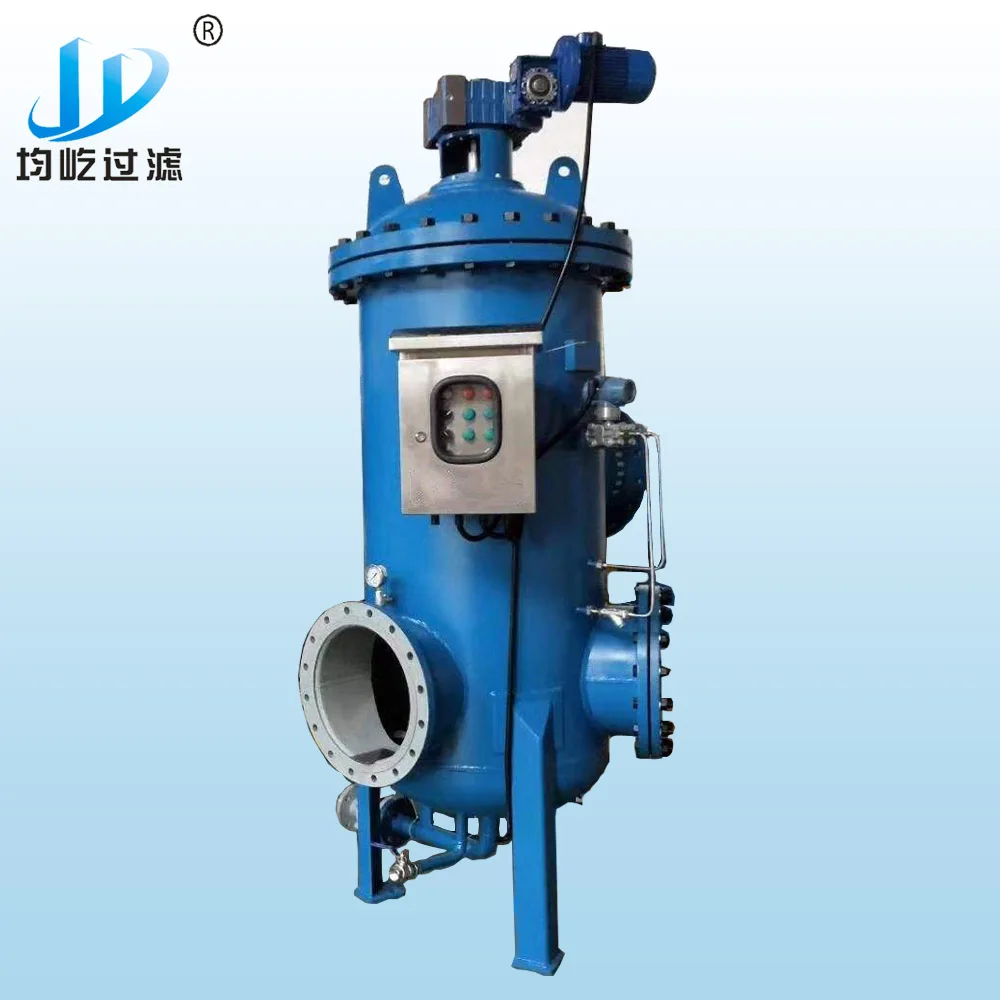

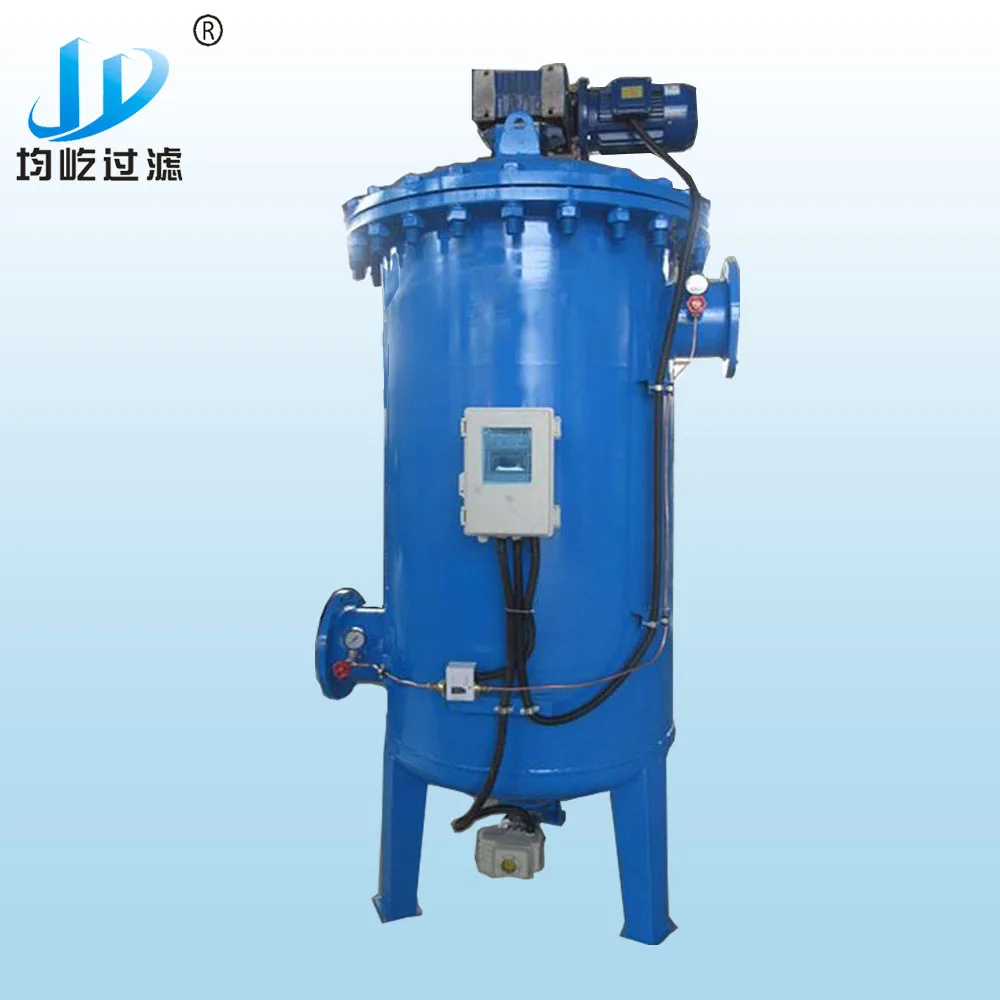

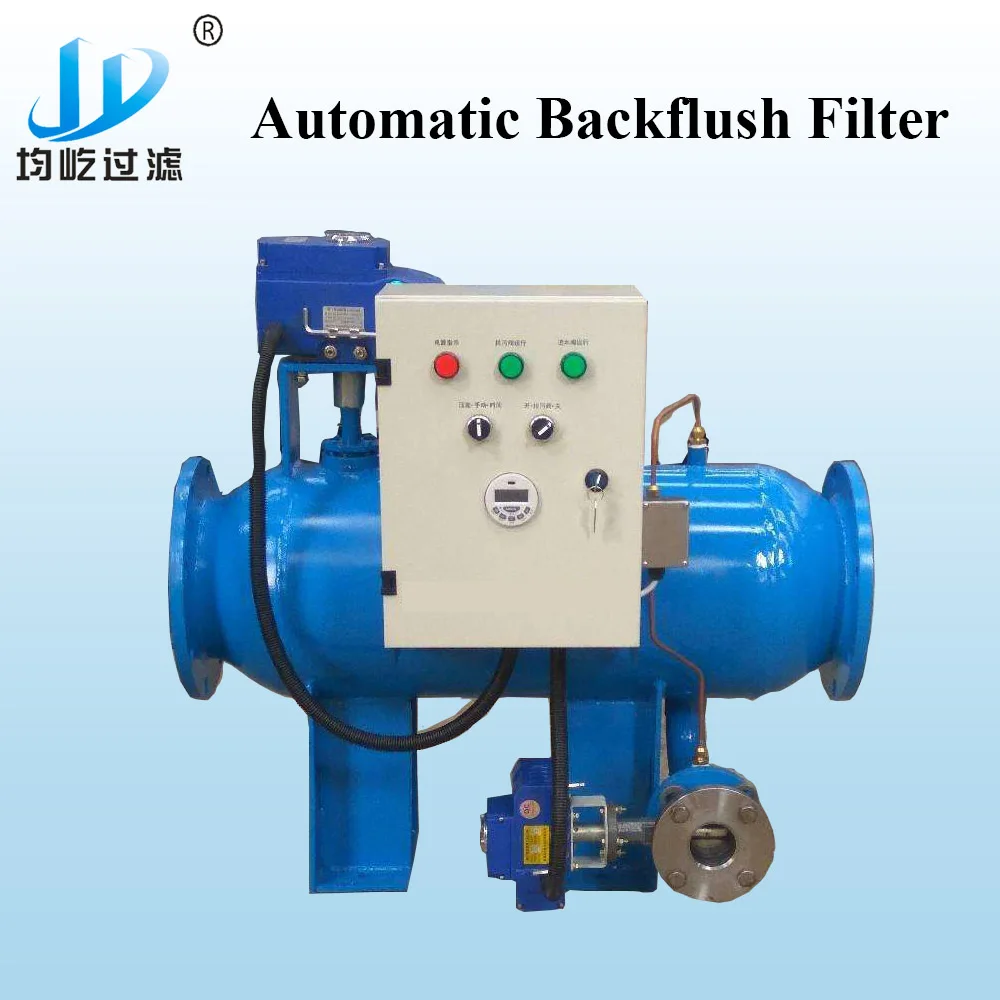

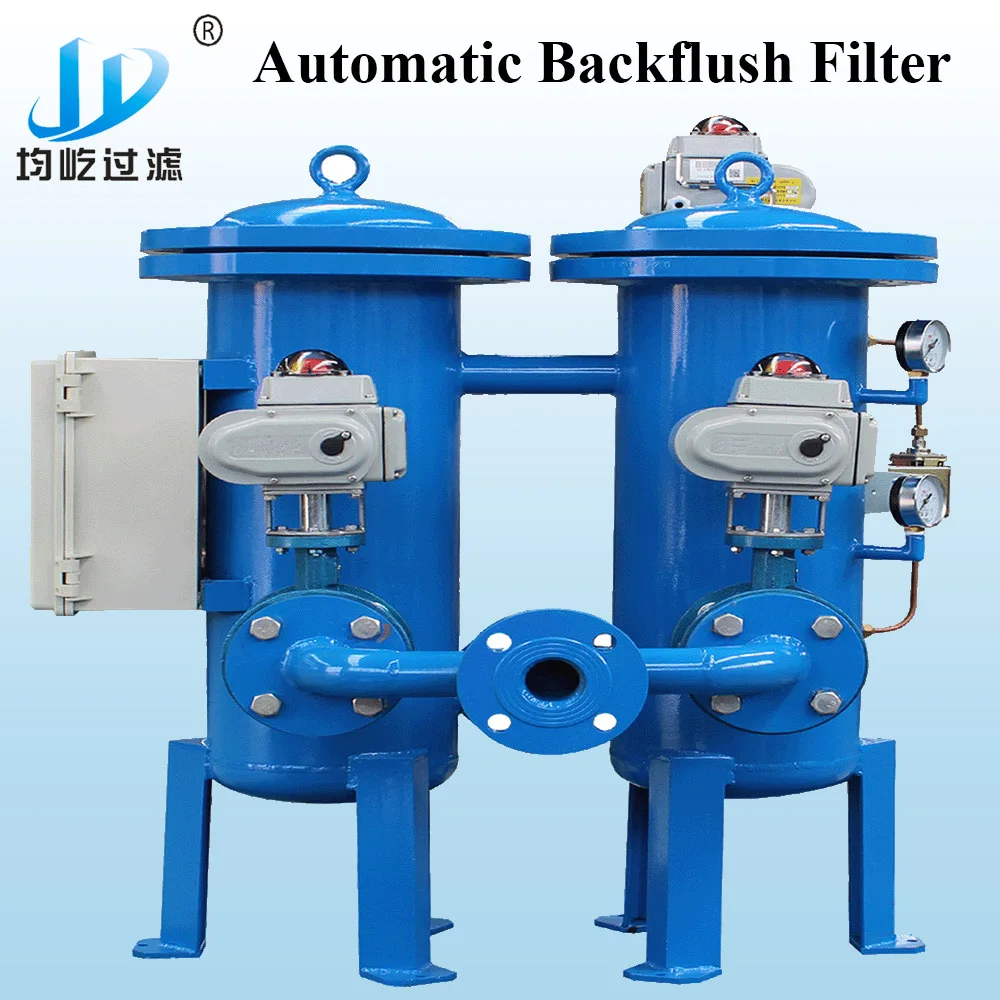

The Backflushing Filter is a precision equipment, which can remove the suspended solids/particles in the water, reduce the turbidity, reduce the system fouling, bacteria , algae and rust to purify the water quality and assure the normal operation of the system and other equipment. It can realize the automatic filtration/cleaning/slag discharging and no interruption during the backblushing.
Specification
Applicable liquid | All kinds of raw material, cooling water, process water and low viscosity liquid (<40 cps), the impurity content should be <300ppm. |
Working pressure difference | The pressure difference between the outlet of filter and the outlet of backflush >0.15MPA |
Filtration precision | 10----2,000um |
Standard designed pressure | 0.7MPA/1.0MPA |
Working temperature | 0-95℃ |
Flow range | 17--10,560M3/H |
Cleaning pressure difference | 0.05MPA-0.07MPA |
Control system | Siemens controller. Controlled by time and pressure difference. |
Gear motor | 180W/370W |
Inlet/outlet size | 2’’--24’’/DN50----DN1000 |
Anti-corrosion coating of inner surface | Epoxy coating, seawater resistance PA11, rubber lining |
Material of sealing | Butadiene/ EPDM/VITON |
Actuator of valve | Pneumatic or electric, IP65 Protection |
Valve of backflush | Butterfly valve/ ball valve |
Air required | 0.4---0.6MPA clean dry compressed air |
Working Principle
How the backflush filter works?

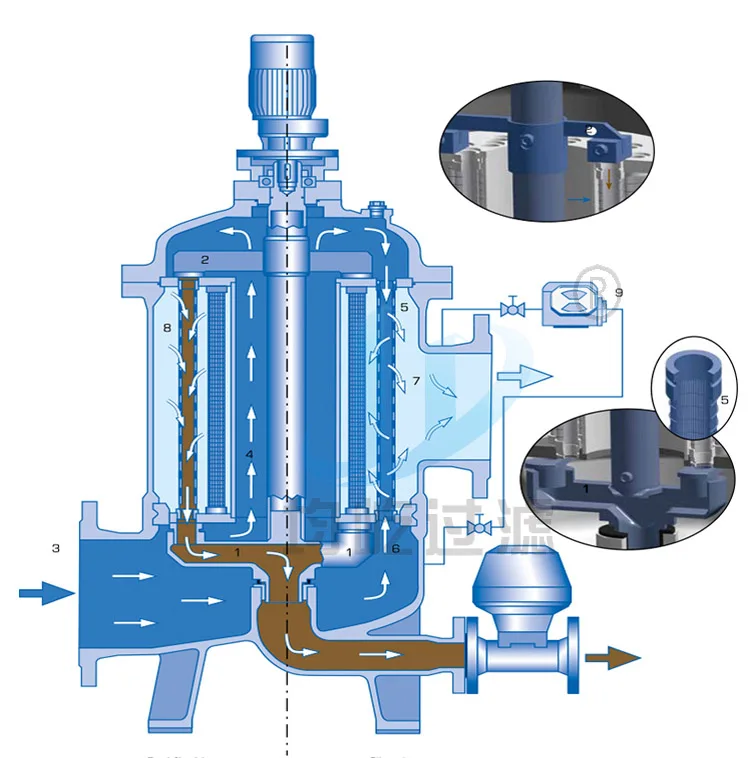

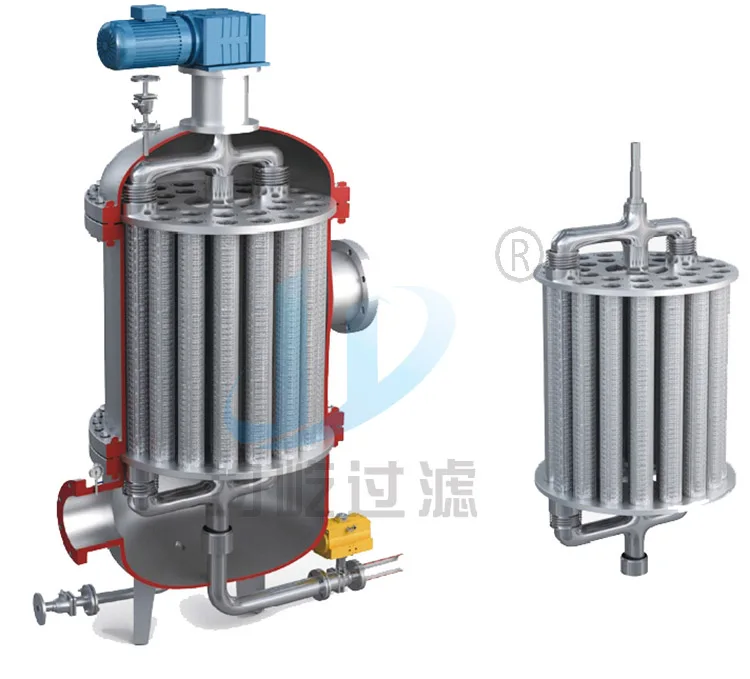

1. After the liquid has been fed into the automatic backflushing filter from the inlet (3), 50% unfiltered liquid will flow up to the top of the filter (4) from the middle first, then it will flow into the cartridge (5) from the top. The other 50% liquid flows into the cartridge (6) from the bottom directly.
2. After the liquid flows into the cartridge from the top and from the bottom at the same time and has been filtered, the clean filtered liquid will flow out from the outlet (7).
3. When it reaches to the set pressure difference or the time (9), the filter will start the backflushing automatically. The gear motor will drive the cleaning arm (1) to clean the cartridges one by one, at the same time the filtration will go on continuously.
4. When backflushed, the top of the cartridge will be blocked by the slider (2). The valve of the backflushing will be opened. Because of the pressure difference between the outside of the cartridge and the outlet of the backwash, the filtered clean liquid will rush to the internal surface (8) quickly. The impurities washed down will be discharged from the drain pipe.
2. After the liquid flows into the cartridge from the top and from the bottom at the same time and has been filtered, the clean filtered liquid will flow out from the outlet (7).
3. When it reaches to the set pressure difference or the time (9), the filter will start the backflushing automatically. The gear motor will drive the cleaning arm (1) to clean the cartridges one by one, at the same time the filtration will go on continuously.
4. When backflushed, the top of the cartridge will be blocked by the slider (2). The valve of the backflushing will be opened. Because of the pressure difference between the outside of the cartridge and the outlet of the backwash, the filtered clean liquid will rush to the internal surface (8) quickly. The impurities washed down will be discharged from the drain pipe.
Features
1. Automatic continuous filtration. The filtration will not stop when backflushing, reducing the stop time and the maintenance cost.
2. The control system can be customized to monitor the pressure of different kinds of the liquid and set the time.
3. Higher precision and larger filtration area.
4. Less pressure drop and higher backflushing efficiency.
5. Cover less space and easy to be installed.
6. The inlet and outlet can be adjusted based on the special requirements of each client.
2. The control system can be customized to monitor the pressure of different kinds of the liquid and set the time.
3. Higher precision and larger filtration area.
4. Less pressure drop and higher backflushing efficiency.
5. Cover less space and easy to be installed.
6. The inlet and outlet can be adjusted based on the special requirements of each client.
Application
Packing & Delivery
Packed in polywood.
