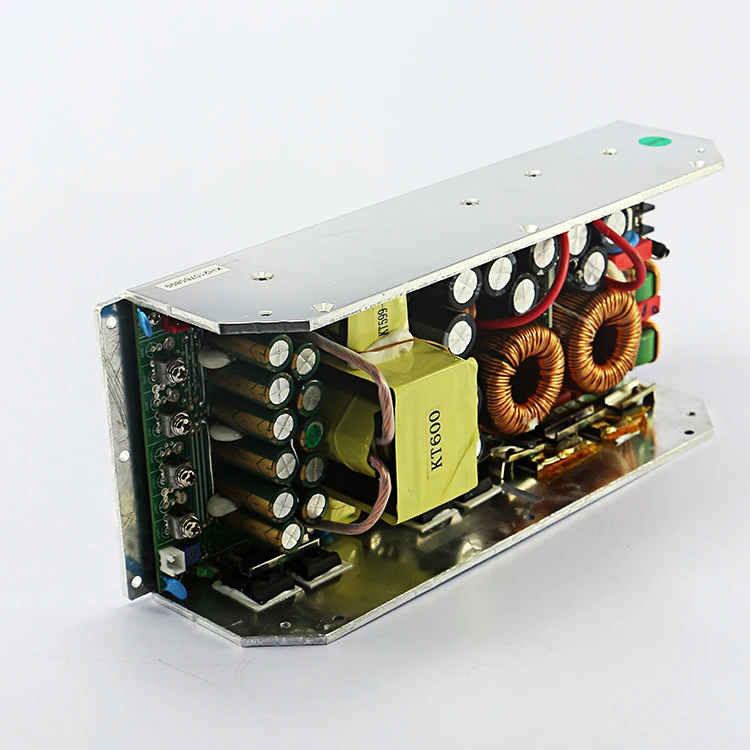

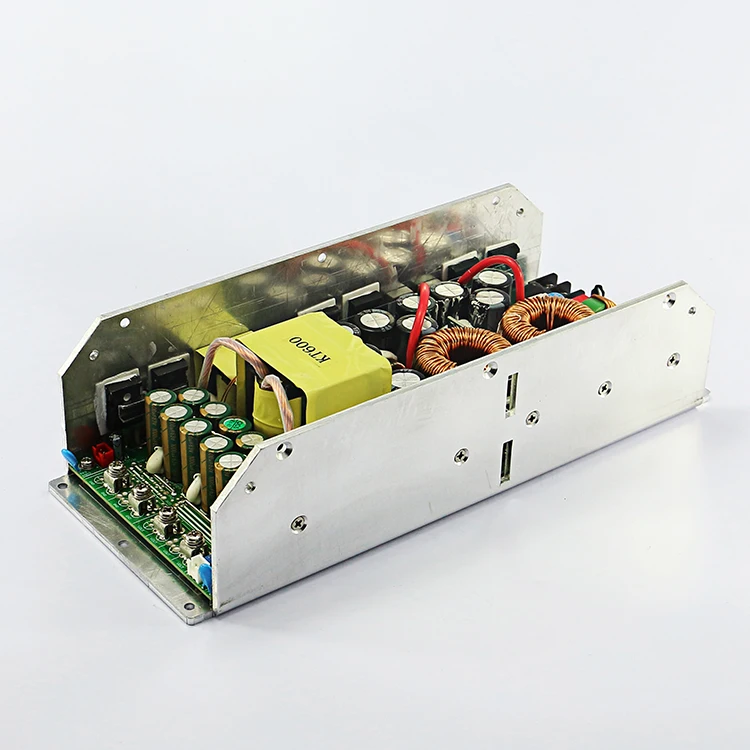

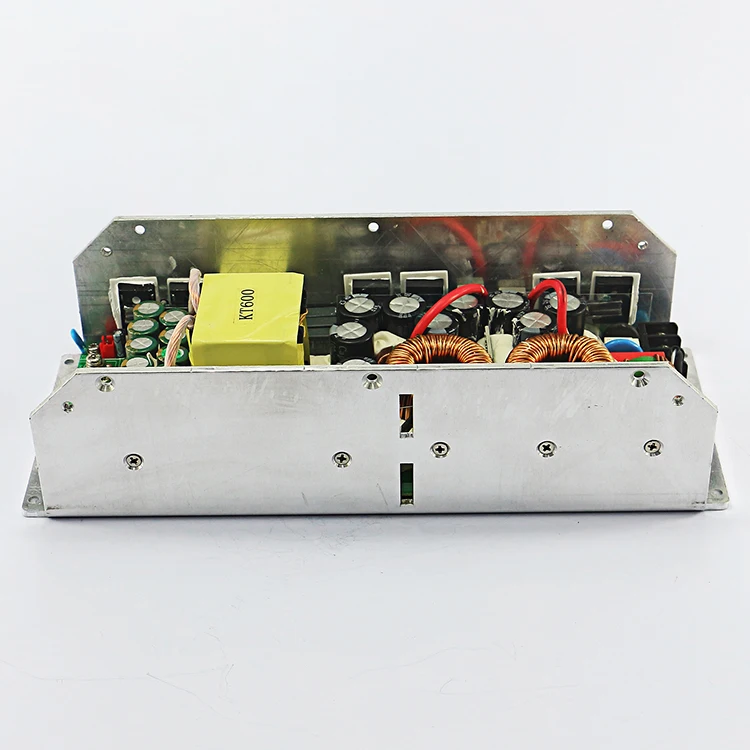

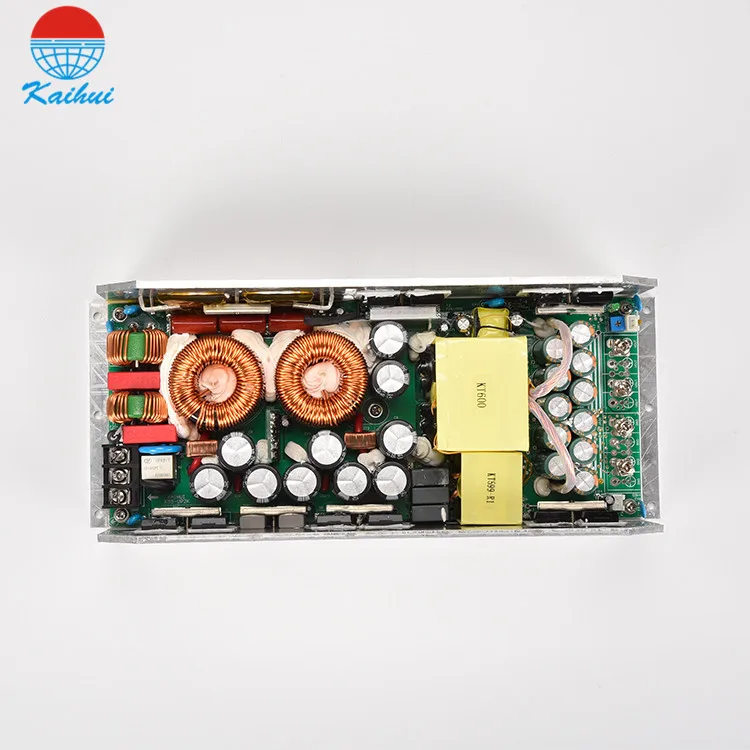

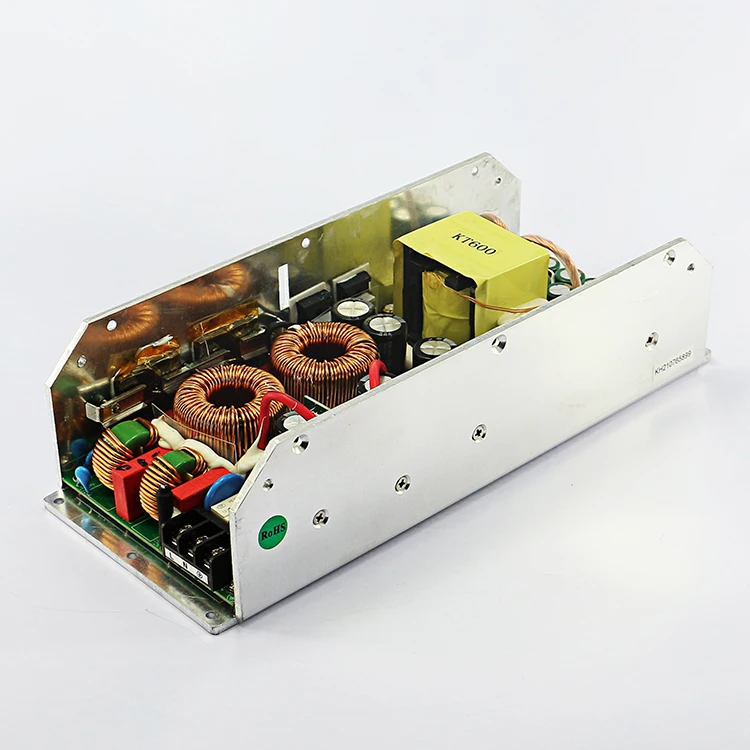

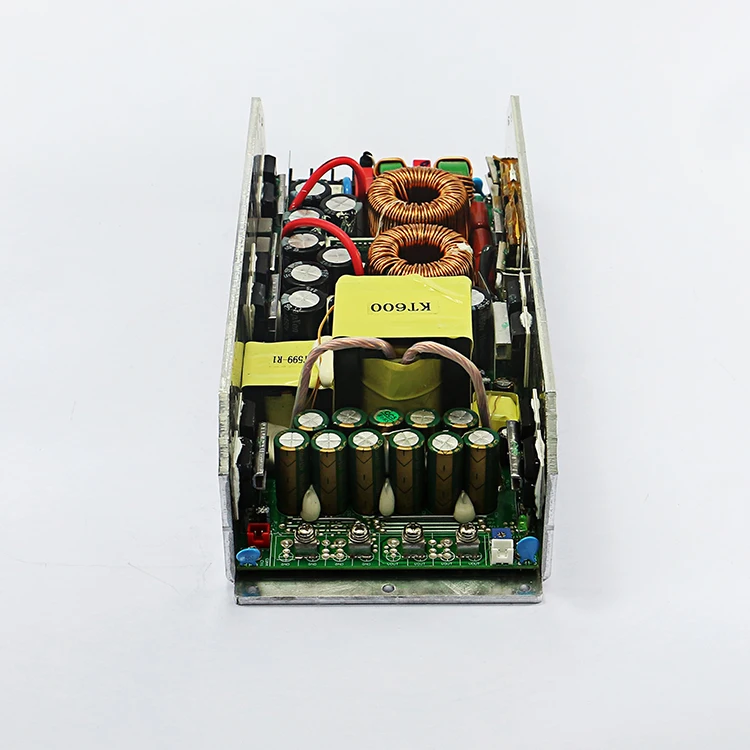

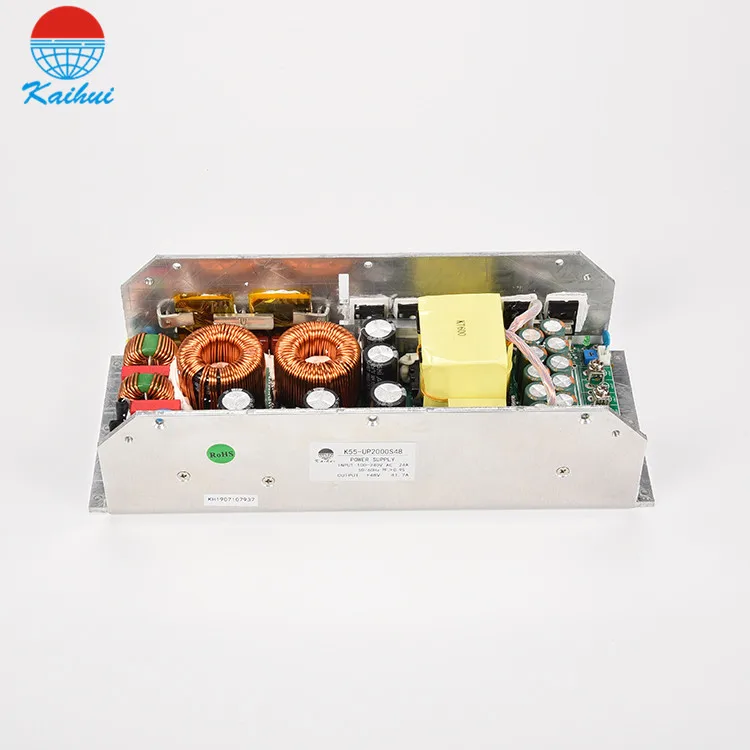

High Quality Ac Dc 2000w Switching Power Supply 12v 24v 36v 48v Output Voltage Current Adjustable With Display Charger Smps

1,Small size,high efficiency;

2,International universal full voltage input;

3,Built-in active PFC function;

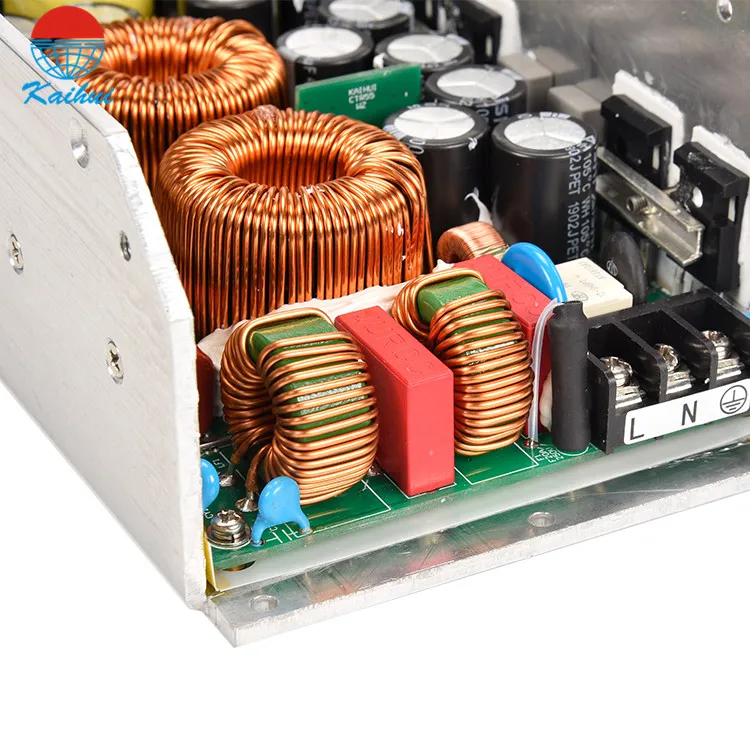

4,Built-in EMI filter, low noise,high reliability;

5,Overload,short circuit,low-voltage,over-voltage,over-temperature etc. protection function

 parameter           Item No.

K55-UP2000S12

K55-UP2000S24

K55-UP2000S30

K55-UP2000S36

K55-UP2000S48

OUTPUT

DC Output Voltage

+30V

+36V

+48V

 Rated Current

Rated power

Ripple

ADJ.output range

Output Accuracy

Line Regulation

±0.5%

Load Regulation

±1.5%

Set up,Rise,Hold up time

600ms,30ms,12ms

INPUT

Input Voltage range

Input current

9.5A/230Vac  21A/115Vac

Input frequency

50-60Hz

PF>0.98/115V  PF>0.95/230V

Efficiency

91.5%

92%

92%

92.5%

93%

PROTECTION

Short Circuit

Locked protection, Return to normal after restart

>120% Shut down,Locked protection,  Return to normal after restart

TS1 position>105℃ it will be protection, then automatic recovery

ENVIRONMENT

Working Temp.,Humidity

-20~70 ℃,10~90% RH , No condensation

Storage Temp.,Humidity

-20~85℃,10~95% RH.

Temp.Coefficeent

±0.03%/℃(0~50℃)

Vibration

10~500Hz, 2G 10min./1cycle, PERIOD FOR 60min. EACHAXES

SAFETY&EMC

Safety standards

GB4943 EN60950-1 EN62368

Pressure

I/P-O/P:3KV; I/P-FG:1.8KV;O/P-FG:0.6KV AC 1min

Insulation resistance

I/P-O/P, I/P-FG, O/P-FG:500VDC / 100M Ohms

EMC standards

EN55022 CLASS A

OTHER

Demension

275*115*70(L*W*H)

Weight

2Kg

MTBF

>50K hrs

12V/0.3A for driving a fan, tolerance±15%, Built-in fan forced air cooling

REMOTE ON-OFF CONTROL

Power ON: short     Power OFF:open

1 All parameters 230VAC input, rated load, ambient temperature 25 ℃, measured under conditions of 70% humidity;

2 Accuracy: includes set up tolerance, line regulation, load regulation and so on;

3 Ripple Test: 30cm long strands connect the power supply and the load on the load side and 0.1u and 47u capacitor to 20MHz oscilloscope measured at the load end;

4 Line regulation: at rated load conditions, the input voltage changes from low to high measured;

5 Load regulation: the measured output load from 0 to 100% load change measured.
