GYXTC8Y 4 6 8 12 FO Fig 8 Uni Tube Non Armored mini figure 8 Cable Micro Aerial fiber optic cable
- Category: >>>
- Supplier: Jiangsu EC Photoelectric Technology Co. Ltd.
Share on (1600692490892):
Product Overview
Description

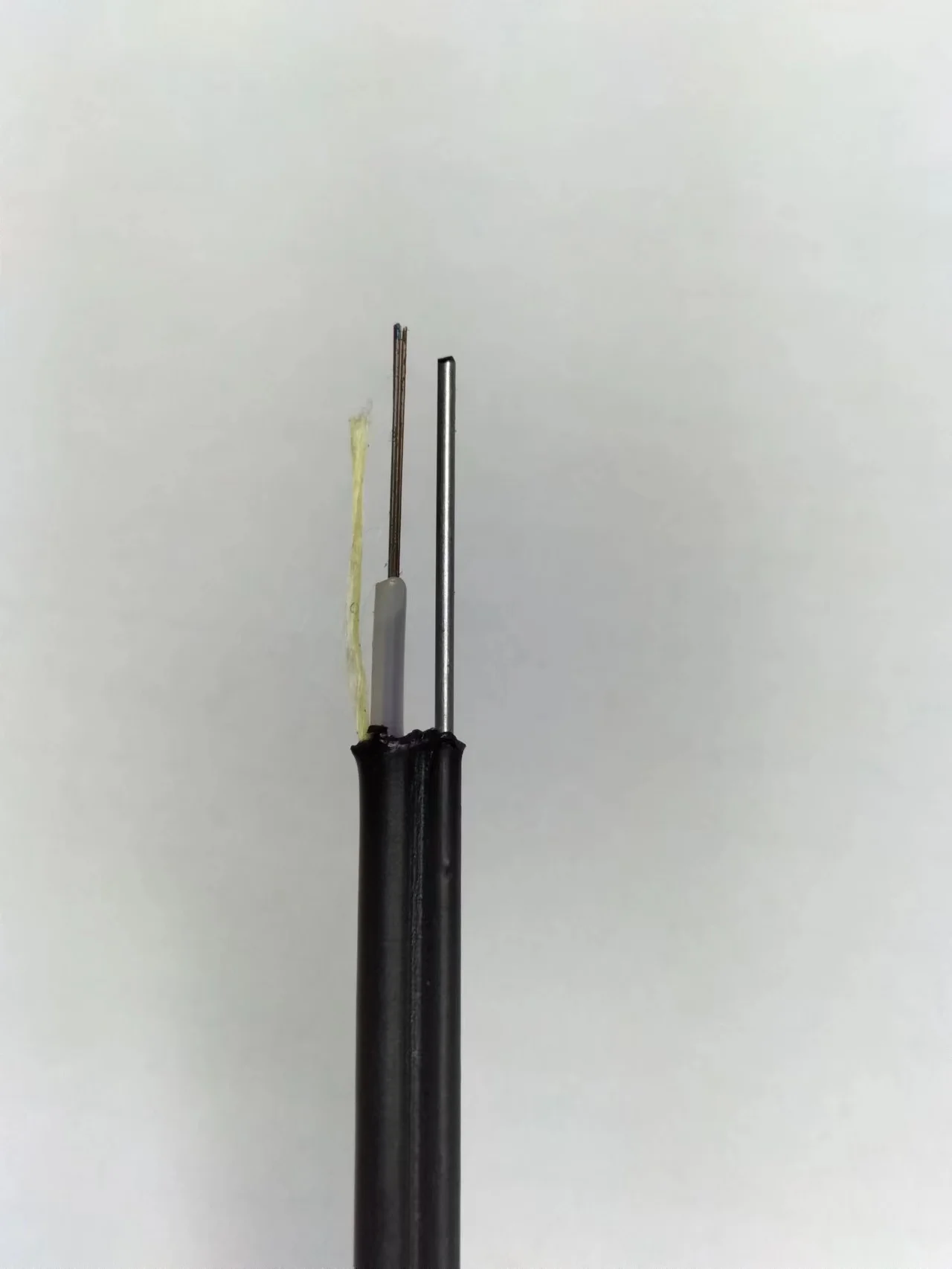

GYXTC8Y 4 6 8 12 FO Fig 8 Uni-Tube Non-Armored mini figure 8 Cable Micro Aerial fiber optic cable
Product Description

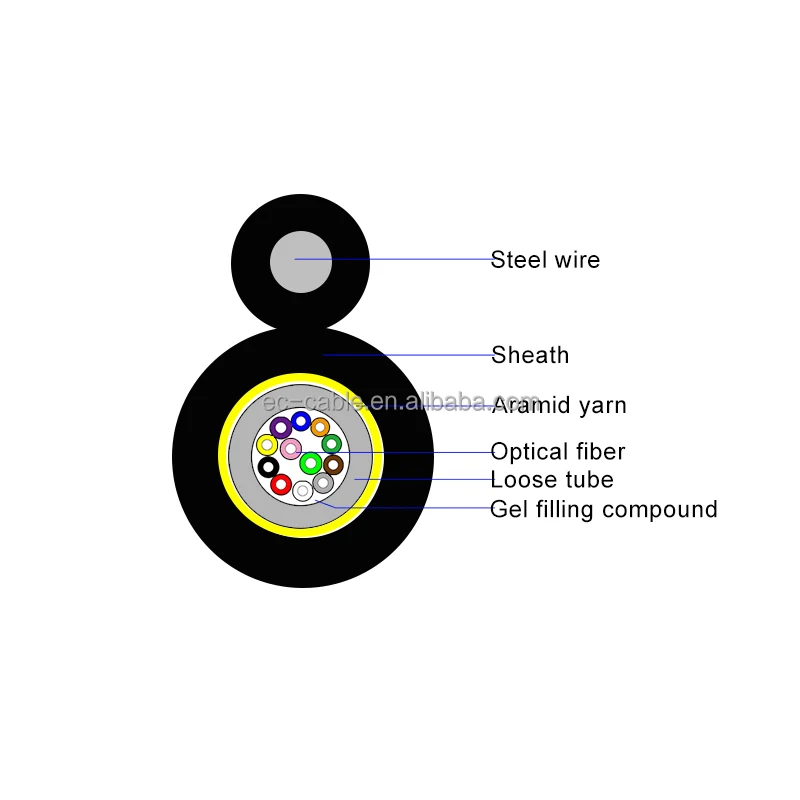

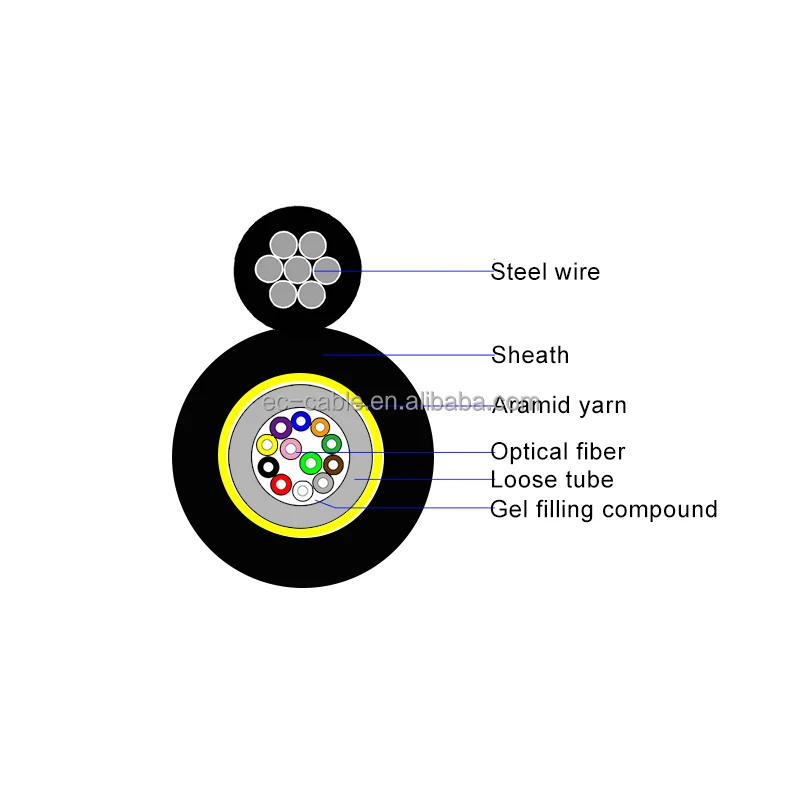

Uni-Tube Fig8 Self-Supported Cable with fibers placed in jelly filled loose buffer tube,All whole unit and galvanized steel messenger are covered with black polyethylene outer Sheath.
Uni-tube gel-filled construction for superior fiber protection.Uv and moisture-resistant design.Compact, easy to install.
Product Characteristics (GYXTC8Y)
Fiber: 2-12 fibers, Uni-loose tube gel-filled
outer Sheath:Black UV and moisture-resistant polyethylene (PE).
Messenger Wire: Phosphatized steel wire.
Applications
Interbuilding voice or data communication.
lnstalled aerially.
FTTX.
Fiber Type | G.652 | G.655 | 50/125um | 62.5/25um | |
Attenuation | 850 nm |
|
| ≤3.0dBkm | s3.3 dB/km |
1300 nm |
|
| ≤1.0 dB/km | ≤1.0 dB/km | |
1310 nm | ≤0.36 dB/km | ≤0.40 dB/km |
|
| |
1550 nm | ≤0.22 dB/km | ≤0.23 dBkm |
|
| |
Bandwidth | 850 nm |
|
| ≥500 MHz-km | z200 Mhz-km |
1300 nm |
|
| ≥500 MHz-km | z500 Mhz-km | |
Numerical Aperture |
|
| 0.200±0.015NA | 0.275±0.015NA | |
Cable Cut-off Wavelength Acc | ≤1260 nm | ≤1450 nm |
| ||
