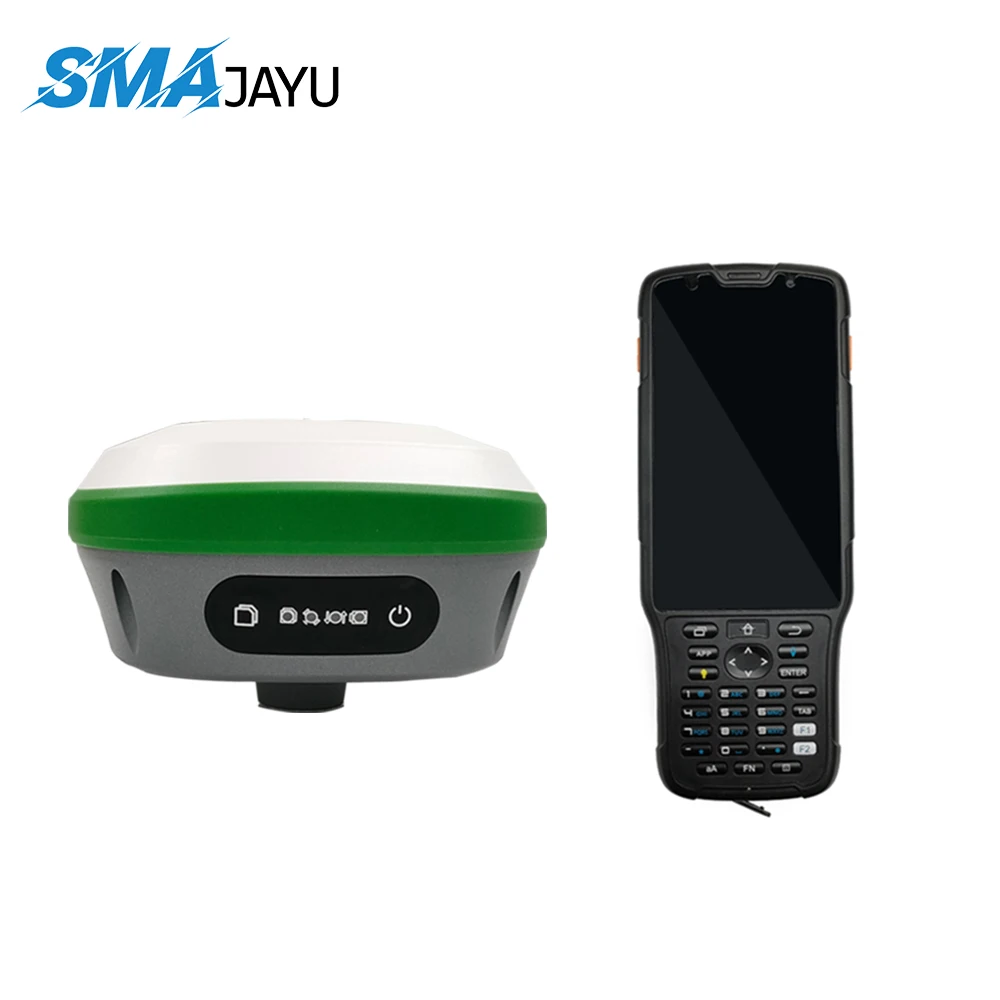

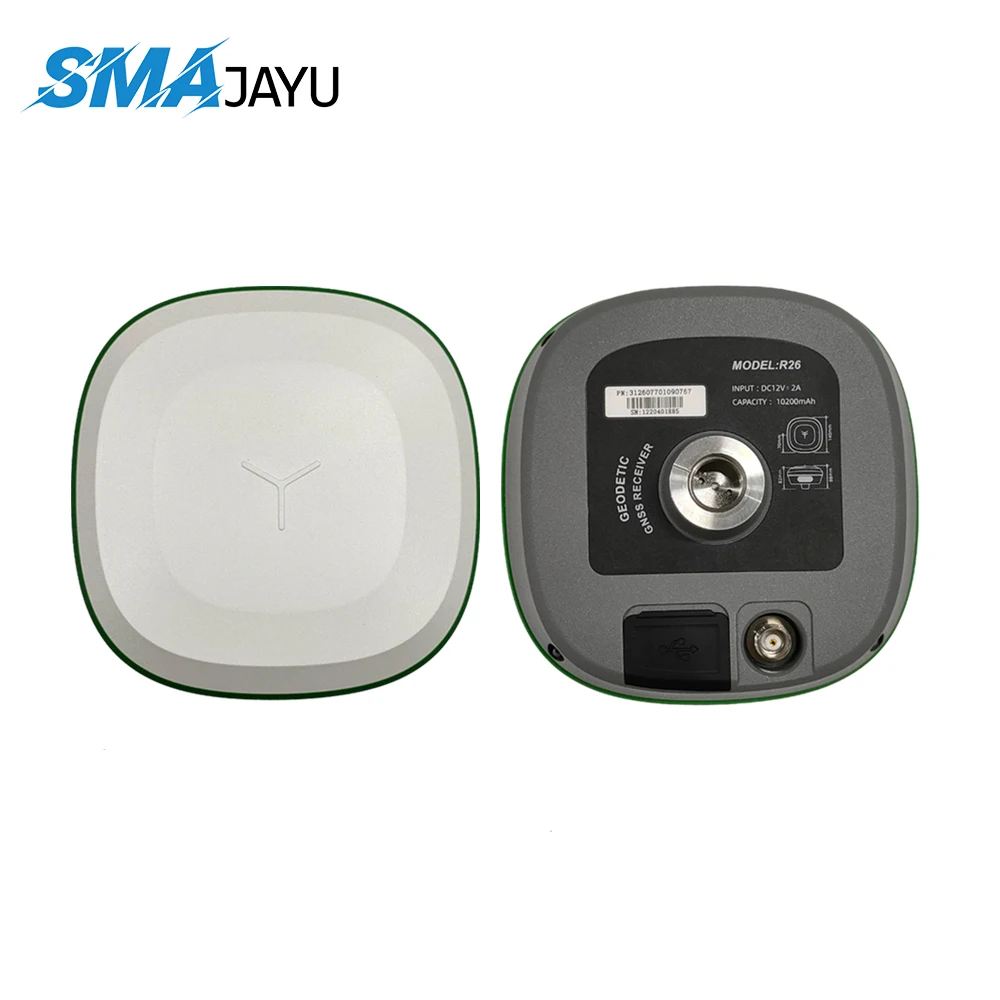

R26 High Precision GPS Survey Engineering Device GNSS Receiver
R26 High Precision GPS Survey Engineering Device GNSS Receiver
R26 High Precision GPS Survey Engineering Device GNSS Receiver
R26 High Precision GPS Survey Engineering Device GNSS Receiver
R26 High Precision GPS Survey Engineering Device GNSS Receiver
R26 High Precision GPS Survey Engineering Device GNSS Receiver

R26 High Precision GPS Survey Engineering Device GNSS Receiver

Share on (1600692636088):


Price:$3,500.00

Quantity:


Product Overview

Description



Product Description


R26 GNSS Surveying and Mapping System









Specification


Model
R26




GNSS Performance
Channels
432 channels based on Nebulas-Ⅱ
GPS
L1/L2/L5
GLONASS
L1, L2
Galileo
E1, E5a , E5b
BeiDou
B1I/B2I
QZSS
L1, L2, L5







GNSS Accuracies
Real time
kinematics(RTK)
Horizontal: 8 mm + 1 ppm RMS
Vertical: 15 mm + 1 ppm RMS
Initialization time:< 5 s Initialization
reliability: > 99.9%
Post-processing
kinematics (PPK)
Horizontal: 2.5 mm + 1 ppm RMS
Vertical: 5 mm + 1 ppm RMS
Post -processing
static
Horizontal: 2.5 mm + 0.5 ppm RMS
Vertical: 5 mm + 0.5 ppm RMS
Positioning rate
Default 1 HZ, Maximum 20 HZ
Time to first fix
Cold start: < 25 s
Hot start: < 10 s
Signal re-acquisition: < 1 s
RTK tilt - compensated
Tilt angle 0~60°, Tilt accuracy 25mm
(within 30° accuracy)










Hardware
Size (L x W x H)
140 mm x 140 mm x 88 mm
(5.5 in × 5.5 in × 3.5 in)
Weight
1.03 kg (2.27 lb)
Environment
Operating: -45°C to +75°C
(-49°F to +167°F)
Storage: -55°C to +85°C
(-67°F to +185°F)
Humidity
100% condensation
Ingress protection
IP67 waterproof and dustproof,
protected from temporary immersionto
depth of 2 m
Shock
Survive a 2-meter pole drop
Tilt sensor
Calibration - free IMU for pole - tilt
compensation. Immuneto magnetic
disturbances.
Front panel
4 LED indicates
2 physical buttons









Communication
Blue-tooth
v 4.0, Backward compatible with BT2.x
Ports
1 x 9 PIN aviation plug, including power
supply, COM RS232, CONFIG，RS232.
1 x UHF radio antenna interface
Build-in UHF radio
Standard Internal Rx/Tx:
410 - 470 MHz/840MHz
Transmit Power: 0.5 W to 2 W Protocol:
Transparent, TT450S,Trimtalk,
TRMMARK3, SOUTH, SATEL
External Radio
Frequency: 410-470MHz
Transmitting power: 35W
Working Range: 15-20Km
Data formats
Link rate: 9600 bps to 460800 bps
Range: Typical 5 km to 8 km
RTCM2.x, RTCM3.x, CMR
Data storage
8 GB internal memory
Electrical
Power consumption
5 W (depending on user settings)
Li -ion battery capacity
10200mAh
Operating time on
internal battery
20h(Rover)
10h(Base)
External power input
9 V DC to 36 V DC
Power consumption
As Rover<4.0W
As Base<10.5W


Model
Handheld LP80
CPU
8 cores 2.0GHz
Operating system
Android 8.1
RAM
4GB
Display size/type
5 inch IPS highlight screen
Camera
Rear 13 million auto-focus camera; high-brightness LED flash
Front 5 million fixed focus camera
Resolution
720*1280
Touch screen
5-point capacitive touch screen
Dimension
207*84*20mm
Weight (including battery)
360g
Battery capacity
7000mAh
Charging method
PE fast charge, fully charged within 4 hours
Blue-tooth
BT4.1 BLE
GPS
GPS+BD+GLONASS
Data communication
FDD-LTE B1/B3/B5/B7/B8
TDD-LTE B38/B39/B40/B41
TDSCDMA B34/B39
WCDMA B1/B2/B5/B8
GSM B2/B3/B5/B8
CDMA1x/CDMA2000 BC0/BC1
Audio
Front dual stereo speakers, volume 90db±3db (test distance 10cm)
Sensor
Geomagnetism, acceleration, light sensing distance
Expansion card slot
Expandable up to 128G memory card
External interface
USB-TypeC, support fast charge, support OTG, Bottom charging contacts for cradle charging
Button
30 keys + 2 volume keys + 1 power key
method to informe
Sound, vibration, LED prompt
Operating temperature
20℃ + 55℃
storage temperature
 -30℃ + 70℃
Working humidity
Humidity 5% to 95%
Dustproof and waterproof
 IP67
Certification and test report
CCC、CTA、CE
Fall
6 sides can withstand the impact of falling to the concrete floor from a height of 1.5 meters
Static Protection
±15kV air discharge, ±8kV contact discharge
PSAM card (smart encryption card)
optional
RFID (High Frequency)
Supported protocols: ISO14443A/B, ISO15693, NFC Reading distance: 0~5cm


Company Information




FAQ


1. Who are we?
SMAJAYU is an America registered brand born for agriculture navigation system. And it is developed from SZFP TECH which is a 13 years R&D and marketing experienced professional enterprise in mobile pos terminal field. Its products already deployed in more 30 countries.
SMAJAYU GPS guidance system and auto steering system is designed for new agriculture and is completed system including software and hardware for precision and intelligent farming.

2. How can we guarantee quality?
IP67 level protection
Remote faulty diagnosis which can help farmer wherever you are!
Remote software upgrade supported.
2 years warranty
Always a pre-production and market testing before mass production;
Always final Inspection before shipment;

3.What can you buy from us?
EFT POS Terminal,Mobile POS,and PDA solution with agriculture system

4. Why should you buy from us not from other suppliers?
Smajayu Agriculture Navigation system is the first and the most used in China agriculture field.
Experienced team in Agriculture navigation system.
Great Quality recognized and praised by buyer.

5. What are the terms to buy ?
Accepted Delivery Terms: EXW,FCA,CPT,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,AUD,HKD,GBP,CNY;
Accepted Payment Type: T/T,PayPal,Western Union;
24 hours online service for help.
