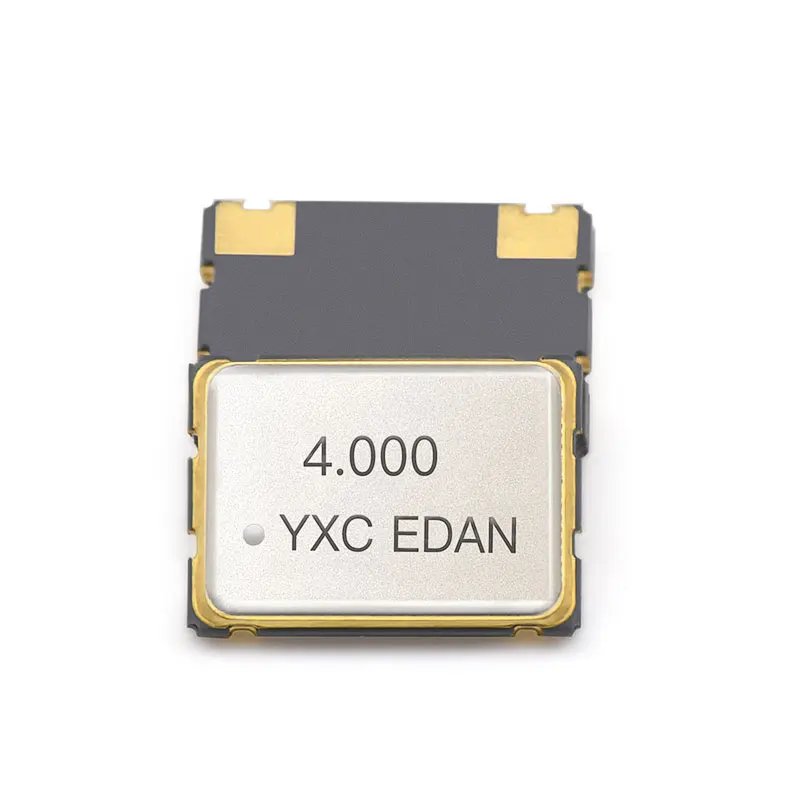

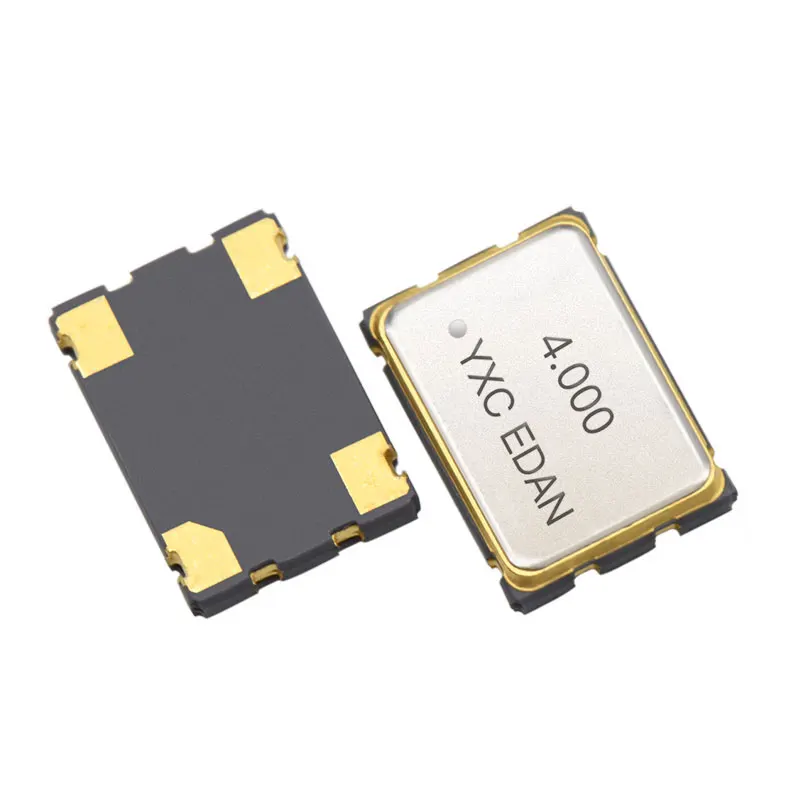

7.0 x 5.0 mm SMD 1.8V 4M 4 MHz Active Quartz Crystal Oscillator 4MHz
- Category: Oscillators old >>>
- Supplier: Yqm Electronics Intl Limited
Share on (1600692636738):
Product Overview
Description
Specifications

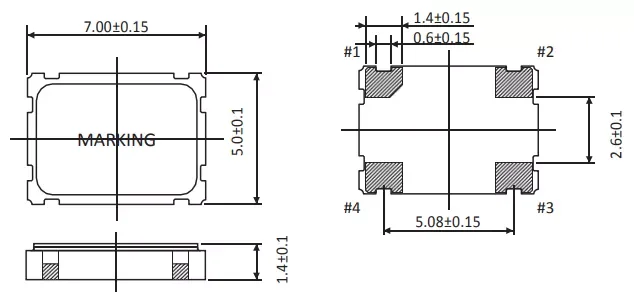

External Dimensions
Electrical Specifications
Item / Type | YSO110TR |
Output Frequency Range | 1MHz to 54MHz |
Dimensions | 1.6 x 1.2 x 0.60 mm 2.0 x 1.6 x 0.85 mm 2.5 x 2.0 x 0.80 mm 3.2 x 2.5 x 0.90 mm 5.0 x 3.2 x 1.20 mm 7.0 x 5.0 x 1.40 mm |
Output Type | CMOS |
Supply Voltage | 1.8V~3.3V |
Oscillator Mode | Fundamental |
Frequency Tolerance (at 25 ℃) | ±10 ppm, ± 20 ppm, or specify |
Output Load | 15pF, or specify |
Operating Temperature | -40 ~ +85 ℃, or specify |
Frequency Versus Temperature Characteristics | ±20 ppm, ± 30 ppm, ± 50 ppm, or specify |
Storage Temperature | - 55 ~ + 125 ℃ |
Voltage Vol ( Max. ) / Vol ( Min. ) | VOH=90%Vdd/ VOL=10%Vdd max |
Duty Cycle | 45~55% |
Rise ( Tr ) / Fall ( Tf ) Time | 4nsMax. |
Start-up Time | 3msMax. |
Frequency Aging (at 25 ℃) | ± 3 ppm / year Max. |
REMARK:SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT PRIOR NOTICE. PLEASE CONFIRM WITH OUR SALES ENGINEER FOR PDF FILE.
