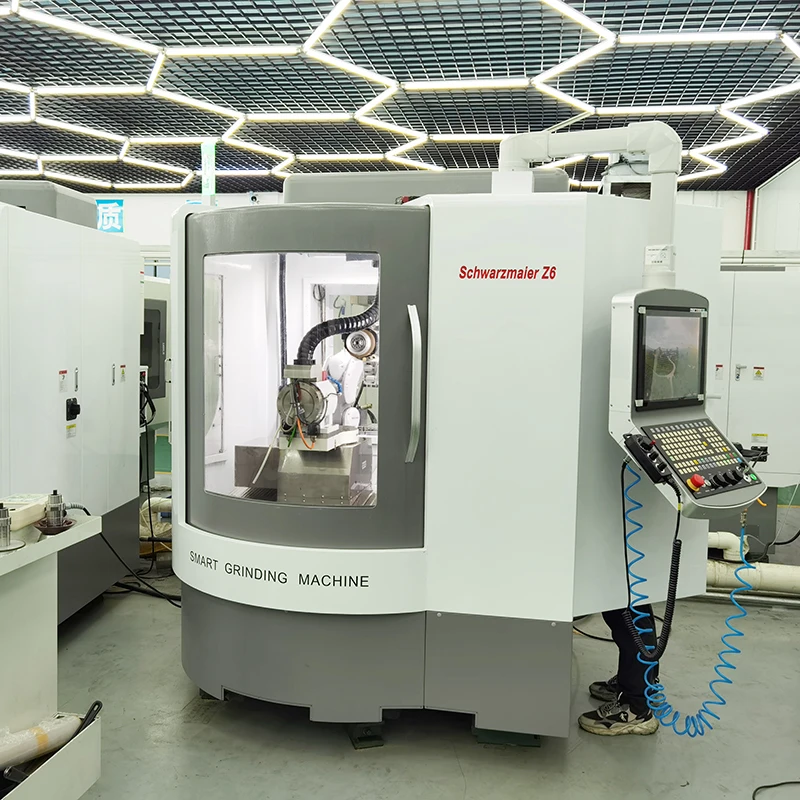

Customized Six Axis CNC Tool Grinder
- Category: >>>
- Supplier: Dongguan,Qiandao,Precision,Machinery,Manufacture,Co.,Ltd.
Share on:
Product Overview
Description
Product Description
QD680 is a six-axis CNC tool grinding machine. The machine tool, through the corresponding tool grinding software, can
automatically complete the grinding of bar tools with outer diameter of 0.5~12 mm and length of 0~150 mm. By clamping different
grinding wheel flange components, it can also complete the axial slotting, front angle and rear angle sharpening of special tools
at one time, greatly improving the work efficiency, eliminating the positioning error caused by multiple times of clamping, and
improving the grinding precision. It especially applies to tool manufacturing and regrinding by tool manufacturers and production
enterprises.
automatically complete the grinding of bar tools with outer diameter of 0.5~12 mm and length of 0~150 mm. By clamping different
grinding wheel flange components, it can also complete the axial slotting, front angle and rear angle sharpening of special tools
at one time, greatly improving the work efficiency, eliminating the positioning error caused by multiple times of clamping, and
improving the grinding precision. It especially applies to tool manufacturing and regrinding by tool manufacturers and production
enterprises.

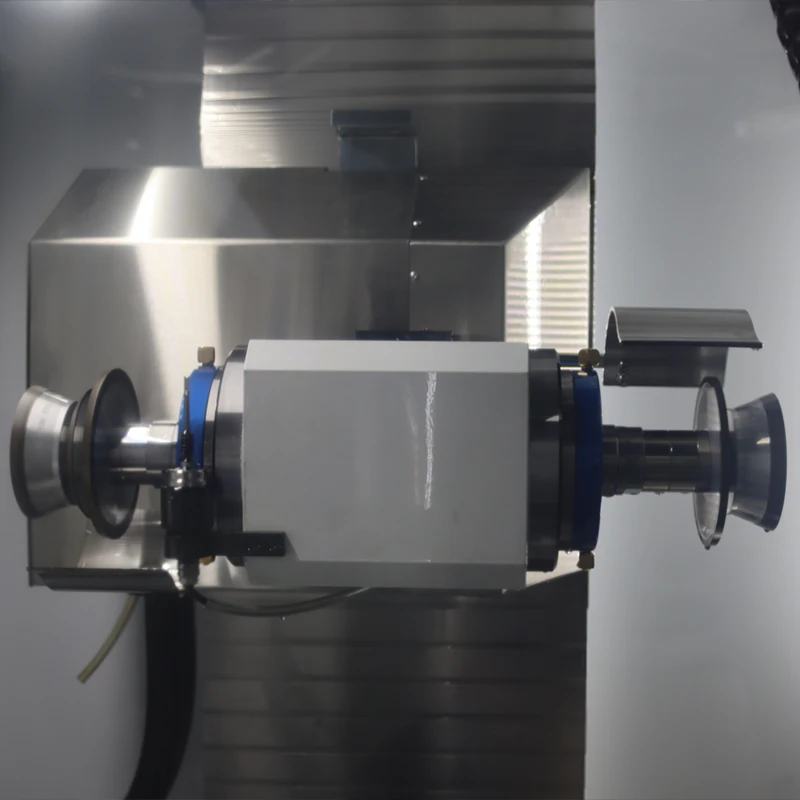

1. Motorized spindle: The grinding wheel spindle adopts a constant torque double-shaft grinding head, and the shaft can be
equipped with two sets of grinding wheels at the same time, with the coarse and fine grinding wheels separated, improving the
grinding efficiency. The motorized spindle adopts grease lubrication, air seal, and oil cooler for cooling to ensure the stability
of continuous long-time operation and prolong the service life of the spindle.
2. The A-axis adopts high-rigidity direct drive motor, and a built-in encoder for a full closed-loop control. This enables the
rotating shafts to have the characteristics of fast response speed, accurate indexing, high rigidity and no gap, thereby obtaining
high-quality grinding quality.
3. Headstock: Pneumatic clamping device is adopted, which makes clamping convenient and fast.
4. X, Y, and Z axes: The precision four-direction equal-load ball linear guide pair and the precision ball screw drive are
adopted. All the three axes are equipped with inner shield which is well protective, beautiful and durable.
5. Electric cabinet: The electric cabinet is equipped with cooling system, and the electrical components can work at constant
temperature to improve the stability and service life of all components.
6. Shield: The whole machine tool is fully sealed for protection, with a sliding door at the front, a maintenance door at the
left, and an automatic feeding door at the rear, making observation, clamping, and maintenance easy and convenient. The top of the
shield is equipped with fog absorption device and automatic fire extinguishing device, which are environment-friendly and safe.
equipped with two sets of grinding wheels at the same time, with the coarse and fine grinding wheels separated, improving the
grinding efficiency. The motorized spindle adopts grease lubrication, air seal, and oil cooler for cooling to ensure the stability
of continuous long-time operation and prolong the service life of the spindle.
2. The A-axis adopts high-rigidity direct drive motor, and a built-in encoder for a full closed-loop control. This enables the
rotating shafts to have the characteristics of fast response speed, accurate indexing, high rigidity and no gap, thereby obtaining
high-quality grinding quality.
3. Headstock: Pneumatic clamping device is adopted, which makes clamping convenient and fast.
4. X, Y, and Z axes: The precision four-direction equal-load ball linear guide pair and the precision ball screw drive are
adopted. All the three axes are equipped with inner shield which is well protective, beautiful and durable.
5. Electric cabinet: The electric cabinet is equipped with cooling system, and the electrical components can work at constant
temperature to improve the stability and service life of all components.
6. Shield: The whole machine tool is fully sealed for protection, with a sliding door at the front, a maintenance door at the
left, and an automatic feeding door at the rear, making observation, clamping, and maintenance easy and convenient. The top of the
shield is equipped with fog absorption device and automatic fire extinguishing device, which are environment-friendly and safe.
Specification
MODEL | QD680 |
CNC system | SYNTEC 210MA-5E |
Grinding software | QIANDAO |
Max diameter of workpiece （Bar) | 10mm |
Max grinding length | 150mm |
Max groove depth | 10mm |
Max weight of workpiece | 10Kg |
Max motor power of grinding head(Direct drive motorized spindle ) | 11KW |
The size of the grinding wheels(CBN and diamond) | Φ50～Φ200mm |
Motorized spindle revolving speed( frequency control) | 1000-6000rpm |
Travel Y-axis | 320(-100～220)mm |
Travel of the operating platform(X/Y/Z) | X：285 / Y：300 / Z：320 |
Linear axis rapid traverse speed | 15m/min |
Workpiece spindle revolving speed (A-axis) | 200rpm |
A-axis rotation angle | ∞ |
Pneumatic clamping workpiece range | 3~16mm |
Max rotation speed (C-axis) | 75rpm |
C-axis rotation range | 175°（-15°~+160°） |
Workpiece spindle center height | 140mm |
Workpiece spindle runout | ≤0.005mm |
Grinding head spindle runout | ≤0.005mm |
Cylinder clamping force adjustment range | 800-1000kg |
Linear resolution | 0.00lmm |
Rotating axis resolution | 0.00l° |
Cooling pump power | 3P |
Source | AC 380V 50HZ (three-phase) |
Total machine power | 18KW |
Machine size | 1600×1550×2100mm |
Machine weight( approximately) | 3.5T |
Packing & Delivery
Wooden case packing
